This product is not available anymore.
-
The system:
safe, ergonomic, economicalThe hand unit in comparison with conventional intraosseous systems is significantly smaller, thinner and lighter.
The individual dose of anaesthetic is easily pre-settable. The injection needles developed by W&H are perfectly aligned with the demands of the intraosseous procedure.Your advantages at a glance
- The handpiece can be operated on any air or electric motor with an ISO connection
- Improved time management
- Instant pain relief
- Less anaesthetic required
- No long-lasting numbness
- Simple to operate

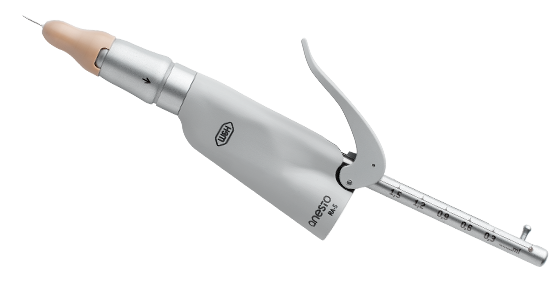

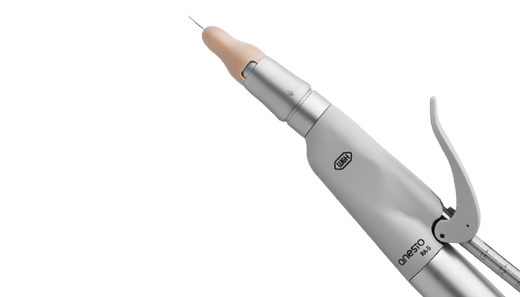

![Anesto system RA-5]( "Anesto system RA-5")
Anesto system RA-5
consists of: handpiece, needle clamping device,
needle changer, safety sleeve and a set of
disposable injection-needlesRA-5
REF 11130501
Download Area
FAQ
- Anaesthetic leaks out of the handpiece
- We know that when a tooth is extracted an injection should be used to numb various nerve structures. In the case, for example, of mandibular anaesthesia, it is expected that correct placement of the conduction anaesthesia should numb the N. mandibularis and the N. lingualis. How does that work with Anesto?
- Anaesthetic emerges from the deep tissue along the needle.
- How does adrenaline affect blood flow in the spongiosa?
- What effect does needle speed have?
- Should the injection pressure be memorized and what injection speed should be used?
- Anaesthetic cannot be injected because the needle is blocked. What needs to be done? What can the person performing the treatment do to avoid the needle becoming clogged?
- Can I also use standard needles? What is different about the intraosseous injection needles?
- Incomplete anaesthesia
- Do we need a new cannula for each patient?
- Do you have to use a new cannula for a new injection site?
- Broken needle
- Aspiration option using the Anesto handpiece.
- Risk of damaging a vessel.
- Risk of damaging a tooth root.
- Rupture of the mucosa.
- If you are dealing with a small amount of anaesthetic, do you have to change the cartridge with this system?
- Can surface bacteria spread into the tissue?
- Does penetration through the cortical bone hurt and is the anaesthetic application painful?
- Can you implement intraosseous anaesthesia in every area of bone or are there problem areas?
- Post-operative side effects (a feeling of numbness in the tongue or lip, paresthesia, secondary bleeding)
- We know from the recognized anaesthesia procedures that anaesthesia can fail. What is the success rate with Anesto?
- Does thermal necrosis occur with intraosseous anaesthesia? General risk of necrosis?
- How do you charge for Anesto?
- What do we need for intraosseous anaesthesia?
- Can the Anesto system be sterilized?
- Is palatal application also possible or sensible?
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Videos & Tutorials
-
Handpiece RA-5 Reduction gear ratio: 1.4 : 1 Motor coupling according to Norm: ISO 3964 Motor rotation speed (rpm): min. 15,000 – max. 25,000 Needle dimensions: Ø 0.55 x 9 mm Applicable intraosseous
injection needles:authorized by W&H only Applicable cylindrical ampoules: 1.7 ml / 1.8 ml (EN ISO 11499)
or 2.2 mlDosage: dosage lever pressed down
completely 1x equates to 0.1 ml injection
