Alegra Straight and Contra-angle Handpieces

Durable, compact and precise

With Alegra dental straight and contra-angle handpieces from W&H
the treatment of your patient is very efficient and extremely safe.

Restoration & Prosthetics

Restoration & Prosthetics

System Overview

* Multiflex® is a registered trade mark of Kaltenbach & Voigt GmbH, Germany
** also with other coupling versions available
*** Contra-angle handpieces of the Synea Vision Short Edition can be used on micromotors with an ISO coupling length of 23 mm or less.

  • Alegra Straight and Contra-angle Handpieces without light

    Outer diameter of the sheath: 20 mm

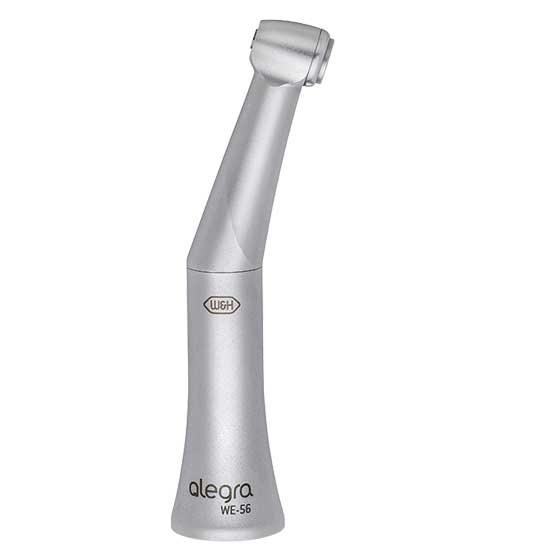

    Alegra Contra-angle handpiece without light WE-56

    Small head and ergonomic design

    The Alegra straight or contra-angle handpiece is comfortable in the hand. Thanks to the excellent ergonomics, the straight and contra-angle handpieces from W&H prevent excessive strain on your hands during preparation. The small contra-angle head allows optimal view of the treatment site.

    Your advantages at a glance

    • Robust and durable
    • Ergonomic design
    • Simple bur changing with the push-button chucking system
    • Thermo washer disinfectable and sterilizable
    • External coolant supply (spray clip, coolant hose, nozzle cleaner) available as accessories
    Thermo washer disinfectable and sterilizable

    Thermo washer disinfectable
    Sterilizable

    //a.storyblok.com/f/45617/3ee5da2650/thermo-steri_overlay.jpg
    Alegra straight and contra-angle handpieces are thermo washer disinfectable and sterilizable.

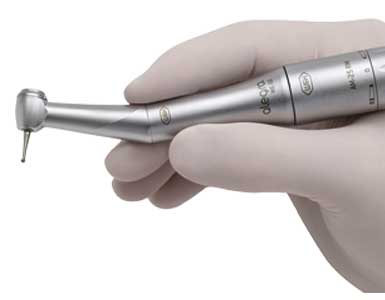

    Perfect balance

    Perfect balance

    //a.storyblok.com/f/45617/9e20ed0b87/perfect-balance_overlay.jpg
    The dental straight handpiece or dental contra-angle handpiece is comfortable in the hand and is perfectly balanced with the micro air motor.

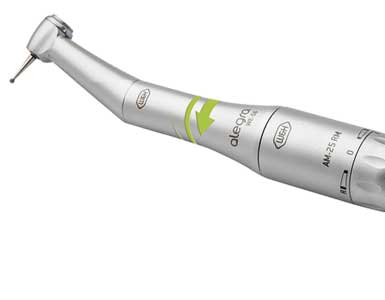

    Excellent ergonomics

    Fatigue-free operation

    //a.storyblok.com/f/45617/99de4fb9f9/excellent-ergonomics_overlay.jpg
    The easy 360° rotation of the Alegra straight or contra-angle handpiece on the micro air motor, the low overall weight and the slender design ensures fatigue-free operation.

    WE-56

    Dental contra-angle handpiece with
    push-button chucking system,
    for contra-angle burs with Ø 2.35 mm (ISO 1797-1)
    Drive speed: 40,000 min-1
    Motor connection according to standard: ISO 3964
    Outer diameter of the sheath: 20 mm

    WE-56
    REF 30116000

    Contra-angle handpiece 1:1
    Head size: Ø 10.1 mm
    Head height (with 19 mm bur): 20.8 mm

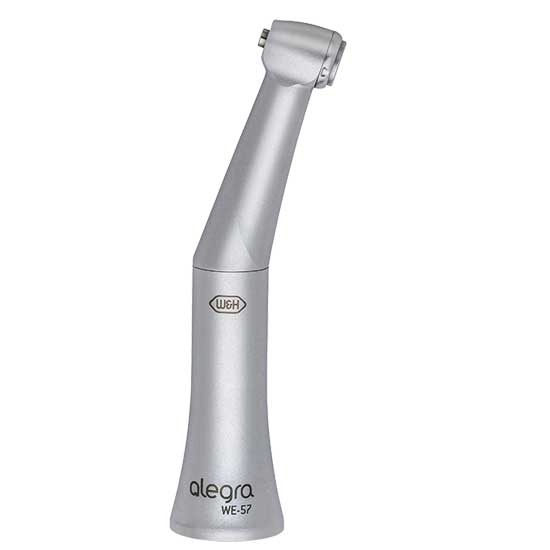

    WE-57

    Dental contra-angle handpiece with
    push-button chucking system,
    for FG burs with Ø 1.6 mm (ISO 1797-1)
    Drive speed: 40,000 min-1
    Motor connection according to standard: ISO 3964
    Outer diameter of the sheath: 20 mm

    WE-57
    REF 30117000

    Contra-angle handpiece 1:1
    Head size: Ø 10.1 mm
    Head height (with 19 mm bur): 22.7 mm

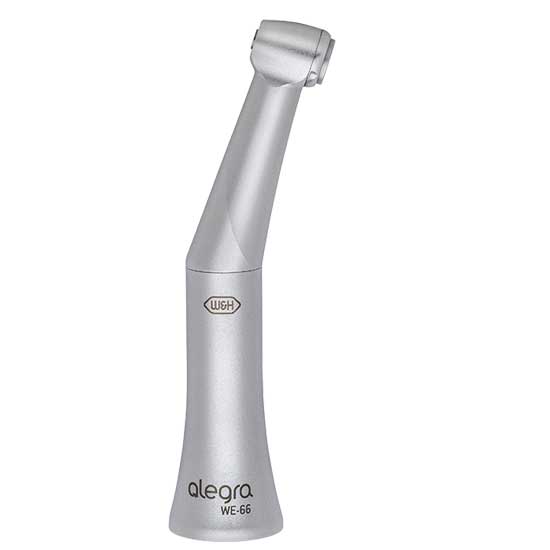

    WE-66

    Dental contra-angle handpiece with
    push-button chucking system,
    for contra-angle burs with Ø 2.35 mm (ISO 1797-1)
    Drive speed: 40,000 min-1
    Motor connection according to standard: ISO 3964
    Outer diameter of the sheath: 20 mm

    WE-66
    REF 30118000

    Contra-angle handpiece 4:1
    Head size: Ø 10.1 mm
    Head height (with 19 mm bur): 20.8 mm

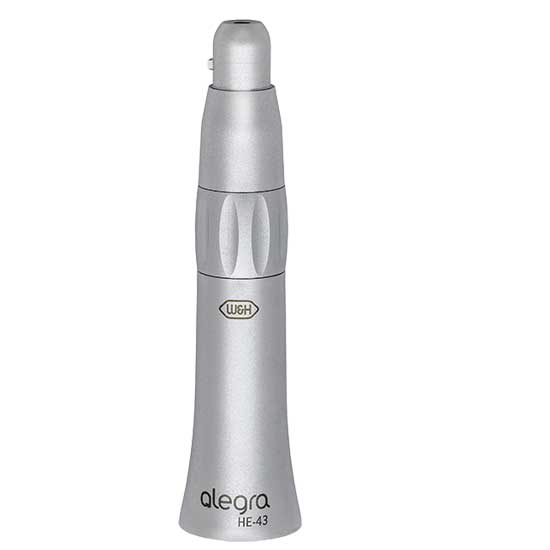

    HE-43

    Dental straight handpiece with
    twist tension chucking system, for handpiece and contra-angle burs with Ø 2.35 mm (ISO 1797-1)
    Drive speed: 40,000 min-1
    Motor connection according to standard: ISO 3964
    Outer diameter of the sheath: 20 mm

    HE-43
    REF 30119000

    Straight handpiece 1:1



    An external coolant supply (spray clip, coolant hose, nozzle cleaner) for Alegra straight and contra-angle handpieces without light is available as accessories.

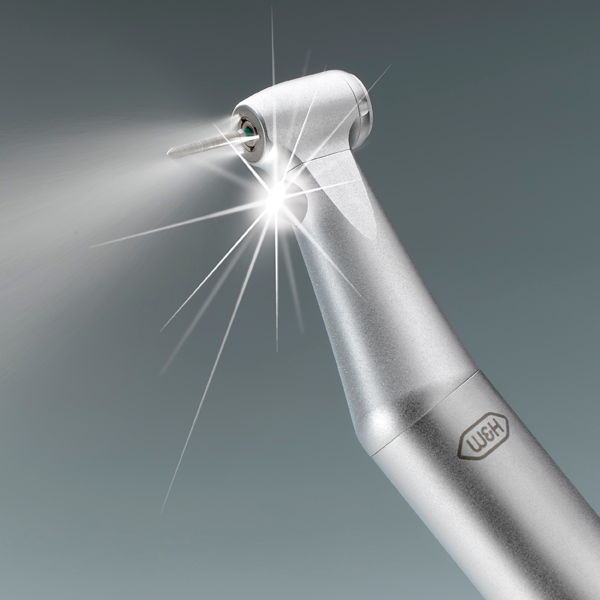

    Alegra Contra-angle Handpieces with LED+ light

    Outer diameter of the sheath: 20 mm

    Alegra Contra-angle handpiece with LED+ light

    More colour. More contrast. LED+

    LED+ contra-angle handpieces from W&H offer an incomparably high colour rendering index (CRI). The self-generated LED light is of daylight quality, renders colours naturally and is many times brighter than a conventional halogen light.

    Your advantages at a glance

    • Independent sterilizable LED light
    • High colour rendering index of more than 90
    • Robust design
    • Thermo washer disinfectable and sterilizable
    Daylight quality LED+

    Visual clarity

    //a.storyblok.com/f/45617/50ec39c52d/daylight-quality-led_overlay.jpg
    A high CRI value significantly improves people‘s sense of wellbeing and ensures greater visibility. Perfect colour rendering has an index of 100. Conventional LEDs only have a CRI of between 60 and 80 and are ineffective in reproducing red tones.

    LED+ contra-angle handpieces from W&H use a new technology: The result is a CRI of more than 90 which means clear colour contrasts and exceptional reproduction of natural red tones in the mouth.

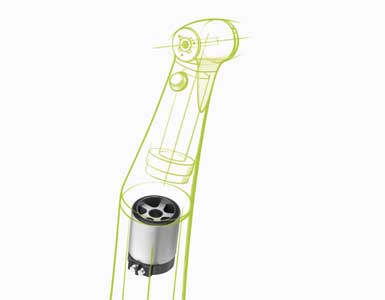

    Absolutely independent

    Micromotor on = LED+ on

    //a.storyblok.com/f/45617/8325488fd2/alegra-generator_overlay.jpg
    The generator is integrated into the Alegra contra-angle handpieces and is completely independent. Therefore an external power supply is not required. The unique W&H LED+ generator technology ensures perfect LED+ quality, regardless of whether the dental unit, coupling or micromotor is equipped with its own light source.
    Optimum preparation results

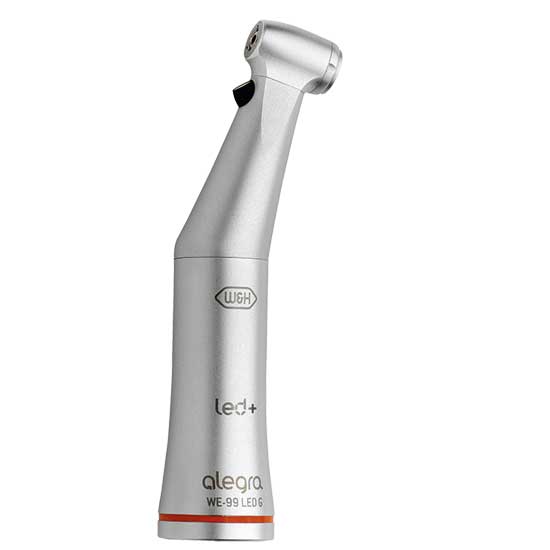

    Alegra step-up contra-angle handpiece WE-99 LED G

    //a.storyblok.com/f/45617/22a6d09314/alegra-we-99-led-g_overlay.jpg
    Efficient and precise preparation – regulated finishing
    Optimum preparation results of your CAD/CAM restoration using the Alegra contra-angle handpiece WE-99 LED G.

    WE-99 LED G

    Dental contra-angle handpiece with
    push-button chucking system,
    for FG burs with Ø 1.6 mm (ISO 1797-1)
    Drive speed: 40,000 min-1
    Motor connection according to standard: ISO 3964
    Outer diameter of the sheath: 20 mm

    WE-99 LED G
    REF 10259900

    Contra-angle handpiece 1:4.5
    LED+ light
    Triple spray
    Head size: Ø 10.1 mm
    Head height (with 19 mm bur): 22.3 mm

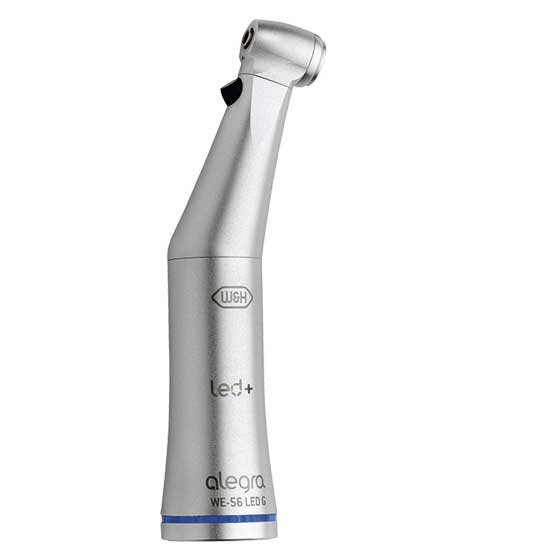

    WE-56 LED G

    Dental contra-angle handpiece with
    push-button chucking system,
    for contra-angle burs with Ø 2.35 mm (ISO 1797-1)
    Drive speed: 40,000 min-1
    Motor connection according to standard: ISO 3964
    Outer diameter of the sheath: 20 mm

    WE-56 LED G
    REF 10255600

    Contra-angle handpiece 1:1
    LED+ light
    Single spray
    Head size: Ø 10.1 mm
    Head height (with 19 mm bur): 20.7 mm

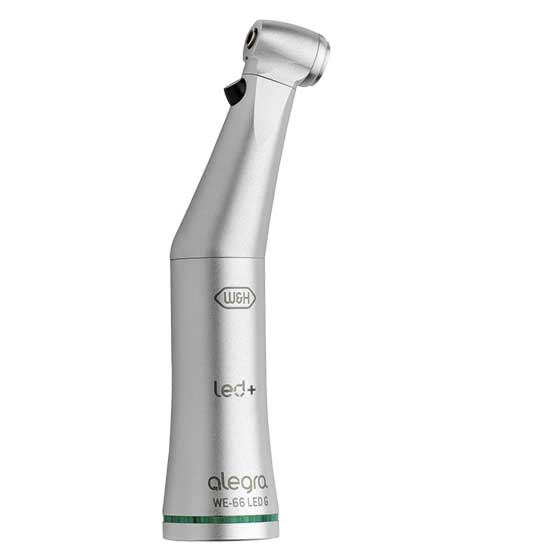

    WE-66 LED G

    Dental contra-angle handpiece with
    push-button chucking system,
    for contra-angle burs with Ø 2.35 mm (ISO 1797-1)
    Drive speed: 40,000 min-1
    Motor connection according to standard: ISO 3964
    Outer diameter of the sheath: 20 mm

    WE-66 LED G
    REF 10256600

    Contra-angle handpiece 4:1
    LED+ light
    Single spray
    Head size: Ø 10.1 mm
    Head height (with 19 mm bur): 20.7 mm





    Alegra Straight and Contra-angle Handpieces without light

    Outer diameter of the sheath: 18 mm

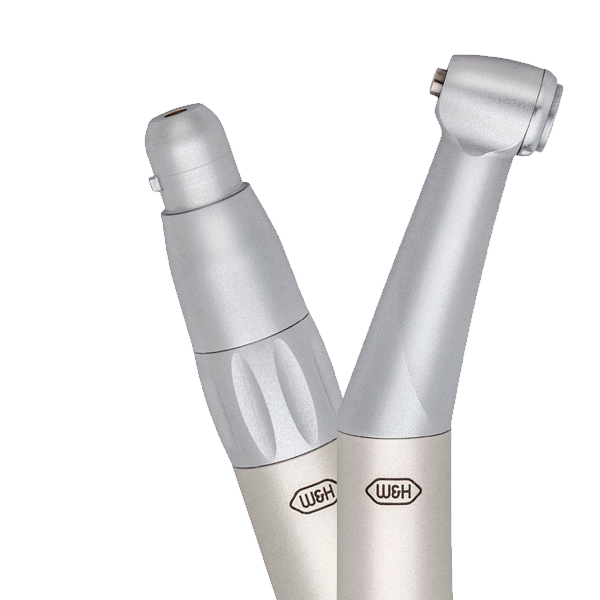

    W&H Straight handpiece HE-43 T with Contra-angle handpiece WE-57 T

    Light construction and slender design

    The ultralight design of the Alegra straight and contra-angle handpieces reduces fatigue. With the micro air motor the Alegra straight or contra-angle handpiece is perfectly balanced.

    W&H offers the optimal range of air motors for your Alegra straight and contra-angle handpieces.

    Your advantages at a glance

    • Robust and durable
    • Ergonomic design
    • Simple bur changing with the push-button chucking system
    • Component replacement by the user
    • Sterilizable
    • External coolant supply (spray clip, coolant hose, nozzle cleaner) available as accessories
    Simple bur changing

    Push-button chucking system

    //a.storyblok.com/f/45617/331c7e55cc/bur-change-with-we-56_overlay.jpg
    The easy operation of the push-button chucking system facilitates rapid bur change.

    Simple and rapid with low actuating force. No tools required!
    Robust and durable

    Robust and durable

    //a.storyblok.com/f/45617/425ab8a6e1/robust-and-durable-we-57-t_overlay.jpg
    High-quality materials make Alegra straight handpieces and Alegra contra-angle handpieces particularly durable and long lasting.

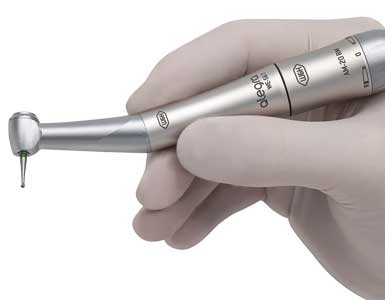

    Perfect balance

    Perfect balance

    //a.storyblok.com/f/45617/5b1f649e67/perfect-balance-with-we-56-t_overlay.jpg
    The dental straight handpiece or dental contra-angle handpiece is comfortable in the hand and is perfectly balanced with the micro air motor.

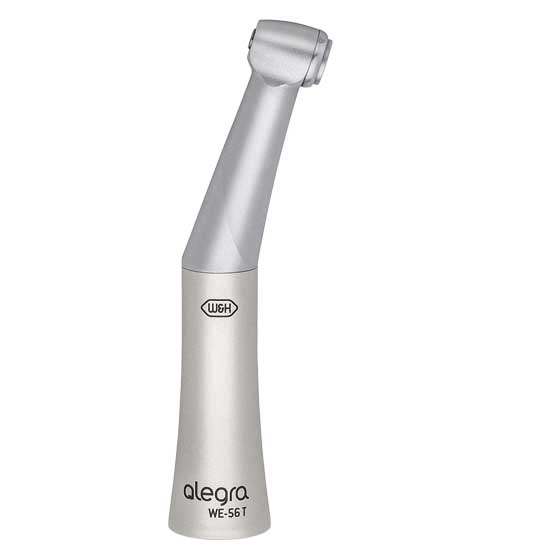

    WE-56 T

    Dental contra-angle handpiece with
    push-button chucking system,
    for contra-angle burs with Ø 2.35 mm (ISO 1797-1)
    Drive speed: 40,000 min-1
    Motor connection according to standard: ISO 3964
    Outer diameter of the sheath: 18 mm

    WE-56 T
    REF 30120000

    Contra-angle handpiece 1:1
    Head size: Ø 10.1 mm
    Head height (with 19 mm bur): 20.8 mm

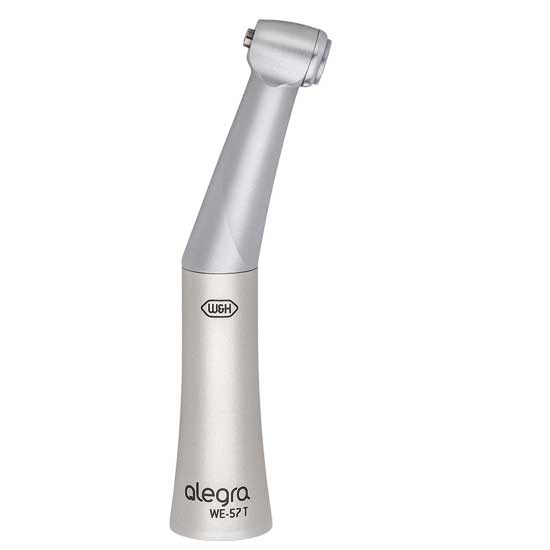

    WE-57 T

    Dental contra-angle handpiece with
    push-button chucking system,
    for FG burs with Ø 1.6 mm (ISO 1797-1)
    Drive speed: 40,000 min-1
    Motor connection according to standard: ISO 3964
    Outer diameter of the sheath: 18 mm

    WE-57 T
    REF 30121000

    Contra-angle handpiece 1:1
    Head size: Ø 10.1 mm
    Head height (with 19 mm bur): 22.7 mm


    WE-66 T

    Dental contra-angle handpiece with
    push-button chucking system,
    for contra-angle burs with Ø 2.35 mm (ISO 1797-1)
    Drive speed: 40,000 min-1
    Motor connection according to standard: ISO 3964
    Outer diameter of the sheath: 18 mm

    WE-66 T
    REF 30122000

    Contra-angle handpiece 4:1
    Head size: Ø 10.1 mm
    Head height (with 19 mm bur): 20.8 mm

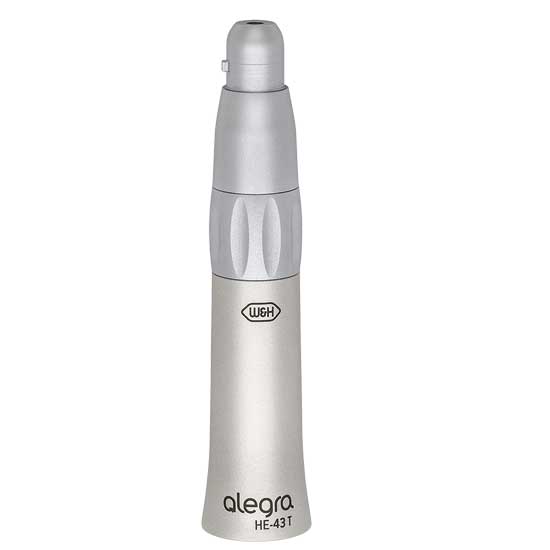

    HE-43 T

    Dental straight handpiece with
    twist tension chucking system, for handpiece and contra-angle burs with Ø 2.35 mm (ISO 1797-1)
    Drive speed: 40,000 min-1
    Motor connection according to standard: ISO 3964
    Outer diameter of the sheath: 18 mm

    HE-43 T
    REF 30123000

    Straight handpiece 1:1



    An external coolant supply (spray clip, coolant hose, nozzle cleaner) for Alegra straight and contra-angle handpieces without light is available as accessories.



  • Alegra Straight and Contra-angle Handpieces without light Outer diameter of the sheath: 20 mm

    WE-56 WE-57 WE-66 HE-43
    Transmission ratio: 1:1 1:1 4:1 1:1
    Motor connection according to standard: ISO 3964
    Max. motor speed: 40,000 min -1
    Head size: Ø 10.1 mm Ø 10.1 mm Ø 10.1 mm
    Head height (with 19 mm bur): 20.8 mm 22.7 mm 20.8 mm
    Rotary instruments according to ISO 1797-1: Contra-angle burs FG burs Contra-angle burs Handpiece and contra-angle burs
    Instrument shaft diameter: 2.35 mm 1.6 mm 2.35 mm 2.35 mm
    Maximum permitted bur length: 34* mm 25* mm 34* mm Handpiece burs: 50* mm
    Contra-angle burs: 34* mm
    Spray: single, external
    Warranty: 12 months


    * When using longer rotary instruments the user must ensure by correct selection of the operating conditions,
      that there is no danger to the user, patient or third parties.













    Alegra Contra-angle Handpieces with LED+ light
    Outer diameter of the sheath: 20 mm

    WE-56 LED G WE-66 LED G WE-99 LED G
    Transmission ratio: 1:1 4:1 1:4.5
    Colour coding: blue green red
    Colour rendering index (CRI): > 90
    Colour temperature (Kelvin): 5,500
    Luminous flux (Lumen): 5.0
    Brightness (Lux): 25,000
    Motor connection according to standard: ISO 3964
    Max. motor speed: 40,000 min -1
    Head size: Ø 10.1 mm
    Head height (with 19 mm bur): 20.7 mm 20.7 mm 22.3 mm
    Rotary instruments according to ISO 1797-1: Contra-angle burs Contra-angle burs FG burs
    Instrument shaft diameter: 2.35 mm 2.35 mm 1.6 mm
    Maximum permitted bur length: 34* mm 34* mm 25* mm
    Spray: single single triple
    Warranty: 12 months


    * When using longer rotary instruments the user must ensure by correct selection of the operating conditions,
      that there is no danger to the user, patient or third parties.













    Alegra Straight and Contra-angle Handpieces without light
    Outer diameter of the sheath: 18 mm

    WE-56 T WE-57 T WE-66 T HE-43 T
    Transmission ratio: 1:1 1:1 4:1 1:1
    Motor connection according to standard: ISO 3964
    Max. motor speed: 40,000 min -1
    Head size: Ø 10.1 mm Ø 10.1 mm Ø 10.1 mm
    Head height (with 19 mm bur): 20.8 mm 22.7 mm 20.8 mm
    Rotary instruments according to ISO 1797-1: Contra-angle burs FG burs Contra-angle burs Handpiece and contra-angle burs
    Instrument shaft diameter: 2.35 mm 1.6 mm 2.35 mm 2.35 mm
    Maximum permitted bur length: 34* mm 25* mm 34* mm Handpiece burs: 50* mm
    Contra-angle burs: 34* mm
    Spray: single, external
    Warranty: 12 months


    * When using longer rotary instruments the user must ensure by correct selection of the operating conditions,
       that there is no danger to the user, patient or third parties.
