Dental prophylaxis for a beaming smile

Professional tooth cleaning is an effective way to give your patients a beaming smile. With Proxeo, W&H offers a compact, easy to handle solution with different attachment system options, to suit your preferences no matter whether you need your handpiece for cleaning, polishing or fluoridating!

Prophylaxis & Periodontology

Prophylaxis & Periodontology

System Overview

* Multiflex® is a trademark of a third party not affiliated with W&H Dentalwerk Bürmoos GmbH

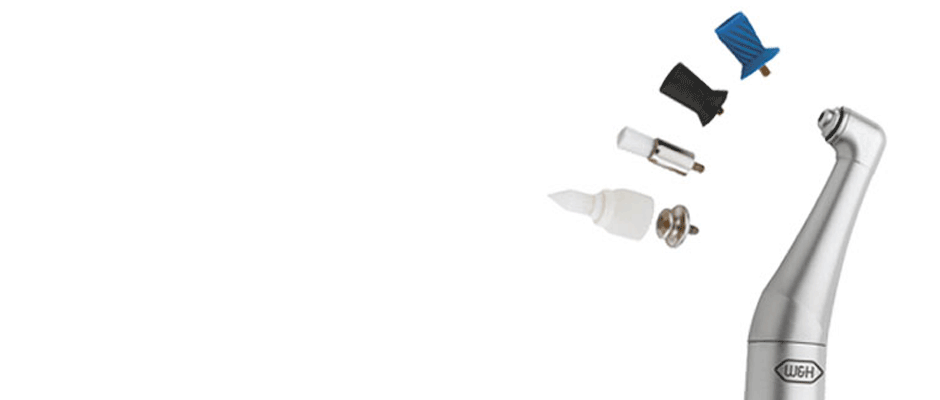

  • Proxeo Contra-angle with cup

    Improved visibility and optimum speed

    The small contra-angle head gives you excellent visibility – even treatment sites in the distal area.

    The rotational speed and the transmission ratio of 4:1 enable:

    > Greater cleaning efficiency
    > Gentle polishing of tooth surfaces
    > No splattering of paste

    Your advantages at a glance

    • Long life with unique sealing system
    • Best view with small head
    • Efficient treatment with ergonomic design
    • Optimal speeds for atraumatic and efficient polishing/cleaning
    • Easy to clean and hygiene-friendly
    • Thermo washer disinfectable and sterilizable
    Sealing systems

    Long life and hygienic

    Long service life with special sealing system. Prevents penetration of paste or particles resulting from treatment.
    //a.storyblok.com/f/45617/55264040dd/seal-system-universal.png
    System UNIVERSAL (WP-64 MU)
    A specially developed sealing system from W&H
    protect the precision components against the ingress of paste and treatment debris.
    //a.storyblok.com/f/45617/996f5703b6/triple-seal-young.png
    System YOUNG (WP-64 M)
    The sealing effect is renewed each time the cap is changed, because the cutting ring of the instrument head cuts into the rubber of the cap. This prevents the penetration of polishing paste and provides optimum protection for the precision engineering.
    Best view

    Best view

    //a.storyblok.com/f/45617/3b6cebf652/proxeo-best-view.png
    A small contra-angle handpiece head ensures an excellent view of treatment sites – even in the distal region.
    Cleaning and polishing

    Cleaning and polishing

    //a.storyblok.com/f/45617/b75f18c23a/polishing-amalgam-interdental.png
    Cleaning and polishing of tooth surfaces in the interdental region
    //a.storyblok.com/f/45617/60239746ed/polishing-composite-frontal.png
    Polishing of composite fillings in the frontal region
    //a.storyblok.com/f/45617/f1334f3054/polishing-interdental.png
    Polishing of amalgam fillings in the interdental region

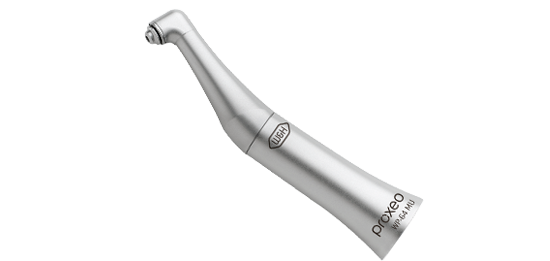

    Contra-angle System Universal

    WP-64 MU

    for all common screw-in (screw thread 1-72 UNF 2A)
    and snap on (adaptor) cups and brushes

    WP-64 MU
    REF 10216443

    Contra-angle 4:1
    Maximum motor speed 10,000 rpm

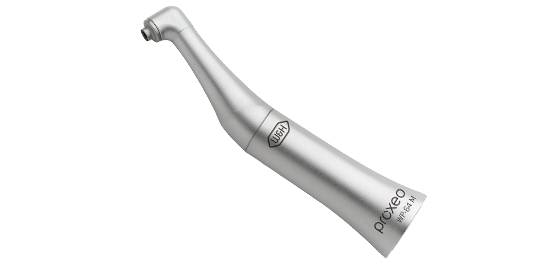

    Contra-angle System YOUNG

    WP-64 M

    for YOUNG screw-in cups and brushes

    WP-64 M
    REF 10216403

    Contra-angle 4:1
    Maximum motor speed 10,000 rpm

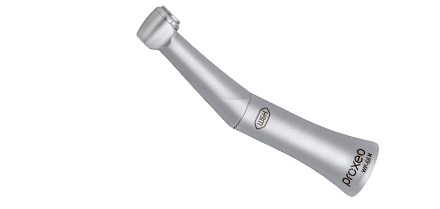

    Contra-angle with press-button chuck

    WP-66 M

    for cups, brushes and
    snap on cups with 2.35 mm shaft

    WP-66 M
    REF 30190000

    Contra-angle 4:1
    Maximum motor speed 10,000 rpm

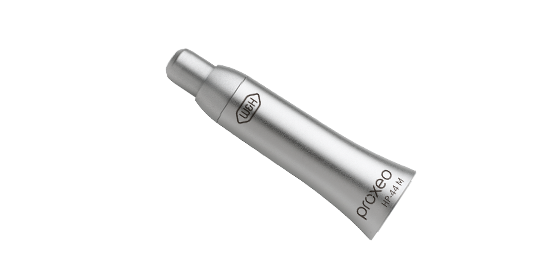

    Handpiece System YOUNG

    HP-44 M

    for disposable contra-angles
    with plastic Doriot shank system, e.g. YOUNG

    HP-44 M
    REF 10114403

    Handpiece 4:1
    Maximum motor speed 10,000 rpm



    Download Area

    FAQs

    Instructions for use

    Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

    Video Tutorials

    For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

    Accept

    Downloads

  • Type: WP-64 MU WP-64 M WP-66 M HP-44 M
    Max. motor speed (rpm): 10,000 10,000 10,000 10,000
    Transmission ratio: 4:1 4:1 4:1 4:1
    Recommended speed
    for cups and brushes (rpm):
    1,250 – 1,500 1,250 – 1,500 1,250 – 1,500 1,250 – 1,500
    Maximum speed
    for cups and brushes (rpm):
    2,500 2,500 2,500 2,500
    Attachments that can be used:

    All standard screw-in
    caps, brushes and
    snap-on caps (screw
    thread 1-72 UNF 2A)


    YOUNG Screw-in
    cups and brushes
    Caps, brushes and
    snap on cups with
    2.35 mm shaft

    disposable contra-angles with
    plastic shaft, system Doriot

    Coupling system: for motors with ISO connection according to ISO 3964 (DIN 13.940)
    Length: 89 mm 89 mm 88 mm 64 mm
    Weight: 71 g 69 g 65 g 57 g
    Sterilizable: in the autoclave up to 135 °C
