Correct use of Assistina 301plus.

Please find a detailed description about first startup, regular use and maintenance in the user manual. Furthermore you can find video tutorials about Assistina 301plus.

How can I check if my Assistina 301 or 301plus is working properly?

Check/replace o-rings on motor coupling/adaptor. Make sure that the "Start" button is held down for at least 2 sec. when starting a cycle. When pressing the button, the green ball at the function indicator on the right (cleaning solution) should show up. After keeping the button depressed for 2 sec., the green ball on the left should show up. A detailed function check can be found at the "weekly checklist" and the user manual at chapter "Test" and "Function Check".

How much air pressure does the Assistina 301 plus require in order to operate properly?

The pressure should be between 4 - 10 bar (58 to 145 psi).

How often should the filter in the supply air be changed (Assistina 301 plus)?

Annually or if the filter is full of debris (visual check - filter should be white). Please see video about changing the filter).

This product is not available anymore.

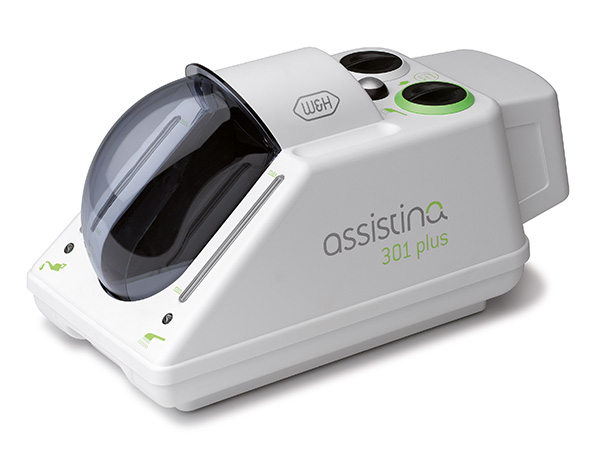

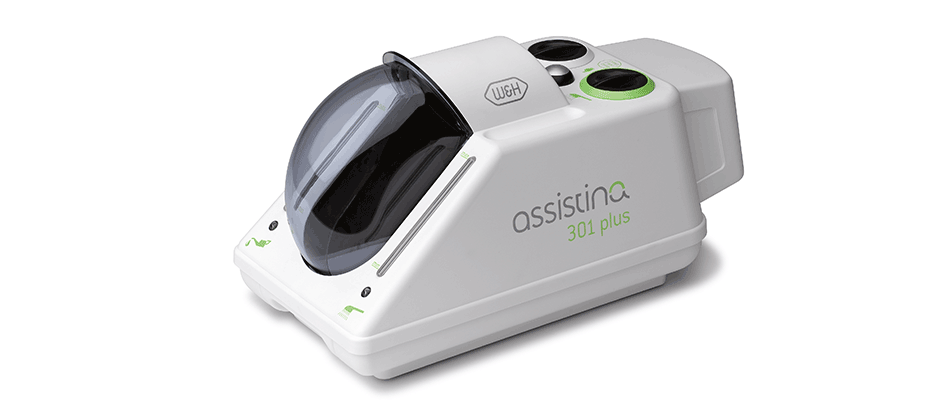

Assistina 301 plus

Name: Assistina 301 plus – Maintenance System
Brand: W&H

Maintenance System

Automatic instrument maintenance procedures provide distinct advantages for correct cleaning and lubrication as well as perfect function and long working life of dental instruments. It is simple, safe and cost-reducing.

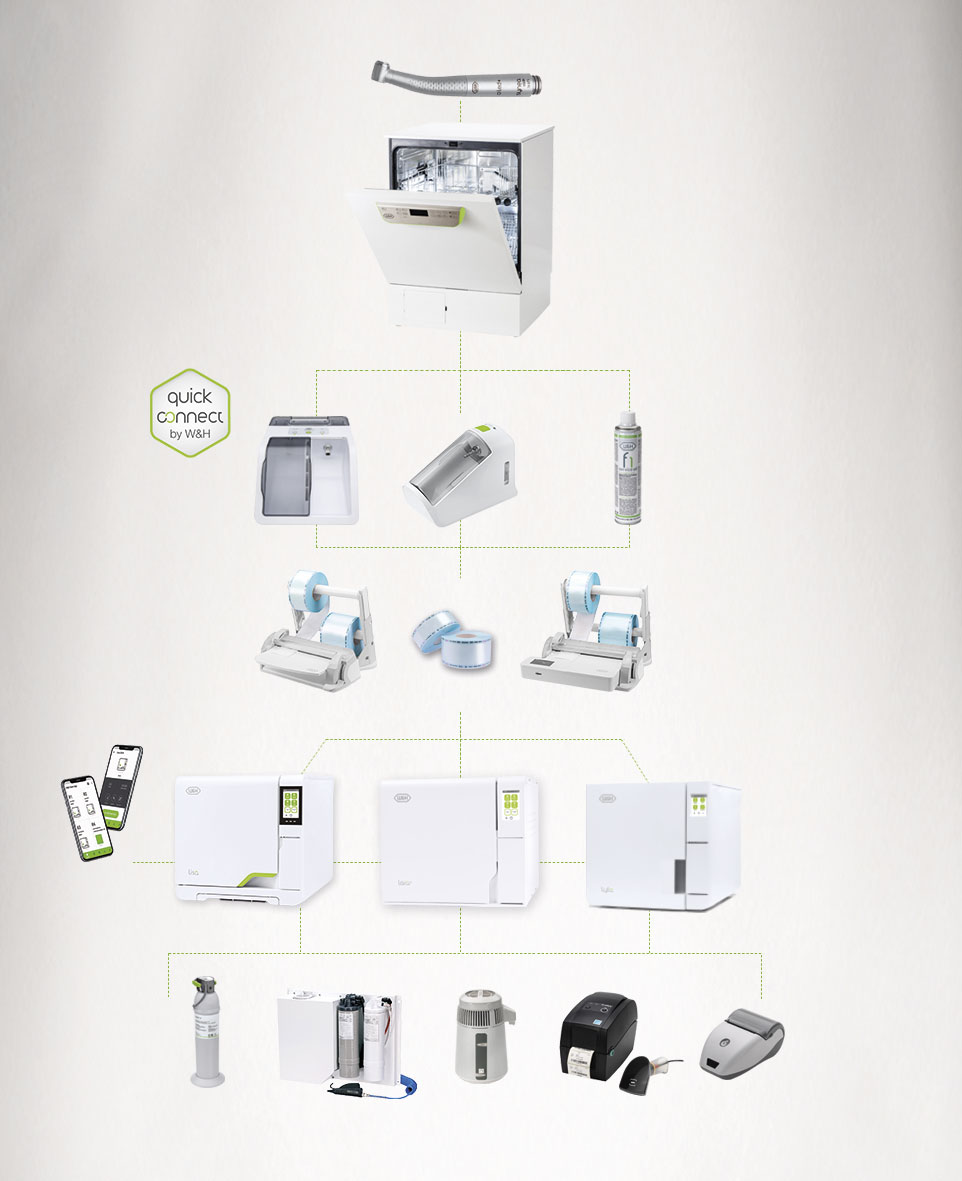

System overview

Assistina 301 plus
Technical Data

Maintenance at the touch-of-a-button

The maintenance process starts automatically at the touch of a button.
After only 35 seconds, the instrument is perfectly maintained.

The automatic rotational lubrication ensures optimum distribution of the oil and that an even film of lubricant is created. Dirt particles are loosened and removed. The lifespan of the instruments is increased significantly whilst service costs are reduced.
Your advantages at a glance
- Cleaning and lubrication of the internal components with Service Oil through rotation
- Optimum cleaning of the spray water and spray air channels with cleaning fluid
- Flushing through with compressed air
Maintenance at the touch-of-a-button

Maintenance at the touch-of-a-button

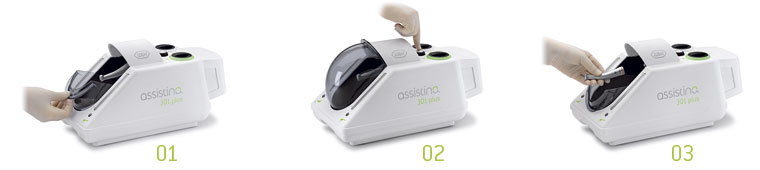

01 Connect the instrument. Close the cover.
02 Press the button. Maintenance program starts automatically.
03 After 35 seconds, the cleaning and lubrication process is finished leaving a perfectly maintained instrument.

Rotational lubrication

Rotational lubrication

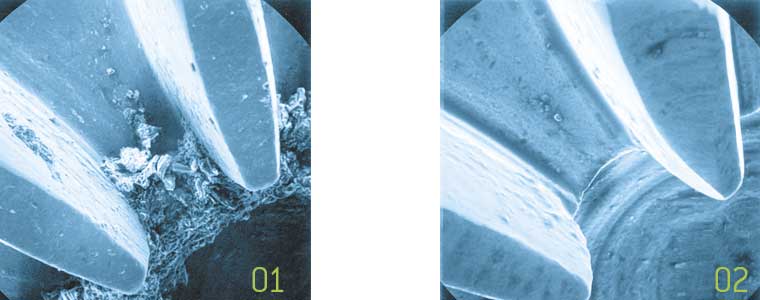

01 Contra-angle handpiece gearing after conventional maintenance with oil spray can
02 Contra-angle handpiece gearing after Assistina maintenance with rotational lubrication

The automatic rotational lubrication ensures the optimum flow of oil to internal components, whilst grime and other matter is removed by the cleaning fluid, resulting in minimal friction, less wear and longer life.

Because of the dispensing system, only a small amount released during each maintenance cycle optimum lubrication, making it very no need for further lubrication.

Assistina – always a winner

Assistina – always a winner

In 2009, the tried and tested W&H Assistina was awarded the title of
„Best automatic instrument care system 2009“ by the Townie Choice Awards® at US Dental Magazine DentalTown. This survey is used by many dentists in the USA to aid the decision to purchase new products.

In total, more than 1,000 dentists voted online and selected the Assistina as the test winner from three other well-known competitor products.

We are proud of this accolade and hope to be able to gain the trust of more dentists in future with our innovative and reliable products.

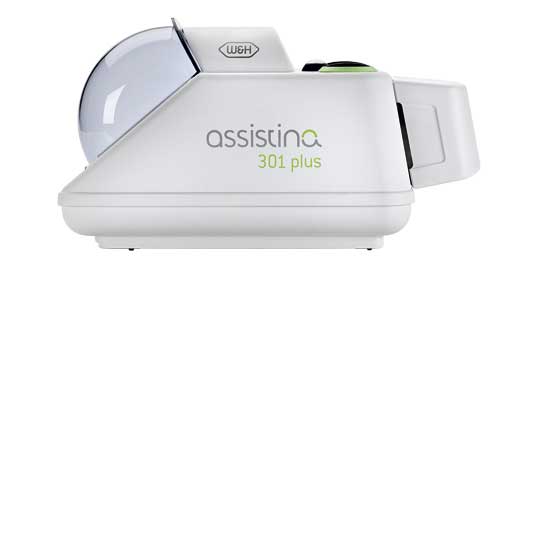

Assistina 301 plus

with base adaptor

Assistina
301 plus
REF 00030140

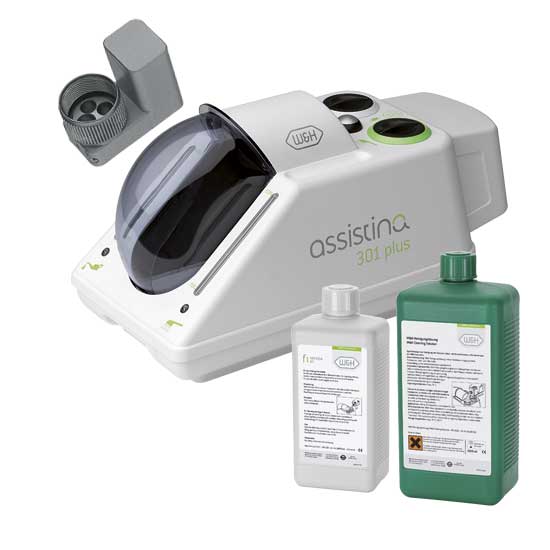

Set Assistina 301 plus

consists of: Assistina 301 plus,
base adaptor, cleaning and lubricating set

Set Assistina
301 plus
REF 00030125
Download Area
FAQs
- Correct use of Assistina 301plus.
  Please find a detailed description about first startup, regular use and maintenance in the user manual. Furthermore you can find video tutorials about Assistina 301plus. more
- How can I check if my Assistina 301 or 301plus is working properly?
  Check/replace o-rings on motor coupling/adaptor. Make sure that the "Start" button is held down for at least 2 sec. when starting a cycle. When pressing the button, the green ball at the function indicator on the right (cleaning solution) should show up. After keeping the button depressed for 2 sec., the green ball on the left should show up. A detailed function check can be found at the "weekly checklist" and the user manual at chapter "Test" and "Function Check". more
- How much air pressure does the Assistina 301 plus require in order to operate properly?
  The pressure should be between 4 - 10 bar (58 to 145 psi). more
- How often should the filter in the supply air be changed (Assistina 301 plus)?
  Annually or if the filter is full of debris (visual check - filter should be white). Please see video about changing the filter). more
Instructions for use

Assistina 301 plus

System overview adaptors for Assistina 301 plus

Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

Downloads

Video Tutorials

For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

Accept
Service
Service

Service Station Locator

Hygiene & Maintenance

Disposal Guidelines

Troubleshooting

Assistina 301 plus

Assistina	301 plus
Air consumption:	approx. 60 Nl/min.
Operating pressure:	4 - 10 bar (controlled via an integrated automatic pressure controller)
Max. volume:	63 dB
Height / Width / Depth:	223 mm x 190 mm x 415 mm
Weight:	2.7 kg
Capacity:	250 ml W&H Cleaning fluid, MC-1000 250 ml W&H Service Oil F1, MD-500
Designed for:	Straight and contra-angle handpieces, turbines, air motors and air-driven scalers
