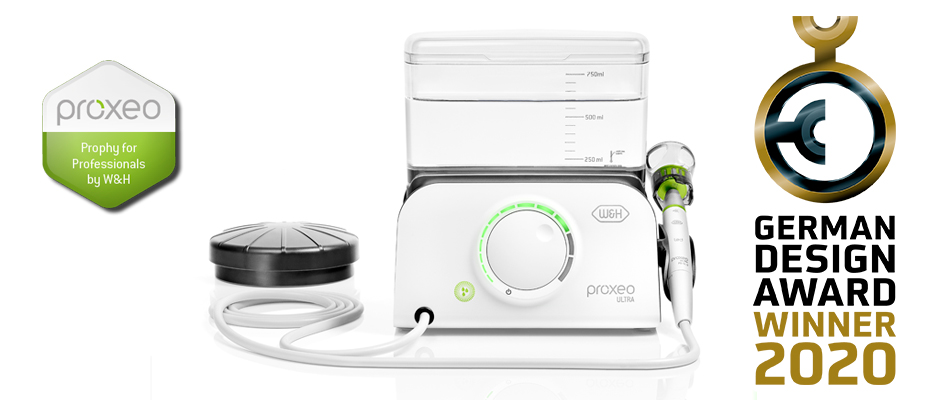

Proxeo Ultra
The new Piezo Scalers from W&H
-
![]()
Ultra large tank
The Proxeo Ultra tank has a capacity of 750 ml, making it one of the largest on the market. It fits perfectly into the overall design and can be filled conveniently and cleaned easily thanks to its special shape and wide opening.
-
![]()
Ultra smooth surfaces
The edge-free design and smooth surfaces allow you to wipe disinfect the Proxeo Ultra with ease.
-
![]()
Ultra ergonomic handpiece
Slender design and ultra flexible hose for simple adaptation, perfect balance and even greater user comfort.
-
![]()
Ultra smooth power setting
The rotary dial makes setting the basic mode particularly comfortable. In addition, the Proxeo Ultra PB-530 also offers a smooth mode for particularly gentle supportive periodontitis treatment.
-
1 Ultra large tank
![]()
Ultra large tank
The Proxeo Ultra tank has a capacity of 750 ml, making it one of the largest on the market. It fits perfectly into the overall design and can be filled conveniently and cleaned easily thanks to its special shape and wide opening.
-
2 Ultra smooth surfaces
![]()
Ultra smooth surfaces
The edge-free design and smooth surfaces allow you to wipe disinfect the Proxeo Ultra with ease.
-
3 Ultra ergonomic handpiece
![]()

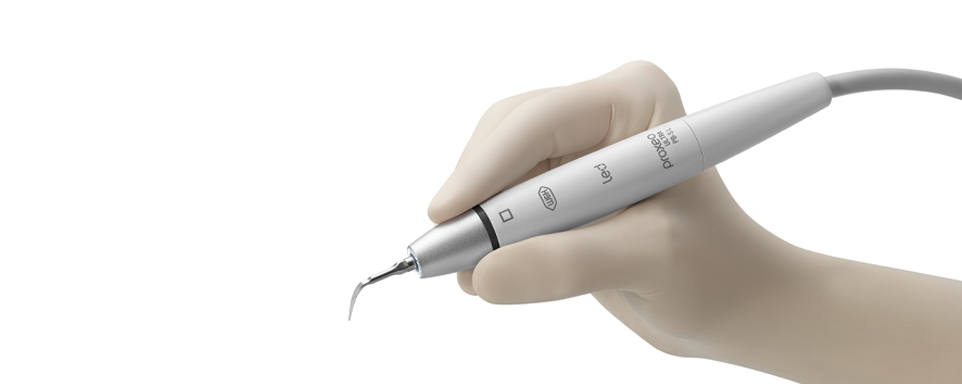

Ultra ergonomic handpiece
Slender design and ultra flexible hose for simple adaptation, perfect balance and even greater user comfort.
-
4 Ultra smooth power setting
![]()
Ultra smooth power setting
The rotary dial makes setting the basic mode particularly comfortable. In addition, the Proxeo Ultra PB-530 also offers a smooth mode for particularly gentle supportive periodontitis treatment.
-
Ultra as in ultra brilliant
Scaling can be so easy:
in combination with the wireless foot
control, the ergonomic, light handpieces
ensure perfect handling and the ultimate
in flexibility in every treatment.Main advantages at a glance
- Q-Link quick connection system
- Compatibility with pacemakers tested by Graz University of Technology
- Handpiece with LED ring
- Thin, flexible hose
- Wireless foot control
- Automatic fill level detection
- Infinitely adjustable power setting

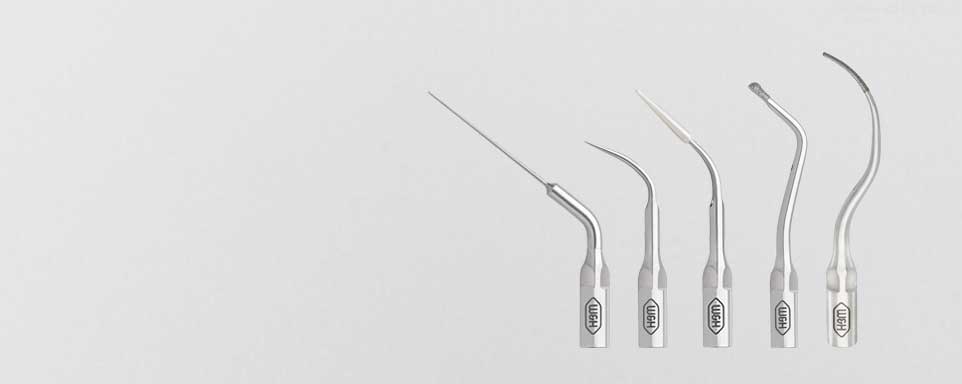

- Perfectly coordinated tip range
- Large tank (750 ml)
- Special cleaning program for reprocessing hose systems

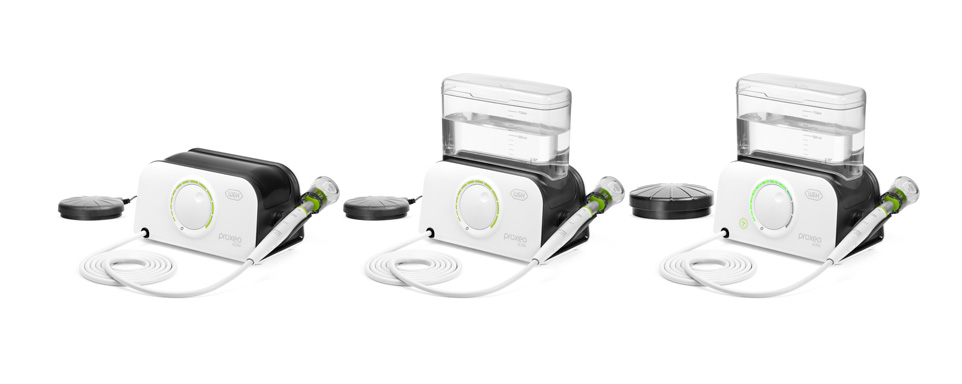

Proxeo Ultra Systems

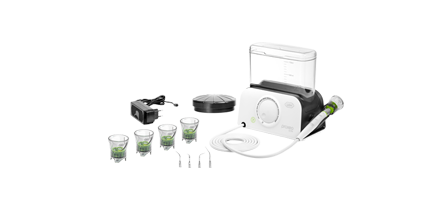

![Proxeo Ultra PB-530]( "Proxeo Ultra PB-530")
PB-530
› Q-Link quick connection system
› Compatibility with pacemakers
tested by Graz University of
Technology
› Handpiece with LED ring
› Thin, flexible hose
› Wireless foot control
› Automatic fill level detection
› Infinitely adjustable power setting
› Perfectly coordinated tip range
› Large tank (750 ml)
› Special cleaning program for
reprocessing hose systemsPB-530
REF 90000258PB-5 L Q handpiece
PB-530
REF 90000257PB-5 L handpiece
PB-530
REF 90000297PB-5 L S handpiece

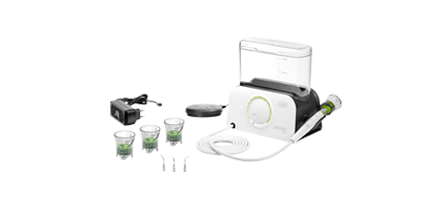

![Proxeo Ultra PB-520]( "Proxeo Ultra PB-520")
PB-520
› Q-Link quick connection system
› Compatibility with pacemakers
tested by Graz University of
Technology
› Handpiece with LED ring
› Thin, flexible hose
› Infinitely adjustable power setting
› Perfectly coordinated tip range
› Large tank (750 ml)PB-520
REF 90000256PB-5 L Q handpiece
PB-520
REF 90000255PB-5 L handpiece
PB-520
REF 90000296PB-5 L S handpiece

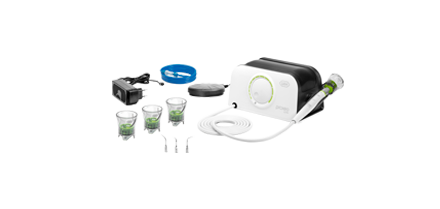

![Proxeo Ultra PB-510]( "Proxeo Ultra PB-510")
PB-510
› Q-Link quick connection system
› Compatibility with pacemakers
tested by Graz University of
Technology
› Handpiece with LED ring
› Thin, flexible hose
› Infinitely adjustable power setting
› Perfectly coordinated tip rangePB-510
REF 90000254PB-5 L Q handpiece
PB-510
REF 90000253PB-5 L handpiece
PB-510
REF 90000295PB-5 L S handpiece

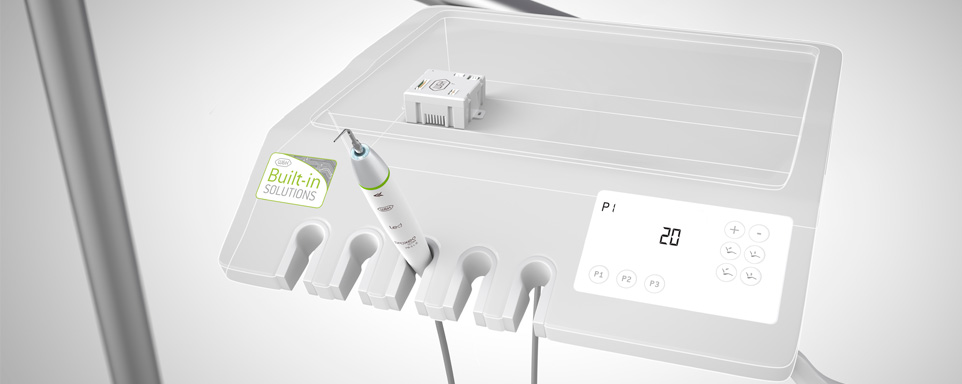

![Built-In Piezo Scaler]( "Built-In Piezo Scaler")
Built-In Piezo Scaler
Selected unit manufacturers
offer W&H Piezo Scalers as an
integrated drive solution as part of
the complete system. They can be
controlled simply and conveniently
via your dental unit’s control panel.
Ask W&H or your unit manufacturer
about W&H Piezo Scalers as a Built-in Solution.Built-In Piezo Scaler
REF 90000252PB-5 L Q handpiece
Built-In Piezo Scaler
REF 90000251PB-5 L handpiece
Built-In Piezo Scaler
REF 90000149PB-3 handpiece
Proxeo Ultra Handpieces

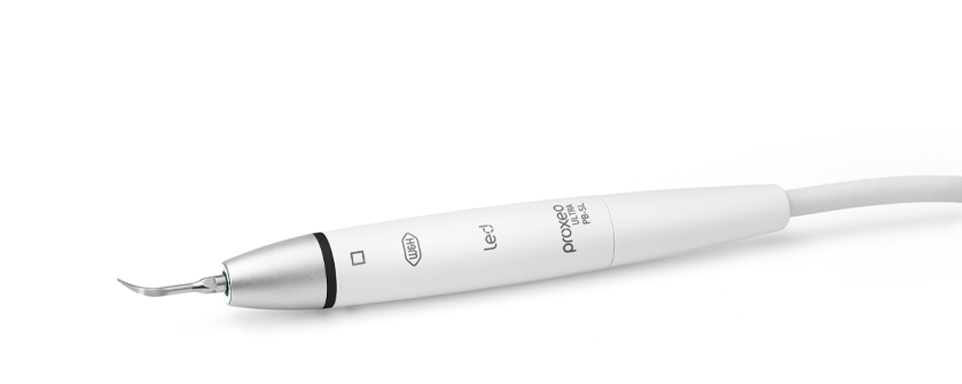

![PB-5 L Q]( "PB-5 L Q")
PB-5 L Q
Handpieces with Q-Link quick connection system.
PB-5 L Q
REF 30327000
![PB-5 L]( "PB-5 L")
PB-5 L
Handpiece for W&H thread.
PB-5 L
REF 30326000

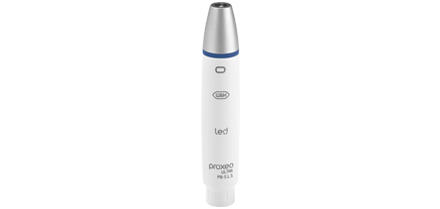

![PB-5 L S]( "PB-5 L S")
PB-5 L S
Handpiece compatible with Satelec thread - Satelec is not a W&H brand, but the brand of a third-party provider with which W&H has no connection.
PB-5 L S
REF 30328000Download Area
FAQ
- Are W&H tips (e.g. 1U) compatible with the new W&H high-speed mounting system?
- Should I always call my service department first before I send devices/instruments for repair?
- How do I know which tip goes with which handpiece?
- Are the new handpieces compatible with the PA-123/PA-115?
- Are the new handpieces (PB-5 L, PB-5 L S, PB-5 L Q) compatible with the earlier generation of Piezo scalers?
- Can the handpiece be prepared in the sterilizer?
- Is the handpiece thermo washer disinfectable?
- Can I prepare the handpiece in universal hygiene devices (DAC-Universal)?
- How can I recharge the wireless foot control (PB-530)?
- How can I connect the wireless foot control with the Proxeo ULTRA PB-530?
- Can I disinfect the tank by wiping it down?
- Can I disinfect the tank using the thermo washer?
- Can I treat patients with cardiac pacemakers with W&H Piezo scalers?
- How long does the foot control’s rechargeable battery last?
Bruksanvisning
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Ladda ner
Videoinstruktioner
-
-
You have the choice
The W&H piezo scaler can be optimally
integrated into your personalized workflow.
Choose a simple stand-alone solution or
utilize the advantages of a Built-in Solution.
Selected unit manufacturers offer the
W&H piezo scaler as an integrated drive
solution. It can be controlled simply and conveniently via your dental unit’s control panel.Your advantages at a glance
- Easy integration into your existing dental unit
- Convenient operation via your dental unit’s control panel or with the control knob to tailor the optimal power
- Perfectly matched W&H tip system
- Fast removal of calculus thanks to state-of-the-art piezo technology
![Piezo Scaler PB-5 L Q Built-in Set]( "Piezo Scaler PB-5 L Q Built-in Set")

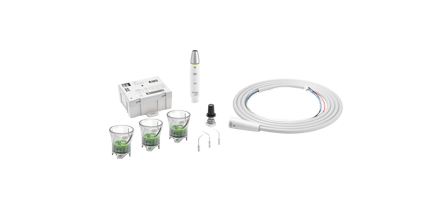

Piezo Scaler PB-5 L Q (Built-in Set)
PB-5 L Q Built-in Set
REF 90000252consists of

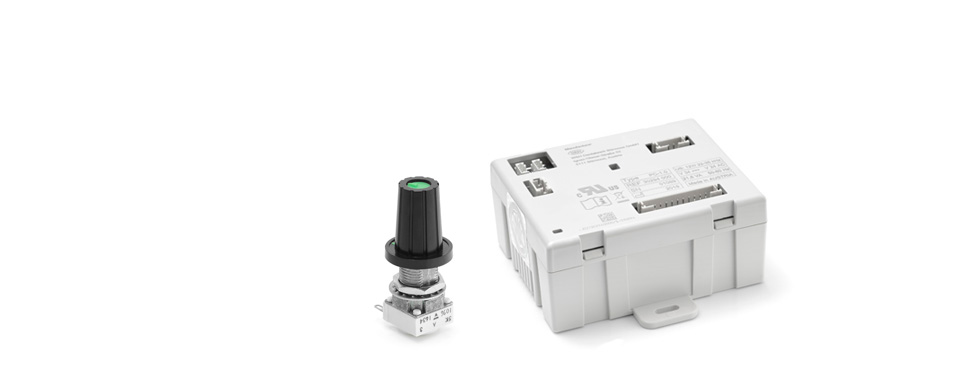

> PC-1.0 Piezo Controller analogue
> VP-5 Supply hose
> Handpiece PB-5 L Q
> Electrical connection set
> Control knob
> Tips 1UQ, 2UQ, 1PQ

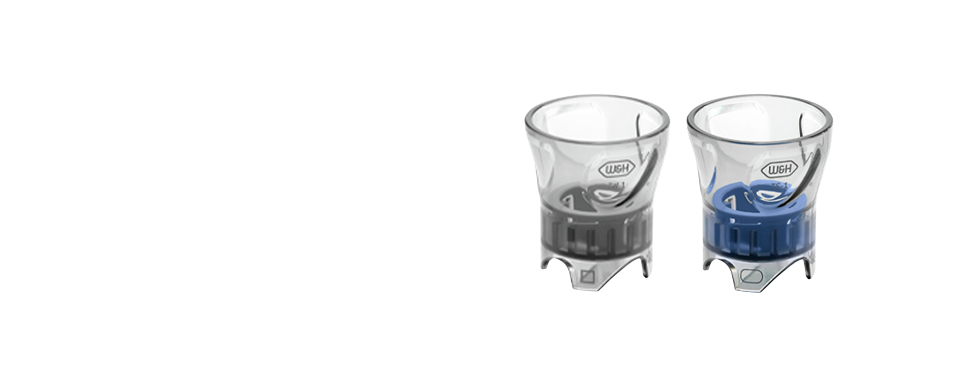

> Tip changer
![Piezo Scaler PB-5 L Built-in Set]( "Piezo Scaler PB-5 L Built-in Set")
Piezo Scaler PB-5 L (Built-in Set)
PB-5 L Built-in Set
REF 90000251consists of
> PC-1.0 Piezo Controller analogue
> VP-5 Supply hose
> Handpiece PB-5 L
> Electrical connection set
> Control knob
> Tips 1UQ, 2UQ, 1PQ
> Tip changer
![Piezo Scaler PB-3 Built-in Set]( "Piezo Scaler PB-3 Built-in Set")

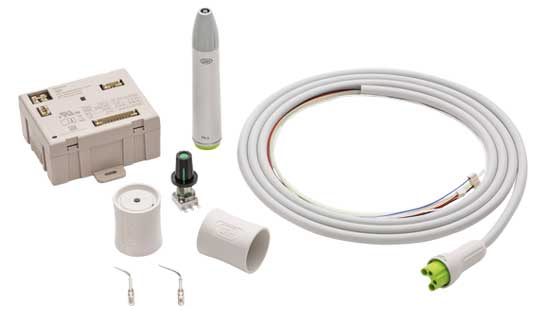

Piezo Scaler PB-3 (Built-in Set)
PB-3 Built-in Set
REF 90000149consists of
> PC-1.0 Piezo Controller analogue
> Supply hose
> Handpiece PB-3
> Electrical connection set
> Control knob
> Tip changer with tip 1U
> Tip changer with tip 1PDownload Area
FAQ
- Are W&H tips (e.g. 1U) compatible with the new W&H high-speed mounting system?
- Should I always call my service department first before I send devices/instruments for repair?
- How do I know which tip goes with which handpiece?
- Are the new handpieces compatible with the PA-123/PA-115?
- Are the new handpieces (PB-5 L, PB-5 L S, PB-5 L Q) compatible with the earlier generation of Piezo scalers?
- Can the handpiece be prepared in the sterilizer?
- Is the handpiece thermo washer disinfectable?
- Can I prepare the handpiece in universal hygiene devices (DAC-Universal)?
- How can I recharge the wireless foot control (PB-530)?
- How can I connect the wireless foot control with the Proxeo ULTRA PB-530?
- Can I disinfect the tank by wiping it down?
- Can I disinfect the tank using the thermo washer?
- Can I treat patients with cardiac pacemakers with W&H Piezo scalers?
- How long does the foot control’s rechargeable battery last?
Bruksanvisning
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
-
-
Proxeo Ultra
Control unit
PB-530
PB-520
PB-510
Mains Voltage:
100-230 V
Maximum output power to handpiece under load (ultrasonic):
12 W
Frequency (ultrasonic):
22–35 kHz
Operating mode:
S3 (14 s/6 s)
Length of handpiece cable:
1,8 m
Dimensions in mm (W×D×H):
120×185×205
120×185×110
Weight:
1.106 g
1.064 g
807 g
Can be used with foot control:
C-NW
C-NF
Foot control
Foot control
C-NW
C-NF
Weight:
190 g
114 g
Dimensions in mm (W×D×H):
117×117×38
100×110×26,5
Battery type:
Li-Ion
-
Running time when fully charged:
approx. 2 months
-
Standby:
automatically if not actuated
-
Charging time:
approx. 3 hours
-
Piezo Scaler handpiece
Piezo Scaler handpiece
PB-5 L Q
PB-5 L
PB-5 L S
Light:
LED-Ring
Weight:
55 g
Length without tip:
135 mm (with coupling)
Diameter:
18,5 mm
Built-In
Built-In Set analog
PB-3
PB-5 L Q/PB-5 L
Piezo Controller:
PC-1.0
Electrical connection set:
✔
Control knob:
✔
Supply hose:
VP-3 (1,8 m)
VP-5 (1,8 m)
Handpiece:
PB-3
PB-5 L Q/PB-5 L
Tip changer with tip inserted:
TW-1: 1U, 1P
TQ-1: 1UQ, 2UQ, 1PQ/TW-1: 1U, 2U, 1P
Compatibility of tips with W&H handpieces
Q-Link*
W&H/EMS/Mectron
W&H/NSK/Satelec**
PB-5 L Q
PB-5 L
PA-1 LED
PB-3
PB-5 L S
PB-3 LED S
PB-3 S
Tigon+
X
X
Proxeo Ultra
X
X
X
Pyon 2
X
Built-In
X
X
X
X
X
* Q-Link tips (e.g., 1UQ, 2UQ) are compatible with the PB-5 L Q.** W&H tips with Satelec thread (e.g., 1US, 2US) are compatible with the W&H handpieces PB-5 L S, PB-3 LED S and PB-3 S.Note: EMS®, Mectron®, NSK® and Satelec® are trademarks of third parties not affiliated with W&H Dentalwerk Bürmoos GmbH. When using tips from other manufacturers, the user is responsible for ensuring the W&H piezo device´s performance parameters are set correctly.
