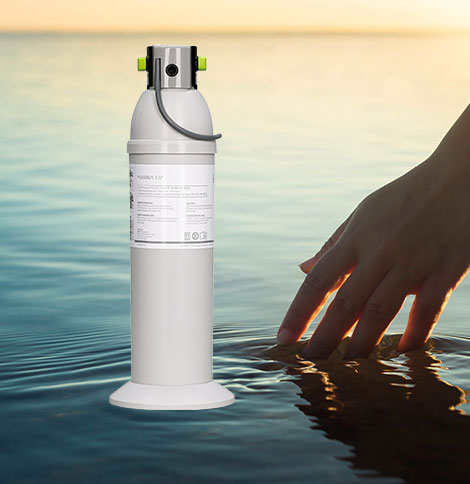

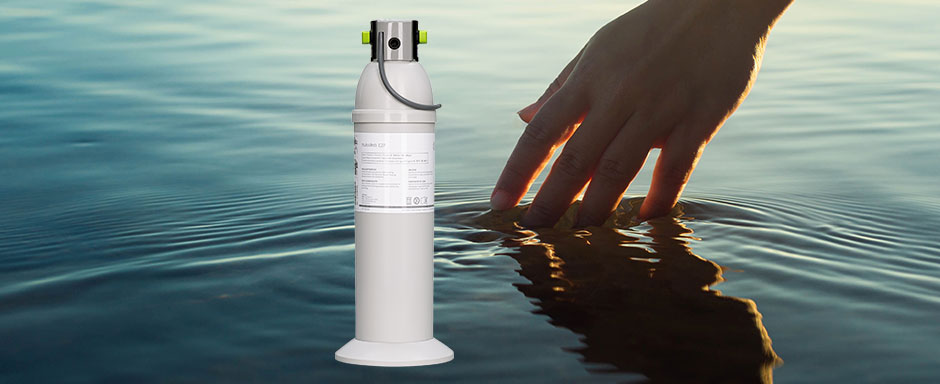

Multidem

The water demineralizer system

The water demineralizer system Multidem supplies top quality demineralized water for generating steam in autoclaves. As a result, it ensures consistent and optimized performance, thereby extending the service life of your sterilizer or purification unit.

Sterilization, Hygiene & Maintenance

Sterilization, Hygiene & Maintenance

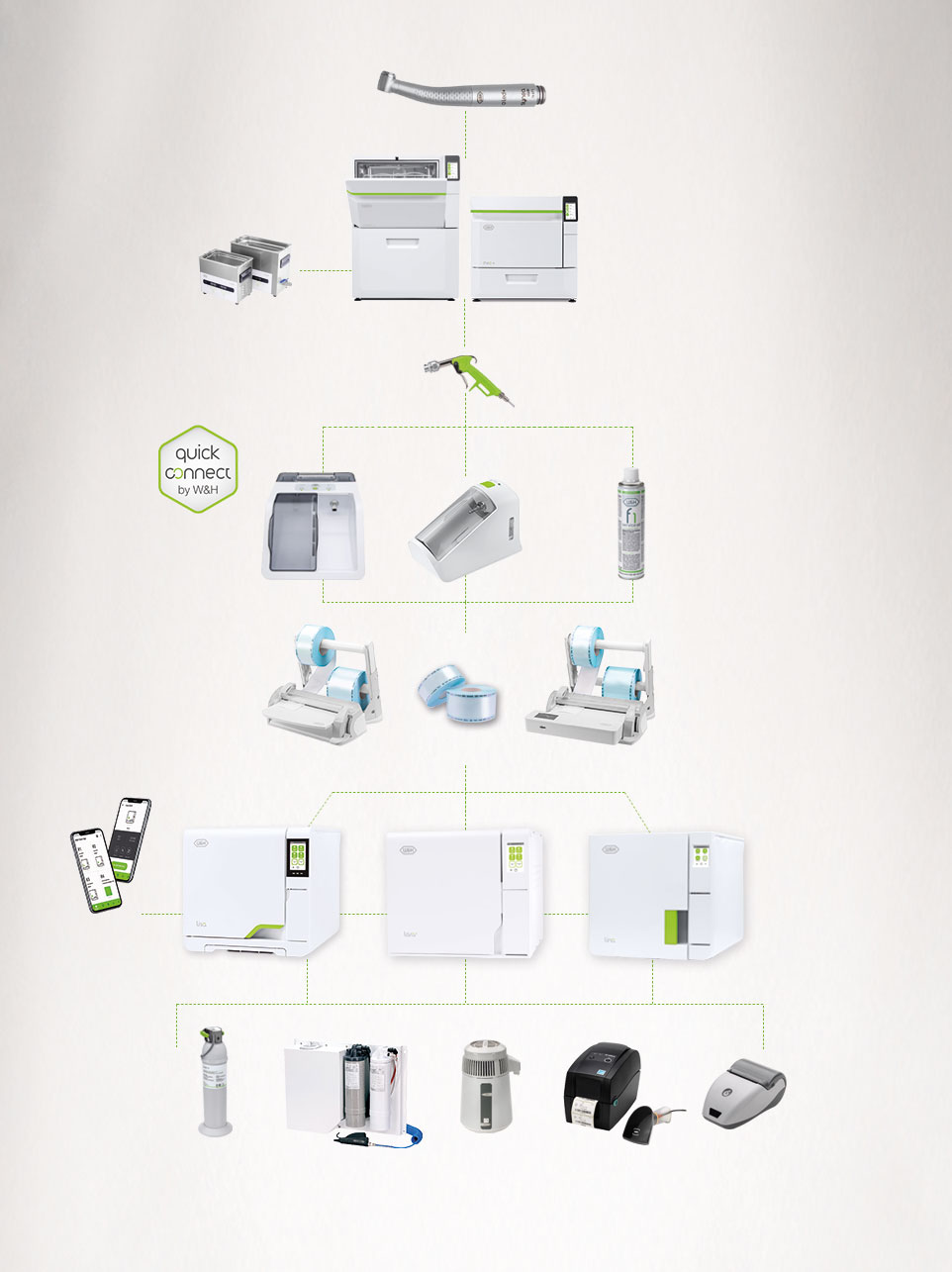

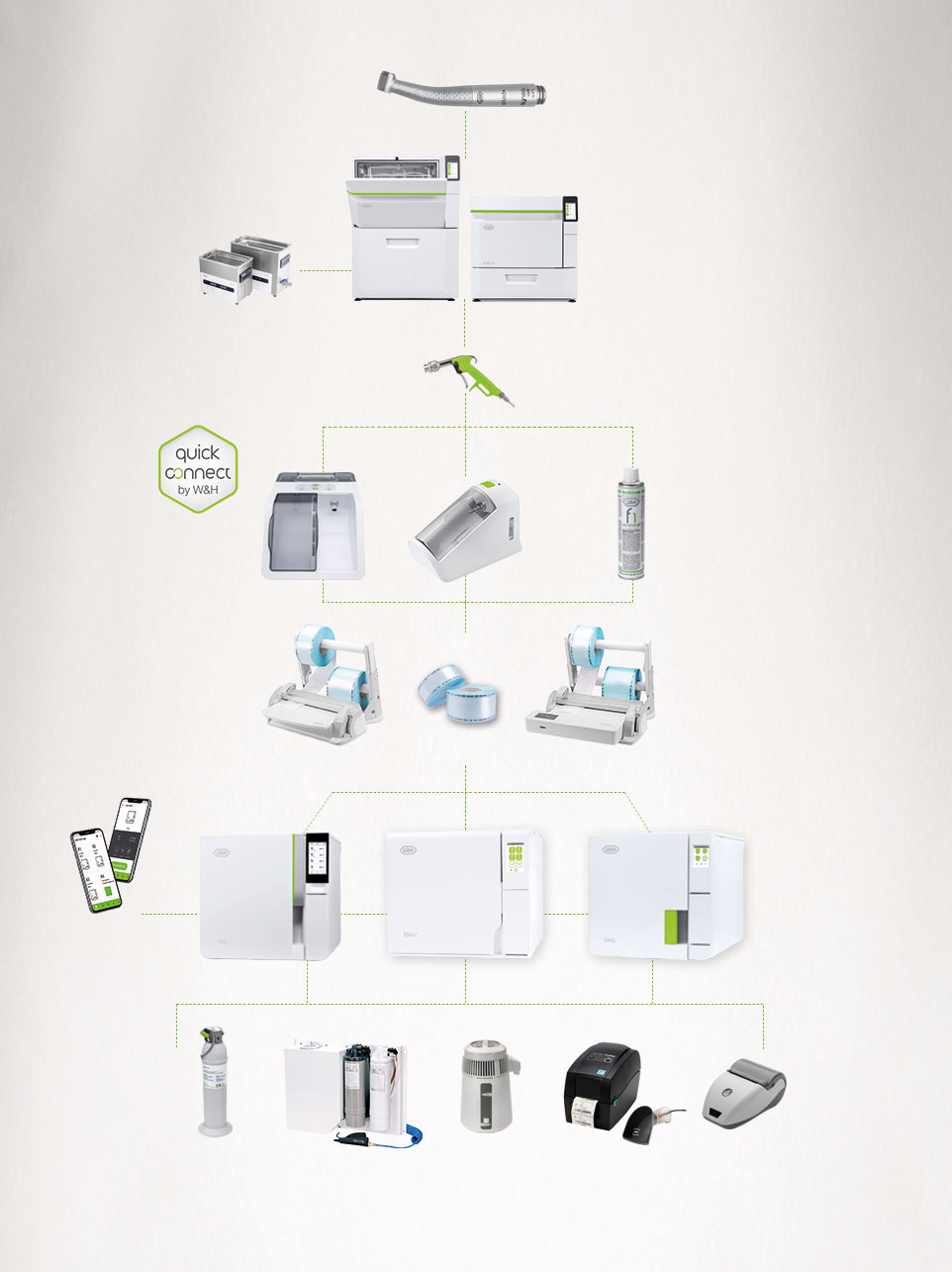

System Overview

Answer 3 questions to find the right Water Treatment Device for your demands!

Find the right Water Treatment Device for your demands.

1
2
3

How many sterilizers are installed?

How many cycles run per day on each sterilizer?

What is the water conductivity level?

Your product recommendation:

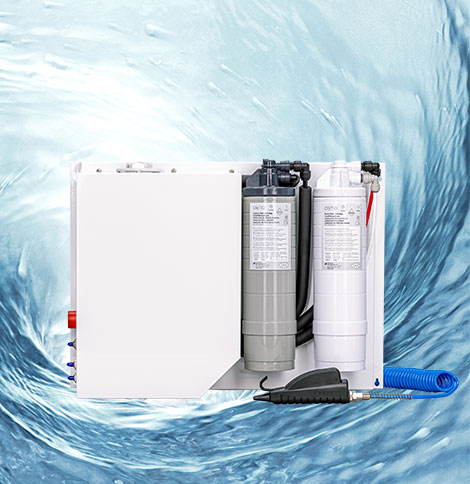

Osmo

Possible alternative product:

Your product recommendation:

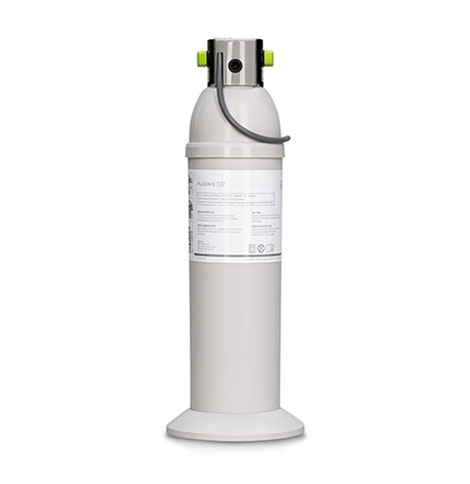

Multidem

Possible alternative product:

Your product recommendation:

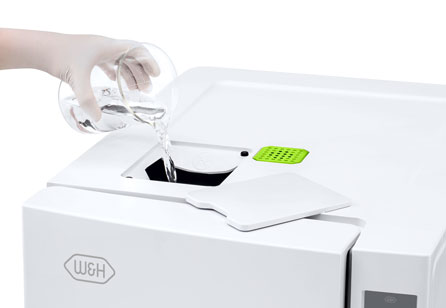

Distilled Water

Possible alternative product:

  • Multidem - Changing filter head

    Compatible and user-friendly

    Multidem supplies top quality demineralized water. It can be used with all steam sterilizers and fills automatically up to 2 sterilizers.

    Additional spray gun
    In addition, Multidem is also equipped with a spray gun. This is ideal for rinsing instruments prior to sterilization

    All advantages at a glance

    • Suitable for use with up to 2 sterilizers
    • Flexible use in combination with the spray gun
    • Fast cartridge replacement without tools
    • Cartridge can be positioned without a fixing/securing device
    • No external power supply required
    • Optimized ion exchange resin
    • The purified water complies with the relevant recommendations and regulations for the correct reprocessing of instruments
    • Consistently high water quality, no limescale deposits


    • Compatible

      Compatible with all units


      Multidem can be used with all steam sterilizers and fills automatically up to 2 autoclaves.

      Lisa VA131, Lara, Lina AWF, Lisa Fully Auto*
      › Multidem can be connected directly

      Lina, Lyla, Lexa, Lisa Fully Auto, Lisa 300/500
      › Multidem can be connected via a connection system by using a water supply connection kit (water supply kit)

      Lisa MB, all sterilizers
      › The sterilizer can be filled manually with the aid of the spray gun

      *Applies to Lisa Fully Automatic units
      manufactured from 04/2011

    • Filter replacement

      Filter replacement


      › To replace a consumed filter cartridge, open the locking handle.

      › Turn the locking handle as far as it will go, actuate the flush valve and depressurize the system.

      › Remove the filter head from the depleted filter.

      › Remove the protective cap and place the filter head vertically onto the new cartridge.

      › Operate the flush valve and flush the filter system until the filtered water runs clear and without bubbles. Multidem is then ready to go again!

      Multidem C27

      Water supply for W&H sterilizers
      or other brand sterilizers

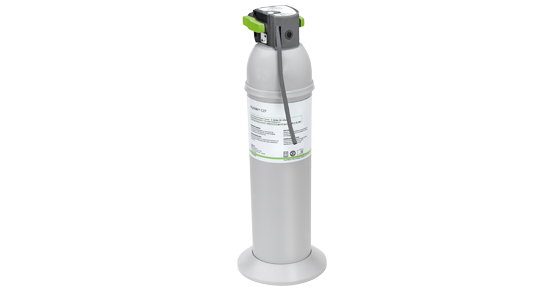

      Multidem C27
      REF 19723112

      consists of: filter head, cartridge with 2.7 kg,
      tubes and connectors (incl. Water Block®)


    • Technical data

      Multidem C27
      Water treatment principle: Demineralization
      Direct connection to sterilizer:
      Number of connectable sterilizers: up to 2 units
      Possibility of manual filling: (spray gun)
      Fulfilling sterilization requirements:
      Water quality output: 0.5-2 µS/cm
      Produced water: 60 litres/1h
      Volume storage tank: -
      Water pressure (min./max.): 2-8.6 bar
      Main device dimensions (w x h x d): 12,4 x 12,3 x 47,6 cm
      Water tank dimensions (w x h x d): -
      Weight: 2.7 kg
      Electrical supply needed: no
      Electrical power supply: -
      Wall mount: no
      Backflow preventer according to EN1717:
      Demineralized water according to EN13060 Annex C:
