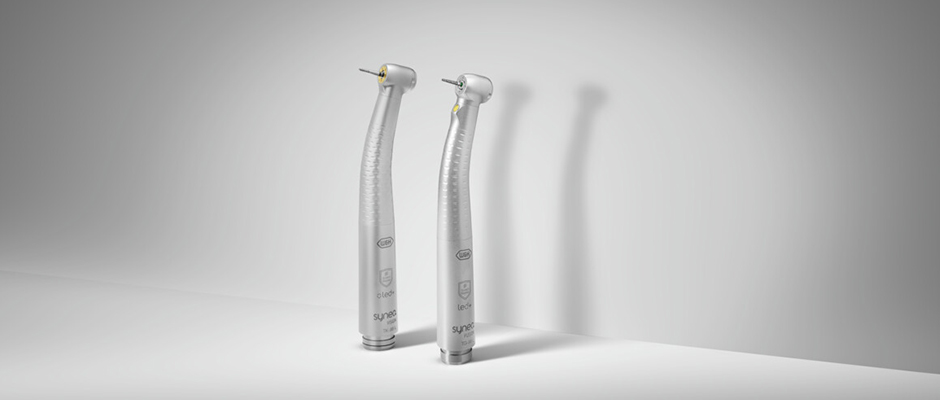

Synea Turbines

High-end technology for excellent preparation results: Both of the Synea dental turbine lines are characterised by high performance, optimal ergonomics and outstanding value for money. Synea Vision is symbolic of innovations such as the sterilizable 5x Ring LED+ and Synea Fusion promises top quality combined with unbeatable cost-efficiency.

Restoration & Prosthetics

Restoration & Prosthetics

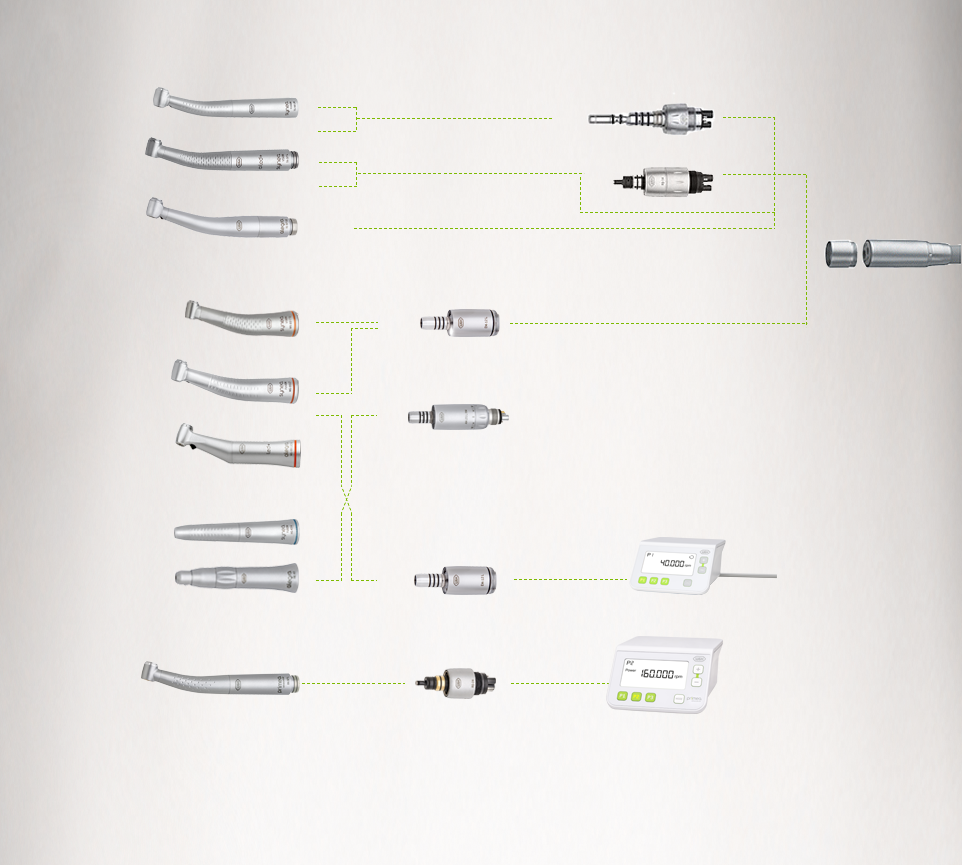

System Overview

* Multiflex® is a registered trade mark of Kaltenbach & Voigt GmbH, Germany
** also with other coupling versions available
*** Contra-angle handpieces of the Synea Vision Short Edition can be used on micromotors with an ISO coupling length of 23 mm or less.

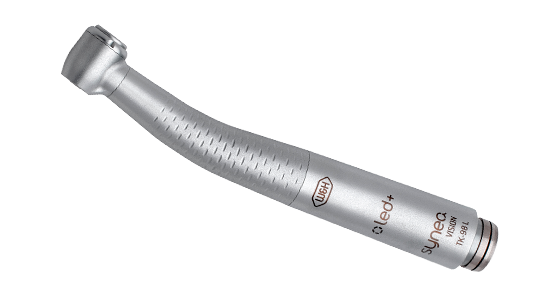

Synea Vision turbines

Discover the Synea Vision turbines for yourself!

  • Click on the Icon to place the Synea Vision Turbine virtually in your practice and see for yourself how well it fits.
    Drag the mouse in any direction to view the product from all sides.
    Open the website with your mobile phone and experience the Synea Vision Turbine in your practice!

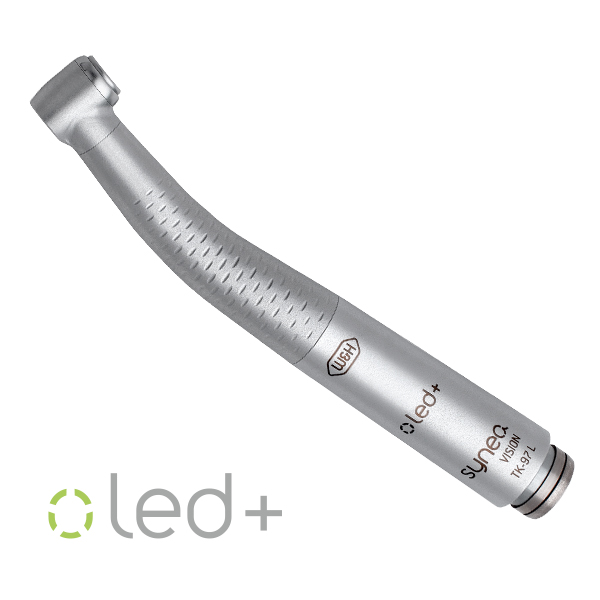

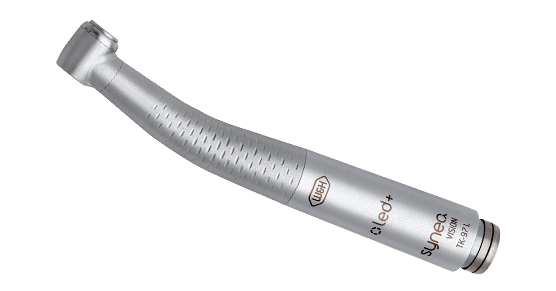

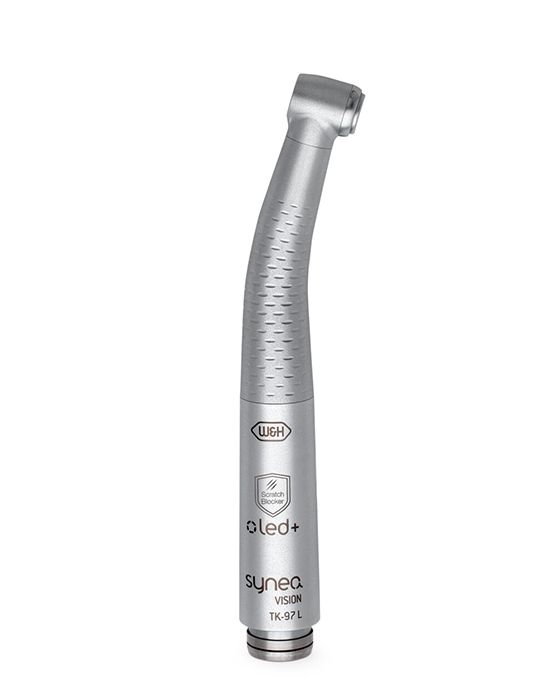

    Synea Vision TK-97 L

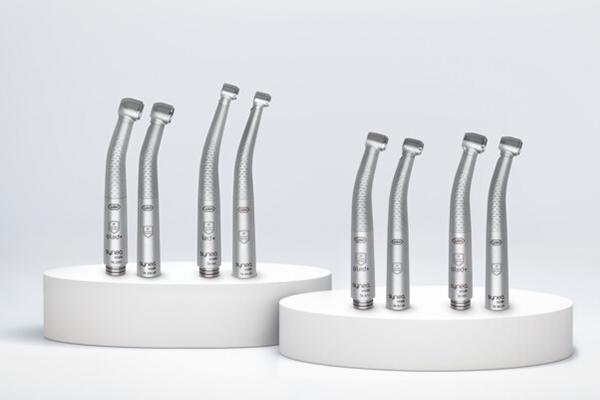

    The new range of Synea Vision turbine handpieces

    Discover the Synea Vision line – the turbine range for all treatment scenarios!

    Your advantages at a glance

    • 100% shadowless illumination of the
      treatment site with the Ring LED+
      (with the Roto Quick system only)
    • Optimal power
    • Optimum cooling of the treatment site
      with 5x spray
    • Four head sizes for every application case
    • Hygienic head system
    • Scratch-resistant surface improves aesthetics even more – and extends their life
    • Fatigue-free work
    • Optimum service life and unexpected quietness during operation with ceramic ball bearings
    • Thermal washer disinfector compatible
    • 24 months warranty

    Power Blade rotor

    Full steam ahead with the Power Blade rotor

    The optimized blade geometry
    allows higher rotor efficiency.
    For maximum torque and optimal
    power throughout preparation.
    Patented hygienic
    head system

    Extraordinary value retention

    //a.storyblok.com/f/45617/44fd23c11b/grip_profile-overlay.png
    Like new every day with the special,
    scratch-resistant coating.
    Optimum cooling

    Optimum cooling

    Thanks to the 4x or 5x spray, the bur tip is optimally cooled in every application position.

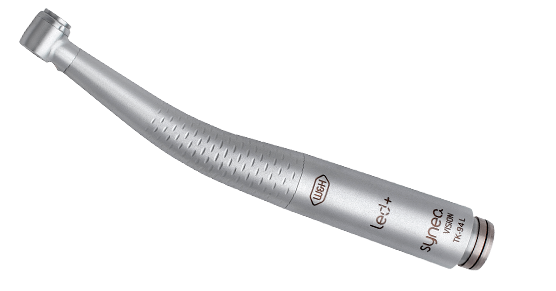

    Microturbine

    Small but impressive

    //a.storyblok.com/f/45617/5faa64992f/synea-vision-tk-94-led-mouth.png
    LED+ in the microturbine:
    small space, plenty of light.

    The new TK-94 microturbine for
    areas that are difficult to access.

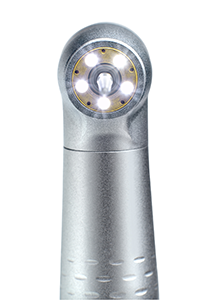

    Ring LED+

    Ring LED+

    //a.storyblok.com/f/45617/c336f59165/ring_led.png
    Ring LED+: the only sterilizable 5x Ring LED+ in the world guarantees shadow-free illumination at the treatment site, for the first time ever!

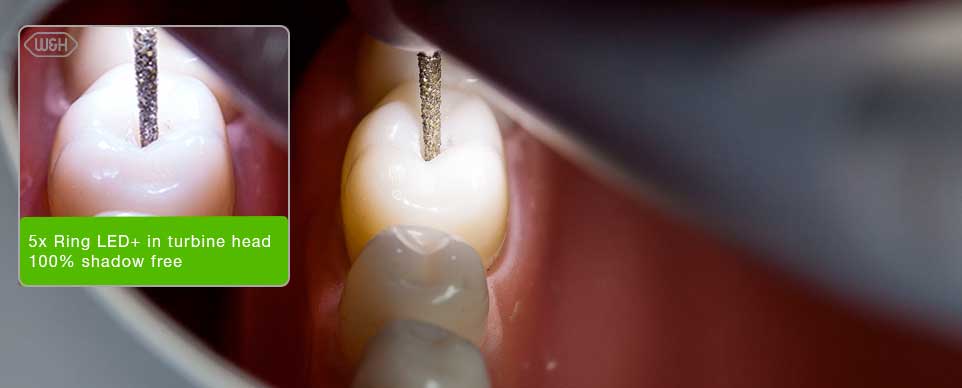

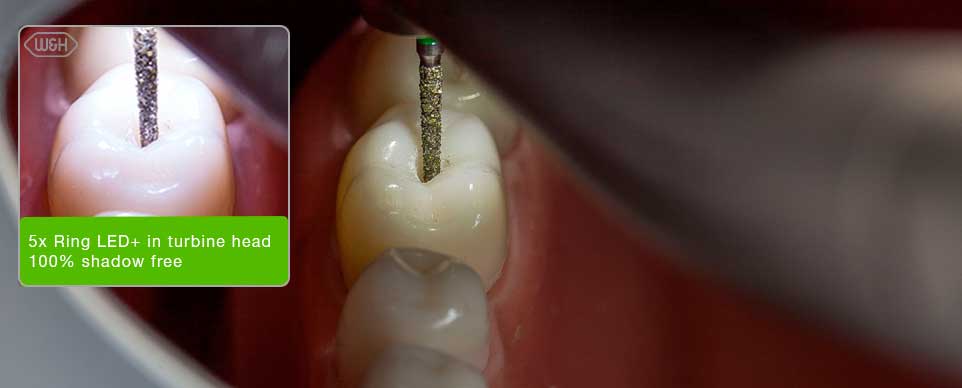

    Compare illumination
    in dental turbines!

    Light comparison

    • 100 % shadow free
      illumination thanks
      to the 5x Ring LED+

      W&H turbine TK-97L
    • Glass rod supplied by
      LED in coupling

      Competitor S turbine*
    • Glass rod supplied by
      LED in coupling

      Competitor K turbine*
    • Glass rod supplied by
      LED in coupling

      Competitor N turbine*
    • Glass rod supplied by
      LED in coupling

      Competitor B turbine*
      *Operation acc. to manufacturer's instructions

      Hygiene with no compromise

      Hygiene with no compromise

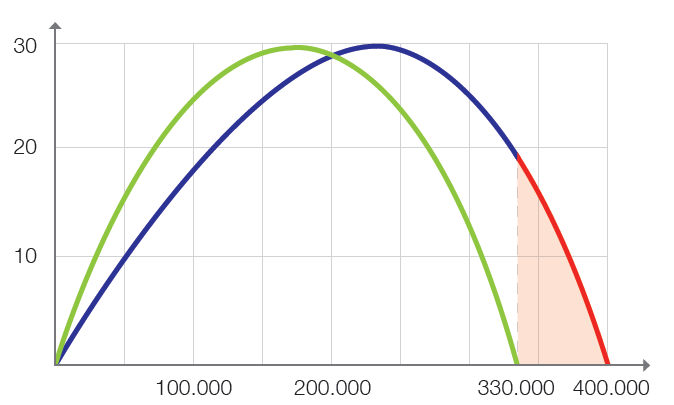

      Minimal escape of air at the head maximum capacity for added efficiency and unbeatable hygiene.

      red: popular turbines with high wattage
      green: Synea Vision TK-100 L“

      Synea Vision Turbines

      TK-94

      LED+,
      5x spray,
      Head size Ø 9 mm,
      14 W*, 410,000 rpm,
      FG burs Ø 1.6 mm for bur lengths up to 16 mm

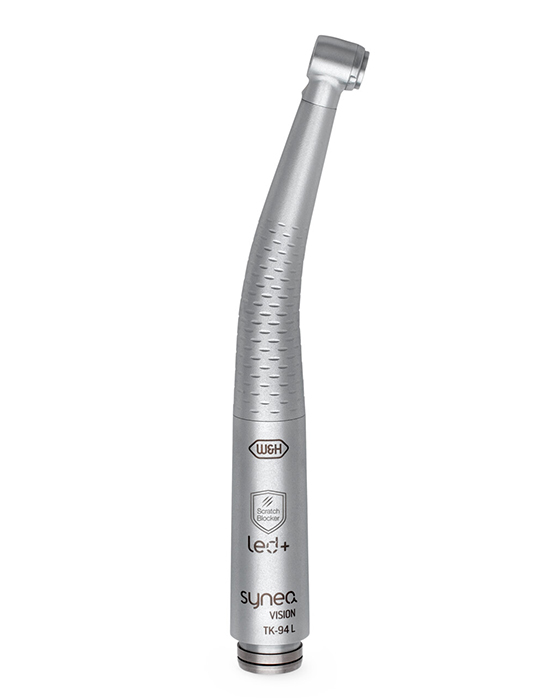

      TK-94 L
      REF 30016000

      LED+, ceramic ball bearings,
      coupling system Roto Quick

      TK-94 LM
      REF 30031000

      Compact glass rod, ceramic ball bearings,
      coupling system Multiflex®**

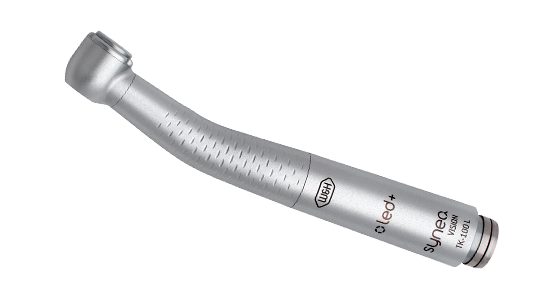

      TK-100

      Ring LED+,
      5x spray,
      Head size Ø 13 mm,
      26 W*, 330,000 rpm,
      FG burs Ø 1.6 for bur lengths up to 25 mm

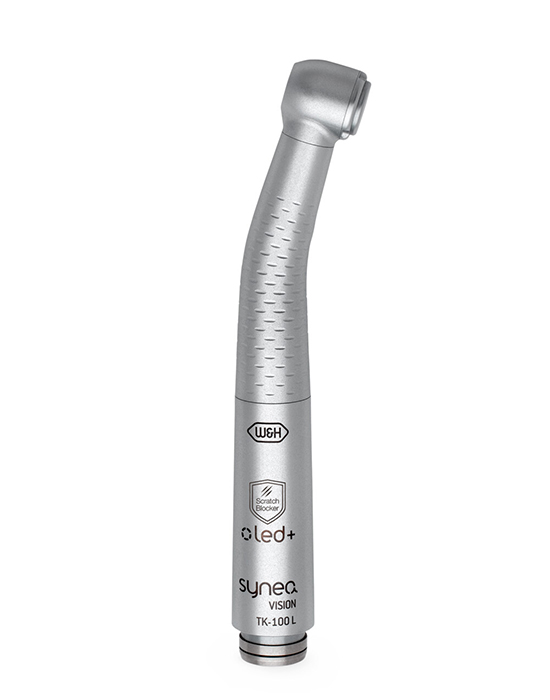

      TK-100 L
      REF 30021000

      Ring LED+, ceramic ball bearings,
      coupling system Roto Quick

      TK-100 LM
      REF 30022000

      Compact glass rod, ceramic ball bearings,
      coupling system Multiflex®**


      TK-98

      Ring LED+,
      5x spray,
      Head size Ø 11,5 mm,
      24 W*, 360,000 rpm,
      FG burs Ø 1.6 mm for bur lengths up to 25 mm

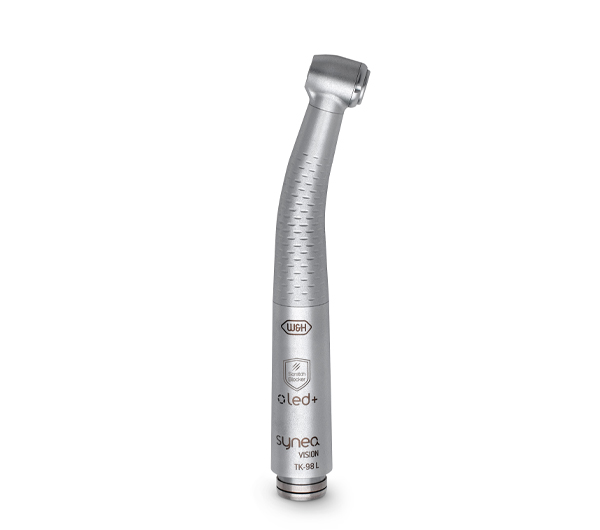

      TK-98 L
      REF 30019000

      Ring LED+, ceramic ball bearings,
      coupling system Roto Quick

      TK-98 LM
      REF 30020000

      Compact glass rod, ceramic ball bearings,
      coupling system Multiflex®**


      TK-97

      Ring LED+,
      5x spray,
      Head size Ø 10 mm,
      21 W*, 400,000 rpm,
      FG burs Ø 1.6 mm for bur lengths up to 21 mm

      TK-97 L
      REF 30017000

      Ring LED+, ceramic ball bearings,
      coupling system Roto Quick

      TK-97 LM
      REF 30018000

      Compact glass rod, ceramic ball bearings,
      coupling system Multiflex®**


      * Performance value applies at a rated pressure of 3 bar and exhaust air pressure of max. 0.2 bar
      ** Multiflex® is a trademark of a third party not affiliated with W&H Dentalwerk Bürmoos GmbH.

      Download Area

      Instructions for use

      Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

      Videos & Tutorials

      For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

      Accept

      Downloads

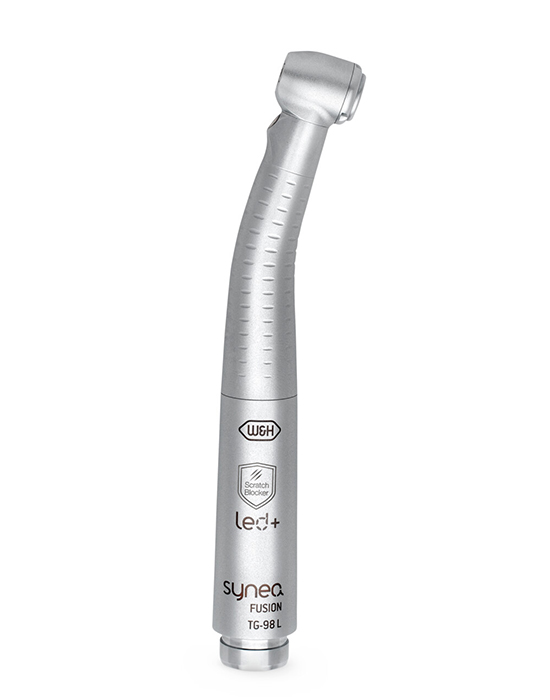

    • Synea Fusion turbine

      Outstanding price-performance ratio experience

      Uncompromising user comfort with optimal LED-illumination, Quattro Spray and quiet, vibration-free operation.

      Your advantages at a glance

      • Largest illumination field with LED+
      • Optimum access, best view and high
        power with perfect head size
        to performance ratio
      • Safe cooling with Quattro Spray (4 port spray)
      • Hygiene head system
      • Ceramic ball bearings for quiet,
        vibration-free operation
      • Optimised design for secure grip
        and optimum hygiene
      • Secure grip and easy bur changes with the push-button chuck system
      • Thermo washer disinfectable sterilizable
      • 12 months warranty

      Optimum cooling

      Optimum cooling of four sides

      //a.storyblok.com/f/45617/c2f727a61c/synea-fusion-cooling.png
      Continuous cooling with
      Quattro Spray.
      Best ergonomics

      Best ergonomics

      //a.storyblok.com/f/45617/a1676eef7c/synea-fusion-turbine-grip.png
      Synea turbines are comfortable in
      the hand and have a non-slip coating.

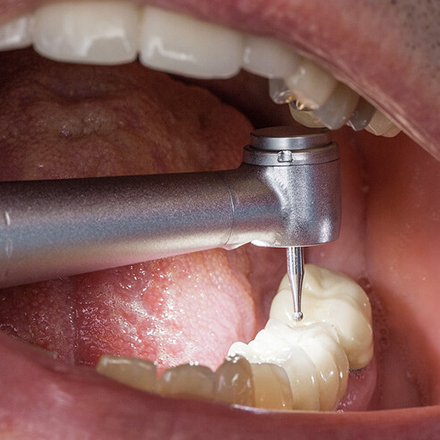

      Experience LED+

      Experience LED+

      //a.storyblok.com/f/45617/43e8f917cc/led.png
      Optimum illumination, natural
      colour reproduction and LED
      positioned directly beneath
      the instrument head.

      Power Blade Rotor

      Full steam ahead with the Power Blade rotor

      The optimized blade geometry
      allows higher rotor efficiency.
      For maximum torque and optimal
      power throughout preparation.
      Patented hygienic
      head system

      Patented hygienic head system

      The circulating air in the turbine head ensures no aerosol particles are sucked into the turbine as the rotor slows down.

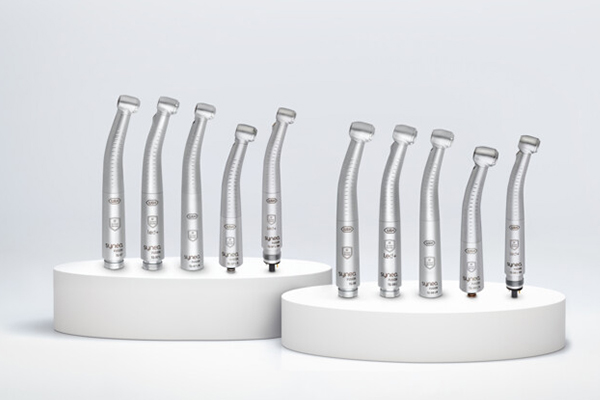

      Synea Fusion Turbines

      TG-97

      Quattro Spray
      Head size Ø 10 mm,
      18 W*, 390,000 rpm,
      FG burs Ø 1.6 for bur lengths up to 21 mm

      TG-97
      REF 30005000

      Without light, ceramic ball bearings,
      coupling system Roto Quick

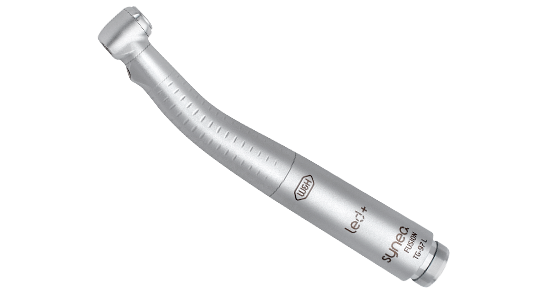

      TG-97 L
      REF 30004000

      LED+, ceramic ball bearings,
      coupling system Roto Quick

      TG-97 LM
      REF 30006000

      Compact glass rod, ceramic ball bearings,
      coupling system Multiflex®**

      TG-97 L N
      REF 30199000

      Compact glass rod, ceramic ball bearings,
      coupling system NSK Mach®**

      TG-97 L RM
      REF 30197000

      LED+, ceramic ball bearings,
      standard 6-hole connection

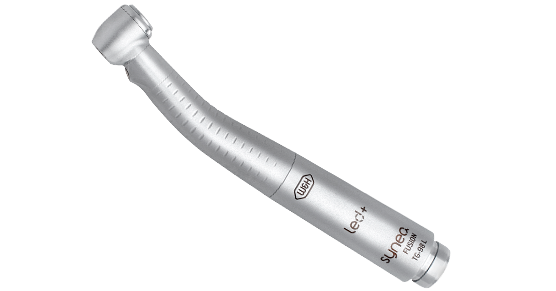

      TG-98

      Quattro Spray,
      Head size Ø 11,5 mm,
      21 W*, 360,000 rpm,
      FG burs Ø 1.6 mm for bur lengths up to 25 mm

      TG-98
      REF 30002000

      Without light, ceramic ball bearings,
      coupling system Roto Quick

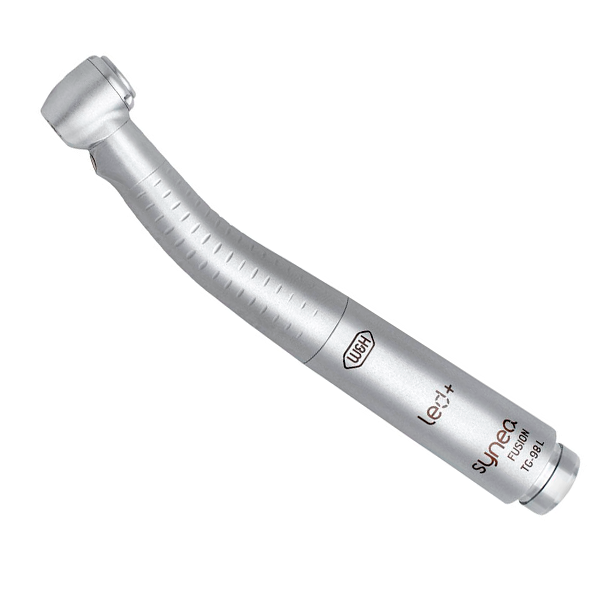

      TG-98 L
      REF 30001000

      LED+, ceramic ball bearings,
      coupling system Roto Quick

      TG-98 LM
      REF 30003000

      Compact glass rod, ceramic ball bearings,
      coupling system Multiflex®**

      TG-98 L N
      REF 30200000

      Compact glass rod, ceramic ball bearings,
      coupling system NSK Mach®**

      TG-98 L RM
      REF 30198000

      LED+, ceramic ball bearings,
      standard 6-hole connection


      * Performance value applies at a rated pressure of 3 bar and exhaust air pressure of max. 0.2 bar
      ** Multiflex® and NSK Mach® are trademarks of third parties not affiliated with W&H Dentalwerk Bürmoos GmbH.

      Download Area

      Instructions for use

      Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

      Videos & Tutorials

      For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

      Accept

      Downloads

    • Synea Vision

      Types: TK-94 L / TK-94 LM  TK-97 L / TK-97 LM TK-98 L / TK-98 LM TK-100 L / TK-100 LM
      Light: LED + /
      compact glass rod
      Ring LED + /
      compact glass rod
      Ring LED + /
      compact glass rod
      Ring LED + /
      compact glass rod
      Coupling: W&H Roto Quick /
      Multiflex®**
      W&H Roto Quick /
      Multiflex®**
      W&H Roto Quick /
      Multiflex®**
      W&H Roto Quick /
      Multiflex®**
      Head size: Ø 9 mm Ø 10 mm Ø 11.5 mm Ø 13 mm
      Head height: 17.2 mm
      (with bur 16 mm)
      21.1
      (with bur 19 mm)
      21.4
      (with bur 19 mm)
      21.4
      (with bur 19 mm)
      Power: 14 W* 21 W* 24 W* 26 W*
      Speed (± 30.000 rpm): 410,000 rpm 400,000 rpm 360,000 rpm 330,000 rpm
      FG bur Ø 1.6
      Max. operating part diameter:
      Max. length:

      1.5 mm
      16 mm

      2 mm
      21 mm

      2 mm
      25 mm

      2.5 mm
      25 mm
      Operating pressure Roto Quick connection:
      Operating pressure Multiflex®** connection:
      3 ± 0.3 bar
      2.5 – 4 bar
      3 ± 0.3 bar
      2.5 – 4 bar
      3 ± 0.3 bar
      2.5 – 4 bar
      3 ± 0.3 bar
      2.5 – 4 bar
      Spray: 5-fold 5-fold 5-fold 5-fold

      Synea Fusion

      Types: TG-98 L / TG-98 / TG-98 L RM TG-97 L / TG-97 / TG-97 L RM TG-98 LM / TG-98 LN TG-97 LM / TG-97 LN
      Light: LED+ / no / LED+ LED+ / no / LED+ compact glass rod compact glass rod
      Coupling: Roto Quick /
      RM

      Roto Quick /
      RM

      Multiflex®** /
      NSK Mach®**

      Multiflex®** /
      NSK Mach®**
      Head size: Ø 11.5 mm Ø 10 mm Ø 11.5 mm Ø 10.5 mm
      Head height: 21.4 mm
      (with bur 19 mm)
      21.1 mm
      (with bur 19 mm)
      21.4 mm
      (with bur 19 mm)
      21.1 mm
      (with bur 19 mm)
      Power: 21 W* 18 W* 21 W* 18 W*
      Speed (± 30.000 rpm): 360,000 rpm 390,000 rpm 360,000 rpm 360,000 rpm
      FG bur Ø 1.6
      Max. operating part diameter:
      Max. length:
      2 mm
      25 mm
      2 mm
      21 mm
      2 mm
      25 mm
      2 mm
      21 mm

      Operating pressure
      Roto Quick-, RM, Multiflex®**-,
      NSK Mach®** connection:


      3 ± 0.3 bar


      3 ± 0.3 bar

      3 ± 0.3 bar
      2.5 – 4 bar

      3 ± 0.3 bar
      2.5 – 4 bar
      Spray:

      4-fold

      4-fold

      4-fold 4-fold

      All types are also available without light.

      * Performance value applies at a rated pressure of 3 bar and exhaust air pressure of max. 0.2 bar
      ** Multiflex® and NSK Mach® are trademarks of third parties not affiliated with W&H Dentalwerk Bürmoos GmbH.
