Surgical Handpieces

Durable, ergonomic and robust

The surgical straight handpieces have been specially designed for oral and maxillofacial surgery and implantology. The high-quality stainless steel with special coating makes them particularly robust.

Oral Surgery & Implantology

Oral Surgery & Implantology

System Overview

  • Surgical Handpieces with mini LED+

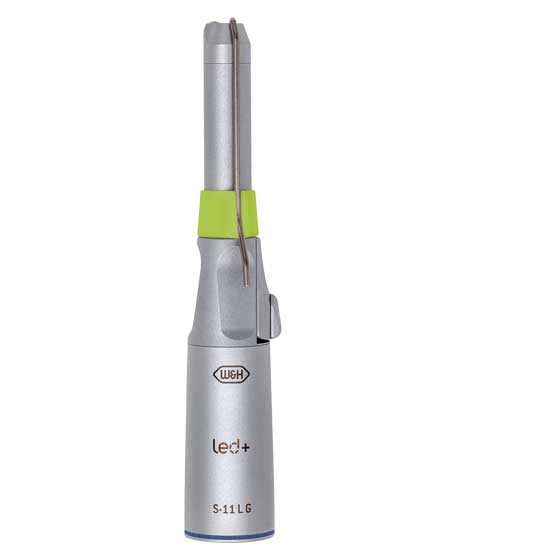

    Surgical Handpiece S-11 L G

    Working in daylight quality

    Excellent lighting conditions facilitate accurate diagnoses and perfect treatment results.

    The surgical handpieces with mini LED+ produce LED light independently. An integral generator supplies the LED in the handpieces with power.

    Your advantages at a glance

    • Natural reproduction of red tones
    • Independent power supply with integrated generator
    • Fatigue-free working thanks to optimal ergonomics
    • Durable and robust due to high-quality stainless steel and scratch-resistant coating
    • Can be dismantled for thorough cleaning
    • Thermal Washer Disinfector compatible

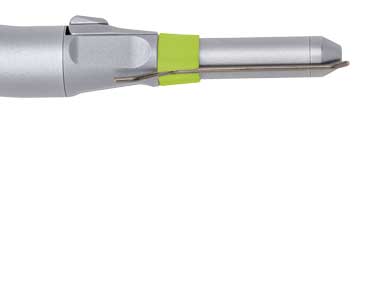

    Fatigue-free working thanks to optimal ergonomics

    Fatigue-free operation

    //a.storyblok.com/f/45617/ddf909f536/s-9_ergonomic-design_overlay.jpg
    The new ergonomic design is perfectly coordinated to all the application possibilities and prevents fatigue.
    Perfect light due to mini LED+

    Optimal illumination

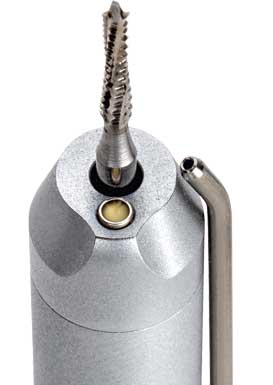

    //a.storyblok.com/f/45617/1a065f5339/s-11-l-g-_lindemann__overlay.jpg
    Thanks to its being half the size of a normal LED, the mini LED+ can be integrated very close to the tip and offers optimal illumination.

    With their neutral white light our LED provide a superior light source. This allows you to have daylight quality light in the treatment area whether you have an optic or non-optic drive system.
    Independent power supply

    Independent power supply

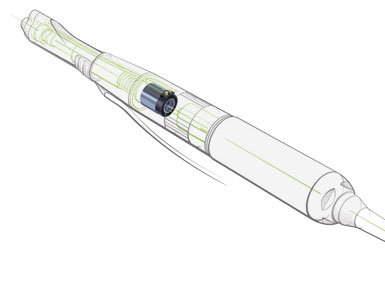

    //a.storyblok.com/f/45617/3b8ea2a96d/s-11ledg-with-generator_overlay.jpg
    As soon as you activate your handpiece, the generator turns. It autonomously generates the electricity needed for the mini LED+ regardless of the type of drive system you work with.
    Scratch-resistant surface

    Scratch-resistant surface

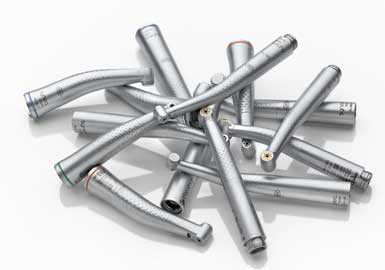

    //a.storyblok.com/f/45617/15ba784854/handpiece-mixup_overlay.jpg
    The unique coating protects the handpiece from scratches.
    This facilitates cleaning and preserves the value.
    Perfect cleaning

    Perfect cleaning

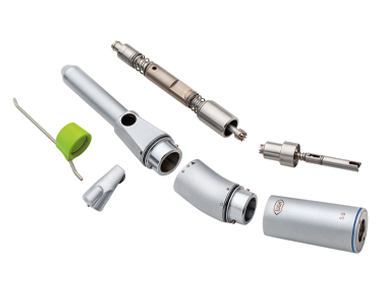

    //a.storyblok.com/f/45617/2a4cf65782/s-9-dismantled_overlay.jpg
    To satisfy the stringent hygiene requirements, the handpieces can be dismantled.
    High colour rendering index (CRI)

    Daylight quality

    //a.storyblok.com/f/45617/a0f74431fd/led-comparison_overlay.jpg
    W&H handpieces with mini LED+ possess a high luminosity values/ a great light output.

    With a colour rendering index greater than 90, W&H handpieces with mini LED+ show natural-appearing red tones.

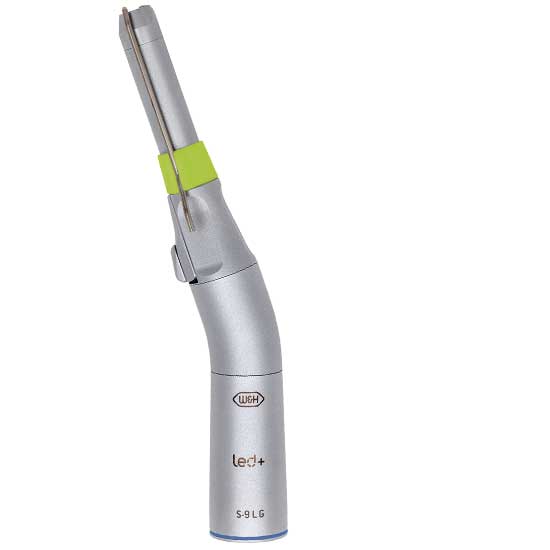

    S-9 L G

    Surgical Handpiece
    with lever chuck, mini LED+ and generator
    Coupling system: ISO 3964 (DIN 13940)

    S-9 L G
    REF 30054000

    1:1, angled, can be dismantled,
    for surgical burs and cutters Ø 2.35 mm (also Stryker system), L = max. 45 mm, external spray, maximum drive speed 40,000 min-1

    Indications

    e.g.: apical resection, osteotomy,
    apical trepanning, bone modelling

    S-11 L G

    Surgical Handpiece
    with lever chuck, mini LED+ and generator
    Coupling system: ISO 3964 (DIN 13940)

    S-11 L G
    REF 30057000

    1:1, straight, can be dismantled,
    for surgical burs and cutters Ø 2.35 mm (also Stryker system), L = max. 45 mm, external spray, maximum drive speed 40,000 min-1

    Indications

    e.g.: apical resection, osteotomy,
    apical trepanning, bone modelling

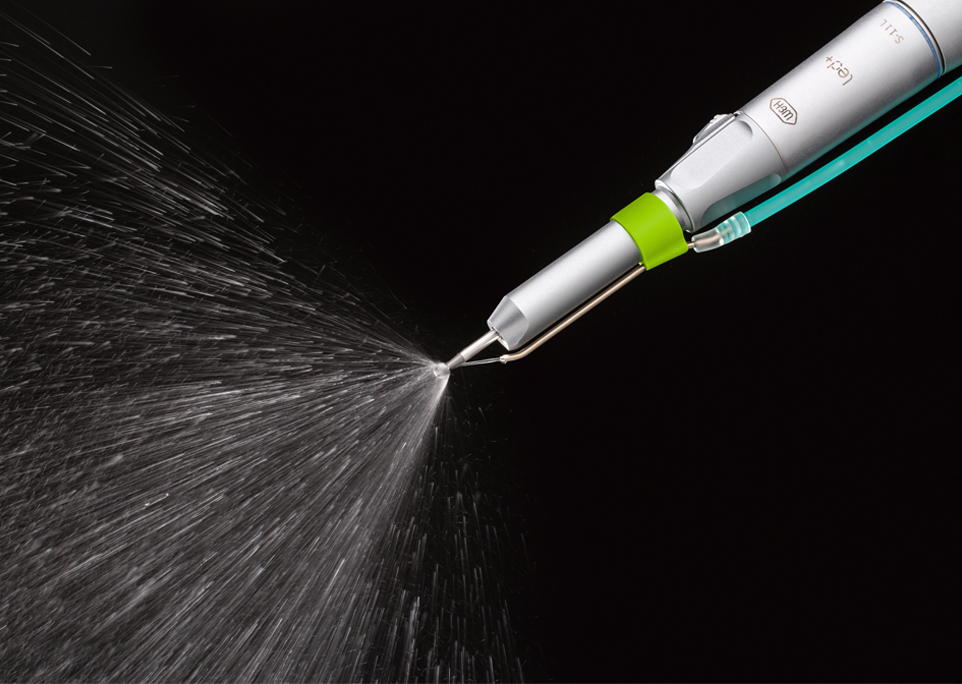

    The new surgical handpiece with mini LED+ and W&H connection

    Surgical handpiece for Implantmed Plus

    The first choice for apical resection, osteotomy, sequestrotomy, bone modelling and bone smoothing and also for extraction of wisdom teeth

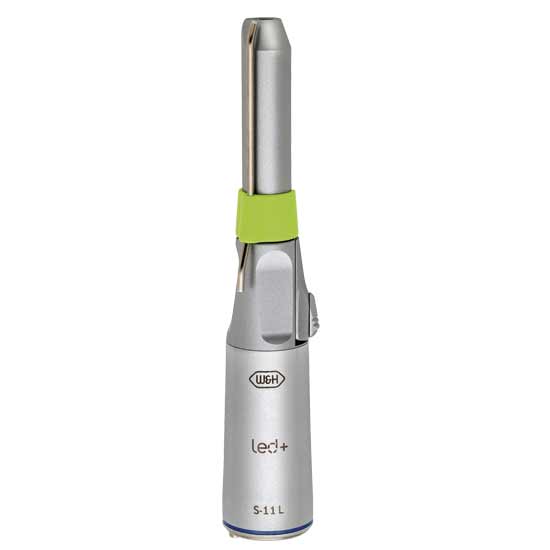

    S-11 L

    Surgical Handpiece
    with lever chuck, mini LED+ and W&H connection
    Coupling system: W&H EM-19 LC / EM-19

    S-11 L
    REF 30058000

    1:1, straight, can be dismantled,
    can only be used with the W&H electric motor EM-19,

    for surgical burs and cutters Ø 2.35 mm
    (also Stryker system), L = max. 45 mm, external spray, maximum drive speed 50.000 min-1





    Surgical Handpieces without light

    Surgical Handpiece S-11

    Providing the best treatment

    Surgical interventions represent a great challenge. To meet this challenge a number of surgical handpieces are required.

    Therefore W&H has developed a series of straight and angled handpieces for oral and maxillofacial surgery and implantology.

    The main features at a glance

    • Fatigue-free working thanks to optimal ergonomics
    • Durable and robust due to high-quality stainless steel and scratch-resistant coating
    • Wide range for all surgical applications
    • Can be dismantled for thorough cleaning
    • Thermal Washer Disinfector compatible
    Fatigue-free working thanks to optimal ergonomics

    Fatigue-free operation

    //a.storyblok.com/f/45617/ddf909f536/s-9_ergonomic-design_overlay.jpg
    The new ergonomic design is perfectly coordinated to all the application possibilities and prevents fatigue.
    Scratch-resistant surface

    Scratch-resistant surface

    //a.storyblok.com/f/45617/15ba784854/handpiece-mixup_overlay.jpg
    The unique coating protects the handpiece from scratches.
    This facilitates cleaning and preserves the value.
    Can be dismantled without tools

    Easy cleaning – Can be dismantled without tools

    //a.storyblok.com/f/45617/2a4cf65782/s-9-dismantled_overlay.jpg
    To enable thorough cleaning to be carried out, the handpieces can be easily and quickly dismantled and re-assembled – without the use of tools.

    Cleaning parts individually provides the most effective result.

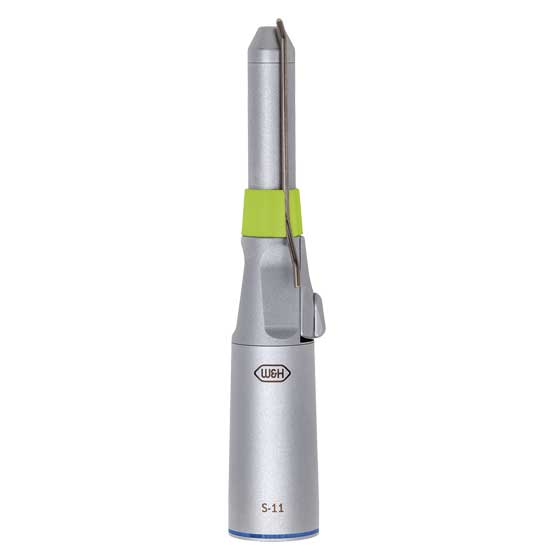

    S-11

    Surgical Handpiece
    with lever chuck
    Coupling system: ISO 3964 (DIN 13940)

    S-11
    REF 30056000

    1:1, straight, can be dismantled,
    for surgical burs and cutters Ø 2.35 mm
    (also Stryker system), L = 45 mm,
    external spray, maximum drive speed 50,000 min-1

    Indications

    e.g.: apical resection, osteotomy,
    apical trepanning, bone modelling

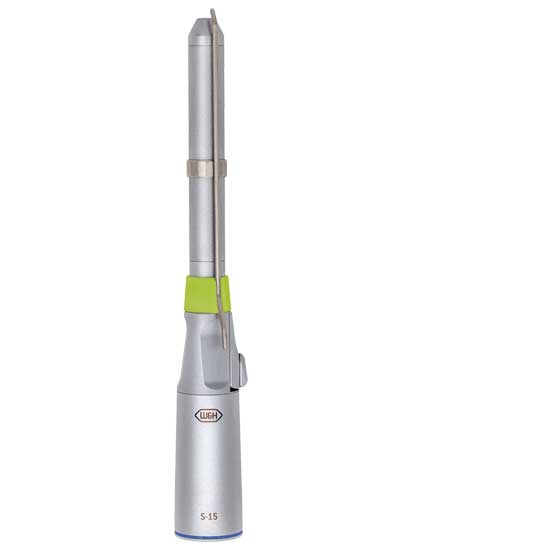

    S-15

    Surgical Handpiece
    with lever chuck
    Coupling system: ISO 3964 (DIN 13940)

    S-15
    REF 30060000

    1:1, straight, can be dismantled,
    for surgical burs and cutters Ø 2.35 mm
    (also Stryker system), L = 45 mm,
    external spray, maximum drive speed 30,000 min-1

    Indications

    e.g.: osteotomy in difficult to access areas

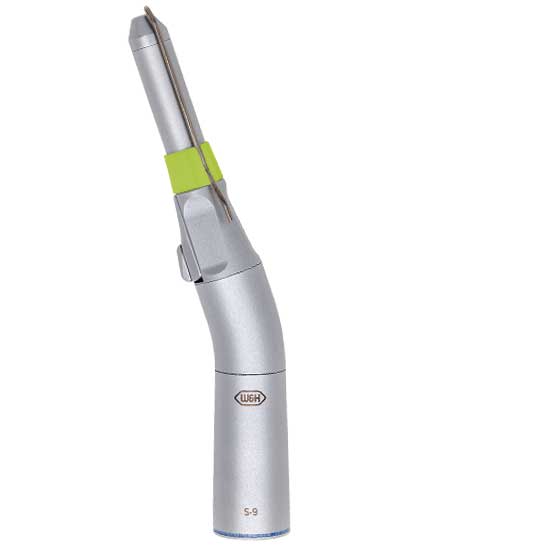

    S-9

    Surgical Handpiece
    with lever chuck
    Coupling system: ISO 3964 (DIN 13940)

    S-9
    REF 30053000

    1:1, angled, can be dismantled, for surgical burs and cutters Ø 2.35 mm (also Stryker system), L = 45 mm,
    external spray, maximum drive speed 50,000 min-1

    Indications

    e.g.: apical resection, osteotomy,
    apical trepanning, bone modelling

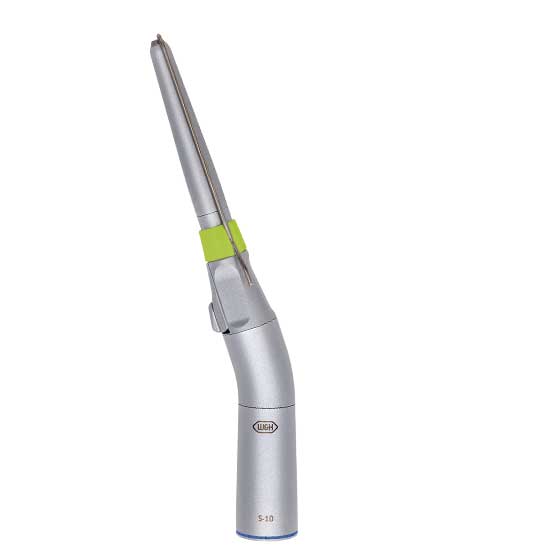

    S-10

    Surgical Handpiece
    with lever chuck
    Coupling system: ISO 3964 (DIN 13940)

    S-10
    REF 30059000

    1:1, angled, can be dismantled, for surgical burs and cutters Ø 2.35 mm,
    L = 70 mm, external spray, maximum drive speed 50,000 min-1

    Indications

    e.g.: osteotomy, fenestration,
    osteosynthesis in distal areas

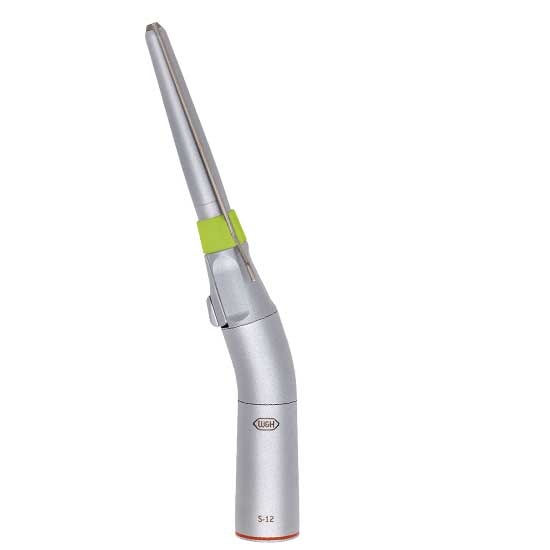

    S-12

    Surgical Handpiece
    with lever chuck
    Coupling system: ISO 3964 (DIN 13940)

    S-12
    REF 30061000

    1:2, angled, can be dismantled,
    for surgical burs and cutters Ø 2.35 mm,
    L = 70 mm, external spray, maximum drive speed 40,000 min-1

    Indications

    e.g.: osteotomy, fenestration,
    osteosynthesis in distal areas

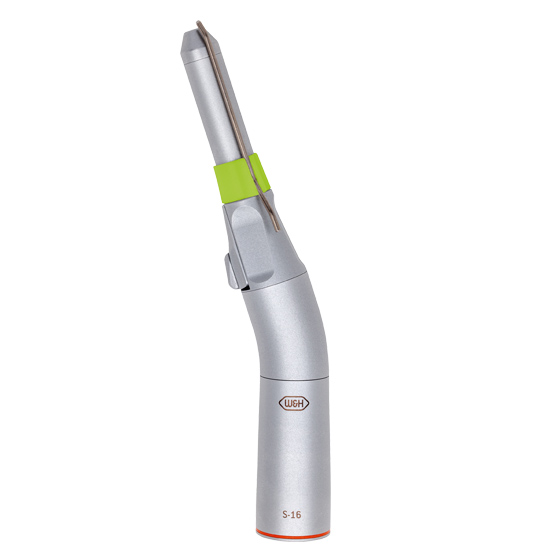

    S-16

    Surgical Handpiece
    with lever chuck
    Coupling system: ISO 3964 (DIN 13940)

    S-16
    REF 30411000

    1:2, angled, can be dismantled, for surgical burs and cutters Ø 2.35 mm,
    L = 45 mm, external spray, maximum drive speed 40,000 min-1

    Indications

    e.g.: premolar and molar area




    Download Area

    Instructions for use

    Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

    Videos & Tutorials

    For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

    Accept
  • Surgical straight handpiece with mini LED+ and W&H connection

    Type: S-11 L
    Transmission ratio: 1:1
    Coupling system: W&H EM-19 LC / EM-19
    Lighting system: mini LED+
    Spray: external
    Chucking system: lever chuck
    Rotary instruments: for surgical burs and cutters
    Ø 2.35 mm (also Stryker system)
    Permitted bur length: 45 mm
    Maximum drive speed: 50,000 min -1
    Can be dismantled: yes

    Surgical handpieces with mini LED+ and generator

    Type: S-9 L G S-11 L G
    Transmission ratio: 1:1
    Coupling system: ISO 3964
    Lighting system: mini LED+
    Power supply: via independent generator
    Light quality: daylight
    Spray: external
    Chucking system: lever chuck
    Rotary instruments: for surgical burs and cutters
    Ø 2.35 mm (also Stryker system)
    Permitted bur length: 45 mm
    Maximum drive speed: 40,000 min -1
    Can be dismantled: yes

    Surgical handpieces without light

    Type: S-9 S-11 S-15 S-10 S-12
    Transmission ratio: 1:1 1:1 1:1 1:1 1:2
    Coupling system: ISO 3964
    Spray: external
    Chucking system: lever cuck
    Rotary instruments: for surgical burs and cutters
    Ø 2.35 mm (also Stryker system)
    for surgical burs and cutters
    Ø 2.35 mm
    Permitted bur length: 45 mm 70 mm
    Maximum drive speed: 50,000 min -1 50,000 min -1 30,000 min -1 50,000 min -1 40,000 min -1
    Can be dismantled: yes yes
