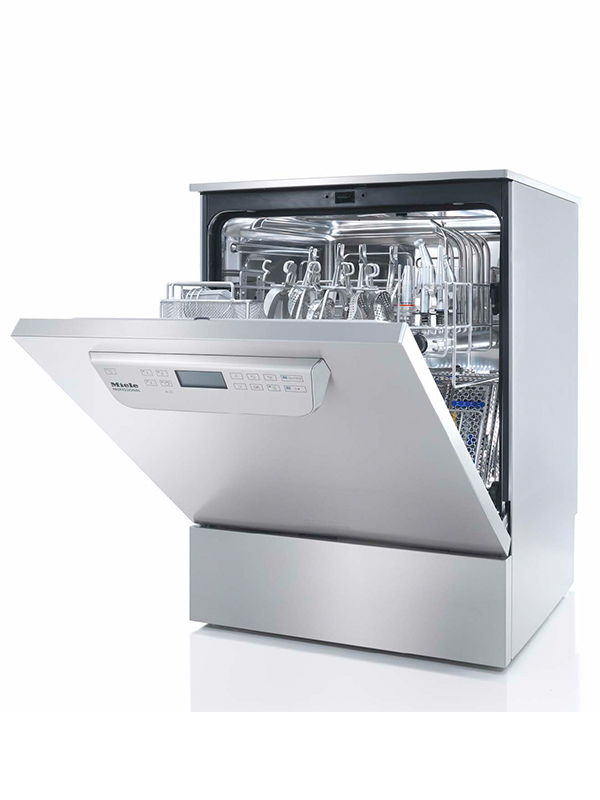

Miele Thermal Washer Disinfector

High level disinfection in only 37 minutes

PERFORMANCE. SAFETY. CONVENIENCE.
Thermal Washer Disinfectors enable you to achieve safe, visible cleaning and disinfection results for dental instruments. They are particularly gentle on the instrument material and are recommended by reputable manufacturers for preparing transmission instruments. Compliant at the highest level: AS 5369

Sterilization, Hygiene & Maintenance

Sterilization, Hygiene & Maintenance

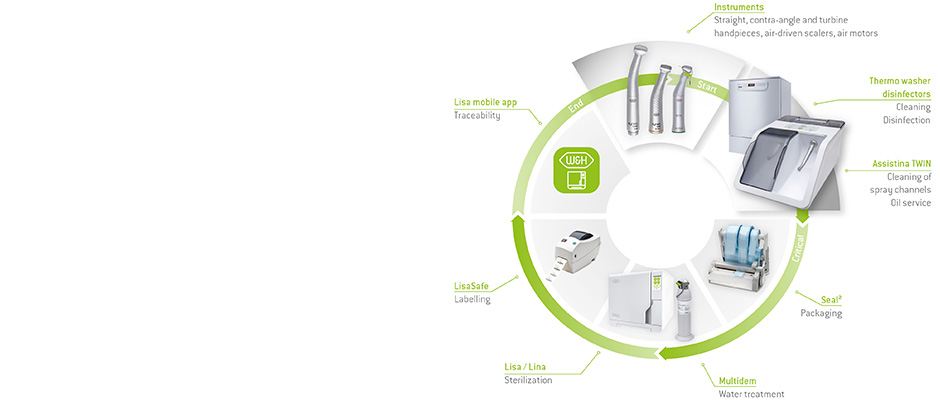

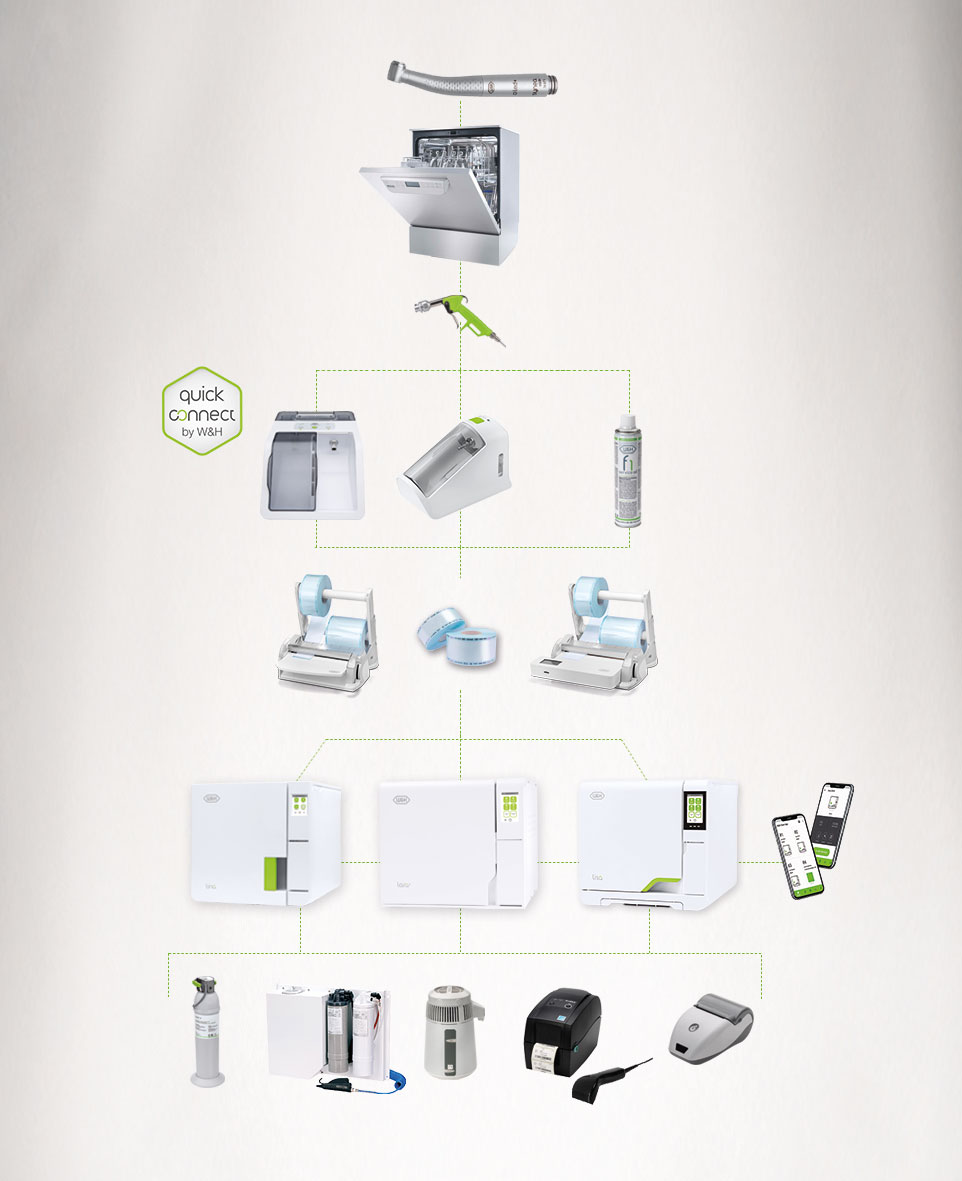

System Overview

  • Miele TWD

    Miele
    Thermal Washer Disinfector

    Thermal Washer Disinfectors enable you to achieve safe, visible cleaning and disinfection results for dental instruments. They are particularly gentle on the instrument material and are recommended by reputable manufacturers for preparing transmission instruments.

    Compliant at the highest level: AS 5369

    *Miele Thermal Washer Disinfector exclusively available in Australia through W&H.

    PG 8591/PG 8581 offers:

    • Safe and visible cleaning and disinfection results for dental instruments
    • Gentle preparation of transmission instruments
    • High cleaning performance
    • Outstanding cleaning performance for large batch throughputs
    • Patented circulation pump

      Maximum performance

      Outstanding cleaning performance owing to the
      patented circulation pump.

    • Cleaning and disinfection

      Maximum safety

      Safe and visible cleaning and disinfection results for dental instruments.

    • Preparation of instruments

      Gentle preparation of instruments

    • Cleaning performance

      Outstanding cleaning performance

      for large batch throughputs.

    • Hygiene and safety

      Gap-free rinsing space

      The gap-free rinsing space prevents organic deposits. The highest hygiene and safety standards for your patients and practice employees.

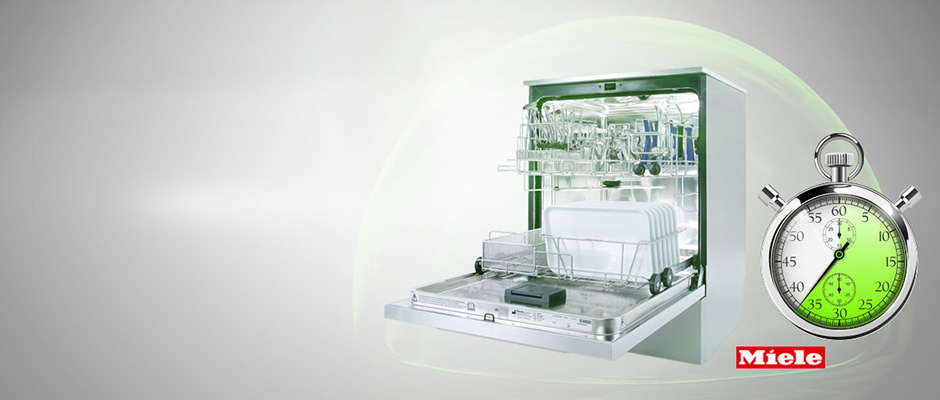

    • 37 minute cycles

      Maximum convenience

      No need to scrub your Instruments prior to loading. Capacity for for up to 22 clinical and surgical handpieces in one load. 37 minute cycles without drying, only an extra 7 minutes for a full drying cycle.

      Create a more efficient use of time in your practice.

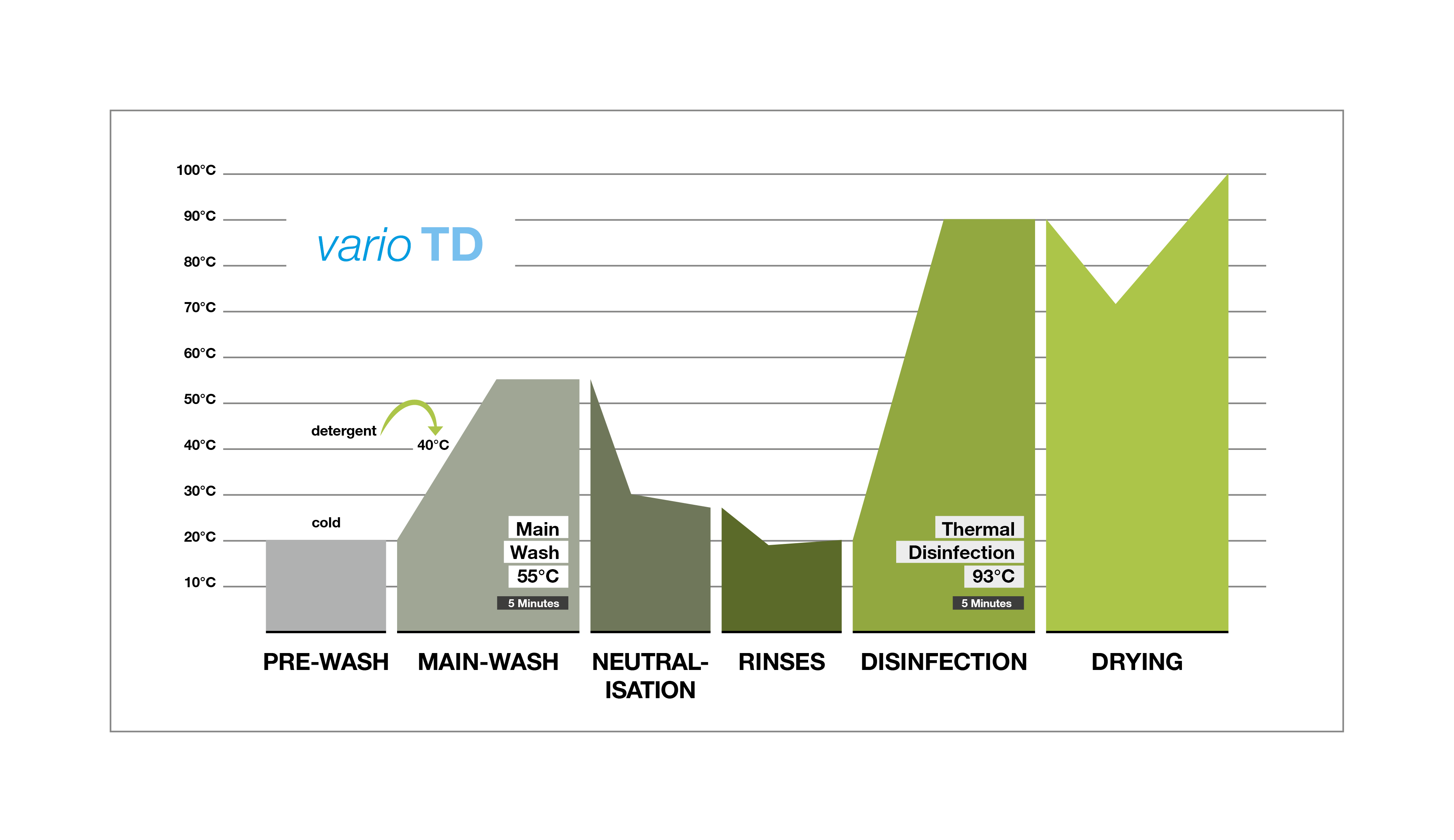

      • Miele Vario TD Cycle

        In the Vario TD Dental programme, pre-cleaning commences at low temperatures to prevent the denaturation of blood residues. After an intensive main wash phase, thermal disinfection then takes place at temperatures in excess of 90°C which are maintained for 5 minutes. In order to protect surgical instruments, the final rinse is ideally performed with demineralised water without any surfactant added.

        This approach is particularly gentle on materials and is particularly recommended for the reprocessing of transmission instruments.



        Combined hygiene expertise from one source

        W&H and Miele are both globally active family-run companies who are united by their innovative strength and high quality standards.

        Miele Packages

        • Starter Package Offer

          Starter Package Offer

          MIELE PG8581SS
          Thermal Washer Disinfectors

          Standard Upper and Lower Basket
          E379: Open Half Mesh Instrument Tray x 2
          E523: Cassette and Tray Holder

          The Miele Thermal Washer Disinfector enables the safe and reproducible cleaning & disinfection of instruments in accordance with AS 5369. This approach is particularly gentle on materials and is also recommended for the reprocessing of handpieces and hollow tips. In the Vario TD Dental program pre cleaning commences at low temperatures to prevent the denature of blood residues.
          After an intensive main wash phase, thermal disinfection takes place at temperatures in excess of 90 degrees Celsius followed by the new Eco dry phase to complete the process.


          Miele Thermal Washer Disinfector Pack

          Miele PG8581 PD W TWD
          REF 11070330

          Miele PG8581 AD SS TWD
          REF 11070340

          Miele PG8591 AD SS TWD
          REF 11070350

          Miele TWD Accessories Pack

          Miele Accessories Package

          MIELE PG8581 AD SS TWD
          A102 Upper Basket
          A151 Lower Basket
          E379 Insert 1/2 Mesh Tray
          E337/1 Insert 2/5
          E523 Insert 1/5
          Dual Check Valve

          Videos

          Testimonials Miele TWD

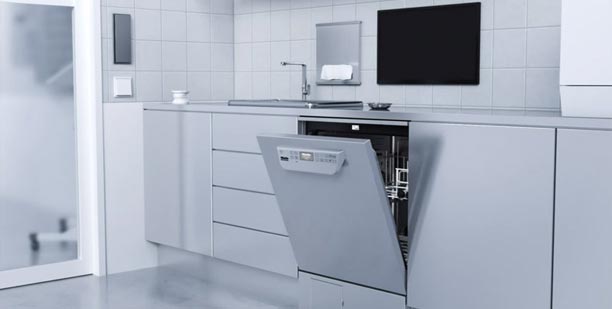

          Miele TWD Convenience

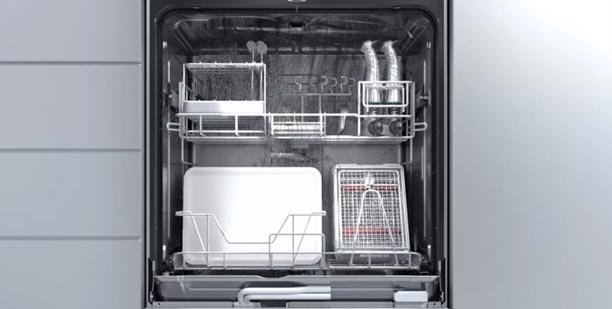

          Miele TWD Safety

          Miele TWD Performance

          Download Area

          Instructions for use

          Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

          Videos & Tutorials

          For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

          Accept
        • Technical data

          Type: Thermal disinfector PG 8581 SS
          Undercounter/freestanding unit with lid
          Circulation pump [Qmax. l/min.] 500
          Controls/Programmes
          TouchControl/7 programmes
          AutoClose - Automatic door lock
          Buzzer, acoustic signal at end of programme
          Ethernet module/RS 232 module for process documentation Optional
          Water connections
          1 cold water, 2.0–10 bar flow pressure (200–1000 kPa) (protection against backsiphoning according to EN 1717)
          1 cold water for steam condenser, 2.0–10 bar flow pressure (200–1000 kPa) (protection against backsiphoning according to EN 1717)
          1 demineralised water, 2.0–10 bar flow pressure (200–1000 kPa) (protection against backsiphoning according to EN 1717)
          1 hot water, 2.0–10 bar flow pressure (200–1000 kPa) (protection against backsiphoning according to EN 1717)
          No. of inlet hoses, ½" with ¾" threaded union, l = approx. 2.0 m 4
          Drain pump Ø 22,. Max. head height: 100 cm
          WaterProof System (WPS)
          Electrical connection
          3N AC 400 V 50 Hz convertible to AC 230 V 50 Hz, Supply lead, approx. 1.5 m, 5 x 2.5 mm² incl. plug
          Heating [kW] 8.5
          Circulation pump [kW] 0.8
          Total rated load [kW] 9.3
          Fuse rating [A] 3 x 16
          Dispenser systems
          1 door dispenser for surfactant
          1 dispenser pump for liquid detergent
          1 dispenser pump for neutralising agent
          Connection options
          DOS K 85 and DOS K 85/1 liquid dispenser 1
          Water softeners
          For hot and cold water, max 65°C
          Steam condenser
          Aerosol
          Drying unit/Radial fan
          Eco Drying [kW] 0.3
          Heater bank [kW] 2.2
          Total rated load [kW] 2.5
          Air throughput [m³/h] 47
          Temperature selection in 1° increments [°C] 50 – 115
          Time selection in 1-minute increments [min] 0 – 120
          Particulate filter/HEPA filter/filter rating (DIN EN 1822)/filter life H 13/>99.95%/200 h
          Dimensions/Weight
          External dimensions H/W/D (without lid H 820 mm) [mm] 835/600/600
          Cabinet dimensions H/W/D [mm]: 522/536/top=518, 522/536/top=518,
          bottom=523
          Weight [kg] 78
          Casing options
          White casing, Metal (AW)
          Stainless steel (AE)
          Compliance with standards
          DIN EN ISO 15883-1/2/6, EN 61010-2-40, EN 61326 -1
          Test certificates
          VDE, VDE-EMC, IP 21
          MDD CE 0297
