Zygoma - 20:1 handpiece

The new solution in the Zygoma application

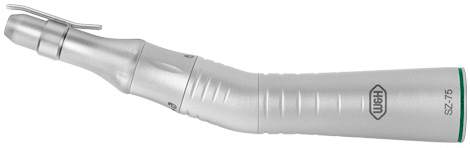

Surgical Handpiece SZ-75

specially for the insertion of Zygoma implants

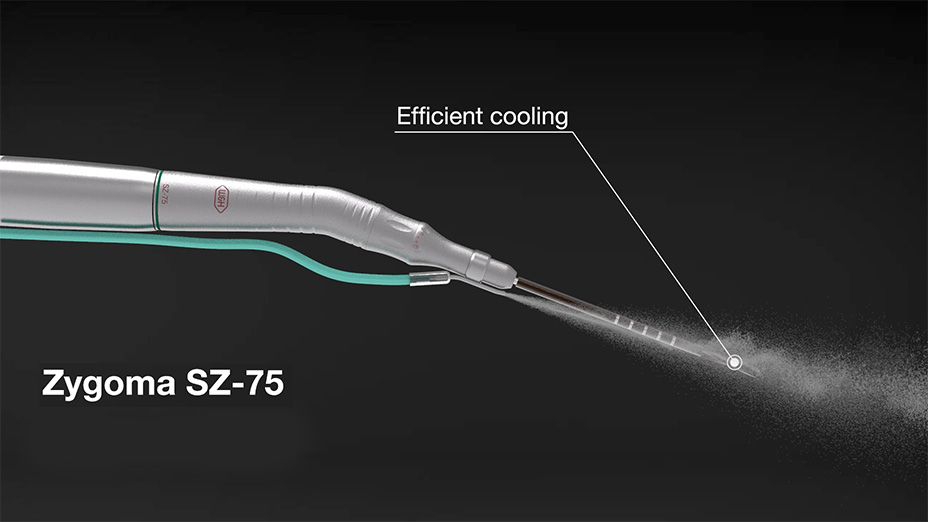

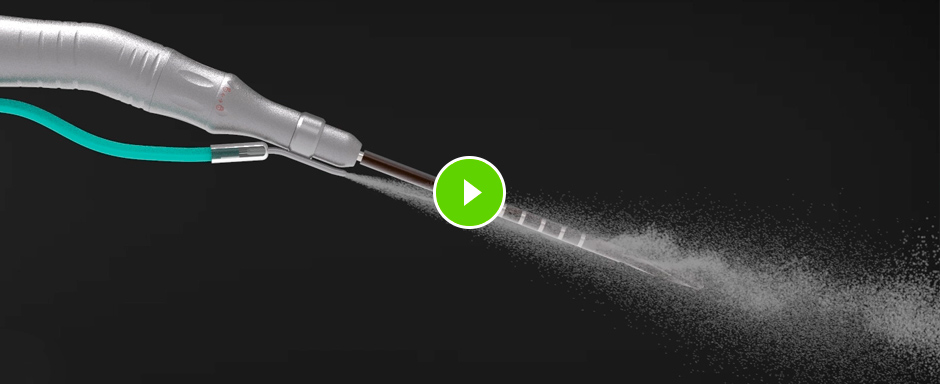

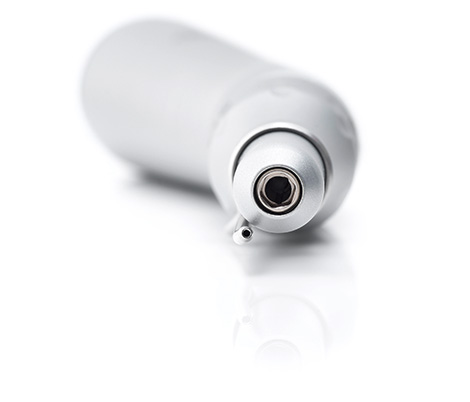

  • Efficient cooling

    The spray exits near the instrument‘s area of activity and cools the operating site extremely efficiently.

  • High application security

    The world‘s only 20:1 handpiece with contra-angle chucking system ensures application security at high concentricity.

  • Easy access to treatment site

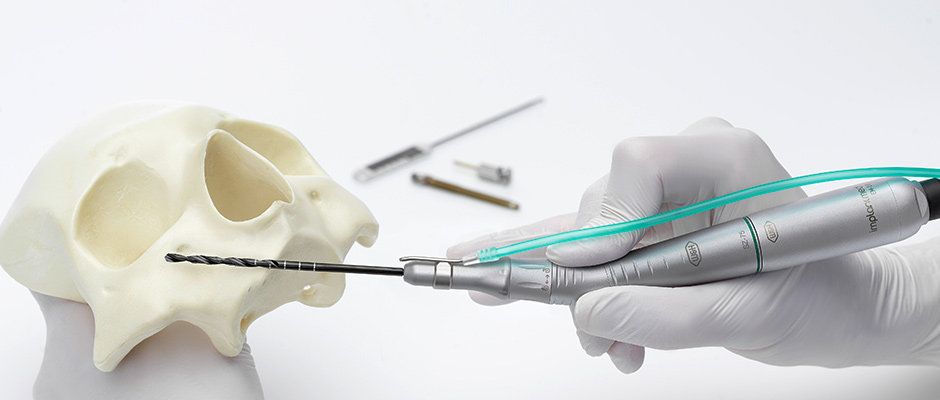

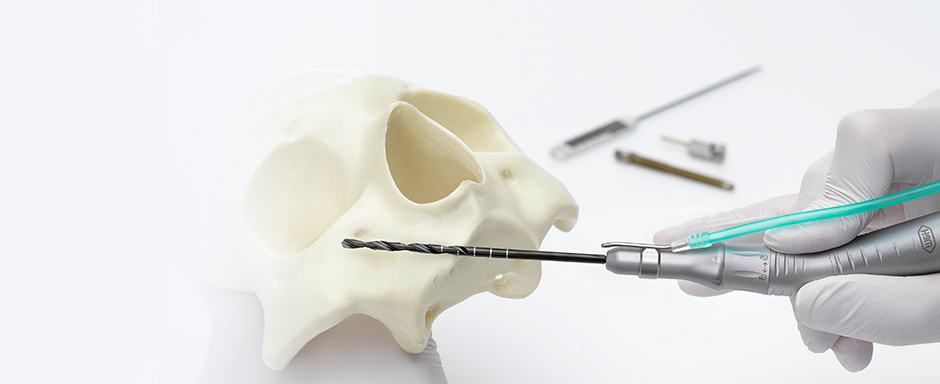

    The angle of the handpiece allows optimal access for difficult interventions in the area of the zygomatic bone.

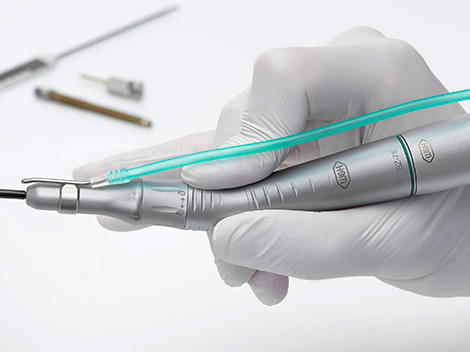

  • Fatigue-free working

    The ergonomic design of the handpiece ensures long and fatigue-free working.

  • 1 Efficient cooling

    Efficient cooling

    The spray exits near the instrument‘s area of activity and cools the operating site extremely efficiently.

  • 2 High application security

    High application security

    The world‘s only 20:1 handpiece with contra-angle chucking system ensures application security at high concentricity.

  • 3 Easy access to treatment site

    Easy access to treatment site

    The angle of the handpiece allows optimal access for difficult interventions in the area of the zygomatic bone.

  • 4 Fatigue-free working

    Fatigue-free working

    The ergonomic design of the handpiece ensures long and fatigue-free working.

  • Surgical Handpiece SZ-75 specially for Zygoma implants

    Chirurgisches Handstück S-11 L G

    Unique, easy and safe

    The specially for the insertion of
    Zygoma implants developed 20:1
    handpiece facilitates the work of
    the surgeon. The angulation is
    unique and allows a much better
    view of the treatment site. So the
    surgical procedure is also possible
    to difficult accessible positions
    in the zygomatic bone.

    Your advantages at a glance

    • Easy access to treatment site
    • High application security
    • Fatigue-free working
    • Efficient cooling

    Easy access to treatment site

    The angle of the handpiece allows optimal access for difficult interventions in the area of the zygomatic bone.

    High application security

    The world‘s only 20:1 handpiece with contra-angle chucking system ensures application security at high concentricity.

    Fatigue-free working

    The ergonomic design of the handpiece ensures long and fatigue-free working.

    W&H offers the best handpiece for the insertion of Zygoma implants: The unique combination of the specially angled handpiece, the efficient spray cooling and a secure chucking system allows maximum comfort. For doctor and patient.

    Dr. Armando Lopes
    Specialist in Oral Surgery & Implantology
    MALO CLINIC, Portugal

    Beautifully machined for quality and balance. W&H sets new standards in the Zygoma application. Incredibly easy to use with Implantmed and fatiguefree working thanks to the ergonomic design of the handpiece are guaranteed.

    Dr. Ana Ferro
    Specialist in Periodontology
    MALO CLINIC, Portugal

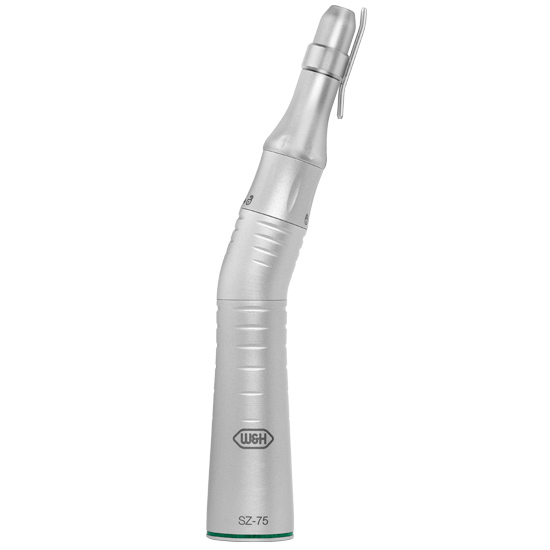

    SZ-75

    20:1 Surgical Handpiece with contra-angle
    chucking system
    Coupling system: ISO 3964 (DIN 13940)

    SZ-75
    REF 30095000

    20:1, angled, can be dismantled,
    for surgical burs and cutters Ø 2.35 mm, external spray, maximum drive speed 50.000 min-1

    Indications

    e.g.: Implantation of Zygoma implants osteotomy

  • Zygoma

    Typ: SZ-75
    Transmission ratio: 20:1
    Coupling system: ISO 3964 (DIN 13940)
    External cooling system: single
    Chucking system: twist chuck system
    Rotary instruments: Zygoma burs, surgical burs
    and cutters with contra-angle shank Ø 2,35 mm
    Maximum drive speed: 50.000 min -1
    Can be dismantled: yes
