Smart assistance for advanced implantology
Implantmed Plus II is becoming an indispensable assistant in the operating theatre. The aim is to support the user‘s efficiency in the best possible way, whether during implant insertion or wisdom tooth extraction.

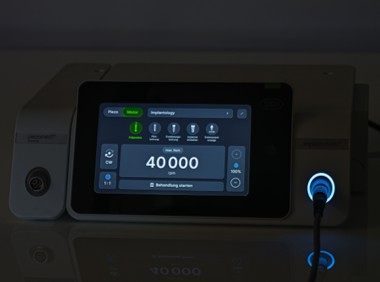

Intelligent Light-Guide
Orientation at a glance
The intelligent Light-Guide ensures immediate orientation even in stressful situations by indicating the respective application.
![]()

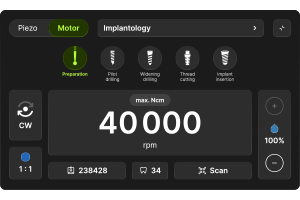

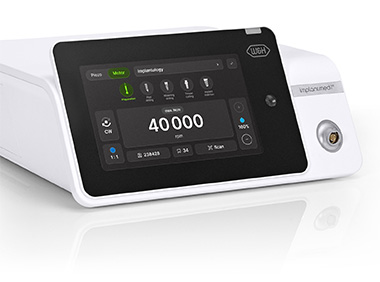

7“ display and intuitive user interface
More clarity, more control
A significantly larger 7" display, which is even more powerful and comes with an optimised user interface, enables simple and intuitive operation.
![]()

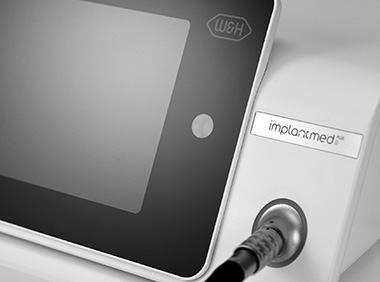

Integrated scan function
Fast, secure documentation and traceability.
With the integrated scan function and the connection to ioDent®, time-consuming manual documentation of used materials, like implants and biomaterials, belongs to the past.
![]()

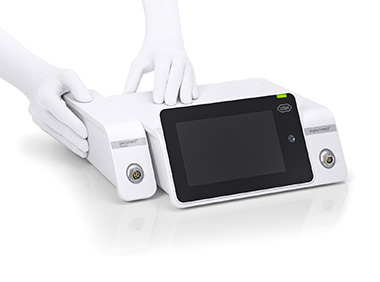

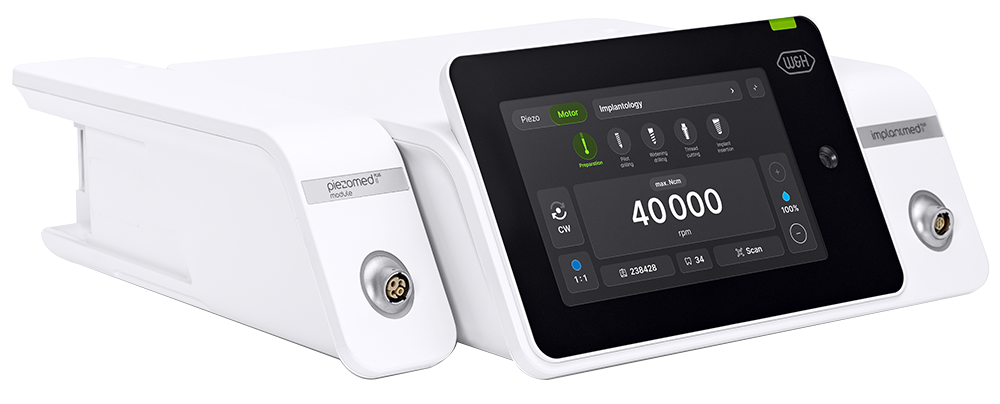

Two in one
Maximum modularity, high flexibility, minimum setup.
The Piezomed module Plus II is simply connected to the device via a sliding mechanism – no cables, no additional power supply.
![]()
ioDent® Smart connection
Intelligent dental solutions. Extended service support.
The ioDent® system offers intelligent dental solutions and enables extended service support. With built-in Wi-Fi, connecting the Implantmed Plus II to the W&H ioDent® platform is easier than ever.
For a seamless and efficient treatment workflow
The connection to planning software enables the device to be automatically preconfigured with all relevant parameters before treatment.
Stay in control and never lose track
With a one-time registration of the device, the foundation is laid for a digital device log book throughout its entire lifecycle.
Always up to date
Thanks to remote update capabilities, the device always stays up to date with the latest software. New features can be unlocked directly by the end user via the ioDent® platform.
Easy and efficient data management
By simply connecting the device, all treatment data, including ISQ values via Osstell Beacon integration, is automatically documented for each patient.
Find out more about ioDent® from W&H at iodent.com
-
Implantmed Plus II Features at a glance
Features: SI-2102
(Scan-Edition)SI-2101
(wireless)SI-2100
(wired)Scan function:
n.a. n.a. ioDent® connection:
ioDent®
FeaturesDevice logbook &
Service interface:
Remote software update:
Presetting:
Digital documentation
(Implant passport):
Modularity:
Light-Guide:
Wireless foot control:
n.a. Wired foot control: n.a. n.a.
Osstell Beacon connection:
Warranty: 12 months 12 months 12 months
Your compass for tomorrow‘sdental surgery

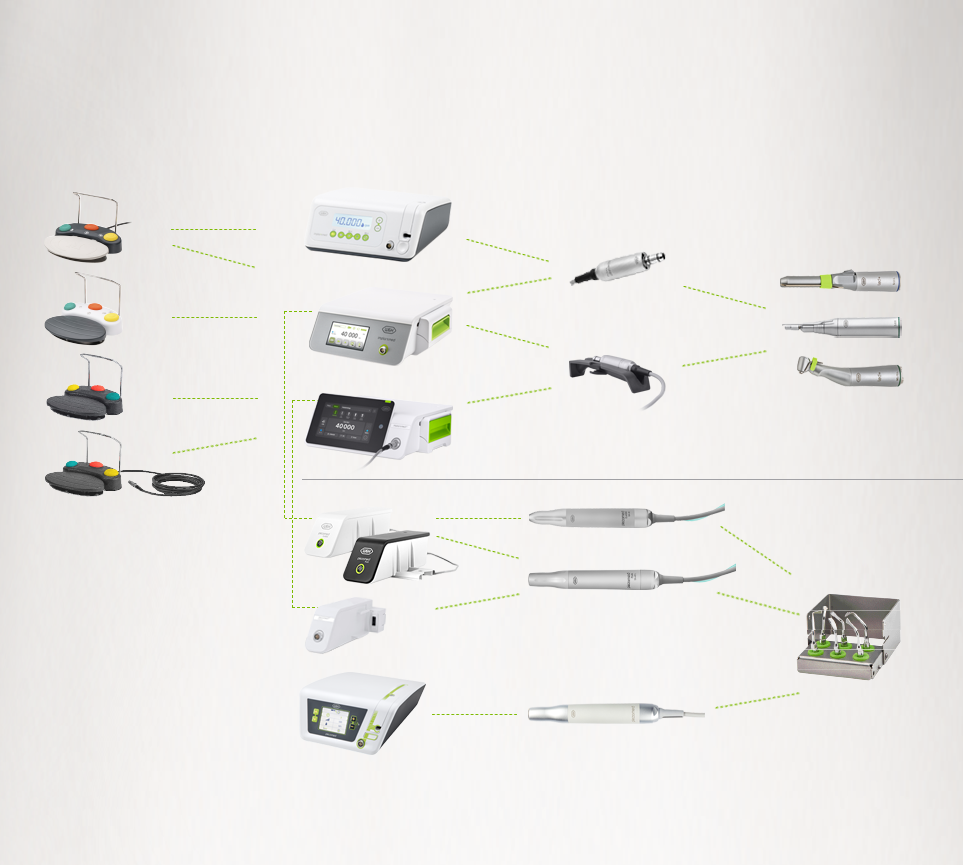

The W&H Oral Surgery Compass serves as a practical guide through the individual treatment steps in oral surgery and implantology – from diagnosis and treatment to final documentation.
W&H Oral Surgery Compass
2. TREATMENT PLANNING
3. PROTOCOL PRESETTING
4. TREATMENT

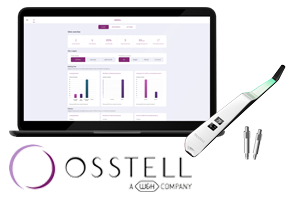

5. MONITORING & DECISION SUPPORT Original Osstell technology

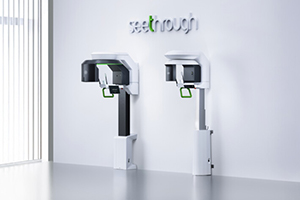

1. IMAGE ACQUISITION

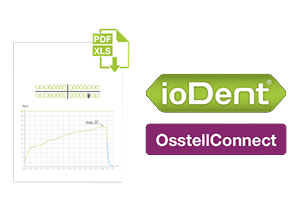

6. DOCUMENTATION
Digital technologies are revolutionising dental treatment. With the optimal integration of devices, software and digital processes, W&H supports users in making every step of treatment efficient, safe and patient-oriented. W&H products work hand in hand, are interconnected and complement each other.
Implantmed Plus II keeps evolving
Software updates available via ioDent®
With the free software updates for the Implantmed Plus II platform, you can benefit from new features, optimised workflows and expanded digital capabilities. The updates are conveniently delivered remotely via the integrated ioDent® connection, giving you quick and easy access to the latest innovations and improvements.
The software updates at a glance:
![]()

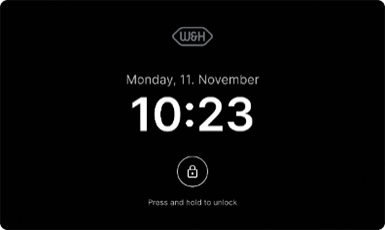

Quick screen lock for hygiene workflowsQuick screen lock for hygiene workflows
A screen lock is now directly accessible on the main screen, allowing for quick and easy activation for manual wipe disinfection.

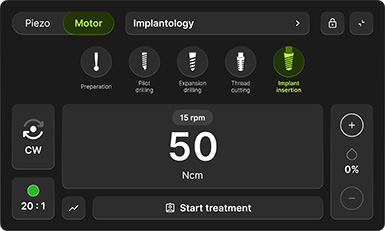

Improved implant insertion settingsImproved implant insertion settings
The last torque curve can now be reviewed even without starting documentation. If documentation is required, the last curve can also be saved retrospectively.

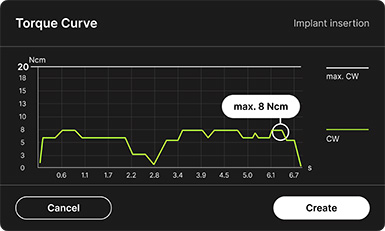

Review of last torque curveReview of last torque curve
The last torque curve can now be reviewed even without starting documentation. If documentation is required, the last curve can also be saved retrospectively.

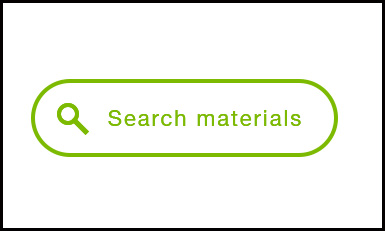

Fast and efficient material searchFast and efficient material search
New features available on ioDent®
The search functionality on ioDent® makes it easy to find and track used materials. Especially helpful in cases such as implant or biomaterial recalls. Thanks to the scan function of the Implantmed Plus II SI-2102, materials can be digitally recorded and easily searched within ioDent® whenever needed.
Customisable implant passportCustomisable implant passport
New features available on ioDent®
ioDent® offers a digital implant passport that can be personalised with the practice logo. It can be saved digitally, sent directly to patients, or printed if needed.
![Implantmed Plus II Scan-Edition]( "Implantmed Plus II Scan-Edition")

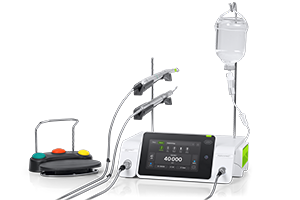

Sales packImplantmed Plus II Scan-Edition
Implantmed Plus II Scan-Edition
Consisting of:
• Control unit SI-2102 with scan function
• Motor EM-19 LC with light and 1.8 m cable including 5 clips
• Wireless foot control S-NW3
• Stand
• Universal support
• Mains cable
• Disposable irrigation tubings (6 pcs.)

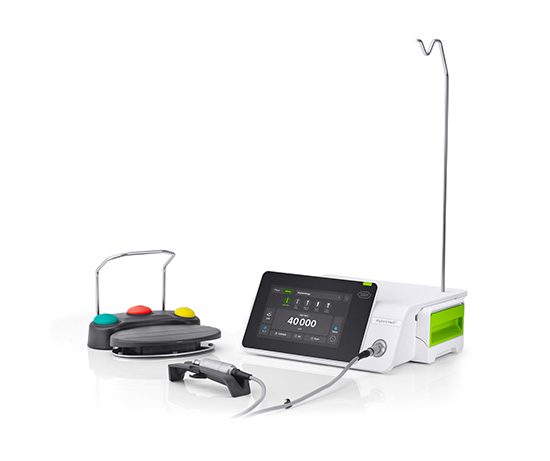

![Implantmed Plus II “wireless”]( "Implantmed Plus II “wireless”")
Sales packImplantmed Plus II “wireless”
Implantmed Plus II “wireless”
Consisting of:
• Control unit SI-2101
• Motor EM-19 LC with light and 1.8 m cable including 5 clips
• Wireless foot control S-NW3
• Stand
• Universal support
• Mains cable
• Disposable irrigation tubings (6 pcs.)
![Implantmed Plus II “wired”]( "Implantmed Plus II “wired”")
Sales packImplantmed Plus II “wired”

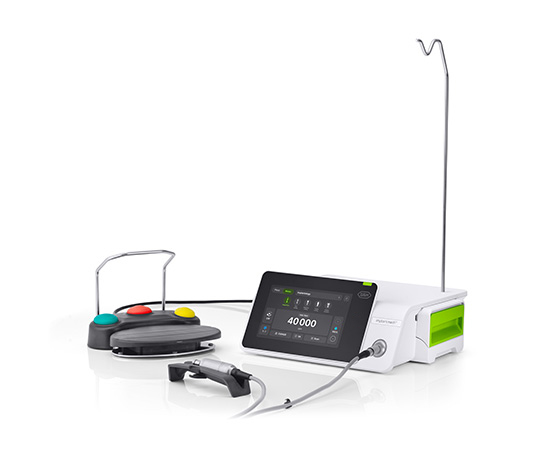

Implantmed Plus II “wired”
Consisting of:
• Control unit SI-2100
• Motor EM-19 LC with light and 1.8 m cable including 5 clips
• Wired foot control S-N3
• Stand
• Universal support
• Mains cable
• Disposable irrigation tubings (6 pcs.)Download Area
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Videos & Tutorials
-
-
Implantmed Plus II
Type: SI-2102
(Scan-Edition)
SI-2101
(wireless)SI-2100
(wired)Mains voltage: 100–240 V Frequency: 50–60 Hz Maximum power consumption: 220 VA Maximum power output: 80 W Maximum torque at motor: 6.2 Ncm Speed range on the motor: 200–40,000 rpm Coolant flow rate at 100%: at least 90 ml/min Dimensions in mm (height × width × depth): 130 × 293 × 283 mm Weight: 2,6 kg
