Surgical handpieces with mini LED+
Working in daylight quality
W&H electric surgical handpieces ensure excellent lighting conditions to facilitate accurate diagnoses and perfect treatment results.
The straight surgical handpieces with mini LED+ produce LED light independently. An integral generator supplies the LED in the handpieces with power and illuminates the treatment site.Advantages of the W&H oral surgery handpiece
- Natural reproduction of red tones
- Independent power supply with integrated generator
- Fatigue-free working thanks to optimal ergonomics
- Durable and robust due to high-quality stainless steel and scratch-resistant coating
- Can be dismantled for thorough cleaning
- Thermo washer disinfectable and sterilizable

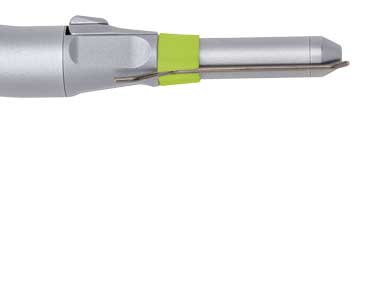

Fatigue-free operationFatigue-free operation
The new ergonomic design of our straight handpieces for oral surgery is perfectly coordinated with all application possibilities and prevents fatigue.
Perfect light due to mini LED+Optimal illumination

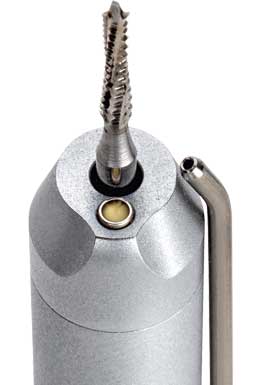

The mini LED+ of our electric surgical handpieces is half the size of a normal LED, so that it can be integrated very close to the tip for optimal illumination.
With their neutral white light, our mini LED+ provide a superior light source for oral surgery. Work with your surgical handpiece in daylight quality light – whether you have an optic or non-optic drive system.
Independent power supplyIndependent power supply

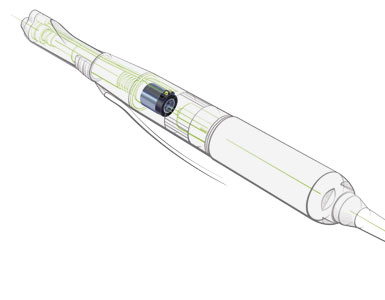

The mini LED+ is powered by the built-in generator of your electric surgical handpiece. As soon as the handpiece is activated, the generator turns and autonomously supplies the mini LED+ with electricity – regardless of the type of drive system you work with.
Scratch-resistant surfaceScratch-resistant surface
The unique coating protects the surgical handpieces from scratches. This facilitates cleaning and preserves the value of your dental tools.
Perfect cleaningPerfect cleaning
To adhere to the stringent hygiene requirements, the electric surgical handpieces can be dismantled and cleaned easily.
High colour rendering index (CRI)Daylight quality
W&H high-speed surgical handpieces with mini LED+ possess high luminosity values, and thus also a great light output.
With a colour rendering index greater than 90, W&H surgical handpieces with mini LED+ show natural-appearing red tones during oral surgery.
![Surgical Handpiece S-9 L G]( "Surgical Handpiece S-9 L G")

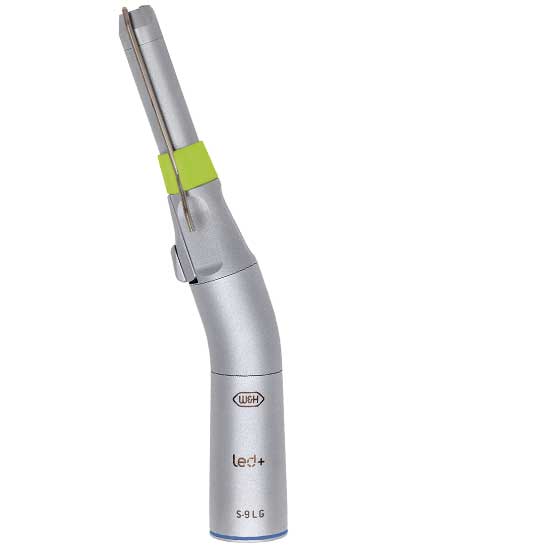

S-9 L G
Surgical Handpiece
with lever chuck, mini LED+ and generator
Coupling system: ISO 3964 (DIN 13940)S-9 L G
REF 300540001:1, angled, can be dismantled,
for surgical burs and cutters Ø 2.35 mm (also Stryker system), L = max. 45 mm, external spray, maximum drive speed 40,000 min-1Indications
e.g.: apical resection, osteotomy,
apical trepanning, bone modelling
![Surgical Handpiece S-11 L G]( "Surgical Handpiece S-11 L G")

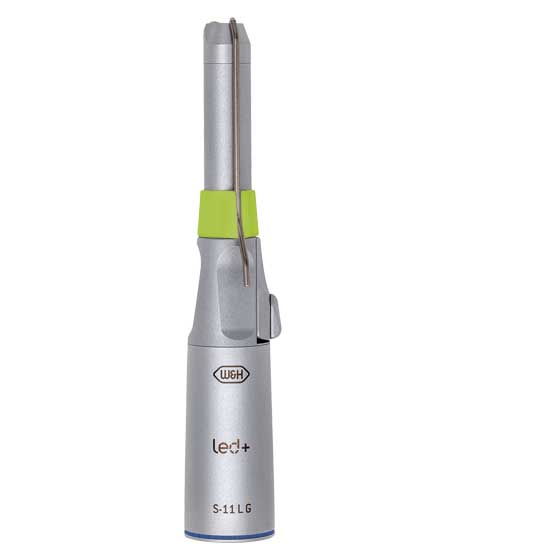

S-11 L G
Surgical Handpiece
with lever chuck, mini LED+ and generator
Coupling system: ISO 3964 (DIN 13940)S-11 L G
REF 300570001:1, straight, can be dismantled,
for surgical burs and cutters Ø 2.35 mm (also Stryker system), L = max. 45 mm, external spray, maximum drive speed 40,000 min-1Indications
e.g.: apical resection, osteotomy,
apical trepanning, bone modelling

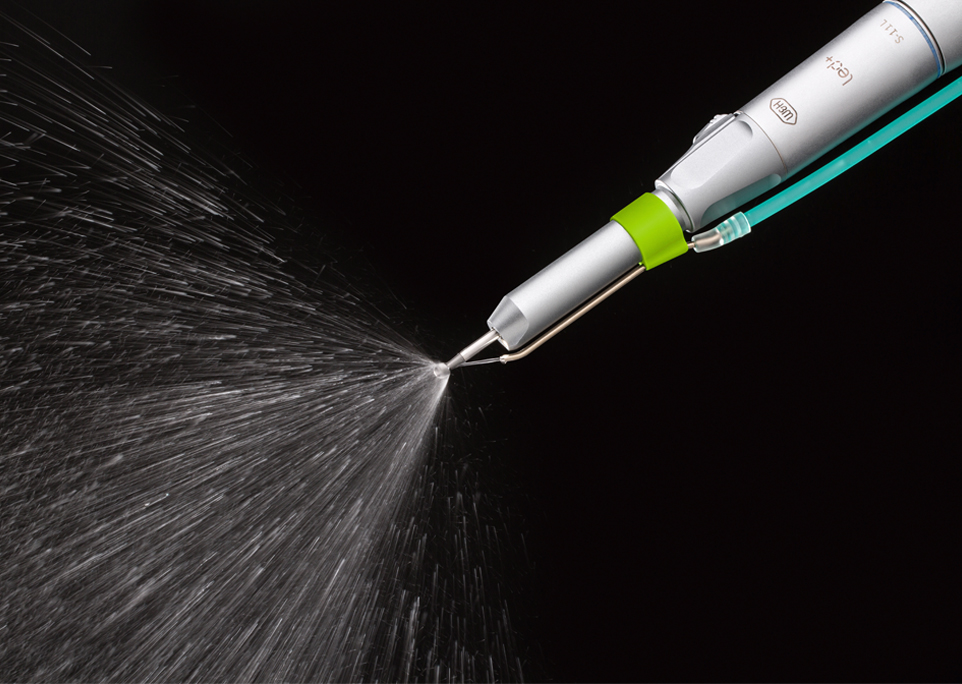

The new surgical handpiece with mini LED+ and W&H connection
![Surgical handpiece S11 L]( "Surgical handpiece S11 L")

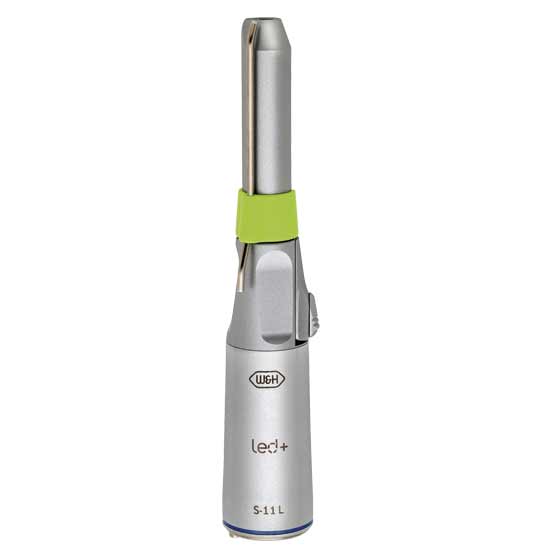

S-11 L
Surgical Handpiece
with lever chuck, mini LED+ and W&H connection
Coupling system: W&H EM-19 LCS-11 L
REF 300580001:1, straight, can be dismantled,
can only be used with the W&H electric motor EM-19 LC
for surgical burs and cutters Ø 2.35 mm
(also Stryker system), L = max. 45 mm, external spray, maximum drive speed 50.000 min-1
Surgical handpieces without light
Providing the best treatment
To meet the challenges of oral surgery, a number of surgical handpieces are required.
Therefore, W&H has developed a series of angled and straight electric surgical handpieces for oral and maxillofacial surgery and implantology. Combining years of experience and technical innovation in some of the best surgical handpieces on the market.Features of W&H oral surgery handpieces
- Fatigue-free working thanks to optimal ergonomics
- Durable and robust due to high-quality stainless steel and scratch-resistant coating
- Wide range for all surgical applications
- Can be dismantled for thorough cleaning
- Thermo washer disinfectable and sterilizable
Fatigue-free working thanks to optimal ergonomicsFatigue-free operation
The new ergonomic design of W&H angled and straight surgical handpieces is perfectly suited to challenges of different surgical applications and prevents fatigue.
Scratch-resistant surfaceScratch-resistant surface
The unique coating protects your electric handpieces for oral surgery from scratches and damage.
The coating facilitates cleaning and preserves the value of your tools.

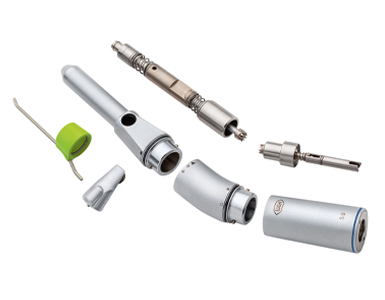

Can be dismantled without toolsEasy cleaning – dismantling without tools
W&H high-speed surgical handpieces can be easily dismantled and reassembled without tools to enable thorough cleaning. Cleaning the individual parts is most effective and provides the best results.
![Surgical Handpiece S-11]( "Surgical Handpiece S-11")

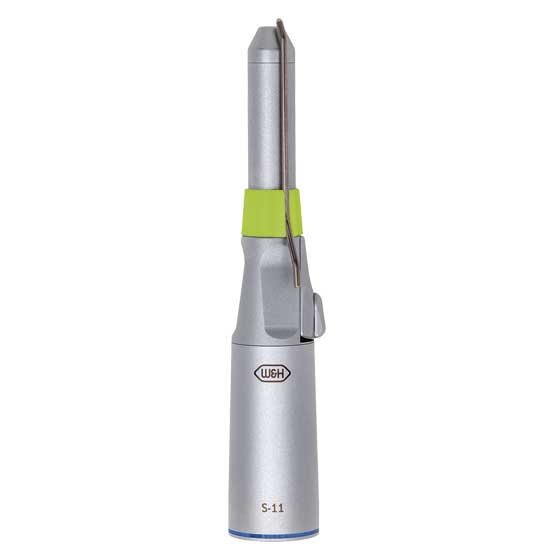

S-11
Surgical Handpiece
with lever chuck
Coupling system: ISO 3964 (DIN 13940)S-11
REF 300560001:1, straight, can be dismantled,
for surgical burs and cutters Ø 2.35 mm
(also Stryker system), L = 45 mm,
external spray, maximum drive speed 50,000 min-1Indications
e.g.: apical resection, osteotomy,
apical trepanning, bone modelling
![Surgical Handpiece S-15]( "Surgical Handpiece S-15")

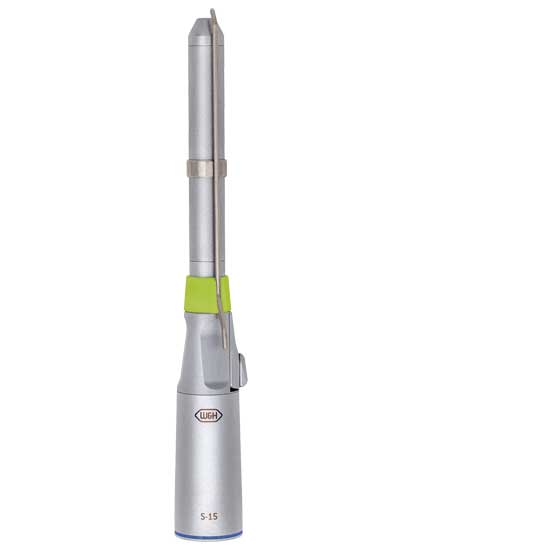

S-15
Surgical Handpiece
with lever chuck
Coupling system: ISO 3964 (DIN 13940)S-15
REF 300600001:1, straight, can be dismantled,
for surgical burs and cutters Ø 2.35 mm
(also Stryker system), L = 45 mm,
external spray, maximum drive speed 30,000 min-1Indications
e.g.: osteotomy in difficult to access areas

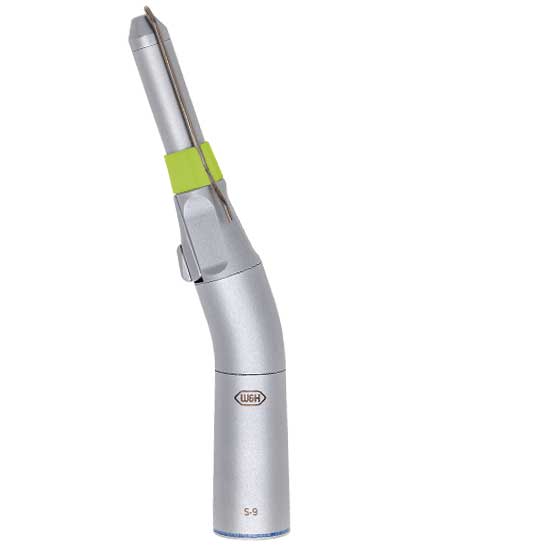

![Surgical Handpiece S-9]( "Surgical Handpiece S-9")
S-9
Surgical Handpiece
with lever chuck
Coupling system: ISO 3964 (DIN 13940)S-9
REF 300530001:1, angled, can be dismantled, for surgical burs and cutters Ø 2.35 mm (also Stryker system), L = 45 mm,
external spray, maximum drive speed 50,000 min-1Indications
e.g.: apical resection, osteotomy,
apical trepanning, bone modelling
![Surgical Handpiece S-10]( "Surgical Handpiece S-10")

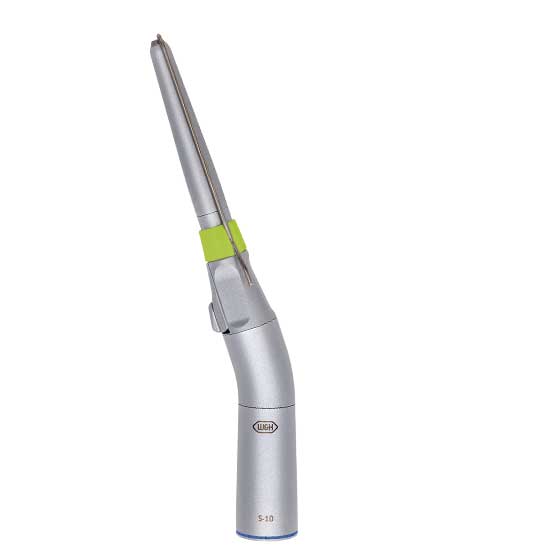

S-10
Surgical Handpiece
with lever chuck
Coupling system: ISO 3964 (DIN 13940)S-10
REF 300590001:1, angled, can be dismantled, for surgical burs and cutters Ø 2.35 mm,
L = 70 mm, external spray, maximum drive speed 50,000 min-1Indications
e.g.: osteotomy, fenestration,
osteosynthesis in distal areas
![Surgical Handpiece S-12]( "Surgical Handpiece S-12")

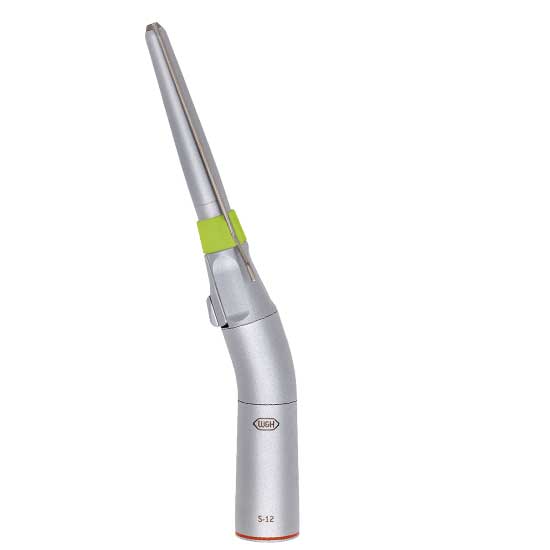

S-12
Surgical Handpiece
with lever chuck
Coupling system: ISO 3964 (DIN 13940)S-12
REF 300610001:2, angled, can be dismantled,
for surgical burs and cutters Ø 2.35 mm,
L = 70 mm, external spray, maximum drive speed 40,000 min-1Indications
e.g.: osteotomy, fenestration,
osteosynthesis in distal areas
![Surgical Handpiece S-16]( "Surgical Handpiece S-16")

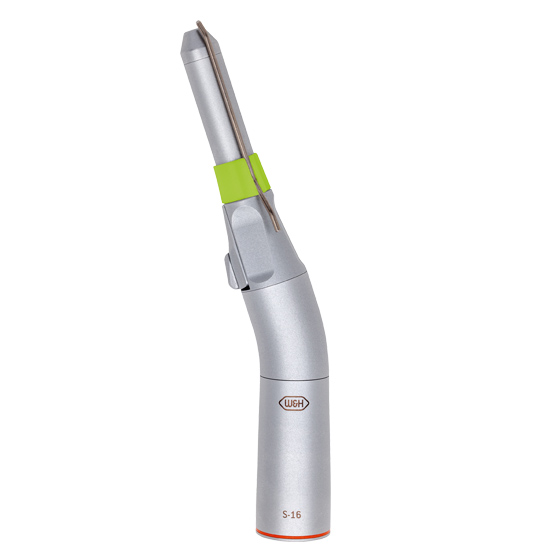

S-16
Surgical Handpiece
with lever chuck
Coupling system: ISO 3964 (DIN 13940)S-16
REF 304110001:2, angled, can be dismantled,
for surgical burs and cutters Ø 2.35 mm,
L = 45 mm, external spray, maximum drive speed 40,000 min-1Indications
e.g.: premolar and molar area
Download Area
FAQs
- Can LED instruments with generator be sterilized?
- Which material is used at W&H surgical instruments?
- What is the minimum shaft lenght of the bur for the S-11?
- What is the minimum shaft lenght of the bur for the S-12?
- How to dismantle the handpiece
- Can my W&H handpiece be processed via sterilizer.
- Can current contra-angles be attached to new motors?
- Can the new contra-angles be attached to old motors?
- Can our customers disassemble the new contra-angles
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Video Tutorials
Downloads
-
Surgical straight handpiece with mini LED+ and W&H connection
Type: S-11 L Transmission ratio: 1:1 Coupling system: W&H EM-19 LC / EM-19 Lighting system: mini LED+ Spray: external Chucking system: lever chuck Rotary instruments: for surgical burs and cutters
Ø 2.35 mm (also Stryker system)Permitted bur length: 45 mm Maximum drive speed: 50,000 min -1 Can be dismantled: yes Surgical handpieces with mini LED+ and generator
Type: S-9 L G S-11 L G Transmission ratio: 1:1 Coupling system: ISO 3964 Lighting system: mini LED+ Power supply: via independent generator Light quality: daylight Spray: external Chucking system: lever chuck Rotary instruments: for surgical burs and cutters
Ø 2.35 mm (also Stryker system)Permitted bur length: 45 mm Maximum drive speed: 40,000 min -1 Can be dismantled: yes Surgical handpieces without light
Type: S-9 S-11 S-15 S-16 S-12 S-10 Transmission ratio: 1:1 1:1 1:1 1:2 1:2 1:1 Coupling system: ISO 3964 Spray: external Chucking system: lever chuck Rotary instruments: for surgical burs and cutters
Ø 2,35 mm (also Stryker system)for surgical burs and cutters
Ø 2,35 mmPermitted bur length: 45 mm 45 mm 70 mm Maximum drive speed: 50.000 min -1 50.000 min -1 30.000 min -1 40.000 min -1 50.000 min -1 Can be dismantled: yes yes
