Prophy Angle Cups

Inspired by Prophy professionals

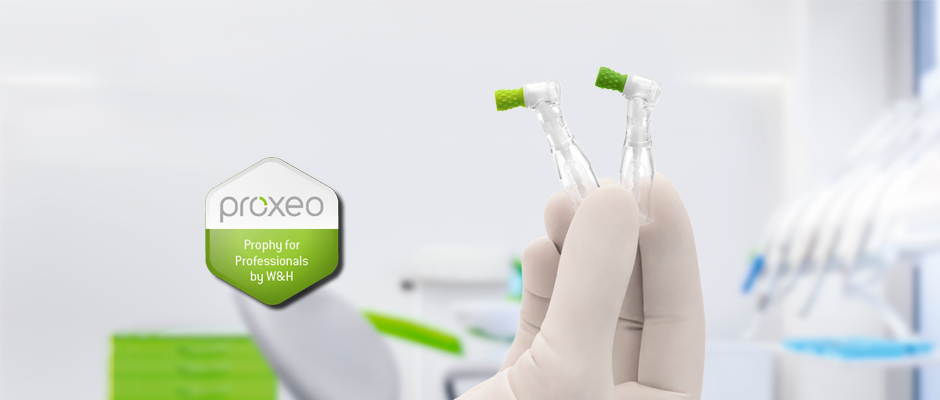

For the optimum removal of biofilm and discolouration, the new Proxeo Twist Cordless disposable prophy angle cups are available in two different hardnesses. All Proxeo Twist Cordless disposable prophy angle cups are equipped with a Doriot connection.

System overview

Prophylaxis & Periodontology

Prophylaxis & Periodontology

System Overview

* Multiflex® is a trademark of a third party not affiliated with W&H Dentalwerk Bürmoos GmbH

  • Inspired by Prophy professionals

    W&H offers the appropriate disposable prophy angles and LatchShort prophy brushes and cups in various hardness with a shortened shaft for Proxeo Twist Cordless Polishing. They were designed in consultation with Prophy users. Great emphasis was placed on properties such as optimal adaptation, simple paste pickup and distribution, as well as gentle cleaning into the sulcus.

    • Smooth surface on the edge

      Smooth surface on the edge

      for gentle cleaning into the sulcus.

    • Nubs

      Nubs on the outside

      reduce splattering of the paste and polish the interdental space at the same time.

    • Small head

      Small head and thin neck

      for an optimum view of the treatment site and better accessibility of hard-to-reach areas, such as the molar and tuber regions.

      • Optimum adaptation

        Optimum adaptation

        The cups of the disposable prophy angles adapt precisely to the tooth surface.

      • Special internal fins

        Special internal fins

        for easy pickup and targeted application of paste.

      • Good impression

        Makes a good impression

        The individually packed clear cups are opened directly in front of the patient.

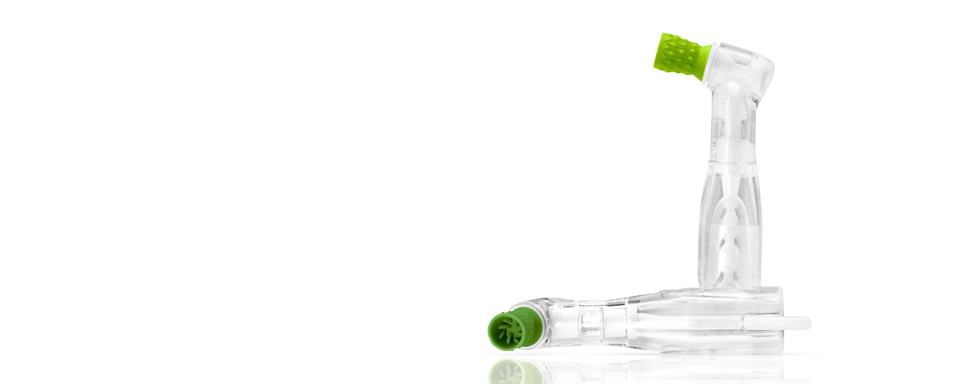

        Prophy Angle Cups

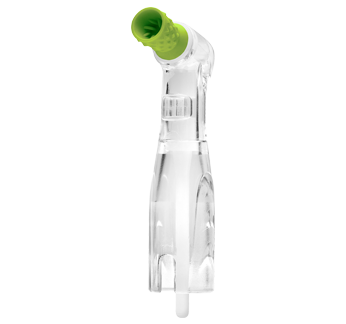

        Prophy Angle Cups soft / apple green

        Prophy Angle Cups soft / apple green

        for Doriot system

        Prophy Angle Cups soft / apple green
        REF 07994950

        100 pcs

        Request Price
        Buy

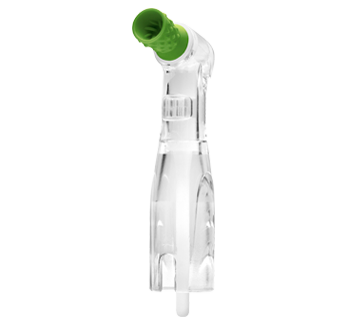

        Prophy Angle Cups firm / dark green

        Prophy Angle Cups firm / dark green

        for Doriot system

        Prophy Angle Cups firm / dark green
        REF 07979710

        100 pcs

        Request Price
        Buy

        Proxeo Twist Cordless + DPA (Doriot) system

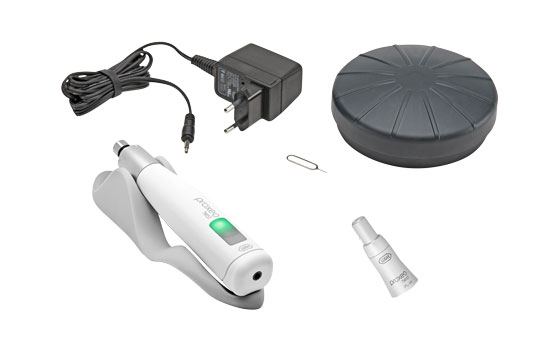

        Set PL-40 HW + PL-44 (Doriot)

        Set PL-40 HW + PL-44 (Doriot)

        Consist of:
        › Handpiece drive
        › Wireless foot control
        › PL-44 contra-angle head (DPA)
        › Handpiece holder
        › Charger incl. adaptor

        for W&H Prophy Angle Cups,
        Doriot System

        (further contra-angle attachments can be found as accessories)

        Set PL-40 HW + PL-44 (Doriot)
        REF 90000348

        Request Price
        Buy

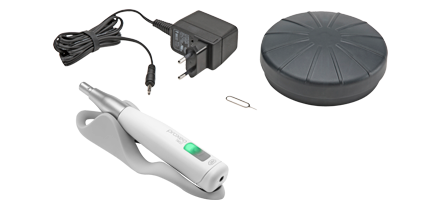

        PL-40 H

        PL-40 H

        Consist of:
        › Handpiece drive
        › Wireless foot control
        › Handpiece holder
        › Charger incl. adaptor

        for W&H Prophy Angle Cups,
        Doriot System

        (not compatible with contra-angle handpiece attachments)

        PL-40 H
        REF 30317000

        Request Price
        Buy

        Download Area

        FAQs

        Instructions for use

        Proxeo Twist Cordless
        PL-40 H
        Proxeo Twist Cordless
        PL-40 HW
        Handpiece-/contra-angle head PL-66 W, PL-64, PL-44

        Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

        Downloads

        Service

      • Disposable prophy angle

        		 Not for reuse
        Latex-free
        Angle: 105°
        Connection: Doriot
        Hardness levels: soft/apple green
        firm/dark green

        Proxeo Twist Cordless

        Cordless handpiece PL-40 H PL-40 HW
        Weight: 118 g 105 g
        Maximum speed: 3,000 rpm 12,000 rpm *
        Maximum torque: 2 Ncm
        Dimensions (W x D x H): 160 x 25 x 28 mm 142 × 25 × 28 mm
        Battery type: Li-ion
        Running time when fully charged: 8 polishing treatments of 6 minutes each
        Standby: automatically after 4 minutes
        Charging time: for full charge (100%) approx. 2 hours
        for recharge (50%) approx. 30 min

        * maximum speed 3,000 rpm using prophy cup/brush together with straight and contra-angle head

        Removable sleeve

        Removable sleeve: on PL-40 H Thermowasher disinfectable
        Sterilizable up to the stated temperature

        Straight and contra-angle head*

        PL-66 W
        LatchShort system         		PL-64
        Screw-in Young system         		PL-44
        Doriot system
        Transmission ratio: 4:1
        Maximum speed of prophy cup/brush: 3.000
        Usable attachments: W&H LatchShort Prophy
        cups and brushes         		Young prophy
        screw-in cups         		Doriot disposable
        prophy angles

        * suitable for PL-40 HW

        Prophy cups and brushes

        Not for reuse
        Latex-free

        Wireless foot control

        C-NW
        Weight: 190 g
        Dimensions (W × D × H): 117 x 117 x 38 mm
        Battery type: Li-ion
        Running time when fully charged: 2 months
        Standby: automatic if not actuated
        Charging time: approx. 3 hours
