Saw Handpieces

Fast, powerful and durable

The saw handpieces have been specially designed for conversion osteotomies and bone harvesting. Even after many years of use at maximum speed, consistently high cutting performance is still guaranteed. Product not for sale in Canada.

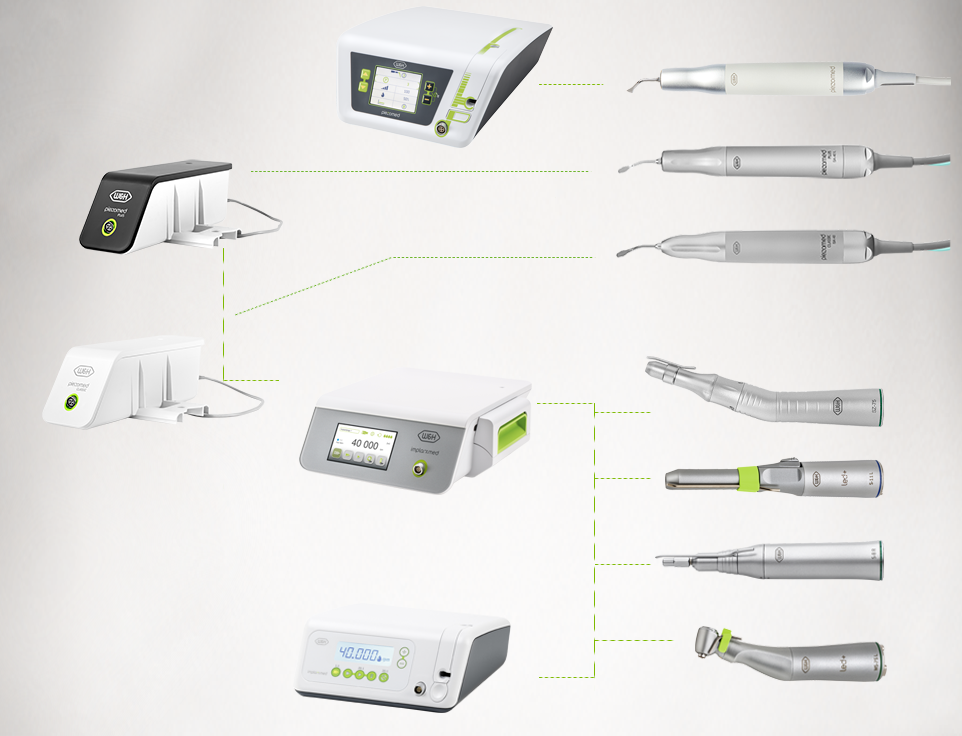

System overview

Oral Surgery & Implant Surgery

Oral Surgery & Implant Surgery

System Overview

  • Sagittal Saw Handpiece S-8 S

    Working in all directions

    Our saw handpieces S-8 R, S-8 S and S-8 O offer a perfect and long-term solution for osteotomy or bone removal with sagittal, oscillating or reciprocating movement.

    No matter what your requirements or those of your patients, W&H can fulfil them.

    Product not for sale in Canada.

    Your advantages at a glance

    • Innovative saw-blade shape for outstanding cutting performance
    • One drive speed for all 3 saw types
    • Durable and robust due to high-grade
      stainless steel
    • For sagittal, oscillating or reciprocal movement
    • Range of saw blades for all surgical applications
    • Low vibration and exceptionally quiet
    • Dismantlable for thorough cleaning

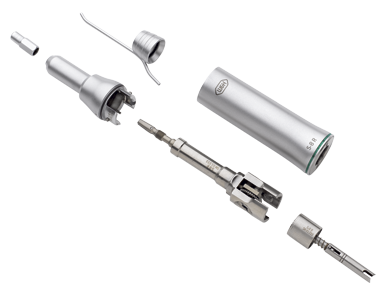

    Saw handpieces, easy to dismantle

    Product not for sale in Canada.

    Easy to dismantle

    //a.storyblok.com/f/45617/c7121f1bbe/s-8r_dismantled-overlay.png
    All three models were designed for use with maximal rotational speed while ensuring a uniform speed or cutting power of the instruments at the bone. >But most importantly, they can be dismantled for simple and precise cleaning.
    Saw blades
    Product not for sale in Canada.

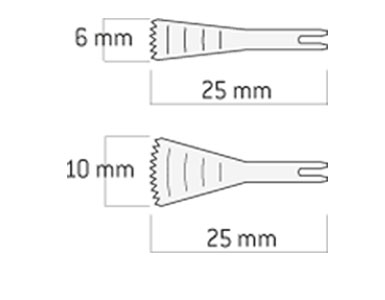

    Sagittal saw blades for Saw Handpiece S-8 S

    //a.storyblok.com/f/45617/b6dc594a4b/sagittal-saw-blade_overlay.jpg

    width 6 mm or 10 mm,
    incl. depth gauge on the saw blade (2.5 mm graduations),
    available as single pack or five pack

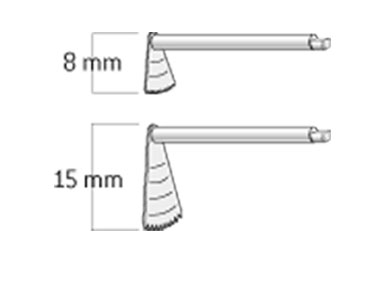

    Oscillating saw blades for Saw Handpiece S-8 O

    //a.storyblok.com/f/45617/b23910eee3/oscillating-saw-blade_overlay.jpg


    height 8 mm or 15 mm,
    incl. depth gauge on the saw blade (2.5 mm graduations),
    available as single pack

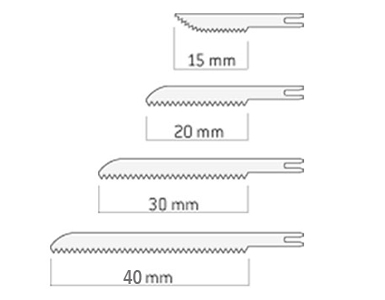

    Reciprocating saw blades for Saw Handpiece S-8 R

    //a.storyblok.com/f/45617/385x300/a791b12f1d/reciprocating-saw-blade_overlay_all.jpg

    length 15 mm, 20 mm, 30 mm or 40 mm,
    crosswise tooth setting for increased cutting power,
    available as single pack or five pack

    Saw Handpieces

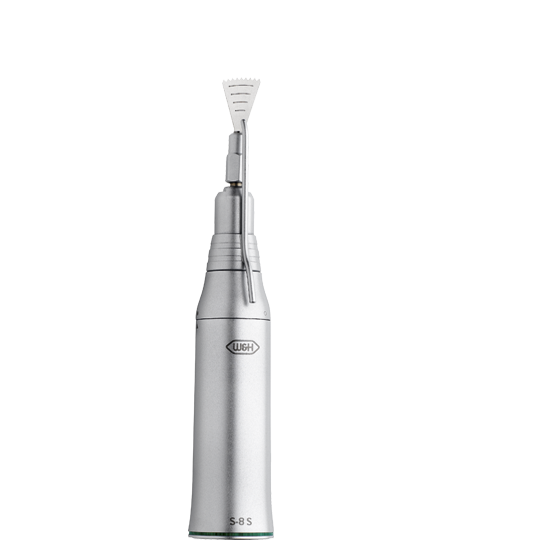

    Saw Handpiece S-8 S

    Saw Handpiece S-8 S

    with sagittal motion,
    cutting direction parallel to the axis

    S-8 S
    REF 10100803

    Transmission ratio: 3,25:1
    Strokes / angles: 3°
    Frequency (strokes/min.): 12.300
    Drive speed: 40.000 min-1

    Product not for sale in Canada.

    Request Price
    Buy

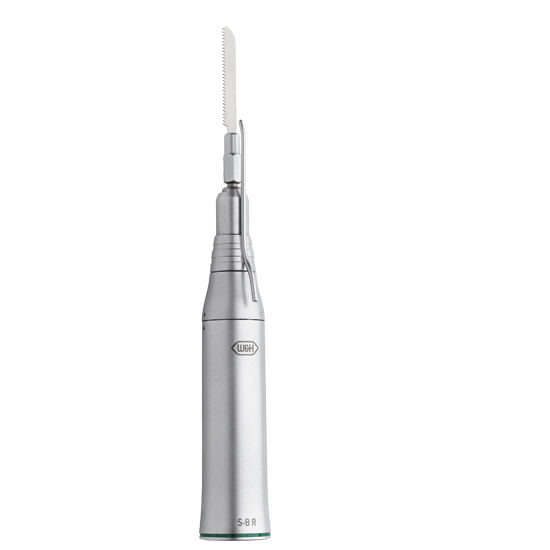

    Saw Handpiece S-8 R

    Saw Handpiece S-8 R

    with reciprocating motion,
    forward / reverse cutting direction

    S-8 R
    REF 10100801

    Transmission ratio: 3,25:1
    Strokes / angles: 1,8 mm
    Frequency (strokes/min.): 12.300
    Drive speed: 40.000 min-1

    Product not for sale in Canada.

    Request Price
    Buy



    Download Area

    FAQs

    Instructions for use

    Saw Handpieces

    Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

    Video Tutorials

    For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

    Accept

    Downloads

  • Saw Handpieces

    Type: S-8 R S-8 S
    Transmission ratio: 3.25:1 3.25:1
    Coupling system: ISO 3964 (DIN 13.940)
    Strokes / angles: 1.8 mm 3°
    Frequency (strokes/min.): 12,300 12,300
    Maximum drive speed: 40,000 min -1 40,000 min -1
    Easily dismantled: yes yes
