Can handpieces from another manufacturer be used on a W&H surgical motor (Implantmed)?

For applications which do not require accurate torque (drilling, grinding,…), any handpiece with ISO 3964 connection can be used. Please be informed that hand pieces from other manufacturers might not be able to handle the torque of your unit/motor and therefore might get damaged. An accurate torque limitation in the placement programs of W&H surgical units requieres the use of W&H Surgical contra angles.

Can other brands of tubing be used?

Not recommended. Due to different specifications (material, dimensions) it could cause problems like leakage, insufficient cooling or even damage the unit. For propper tubing see "correlation of tubing" or user manual.

How to insert irrigation tube?

Please find a detailed description in the user manual at chapter "Starting operation - General".

How can the unit / motor be cleaned / sterilized?

Please find a detailed description in the user manual at chapter "Hygiene and Maintenance".

Why doesn't the light on my LED G contra-angle handpiece work when I am positioning an implant?

The generator in the contra-angle handpiece requires at least 300 rpm to produce enough electricity for the LED. The rotary speed is between 15 and 50 rpm when positioning an implant.

Can my Implantmed motor be processed via thermal washer disinfector?

Yes, if the thermal washer disinfector has a drying cycle and the motor bears the sign that it is "Thermo washer disinfectable".

Can my Implantmed/Elcomed motor be processed in a vacuum sterilizer with the protection cap in place.

No. The new generation of motors have to be sterilized without cap.

Does my W&H unit need to be serviced.

Regular servicing of function and safety including the accessories is necessary and should be carried out at least once every three years, unless shorter intervals are prescribed by law. Detailed information can be found in the user manual at chapter "Servicing".

What types of tubing can I use on my device?

For propper tubing see user manual.

Does the motor need to be greased?

No, the Implantmed/Elcomed motor does not need greasing. The motor bearings require no maintenance. Any additional greasing would reduce the service life of the bearings.

This product is not available anymore.

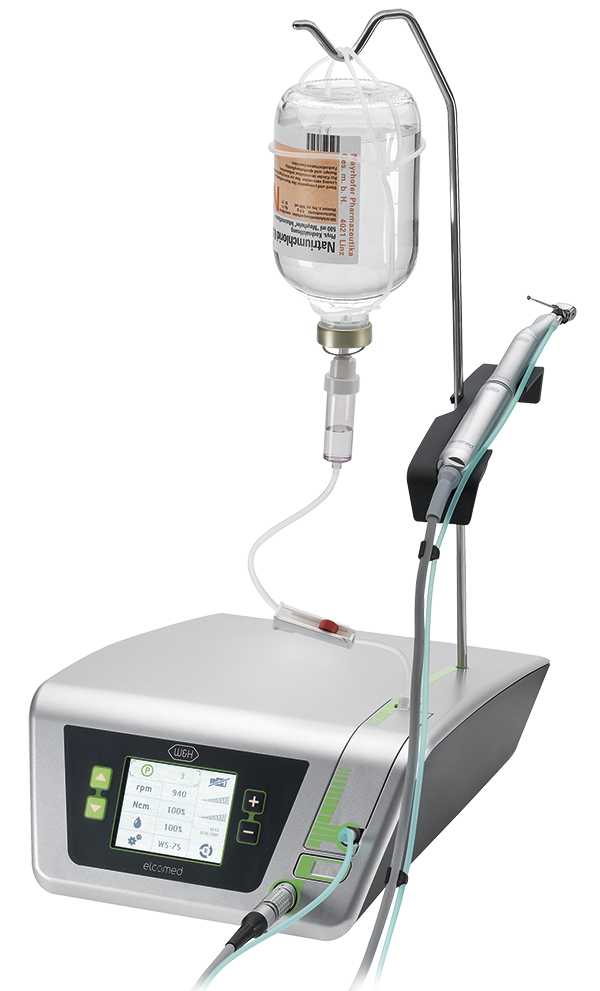

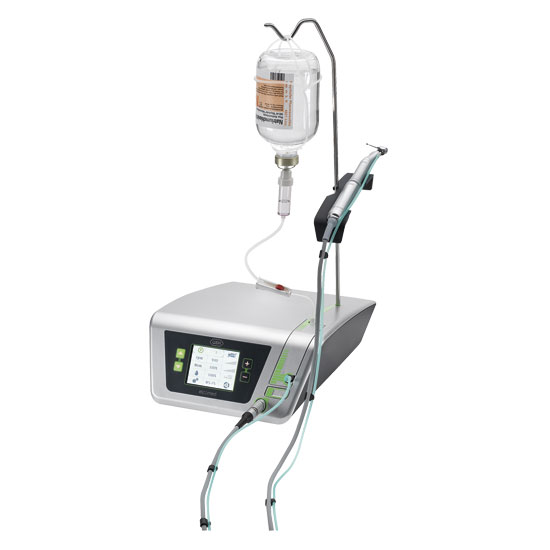

Elcomed

Name: Elcomed
Brand: W&H

There is no room for compromise during the surgical procedure. Elcomed is clearly number 1 in the operating theatre.

PD Dr Jörg Neugebauer, dentist specializing in oral surgery

Number 1 in the operating theatre

In addition to the expert knowledge of the surgeon, the drive unit is also a pivotal factor in the success of a surgical procedure.

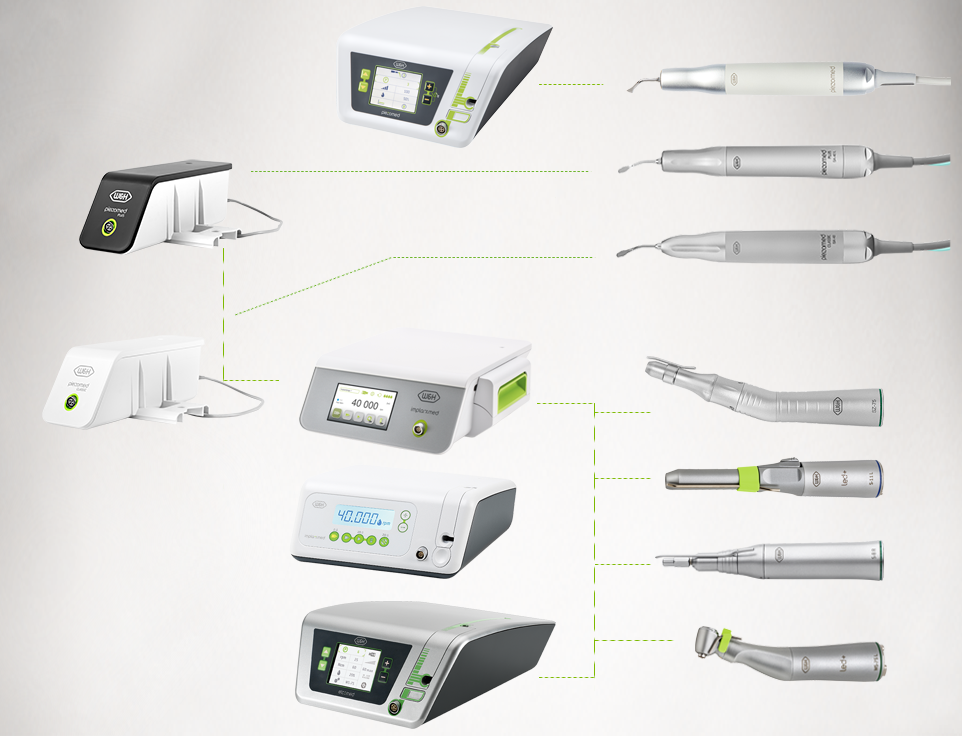

System overview

Elcomed
Technical data

Logical integration of ease of use

Just one operating stage for setting all necessary parameters. The six most important recurring operational procedures can be saved as individual programmes.

Elcomed from W&H is a high-quality innovative solution for maxillofacial surgery, dental surgery and implantology.
Your advantages at a glance
- All information in one user level
- Documentation via USB flash drive
- Short and light motor with 50,000 rpm
- Up to 80 Ncm on the rotary instrument
- 6 programs with individually adjustable parameters
- Automatic thread cutter function
- Motor with cable, thermo washer disinfectable and sterilizable

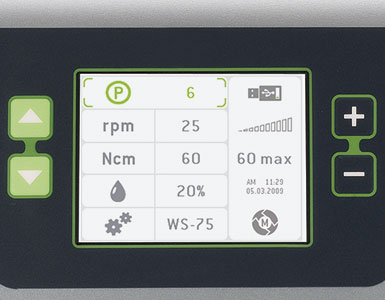

Everything at a glance

One display, thousands of possibilities

Elcomed makes complicated processes as simple as possible. All necessary parameters can be set very easily using just one operating stage. In addition to revolutions per minute and torque, the supply of liquid can also easily be adjusted during use. Six programs for the most frequent recurring operational procedures can be saved at the first start-up.

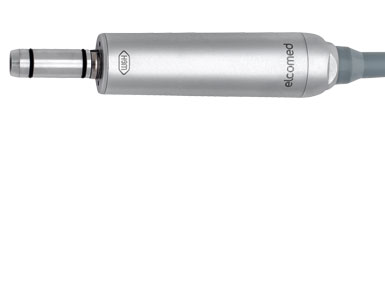

An amazing motor

An amazing motor

Shortest and lightest motor with 50,000 revolutions per minute. Can be used with all instruments that have an ISO connection.

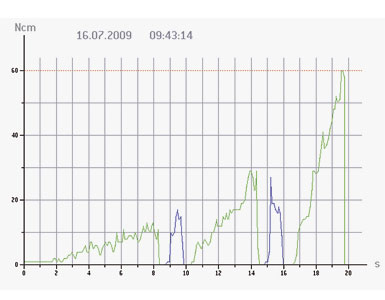

Complete documentation

Complete documentation

If desired, the Elcomed can document every step in the application. The data is accessible at any time. The data are saved as bitmap and csv file on the USB flash drive included in the delivery, ready to be imported into standard analysis programs. In this way, they can easily be accessed at any time and at no additional cost.

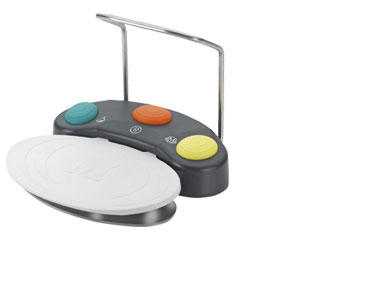

Convenient foot control

Foot control S-N1

With program switching, activation and deactivation of the coolant pump, clockwise / anticlockwise rotation, On-Off function and infinitely variable speed control of the motor up to the preselected maximum speed.

The multifunctional foot control allows sterile working and optimum freedom for your hands.

Automatic thread cutter function

Automatic thread cutter function

The automatic thread cutter function for thread cuts:
> Minimizes the compression of the bone and therefore promotes stress-free healing of the implant.
> Prevents excessive bone compression while screwing in the implant.

Elcomed with documentation function

consists of: control unit, foot control S-N1,
motor with 1.8 or 3.5 m cable and clips,
irrigation tubing set, mains cable,
motor support, stand, locking pins,
USB flash drive

SA-310
REF 15933100

Motor with 1.8 m cable

SA-310
REF 15933101

Motor with 3.5 m cable

Elcomed without documentation function

consists of: control unit, foot control S-N1,
motor with 1.8 or 3.5 m cable and clips,
irrigation tubing set, mains cable,
motor support, stand, locking pins

SA-310
REF 15933102

Motor with 1.8 m cable

SA-310
REF 15933103

Motor with 3.5 m cable
Download Area
FAQs
- Can handpieces from another manufacturer be used on a W&H surgical motor (Implantmed)?
  For applications which do not require accurate torque (drilling, grinding,…), any handpiece with ISO 3964 connection can be used. Please be informed that hand pieces from other manufacturers might not be able to handle the torque of your unit/motor and therefore might get damaged. An accurate torque limitation in the placement programs of W&H surgical units requieres the use of W&H Surgical contra angles. more
- Can other brands of tubing be used?
  Not recommended. Due to different specifications (material, dimensions) it could cause problems like leakage, insufficient cooling or even damage the unit. For propper tubing see "correlation of tubing" or user manual. more
- How to insert irrigation tube?
  Please find a detailed description in the user manual at chapter "Starting operation - General". more
- How can the unit / motor be cleaned / sterilized?
  Please find a detailed description in the user manual at chapter "Hygiene and Maintenance". more
- Why doesn't the light on my LED G contra-angle handpiece work when I am positioning an implant?
  The generator in the contra-angle handpiece requires at least 300 rpm to produce enough electricity for the LED. The rotary speed is between 15 and 50 rpm when positioning an implant. more
- Can my Implantmed motor be processed via thermal washer disinfector?
  Yes, if the thermal washer disinfector has a drying cycle and the motor bears the sign that it is "Thermo washer disinfectable". more
- Can my Implantmed/Elcomed motor be processed in a vacuum sterilizer with the protection cap in place.
  No. The new generation of motors have to be sterilized without cap. more
- Does my W&H unit need to be serviced.
  Regular servicing of function and safety including the accessories is necessary and should be carried out at least once every three years, unless shorter intervals are prescribed by law. Detailed information can be found in the user manual at chapter "Servicing". more
- What types of tubing can I use on my device?
  For propper tubing see user manual. more
- Does the motor need to be greased?
  No, the Implantmed/Elcomed motor does not need greasing. The motor bearings require no maintenance. Any additional greasing would reduce the service life of the bearings. more
more
Instructions for use

Elcomed SA-310

Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

Video Tutorials

For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

Accept

Downloads

Surgical Catalog

Correlation Tubing 2019

Elcomed

Typ:	SA-310
Max. torque at the rotary instrument*:	80 Ncm
Documentation**:	yes / USB
Mains voltage:	100 – 130 V or 220 – 240 V, 50 / 60 Hz
Max. mechanical output power:	100 W
Max. torque at the motor:	7 Ncm
Motor speed range in the nominal voltage:	300 min ^-1 – max. 50,000 min ^-1 , safety stop at 40,000 min ^-1
Intended transmission instruments:	ISO connection 3964 (DIN 13.940)
Length of motor cable:	1.8 m or 3.5 m
Coolant flow rate at 100 %:	at least 90 ml/min
Foot control:	yes
Heigth / width / depth:	109 x 256 x 305 mm

* Adjustment with WS-75 and WI-75
** Also available without documentation function
