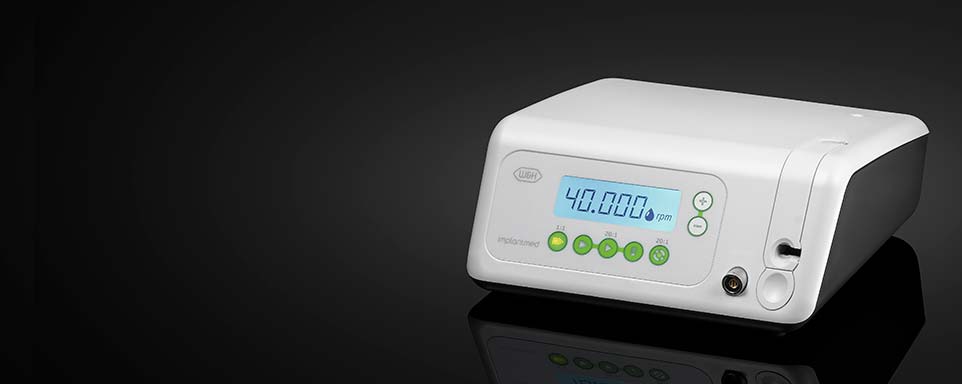

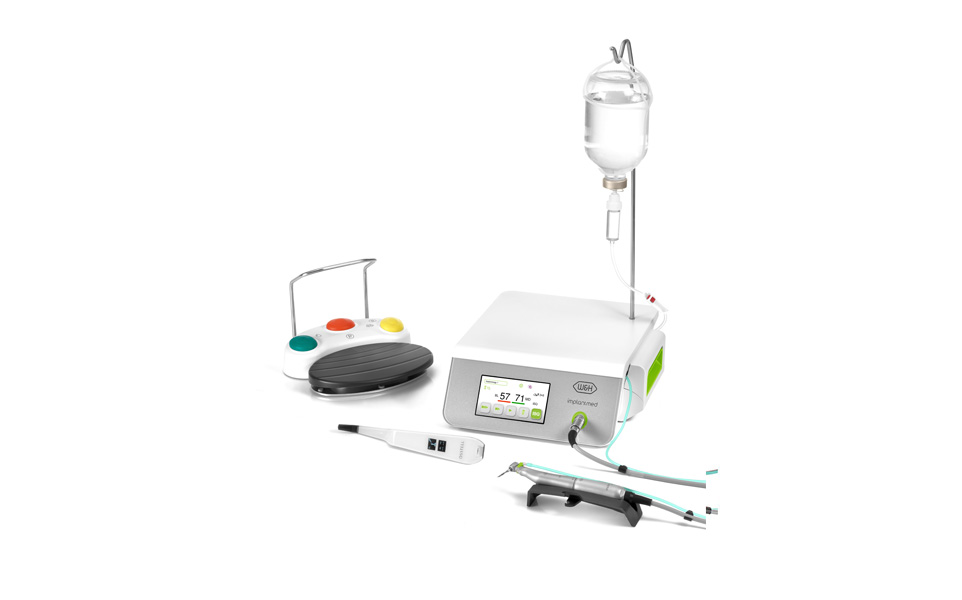

Implantmed Plus knows what surgeons and implantologists need!
The Implantmed Plus from W&H ensures improved treatment safety for you and your patients.
With the intuitive user interface, colour touch screen and glass surface the Implantmed Plus offers you the highest levels of comfort.
The drive unit is ideal for the purpose with its automatic thread cutter function, automatic torque control and Osstell products (available as an accessory) for precise measurable implant stability.Your advantages at a glance
- Intuitive user interface
-
Secure torque control and
measurable implant stability - Ultra-short, powerful electric motor

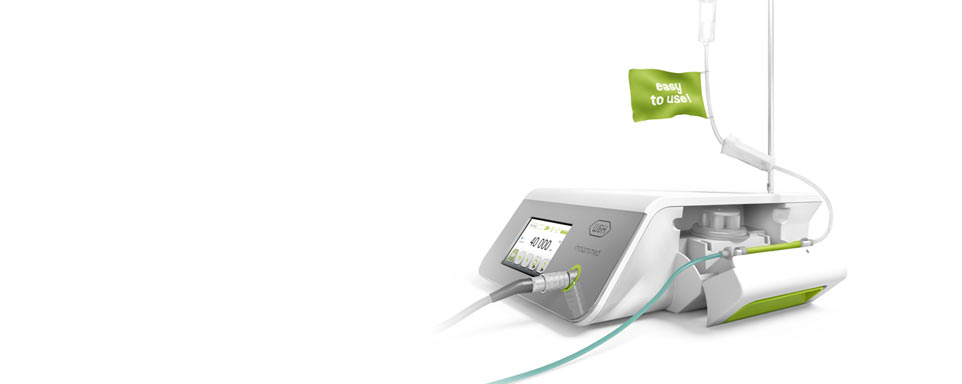

- Intuitive pump design
- Wireless foot control
Osstell Beacon PairingW&H Osstell Beacon Pairing
• Connection via Bluetooth dongle and USB interface
• Display of the measured values incl. colour coding on the Implantmed display
Protocol extension drilling stepsProtocol extension drilling steps
• Up to 5 additional drill steps selectable
• 2 torque-controlled implantation programs possible

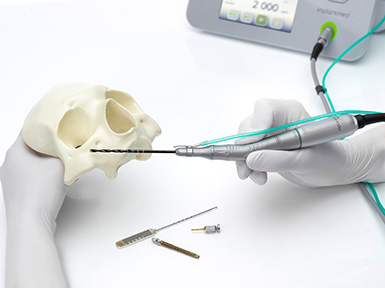

Zygoma ImplementationZygoma Implementation
• Implementation Zygoma handpiece SZ-75
• Torque precision through tuning to the overall system
• Selectable as transmission ratio in Implantmed Plus
-

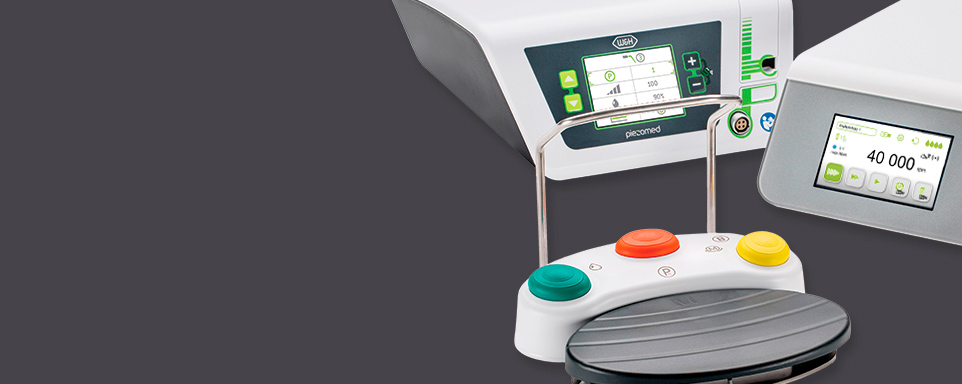

Wireless foot control
Freedom of movement
- Complete safety in the treatment area
- One for all – Control the functions of multiple W&H units
- Complete safety in the treatment area
Modularity for optimal flexibility

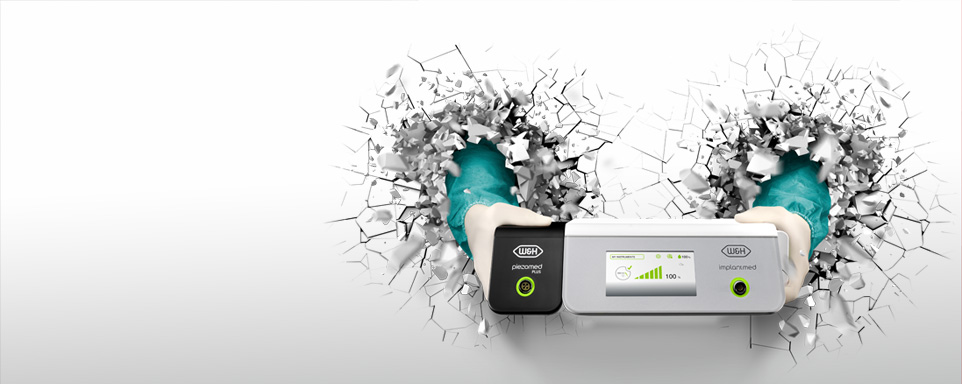

Workflow driven solution
The combination of Implantmed Plus and
Piezomed module changes the way oral
surgery and implantology work.
Electric motor
Particularly small and surprisingly light. It enables you to work with ease.

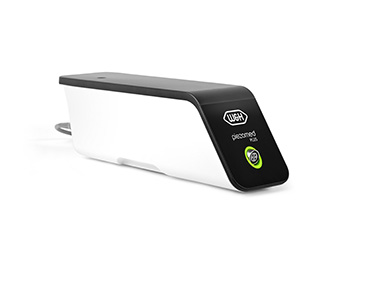

Piezomed Plus and Classic module
Combine piezo surgery and implantology in one device.

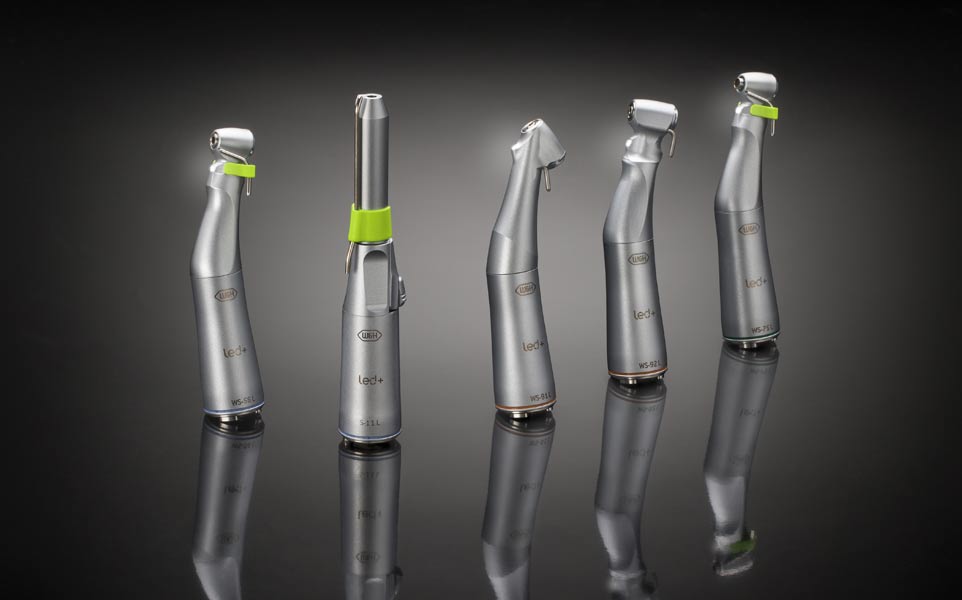

Straight & Contra-angle Handpieces
Provide optimal illumination of the treatment site and facilitate perfect, accurate treatment results.
More Info!
Documentation function
The documentation function conveniently saves all values of the implant insertion on a USB stick (.pdf and .xls).
Wireless or wired foot control
Control the Implantmed Plus and Piezomed module with just one foot control.
Osstell Beacon
Wireless connection to the W&H Osstell Beacon
for easy measurement and representation of implant stability.
More Info!Step 1: control unit

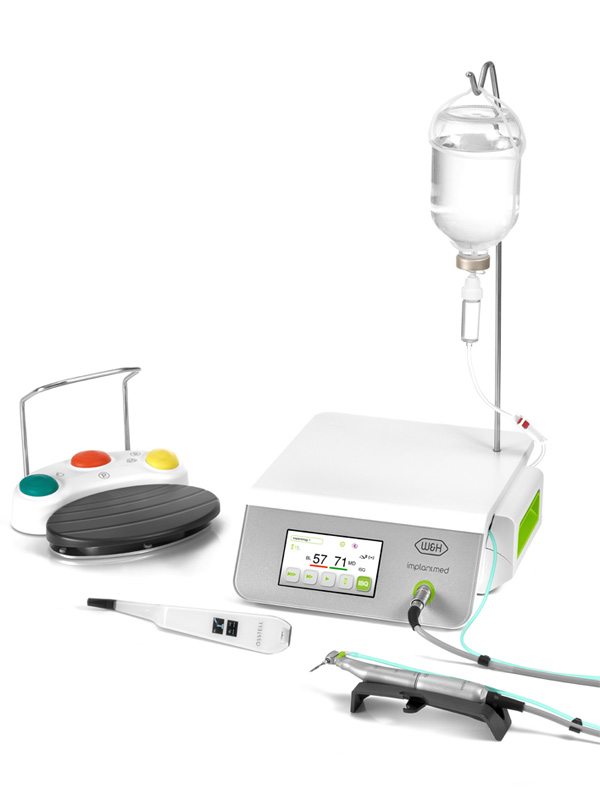

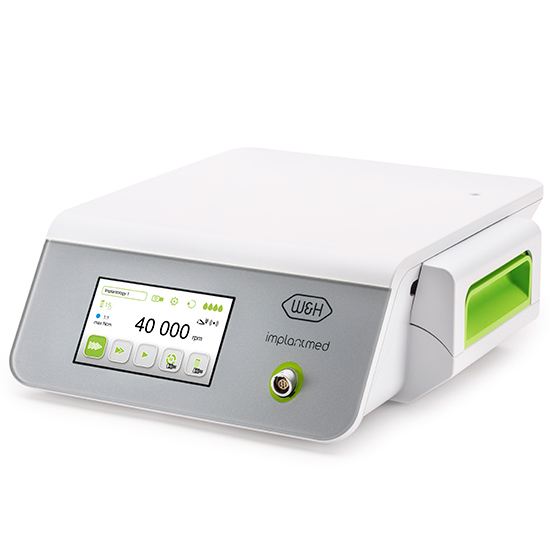

![Implantmed Plus]( "Implantmed Plus")
Implantmed Plus
consists of
> Control unit
> Irrigant support
> Universal support
> Mains cable
> 3 disposable irrigation tubingsSI-1023
REF 30288000Control unit for 230 V mains voltage
SI-1015
REF 30289000Control unit for 120 V mains voltage
SI-1010
REF 30290001Control unit for 100 V mains voltage

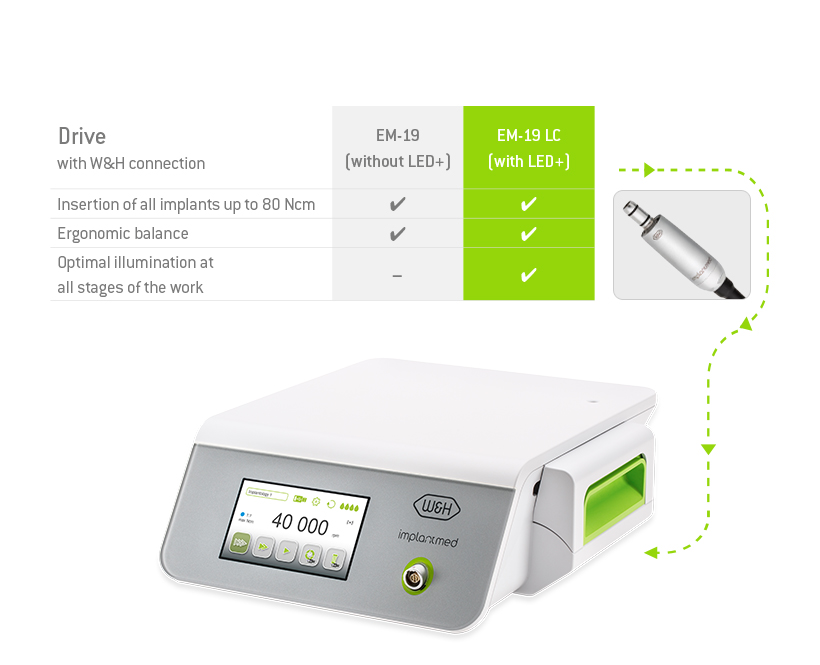

Step 2: Drive

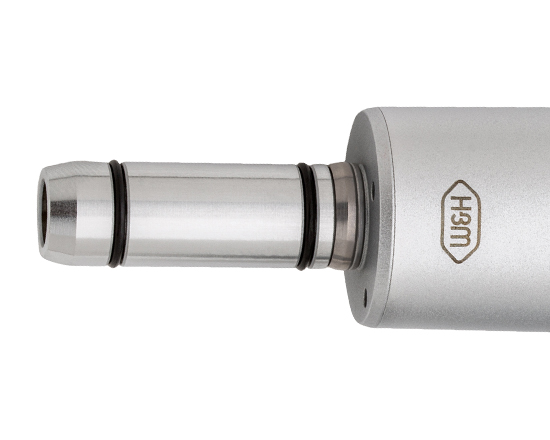

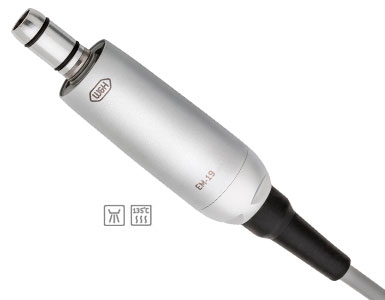

![Electric motor with W&H connection]( "Electric motor with W&H connection")
Electric motor with W&H connection
Maximum torque at motor: 6.2 Ncm
Motor speed range in the rated voltage range:
200 – 40.000 rpmEM-19 LC
REF 30281000with LED+
with electric contacts
with 1.8 m cableEM-19 LC
REF 30281001with LED+
with electric contacts
with 3.5 m cableEM-19
REF 30185000without LED+
without electric contacts

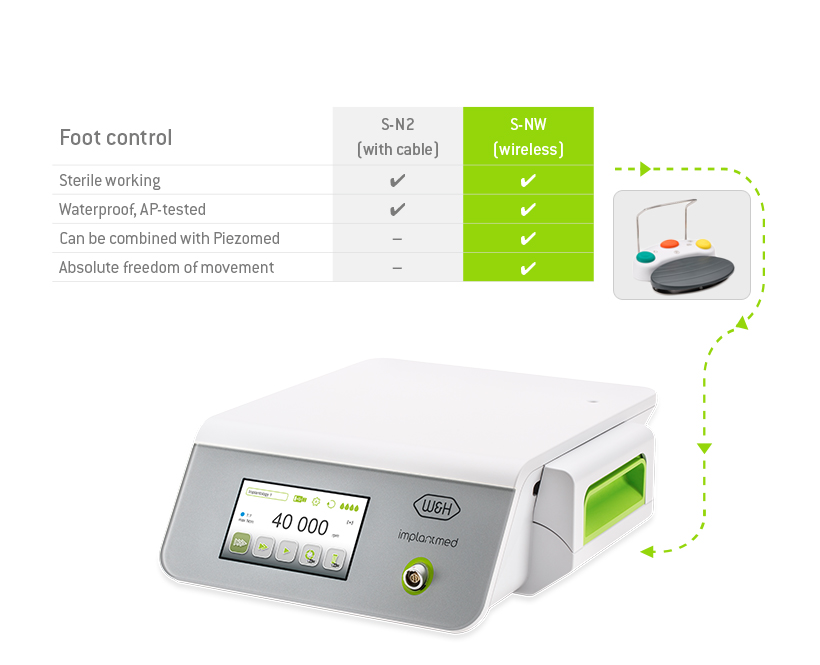

with 1.8 m cableStep 3: Foot control
![Wireless foot control]( "Wireless foot control")
Wireless foot control
S-NW + CAN
REF 30264000with CAN dongle
compatible with
Implantmed SI-1023, SI-1015, SI-1010

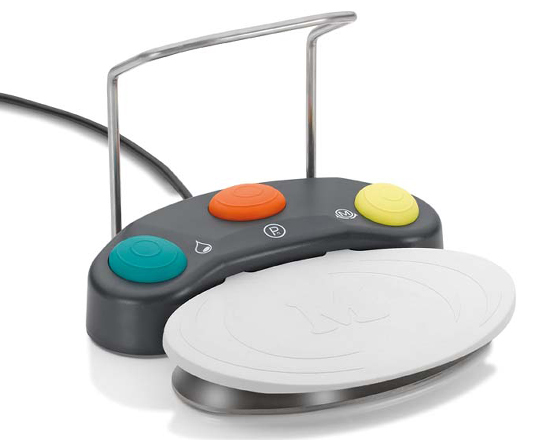

![Foot control with cable]( "Foot control with cable")
Foot control with cable
S-N2
REF 30285000compatible with

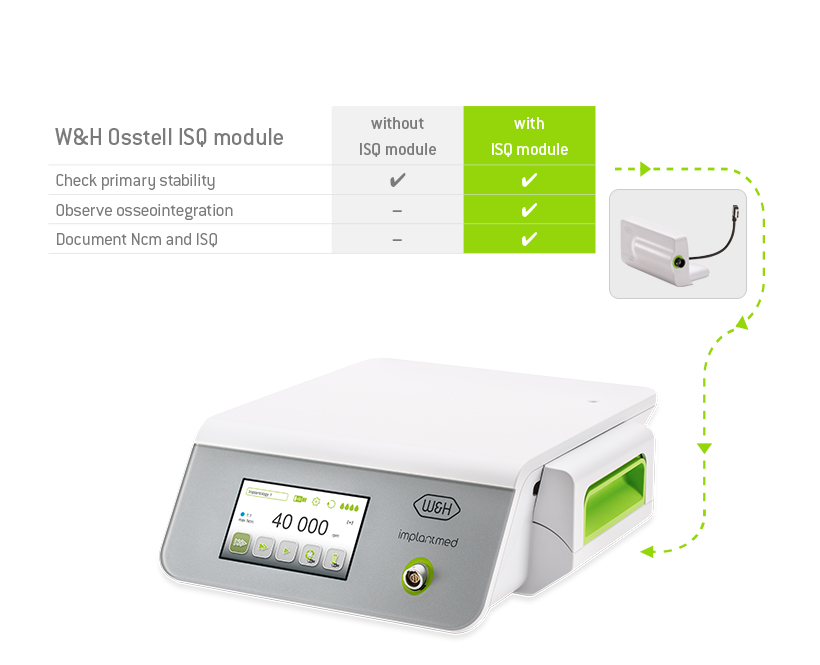

Implantmed SI-1023, SI-1015, SI-1010Step 4: Implant stability measurement

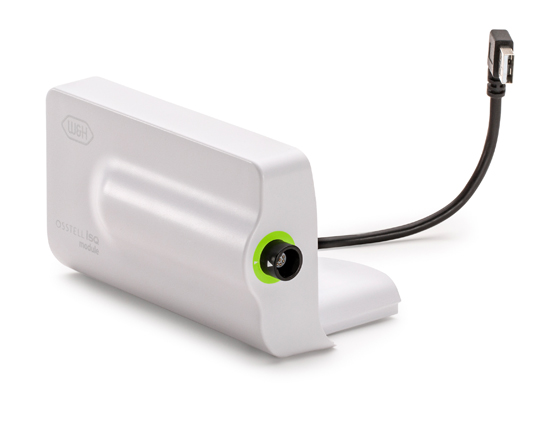

![W&H Osstell ISQ module]( "W&H Osstell ISQ module")
W&H Osstell ISQ module
consists of
> Osstell ISQ module
> Measuring probe with cable
> TestPeg
> Voucher for 1 box of 5 single-use SmartPegsSI-SQ
REF 30210000W&H Osstell ISQ module

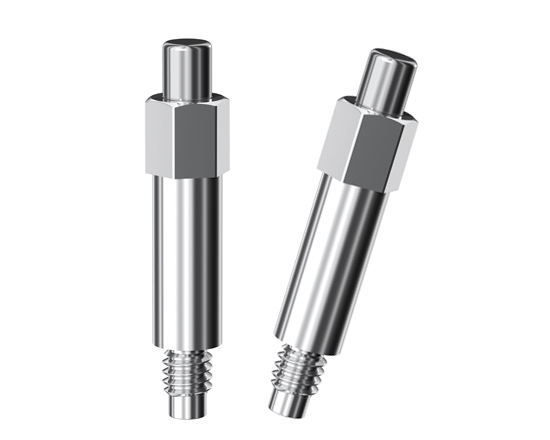

![SmartPeg]( "SmartPeg")
SmartPeg
> Voucher on first order for 5 SmartPegs
> Order in the W&H WebShop
![W&H Osstell Beacon]( "W&H Osstell Beacon")
Osstell Beacon
Included with delivery of the W&H Osstell Beacon wireless measuring device:
> USB dongle for wireless communication
> 1 Osstell TestPeg
> 1 SmartPeg mount
> Instruction manual
Dimensions: 210 x 35 x 25 mm
Weight: 0.7 kg
W&H Osstell Beacon
REF Beacon

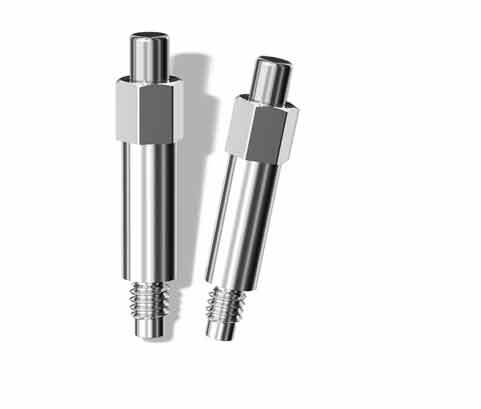

![SmartPegs]( "SmartPegs")
SmartPegs
> Disposable product
> Delivered in sterile individual packets of 5 items each
Weight: 0.3 g
SmartPegs
REF SmartPegs
Download Area
FAQs
-
Can handpieces from another manufacturer be used on a W&H surgical motor (Implantmed)?
For applications which do not require accurate torque (drilling, grinding,…), any handpiece with ISO 3964 connection can be used. Please be informed that hand pieces from other manufacturers might not be able to handle the torque of your unit/motor and therefore might get damaged. An accurate torque limitation in the placement programs of W&H surgical units requieres the use of W&H Surgical contra angles. more
-
Can other brands of tubing be used?
Not recommended. Due to different specifications (material, dimensions) it could cause problems like leakage, insufficient cooling or even damage the unit. For propper tubing see "correlation of tubing" or user manual. more
-
How to insert irrigation tube?
Please find a detailed description in the user manual at chapter "Starting operation - General". more
-
How can the unit / motor be cleaned / sterilized?
Please find a detailed description in the user manual at chapter "Hygiene and Maintenance". more
-
Is it possible to set the motor speed with the program for positioning an implant?
No, the speed in program P4 is 15 rpm when in forward operation and 30 rpm in reverse operation. In program P5 (thread cutter function) the speed is 20 rpm in both forward and reverse operation and only the torque can be set. more
-
Why doesn't the light on my LED G contra-angle handpiece work when I am positioning an implant?
The generator in the contra-angle handpiece requires at least 300 rpm to produce enough electricity for the LED. The rotary speed is between 15 and 50 rpm when positioning an implant. more
-
Can my Implantmed motor be processed via thermal washer disinfector?
Yes, if the thermal washer disinfector has a drying cycle and the motor bears the sign that it is "Thermo washer disinfectable".
more
-
Can my Implantmed/Elcomed motor be processed in a vacuum sterilizer with the protection cap in place.
No. The new generation of motors have to be sterilized without cap. more
-
Does my W&H unit need to be serviced.
Regular servicing of function and safety including the accessories is necessary and should be carried out at least once every three years, unless shorter intervals are prescribed by law. Detailed information can be found in the user manual at chapter "Servicing". more
-
What types of tubing can I use on my device?
For propper tubing see user manual. more
-
Does the motor need to be greased?
No, the Implantmed/Elcomed motor does not need greasing. The motor bearings require no maintenance. Any additional greasing would reduce the service life of the bearings. more
-
Is it possible to use the Implantmed Classic in combination with the wireless foot controller?
No, the SPI dongle does not fit. more
-
What’s the difference between torque and ISQ?
Torque is a one time, static measurement at the time of placement of the implant and cannot be repeated later on in a non-invasive way. Osstell ISQ measures the lateral stability of the implant and the measurements can be repeated in a non-invasive, dynamic way to monitor the development of osseointegration. more
-
Is every new Implantmed compatible with the W&H Osstell ISQ module?
Yes. All control units SI-1023, SI-1015 and SI-1010 can be upgraded with the W&H Osstell ISQ module more
-
Are previous Implantmed motors compatible with the new Implantmed or vice versa?
No. The new motor has a new technological basis and is the shortest available more
-
What does the LC in EM-19 LC stand for, is there a LED in the motor?
The LC stands for Light Contacts. This means that we have integrated an electrical connection into our new motors. The Light Contacts deliver power to our new contra-angles to offer our customers the best light at any rotation speed. For oral surgery handpieces from W&H, the LED remains in the head of the contra-angles more
-
Can current contra-angles be attached to new motors?
Yes. All W&H surgical contra-angles and handpieces can be attached to the new motor EM-19. more
-
Can the new contra-angles be attached to old motors?
No. In order to deliver the best balance we shortened the inner coupling length. Therefore contra-angles with only an L suffix cannot be attached to old motors more
-
Can our customers disassemble the new contra-angles
Yes. At W&H the letter "S" always communicates, that the surgical contra-angle is disassemble. The letter "I" communicates, that the surgical contra-angle cannot be disassembled (e.g. WS-75 L vs. WI-75) more
-
Are old cable foot controls compatible with the new unit or vice versa?
No. The new cable foot control S-N2 is based on the industrial CAN standard. So connecting the old foot control S-N1 is not possible. more
-
Can previous Implantmed units be retrofitted with the wireless foot control
It depends but basically yes. The following units can be retrofitted
Implantmed SI-923 REF16929000
Implantmed SI-915 REF16929001
Elcomed SA-310 REF15933100/15933101/15933102/15933103
Please contact your local W&H Partner to find out if the wireless foot control is already registered in your country more -
Piezomed module: Does the module also work with OEM devices?
Yes, but different software updates are necessary. more
-
Piezomed module: Can devices be retrofitted on the market?
Yes, all SI-10XX devices. more
-
Piezomed module: Are the handpieces of the modules compatible with the SA-320?
No, not compatible. more
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Video Tutorials
-

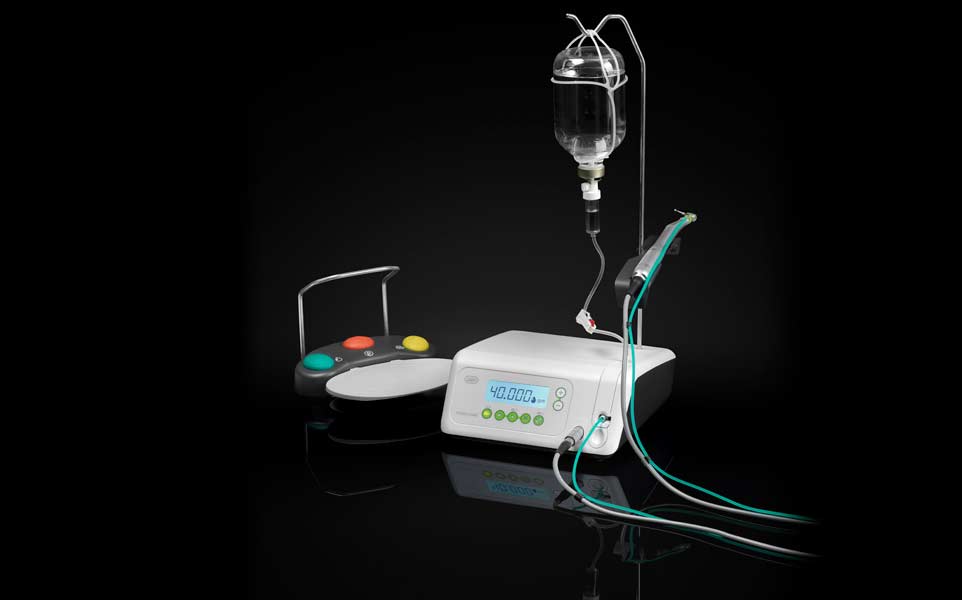

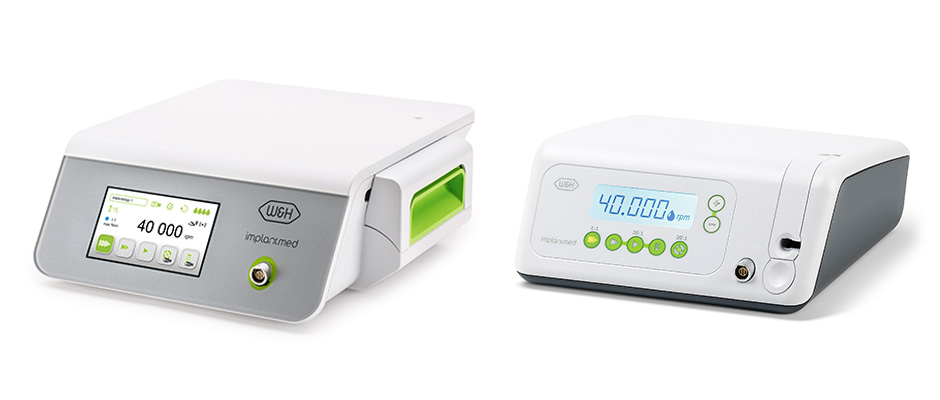

Your reliable partner in implantology

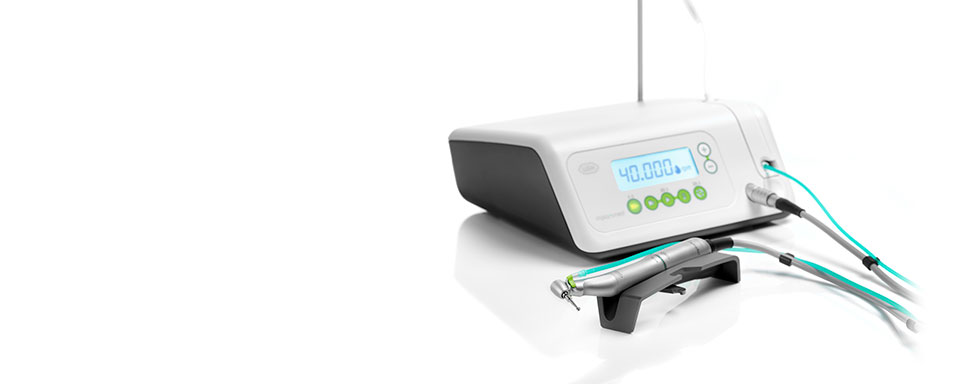

Implantmed excels by virtue of its ease of operation, powerful motor and automatic
thread cutter function.
The logically designed operating concept
supports implantologists and ensures all
programs can be set up easily, by
pressing the buttons on the unit or by
operating the foot control.Your advantages at a glance
- Easy to use
- Powerful motor with 5.5 Ncm torque
- Wide speed range: 300 up to 40,000 rpm at the motor
- Precise torque limitation: 5 to 70 Ncm
- Automatic thread cutter function
- Motor with cable, thermo washer disinfectable and sterilizable
Powerful motorPowerful motor for implantology
With this powerful motor even difficult implantological procedures no longer demand great strength.
A motor torque of 5.5 Ncm and a motor speed range of 300 up to 40,000 rpm make light work of tough procedures.
The automatic torque control at the rotary instrument, which can be set on the Implantmed unit at between 5 and 70 Ncm, ensures it is safe in operation.
Ease of operationEase of operation
Ease of use is the major feature.
You can set up all the steps for an implantation without difficulty by pressing the plus and minus buttons on the unit or by operating the foot control.
The set parameters are clearly visible on the display and are easy - to - read.
Automatic thread cutter functionAutomatic thread cutter function
The thread cutter function, which is integrated in Program 5, supports you when inserting implants in hard bone.
Cutting a thread before screwing in an implant prevents excessive compression of the bone and promotes stress – free healing of the implant.

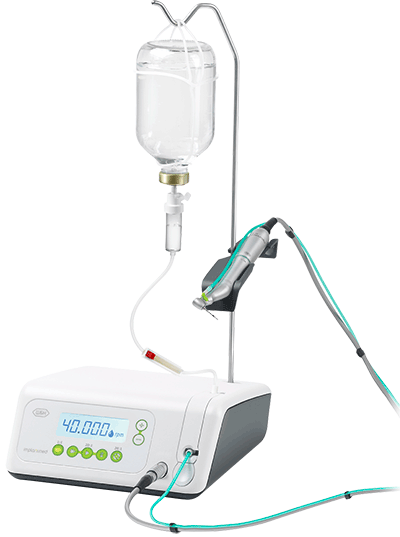

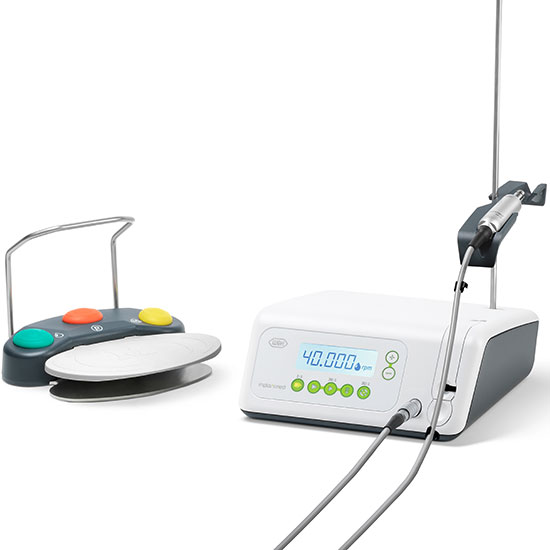

![Implantmed Classic]( "Implantmed Classic")
Implantmed Classic
consists of: control unit,
motor with 1.8 m cable incl. 5 clips,
foot control S-N2, stand, motor support,
mains cable, 2 locking pins and
3 disposable irrigation tubingsSI-915
REF 90000162115 V
SI-915 Unit
REF 30287000115 V
Download Area
FAQs
-
Can handpieces from another manufacturer be used on a W&H surgical motor (Implantmed)?
For applications which do not require accurate torque (drilling, grinding,…), any handpiece with ISO 3964 connection can be used. Please be informed that hand pieces from other manufacturers might not be able to handle the torque of your unit/motor and therefore might get damaged. An accurate torque limitation in the placement programs of W&H surgical units requieres the use of W&H Surgical contra angles. more
-
Can other brands of tubing be used?
Not recommended. Due to different specifications (material, dimensions) it could cause problems like leakage, insufficient cooling or even damage the unit. For propper tubing see "correlation of tubing" or user manual. more
-
How to insert irrigation tube?
Please find a detailed description in the user manual at chapter "Starting operation - General". more
-
How can the unit / motor be cleaned / sterilized?
Please find a detailed description in the user manual at chapter "Hygiene and Maintenance". more
-
Is it possible to set the motor speed with the program for positioning an implant?
No, the speed in program P4 is 15 rpm when in forward operation and 30 rpm in reverse operation. In program P5 (thread cutter function) the speed is 20 rpm in both forward and reverse operation and only the torque can be set. more
-
Why doesn't the light on my LED G contra-angle handpiece work when I am positioning an implant?
The generator in the contra-angle handpiece requires at least 300 rpm to produce enough electricity for the LED. The rotary speed is between 15 and 50 rpm when positioning an implant. more
-
Can my Implantmed motor be processed via thermal washer disinfector?
Yes, if the thermal washer disinfector has a drying cycle and the motor bears the sign that it is "Thermo washer disinfectable".
more
-
Can my Implantmed/Elcomed motor be processed in a vacuum sterilizer with the protection cap in place.
No. The new generation of motors have to be sterilized without cap. more
-
Does my W&H unit need to be serviced.
Regular servicing of function and safety including the accessories is necessary and should be carried out at least once every three years, unless shorter intervals are prescribed by law. Detailed information can be found in the user manual at chapter "Servicing". more
-
What types of tubing can I use on my device?
For propper tubing see user manual. more
-
Does the motor need to be greased?
No, the Implantmed/Elcomed motor does not need greasing. The motor bearings require no maintenance. Any additional greasing would reduce the service life of the bearings. more
-
Is it possible to use the Implantmed Classic in combination with the wireless foot controller?
No, the SPI dongle does not fit. more
-
What’s the difference between torque and ISQ?
Torque is a one time, static measurement at the time of placement of the implant and cannot be repeated later on in a non-invasive way. Osstell ISQ measures the lateral stability of the implant and the measurements can be repeated in a non-invasive, dynamic way to monitor the development of osseointegration. more
-
Is every new Implantmed compatible with the W&H Osstell ISQ module?
Yes. All control units SI-1023, SI-1015 and SI-1010 can be upgraded with the W&H Osstell ISQ module more
-
Are previous Implantmed motors compatible with the new Implantmed or vice versa?
No. The new motor has a new technological basis and is the shortest available more
-
What does the LC in EM-19 LC stand for, is there a LED in the motor?
The LC stands for Light Contacts. This means that we have integrated an electrical connection into our new motors. The Light Contacts deliver power to our new contra-angles to offer our customers the best light at any rotation speed. For oral surgery handpieces from W&H, the LED remains in the head of the contra-angles more
-
Can current contra-angles be attached to new motors?
Yes. All W&H surgical contra-angles and handpieces can be attached to the new motor EM-19. more
-
Can the new contra-angles be attached to old motors?
No. In order to deliver the best balance we shortened the inner coupling length. Therefore contra-angles with only an L suffix cannot be attached to old motors more
-
Can our customers disassemble the new contra-angles
Yes. At W&H the letter "S" always communicates, that the surgical contra-angle is disassemble. The letter "I" communicates, that the surgical contra-angle cannot be disassembled (e.g. WS-75 L vs. WI-75) more
-
Are old cable foot controls compatible with the new unit or vice versa?
No. The new cable foot control S-N2 is based on the industrial CAN standard. So connecting the old foot control S-N1 is not possible. more
-
Can previous Implantmed units be retrofitted with the wireless foot control
It depends but basically yes. The following units can be retrofitted
Implantmed SI-923 REF16929000
Implantmed SI-915 REF16929001
Elcomed SA-310 REF15933100/15933101/15933102/15933103
Please contact your local W&H Partner to find out if the wireless foot control is already registered in your country more -
Piezomed module: Does the module also work with OEM devices?
Yes, but different software updates are necessary. more
-
Piezomed module: Can devices be retrofitted on the market?
Yes, all SI-10XX devices. more
-
Piezomed module: Are the handpieces of the modules compatible with the SA-320?
No, not compatible. more
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Video Tutorials
-
-
Implantmed SI-1023, SI-1015, SI-1010
Type: SI-1023 SI-1015 SI-1010 Mains voltage: 230 V 120 V 100 V Permissible voltage fluctuation: 220 – 240 V 110 – 130 V 90 – 110 V Rated current: 0.3 – 0.8 A 0.3 – 1.6 A 0.3 – 1.4 A Frequency: 50 – 60 Hz Mains fuse (2 pcs): 250 V – T1,6AH Maximum power consumption: 170 VA Maximum power output: 80 W Maximum torque at motor: 6.2 Ncm Motor speed range in the rated voltage range: 200 – 40,000 min -1 Coolant flow volume at 100%: at least 90 ml/min Dimensions in mm (height × width × depth): 100 x 262 x 291 Weight in kg: 3.5 Foot control: S-N2 / S-NW Straight and contra-angle handpieces with mini LED+: S-11 L / WS-56 L, WS-75 L, WS-91 L, WS-92 L Warranty: 24 months
Implantmed SI-915, SI-923
Type: SI-915 SI-923 Max. torque at the rotary instrument (in program 4): 70 Ncm Mains voltage: 100 – 130 V, 50 / 60 Hz 220 – 240 V, 50 / 60 Hz Maximum power output: 70 W Maximum torque at motor: 5.5 Ncm Motor speed range in the rated voltage range: 300 – 40,000 min -1 Intended transmission instruments:
Program 4 and 5:ISO connection 3964 (DIN 13.940), transmission ratio 1:1, 20:1
exclusively with WI-75 or WS-75 modelsLength of motor cable: 1.8 m Coolant flow volume at 100%: at least 90 ml/min Foot control: yes Height / width / depth: 100 x 235 x 240 mm
