Light, flexible and sterilizable:
W&H Roto Quick couplings are versatile and suitable for use with transmission instruments with LED+, LED and halogen lights.
24 months warranty (except RQ-53 and RQ-54 with 12 months warranty).Advantages
- Versatile: for all turbine handpieces, air motors and scalers with Roto Quick connections.
- Compatible with all standardized turbine hoses.
- Hygienic: non-retraction valve reduces the backflow of contaminated spray water and minimizes the risk of infection.
- Intelligent: the power transmission enables you to take advantage of revolutionary technologies, such as the 5x Ring LED+.
- Flexible 360° instrument rotation for easy and ergonomic handling.
- Ergonomic: lightest system available to date.
- Customizable: continuous regulation of the spray water supply for rapid adjustment by the user – even during treatment.
- 24 months warranty (except RQ-53 and RQ-54 with 12 months warranty).
![]()

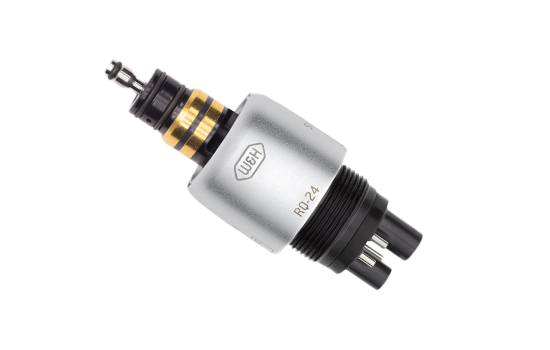

![Roto Quick coupling RQ-24]( "Roto Quick coupling RQ-24")
Roto Quick couplings with light
RQ-24
REF 104024006-hole connection

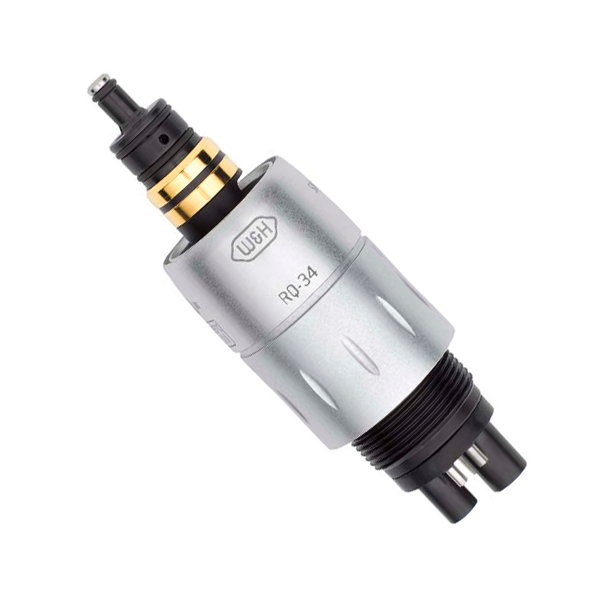

RQ-34
REF 10403400spray regulation
6-hole connectionRQ-54 *
REF 10405400Roto Quick Coupling
with standard 4-hole connection

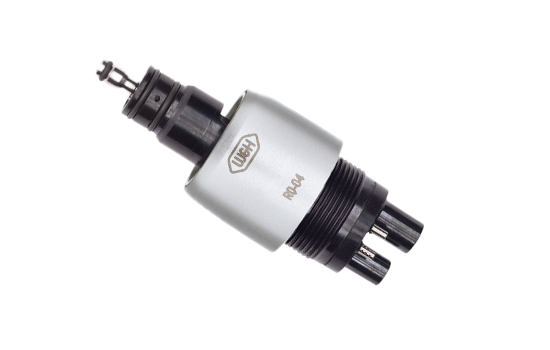

![Roto Quick coupling RQ-04]( "Roto Quick coupling RQ-04")
Roto Quick couplings without light
RQ-03
REF 10400300with 2(3)-hole connection
RQ-04
REF 10400400standard 4-hole connection

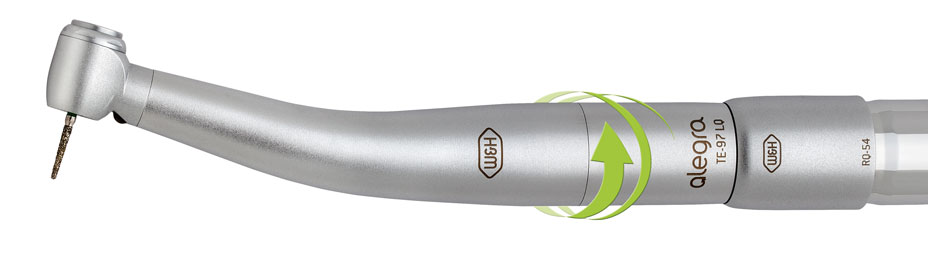

* Roto Quick coupling RQ-54 with generator: for use with Alegra LED dental turbine TE-97 LQ and TE-98 LQ.
Download Area
FAQs
- Can I use all instruments which fitted the old Roto Quick coupling (924, ...) with the new RQ-24 too?
- How does the new W&H Click & Pull system work? How do I remove a turbine?
- Why is a 6-hole connection required for the use of an LED turbine?
- Can the W&H coupling be thermodisinfected and sterilized?
- Are there other couplings than the Roto Quick available?
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Video Tutorials
Downloads
-

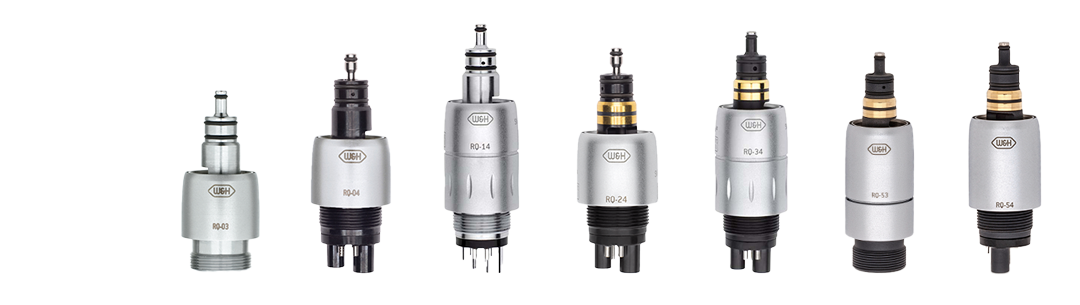

Roto Quick couplings
Type: RQ-03 ** RQ-04 RQ-14 ** RQ-24 RQ-34 RQ-53 * ** RQ-54 * Light: – – – Yes Yes Yes Yes Spray regulator: – – Yes – Yes – – Connection: 2(3)-hole Standard
4-holeStandard
4-hole6-hole 6-hole 2(3)-hole Standard
4-hole
* with integrated light generator
