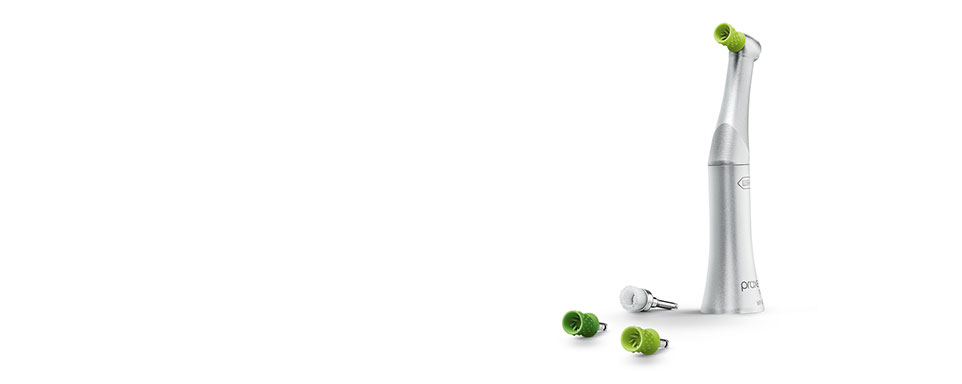

Proxeo TWIST - LatchShort Polishing System
The new generation of rotary polishing.
-
Measurably more space
More space for polishing with the shorter shaft.
-

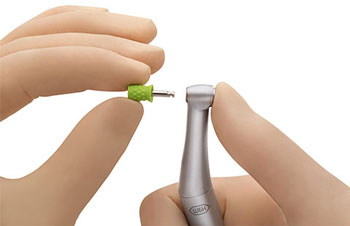

Change at the push of a button
With the practical push-button chuck system, you can change the Prophy Cups in seconds.
-
Slim and flexible
The contra-angle handpiece easily fits into the hand with its ergonomic design and slim neck.
-
Perfect sealing
Saliva and polishing paste can no longer infiltrate the head so easily. This supports the long service life of the contra-angle handpiece.
-
1 Small head
Measurably more space
More space for polishing with the shorter shaft.
-
2 Push-button
Change at the push of a button
With the practical push-button chuck system, you can change the Prophy Cups in seconds.
-

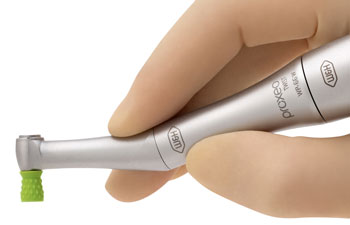

3 slim neck
Slim and flexible
The contra-angle handpiece easily fits into the hand with its ergonomic design and slim neck.
-

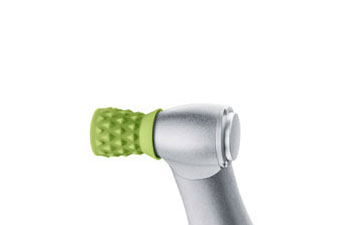

4 Perfect sealing
Perfect sealing
Saliva and polishing paste can no longer infiltrate the head so easily. This supports the long service life of the contra-angle handpiece.
-

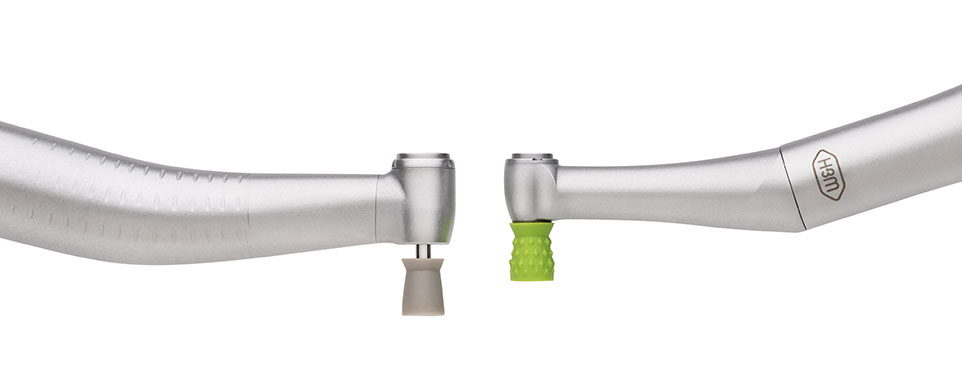

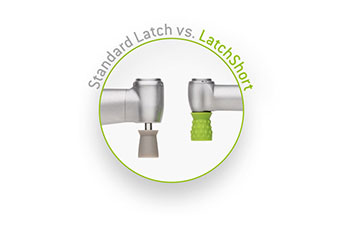

More space and better view
The Proxeo TWIST LatchShort Polishing System is a particularly smart solution for Prophy polishing: The small head with the optimally matched Prophy Cups significantly reduces the working height.
You gain as much as four millimetres
compared to standard latch systems.Main advantages at a glance
- Optimum access thanks to lower working height
- Better visibility thanks to the smaller head
- Change at the push of a button
- Long service life owing to sealing system
- Ideal speed for gentle and efficient polishing/cleaning
- Ease of maintenance and hygiene-friendly
- Thermodisinfectable and sterilisable

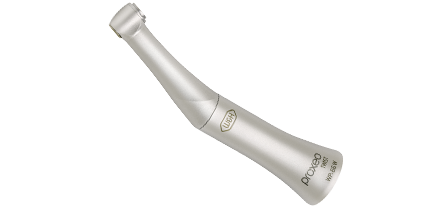

Proxeo TWIST LatchShort
WP-66 W
WP-66 W
REF 30189000Contra-angle 4:1
Prophy Cups

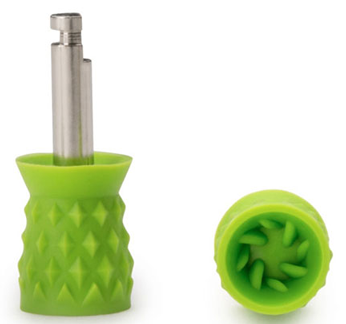

Prophy Cups soft / apple green
REF 08003630100 pcs

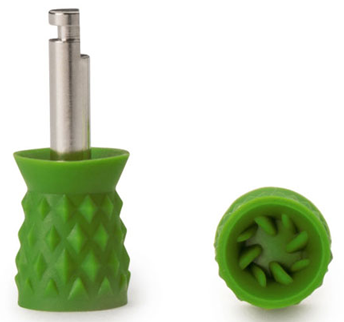

Prophy Cups firm / dark green
REF 07597900100 pcs

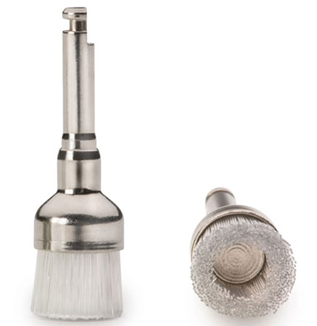

Prophy Brushes
Prophy Brushes cup-shaped, soft / clear
REF 08003650100 pcs

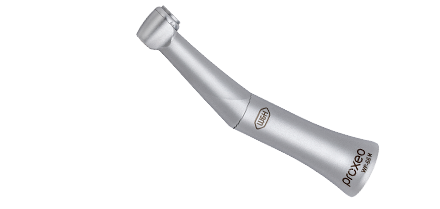

Proxeo contra-angle handpiece for cups, brushes and Snap-on Adapter with 2.35 mm shaft
WP-66 M
REF 30190000Contra-angle 4:1

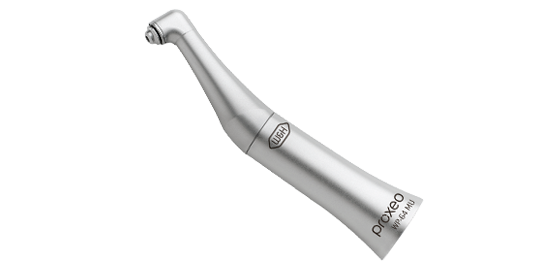

Proxeo contra-angle handpieces for screw-in cups and brushes
WP-64 MU
REF 10216443Contra-angle 4:1

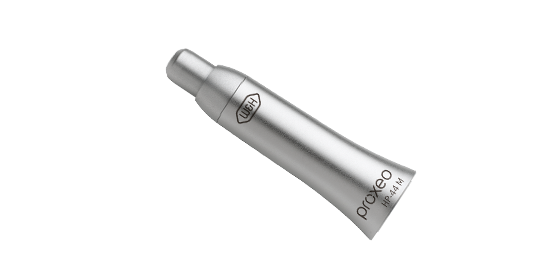

System UNIVERSALProxeo handpiece for disposable contra-angles
HP-44 M
REF 10114403Handpiece 4:1
Download Area
FAQs
- Can my W&H handpiece be processed via thermal disinfector and sterilizer.
- Can my W&H handpiece be processed via sterilizer.
- Why should I use a prophylaxis contra-angle handpiece (WP-66 W)?
- Can I use any Prophy cup that is available on the market for the WP-66 W?
- Should I call the service station before sending equipment for repair?
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Video Tutorials
-
Proxeo TWIST LatchShort
Type:
WP-66 W
Max. motor speed:
10.000 min -1
Transmission ratio:
4:1
Recommended speed for Prophy Cups and Prophy Brushes:
1.250 - 2.500 min -1
Maximum speed for Prophy Cups and Brushes:
2.500 min -1
Attachments that can be used:
W&H Proxeo TWIST LatchShort Prophy Cups and Prophy Brushes
Coupling system:
ISO 3964
Prophy Cups and Brushes
Prophy Cups
soft / apple green
firm / dark greenProphy Brushes
cup-shaped, soft
Not for reuse

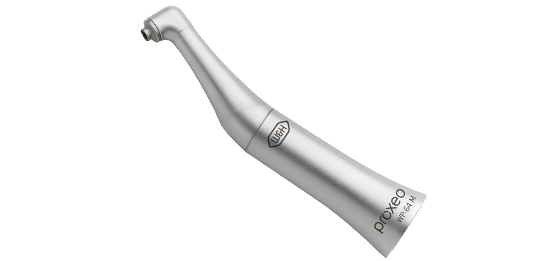

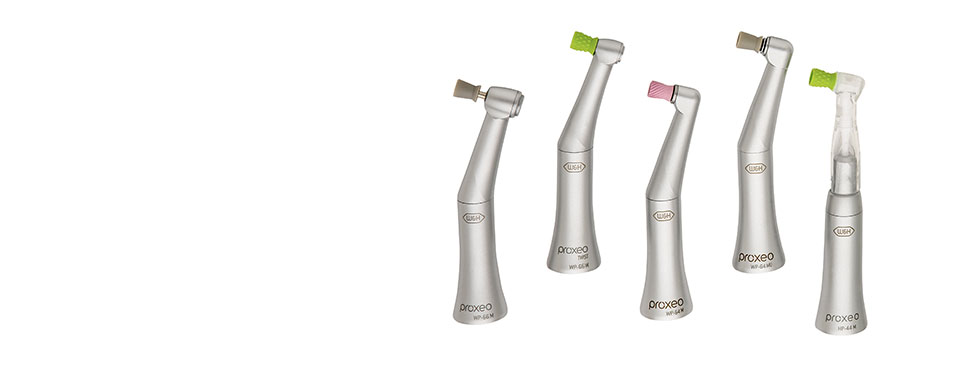

Latex-freeProxeo Straight & Contra-angle Handpieces
Type:
WP-66 M
WP-64 MU
WP-64 M
HP-44 M
Max. motor speed:
10.000 min -1
10.000 min -1
10.000 min -1
10.000 min -1
Transmission ratio:
4:1
4:1
4:1
4:1
Recommended speed
for cups and brushes:1.250 - 1.500 min -1
1.250 - 1.500 min -1
1.250 - 1.500 min -1
1.250 - 1.500 min -1
Maximum speed
for cups and brushes:2.500 min -1
2.500 min -1
2.500 min -1
2.500 min -1
Attachments that
can be used:Caps, brushes and
snap-on caps with
2.35 mm shaftAll standard screw-in
cups, brushes and
snap-on caps (screw
thread 1-72 UNF 2A)YOUNG Screw-in
cups and brushesdisposable contra-angles
with plastic shaft,
system DoriotCoupling system:
ISO 3964
