それはあなたの手の中に
いつでもPrimea Advanced Airに頼ってください。Primea Advanced Airはあなたのプリパレーションに順応し、あなたの手となって働きます。

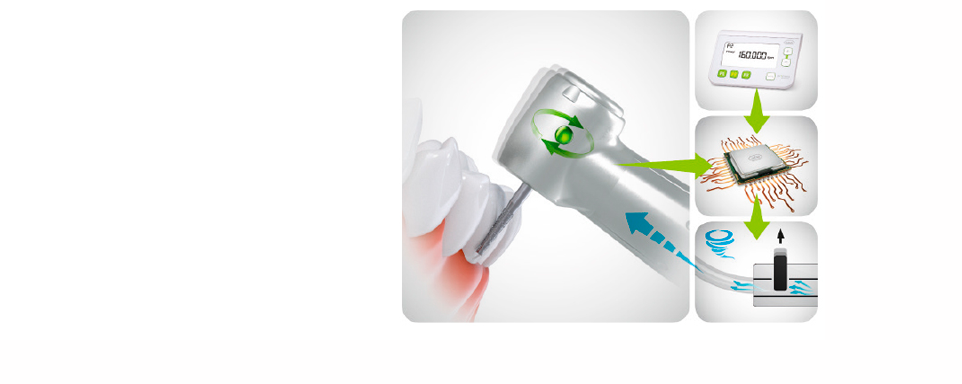

回転数を調整し、すべてをコントロールしつつも、エアードライブ式インスツルメントの利点も併せ持つ。
従来のタービンや電気モーターと増速コントラアングルハンドピースに代わる、興味深い選択肢。メリット一覧
- 5x Ring LED+による最適な視認性
- 5点スプレーによる完全な冷却効果

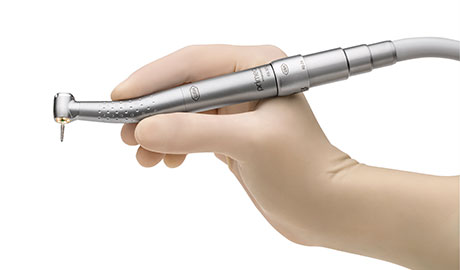

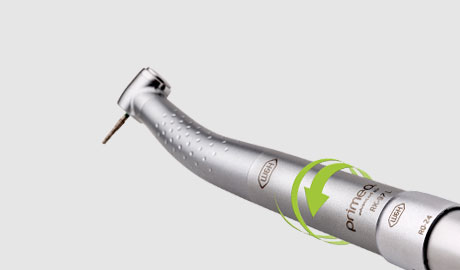

- 理想的なエルゴノミクスと軽量なハンドピースによる疲れにくい作業
- 静かな動作で繊細なフィーリングを得られる
- 特別なスクラッチフリーコーティングにより傷から守る
- 滑り止めグリップで握りやすい
- ハイジーンヘッドシステムによる究極の安全性
- ヘッドがコンパクトなため、アクセス性が高い

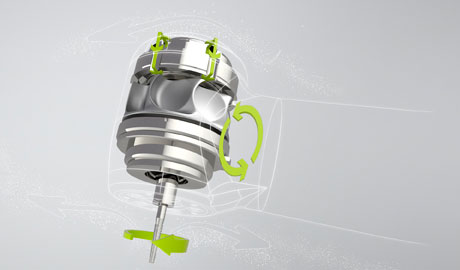

ハイジーンヘッドシステムハイジーンヘッドシステム
ハイジーンヘッドシステム
タービンヘッド内に空気を滞留させることにより、ローター回転数が減速する際もエアゾール粒子がタービン内に吸い込まれるのを防ぎます。

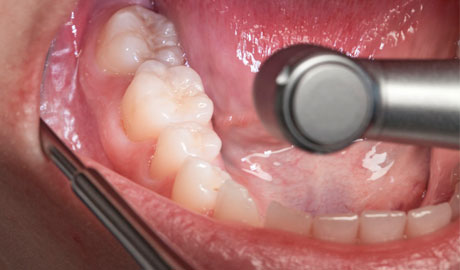

Ring LED+無影灯効果
5x Ring LED+は完璧なコントラストで治療部位の最適な視界を提供します。

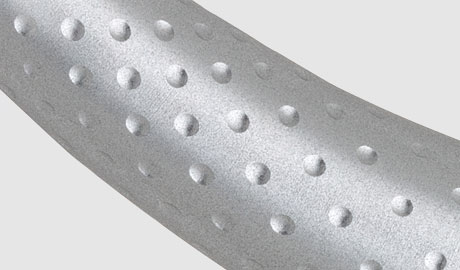

傷つきにくいコーティングいつまでも変わらない価値
傷つきにくい特殊コーティングで、
毎日新品のように。

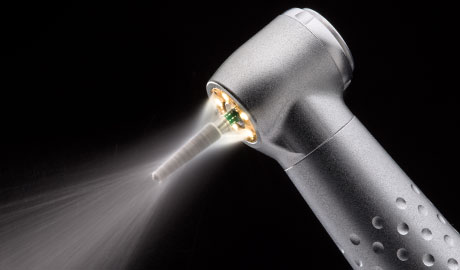

最適な冷却最適な冷却
5点スプレーにより、あらゆる使用ポジションにおいて
バーの先端は最適に冷却されます。

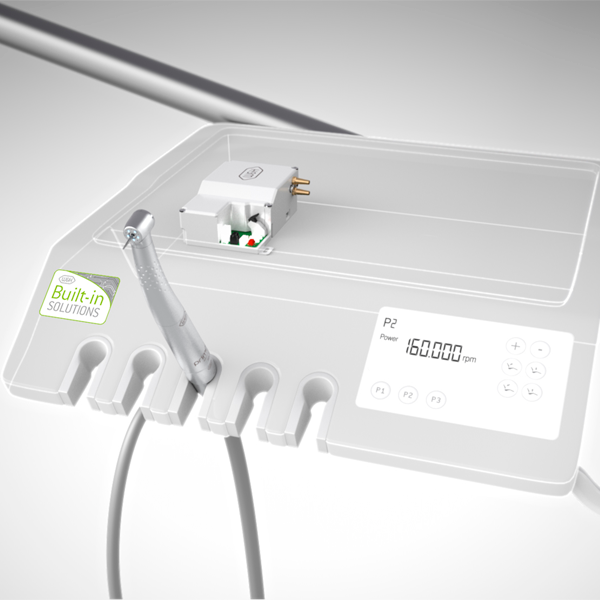

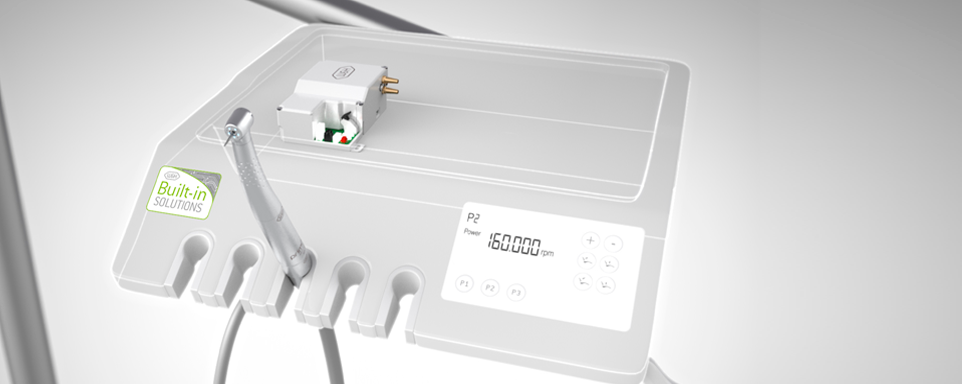

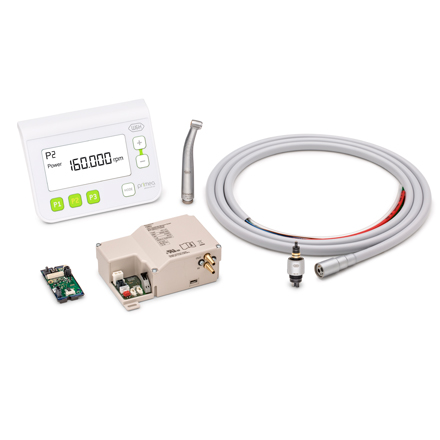

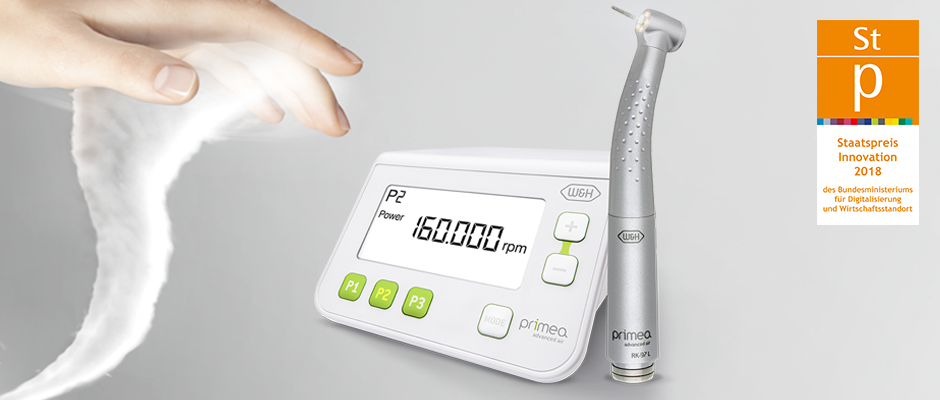

![Primea Advanced Air ビルトインセット]( "Primea Advanced Air ビルトインセット")
Primea Advanced Air Built-in Set

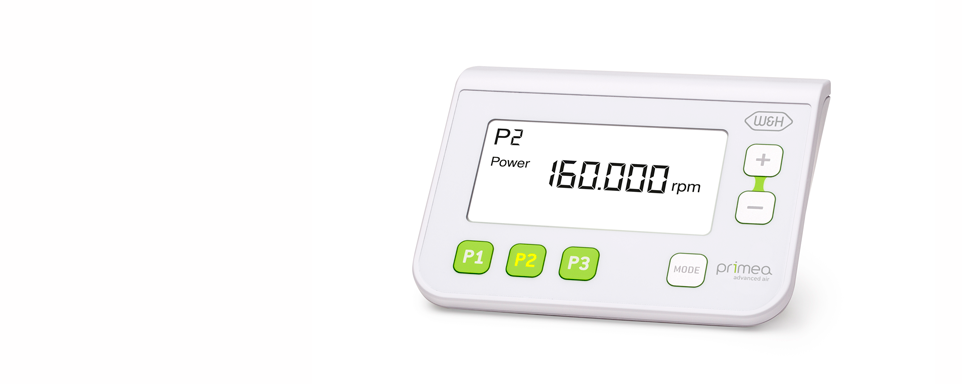

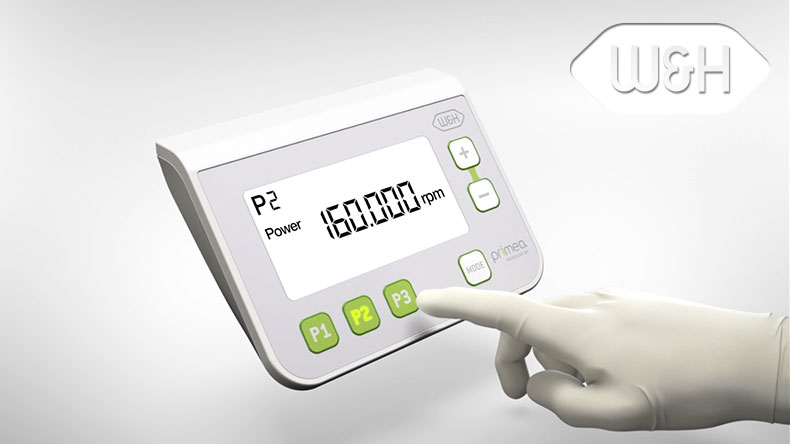

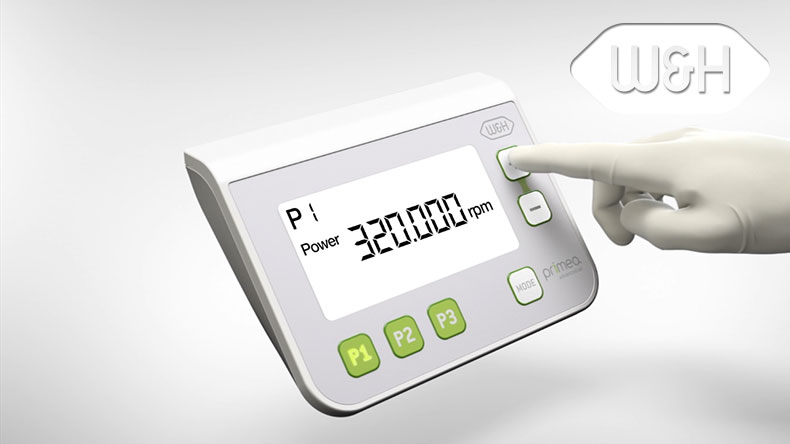

D-2.0 A ディスプレイ搭載
Built-in Set
REF 90000141構成品:
> AC-1.0 Advanced Air Controller +
AD-1.0 A/Dコンバーター
> サプライホース VA-6
> 給気ホース Ø 8 mm
> 2 接続セット
（空気圧用および電気用）
> RQ-24
> RG-97 L
> ディスプレイ D-2.0 A

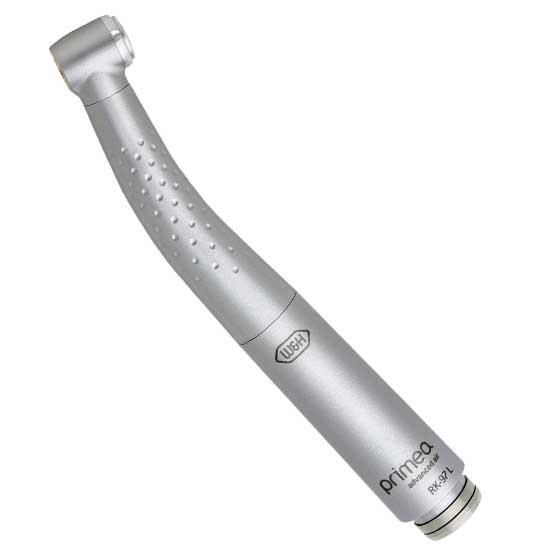

![Primea Advanced Air RK-97 L]( "Primea Advanced Air RK-97 L")
Primea Advanced Air RK-97 L
5点スプレー、
ヘッドサイズØ 10 mm、
最大30 W、400,000 rpm まで、
プッシュボタンチャックシステム
Ø 1.6 mmのFGバー、最長21 mmまで対応RK-97 L
REF 30221000Ring LED+、
セラミックボールベアリング、
カップリングシステム:W&H Roto quick

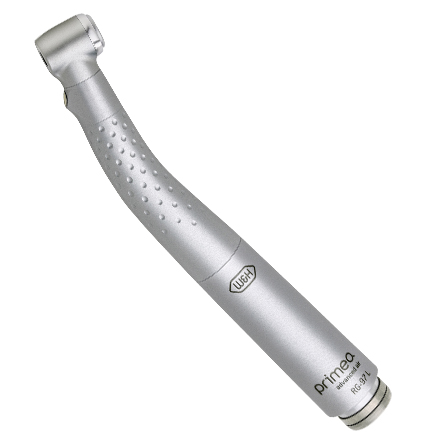

![Primea Advanced AirタービンRG-97 L]( "Primea Advanced AirタービンRG-97 L")
Primea Advanced AirタービンRG-97 L
5点スプレー、
ヘッドサイズØ 10 mm、
最大30 W、400,000 rpm まで、
プッシュボタンチャックシステム
Ø 1.6 mmのFGバー、最長21 mmまで対応RG-97 L
REF 30222000LED+、セラミックボールベアリング、
カップリングシステム: W&H Roto quick
Download Area
FAQ
-

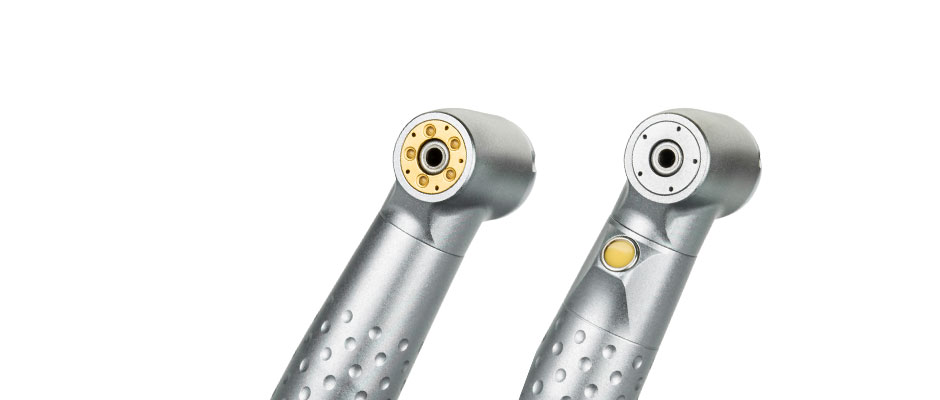

Are there different Primea Advanced Air Turbines?
Yes, the RG-97 L is equipped with an LED to illuminate the treatment area. The RK-97 L offers you shadowless illumination of the treatment site thanks to 5x Ring LED+. Both turbines have a mini-head and five spray ports, as well as a scratch-proof surface coating. more
-
How can I integrate the Primea Advanced Air Built-in into my unit?
The Primea Advanced Air System is integrated into a dental unit by selected dental unit manufacturers or their service technicians. more
-
How do I connect the Primea Advanced Air Add-on to my unit?
You can connect the external Primea Advanced Air System to the dental unit. To do this, you need a spare supply hose for your dental unit, a minimum operating pressure of 5 bar and the possibility to connect the control system to the mains power supply. Please contact an authorized W&H service partner to check the inlet pressure of the additional air supply hose. more
-
Should I always call my authorized W&H service partner first before I send devices/instruments for repair?
If you are unsure of the cause of a problem, it is better to contact your authorized W&H service partner first and talk to a service technician. Together with the service technician, malfunctions may be resolved or it may be determined which items should be sent for repair. more
-
What do I do if my Primea Advanced Air Turbine does not achieve sufficient power/speed?
Please contact your authorized W&H service partner to check the Primea Advanced Air System. more
-
Which rotary instruments can be used with Primea Advanced Air Turbines?
Primea Advanced Air Turbines with small heads (Model RG-/RK--97 L): 16 mm to 21 mm The diameter of the working part is limited to a maximum of 2 mm. Follow the operating instructions of the manufacturer. When using longer or shorter rotary instruments the user must ensure by correct selection of the operating conditions, that there is no danger to the user, patient or third parties. more
-

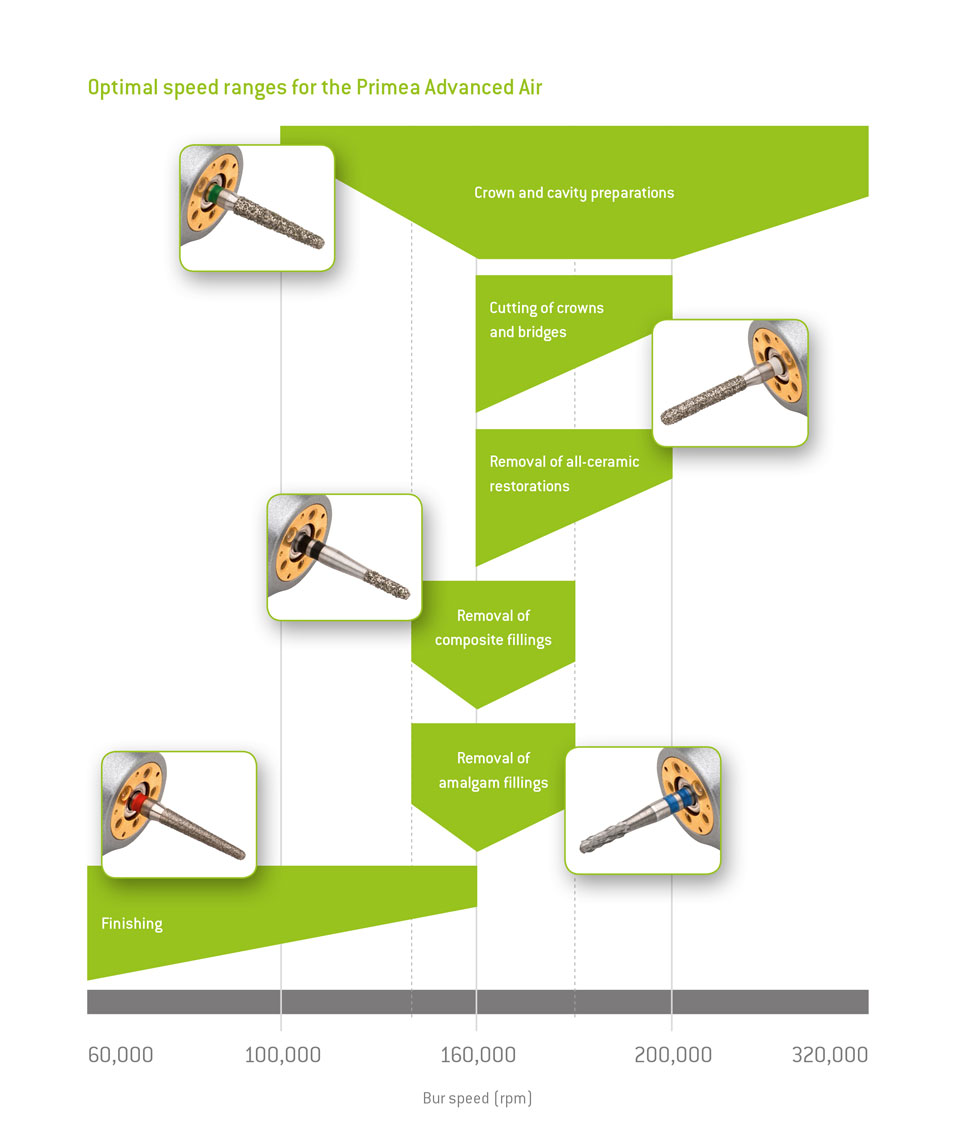

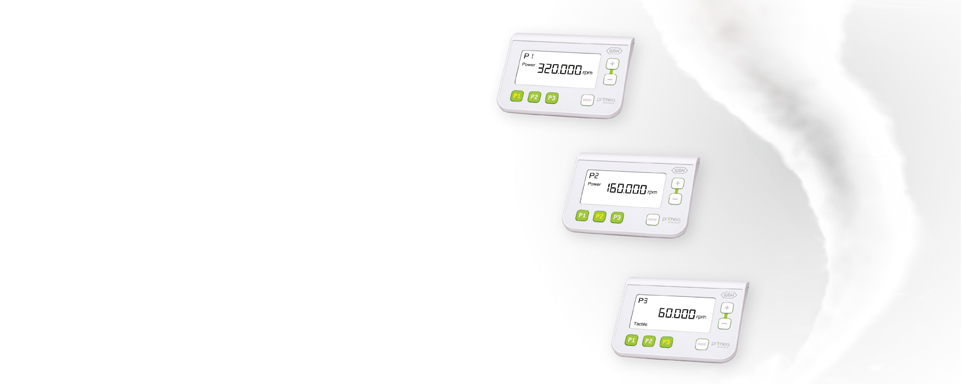

Which speed setting should I use on the Primea Advanced Air System?
Within the adjustable speed range of 60,000 to 320,000 revolutions, you can set the maximum permitted speed for the respective rotary instrument as specified by the manufacturer. more
-
What is the maximum rotary instrument length approved by W&H for Primea Advanced Air Turbines?
Primea Advanced Air Turbines with small heads (Model RG-/RK-97 L): 16 mm to 21 mm more
-
Can my Primea Advanced Air Turbine be sterilized in a sterilizer?
Yes, if your Primea Advanced Air Turbine is labelled with the symbol "Sterilizable up to the stated temperature".
more
-
Can my Primea Advanced Air Turbine be prepared in a thermo washer disinfector?
Yes, if your Primea Advanced Air Turbine is labelled with the symbol "thermo washer disinfectable".
more
-
I have just purchased a new W&H Primea Advanced Air Turbine. How can I activate it?
It is not sufficient to purchase the Primea Advanced Air Turbine alone. In order to be able to operate it, you need the entire Primea Advanced Air System – consisting of a turbine, control system, user interface (UI) and the supply hose with Roto Quick coupling. You can add this as an add-on or built-in solution to/in your dental unit. more
-
In which versions can I purchase the Primea Advanced Air System? What are my installation options?
W&H can offer you the Primea Advanced Air System as an external add-on which you can connect to your dental unit. To do this, you need a spare supply hose for your dental unit, a minimum operating pressure of 5 bar and the possibility to connect the control system to the mains power supply. Please contact your authorized W&H service partner to check the inlet pressure of the additional air supply hose. The Primea Advanced Air Built-in System is integrated into a dental unit by selected dental unit manufacturers or their service technicians. more
-
How does the Roto Quick coupling's W&H Click & Pull System work? How do I remove a Primea Advanced Air Turbine?
Pull the retention sleeve of the Roto Quick coupling back. The turbine can now be easily removed from the Roto Quick coupling. Forcefully pulling the Primea Advanced Air Turbine may cause damage. If excessive force is required to remove the turbine, make sure that the retention sleeve of the Roto Quick coupling can be moved without any problems. more
-
How is the Primea Advanced Air System cleaned? How is it prepared?
For detailed instructions, see the chapter "Hygiene and maintenance" in the respective instructions for Use. more
-
Does the Primea Advanced Air Built-in need to be serviced?
The built-in electronic components do not need to be serviced separately. However, regular servicing should be carried out together with the dental unit at the legally required intervals. This will ensure the proper functioning and safety of the components. For details, see the chapter "Service" in the respective instructions for Use. more
-
Does the Primea Advanced Air Add-on need to be serviced?
Regular servicing of the Primea Advanced Air Add-on including the accessories should be carried out at least once every three years, unless shorter intervals are prescribed by law. The regular service must only be performed by an authorised W&H service partner. For details, see the chapter "Service" in the respective instructions for Use. more
-
Can turbines from other manufacturers be operated in a Primea Advanced Air System?
This is possible. In order to operate standard turbines (from W&H and other manufacturers), the control system of the Primea Advanced Air System can be changed over to standard turbines mode. Turbines which can be connected to the standard 6-hole connection are then operated with a constant 3 bar operating pressure. more
-

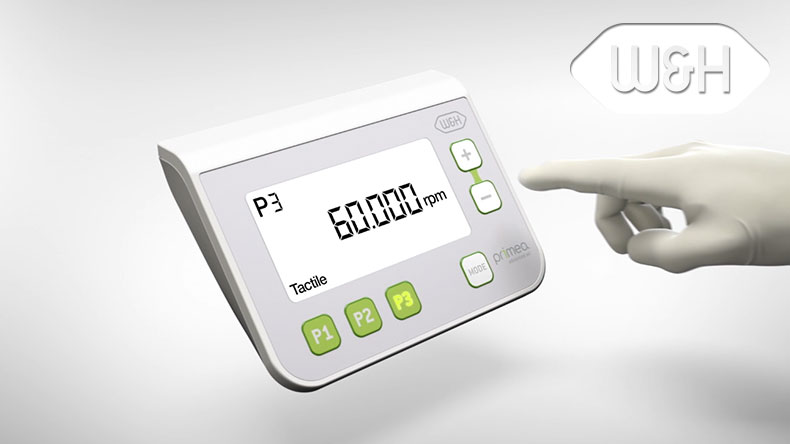

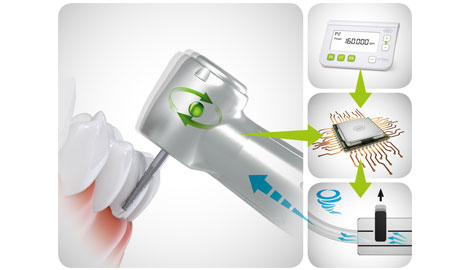

What features do the two operating modes "Power" and "Tactile" offer?
In "Power" mode, the set speed is also constantly maintained when pressure mounts on the rotary instrument, which translates to a higher removal rate. The "Tactile" mode permits a reduction in the removal rate when pressure mounts on the rotary instrument. more
Videos & Tutorials
-
-
Primea Advanced Air タービン
機種： RK-97 L RG-97 L Advanced Air機能としての回転数 (± 30.000 rpm): 60,000 – 320,000 rpm Advanced Air機能としての最大出力（アドオン）: 27 W （5.5 bar ) Advanced Air機能としての最大出力（ビルトイン）: 30 W（5.9 bar） タービンとしての回転数 (± 30.000 rpm): 400,000 rpm タービンとしての最大出力： 21 W バー装着時のヘッド Ø 10 mm バー（19 mm）装着時のヘッド高： 21.1 mm 重量： 39 g 騒音レベル： 57 dB (A) バー：
作業部分最大直径：
最大許容長：FGバーØ 1.6 mm、ISO 1797に準拠
2 mm
21 mmカップリング： ロトクイック ライト： Ring LED+ LED+ 照度： 25,000 Lux スプレー： ５点注水 ボールベアリング： セラミック 保証： 24カ月 12カ月
