20 Years of Pioneering Spirit
› Unitised usability and program processes passed down generations
› Five programs for each implantation step, individually adjustable and storable
› Integrated pump, multifunctional foot control as well as sterilizable motor and cable
Implantmed knows what surgeons and implantologists need!

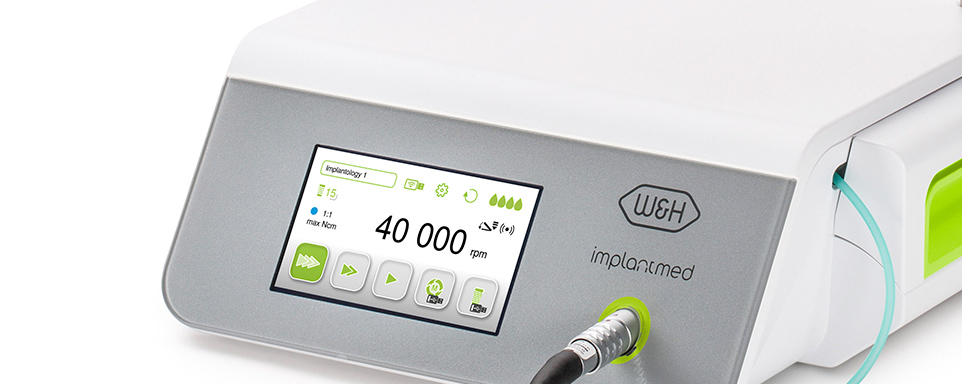

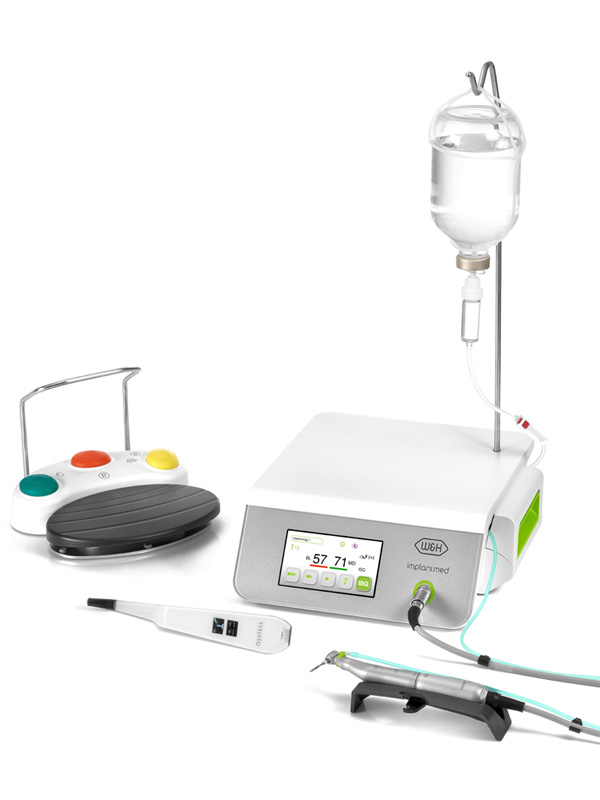

The Implantmed Plus from W&H ensures improved treatment safety for you and your patients.

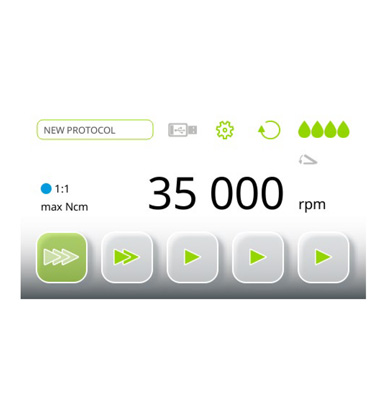

With the intuitive user interface, colour touch screen and glass surface the new Implantmed offers you the highest levels of comfort.
The drive unit is ideal for the purpose with its automatic thread cutter function, automatic torque control and W&H Osstell products (available as an accessory) for precise measurable implant stability.Your advantages at a glance
- Intuitive user interface
- Secure torque control and measurable implant stability
- Ultra-short, powerful electric motor

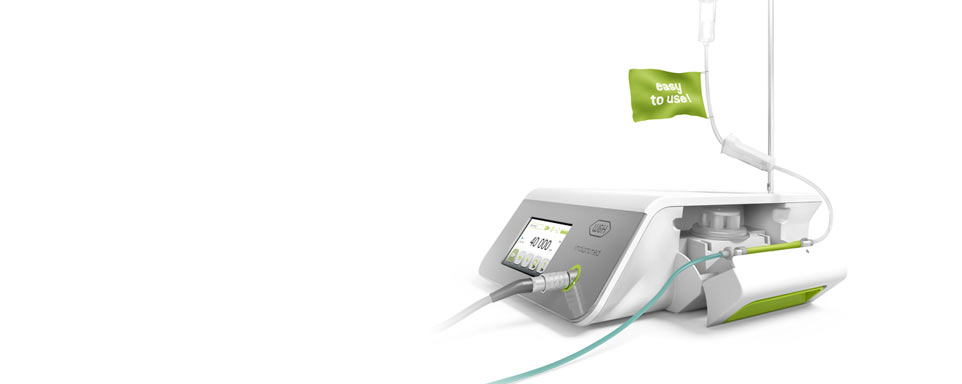

- New pump design
- Wireless foot control
W&H Osstell Beacon PairingW&H Osstell Beacon Pairing
• Connection via Bluetooth dongle and USB interface
• Display of the measured values incl. colour coding on the Implantmed display
Protocol extension drilling stepsProtocol extension drilling steps
• Up to 5 additional drill steps selectable
• 2 torque-controlled implantation programs possible

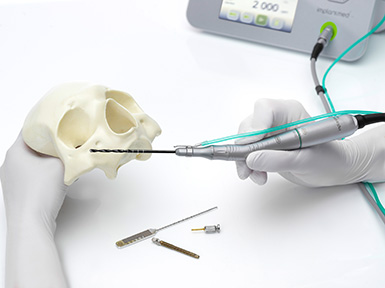

Zygoma ImplementationZygoma Implementation
• Implementation Zygoma handpiece SZ-75
• Torque precision through tuning to the overall system
• Selectable as transmission ratio in Implantmed Plus
-
Wireless foot control
Freedom of movement
- Complete safety in the treatment area
- One for all – Control the functions of multiple W&H units
- Complete safety in the treatment area

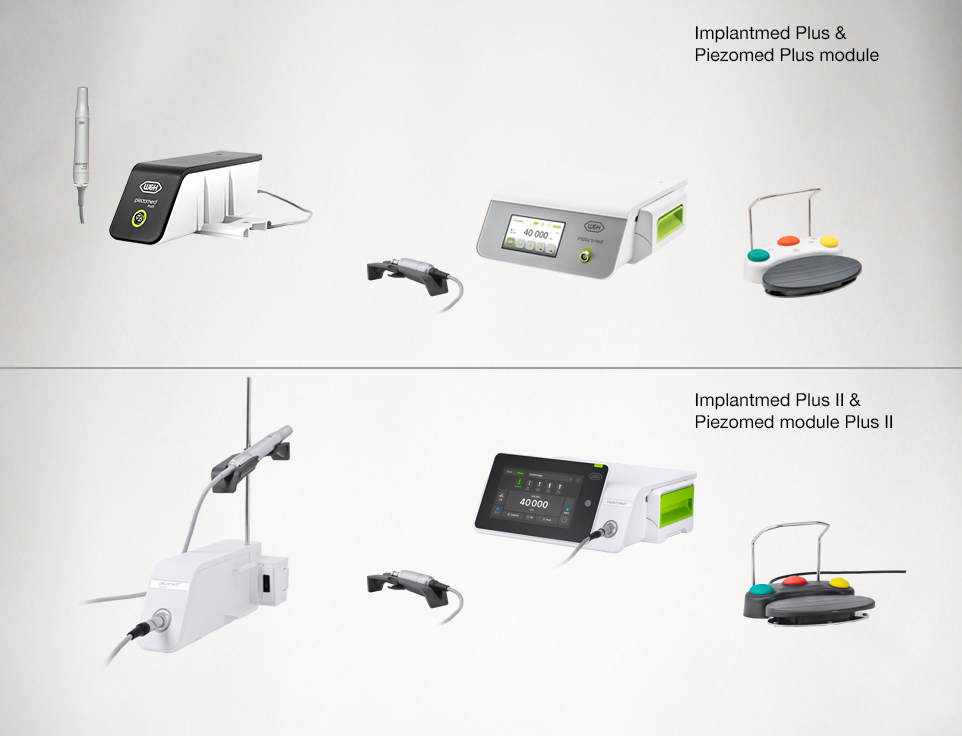

Modularity for optimal flexibility

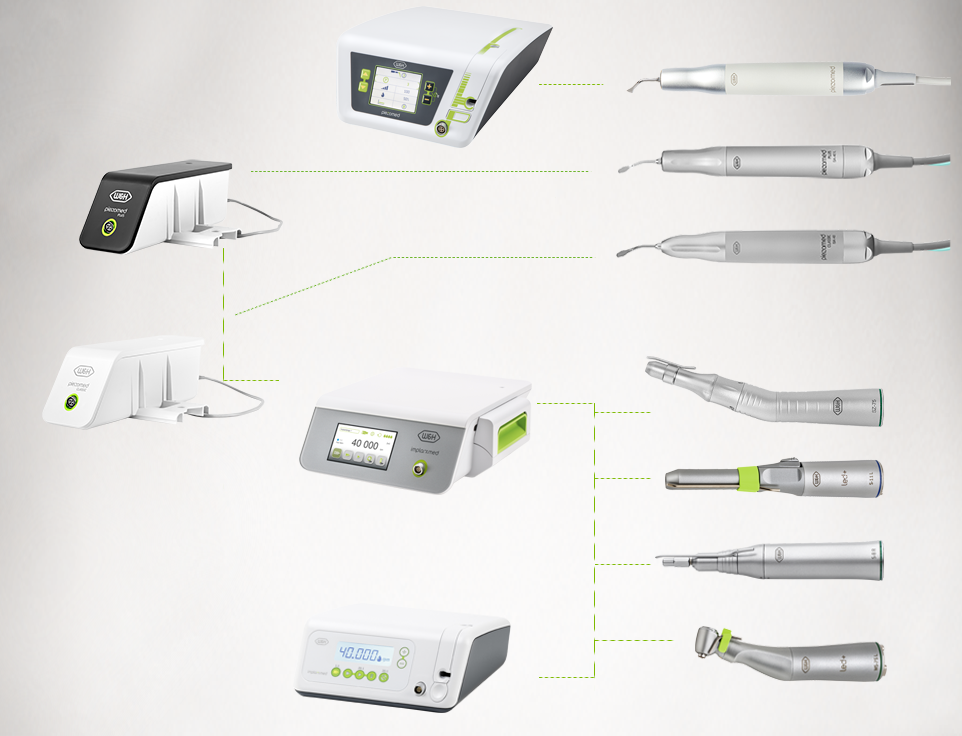

Workflow driven solution
The combination of Implantmed Plus and
Piezomed module changes the way oral
surgery and implantology work.
Electric motor
Particularly small and surprisingly light. It enables you to work with ease.

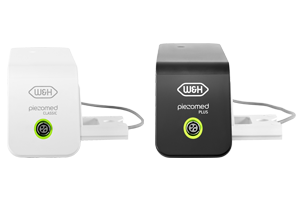

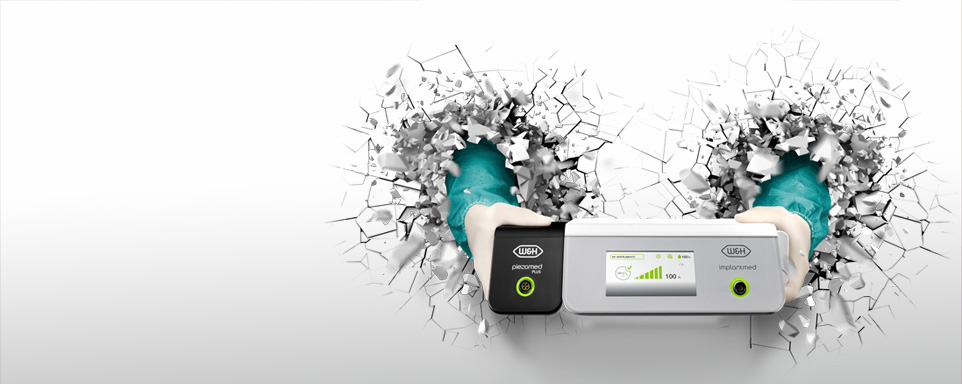

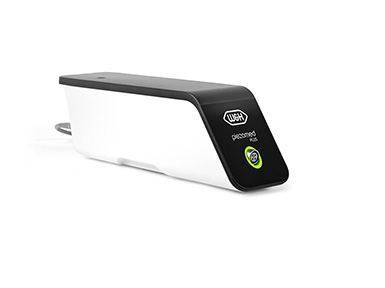

Piezomed Plus and Classic module
Combine piezo surgery and implantology in one device.

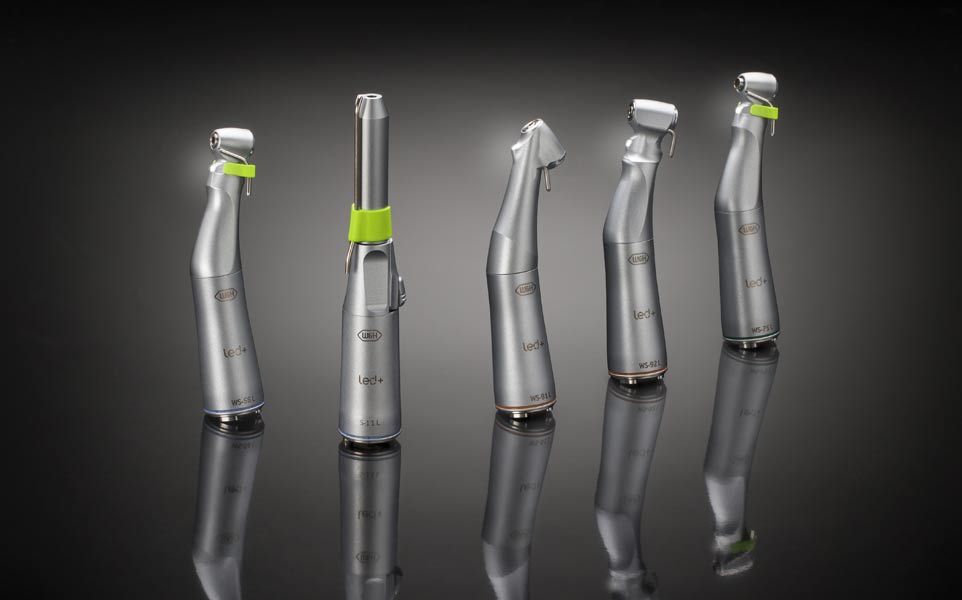

Straight & Contra-angle Handpieces
Provide optimal illumination of the treatment site and facilitate perfect, accurate treatment results.
More Info!
Documentation function
The documentation function conveniently saves all values of the implant insertion on a USB stick (.pdf and .xls).

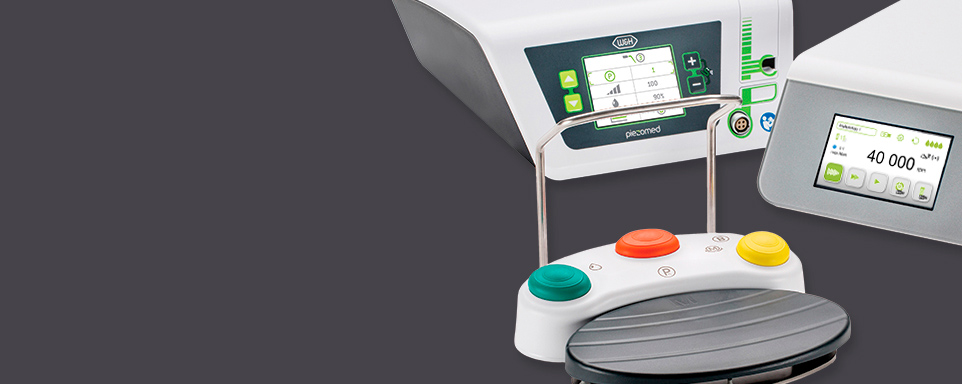

Wireless or wired foot control
Control the Implantmed Plus and Piezomed module with just one foot control.

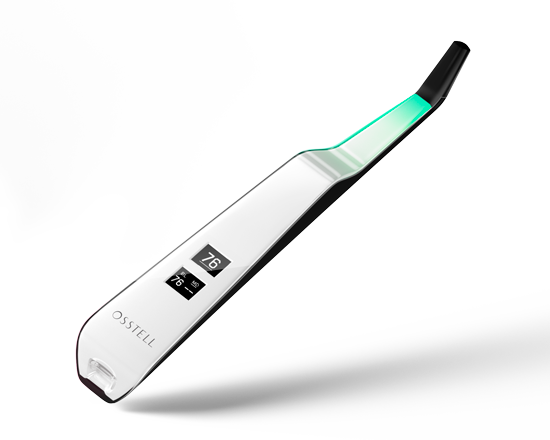

Osstell Beacon
Bluetooth connection to the Osstell Beacon
for easy measurement and representation of implant stability.
More Info!Step 1: Control unit
![Implantmed]( "Implantmed")

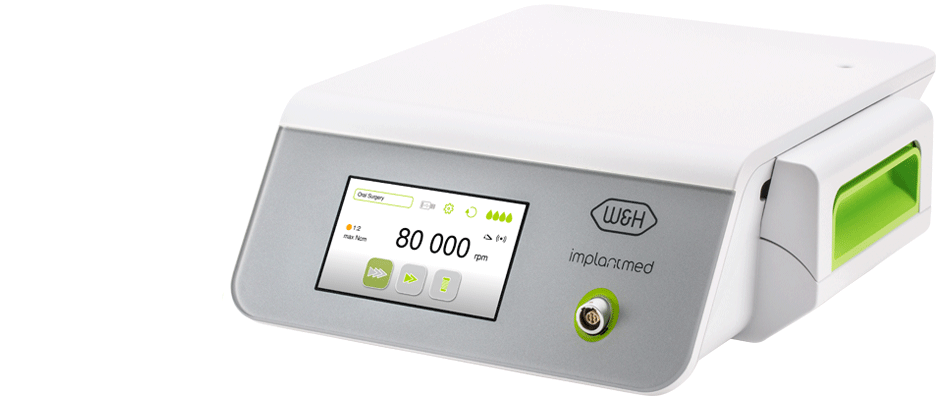

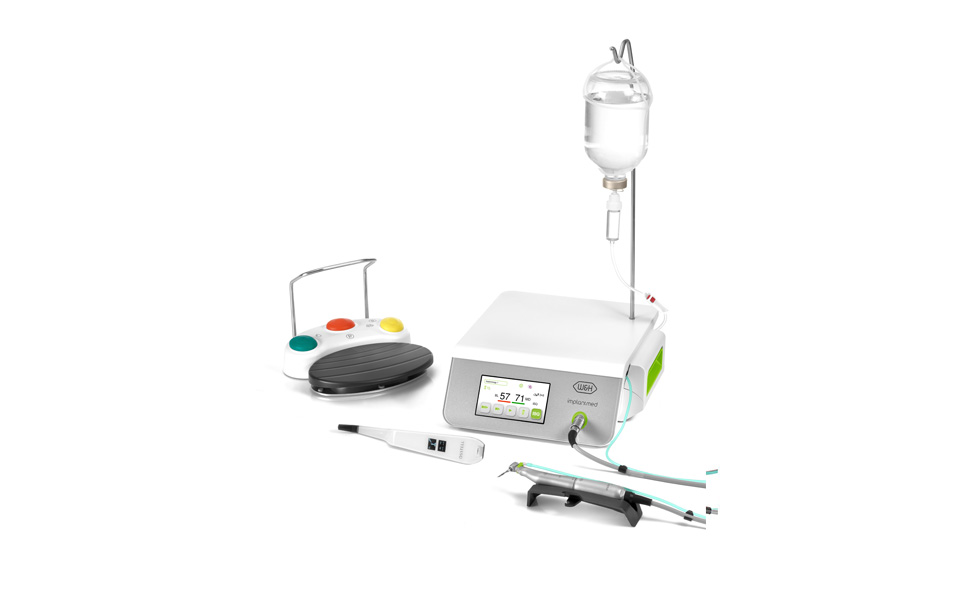

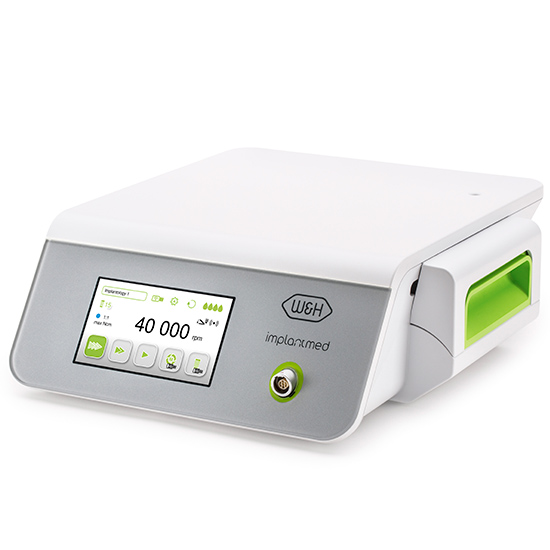

Implantmed
consists of
> Control unit
> Irrigant support
> Universal support
> Mains cable
> 3 disposable irrigation tubingsSI-1023
REF 30288000Control unit for 230 V mains voltage
SI-1015
REF 30289000Control unit for 120 V mains voltage
SI-1010
REF 30290001Control unit for 100 V mains voltage

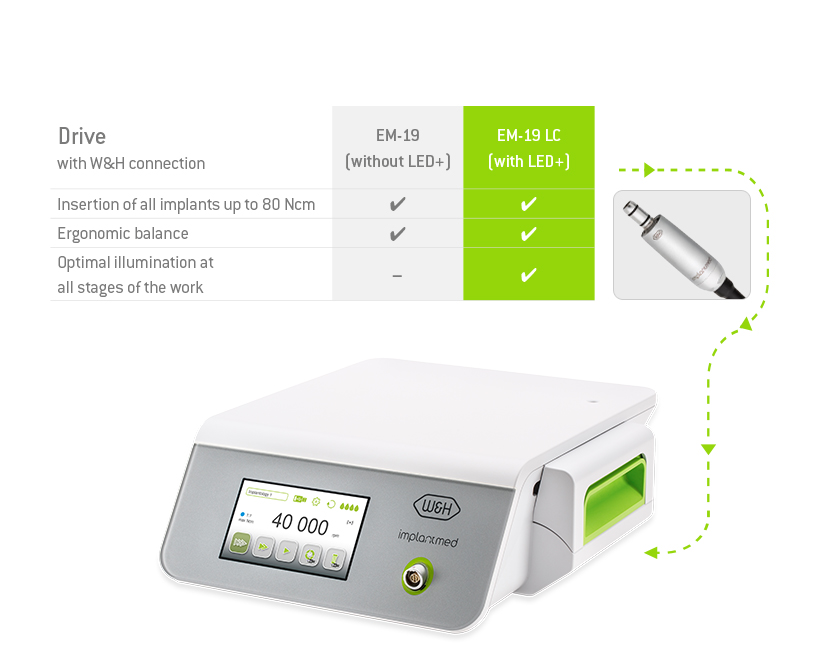

Step 2: Drive
![Electric motor with W&H connection]( "Electric motor with W&H connection")

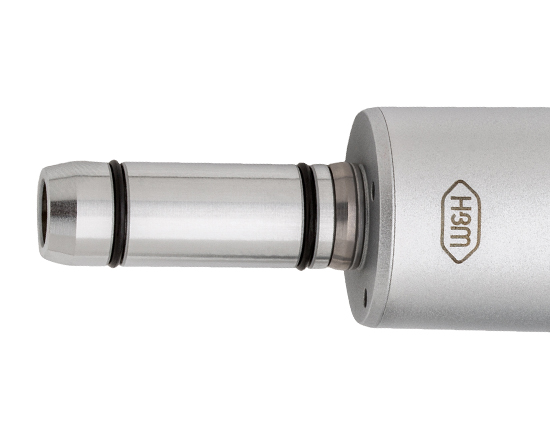

Electric motor with W&H connection
Maximum torque at motor: 6.2 Ncm
Motor speed range in the rated voltage range:
200 – 40.000 rpmEM-19 LC
REF 30281000with LED+
with electric contacts
with 1.8 m cableEM-19
REF 30185000without LED+
without electric contacts

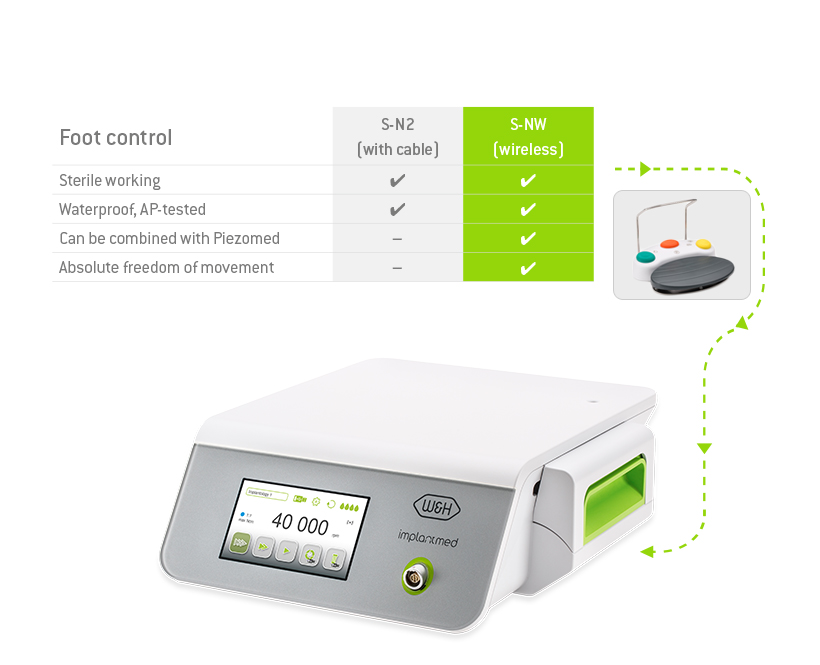

with 1.8 m cableStep 3: Foot control
![Wireless foot control]( "Wireless foot control")

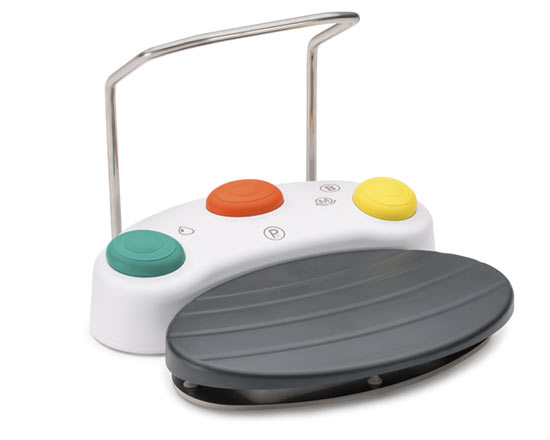

Wireless foot control
S-NW + CAN
REF 30264000with CAN dongle
compatible with
Implantmed SI-1023, SI-1015, SI-1010
![Foot control with cable]( "Foot control with cable")

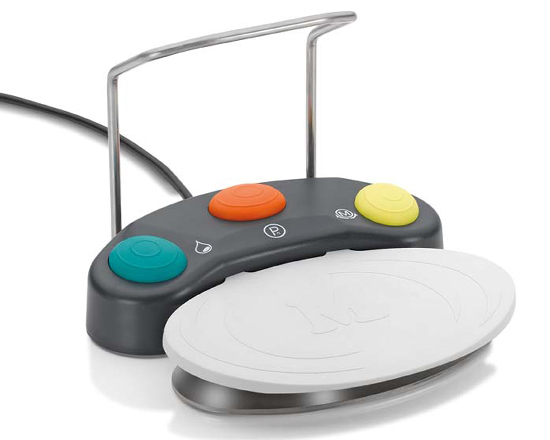

Foot control with cable
S-N2
REF 30285000compatible with
Implantmed SI-923, SI-915, SI-1023, SI-1015, SI-1010Step 4: Implant stability measurement
![W&H Osstell ISQ module]( "W&H Osstell ISQ module")

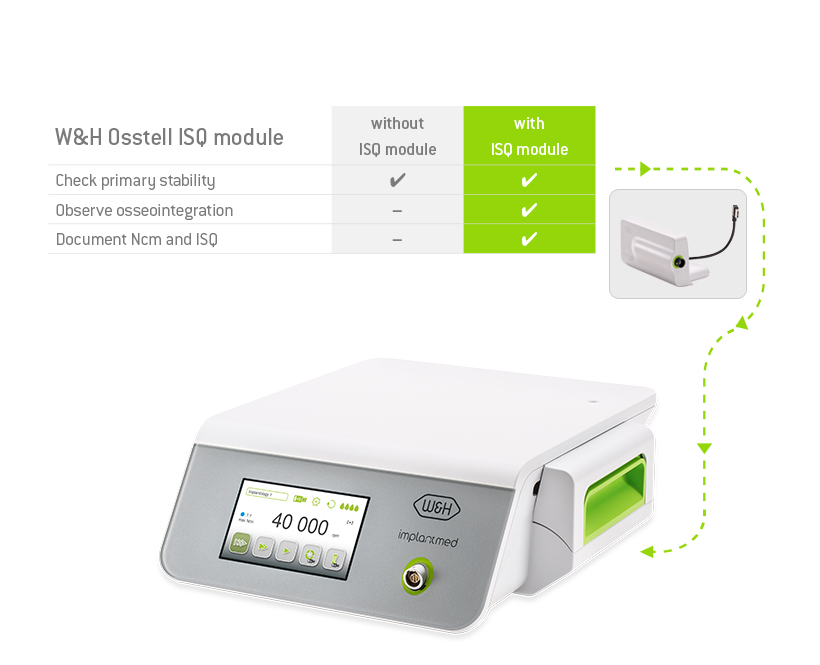

W&H Osstell ISQ module
consists of
> Osstell ISQ module
> Measuring probe with cable
> TestPeg
> Voucher for 5 SmartPegs
SI-SQ
REF 30210000W&H Osstell ISQ module
![SmartPeg]( "SmartPeg")

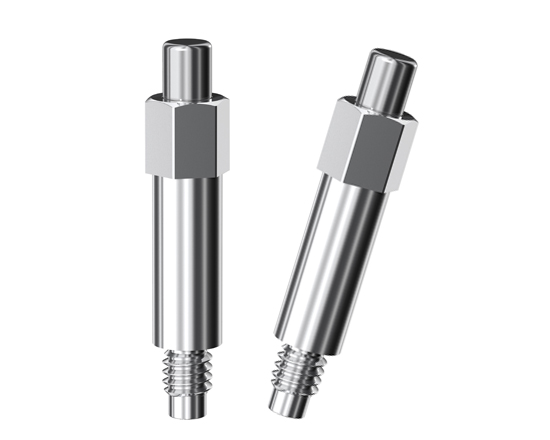

SmartPeg
> Order SmartPegs on this Website
![Osstell Beacon]( "Osstell Beacon")

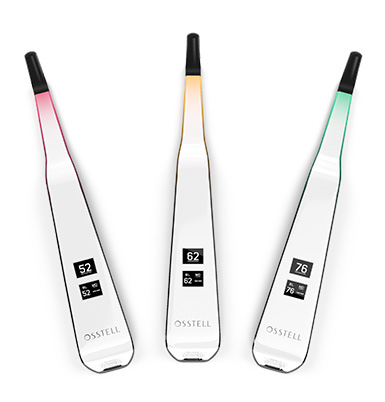

Osstell Beacon
Included with delivery of the Osstell Beacon measuring device:
> USB dongle for Bluetooth communication
> 1 Osstell TestPeg
> 1 SmartPeg mount
> Instruction manual
Dimensions: 210 x 35 x 25 mm
Weight: 0.7 kg
Osstell Beacon
REF Beacon

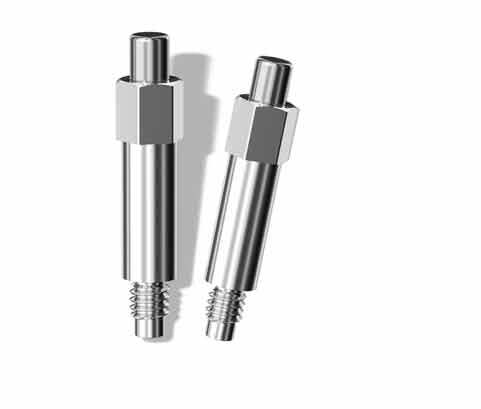

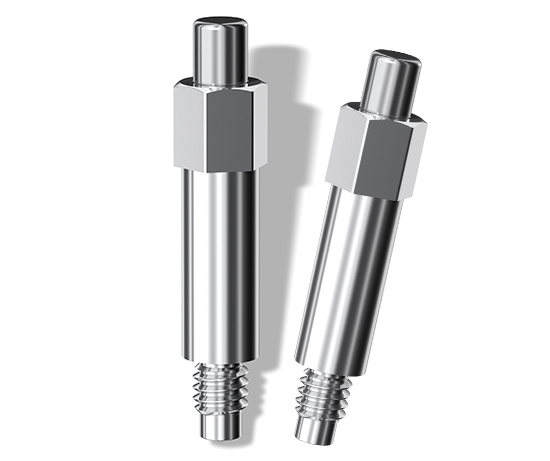

![SmartPegs]( "SmartPegs")
SmartPegs
> Disposable product
> Delivered in sterile individual packets of 5 items each
Weight: 0.3 g
SmartPegs
REF SmartPegs
Download Område
FAQ
- How can I adjust the torque?
- Can handpieces from another manufacturer be used on a W&H surgical motor (implantmed / elcomed)?
- Can other brands of tubing be used?
- How to insert irrigation tube?
- How can the unit / motor be cleaned / sterilized?
- Is it possible to set the motor speed with the program for positioning an implant?
- Why doesn't the light on my LED G contra-angle handpiece work when I am positioning an implant?
- Can my Implantmed/Elcomed motor be processed via thermal washer disinfector?
- Can my Implantmed/Elcomed motor be processed in a vacuum sterilizer with the protection cap in place.
- Does my W&H unit need to be serviced.
- What types of tubing can I use on my device?
- Does the motor need to be greased?
- Can our customers disassemble the new contra-angles
- Can previous Implantmed units be retrofitted with the wireless foot control
- How does it work to wirelessly control the Implantmed and the Piezomed?
- Are old cable foot controls compatible with the new unit or vice versa?
- What does ISQ stand for?
- How does the measurement of the ISQ work?
- Where can I buy the SmartPegs?
- What’s the difference between torque and ISQ?
- Is every new Implantmed compatible with the W&H Osstell ISQ module?
- Can the surgeon upgrade the unit by themself or does the unit need technical service?
- Are previous Implantmed motors compatible with the new Implantmed or vice versa?
- What does the LC in EM-19 LC stand for, is there a LED in the motor?
- Can current contra-angles be attached to new motors?
- Can the new contra-angles be attached to old motors?
- Piezomed module: Does the module also work with OEM devices?
- Piezomed module: Can devices be retrofitted on the market?
- Piezomed module: Are the handpieces of the modules compatible with the SA-320?
- Can I use tips from competitors?
- Piezomed module: What are the main differences between the Piezomed Plus module and Piezomed Classic module?
- Piezomed module: Compatibility of the handpieces with Piezomed Plus module and Piezomed Classic module.
- Piezomed module: Is it possible to upgrade every existing product on the market?
- Piezomed module: Can I use the same Piezomed tips for SA-320 and the new modules as well?
Brugermanual
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Video lektioner
-
Implantmed Plus SI-1023, SI-1015, SI-1010
Type: SI-1023 SI-1015 SI-1010 Mains voltage: 230 V 120 V 100 V Permissible voltage fluctuation: 220 – 240 V 110 – 130 V 90 – 110 V Rated current: 0.3 – 0.8 A 0.3 – 1.6 A 0.3 – 1.4 A Frequency: 50 / 60 Hz Mains fuse (2 pcs): 250 V – T1,6AH Maximum power consumption: 170 VA Max. mechanical output power: 80 W Max. torque at the motor: 6.2 Ncm Motor speed range in the nominal voltage range: 200 – 40,000 min -1 Coolant flow rate at 100 %: at least 90 ml/min Height / width / depth: 100 x 262 x 291 mm Foot control: S-N2 / S-NW Straight and contra-angle handpieces with mini LED+: S-11 L / WS-56 L, WS-75 L, WS-91 L, WS-92 L Warranty: 24 months
Implantmed Classic SI-915, SI-923
Type: SI-915 SI-923 Max. torque at the rotary instrument (in program 4): 70 Ncm Mains voltage: 110 – 130 V 220 – 240 V Frequency: 50 / 60 Hz Max. mechanical output power: 80 W Max. torque at the motor: 5.5 Ncm Motor speed range in the nominal voltage range: 300 – 40,000 min -1 Straight and contra-angle handpieces WI-75 E/KM / S-9 L G / S-11 L G / WS-56 L G / WS-75 L G / WS-91 L G / WS-92 L G Length of motor cable: 1.8 m Coolant flow rate at 100 %: at least 90 ml/min Foot control: S-N1 Height / width / depth: 100 x 235 x 240 mm
