Proxeo Air Scaler

Prophylaxis with style

Regular removal of calculus and plaque leads to a much greater sense
of well-being and self-confidence amongst your patients. And to ensure that you feel great when carrying out this precautionary treatment too, there's the Proxeo air scaler.

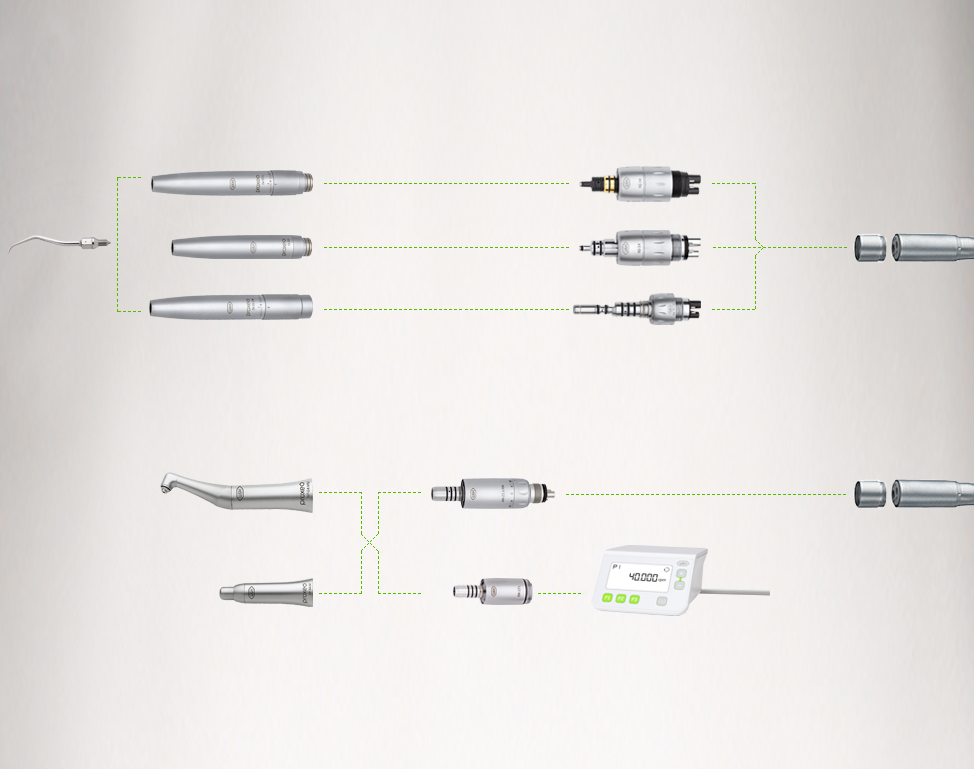

Systemoversigt

Proxeo Air Scaler
Technical data

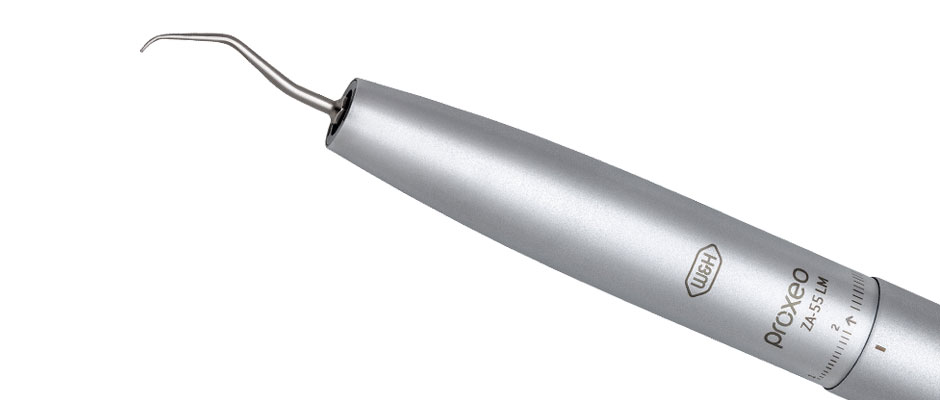

Fast and powerful

The air-driven Proxeo scaler with the integrated spray and two large optic outlets is ideal for the removal of plaque and calculus as well as cleaning root surfaces.
Your advantages at a glance
- Large tip range
- Stepless power regulation
- Integrated spray
- Two large optic outlets
- Coupling system Roto Quick
  or Multiflex^®* or Sirona^®**

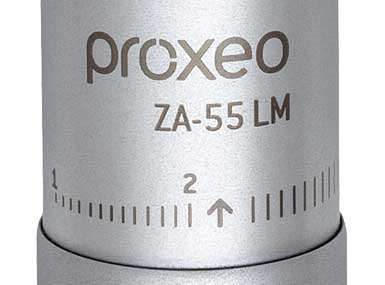

Stepless power regulator

Stepless power regulator

Makes applications effective and simple: power can be adjusted smoothly using the control ring.

Tips and tip changer

Tips and tip changer

Tips for every application
The combination of the Proxeo Air scaler with the tip range is the ideal basis for perfect results.

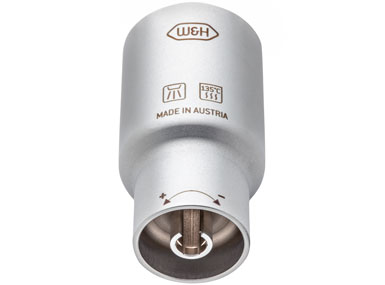

Tip changer
Changing tips safely and quickly with the W&H tip changer.

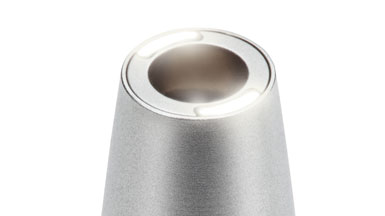

Large optic outlets

Large optic outlets

Two large optic outlets provide perfect illumination of the treatment site.

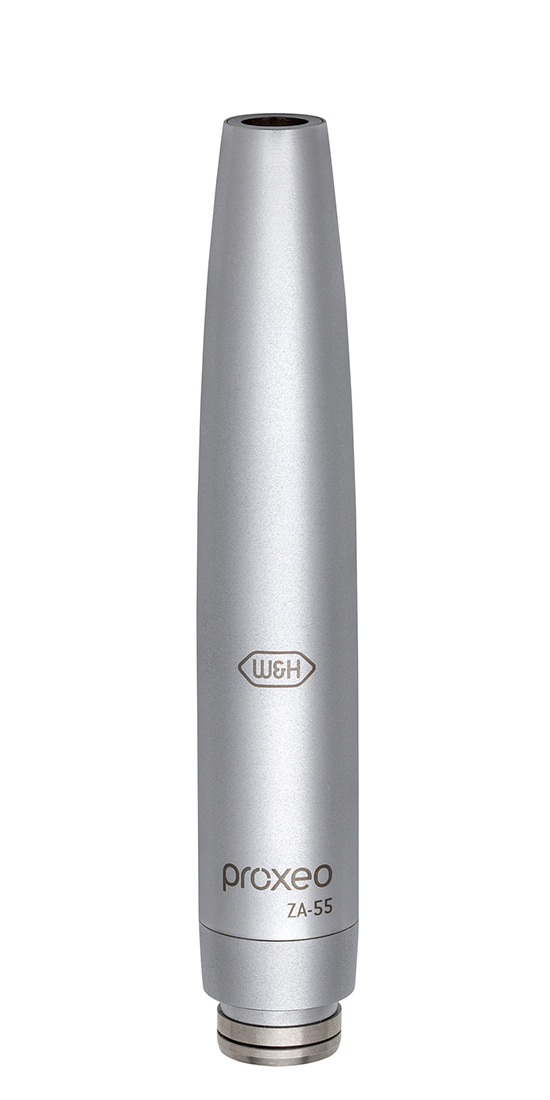

Proxeo Air Scaler

Coupling system: Roto Quick
Oscillating frequenzy: 6 kHz
Applicable W&H tips:
1AU, 2AU, 3AU, 1AP, 2APl, 2APr

ZA-55
REF 10035501

without light, without power regulation,
with tips 1AU, 2AU, 3AU, 1AP

Forespørg pris

Proxeo Air Scaler

Coupling system: Multiflex^®*
Oscillating frequenzy: 6 kHz
Applicable W&H tips:
1AU, 2AU, 3AU, 1AP, 2APl, 2APr

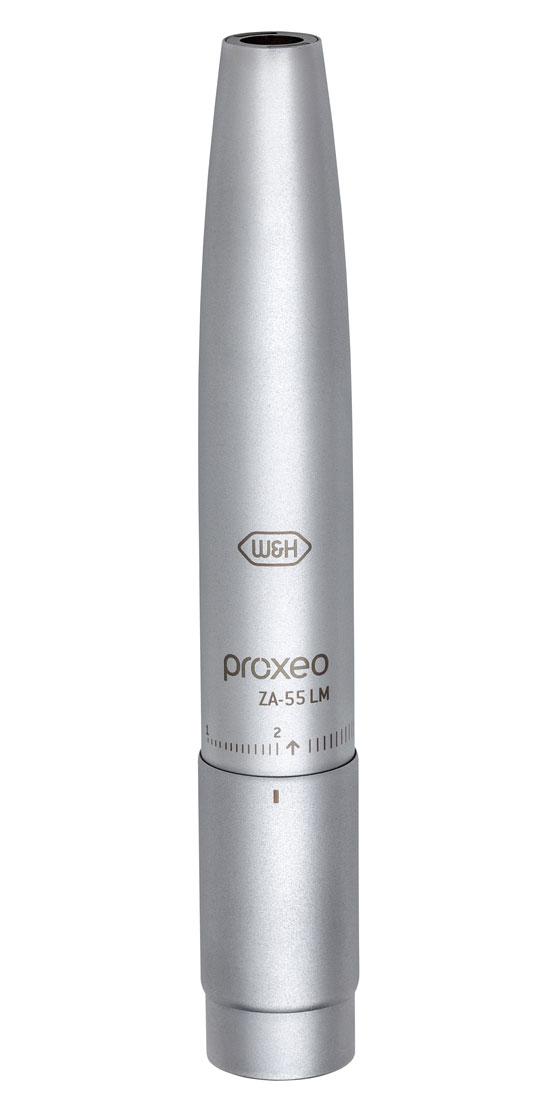

ZA-55 LM
REF 10035502

with light, with power regulation,
with tips 1AU, 2AU, 3AU, 1AP

ZA-55 M
REF 10035503

without light, without power regulation,
with tips 1AU, 2AU, 3AU, 1AP

Forespørg pris

Proxeo Air Scaler

Coupling system: Sirona^®**
Oscillating frequenzy: 6 kHz
Applicable W&H tips:
1AU, 2AU, 3AU, 1AP, 2APl, 2APr

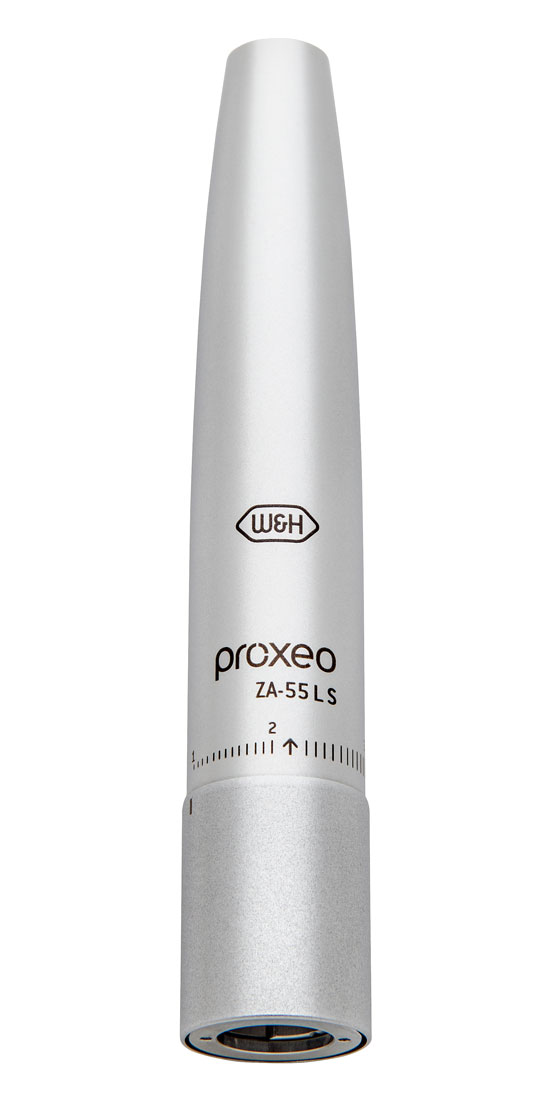

ZA-55 LS
REF 30227000

with light, with power regulation,
with tips 1AU, 2AU, 3AU, 1AP

Forespørg pris

*Multiflex^® is a registered trade mark of Kaltenbach & Voigt GmbH, Germany
**Sirona^® is a registered trade mark of Sirona Dental Systems GmbH, Bensheim
Download Område
FAQ
- Can my W&H handpiece be processed via sterilizer?
Brugermanual

Proxeo Air Scaler (ZA-55)

Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

Video lektioner

For at få en problemfri og interaktiv onlineoplevelse af vores multimedieindhold (f.eks. videoer, kort), bedes du acceptere opbevaringen af de nødvendige cookies (YouTube, MovingImage - detaljerede oplysninger om disse cookies kan findes i forlaget/databeskyttelsen) til markedsføringsformål.

Acceptere

Download

Brochure

Proxeo Air Scaler

Type:	ZA-55 LM	ZA-55 LS	ZA-55	ZA-55 M	ZE-55 BC	ZE-55 RM
Light:	yes		no		no
Power regulation:	yes		no		no
Oscillating frequency:	6 kHz				6 kHz
Oscillation amplitude:	< 200 μm				< 200 μm
Operating pressure:	3 (+0.6 / -0.3) bar		3 ±0.3 bar	3 (+0.6 / -0.3) bar	2.2 – 2.5 bar
Coolant flow volume:	30 – 60 ml/min.				mind. 30 ml/min.
Coupling:	RM-34 LED	Sirona ^® **	RQ-3, RQ-4, RQ-14	Multiflex ^® *	Fixed connection
Applicable W&H tips:	1AU, 2AU, 3AU, 1AP, 2APl, 2APr, 3AP				1AU, 2AU, 3AU, 1AP, 2APl, 2APr, 3AP
Tips in the scope of delivery:	1AU, 2AU, 3AU, 1AP				2 x 1AU

*Multiflex^® is a registered trade mark of Kaltenbach & Voigt GmbH, Germany
**Sirona^® is a registered trade mark of Sirona Dental Systems GmbH, Bensheim
