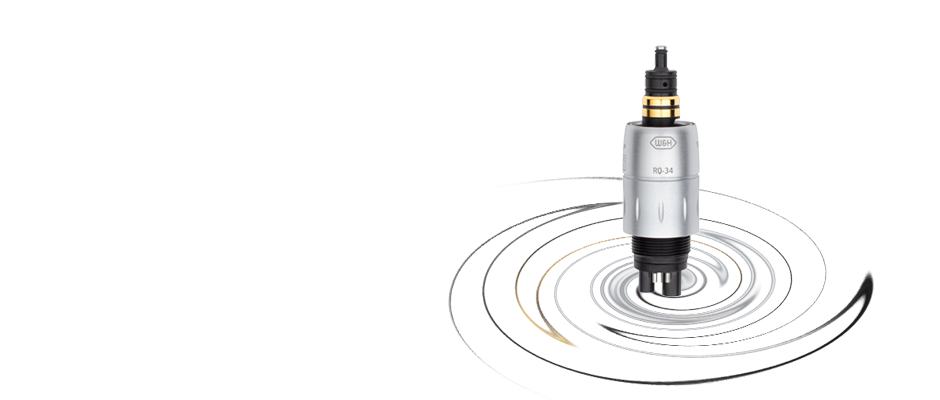

Roto Quick couplings

Versatile system interfaces

Flexible – for use with all standardised turbine tubing. Full compatibility – compatible with all turbines, air motors and scalers with Roto Quick and Multiflex connections. 360 ° instrument rotation – for easy handling, prevents the tube from twisting. Continuous regulation of the spray water supply – quick, customised adjustment by the user even – during treatment. Non-retraction valve – avoids back-flow of contaminated spray water to minimise the risk of infection.

  • Roto Quick

    Light, flexible and sterilizable:

    W&H Roto Quick couplings are versatile and suitable for use with transmission instruments with LED+, LED and halogen lights.

    24 months warranty (except RQ-53 and RQ-54 with 12 months warranty).

    Advantages

    • Versatile: for all turbine handpieces, air motors and scalers with Roto Quick connections.
    • Compatible with all standardized turbine hoses.
    • Hygienic: non-retraction valve reduces the backflow of contaminated spray water and minimizes the risk of infection.
    • Intelligent: the power transmission enables you to take advantage of revolutionary technologies, such as the 5x Ring LED+.
    • Flexible 360° instrument rotation for easy and ergonomic handling.
    • Ergonomic: lightest system available to date.
    • Customizable: continuous regulation of the spray water supply for rapid adjustment by the user – even during treatment.
    • 24 months warranty (except RQ-53 and RQ-54 with 12 months warranty).

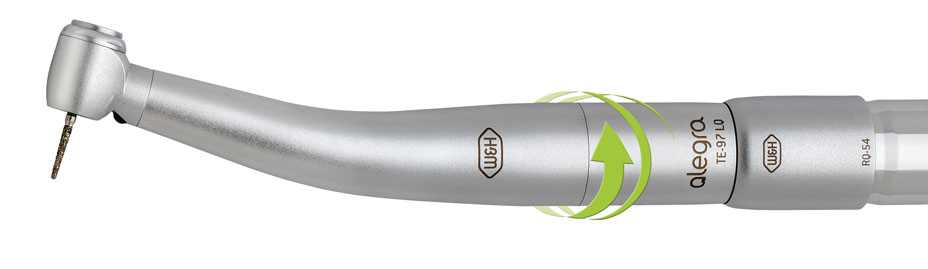

    W&H Alegra turbine TE-97 LQ with Roto Quick coupling RQ-54

    Roto Quick couplings with light

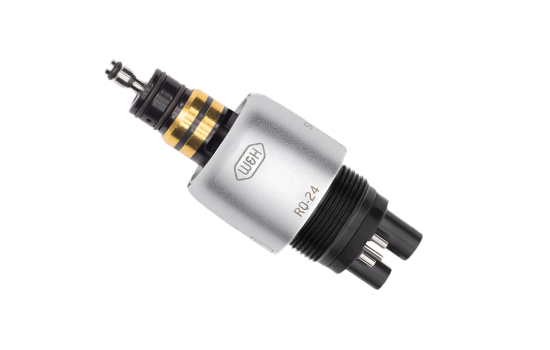

    RQ-24
    REF 10402400

    › 6-hole connection

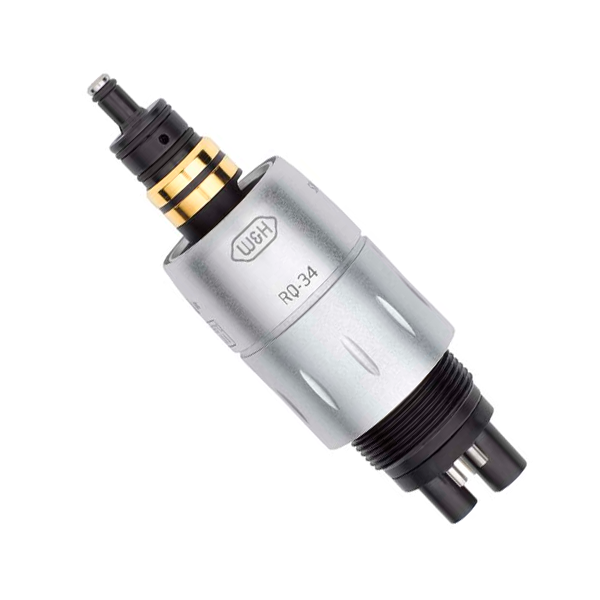

    RQ-34
    REF 10403400

    › spray regulation
    › 6-hole connection

    RQ-53 *
    REF 10405300

    › Borden 2(3)-hole connection
    › With integrated light generator

    RQ-54 *
    REF 10405400

    › standard 4-hole connection
    › with integrated light generator


    Roto Quick couplings without light

    RQ-03
    REF 10400300

    › 2(3)-hole connection

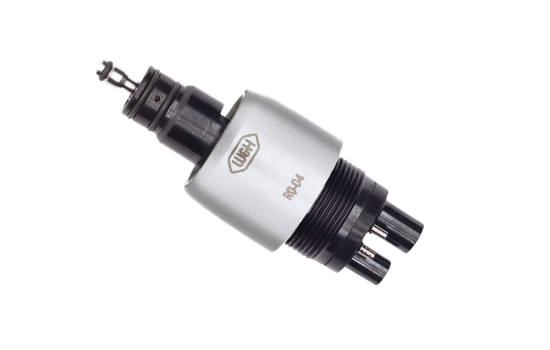

    RQ-04
    REF 10400400

    › standard 4-hole connection

    RQ-14
    REF 10401400

    › spray regulation
    › standard 4-hole connection


    * Roto Quick couplings RQ-53 and RQ-54 with generator: for use with Alegra LED dental turbine handpieces TE-97 LQ and TE-98 LQ.

    Download Område

    Brugermanual

    Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

    Video lektioner

    For at få en problemfri og interaktiv onlineoplevelse af vores multimedieindhold (f.eks. videoer, kort), bedes du acceptere opbevaringen af de nødvendige cookies (YouTube, MovingImage - detaljerede oplysninger om disse cookies kan findes i forlaget/databeskyttelsen) til markedsføringsformål.

    Acceptere

    Download

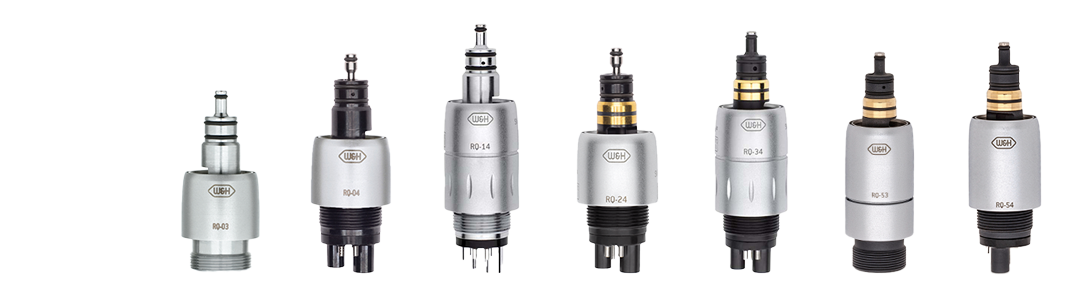

  • Roto Quick couplings

    Type: RQ-03 RQ-04 RQ-14 RQ-24 RQ-34 RQ-53 * RQ-54 *
    Light: Yes Yes Yes Yes
    Spray regulator: Yes Yes
    Connection: 2(3)-hole Standard
    4-hole
    Standard
    4-hole
    6-hole 6-hole 2(3)-hole Standard
    4-hole

    * with integrated light generator
