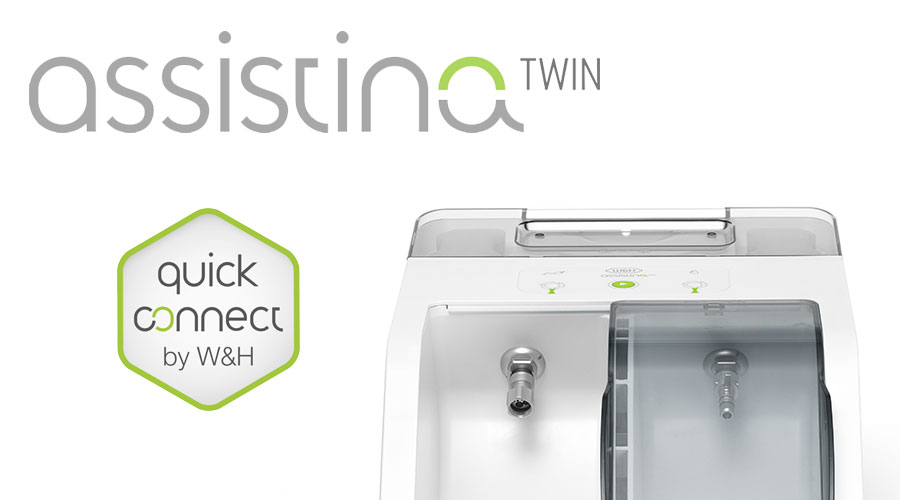

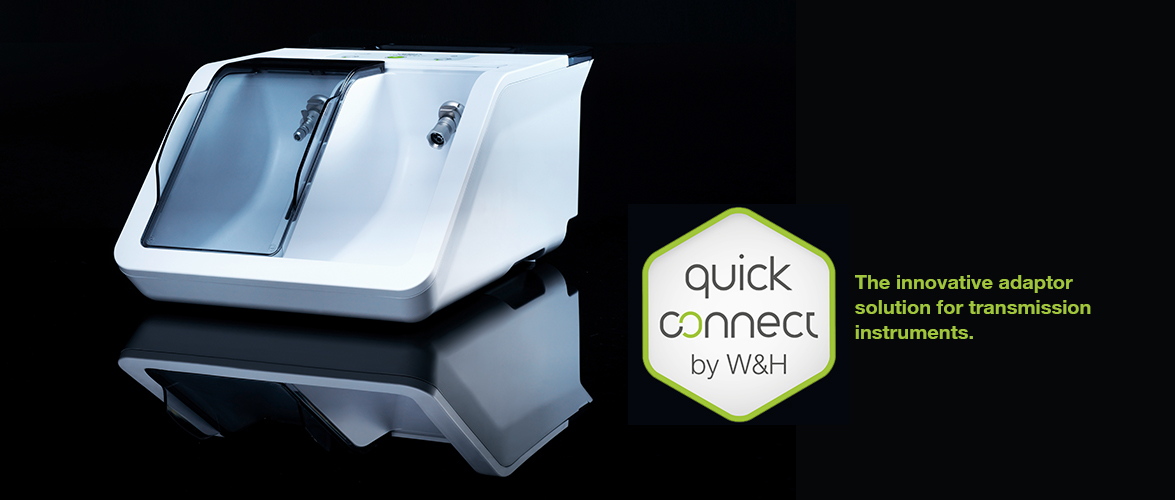

Assistina Twin with Quick Connect by W&H

Unique among maintenance devices

The Assistina Twin from W&H is unique among maintenance devices: with its innovative duo-chamber system, record time lubrication and the environmentally friendly Care Set, it impresses all along the line. The Assistina Twin has now been enhanced with an innovative adaptor solution: Quick Connect by W&H. This adaptor system offers you even more benefits for your everyday practice.

Assistina TWIN

Oil service in record time

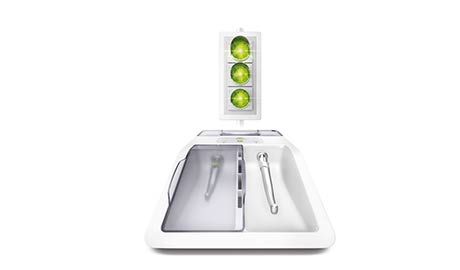

  • Oil service without waiting

    Oil service without waiting

    Green light for added efficiency: With the new Assistina TWIN
    waiting time during the oil service is a thing of the past.
    It is the first reprocessing device to be equipped with two
    process chambers that can be used alternately, thus allowing
    non-stop loading.
    Relaxed maintenance more effective than ever!

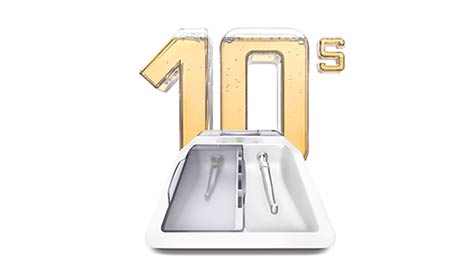

  • Oil service in record time

    Oil service in record time

    The Assistina TWIN performs your instrument maintenance
    quicker than ever before.
    Through the innovative oil nebulization technology, W&H has
    been able to reduce the maintenance process to a record
    time of just 10 seconds.
    For lightning quick and incomparably thorough results.

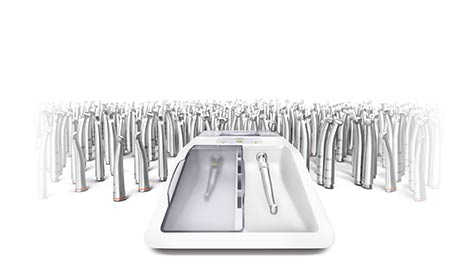

  • Maximum oil service with minimal consumption

    Maximum oil service with minimal consumption

    Thanks to the smart process monitoring, the Assistina TWIN
    always performs the maintenance thoroughly and with minimal
    consumption.
    The Assistina TWIN Care Set does not need to be replaced
    until after approximately 2,800 instruments. The maintenance
    of your instruments can be performed not only reliably and
    quickly, but also more cost-effectively than ever before.

  • 1 Oil service without waiting
    Oil service without waiting

    Oil service without waiting

    Green light for added efficiency: With the new Assistina TWIN
    waiting time during the oil service is a thing of the past.
    It is the first reprocessing device to be equipped with two
    process chambers that can be used alternately, thus allowing
    non-stop loading.
    Relaxed maintenance more effective than ever!

  • 2 Oil service in record time
    Oil service in record time

    Oil service in record time

    The Assistina TWIN performs your instrument maintenance
    quicker than ever before.
    Through the innovative oil nebulization technology, W&H has
    been able to reduce the maintenance process to a record
    time of just 10 seconds.
    For lightning quick and incomparably thorough results.

  • 3 Minimal consumption
    Maximum oil service with minimal consumption

    Maximum oil service with minimal consumption

    Thanks to the smart process monitoring, the Assistina TWIN
    always performs the maintenance thoroughly and with minimal
    consumption.
    The Assistina TWIN Care Set does not need to be replaced
    until after approximately 2,800 instruments. The maintenance
    of your instruments can be performed not only reliably and
    quickly, but also more cost-effectively than ever before.

  • Quick. Click. Check.

    • Easy to use

      Easy to use

      Owing to the quicker and simpler assembly and removal of transmission instruments using the release button.

    • Quicker adaptor change

      Quicker adaptor change

      Thanks to optimal preparation: The different adaptors can be prepared outside the device before and during the maintenance process.

    • More flexibility

      More flexibility

      By preparing the adaptors that you actually need.

    • Improved processes

      Improved processes

      Thanks to simple actuation and quick connection via Quick ISO or Quick RM adaptor.

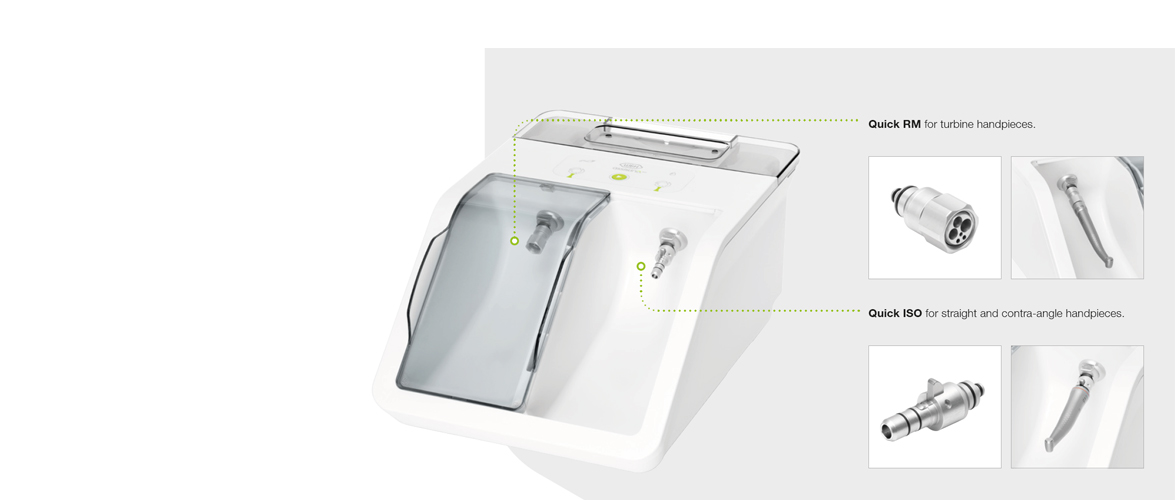

      Tailored to your needs

      Thanks to the integrated Quick Connect by W&H, the Assistina Twin fits into your processes more smoothly and makes them even more efficient. Why? Because you can equip the maintenance device with exactly the adaptors you need for your transmission instruments.

      Quick and simple adaptor changes optimize your processes and increase efficiency in practice.

      You decide which adaptors you actually need. Equip your Assistina Twin according to your needs and only use the right adaptors suitable for you in the two chambers.


      Wow. It’s so quick! Thanks to the dual-chamber system, I only need a fraction of the time to maintain the instruments. It is extremely quiet and looks great.

      Sandra Schnäp
      Dental assistant

      Now I can be certain that my instruments can be prepared between treatments without my patients and I having to wait. A real bonus for my dental practice.

      Dr. Christian Müller
      Dentist with own dental practice

      Oil service without waiting time

      Green light for better sustainability: with the Assistina Twin, waiting times during lubrication are a thing of the past. It is the first processing device equipped with two alternately usable process chambers, thus enabling non-stop loading. Prepare your transmission instruments easily and more efficient than ever!

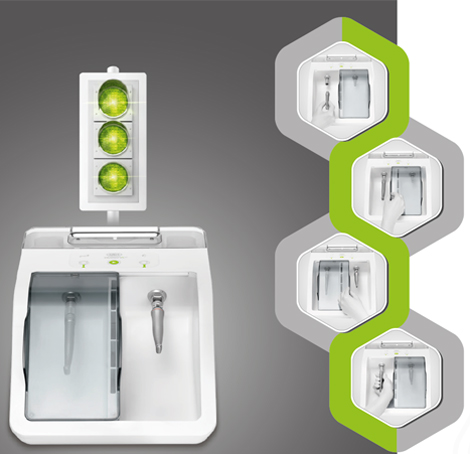

      Runs like a charm

      1 Assemble the instrument in chamber 1.
      2 Close chamber 1 and start the process.
      3 Assemble the second instrument and close chamber 2 as soon as the process in chamber 1 is complete.
      4 Remove the instrument from chamber 1 and repeat steps 1 and 2.

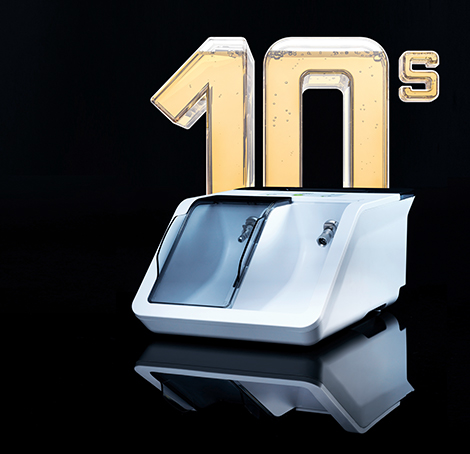

      Oil service in record time

      With the Assistina Twin, you can maintain your instruments more quickly than ever before. Thanks to the innovative oil nebulization technology, W&H has succeeded in decreasing the maintenance process to a record time of just 10 seconds – for a speedy and incomparably thorough maintenance result.

      An innovative system

      The oil is nebulized before being blasted through the instrument at high pressure. This removes soiling from the inside of the instrument even more effectively. Thanks to the fine mist, every single part of the gear is wetted without having to set the gear parts into motion. All aerosols are removed from the process chambers through active suction and an integrated HEPA filter.

      Practical for every practice

      The Assistina Twin can be tailored
      to meet the individual needs of your dental practice. It can process up to 360 instruments per hour not just due to the innovative procedure with a short processing time, but also thanks to its ergonomic design and wide range of adaptors

      Groundbreaking technology

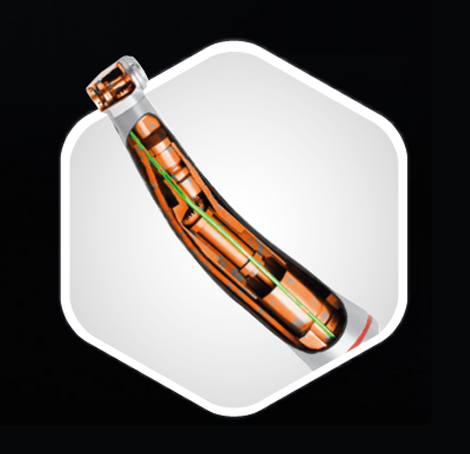

      Thorough and comprehensive lubrication of the gear parts (orange) and cleaning of the spray channels (green) owing to the innovative oil nebulization technology.



      • Minimum consumption

        Maximum lubrication with minimum consumption

        Thanks to the smart process monitoring, the Assistina Twin always achieves thorough maintenance with minimum consumption. The Assistina Twin
        Care Set only needs to be changed after around 2,800 instruments. Your instrument maintenance is thus not just quick and reliable, but also more cost-efficient than ever.

      • Assistina Twin Care Set

        Assistina Twin Care Set =

        yields as much as 20 oil spray cans (400 ml per oil spray can)

        Each set comprises one cartridge of cleaning solution, one cartridge of Service Oil F1 and one HEPA filter. All consumables are extremely easy to replace without a tool.

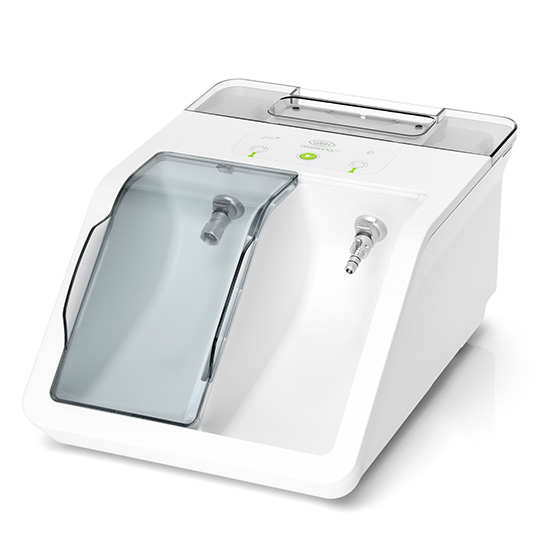

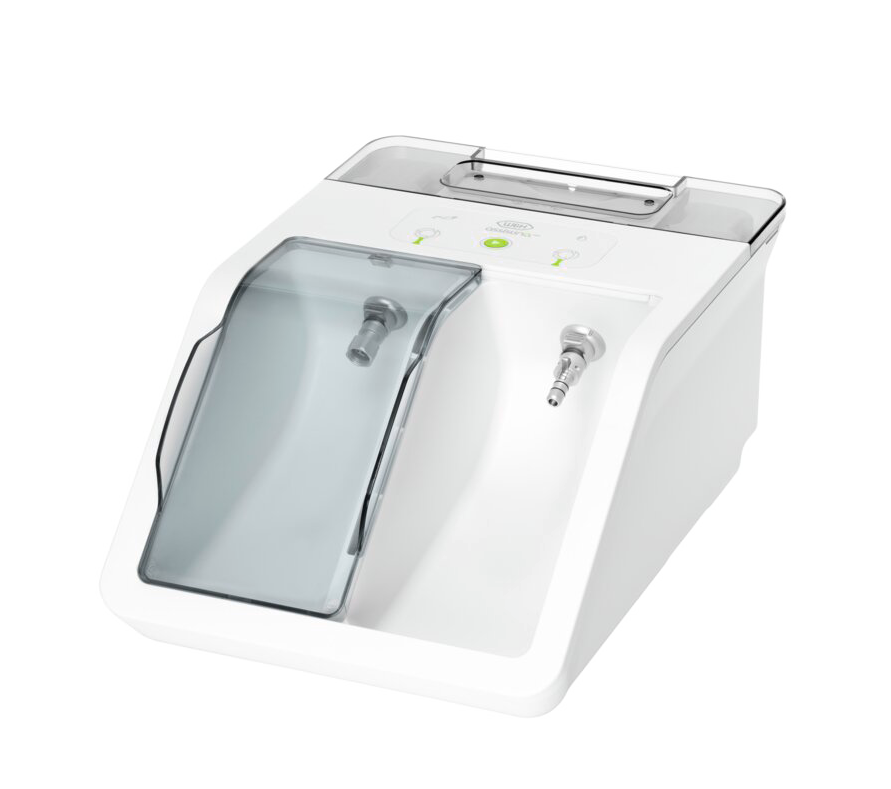

        Assistina Twin with Quick Connect by W&H (including two connectors)

        Assistina Twin MB-302 + 1 Quick connector ISO + 1 Quick connector RM
        REF 30310003

        Contains
        > Air hose (2 m)
        > Power supply unit
        > Twin Care Set
        > 1 Quick connector ISO
        > 1 Quick connector RM

        Awarded!

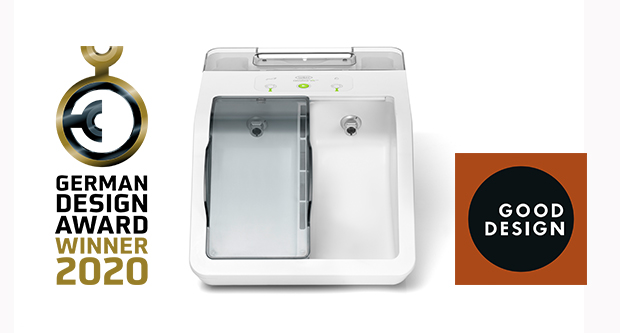

        Assistina Twin was awarded the German Design Award and the Good Design Award in 2019 as one of the product innovations in 2020. The high-quality product and communication design was assessed. The Assistina Twin is therefore considered one of the defining products in the international product and design landscape.

      • System overview adaptor

        Assistina Twin (MB-302) with Quick Connect

        Step 1: Select the handpiece type

        • Straight and contra-angle handpieces: require Quick ISO adaptor
        • Turbine handpieces: require Quick RM adaptor

        Step 2: For brand specific connections

        • For brand specific connections, like Roto Quick, select the right adaptor suitable for you.

        Straight and contra-angle handpieces
        Turbine handpieces

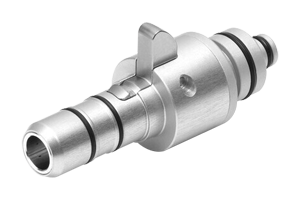

        Adaptor Quick ISO

        REF 06422600

        All straight and contra-angle handpieces with ISO connection

        for contra-angles with removable heads

        REF 02679000

        for T1 CLASSIC from Sirona Dental Systems

        REF 02691000

        for FG chuck system (W&H, Sirona Dental Systems)

        REF 02693000

        for W&H handpiece and contra-angle head

        REF 05204600

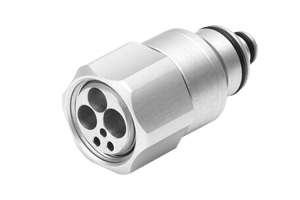

        Adaptor Quick RM

        REF 06395100

        for turbines or adaptors with standard 4-hole connection (with or without light)

        W&H turbines, air scaler and air motors with Roto Quick system

        REF 02690400

        for T1, T2, T3 from Sirona Dental Systems

        REF 02692000

        for turbines with Multiflex connection (Kaltenbach & Voigt)

        REF 04713200

        for turbines with Borden 2(3)-hole connection

        REF 02083500


      • Assistina TWIN MB-302
        Supply voltage: 100 – 240 V AC
        Permitted voltage fluctuation: ±10 %
        Nominal current: 0.2 – 0.4 A
        Frequency: 50 – 60 Hz
        Maximum power consumption: 18 VA
        Air consumption: approx. 40 Nl/min.
        Operating pressure:

        5 – 10 bar
        (controlled via an integrated, automatic pressure controller)

        Volume: 60 dB
        Dimensions (width x depth x height) 297 x 435 x 190 mm
        Weight: 3,8 kg
        Capacity:

        200 ml W&H Activefluid cleaning solution, MC-302
        200 ml W&H Service Oil F1, MD-302
