Teon and Teon +

Top performer for high cleaning standards

The new W&H thermal washer disinfectors, Teon and Teon +, provide high quality benefits for efficient and effective cleaning and disinfection of your dental instruments.

Sterilization, Hygiene & Maintenance

Sterilization, Hygiene & Maintenance

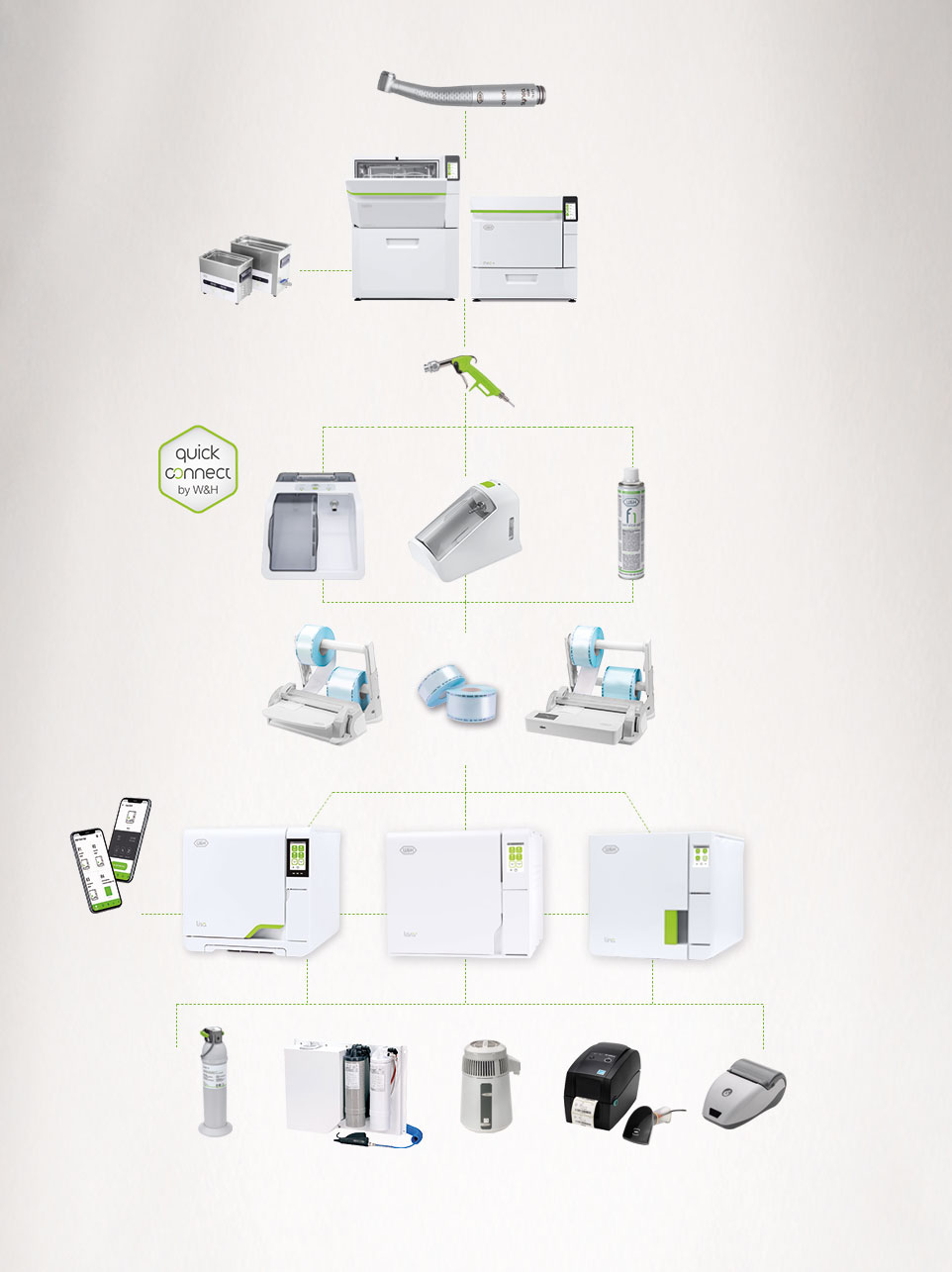

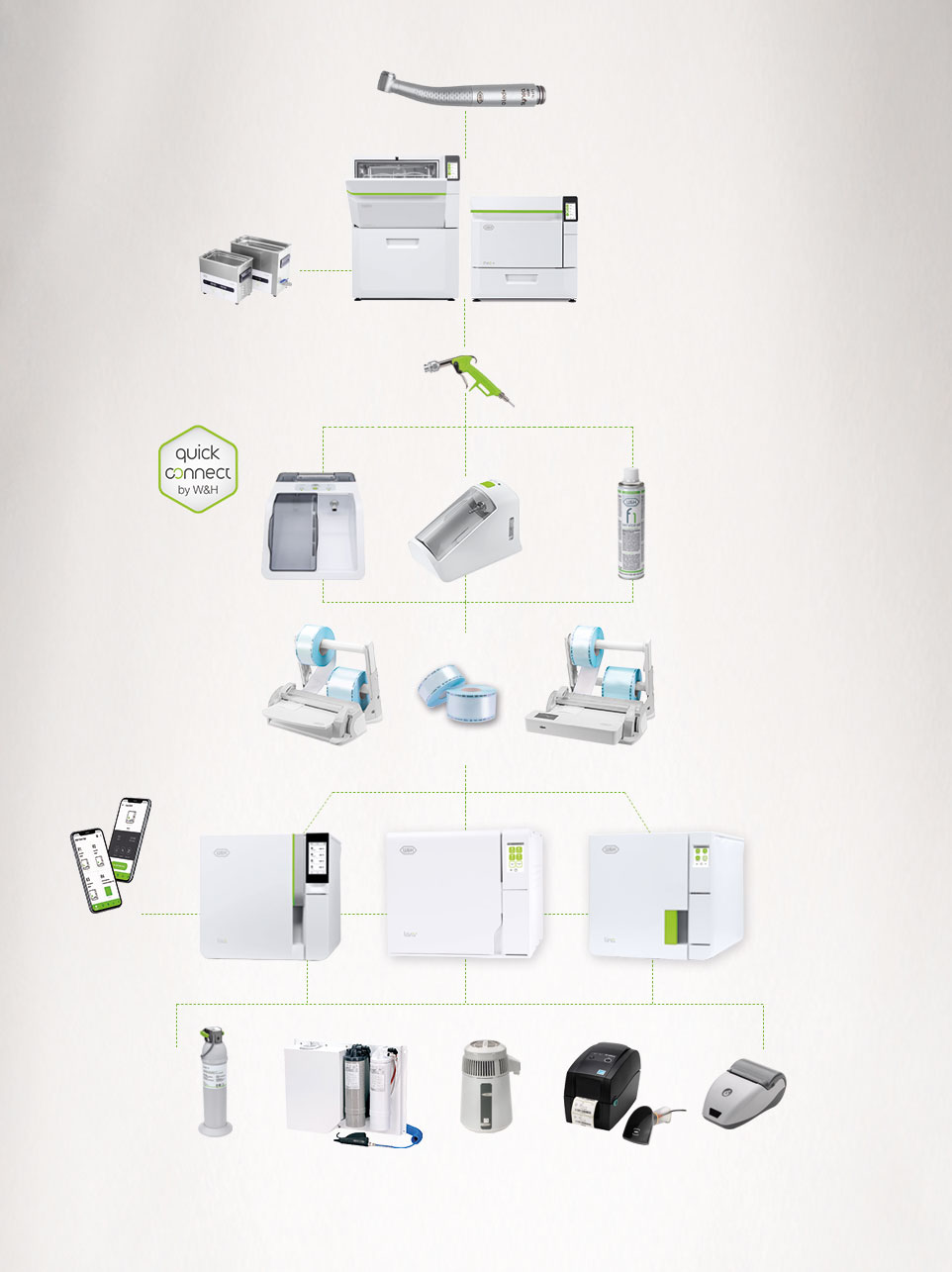

System Overview

Lisa

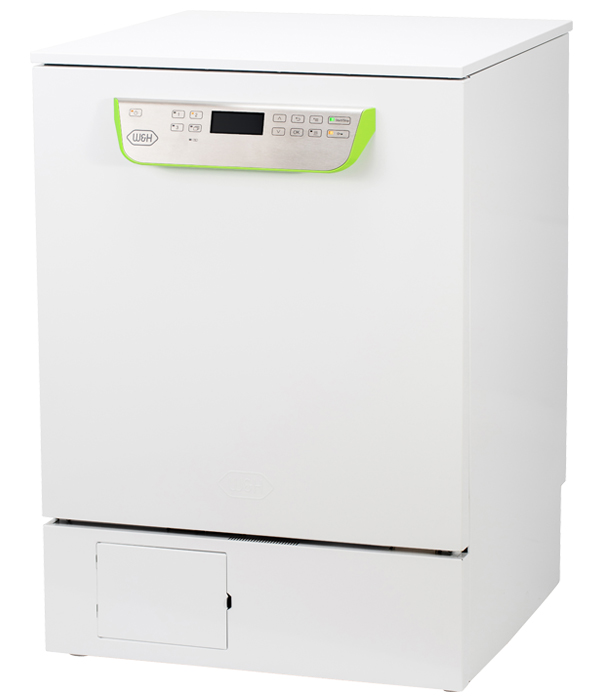

  • Teon

    Teon
    Next step for reprocessing

    The new Teon is a highly efficient thermal washer disinfector. Thanks to its dedicated programs it offers the best cleaning and disinfection for your dental practice. Teon improves the job organization of your hygiene room, reduces the reprocessing time and increases the protection against cross contamination.

    Offers:

    • High chamber capacity
    • Ease of use display
    • High cleaning performance
    • Gentle on material thanks to dedicated programs
    • Large selection of accessories
    • Cleaning of the hollow body
    • Traceability and connectivity through Ethernet module
    • Reliability thanks to heater elements outside the wash and gapless chamber

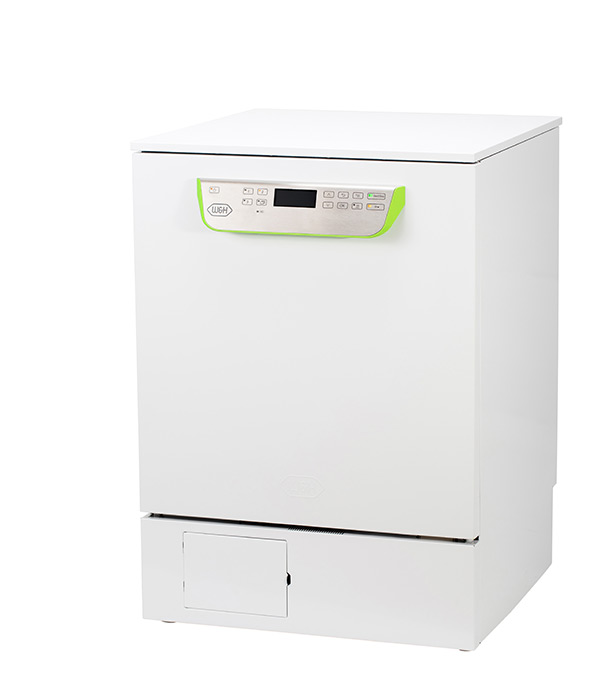

    Teon +

    Teon +
    The best approach for reprocessing

    Teon +, the premium W&H thermal washer disinfector, ensures the most demanding clinics an excellent automatic cleaning system for instruments. Teon + offers full traceability to meet current regulatory requirements. Its innovative active air-drying system offers a new standard in terms of quality and performance.

    Offers:

    • High drying quality for sensitive instruments
    • Active air-drying with HEPA filter
    • High chamber capacity
    • Ease of use display
    • High cleaning performance
    • Gentle on material thanks to dedicated programs
    • Large selection of accessories
    • Cleaning of the hollow body
    • Traceability and connectivity through Ethernet module
    • Reliability thanks to heater elements outside the wash and gapless chamber

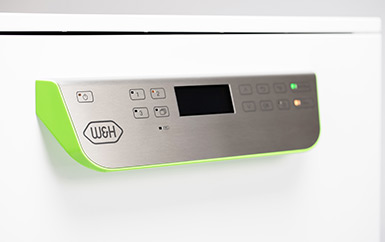

    Ease of use

    Ease of use

    The modern design and intuitive user guidance make it particularly easy to operate in the demanding everyday reprocessing routine. The control panel is easy to operate and also serves as a door opener.

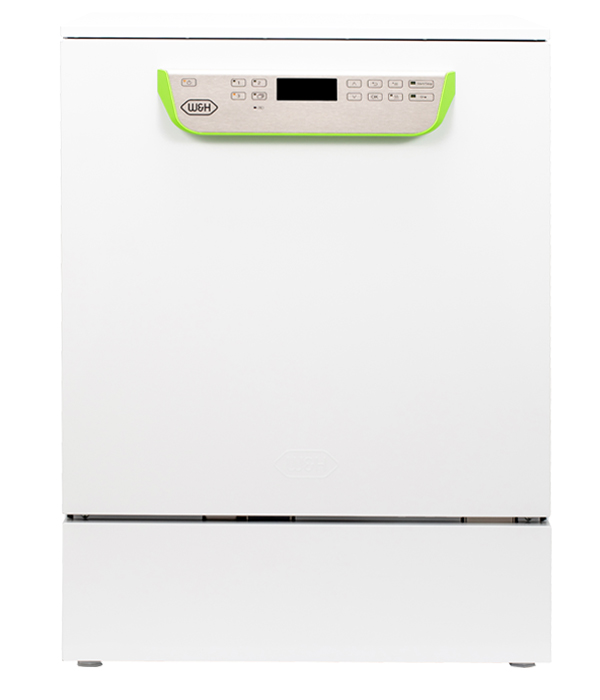

    Highest quality

    Highest quality

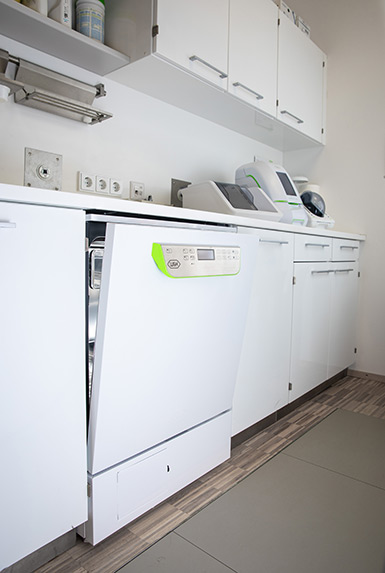

    The thermal washer disinfectors are distinguished by their high-quality performance and thus ensure a successful, holistic cleaning process for dental instruments. Thanks to their modern, elegant design, they can also be perfectly integrated into your reprocessing room.

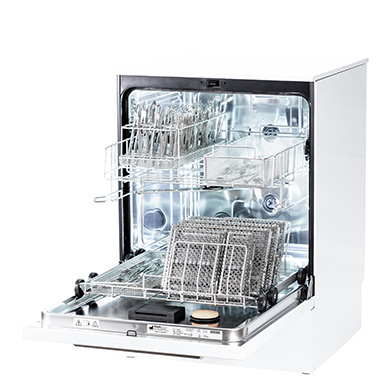

    Individual insert packs

    Individual insert packs

    Reprocessing can be as simple and efficient. Choose from a wide range of accessories and use our special packages:
    - With the “starter pack” you have the perfect range of basic equipment.
    - With the “injection pack”, you are ideally equipped especially for handpieces also.
    More information on the accessories list.

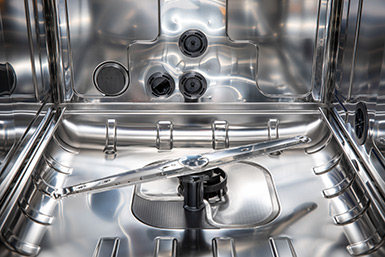

    Safety

    Safety

    The integrated spray arm monitoring enables excellent reprocessing results. The speed variable pump increases/decreases the pressure according to the step in the reprocessing process. The filter system removes dirt particles to prevent obstacles for your instruments.

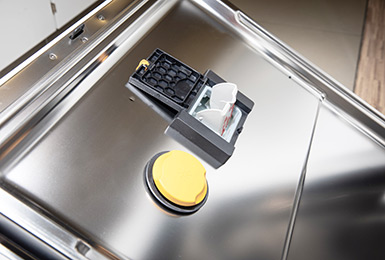

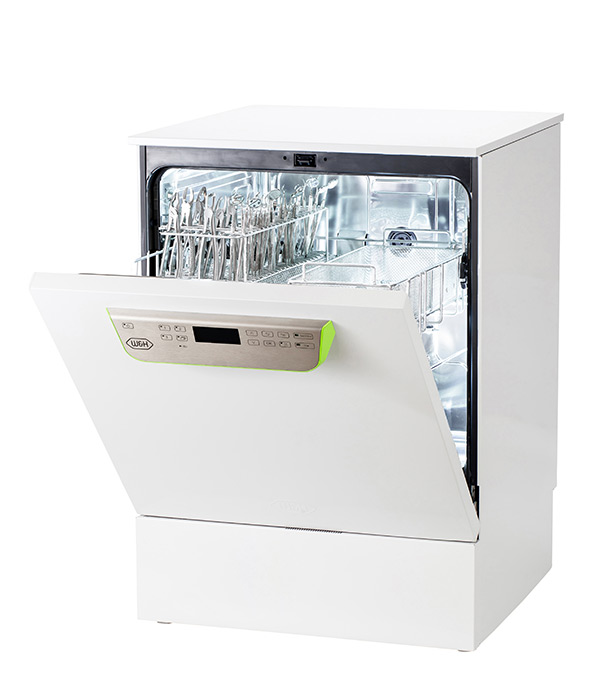

    Convenience and ergonomics

    Convenience and ergonomics

    The salt container integrated into the door ensures easy and convenient refilling. Thanks to the ergonomics concept, no equipment needs to be removed.

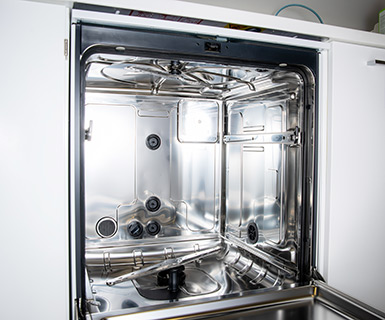

    Hygienic rinsing room

    Hygienic rinsing room

    The rinsing chamber enables higher throughput with excellent hygiene purity. In addition, the optimal size allows a higher capacity per batch.

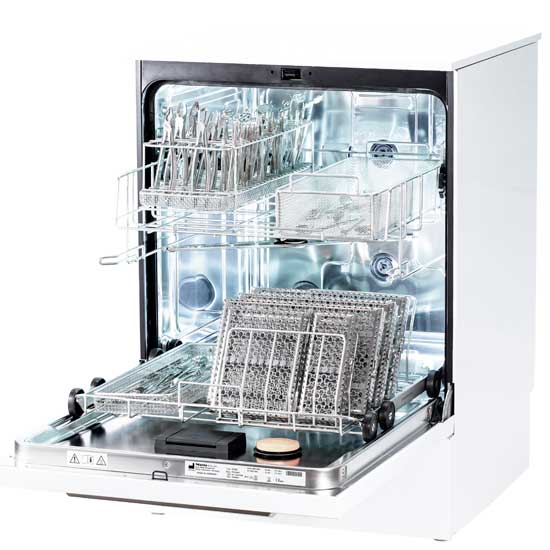

    • »starter pack«

      Tailor the Teon exactly
      to your needs with the »starter pack«

      The Teon is available without any interior, so you can tailor the device exactly to your needs. For example, with the »starter pack«. The »starter pack« includes the perfect range of basic equipment (1–6).

    • basic equipment 1

      Upper basket




      The upper basket is flexible for inserts and
      height adjustable.

    • basic equipment 2

      Insert 1/3 mesh tray




      Intended for different instruments and for
      flexible use.

    • basic equipment 3

      Lower basket




      For holding mesh trays as well as
      various inserts.

    • basic equipment 4

      Insert 1/2 mesh tray




      Inserting various instruments and insertable for upper and lower basket.

    • basic equipment 5

      Insert 2/5
      for instruments




      Different compartments for optimum
      loading of upright instruments.

    • basic equipment 6

      Insert 1/2
      for trays and cassettes



      Equipped with different compartments for optimum loading.

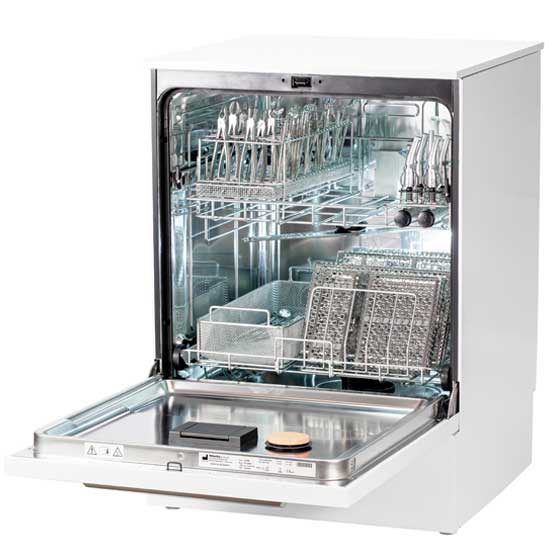

      • »injection pack«

        Complete your Teon + with the »injection pack«


        The device is sold empty, but can be complemented with the »injection pack«, which is perfectly and particularly suitable for handpieces. The »injection pack« includes the basic eqipment (3–6) as well as an additional equipment (7–8).

      • basic equipment 3

        Lower basket




        For holding mesh trays as well as
        various inserts.

      • basic equipment 4

        Insert 1/2 mesh tray




        Inserting various instruments and insertable for upper and lower basket.

      • basic equipment 5

        Insert 2/5
        for instruments




        Different compartments for optimum
        loading of upright instruments.

      • basic equipment 6

        Insert 1/2
        for trays and cassettes



        Equipped with different compartments for optimum loading.

      • additional equipment 7–8

        Upper basket
        with injector nozzles



        For various instruments with injector nozzles.



        Quick-Guide: How to use Teon/Teon + software

        Learn how to install and use the software for the Teon/Teon + in the Quick-Guide.

        Please note: Software requires Java Virtual Machine JRE version 8 to be able to operate on your computer!




        Teon

        The device is available without interior,
        so you can equip it exactly according
        to your needs with the »starter pack«.

        Teon ZER
        REF 19860010

        ZER: version for Germany, Austria, Netherlands, Belgium, France, Switzerland and Italy

        Teon SER
        REF 19860020

        SER: version for Spain and Portugal

        Teon OER
        REF 19860030

        OER: version for Hungary

        Teon NER
        REF 19860060

        NER: version for Denmark, Finland, Norway and Sweden

        Teon GB
        REF 19860110

        GB: version for Great Britain and Ireland

        Teon +

        The device is sold empty, but
        can be equipped with the
        »injection pack«.

        Teon + ZER
        REF 19870010

        ZER: version for Germany, Austria, Netherlands, Belgium, France, Switzerland and Italy

        Teon + NER
        REF 19870060

        NER: version for Denmark, Finland, Norway and Sweden

        Teon + GB
        REF 19870110

        GB: version for Great Britain and Ireland

        »starter pack«

        The Teon is sold empty.
        Add the appropriate equipment
        to your device.

        »starter pack«
        REF 19721439

        A102 Upper basket
        E379 Insert 1/2 mesh tray
        E430 Insert 1/3 mesh tray
        A151 Lower basket
        E337 Insert 2/5
        E523 Insert 1/2

        »injection pack«

        The Teon + is sold empty.
        Complete the device with the interior
        you really need.

        »injection pack«
        REF 19721440

        A105 Upper basket with injector nozzles
        E379 Insert 1/2 mesh tray
        A836 Dental nozzle set
        A151 Lower basket
        E337 Insert 2/5
        E523 Insert 1/2

        Download Area

        Videos & Tutorials

        For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

        Accept
      • Technical data

        Type: Teon Teon +
        Power supply: 400 V AC; 50–60 Hz/230 V AC; 50–60 Hz
        Current: 16 A
        Overall dimension
        (w x h x d):
        600 x 835 x 600 mm
        Space required for installation
        (w x h x d):
        598 x 835 x 1.200 mm (in total with opened-door)
        Weight (empty): 74 kg 78 kg
        Smart Dry:
        Dry Plus:
        HEPA filter:
        Cold water connection:
        Hot water connection:
        Demineralized water connection:
        Auto-close – automatic door lock:
        No. of integrated dispenser pumps for liquid products: 2 1
        In-door dosing device for rinse:
        Salt tank – front door access:
        Number of program: 5 6
        No. of customizable program: 2 2
        Cycle time (time for Vario TD Dental program): 49' 74'
        including active
        air-drying

        The thermal washer disinfectors Teon and Teon + were designed, certified and validated with the most stringent directives and standards:

        93/42/EEC Medical Device Directive EN 61010-2-040 Safety requirement DIN EN ISO 15883-1/2 Washer-Disinfector
        EN 61326-1 Electromagnetic compatibility - EN1717 Protection against pollution of potable water
