Lina sterilizer

The power of efficiency

Usability outside. Technology inside.

B type sterilizer for best performance.
To prevent the transmission of infections, steam sterilization plays a significant role in the reprocessing of dental instruments. Thereby, efficiency and simplicity are crucial. The new generation of Lina sterilizers meet all these requirements and more: simple operation, ergonomic and functional design, appropriate sterilization cycles and upgradeable functions guarantee high efficiency leading to maximum results.

AR/3-D

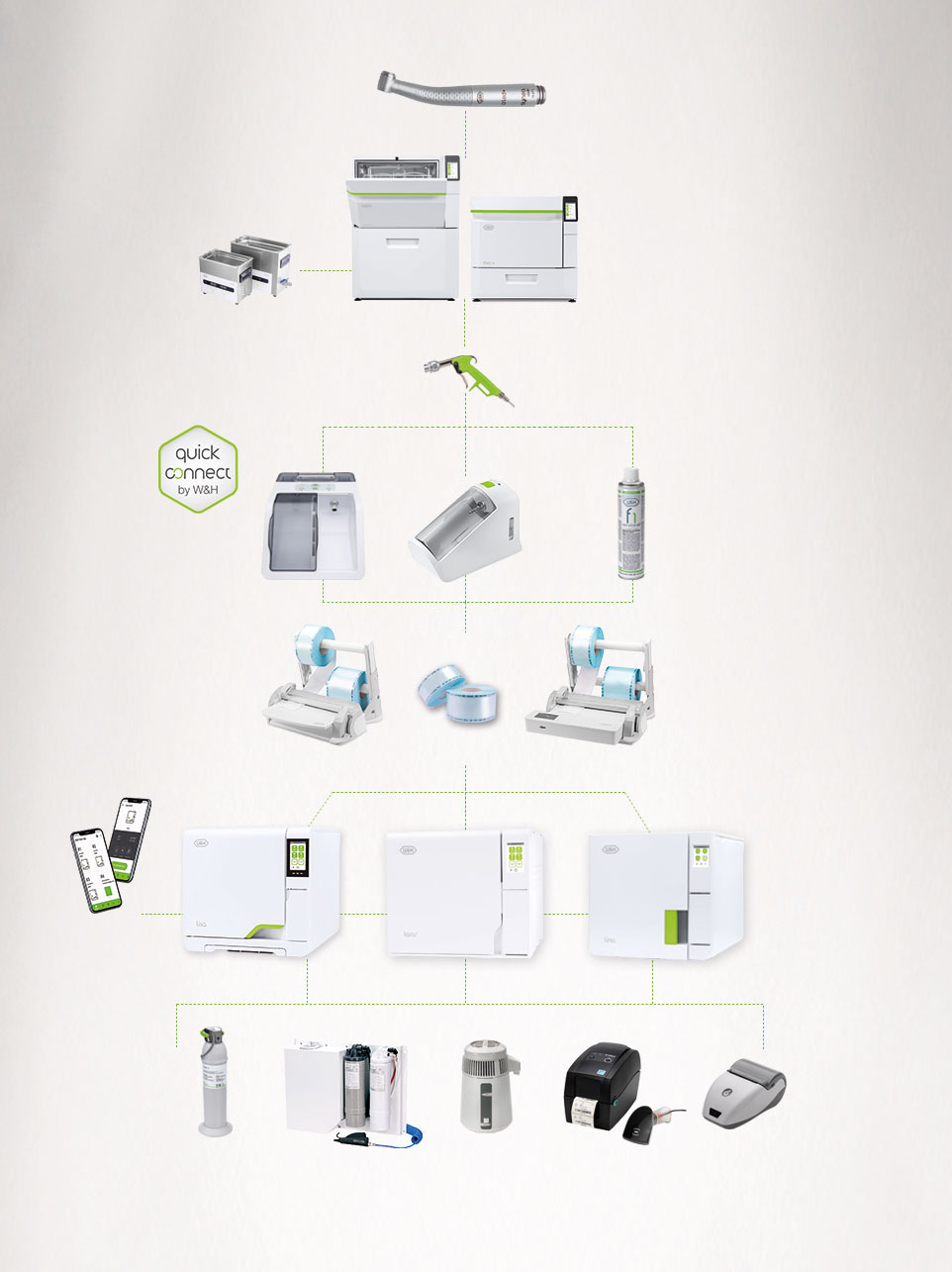

System Overview

Sterilization, Hygiene & Maintenance

Sterilization, Hygiene & Maintenance

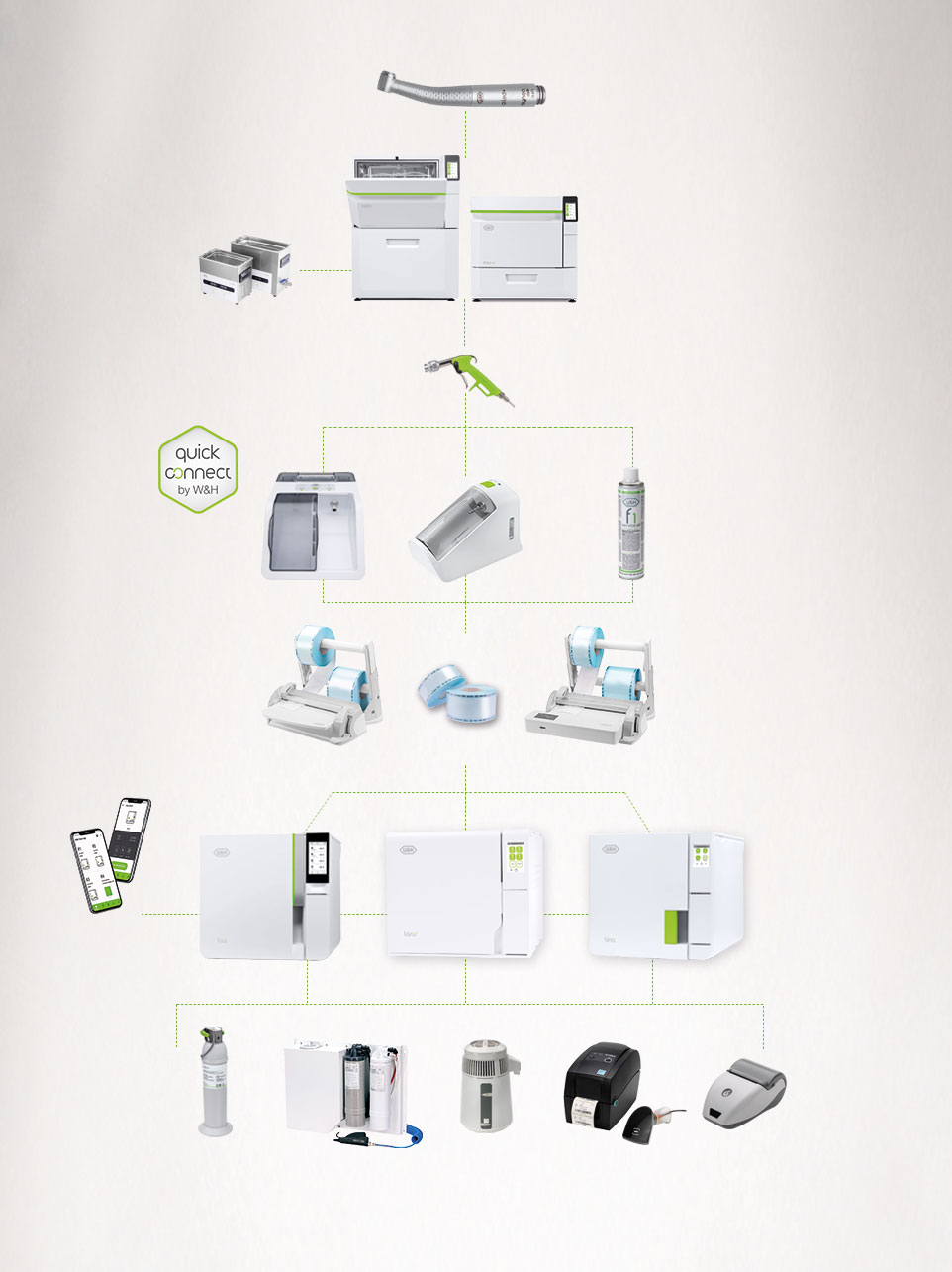

System Overview

  •

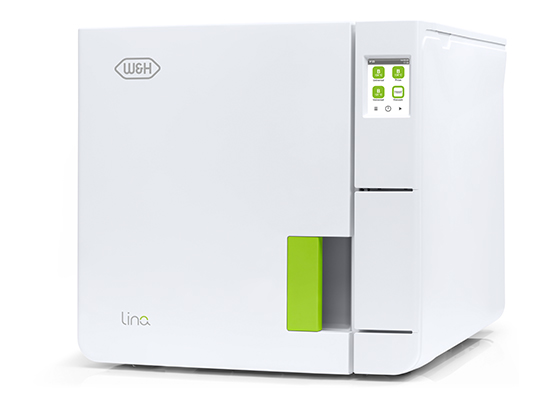

    Lina sterilizer

    B type sterilizer, yet brilliant

    Interrupting the chain of infection.

    B type sterilizer – for peace of mind on reprocessing and infection prevention.

    Benefits at a glance:

    • B type sterilizer with the best cycle times of its category.
    • Ease of use for an unrivalled smooth user experience.
    • Unique upgradeability for customising and modernising the device according to your needs.
    • Advanced traceability for complete documentation.

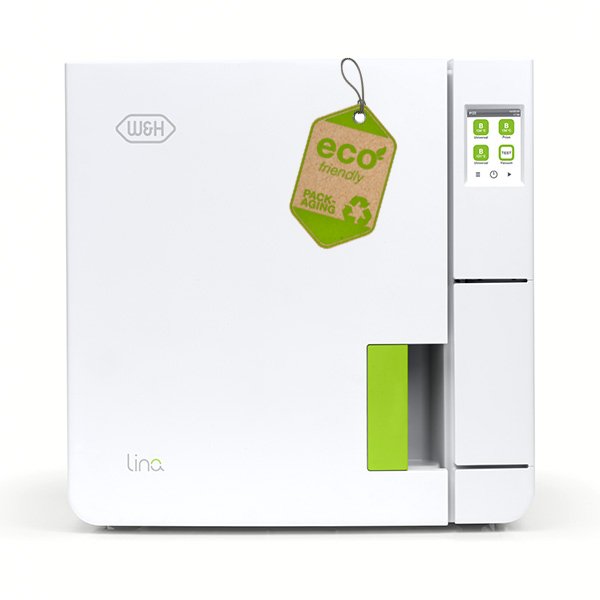

    • New environmentally friendly packaging
      The new environmentally friendly packaging is completely reusable and recyclable. Plastic components were reduced to a minimum. For 99% of its weight, the new package is made of cardboard and other fully biodegradable substances.

    Improved components

    Simplified work processes

    Usability outside.
    The Lina sterilizer is characterised by an effortless handling, ergonomic and functional design. Ideal to simplify the sterilization process and thus to ensure an efficient workflow in your practice.

    “The risk of infection is actively minimised by sterilization! Because it's all about the safety of your patients, your staff and yourself.”


    How may you benefit from the improved usability?

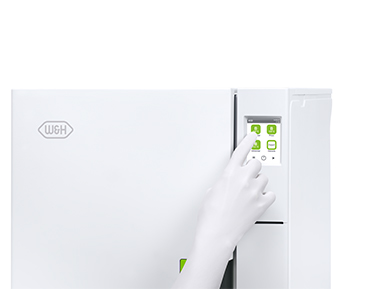

    Ease of use

    Ease of use

    //a.storyblok.com/f/45617/385x289/79f49fe19a/lina-easeofuse_big.jpg
    › The 3.5’’ touch screen display
    enables smooth operation.

    › The simplified user interface and menu structure support practices in all daily activities.

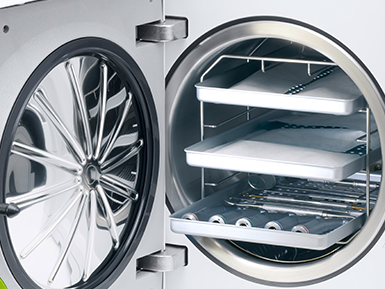

    Optimal sterilization programs

    Optimal sterilization programs

    //a.storyblok.com/f/45617/385x289/39f232e0f0/lina-sterilizationprograms_big.jpg
    › The Eco B sterilization program reprocesses 0.5 kg in 25 minutes.

    › Lina can reprocess up to 6 kg of load
    to meet all requirements of dental clinics.

    › The B Universal 121°C cycle even allows the reprocessing of sensitive items, including porous such as surgical clothing.

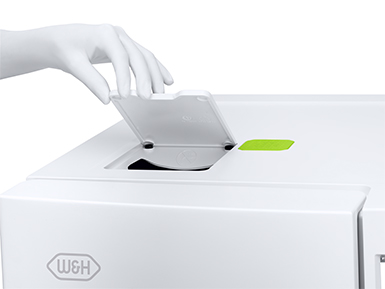

    Design and maintenance

    Design and maintenance

    //a.storyblok.com/f/45617/385x289/381a586cb9/lina-designandmaintanance_big.jpg
    › The easily removable cover allows effortless access to the water tanks without tools. Filling is particularly easy with the integrated funnel.

    › Thanks to the high level of reliability, the service interval is set to 4,000 cycles or 5 years.

    › The design impresses with its ergonomic and functional shape and fits in anywhere thanks to modular feet and compact layout.

    Technical concepts

    Realised visions

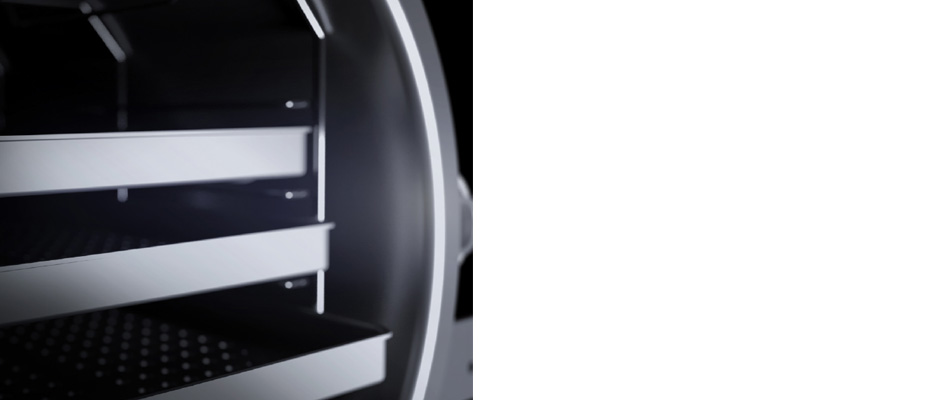

    Technolgy inside.
    Not only the outside, but also the technical expertise inside makes the difference. The Lina sterilizer is based on a sophisticated technical concept that offers future-oriented possibilities and significantly simplifies your workflow.

    How may you benefit from the advanced technology?


    “Use the technological upgrades to master all challenges with your sterilizer – today and tomorrow!”

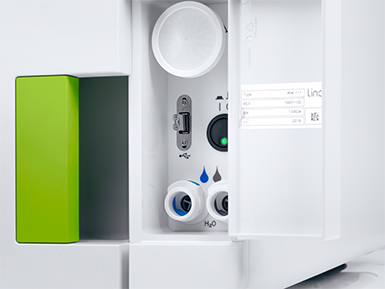

    Enhanced traceability

    Enhanced traceability

    //a.storyblok.com/f/45617/385x289/156647aa97/lina-enhancedtraceability_big.jpg
    › The documentation is automatically
    saved via a high-capacity USB stick.

    › The barcode label printer provides additional support on traceability thanks to the opportunity to link cycle, sterilization package and patient.

    › The cycle report printer ensures adequate paper documentation of the cycle.
    Unique upgradeability

    Unique upgradeability

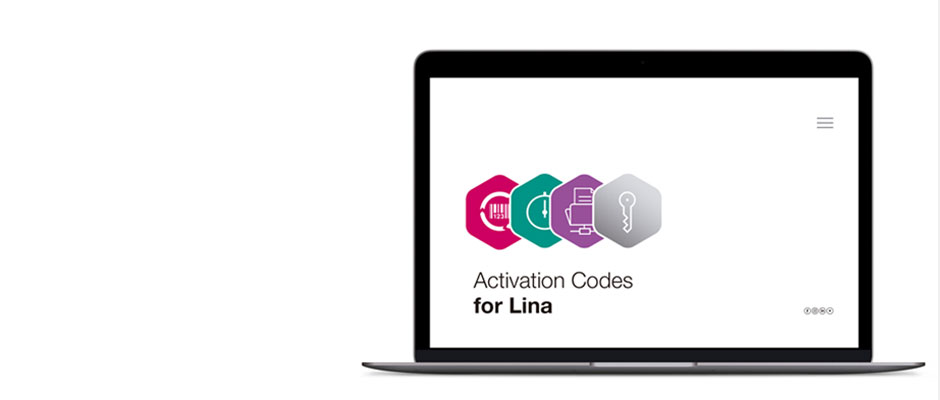

    › The Activation Code system is an innovative upgradeability tool. Activation Codes offer a tailored opportunity to enhance additional features that meet your practice needs and comply with future requirements. Effectively, for customising and upgrading your Lina sterilizer.
    //a.storyblok.com/f/45617/385x289/64956dc210/lina-upgradeability_big.jpg

    Unique upgradeability

    //a.storyblok.com/f/45617/385x289/64956dc210/lina-upgradeability_big.jpg
    › The Activation Code system is an innovative upgradeability tool. Activation Codes offer a tailored opportunity to enhance additional features that meet your practice needs and comply with future requirements. Effectively, for customising and upgrading your Lina sterilizer.

    Unique feature upgrades

    Covering individual needs.

    Needs and requirements may change. Prepare yourself now: with the Activation Code system, additional functions can be activated to meet your changing practice needs and future requirements.

    Fast cycle
    The “Fast cycle” feature enables sterilization of unwrapped instruments, including handpieces. For a quick cycle for in-between.
    Remote data storage
    The “Remote data storage” feature is the ideal addition for the digital cycle documentation. It offers the possibility to save cycles directly on PC.
    Traceability
    Allows customization of the sterilizer and therefore traceability back to the person who initiated the sterilization cycle.
    All in One
    The "All in One" feature provides all benefits at once - your sterilizer receives an unattainable price-performance ratio.

    Discover warranty upgrade

    The Activation Code “Warranty Extension” extends the warranty of the sterilizer by 12 months.

    Six steps to your customized sterilizer:

    1. Purchase Activation Code of your choice from your local approved dental supplier.
    2. After receiving the related login code, go to activation.wh.com
    3. Enter this code along with serial number and model of your sterilizer.
    4. Your individual, secure Activation Code is generated.
    5. Enter this code in the menu of your sterilizer.
    6. The feature is available.
    ACTIVATE FEATURE NOW!

    • ioDent<sup>®</sup>

      ioDent®

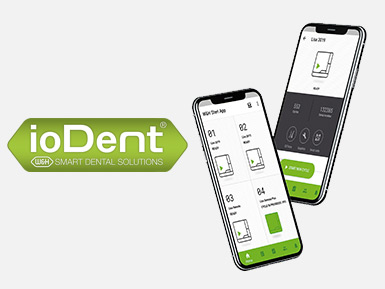

      With ioDent®, W&H brings the Internet of Things (IoT) directly into you practice – opening up new dimensions in efficiency, convenience, and digital connectivity. The cloud-based platform intelligently connects your W&H devices, making them an active part of your digital workflow.

      Benefit from automated documentation of cycle protocols and routine tests, real-time monitoring, central device management and much more.

      Discover all ioDent® features

    • W&H Steri App

      W&H Steri App

      The W&H Steri App is an advanced smartphone and tablet application that allows controlling and remote monitoring of the sterilizer in your dental practice.

      Main features:
      * Remote control of your sterilizer
      * Advanced traceability with EliTrace
      * Report creation
      * User management
      * Backup functionality

      W&H Steri App

      Lina Autoclave

      Lina

      supplied with reversible rack, 3 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test, 50 Hz

      Lina 17 (RIK-117)
      REF 19951130

      Chamber size 17 l

      Lina 17 AWF
      (RIK-117)
      REF 19951131

      Automatic water filling
      Chamber size 17 l

      Lina 22
      (RIK-122, 220 V)
      REF 19952130

      Chamber size 22 l

      Lina 22 AWF
      (RIK-122, 220 V)
      REF 19952131

      Automatic water filling
      Chamber size 22 l

      Lina 22
      (RIK-122, 110 V)
      REF 19952330

      Chamber size 22 l

      Lina 22 AWF
      (RIK-122, 110 V)
      REF 19952331

      Automatic water filling
      Chamber size 22 l

      Request price
      Lina Autoclave

      Lina

      supplied with reversible rack, 3 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test, 60 Hz

      Lina 17 (RIK-117)
      REF 19951230

      Chamber size 17 l

      Lina 17 AWF
      (RIK-117)
      REF 19951231

      Automatic water filling
      Chamber size 17 l

      Lina 22
      (RIK-122, 220 V)
      REF 19952230

      Chamber size 22 l

      Lina 22 AWF
      (RIK-122, 220 V)
      REF 19952231

      Automatic water filling
      Chamber size 22 l

      Lina 22
      (RIK-122, 110 V)
      REF 19952330

      Chamber size 22 l

      Lina 22 AWF
      (RIK-122, 110 V)
      REF 19952331

      Automatic water filling
      Chamber size 22 l

      Request price

      Download Area

      FAQ

      • Which is the maximum noise level of Lina?
        The max. noise level of Lina is 65.5 dB. more
      • How do I clean the water tanks and what products should I use?
        Water tank cleaning instructions are provided in the Instructions for Use, chapter “Maintenance”. In addition, a video description is available: • in the sterilizer, in the maintenance section of the menu; • in the Consumables & Accessories and Video Tutorial section of this website. more
      • Warning about programmed maintenance.
        POSSIBLE CAUSE
        The maintenance program needs to be carried out.
        SOLUTION
        Contact an authorised W&H service partner. more
      • The sterilization (PROCESS) phase of a sterilization cycle was longer than expected.
        POSSIBLE CAUSE
        The chamber temperature dropped below the minimum threshold and the software performed a successful recovery.
        SOLUTION
        Wait for cycle completion. If the problem occurs frequently, contact an authorised W&H service partner. more
      • The sterilizer enters into “Standby mode” immediately after being switched on.
        POSSIBLE CAUSE
        The unit was turned off while in standby mode.
        SOLUTION
        Press the standby mode button to exit. more
      • When starting a cycle, the chamber door locks but re-opens immediately. The “Open the door” message appears.
        POSSIBLE CAUSE
        Door seal not properly placed.
        SOLUTION
        Ensure that the door seal is correctly inserted around the whole circumference.

        POSSIBLE CAUSE
        Door jammed by external objects or by the load itself.
        SOLUTION
        Remove any objects interfering with the chamber door. Check for interference between the door and the chamber furniture and/or the load. more
      • No cycles are stored in the cycle history menu.
        POSSIBLE CAUSE
        An electronic board was replaced when serviced.
        SOLUTION
        The memory of the old board can not be restored. Consult the cycle history in the USB pen drive. more
      • Stains, spots, or colour change on instruments.
        POSSIBLE CAUSE
        Instruments rinsed with tap water and not dried before sterilization.
        SOLUTION
        Ensure that instruments are rinsed with distilled or demineralized water and completely dry before they are placed in the sterilizer.

        POSSIBLE CAUSE
        Use of water of poor quality or water containing chemical substances.
        SOLUTION
        Drain both water tanks. Use good quality water (see chapter “Water quality” in the Instructions for Use).

        POSSIBLE CAUSE
        Organic or chemical residues on the instruments
        SOLUTION
        Clean, rinse, and dry instruments before placing them in the sterilizer (see chapter “Load maintenance and preparation” in the Instructions for Use.

        POSSIBLE CAUSE
        Dirt in chamber, trays, tray rack.
        SOLUTION
        Clean the chamber and wash the chamber furniture.

        POSSIBLE CAUSE
        Contact between instruments of different materials.
        SOLUTION
        Ensure that instruments of different materials do not touch each other (aluminium, carbon or stainless steel, etc.); place them on different trays or cassettes or pouch them (see chapter “Load maintenance and preparation” in the Instructions for Use).

        POSSIBLE CAUSE
        Scale deposits on the chamber.
        SOLUTION
        Clean the chamber and use good quality water (see chapter “Water quality” in the Instructions for Use). more
      • At the end of the cycle, there is residual water on load.
        POSSIBLE CAUSE
        Sterilizer not properly levelled.
        SOLUTION
        Place the sterilizator on a flat, level surface.

        POSSIBLE CAUSE
        Overloaded chamber.
        SOLUTION
        Comply with the maximum load weight limits for each type of load. Always use the chamber rack for trays and cassettes.

        POSSIBLE CAUSE
        Chamber filter clogged.
        SOLUTION
        Remove and clean the chamber filters.

        POSSIBLE CAUSE
        Chamber filter cap mispositioned.
        SOLUTION
        Mount the chamber filter cap properly (see chapter “Monthly or 50-cycle maintenance - Cleaning the chamber filter” in the Instructions for Use).

        POSSIBLE CAUSE
        Load incorrectly placed.
        SOLUTION
        Follow the recommendations as listed in chapter “Load maintenance and preparation” in the Instructions for Use. more
      • Water is leaking at the front of the sterilizer.
        POSSIBLE CAUSE
        Leaks through the chamber door seal.
        SOLUTION
        Clean or replace the door seal. Clean the door surface facing the chamber.

        POSSIBLE CAUSE
        Internal leak.
        SOLUTION
        Contact an authorised W&H service partner. more
      • The sterilizer remains switched OFF.
        POSSIBLE CAUSE
        The main switch or network circuit breaker is OFF.
        SOLUTION
        Activate the main switch or network circuit breaker (ON).

        POSSIBLE CAUSE
        No voltage at the socket.
        SOLUTION
        Check the building electrical supply.

        POSSIBLE CAUSE
        The power cord is not connected properly.
        SOLUTION
        Check and connect the power cord properly. more
      • Should I pouch/wrap my instruments and how long can I store them after sterilization?
        To ensure that your instruments are stored in a sterile state from their successful sterilization until they are used, W&H recommends wrapping them in suitable sterile barrier systems before sterilization. The recommended storage period can be found in the recommendations of the wrapping material manufacturer. For further information, please contact your dealer. more
      • How do I change consumable components on my sterilizer?
        Consumable replacement instructions are provided in the Instructions for Use, chapter “Maintenance”. In addition, a video description is available: • in the sterilizer, in the maintenance section of the menu; • in the Consumables & Accessories and Video Tutorial section of this website. more
      • Who should I contact to validate and maintain my sterilizer?
        Validation shall be carried out by an official authority. Maintenance tasks shall be carried out by a qualified and authorised technician. more
      • Does my sterilizer need any periodic qualification/validation?
        Validation generally comprises a range of tests defined in internationally recognised standards. These tests begin for every device with the factory tests at W&H. In addition, corresponding documentation is included with your device. Prior to commissioning the device at your premises, the technician performs further checks to ensure the device functions correctly. Then, depending on the national/regional laws and directives, the device must be subjected to a so-called renewed performance qualification at regular intervals. For further information, please contact your dealer. more
      • How long should I archive the documentation of regular tests?
        Keep the results according to your country/regional specific laws and guidelines. Those records can be of assistance in case of service as well. more
      • Do I need to document the results of all periodic tests?
        W&H recommends recording all periodic tests, repairs, and modifications on the sterilizer in a logbook including date and signature of the person who carried out the test or other activity. Compulsorily of recording is regulated by local/national guidelines. more
      • What is validation?
        Validation is a testing procedure carried out by an official authority, proving the effectiveness of your sterilizer. Compulsories and frequency of validation are regulated by local/national guidelines. more
      • Warning about consumable replacement.
        POSSIBLE CAUSE
        A consumable needs to be replaced.
        SOLUTION
        Order the requested consumable (door seal and HEPA/bacteriological filter) and replace it. See the chapter “Maintenance” in the Instructions for Use. more
      • The sterilizer is connected to an automated water supply system, there is no clean water in the tank and the automatic water filling does not fill the water.
        POSSIBLE CAUSE
        Water filling system not connected.
        SOLUTION
        Connect the water filling system to the sterilizer. (see Instructions for Use).

        POSSIBLE CAUSE
        When the water filling system attempted to fill the tank, water was temporarily unavailable.
        SOLUTION
        Since the water tank filling is attempted only once in-between cycle execution, this event inhibits water feeding. Switch the sterilizer OFF and then ON again.
        Check the external water supply system.
        Check for water leaks from the sterilizer.

        POSSIBLE CAUSE
        Faulty MIN water level sensor in the clean water tank.
        SOLUTION
        Contact an authorised W&H service partner. more
      • The cycle report printer does not work.
        POSSIBLE CAUSE
        Printer not properly connected or not powered.
        SOLUTION
        Check the data and power connection to the printer. more
      • Warning about saving to the USB (HTML and SCL files)
        POSSIBLE CAUSE
        The USB drive is disconnected or full.
        SOLUTION
        Check presence and condition of the USB drive. If the problem persists, contact an authorised W&H service partner. more
      • Do I need to carry out periodic testing on my W&H sterilizer?
        All W&H sterilizers feature test cycles (B&D/Helix test, Vacuum test). Compulsory and frequency of testing are regulated by local/national guidelines. more
      • Which water quality should I use for my sterilizer?
        The water quality for sterilizers is internationally specified by standards and directives. The reasons for this are that your sterilizer can be seriously damaged by it or the sterilization can be jeopardised. Consequently, only water with conductivity of less than 10 µS/cm in North America and 15 µS/cm for the rest of the world should be used for your W&H sterilizer. The Water treatment devices Multidem and Osmo are especially designed to prepare suitable water (see chapter “Water quality” in the Instructions for Use). more
      more

      Instructions for use

      IFU Lina Sterilizer (RIK-1)
      IFU Lina Sterilizer (PRO13)
      Maintenance Sheet
      Lina PRO13-003
      Maintenance Sheet
      Lina RIK-1 2020

      Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

      Downloads

      Videos & Tutorials

      For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

      Accept

      Service

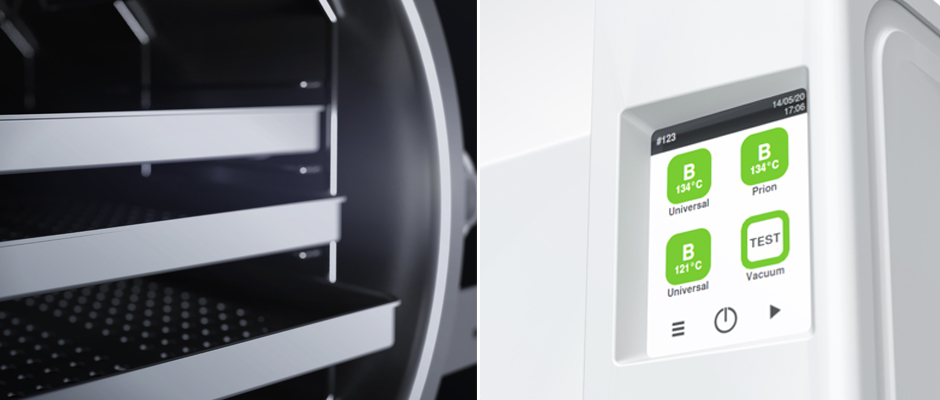

    • Lina sterilization cycles

      Sterilization cycle B-Universal 134 B-Prion 134 B-Universal 121 S naked 134 (optional)
      Temperature: 134 °C 134 °C  121 °C 134 °C
      Holding time (minutes): 4' 18' 30'' 20' 30'' 4'
      Total cycle duration
      (minutes) including
      complete drying:       		Automatic from Typical
      load       		Automatic from Typical
      load       		Automatic from Automatic from
      Lina 17
      25’–49’
      		45'
      40’–64’
      		60‘ 63’–71’ 20’–26’
      Lina 22
      (220 V)
      28’–52’
      		48’
      43’–67’
      		63’ 65’–74’ 21’–27’
      Lina 22
      (110 V)
      33’–63’
      		55’
      47’–77’
      		69’ 73’–82’ 28’–35’
      Lina17 loads:
      Lina 22 loads:
      maximum 3.5–5.5(1) kg/typical 2 kg/maximum porous 0.5–1.5(2) kg
      maximum 4–6(3) kg/typical 2 kg/maximum porous 0.5–2(4) kg
      max. 4 kg unwrapped
      max. 4 kg unwrapped
      Lina 17/22 containers: maximum 6 kg –
      Test cycles: Helix/Bowie and Dick/Vacuum

      Items supplied with reversible rack, 3 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test


      (1) Duration reported in the table refers to 3.5 kg. It is possible to sterilize up to 5.5 kg by drying time extension.
      (2) Duration reported in the table refers to 0.5 kg. It is possible to sterilize up to 1.5 kg by drying time extension.
      (3) Duration reported in the table refers to 4.0 kg. It is possible to sterilize up to 6.0 kg by drying time extension.
      (4) Duration reported in the table refers to 0.5 kg. It is possible to sterilize up to 2.0 kg by drying time extension.

      Lina

      Trade name:

      Lina

      Type:

      RIK-117

      RIK-122

      Chamber size:

      17 l

      22 l

      Power supply:

      200–240 V AC; 50 Hz or 60 Hz; 10 A single phase

      200–240 V AC; 50 Hz or 60 Hz;
      10 A single phase
      100–125 V AC; 50 Hz/60 Hz;
      12 A single phase

      Power consumption:

      2.0–2.4 kW

      220 V: 2.5–2.4 kW
      110 V: 1.2–1.5 kW

      Overall dimension (w × h × d):

      465 × 452 × 646 mm

      Weight (empty):

      40 kg

      42 kg

      Main/Used water tanks:

      4.8/4.8 l

      Working range:

      7 to 10 cycles

      Usable space in chamber (w × h × d)¹:

      195 × 195 × 312 mm

      195 × 195 × 400 mm

      Connection types:

      1 USB port in the front (additional 1 in the rear as option), automatic water filling kit (optional)

      (1) Usable space is referred to standard rack configuration.

      Lina sterilizers were designed, certified and validated with the most stringent directives and standards:

      N°2017/745

      Medical Device Regulation

      IEC 61326-1

      Electromagnetic compatibility

      2014/68/EU

      Pressure equipment Directive

      IEC 61010-1

      Safety requirements sterilizer

      EN 13060

      Small steam sterilizer

      IEC 61010-2-040

      Specific requirements for steam sterilizer

      IEC 61770

      Electric appliances connected to the water mains

      2012/19/EU

      Waste Electrical and Electronic Equipment

      The sterilizer can be validated according to EN ISO 17665-1

    Reports and studies

    read more
    read more
    read more

    view all

    Accessories & Consumables

    {{ foundItemsLength }} Accessories & Consumables
    show all

    Related products

    Assistina TWIN

    Oil service in record time

    Incredible inside & outside

    Lara sterilizers

    As unique as your practice, so you are optimally equipped even if your requirements change.

    Where To Buy

    Find dealers and service partners in your area.
