Assistina TWIN
Oil service in record time
-
![Oil service without waiting]( "Oil service without waiting")

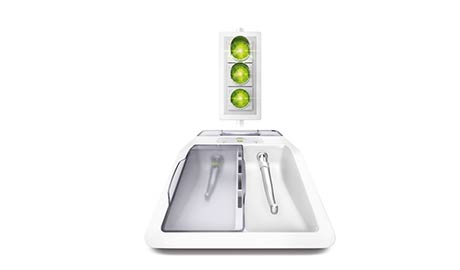

Oil service without waiting
Green light for added efficiency: With the new Assistina TWIN
waiting time during the oil service is a thing of the past.
It is the first reprocessing device to be equipped with two
process chambers that can be used alternately, thus allowing
non-stop loading.
Relaxed maintenance more effective than ever! -
![Oil service in record time]( "Oil service in record time")

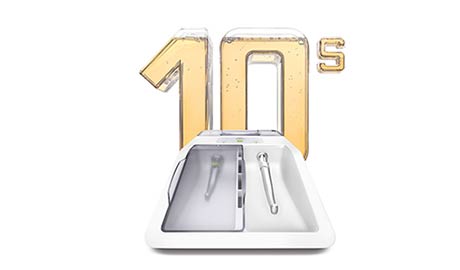

Oil service in record time
The Assistina TWIN performs your instrument maintenance
quicker than ever before.
Through the innovative oil nebulization technology, W&H has
been able to reduce the maintenance process to a record
time of just 10 seconds.
For lightning quick and incomparably thorough results. -
![Maximum oil service with minimal consumption]( "Maximum oil service with minimal consumption")

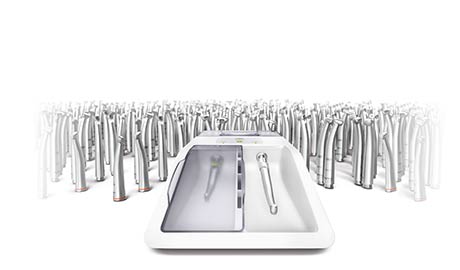

Maximum oil service with minimal consumption
Thanks to the smart process monitoring, the Assistina TWIN
always performs the maintenance thoroughly and with minimal
consumption.
The Assistina TWIN Care Set does not need to be replaced
until after approximately 2,800 instruments. The maintenance
of your instruments can be performed not only reliably and
quickly, but also more cost-effectively than ever before.
-
1 Oil service without waiting
![Oil service without waiting]( "Oil service without waiting")
Oil service without waiting
Green light for added efficiency: With the new Assistina TWIN
waiting time during the oil service is a thing of the past.
It is the first reprocessing device to be equipped with two
process chambers that can be used alternately, thus allowing
non-stop loading.
Relaxed maintenance more effective than ever! -
2 Oil service in record time
![Oil service in record time]( "Oil service in record time")
Oil service in record time
The Assistina TWIN performs your instrument maintenance
quicker than ever before.
Through the innovative oil nebulization technology, W&H has
been able to reduce the maintenance process to a record
time of just 10 seconds.
For lightning quick and incomparably thorough results. -
3 Minimal consumption
![Maximum oil service with minimal consumption]( "Maximum oil service with minimal consumption")
Maximum oil service with minimal consumption
Thanks to the smart process monitoring, the Assistina TWIN
always performs the maintenance thoroughly and with minimal
consumption.
The Assistina TWIN Care Set does not need to be replaced
until after approximately 2,800 instruments. The maintenance
of your instruments can be performed not only reliably and
quickly, but also more cost-effectively than ever before.
-
あなたのために 最適なかたちで
W&Hのクイックコネクトを搭載したAssistina Twinは、お客様の業務プロセスにスムーズに組み込むことができ、さらに効率的にします。お使いのタービンやハンドピースに合わせたアダプターを自由に装着することができます。

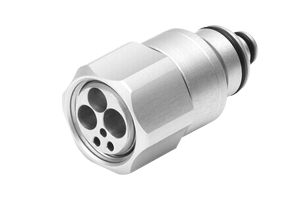

タービン用Quick RM
Quick and simple adaptor changes optimize your processes and increase efficiency in practice.
You decide which adaptors you actually need. Equip your Assistina Twin according to your needs and only use the right adaptors suitable for you in the two chambers.

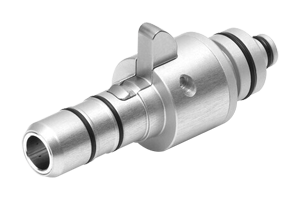

ストレート・コントラアングルハンドピース用Quick ISO
Quick and simple adaptor changes optimize your processes and increase efficiency in practice.
You decide which adaptors you actually need. Equip your Assistina Twin according to your needs and only use the right adaptors suitable for you in the two chambers.
![]()
待ち時間なしのオイルメンテナンス
サステナブルな選択にグリーンライト。Assistina Twinなら注油中の待ち時間はゼロ。交互に使用可能な2つのプロセスチャンバーを搭載した初の処理装置で、ノンストップで装填・メンテナンスが可能です。日々のメンテナンスをもっとスピーディーに、もっとスマートに。これまでになく効率的にインスツルメントの準備ができます。

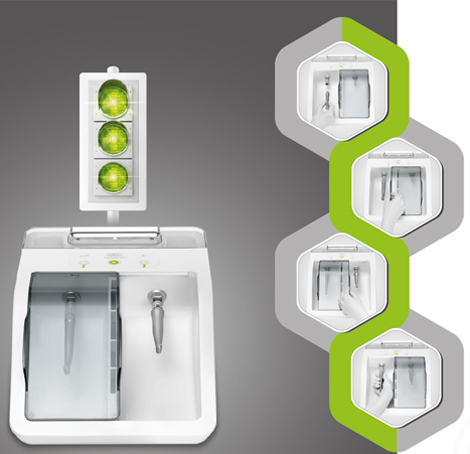

まるで魔法のようなスムーズさ
1 チャンバー1にインスツルメントをセットします。
2チャンバー1を閉じて、プロセスを開始します。
3 チャンバー1のプロセスが完了したら、チャンバー2に次のインスツルメントをセットし、すぐに閉じます。

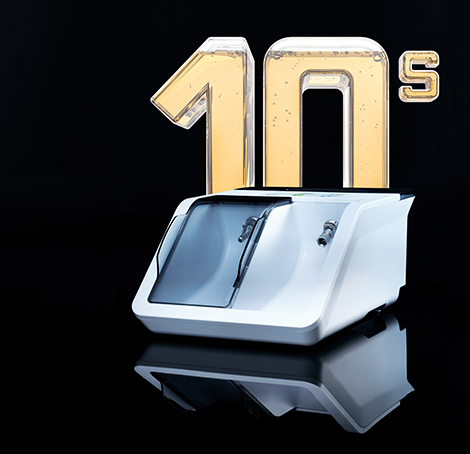

4 チャンバー1からインスツルメントを取り出し、手順1と2を繰り返します。記録的な注油時間
Assistina Twinを使用すれば、インスツルメントのメンテナンスがこれまでになくスピーディーに行えます。革新的なオイル噴霧化技術により、W&Hはメンテナンスプロセスをわずか10秒という記録的な速さへと短縮することに成功しました。その結果、スピーディーでありながら比類ない徹底メンテナンスが可能になりました。
画期的なシステム
オイルは高圧で噴射される前に微粒化され、これによりインスツルメント内部の汚れをより効果的に除去します。微細なミスト状のオイルが、ギアを動かすことなく全てのパーツに均一に行き渡り、確実に潤滑します。また、発生したエアロゾルはすべて、アクティブ吸引と内蔵HEPAフィルターによってプロセスチャンバー外へと確実に除去されます。
![]()
![]()
全ての施設にとって実践的
Assistina Twinは、歯科医院それぞれのニーズに合わせて柔軟に対応可能なメンテナンス装置です。短時間で完了する革新的な処理方式に加え、人間工学に基づいたデザインと豊富なアダプターのラインナップにより、最大1時間あたり360本のインスツルメントを処理することができます。

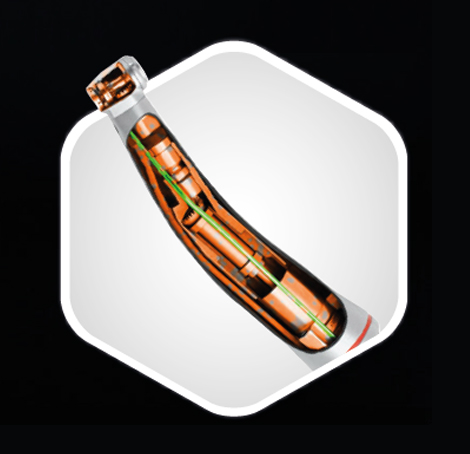

画期的な技術
革新的なオイル微粒化技術により、ギア部（オレンジ）のすみずみまで徹底的かつ包括的に注油され、スプレーチャンネル（グリーン）の洗浄も効果的に行われます。
![Assistina Twin]( "Assistina Twin")

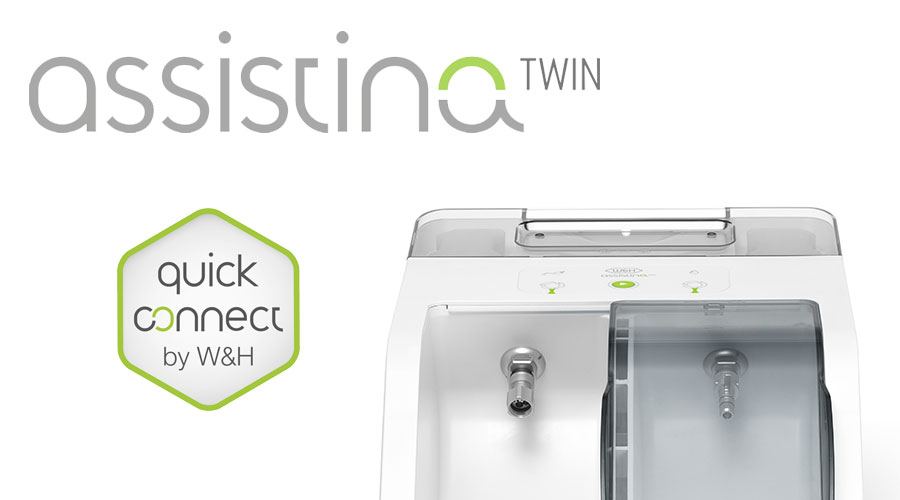

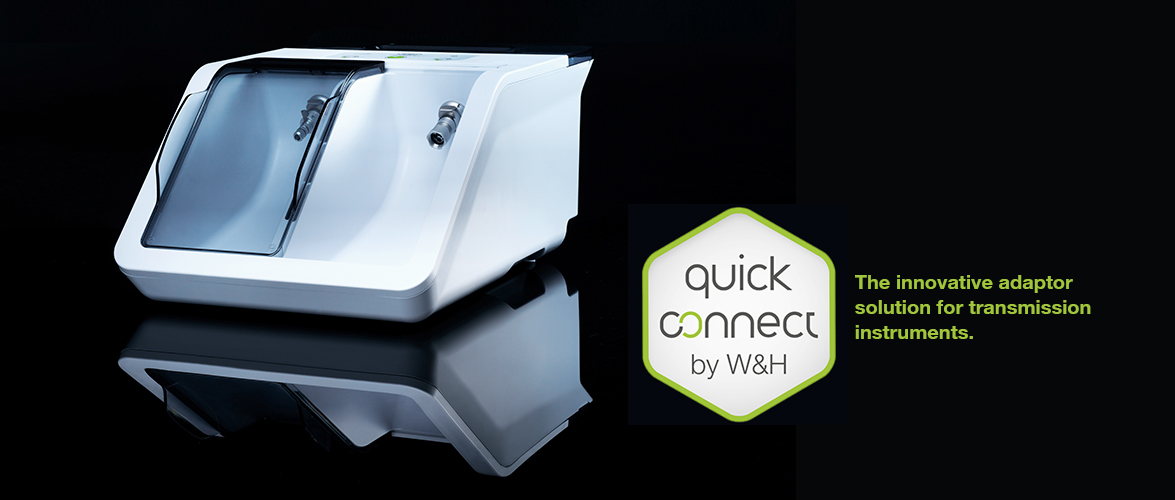

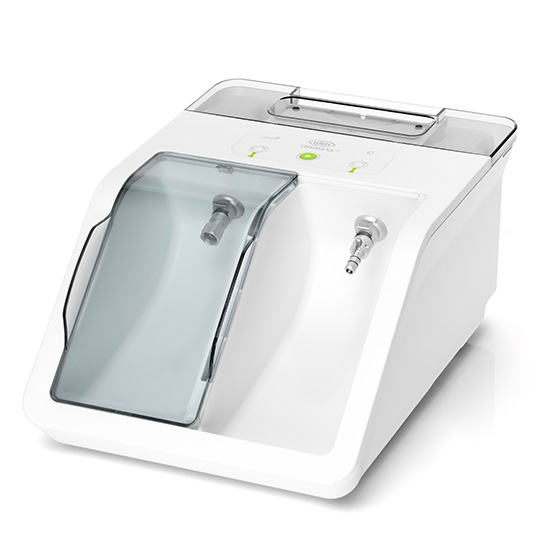

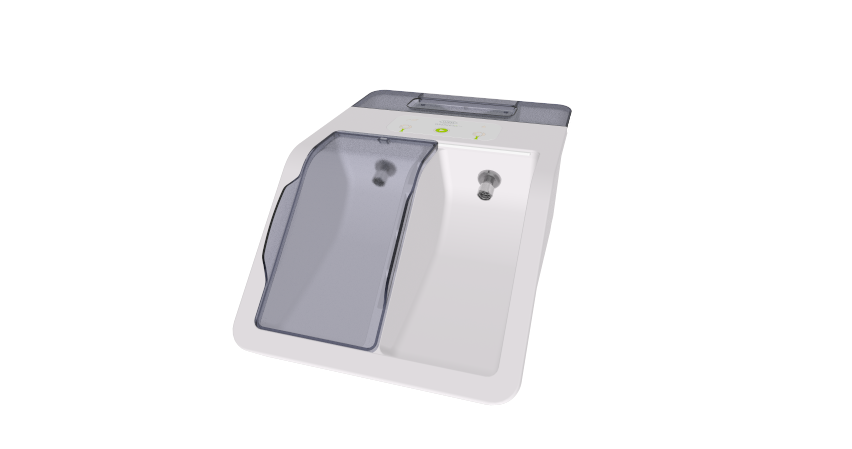

Quick Connect搭載Assistina Twin
Assistina Twin MB-302
REF 30310000Contains:
› Air hose (2 m)
› Power supply unit
› Twin Care Set
![Assistina Twin]( "Assistina Twin")

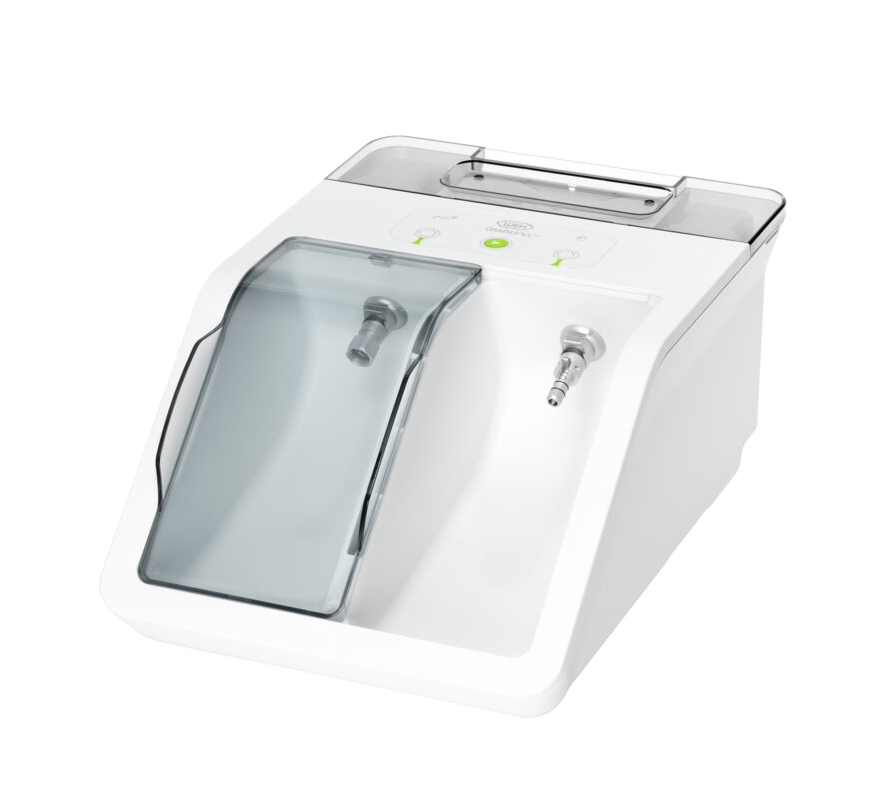

Quick Connect 搭載Assistina Twin
(including two connectors)
Assistina Twin MB302 + 2 Quick connectors ISO
REF 30310001Contains:
› Air hose (2 m)
› Power supply unit
› Twin Care Set
› 2 Quick connectors ISOAssistina Twin MB302 + 2 Quick connectors RM
REF 30310002Contains:
› Air hose (2 m)
› Power supply unit
› Twin Care Set
› 2 Quick connectors RMAssistina Twin MB302 + 1 Quick connector ISO + 1 Quick connector RM
REF 30310003Contains:
› Air hose (2 m)
› Power supply unit
› Twin Care Set
› 1 Quick connector ISO
› 1 Quick connector RM受賞！
![]()
Assistina Twinは、2019年にGerman Design AwardおよびGood Design Awardを受賞し、2020年を代表する製品革新として位置づけられました。製品およびコミュニケーションデザインの卓越性が評価され、国際的なデザインシーンにおいて象徴的な存在とされています。
Download Area
FAQ
-
What instrument adaptors are available for the Assistina TWIN?
All adaptors that are suitable for the Assistina 3x2/3x3 can also be used in the Assistina TWIN. There is only one exception: the RM/ISO adaptor for the Assistina 3x2/3x3 is not compatible with the Assistina TWIN. Quick Connect adaptors ISO and RM can be used for the Assistina TWIN instead. An overview of all adaptors is available on the product website. more
-
Why does the Assistina TWIN have a HEPA filter?
During the maintenance process in the Assistina TWIN, the rotating parts are lubricated with oil and the spray channels rinsed with cleaning solution. These liquids are introduced to the handpieces using compressed air, which produces aerosols that may contain potentially contaminated body fluids (e.g. blood and saliva). In order to ensure that the apparatus poses no risk to the user, the patient or third parties, the law stipulates that aerosols must be prevented from leaking out of the apparatus. We make sure of this by using active suction and the HEPA filter. This HEPA filter must of course be changed regularly, which is why the lifespan of the filter is matched exactly to the capacity of the two cartridges. The HEPA filter therefore reaches the end of its service life once one set of cartridges has been used. more
-
What does HEPA mean, and what is filtered out of the air?
HEPA is short for 'High Efficiency Particular Air', and the filter is classified as HEPA class E11. This means that the filter retains all particles larger than 1 µm, which includes, among other things, a wide range of bacteria and viruses, suspended particles such as dust and respirable aerosols. more
-
How does the user know when the TWIN Care Set needs to be replaced?
The intelligent process monitoring system documents the number of maintenance cycles that have been performed, thereby automatically calculating the number of instruments that can be serviced with the remaining quantity of fluid. The user receives an alert 300 cycles before the cartridge needs replacing (the oil and cleaner LEDs on the top of the unit turn yellow in colour). more
-
How often does the TWIN Care Set need to be replaced?
The consumption volumes for each instrument are 0.07 ml of oil and 0.07 ml of cleaning solution. This gives a maximum capacity of 2857 cycles. In reality, the value is around 2800 to 2850 cycles, as initial filling is also required and the fill quantity of the cartridges is subject to certain tolerances that are regulated by the applicable standards. more
-
How do you replace the TWIN Care Set?
The two cartridges and the filter can be changed easily without any tools. As with the Assistina 3x2/3x3, the fluid is supplied via tapping needles in the bottom of the cartridge spaces that penetrate the cartridge membrane, thereby drawing the fluid out of the cartridge. The two cartridges have different shapes to ensure that the two fluid types cannot be mixed up. In addition, it is only possible to install the HEPA filter incorrectly by using force, which is not necessary. more
-
Why is there no rotational lubrication option in the Assistina TWIN?
The oil is atomized in the Assistina TWIN before it is enters the instrument. This ensures full coverage of the gear parts, eliminating the need for technically complex and time-consuming rotational lubrication. However, there is no negative impact on the maintenance quality: the results of a maintenance operation correspond to those achieved with the Assistina 301 Plus. more
Downloads
取扱説明書
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Videos & Tutorials
-
What instrument adaptors are available for the Assistina TWIN?
-
System overview adaptor
Assistina Twin (MB-302) with Quick Connect
Step 1: Select the handpiece type
- Straight and contra-angle handpieces: require Quick ISO adaptor
- Turbine handpieces: require Quick RM adaptor
Step 2: For brand specific connections
- For brand specific connections, like Roto Quick, select the right adaptor suitable for you.
MCA-QC-ISO adaptor Quick ISO
REF 06422600
MCA-ISO-HD adaptor for contra-angles with removable heads
REF 02679000
MCA-ISO-T1 adaptor for T1 CLASSIC from Sirona Dental Systems
REF 02691000
MCA-ISO-CK adaptor for FG chuck system (W&H, Sirona Dental Systems)
REF 02693000
MCA-ISO-PL adaptor for W&H handpiece and contra-angle head
REF 05204600
Adaptor Quick RM
REF 06395100
W&H turbines, air scaler and air motors with Roto Quick system
REF 02690400
for T1, T2, T3 from Sirona Dental Systems
REF 02692000
for turbines with Multiflex connection (Kaltenbach & Voigt)
REF 04713200
for turbines with Borden 2(3)-hole connection
REF 02083500
- Straight and contra-angle handpieces: require Quick ISO adaptor
-
テクニカルデータ
機種： MB-302 Assistina Twin 工程： スプレー回路の洗浄および注油 対象： ストレート・コントラアングルハンドピース、タービン、
エアスケーラー、エアモーター電源電圧： 100 – 240 V AC 最大消費電力： 18 VA 空気消費量： 約 40 Nl/min. 作動圧力： 5 – 10 bar
（内蔵の自動圧力コントローラーにより制御）寸法 (W x D x H): 297 x 435 x 190 mm 重さ： 3.5 kg 容量： W&HActivefluid洗浄剤 200 ml
W&HサービスオイルF1 200 ml
