Versatile, precise and practical

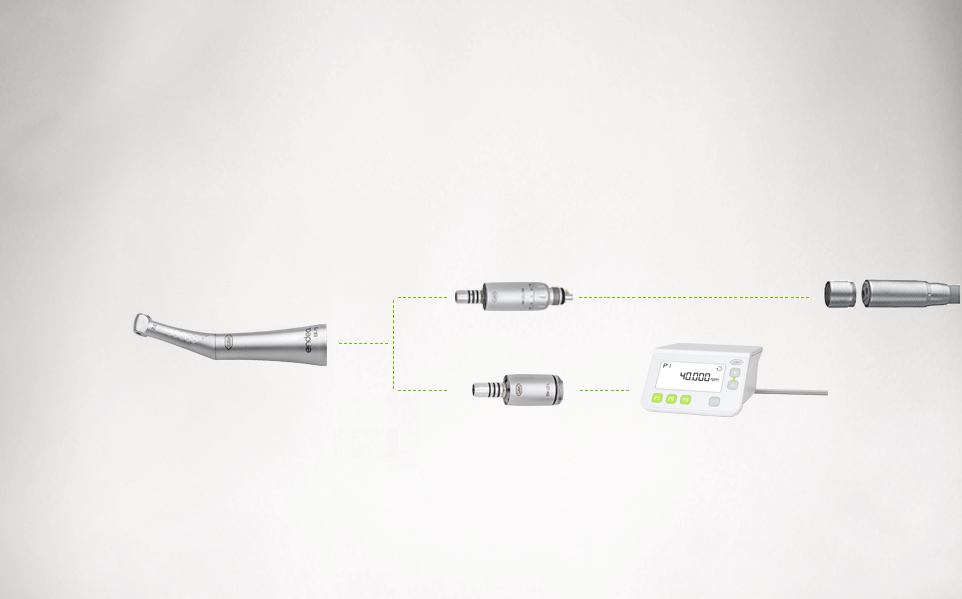

Whether using an electric, an air or a torque-controlled motor, the Endea contra-angle EB-75 (16:1) enables all commercially available files to reach the required speeds.
Your advantages at a glance
- Small head for best possible access to the treatment site
- Hygienically perfect, easy to use with non-slip handle
- Fully ball bearing mounted for precise transmission of speed to the file
- Thermo washer disinfectable and sterilizable

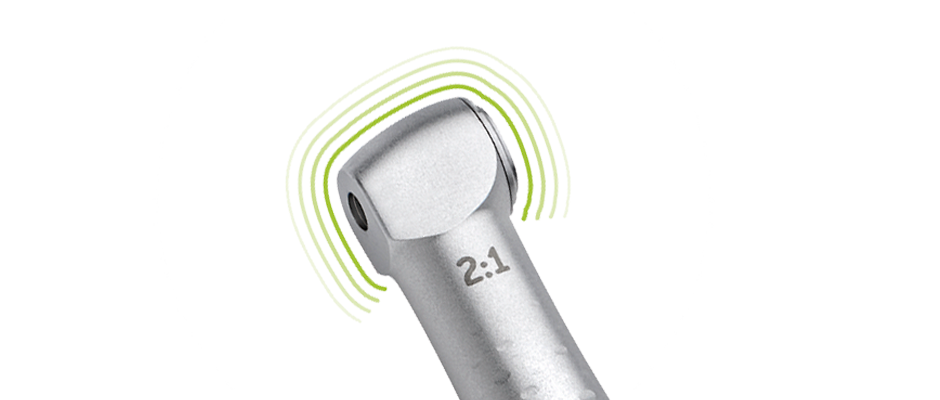

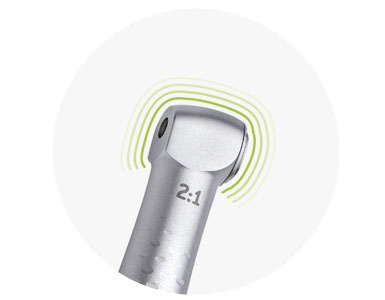

Extremely small headExtremely small head
Endea, with its extremely small head, offers even better access to the treatment site.
Head size diameter: 8.3 mm
Head height: 9.3 mm

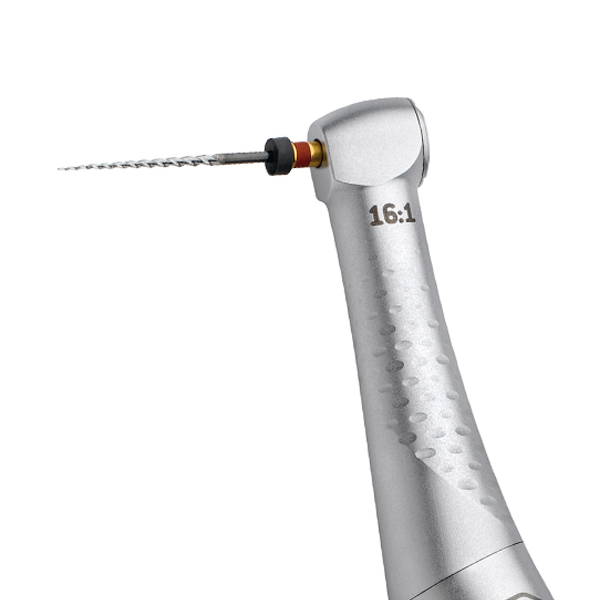

Shortened file shafts
The shortened file shafts reduce the overall working height and simplify access, particularly to the posterior region of the oral cavity.

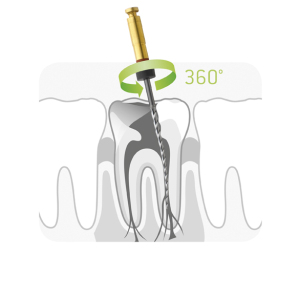

Nickel-titanium filesRoot canal preparation
Precise, fast and efficient preparation of the root canal with 360° rotation.
![Endea Contra-angles]( "Endea Contra-angles")

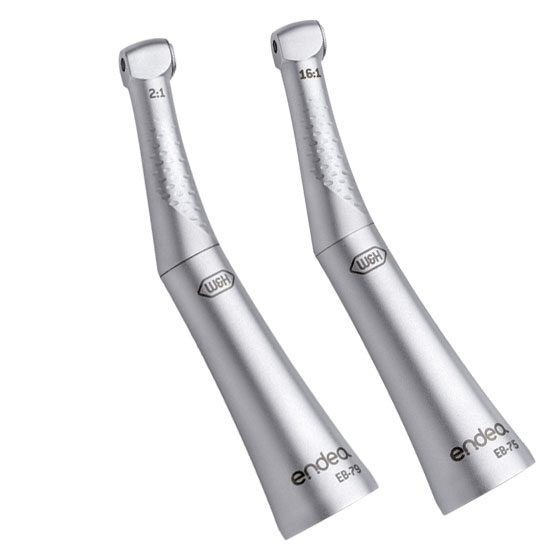

Endea*
Coupling system: Motors with ISO connection according to ISO 3964 (DIN 13.940)
Connection diameter: 20 mmEB-75
REF 12227501Contra-angle 16:1,
for motor speed up to 5,000 min-1,
shaft diameter 2.35 mm (type 1)
according to EN ISO 1797-1:1995EB-79
REF 12227901Contra-angle 2:1,
for motor speed up to 600 min-1,
shaft diameter 2.35 mm (type 1)
according to EN ISO 1797-1:1995* Recommended root canal instruments according to EN ISO 1797-1:1995:
Nickel-titanium files, suitable for 360° rotation, shaft diameter 2.35 mm (type 1)Download Område
Brugermanual
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Video lektioner
Download
-
Endea
Type: EB-75 EB-79 Transmission ratio: 16:1 2:1 Recommended root canal instrument´s
according to EN ISO 1797-1:1995:Nickel-titanium files, suitable for 360° rotation,
shaft diameter 2.35 mm (type 1)Connection diameter: 20 mm Coupling system: Motors with ISO connection according to ISO 3964 (DIN 13.940)
