Surgical Handpieces with mini LED+
Working in daylight quality
Excellent lighting conditions facilitate accurate diagnoses and perfect treatment results. The surgical handpieces with mini LED+ produce LED light independently. An integral generator supplies the LED in the handpieces with power.
Your advantages at a glance
- Natural reproduction of red tones
- Independent power supply with integrated generator
- Fatigue-free working thanks to optimal ergonomics
- Durable and robust due to high-quality stainless steel and scratch-resistant coating
- Can be dismantled for thorough cleaning
- Thermo washer disinfectable and sterilizable

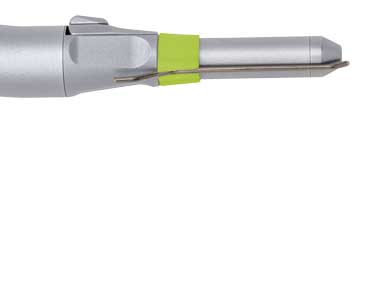

Fatigue-free working thanks to optimal ergonomicsFatigue-free operation
The new ergonomic design is perfectly coordinated to all the application possibilities and prevents fatigue.

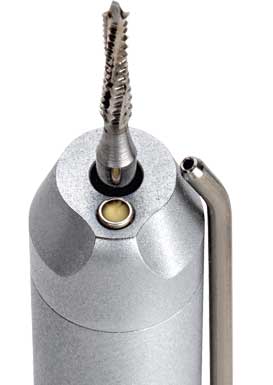

Perfect light due to mini LED+Optimal illumination
Thanks to its being half the size of a normal LED, the mini LED+ can be integrated very close to the tip and offers optimal illumination. With their neutral white light our LED provide a superior light source. This allows you to have daylight quality light in the treatment area whether you have an optic or non-optic drive system.

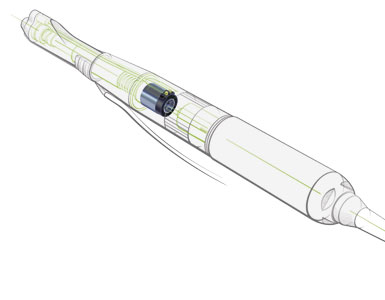

Independent power supplyIndependent power supply
As soon as you activate your handpiece, the generator turns. It autonomously generates the electricity needed for the mini LED+
regardless of the type of drive system you work with.
Scratch-resistant surfaceScratch-resistant surface
The unique coating protects the handpiece from scratches. This facilitates cleaning and preserves the value.
Perfect cleaningPerfect cleaning
To satisfy the stringent hygiene requirements, the handpieces can be dismantled.
High colour rendering index (CRI)Daylight quality
W&H handpieces with mini LED+ possess a high luminosity values, and thus also a great light output.
With a colour rendering index greater than 90, W&H handpieces with mini LED+ show natural-appearing red tones.

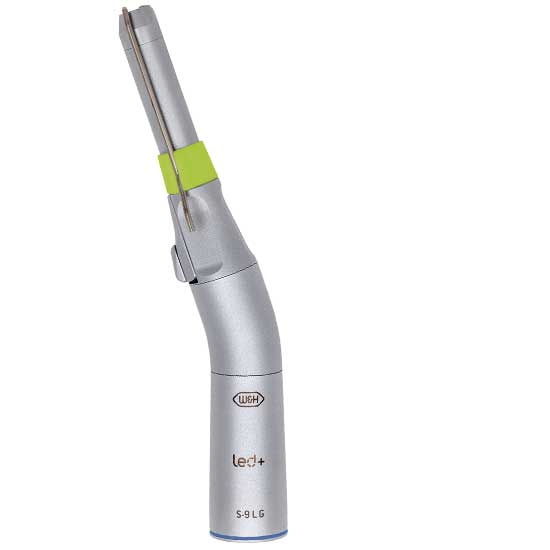

![Surgical Handpiece S-9 L G]( "Surgical Handpiece S-9 L G")
S-9 L G
Surgical Handpiece
with lever chuck, mini LED+ and generator
Coupling system: ISO 3964 (DIN 13940)S-9 L G
REF 300540001:1, angled, can be dismantled,
for surgical burs and cutters Ø 2.35 mm
(also Stryker system), L = max. 45 mm, external spray, maximum drive speed 40,000 min-1Indications
e.g.: apical resection, osteotomy,
apical trepanning, bone modelling
![Surgical Handpiece S-11 L G]( "Surgical Handpiece S-11 L G")

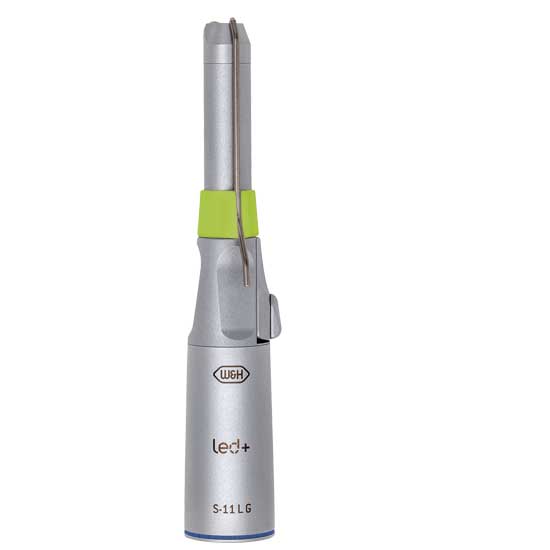

S-11 L G
Surgical Handpiece
with lever chuck, mini LED+ and generator
Coupling system: ISO 3964 (DIN 13940)S-11 L G
REF 300570001:1, straight, can be dismantled,
for surgical burs and cutters Ø 2.35 mm
(also Stryker system), L = max. 45 mm, external spray, maximum drive speed 40,000 min-1Indications
e.g.: apical resection, osteotomy,
apical trepanning, bone modellingSurgical handpiece with mini LED+ and W&H connection
![Surgical Handpiece]( "Surgical Handpiece")

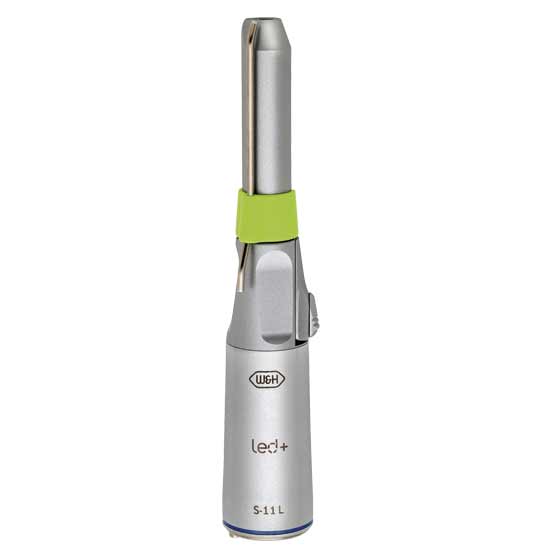

S-11 L
Surgical Handpiece
with lever chuck, mini LED+ and W&H connection
Coupling system: W&H EM-19 LC / EM-19S-11 L
REF 300580001:1, angled, can be dismantled,
only with EM-19/EM-19 LC
for surgical burs and cutters Ø 2.35 mm
(also Stryker system), L = max. 45 mm, external spray,
maximum drive speed 40,000 min-1Surgical Handpieces without light
Providing the best treatment
Surgical interventions represent a great challenge. To meet this challenge a number of surgical handpieces are required. Therefore W&H has developed a series of straight and angled handpieces for oral and maxillofacial surgery and implantology.
The main features at a glance
- Fatigue-free working thanks to optimal ergonomics
- Durable and robust due to high-quality stainless steel and scratch-resistant coating
- Wide range for all surgical applications
- Can be dismantled for thorough cleaning
- Thermo washer disinfectable and sterilizable
Fatigue-free working thanks to optimal ergonomicsFatigue-free operation
The new ergonomic design is perfectly coordinated to all the application possibilities and prevents fatigue.
Scratch-resistant surfaceScratch-resistant surface
The unique coating protects the handpiece from scratches. This facilitates cleaning and preserves the value.

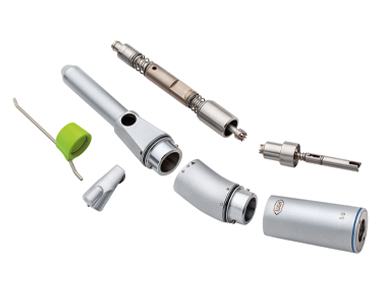

Can be dismantled without toolsEasy cleaning – Can be dismantled without tools
To enable thorough cleaning to be carried out, the handpieces can be easily and quickly dismantled and re-assembled – without the use of tools. Cleaning parts individually provides the most effective result.

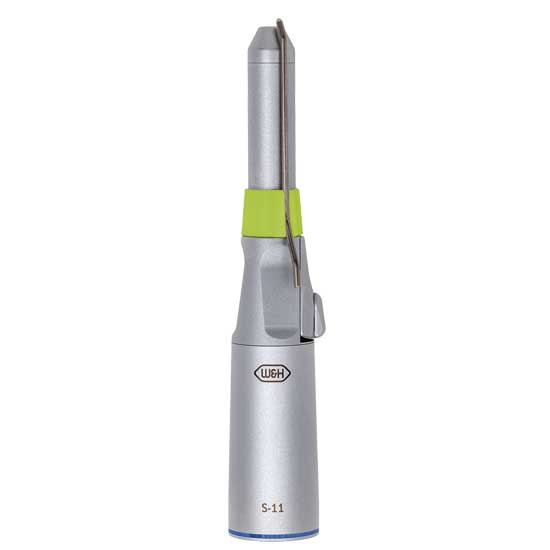

![Surgical Handpiece S-11]( "Surgical Handpiece S-11")
S-11
Surgical Handpiece
with lever chuck
Coupling system: ISO 3964 (DIN 13940)S-11
REF 300560001:1, straight, can be dismantled,
for surgical burs and cutters Ø 2.35 mm (also Stryker system), L = 45 mm,
external spray, maximum drive speed 50,000 min-1Indications
e.g.: apical resection, osteotomy,
apical trepanning, bone modelling

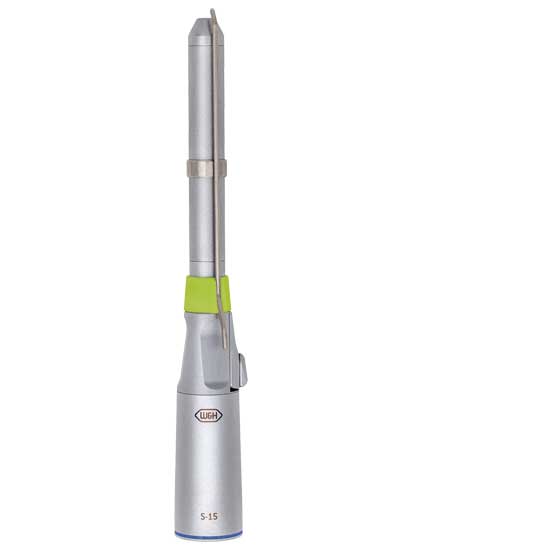

![Surgical Handpiece S-15]( "Surgical Handpiece S-15")
S-15
Surgical Handpiece
with lever chuck
Coupling system: ISO 3964 (DIN 13940)S-15
REF 300600001:1, straight, can be dismantled,
for surgical burs and cutters Ø 2.35 mm (also Stryker system), L = 45 mm,
external spray, maximum drive speed 30,000 min-1Indications
e.g.: osteotomy in difficult to access areas
![Surgical Handpiece S-9]( "Surgical Handpiece S-9")

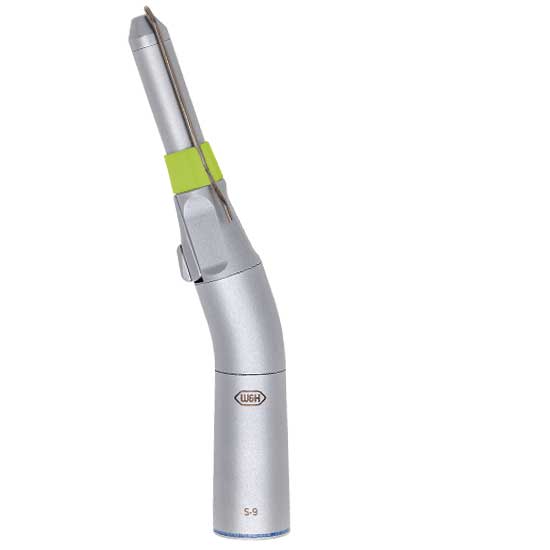

S-9
Surgical Handpiece
with lever chuck
Coupling system: ISO 3964 (DIN 13940)S-9
REF 300530001:1, angled, can be dismantled,
for surgical burs and cutters Ø 2.35 mm (also Stryker system), L = 45 mm,
external spray, maximum drive speed 50,000 min-1Indications
e.g.: apical resection, osteotomy,
apical trepanning, bone modelling

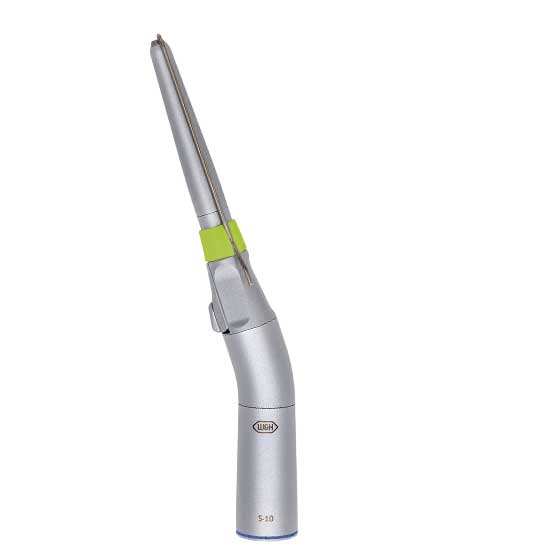

![Surgical Handpiece S-10]( "Surgical Handpiece S-10")
S-10
Surgical Handpiece
with lever chuck
Coupling system: ISO 3964 (DIN 13940)S-10
REF 300590001:1, angled, can be dismantled,
for surgical burs and cutters Ø 2.35 mm,
L = 70 mm, external spray,
maximum drive speed 50,000 min-1Indications
e.g.: osteotomy, fenestration,
osteosynthesis in distal areas

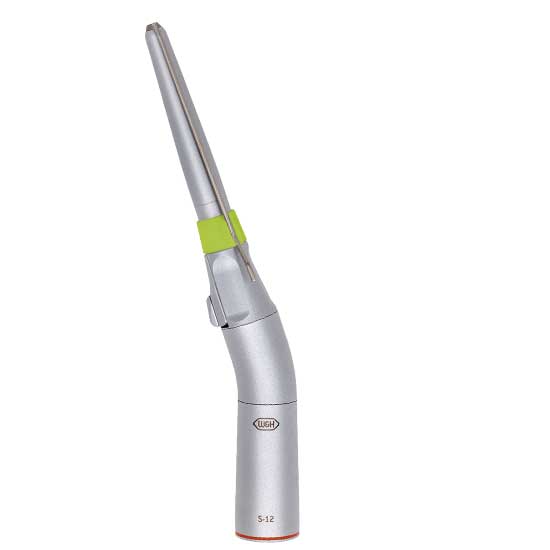

![Surgical Handpiece S-12]( "Surgical Handpiece S-12")
S-12
Surgical Handpiece
with lever chuck
Coupling system: ISO 3964 (DIN 13940)S-12
REF 300610001:2, angled, can be dismantled,
for surgical burs and cutters Ø 2.35 mm,
L = 70 mm, external spray,
maximum drive speed 40,000 min-1Indications
e.g.: osteotomy, fenestration,
osteosynthesis in distal areas
![Surgical Handpiece S-16]( "Surgical Handpiece S-16")

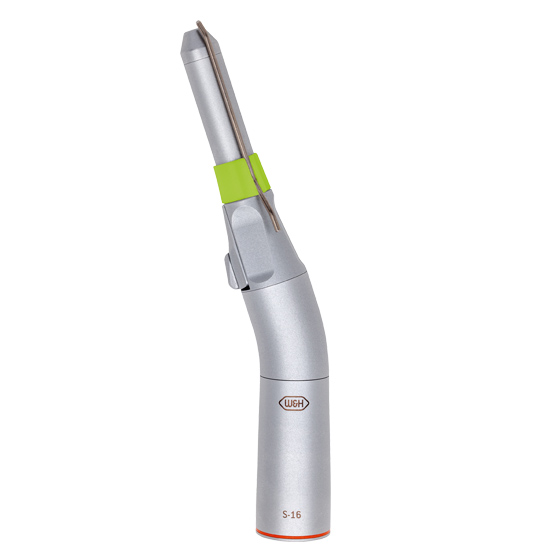

S-16
Surgical Handpiece
with lever chuck
Coupling system: ISO 3964 (DIN 13940)S-16
REF 304110001:2, angled, can be dismantled,
for surgical burs and cutters Ø 2.35 mm,
L = 45 mm, external spray,
maximum drive speed 40,000 min-1e.g.: premolar and molar are
Download Område
FAQ
- Can LED instruments with generator be sterilized?
-
Which material is used at W&H surgical instruments?
Internal and external parts are of high quality stainless steel (including the contra-angle handpiece head). mere
-
What is the minimum shaft lenght of the bur for the S-11?
The shaft of the bur should be at least 44mm long (ISO-shaft 104). mere
-
What is the minimum shaft lenght of the bur for the S-12?
The shaft of the bur should be at least 53mm long. mere
- How to dismantle the handpiece
-
Can my W&H handpiece be processed via sterilizer?
Yes, providing that your W&H handpiece carries the relevant sterilization symbol.
mere
-
Can current contra-angles be attached to motors?
Yes. All W&H surgical contra-angles and handpieces can be attached to the motor EM-19. mere
-
Can the contra-angles be attached to old motors?
No. In order to ensure optimal balance, we have shortened the inner coupling length. Therefore, contra-angle handpieces with only the “L” suffix cannot be attached to older motors, but only to EM-19 and EM-19 LC. mere
-
Can our customers disassemble the contra-angles
Yes. At W&H the letter "S" always communicates, that the surgical contra-angle is disassemble. The letter "I" communicates, that the surgical contra-angle cannot be disassembled (e.g. WS-75 L vs. WI-75) mere
Brugermanual
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Video lektioner
Download
-

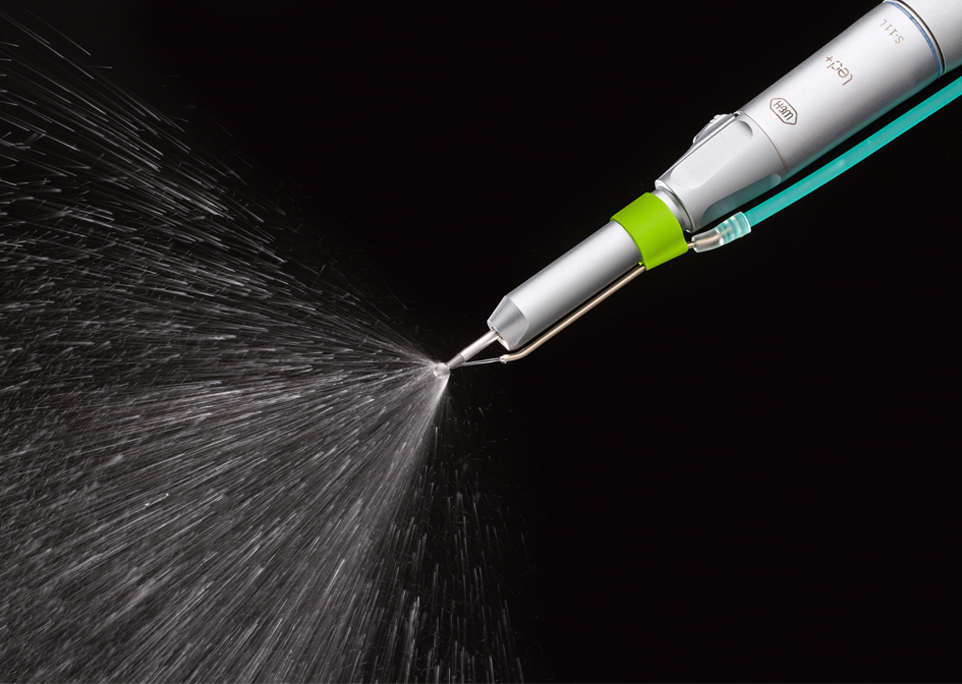

Surgical straight handpiece with mini LED+ and W&H connection
Type: S-11 L Transmission ratio: 1:1 Coupling system: W&H EM-19 LC / EM-19 Lighting system: mini LED+ Spray: external Chucking system: lever chuck Rotary instruments: for surgical burs and cutters
Ø 2.35 mm (also Stryker system)Maximum length: 45 mm Maximum drive speed: 50,000 min -1 Can be dismantled: yes Surgical handpieces with mini LED+ and generator
Type: S-9 L G S-11 L G Transmission ratio: 1:1 Coupling system: ISO 3964 Lighting system: mini LED+ Power supply: via independent generator Light quality: daylight Spray: external Chucking system: lever chuck Rotary instruments: for surgical burs and cutters
Ø 2.35 mm (also Stryker system)Maximum length: 45 mm Maximum drive speed: 40,000 min -1 Can be dismantled: yes Surgical handpieces without light
Type: S-9 S-11 S-15 S-10 S-12 Transmission ratio: 1:1 1:1 1:1 1:1 1:2 Coupling system: ISO 3964 Spray: external Chucking system: lever chuck Rotary instruments: for surgical burs and cutters
Ø 2.35 mm (also Stryker system)for surgical burs and cutters
Ø 2.35 mmMaximum 45 mm 70 mm Maximum drive speed: 50,000 min -1 50,000 min -1 30,000 min -1 50,000 min -1 40,000 min -1 Can be dismantled: yes yes
.
