Elcomed

There is no room for compromise during the surgical procedure. Elcomed is clearly number 1 in the operating theatre.
PD Dr Jörg Neugebauer, dentist specializing in oral surgery

Number 1 in the operating theatre

In addition to the expert knowledge of the surgeon, the drive unit is also a pivotal factor in the success of a surgical procedure.

Oral kirurgi & Implantologi

Oral kirurgi & Implantologi

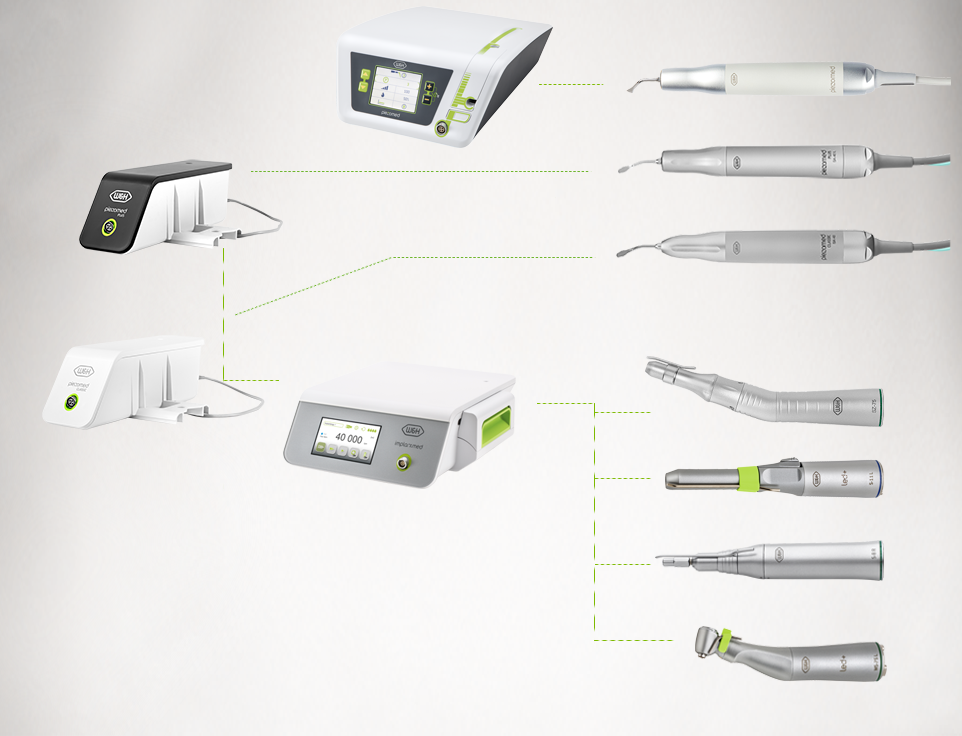

Systemoversigt

  • Elcomed

    Logical integration of ease of use

    Just one operating stage for setting all necessary parameters. The six most important recurring operational procedures can be saved as individual programmes.

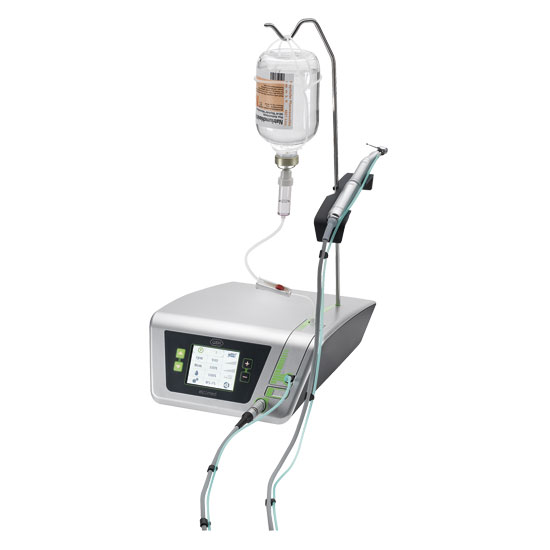

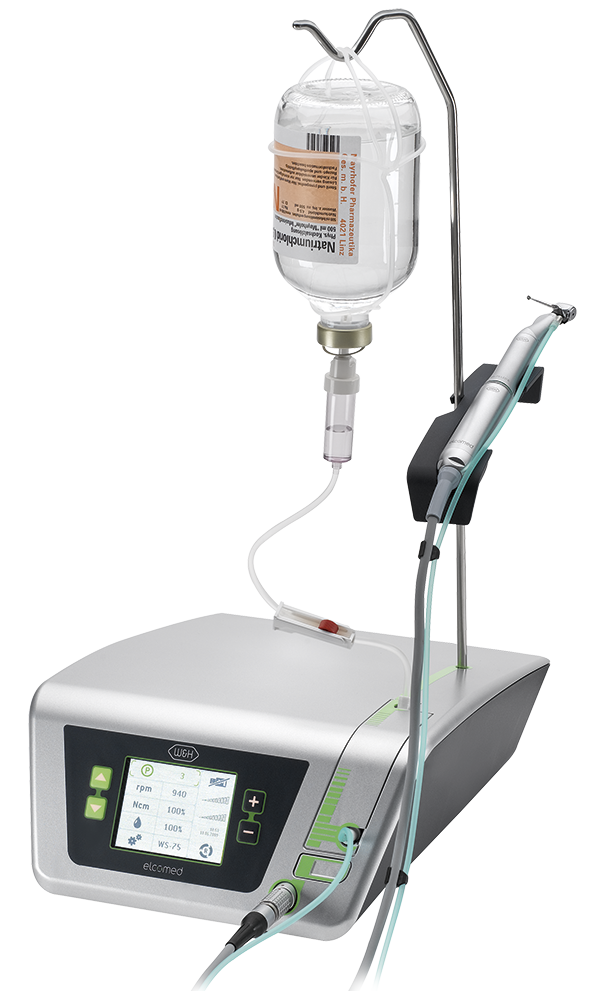

    Elcomed from W&H is a high-quality innovative solution for maxillofacial surgery, dental surgery and implantology.

    Your advantages at a glance

    • All information in one user level
    • Complete documentation via USB flash drive
    • Shortest and lightest motor with 50,000 rpm
    • Up to 80 Ncm on the rotary instrument
    • 6 programs with individually adjustable parameters
    • Automatic thread cutter function
    • Motor with cable, thermo washer disinfectable and sterilizable

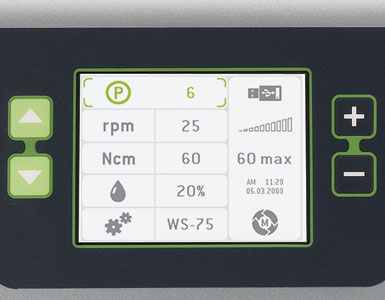

    Everything at a glance

    One display, thousands of possibilities

    //a.storyblok.com/f/45617/1213e5b2f7/elcomed-display_overlay.jpg
    Elcomed makes complicated processes as simple as possible. All necessary parameters can be set very easily using just one operating stage. In addition to revolutions per minute and torque, the supply of liquid can also easily be adjusted during use. Six programs for the most frequent recurring operational procedures can be saved at the first start-up.

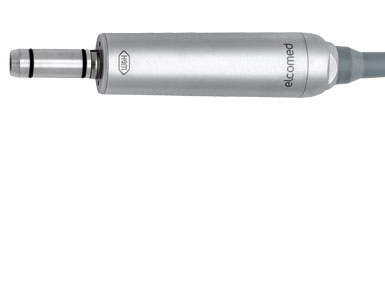

    An amazing motor

    An amazing motor

    //a.storyblok.com/f/45617/1c235134f1/elcomed-motor_overlay.jpg
    Shortest and lightest motor with 50,000 revolutions per minute. Can be used with all instruments that have an ISO connection.

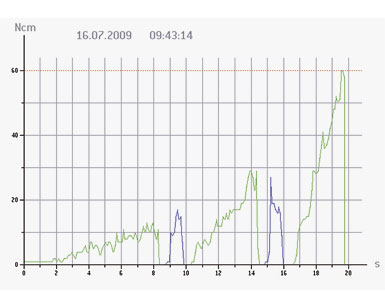

    Complete documentation

    Complete documentation

    //a.storyblok.com/f/45617/5faa0cb11b/elcomed-torque-recording_overlay.jpg
    If desired, the Elcomed can document every step in the application. The data is accessible at any time. The data are saved as bitmap and csv file on the USB flash drive included in the delivery, ready to be imported into standard analysis programs. In this way, they can easily be accessed at any time and at no additional cost.

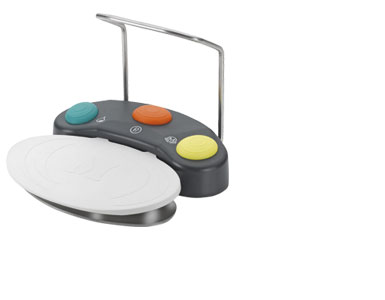

    Convenient foot control

    Foot control S-N1

    With program switching, activation and deactivation of the coolant pump, clockwise / anticlockwise rotation, On-Off function and infinitely variable speed control of the motor up to the preselected maximum speed. The multifunctional foot control allows sterile working and optimum freedom for your hands.
    //a.storyblok.com/f/45617/78a2d9a327/elcomed-foot-control_overlay.jpg
    Automatic thread cutter function

    Automatic thread cutter function

    //a.storyblok.com/f/45617/cc450ae6b1/elcomed-thread-cutter-function_overlay.jpg
    The automatic thread cutter function for thread cuts:
    > Minimizes the compression of the bone and therefore promotes stress-free healing of the implant.
    > Prevents excessive bone compression while screwing in the implant.

    Elcomed with documentation function

    consists of: control unit, foot control S-N1,
    motor with 1.8 or 3.5 m cable and clips,
    irrigation tubing set, mains cable,
    motor support, stand, locking pins,
    USB flash drive

    SA-310
    REF 15933100

    Motor with 1.8 m cable

    SA-310
    REF 15933101

    Motor with 3.5 m cable

    Elcomed without documentation function

    consists of: control unit, foot control S-N1,
    motor with 1.8 or 3.5 m cable and clips,
    irrigation tubing set, mains cable,
    motor support, stand, locking pins

    SA-310
    REF 15933102

    Motor with 1.8 m cable

    SA-310
    REF 15933103

    Motor with 3.5 m cable



    Download Område

  • Elcomed

    Typ: SA-310
    Max. torque at the rotary instrument*: 80 Ncm
    Documentation**: yes / USB
    Mains voltage: 100 – 130 V or 220 – 240 V, 50 / 60 Hz
    Max. mechanical output power: 100 W
    Max. torque at the motor: 7 Ncm
    Motor speed range in the nominal voltage: 300 min -1  – max. 50,000 min -1 ,
    safety stop at 40,000 min -1
    Intended transmission instruments: ISO connection 3964 (DIN 13.940)
    Length of motor cable: 1.8 m or 3.5 m
    Coolant flow rate at 100 %: at least 90 ml/min
    Foot control: yes
    Heigth / width / depth: 109 x 256 x 305 mm

      * Adjustment with WS-75 and WI-75
     ** Also available without documentation function
