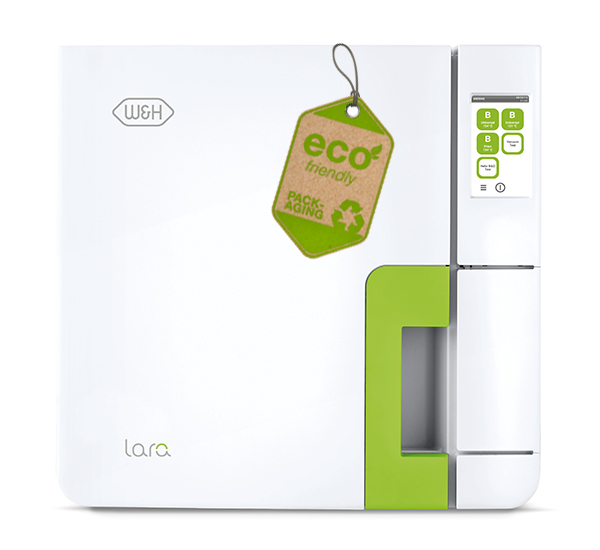

New Lara Sterilizers
Ready for the future
You don’t need to be a lover of design to appreciate the new Lara sterilizers. Their smooth surfaces are comfortable to the touch, the instruments are easy to load and the flat colour screen displays allow you to navigate through the intelligent menu structure quickly and with ease.

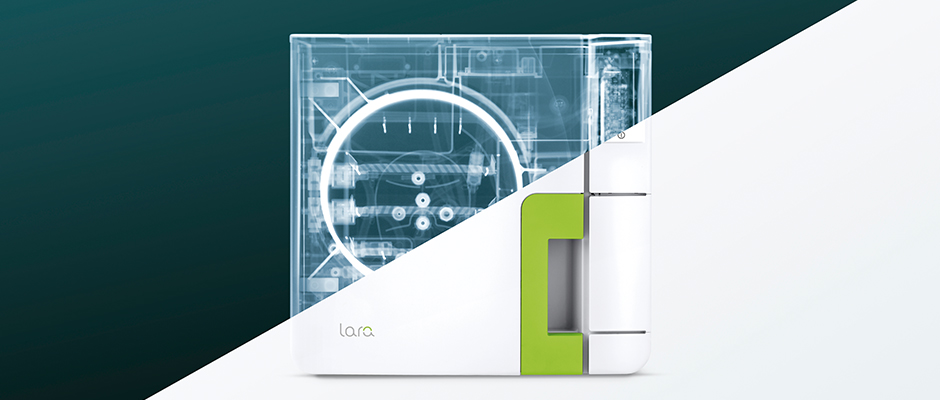

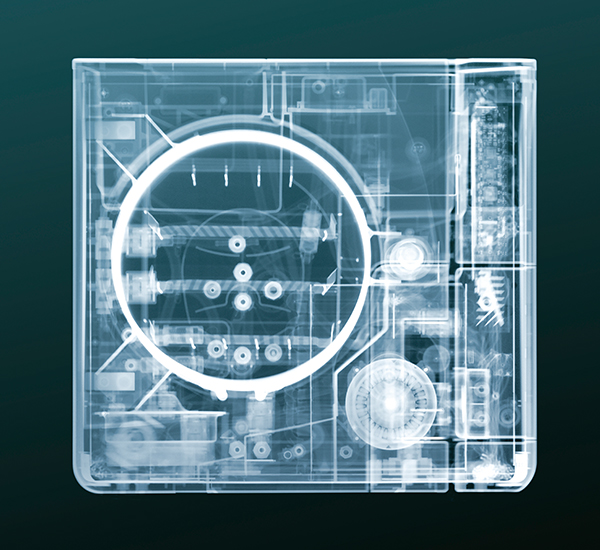

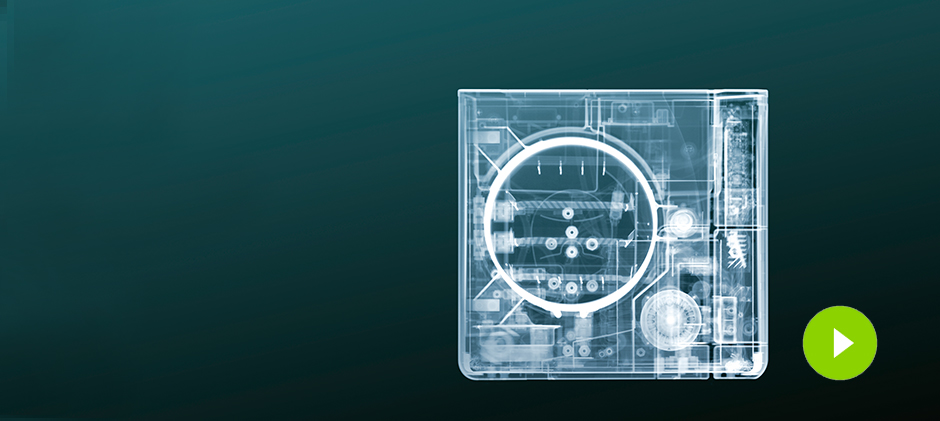

Discover the new W&H Lara sterilizers down to the smallest detail. So many components, perfectly arranged to offer you complete satisfaction by simplifying the sterilization process while providing you with comprehensive documentation. Unique upgradeability allows you to customise your new Lara sterilizer with your personal needs and to comply with regulatory requirements.
Fastest in its segement
- Fastest B cycle in its segment
- Unique upgradeability thanks to Activation Codes
- Colour touch display for easy navigation
- Automatic cycle record via high capacity USB stick
- Optional high end label and cycle report printer
- Ergonomics and functional design
- Ideal dimensions to integrate and operate
Even with the basic equipment, the new Lara sterilizers offer you the fastest B cycle in their performance segment.Upgradeable
Customize your sterilizer simply by using the new Activation Code system for even higher speed and comprehensive documentation.
Discover simple operation & reliable traceability
The Lara colour touch screen has been selected and designed to make your daily work easier, faster and more efficient. Lara also offers a comprehensive traceability system customized to your needs.
Easy to use
Easy to use
The intelligent menu structure of the new Lara sterilizers ensures extraordinarily high operating comfort: you can browse to the preset programmes quickly and intuitively using the large colour touchscreen.
High capacity data logger
An high capacity USB drive automatically records the cycle reports throughout Lara’s entire service life. Optionally available: the Lara label and cycle report printer with which you can document the traceability without an additional computer or separate software.
You can also acquire additional features such as user identification with Activation Codes: the user who has loaded/unloaded the sterilizer can be digitally recorded. Users are identified by a 6-digit PIN.
Load release confirmation
Load release confirmation
Also available as an upgrade: the approval confirmation. This option digitally records the name of the end user and their confirmation of the successful sterilization and/or test cycle.

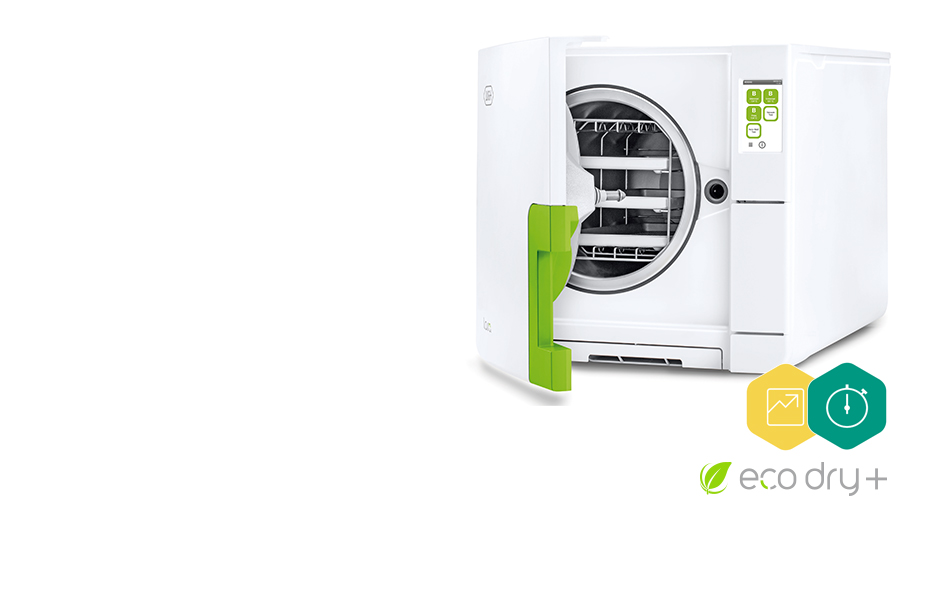

Even faster cycle times by upgrading to Eco Dry +, which automatically adapts the drying time to the mass of the load. This saves time and energy.Fast Cycle
The quick cycle for in-between: the Fast Cycle allows sterilization of unpackaged, semi-critical instruments in just 20 minutes.

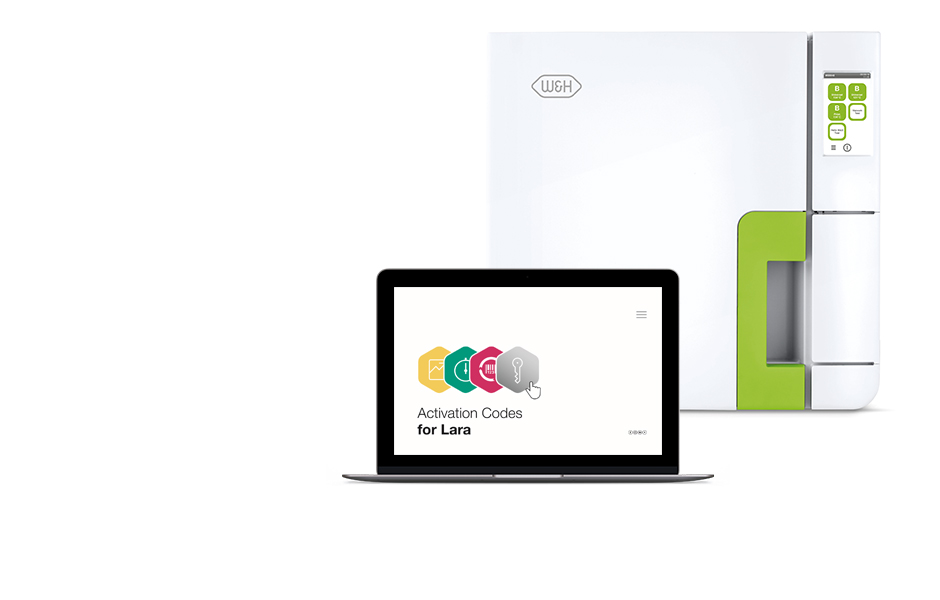

Six steps to your customized sterilizer:
- Purchase Activation Code of your choice from your local approved dental supplier.
- After receiving the related login code go to activation.wh.com
- You specify this code along with the serial number and model of your sterilizer.
- Your individual, secure Activation Code is generated.
- Enter this code in the menu of your Lara sterilizer.
- The feature is available.
Extends service life
Automatic adjustment of the drying time depending on the load reduces the heat exposure time. This extends the service life of your instruments.
Reprocessing in less than 23 minutes!Wipe disinfection in
Disinfect your instruments before cleaning and servicing by wiping them.Maintenance in
The Assistina Twin reduces the maintenance process to a record time of 10 seconds.
supplied with reversible rack, 3 aluminium trays, drain tube, tray holder, 8 GB USB drive, door opening tool, factory test
Chamber size 17 litre
Chamber size 22 litre
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Lara sterilization cycles
Sterilization cycle B-Universal 134 B-Prion 134 B-Universal 121
S Fast 134
Temperature: 134°C 134°C 121°C 134°C Holding time (minutes): 4 18.5 20.5 3.5 Total cycle duration
37 to 39
52 to 54
Lara 17Automatic from25 to 51 37Automatic from40 to 65 52 41 to 73 20 to 22 Lara 22Automatic from28 to 55 39Automatic from40 to 68 54 42 to 76 20 to 22Lara 17 loads:Lara 22 loads:maximum solid 4.5 kg/typical 2 kg/maximum porous 1.5 kgmaximum solid 5.5 kg/typical 2 kg/maximum porous 2 kgmax. unwrapped 2 kgmax. unwrapped 2 kg Lara 17/22 containers load: maximum 9 kg maximum 9 kg Test cycles: Helix/Bowie and Dick/Vacuum
Items supplied with reversible rack, 3 aluminium trays, drain tube, tray holder, 8 GB USB drive, door opening tool, factory test
Type RIL-117 RIL-122 Chamber size: 17 l 22 l Power supply: 200–240 V AC; 50/60 Hz; 10 A Power consumption: 2,0–2,4 kW Overall dimension
(w x h x d):
465 x 452 x 646 mm Weight (empty): 42.5 kg 44 kg Main/Used water tanks: 4.8/4.8 l Working range: 7 to 15 cycles Usable space in chamber
(w x h x d):
195 x 195 x 312 mm 195 x 195 x 400 mm Connection types: 2 USB ports (5 as option), integrated automatic water filling valve Lara sterilizers were designed, certified and validated with the most stringent directives and standards: 93/42/EEC Medical Device Directive 2014/68/EU Pressure Equipment Directive EN 13060 Small steam sterilizer IEC 61326-1 Electromagnetic compatibility IEC 61010-1 Safety requirements IEC 61010-2-040 Specific requirements for steam sterilizer IEC 61770 Electric appliances connected to the water mains
> The sterilizer can be validated according to EN ISO 17665-1
