Very easy to operate and use
To replace a consumed filter cartridge,open the locking handle.
Turn the locking handle as far as it will go, then press the rinse button to release the pressure and take the filter head off the consumed filter cartridge.
Once you have pulled off the protective cap, place the filter head vertically onto the new cartridge. Multidem is then ready to go again.

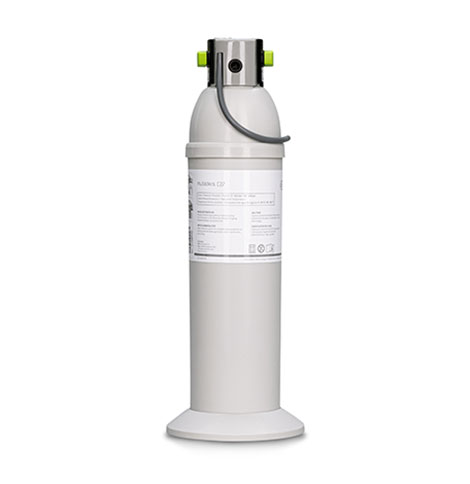

Your advantages at a glance
Suitable for use with conventional autoclaves and purification units
- Consumed filter cartridges can be replaced quickly and easily without tools.
- Multidem is suitable for use with many conventional autoclaves and purification units.
- The spray gun can also be used to fill the sterilizers manually with demineralized water.
- For Multidem no external power supply is required.
- The water demineralizer system delivers consistently high water quality thus preventing limescale deposits in the sterilizers.

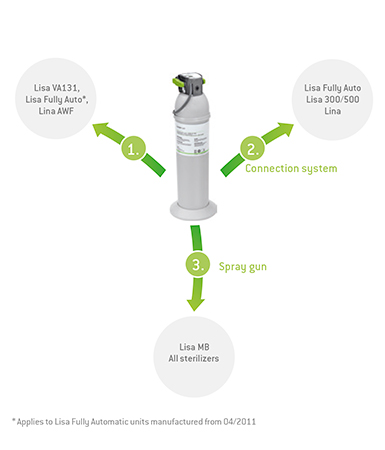

Multidem – Compatible with all units1. Direct connection
Multidem can be connected directly to Lisa Fully Automatic units and to all sterilizers with automatic water filling.
2. Via a connection system
The Lisa, Lisa 300 and 500 and Lina autoclaves can be connected to the Multidem unit using water supply connection kit   (SAT/water supply kit).

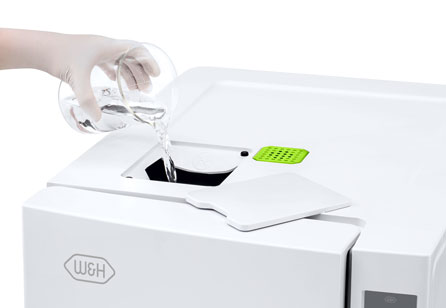

3. Manual filling
The Lisa MB sterilizer and all sterilizers without automatic water filling can be filled with the aid of the spray gun.The innovative locking handle on the filter head ensures fast and convenient filter replacement
Filter head – Very easy to operate and useThe innovative locking handle on the filter head ensures fast and convenient filter replacement without tools.
The integrated rinse button for releasing the pressure makes short work of pre-rinsing and venting.
consists of: filter head, cartridge with 2.7 kg,
tubes and connectors (incl. Water Block®)
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

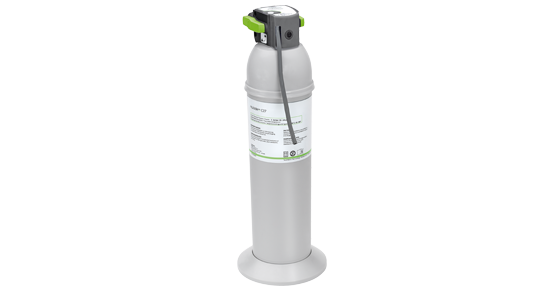

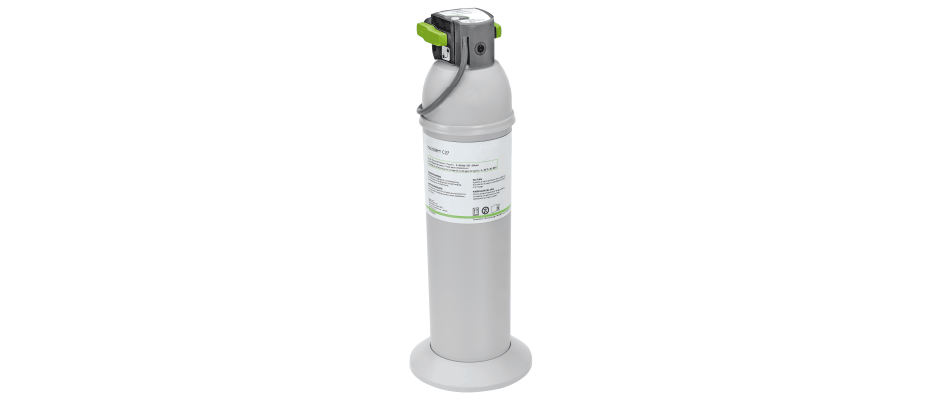

Type: Multidem C27 Operating pressure: 2 bar – 8.6 bar max. Water temperature (inlet): 4 – 30 °C / 40 – 86 °F Nominal flow rate: 60 l/h Water quality (out): demineralized (EN 13060) Water quality (in): drinking water Weight: 2.7 kg Width / depth / height: 124 / 123 / 476 mm Operating position: vertical Tube lengths: 2 x 3 m Safety valve: yes Backflow preventer: EB
