Proxeo Twist - LatchShort Polishing System

The new generation of rotary polishing

In modern dental treatment, the professional, mechanical removal of plaque and biofilm is an integral part of the prophylaxis. With Proxeo Twist, W&H offers a compact, easy to handle solution for everything you need, no matter whether it is cleaning, polishing or fluoridating!

Prophylaxis & Periodontology

Prophylaxis & Periodontology

System Overview

* Multiflex® is a trademark of a third party not affiliated with W&H Dentalwerk Bürmoos GmbH

Proxeo TWIST - LatchShort Polishing System

The new generation of rotary polishing.

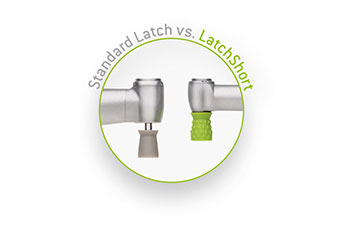

  • The new LatchShort Polishing System compared with the standard latch system

    Measurably more space

    More space for polishing with the shorter shaft.

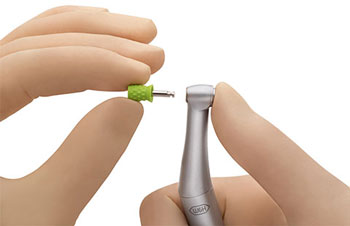

  • Change at the push of a button

    Change at the push of a button

    With the practical push-button chuck system, you can change the Prophy Cups in seconds.

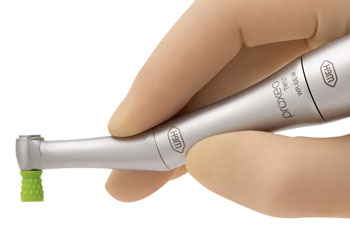

  • Proxeo TWIST LatchShort contra-angle handpiece

    Slim and flexible

    The contra-angle handpiece easily fits into the hand with its ergonomic design and slim neck.

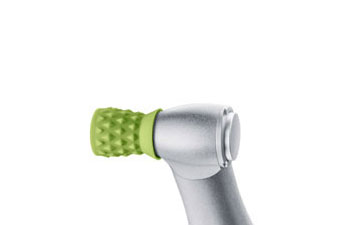

  • Perfect sealing

    Perfect sealing

    Saliva and polishing paste can no longer infiltrate the head so easily. This supports the long service life of the contra-angle handpiece.

  • 1 Small head
    The new LatchShort Polishing System compared with the standard latch system

    Measurably more space

    More space for polishing with the shorter shaft.

  • 2 Push-button
    Change at the push of a button

    Change at the push of a button

    With the practical push-button chuck system, you can change the Prophy Cups in seconds.

  • 3 slim neck
    Proxeo TWIST LatchShort contra-angle handpiece

    Slim and flexible

    The contra-angle handpiece easily fits into the hand with its ergonomic design and slim neck.

  • 4 Perfect sealing
    Perfect sealing

    Perfect sealing

    Saliva and polishing paste can no longer infiltrate the head so easily. This supports the long service life of the contra-angle handpiece.

    • Flexible. Efficient. Small.

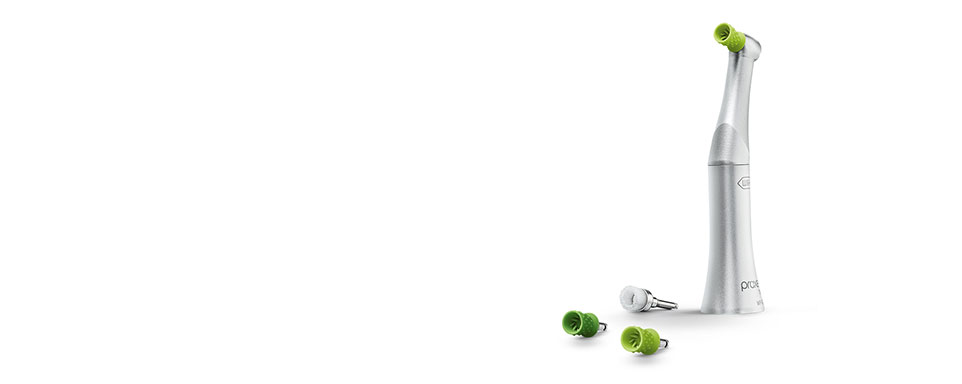

      The new Proxeo Twist LatchShort Polishing System
      with a working height that is up to 4 mm shorter
      thanks to the Proxeo Twist Prophy Cups and Brushes.

    • Standard Latch vs. LatchShort

    • Proxeo Twist by W&H

      Prophy for Professionals

      • Access all areas

        The molar region is more easily accessed from a distal to a mesial direction.

        Measurably more space (4 mm)
        More freedom of movement
        More space for polishing

      • See more

        Better view of the treatment site

        Smaller head.
        Thinner neck.
        Shorter cup.

      • Comfortable

        The easier the access the more comfortable the treatment

        More comfortable for patient and user.

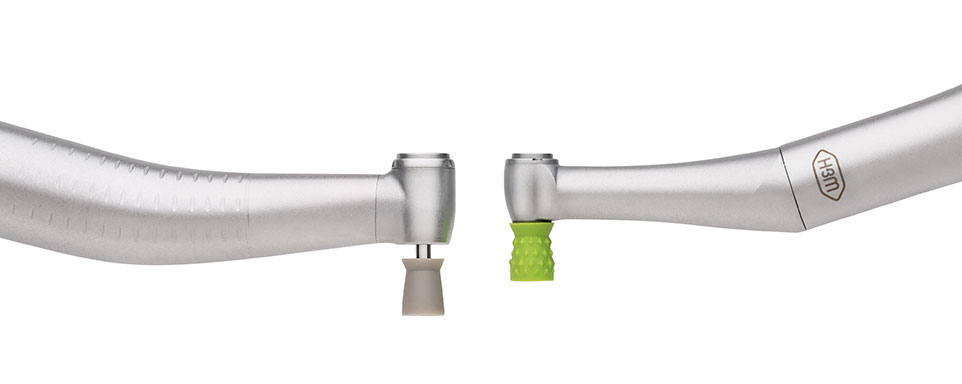

      The new LatchShort Polishing System compared with the standard latch system

      More space and better view

      The Proxeo Twist LatchShort Polishing System is a particularly smart solution for Prophy polishing: The small head with the optimally matched Prophy Cups significantly reduces the working height.

      You gain as much as four millimetres
      compared to standard latch systems.

      Main advantages at a glance

      • Optimum access thanks to lower working height
      • Better visibility thanks to the smaller head
      • Change at the push of a button
      • Long service life owing to sealing system
      • Ideal speed for gentle and efficient polishing/cleaning
      • Ease of maintenance and hygiene-friendly
      • Thermodisinfectable and sterilisable
      • Access all areas

        Access all areas

        The combination of the slender W&H Proxeo Twist LatchShort contra-angle handpiece with its small head and the Prophy Cups with a shorter shaft make access easy, particularly in narrow areas and to the posterior molars.

      • See more

        See more

        The smaller the head, the shorter the Cup and the thinner the neck, the better the view of the treatment site.

      • Comfortable

        Comfortable and simple

        The easier the access the more comfortable the treatment.

      • Inspired by Prophy

        Inspired by Prophy Professionals

        In addition to the Proxeo Twist contra-angle handpiece, W&H is now also offering Prophy Cups and Brushes. They were designed in consultation with Prophy users.

        Great emphasis was placed on features such as optimal adaptation, simple paste pickup and distribution as well as gentle cleaning up into the sulcus.

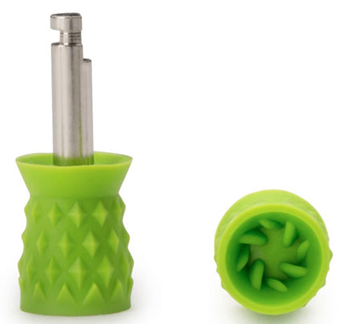

      • Prophy Cups

        Prophy Cups


        • Smooth surface at the end of the Cup
          for gentle polishing up into the sulcus..
        • Special nub shape
          designed to prevent the paste from spraying.
        • Special internal fins
          for easy pickup and targeted application of paste.
        • Nubs on the outside
          polish the interdental space at the same time.

      • One-stop shop

        One-stop shop

        The new Proxeo Twist LatchShort Prophy Cups in various hardness levels and Brushes are now available for optimal removal of biofilm and discolouration.

        All Proxeo Twist LatchShort Prophy Cups have a shorter shaft for an even lower working height.

        The Proxeo Twist LatchShort is the first system with a low working height and a push-button. With the working height as much as 4 mm lower than standard latch systems, there is more space and a perfect view of the treatment site.

        Monika Riedl
        Dental Hygienist, Munich

        The best of both worlds: the unique combination of a low working height and convenient push-button chuck system combines the advantages of screw and latch systems: easier access, better view and maximum comfort on the one hand and the ease of changing polishing Cups and Brushes on the other.

        Melanie Ruckenthaler
        W&H Product Manager

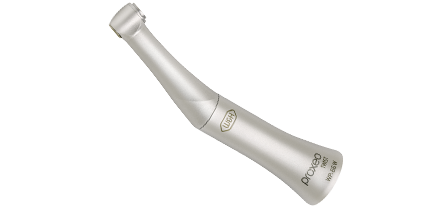

        Proxeo Twist LatchShort

        WP-66 W
        REF 30189000

        Contra-angle 4:1

        Prophy Cups

        Prophy Cups soft / apple green

        for Proxeo Twist LatchShort WP-66 W

        Prophy Cups soft / apple green
        REF 08003630

        144 pcs

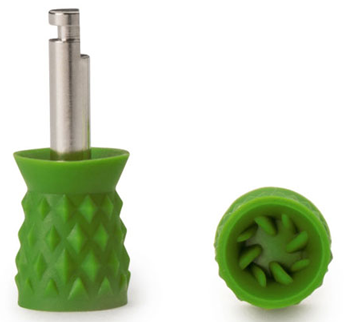

        Prophy Cups firm / dark green

        for Proxeo Twist LatchShort WP-66 W

        Prophy Cups firm / dark green
        REF 07597900

        144 pcs

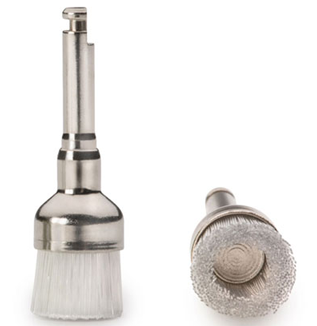

        Prophy Brushes

        Prophy Brushes cup-shaped, soft / clear

        for Proxeo Twist LatchShort WP-66 W

        Prophy Brushes cup-shaped, soft / clear
        REF 08003650

        144 pcs

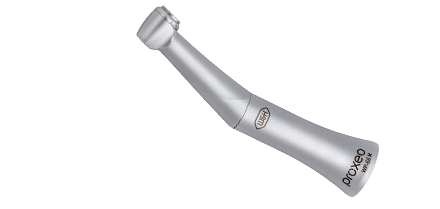

        Proxeo contra-angle handpiece for cups, brushes and Snap-on Adapter with 2.35 mm shaft

        WP-66 M

        for cups, brushes and Snap-on Adapter with 2.35 mm shaft

        WP-66 M
        REF 30190000

        Contra-angle 4:1


        Proxeo contra-angle handpieces for screw-in cups and brushes

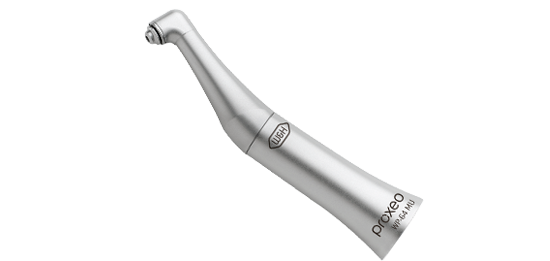

        WP-64 MU

        for all common screw-in cups, brushes and
        snap-on adaptor

        WP-64 MU
        REF 10216443

        Contra-angle 4:1
        System UNIVERSAL

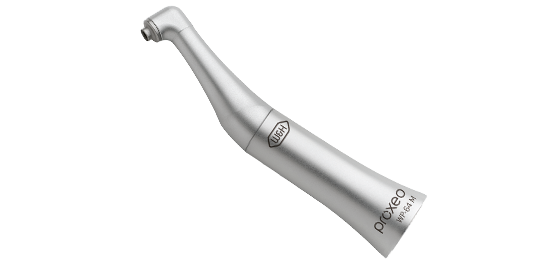

        WP-64 M

        for YOUNG screw-in cups and brushes

        WP-64 M
        REF 10216403

        Contra-angle 4:1
        System YOUNG


        Proxeo handpiece for disposable contra-angles

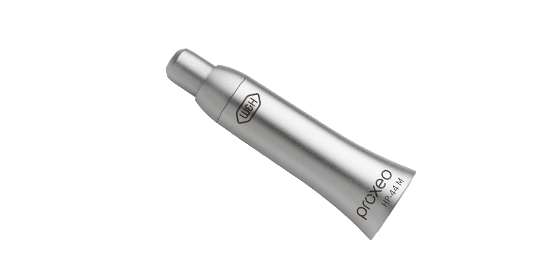

        HP-44 M

        for disposable contra-angles with plastic shank, System Doriot

        HP-44 M
        REF 10114403

        Handpiece 4:1


      • Proxeo Twist LatchShort

        Type:

        WP-66 W

        Max. motor speed:

        10.000 min -1

        Transmission ratio:

        4:1

        Recommended speed for Prophy Cups and Prophy Brushes:

        1.250 - 2.500 min -1

        Maximum speed for Prophy Cups and Brushes:

        2.500 min -1

        Attachments that can be used:

        W&H Proxeo Twist LatchShort Prophy Cups and Prophy Brushes

        Coupling system:

        ISO 3964

        Prophy Cups and Brushes

        Prophy Cups soft / apple green
        firm / dark green
        Prophy Brushes cup-shaped, soft / clear

        Not for reuse
        Latex-free

        Proxeo Straight & Contra-angle Handpieces

        Type:

        WP-66 M

        WP-64 MU

        WP-64 M

        HP-44 M

        Max. motor speed:

        10.000 min -1

        10.000 min -1

        10.000 min -1

        10.000 min -1

        Transmission ratio:

        4:1

        4:1

        4:1

        4:1

        Recommended speed
        for cups and brushes:

        1.250 - 1.500 min -1

        1.250 - 1.500 min -1

        1.250 - 1.500 min -1

        1.250 - 1.500 min -1

        Maximum speed
        for cups and brushes:

        2.500 min -1

        2.500 min -1

        2.500 min -1

        2.500 min -1

        Attachments
        that can be used:

        Caps, brushes and
        snap-on caps with
        2.35 mm shaft

        All standard screw-in
        cups, brushes and
        snap-on caps (screw
        thread 1-72 UNF 2A)

        YOUNG Screw-in
        cups and brushes

        disposable contra-angles
        with plastic shaft,
        system Doriot

        Coupling system:

        ISO 3964
