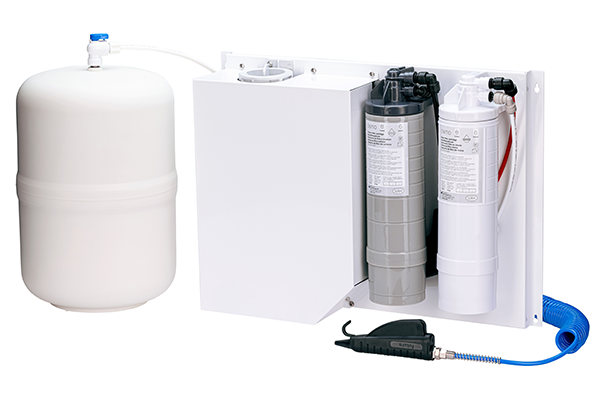

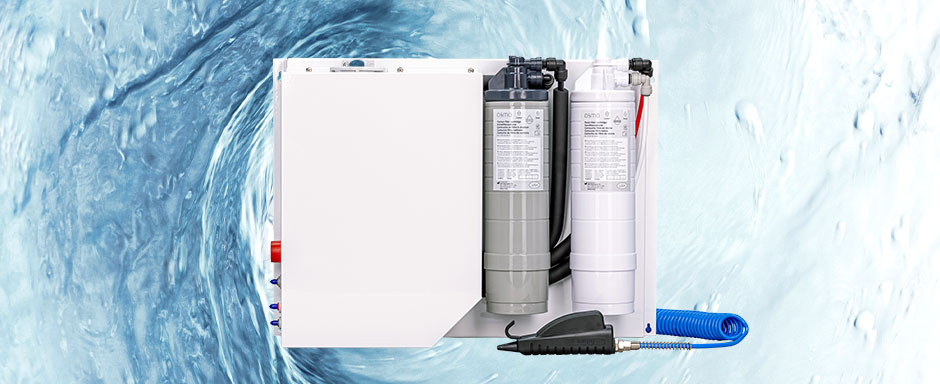

Purified water for optimal results
The system connects to mains water and produces large quantity of demineralized water free from minerals and contaminants. It automatically supplies and drains water to a number of sterilizers simultaneously.

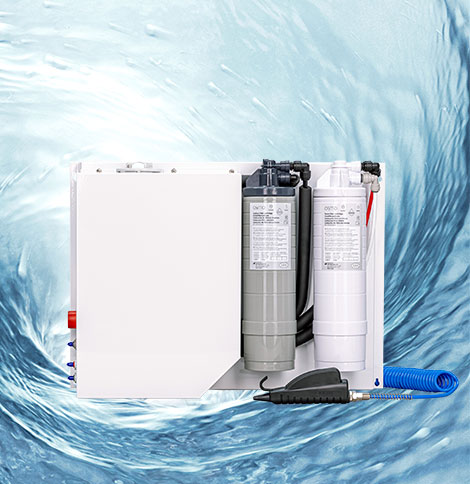

Your advantages at a glance
- The automatic water filling and direct draining simplify handling and save time.
- The most cost-effective solution when the number of daily sterilization cycles increases.
- In compliance with EN 1717

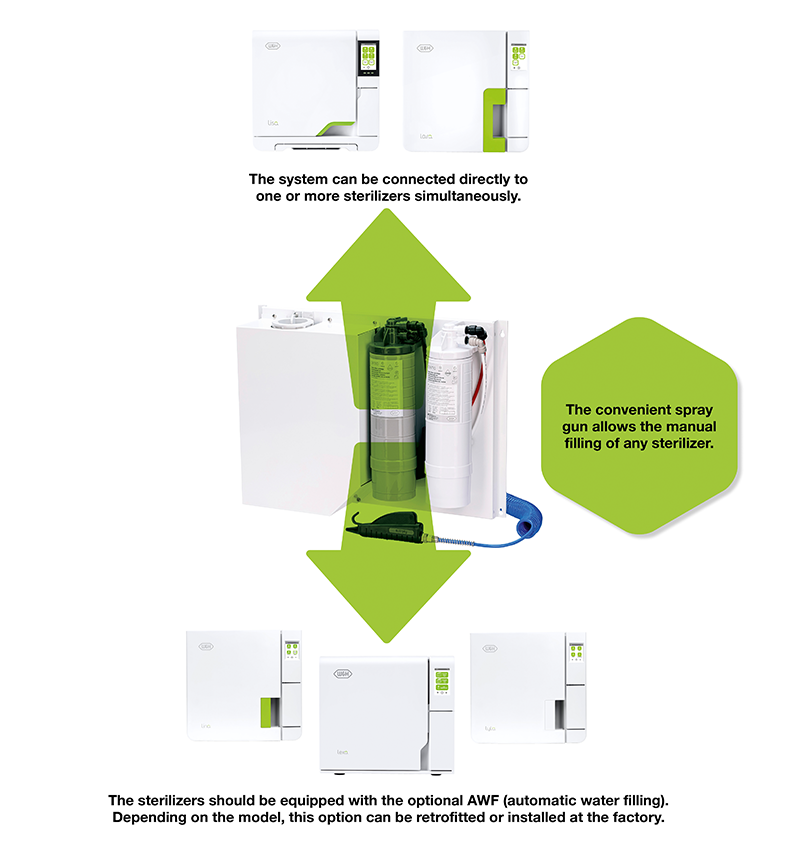

Do you have more than one sterilizer? Osmo supplies multiple devices simultaneously.Connection to different sterilizer models
Osmo is the best solution for regions with poor water quality.Quality of produced water

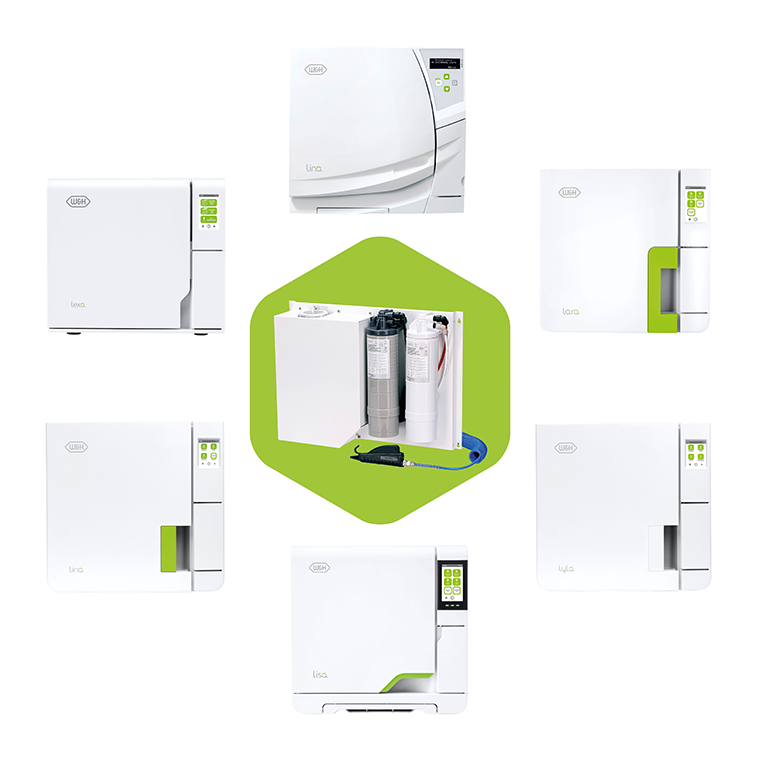

Osmo is designed to supply up to 6 sterilizers simultaneously.
It produces approx. 30 litres of demineralized water per hour.

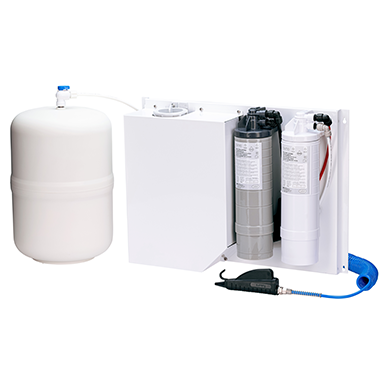

The water storage tank supplied has a volume of 7 litres of demineralized water.
The quantity of water produced per resin cartridge depends upon the quality and
hardness of the tap water.

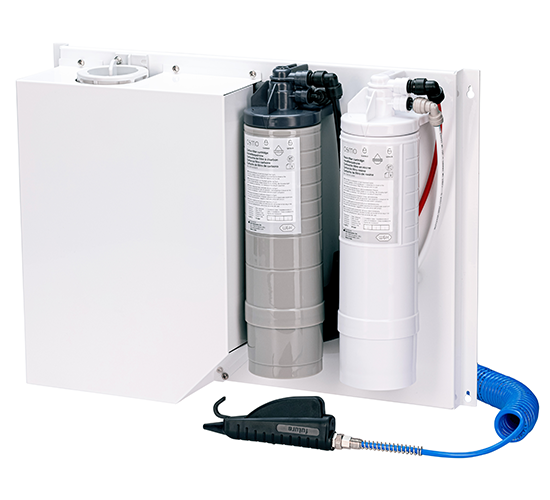

Osmo enables the easiest filter change on the market.Technical description
Device dimensions:
Modular housing (W x H x D):
37 cm x 52 cm x 13 cm
Water storage tank:
Ø 23 cm x 35 cm high (7 litres)
The water storage tank has a volume of 7 litres.

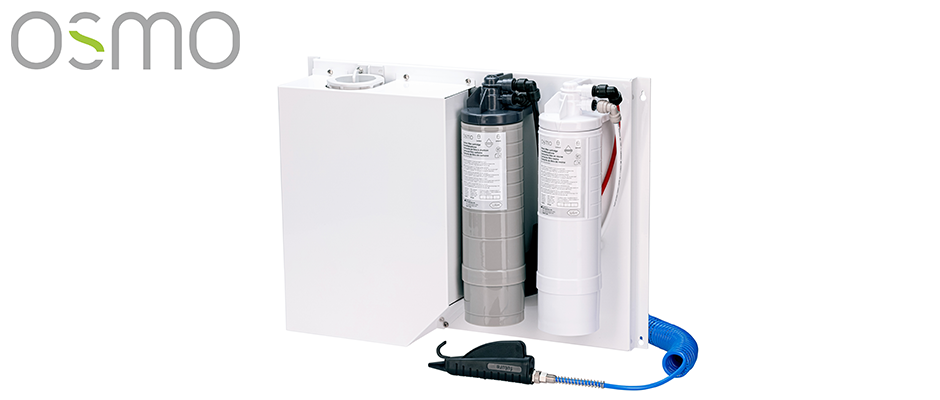

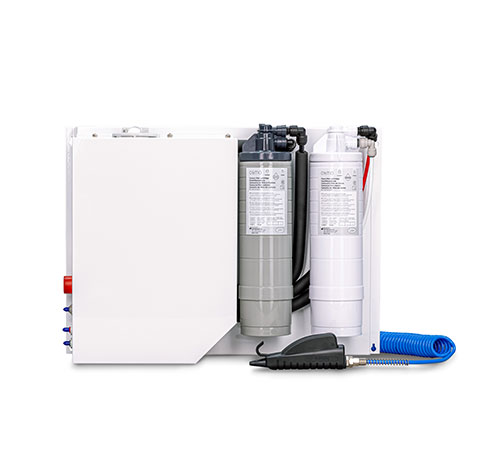

![Osmo]( "Osmo")
Osmo
Automatic filling
Osmo
REF 19721134Download Område
-
Type:
Osmo
Water pressure (min./ max.):
0.5-5 bar
Water temperature (inlet):
+5 °C ÷ 30 °C
Water temperature (storage):
+5 °C ÷ 35 °C
Protect from sunlight or other sources of heat
Water quality (output):
0.5-5 µS/cm
Produced water:
30 l/h
Electrical power supply:
230 V AC, 50/60 Hz, 0.6 A
115 V AC, 50/60 Hz, 1.2 AWeight with filter cartridges (empty storage tank):
~13 kg
Weight of water storage tank (empty):
~2.5 kg
Overall dimensions (w x h x d):
520 x 370 x 130 mm
Volume water storage tank:
7l
Backflow preventer according to EN1717:
yes
Quantity of produced water with conductibility < 15 µS *
10,000 l
