W&H - Osmo – Large water supply to a number of sterilizers

Osmo

The best water treatment to supply multiple sterilizers simultaneously

High quality demineralized water guarantees consistent, optimal performance and extends the life of your sterilizer and of your instruments.

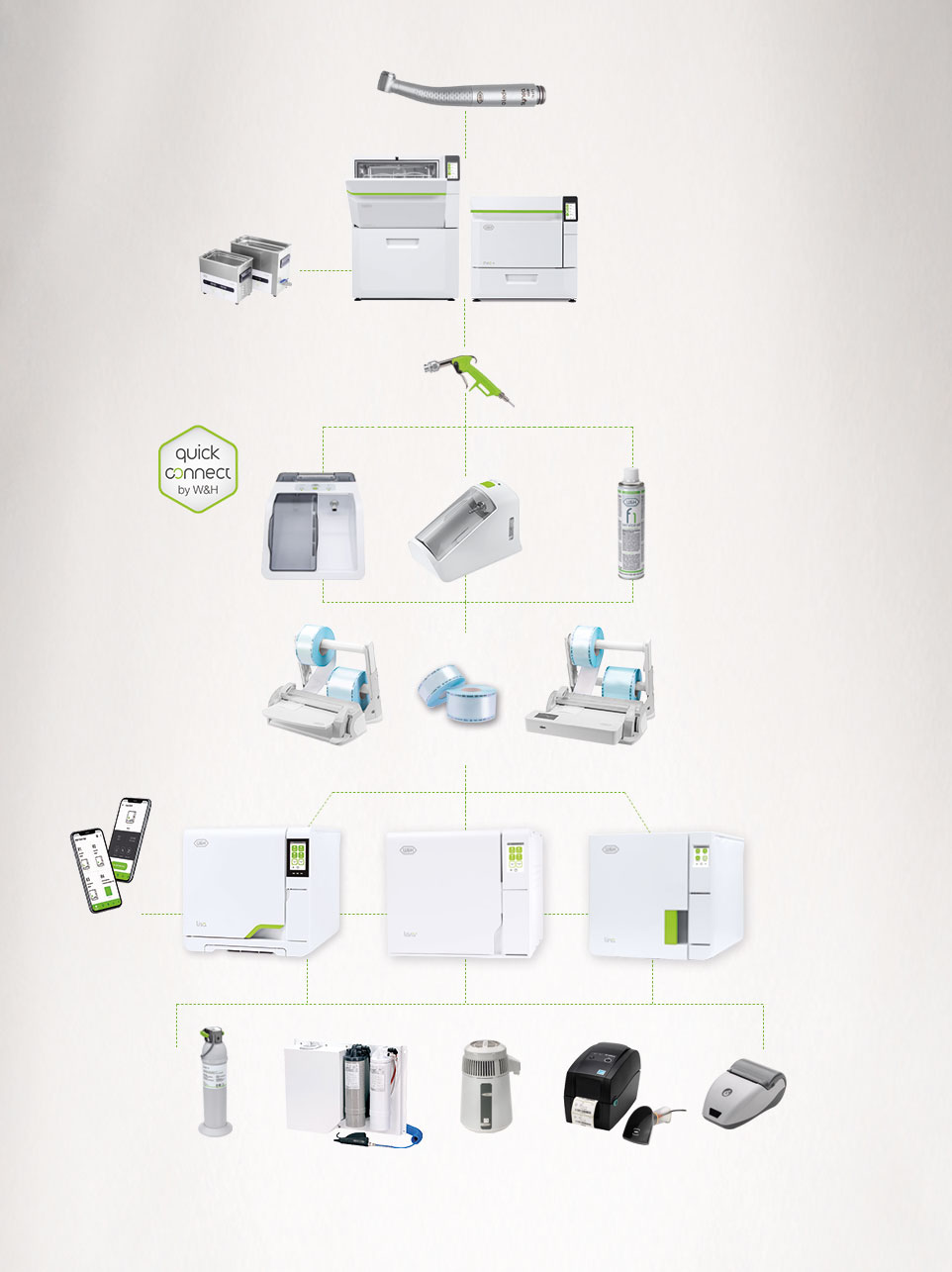

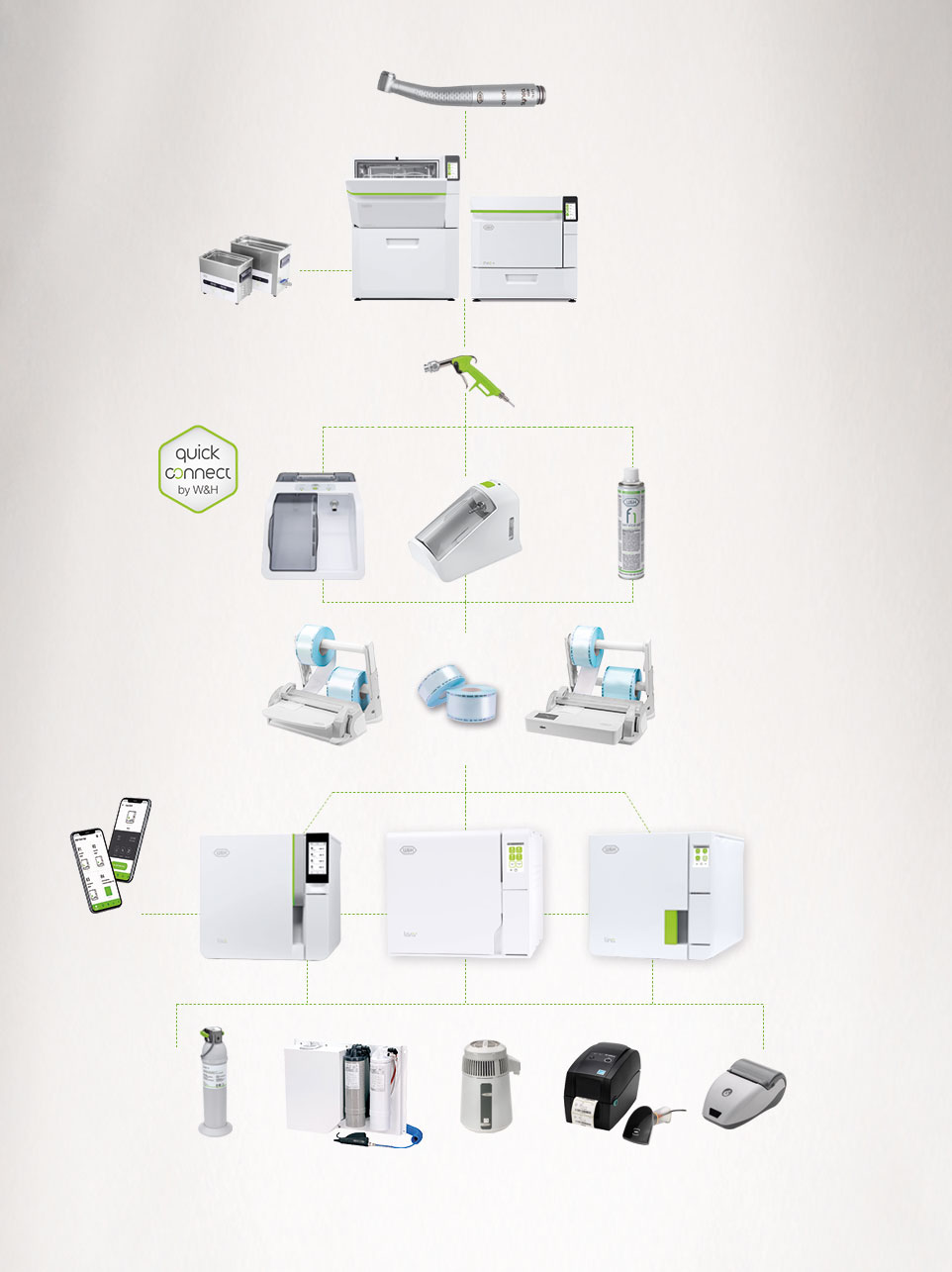

System Overview

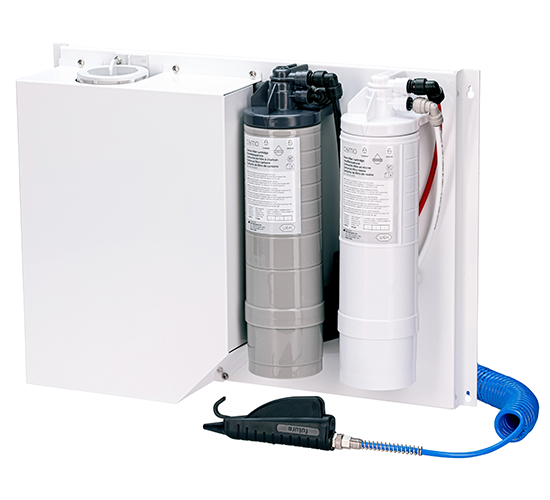

Osmo
Technical data

Purified water for optimal results

Osmo is able to produce up to 30 litres of demineralized water per hour and supply up to 6 devices simultaneously. The water storage tank supplied has an effective volume of 7 litres of demineralized water to provide higher amounts of purified water used for sterilization and daily activities, such as instrument rinsing.
Advantages at a glance
- Suitable for use with all types of sterilizers, up to 6 devices simultaneously
- Flexible use in combination with the spray gun
- Fast cartridge replacement without tools
- Automatic water filling and direct draining
- Optimized ion exchange resin and carbon filter cartridges
- Cost effective solution both for regions with poor water quality and practices with high demand
- The purified water complies with the relevant recommendations and regulations for the correct reprocessing of instruments
- Consistently high water quality, no limescale deposits
- Multiple devices

  Multiple devices

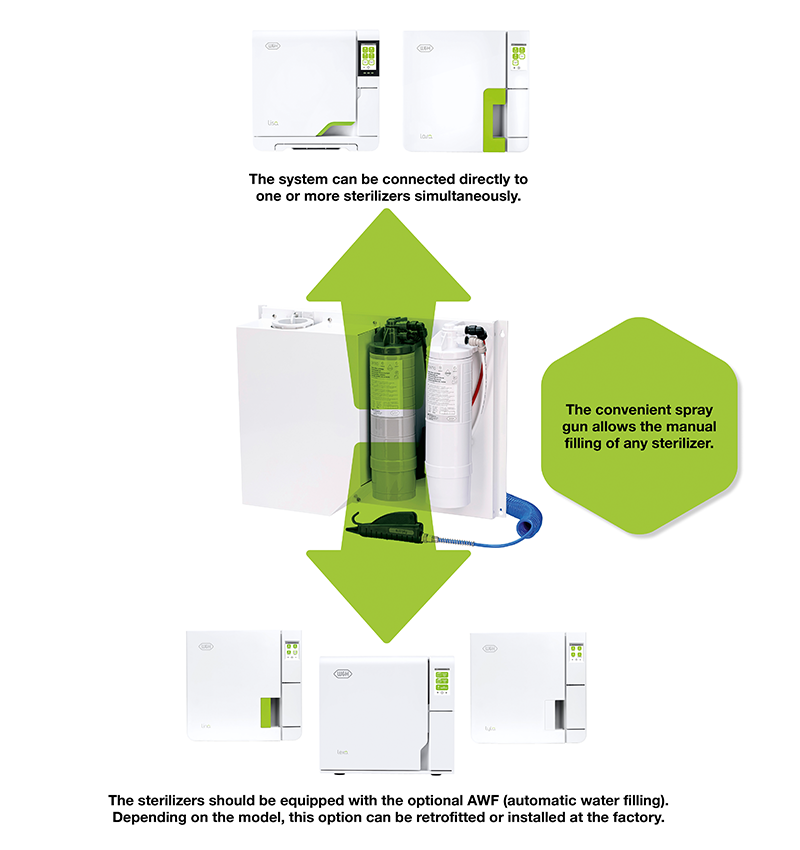

  Osmo is the perfect solution if you want to provide purified water to a large number of sterilizers at the same time.

  › The system can be connected directly to one or more sterilizers simultaneously.

  › The convenient spray gun allows the manual filling of any sterilizer.
- Filter replacement

  Filter replacement

  The screw-unscrew system makes filter replacement easier than ever.

  › To replace one of the two cartridges, turn it left.

  › Be sure to be aligned on the unlock symbol and pull it down.

  › Insert the new cartridge aligning the unlock symbol and turn it right to the lock position.
Do you have more than one sterilizer? Osmo supplies multiple devices simultaneously.

Connection to different sterilizer models

Osmo

Automatic filling

Osmo
REF 19721134

Request Price
Download Area
FAQ
- Which water quality should I use for my sterilizer?
Instructions for use

Instructions for use

Update Hygiene und Pflege (EN ISO 17664:2017)

Update Hygiene and Maintenance (EN ISO 17664:2017)

Actualización Higiene y mantenimiento (EN ISO 17664:2017)

Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

Downloads

Brochure Water Treatment Devices

Collection Brochure Hygiene
Service
Service

Service Station Locator

Hygiene & Maintenance

Disposal Guidelines

Troubleshooting

Technical data

	Osmo
Water treatment principle:	Reverse Osmosis
Direct connection to sterilizer:
Number of connectable sterilizers:	up to 6 units
Possibility of manual filling:	(spray gun)
Fulfilling sterilization requirements:
Water quality output:	0.5-5 µS/cm
Produced water:	30 litres/1h
Volume storage tank:	7 litres
Water pressure (min./max.):	0.5-5 bar
Main device dimensions (w x h x d):	37 x 52 x 13 cm
Water tank dimensions (w x h x d):	23 cm (Ø) x 35 cm (h)
Weight:	13 kg
Electrical supply needed:
Electrical power supply:	230 V AC; 50/60 Hz; 0.6 A 115 V AC; 50/60 Hz; 1.2 A
Wall mount:
Backflow preventer according to EN1717:
Demineralized water according to EN13060 Annex C:
