Water Treatment Devices from W&H

High-quality demineralised or distilled water is an important part of the hygiene process. This is because even a slightly increased conductivity of the water can cause deposits, discolouration or corrosion on the instruments as well as in the chambers of the sterilizers.

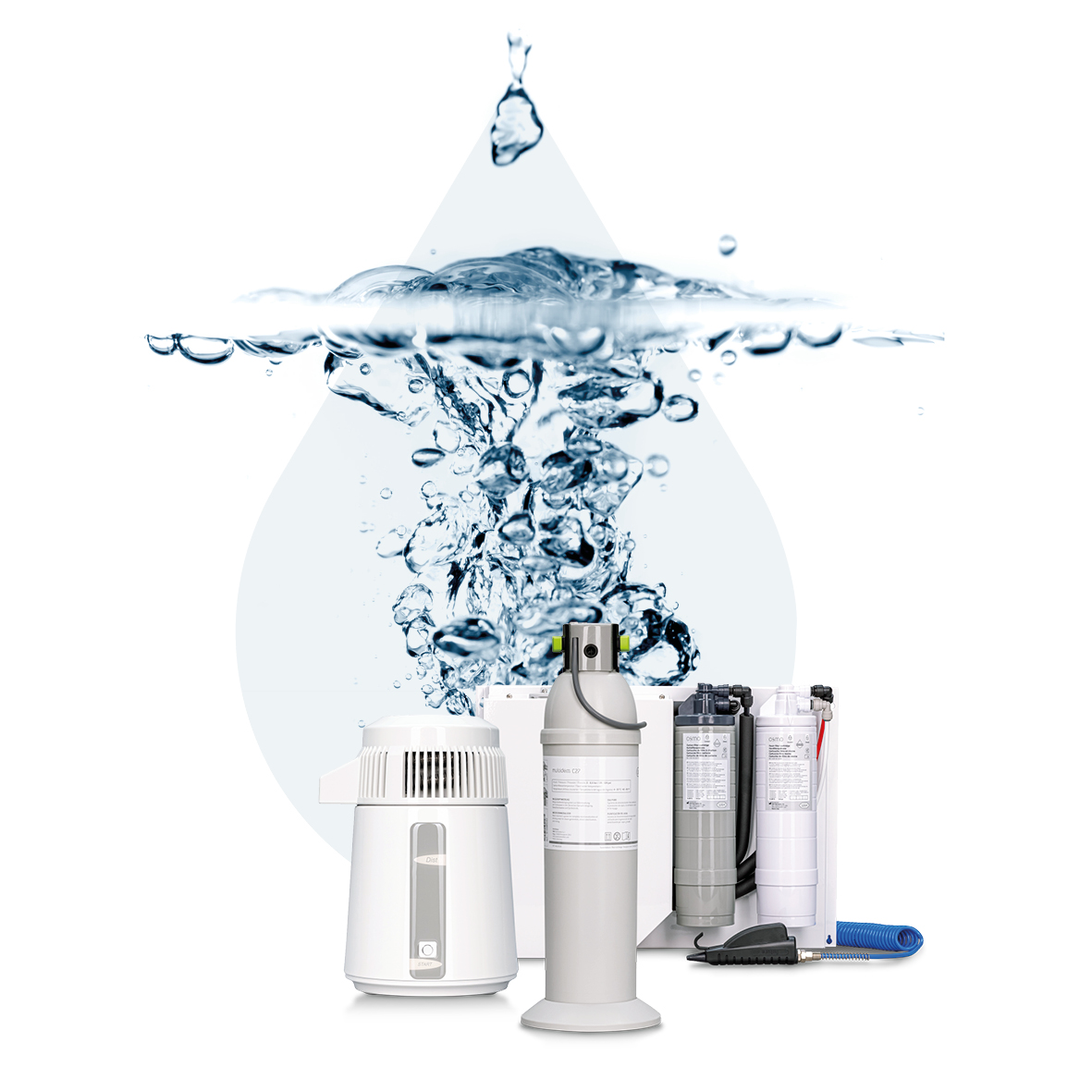

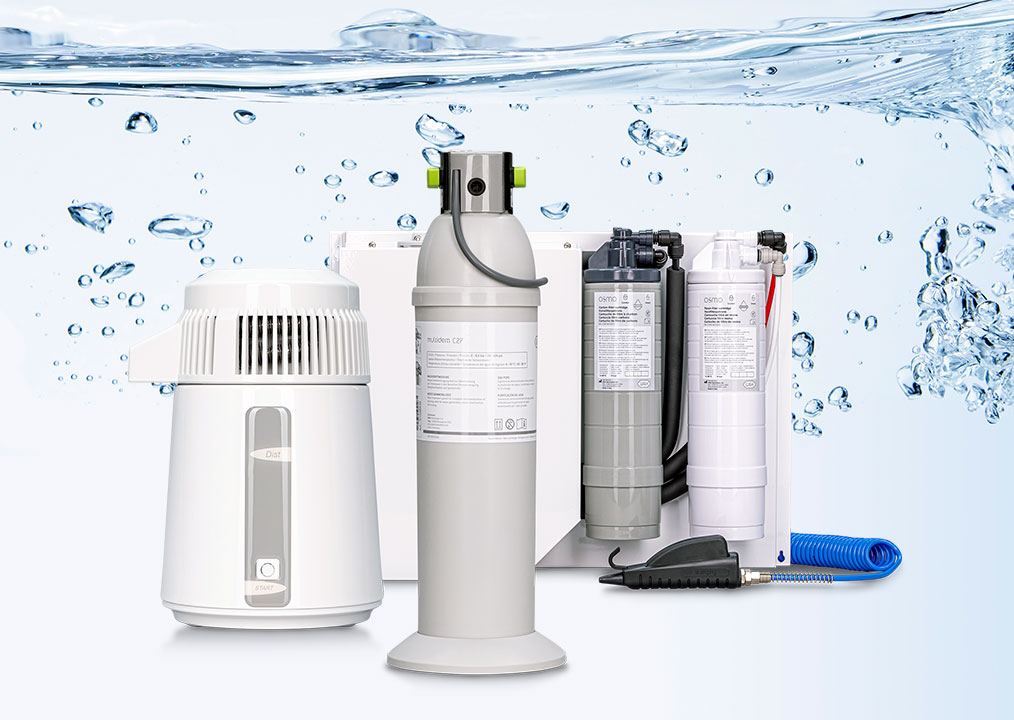

Our water treatment units - Multidem, Osmo and Water Distiller - supply pure water for the sterilisation process. With this method, our devices ensure consistent performance and extend the life of your instruments and sterilizers. In addition, our devices are flexible to meet other reprocessing room needs, such as instrument rinsing.

Choose the right water treatment device!

Tell us your water conductivity level, the number of sterilizers installed and the average cycles run per day on each sterilizer and we will provide the most cost-effective solution.

Answer 3 questions to find the right Water Treatment Device for your demands!

Find the right Water Treatment Device for your demands.

1
2
3

How many sterilizers are installed?

How many cycles run per day on each sterilizer?

What is the water conductivity level?

Your product recommendation:

Osmo

Possible alternative product:

Your product recommendation:

Multidem

Possible alternative product:

Your product recommendation:

Distilled Water

Possible alternative product:

Take advantage of all the benefits

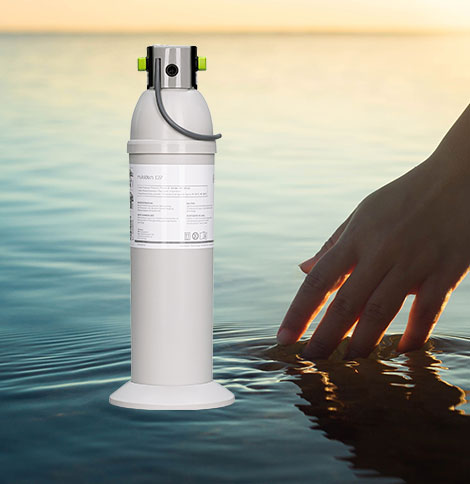

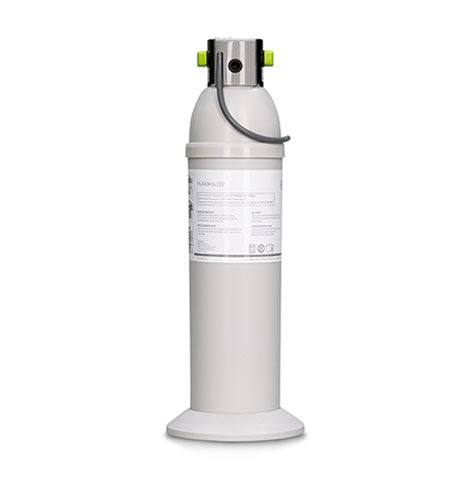

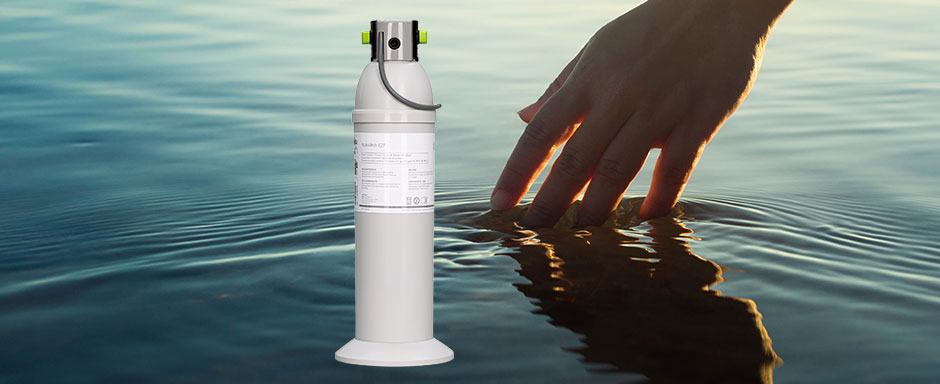

Multidem

Multidem supplies top quality demineralized water and is suitable for use with steam sterilizers.

Multidem
Compatible

Compatible

› Suitable for use with up to 2 sterilizers

› Flexible use in combination with the spray gun

User-friendly

User-friendly

› Fast cartridge replacement without tools

› Cartridge can be positioned without a fixing/securing device

Economical

Economical

› No external power supply required

› Optimized ion exchange resin

Safe

Safe

› The purified water complies
with the relevant recommendations
and regulations for the correct
reprocessing of instruments

› Consistently high water quality,
no limescale deposits

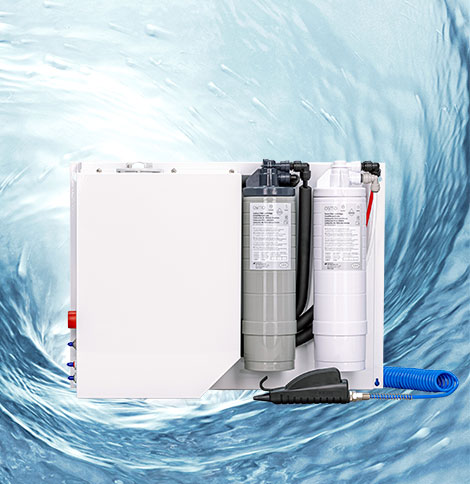

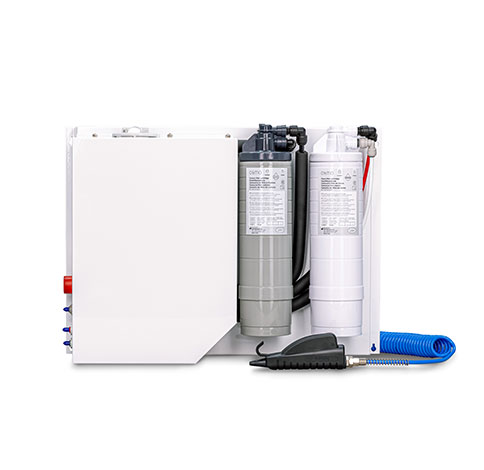

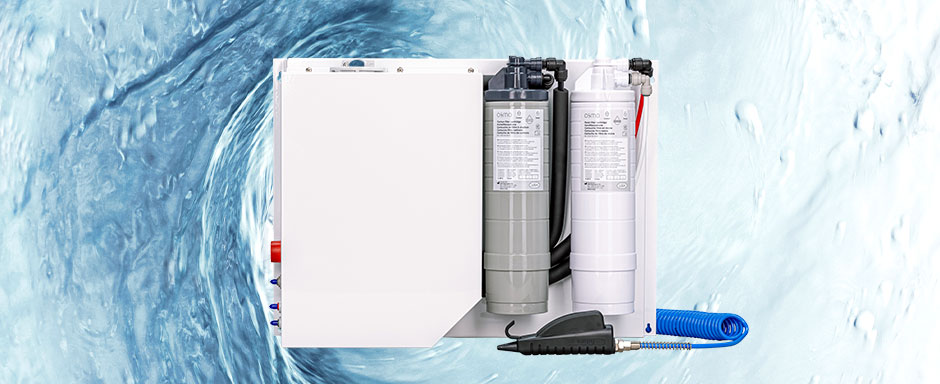

Osmo

The best water treatment to supply multiple sterilizers simultaneously.

Osmo
Compatible

Compatible

› Suitable for use with all types
of autoclaves, up to 6 devices
simultaneously

› Flexible use in combination
with the spray gun

User-friendly

User-friendly

› Fast cartridge replacement without tools

› Automatic water filling and direct
draining
Economical

Economical

› Optimized ion exchange resin
and carbon filter cartridges

› Cost effective solution both for regions
with poor water quality and practices
with high demand

Safe

Safe

› The purified water complies
with the relevant recommendations
and regulations for the correct
reprocessing of instruments

› Consistently high water quality,
no limescale deposits

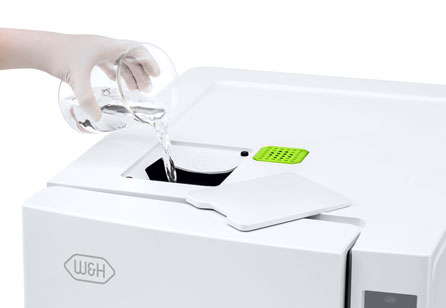

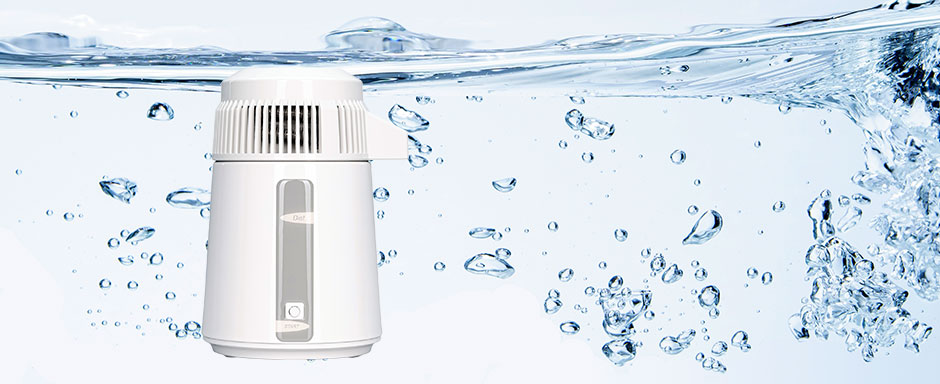

Water Distiller Advantages

The water distiller produces pure water from tap water.

Water Distiller
Exceptional purity

Distilled water of exceptional purity

The Water Distiller enables economical production of distilled water for sterilization. The device supplies 4 litres of distilled water in less than 5 hours. With this volume, up to 8 sterilization cycles can be carried out in our sterilizers. A water receiver is supplied together with the distiller.

› Very simple to use
› Silent in operation
› Compact, light and mobile
› Stainless steel tank, robust and easy to maintain
› Automatic heater cut-out
› Integrated carbon filter

Technical data

Multidem Osmo Water Distiller
Water treatment principle: Demineralization Reverse Osmosis Distillation
Direct connection to sterilizer: no
Number of connectable sterilizers: up to 2 units up to 6 units -
Possibility of manual filling: (spray gun) (spray gun)
Fulfilling sterilization requirements:
Water quality output: 0.5-2 µS/cm 0.5-5 µS/cm 5-10 µS/cm
Produced water: 60 litres/1h 30 litres/1h 4 litres/5h
Volume storage tank: - 7 litres 4 litres
Water pressure (min./max.): 2-8.6 bar 0.5-5 bar -
Main device dimensions (w x h x d): 12,4 x 12,3 x 47,6 cm 37 x 52 x 13 cm 23 cm (Ø) x 36 cm (h)
Water tank dimensions (w x h x d): - 23 cm (Ø) x 35 cm (h) 17 cm (Ø) x 25 cm (h)
Weight: 2.7 kg 13 kg 3.5 kg
Electrical supply needed: no
Electrical power supply: - 230 V AC; 50/60 Hz; 0.6 A 115 V AC; 50/60 Hz; 1.2 A 230 V AC; 50 Hz
Wall mount: no no
Backflow preventer according to EN1717: -
Demineralized water according to EN13060 Annex C:
