Piezomed & Piezomed module

Still the force in bone surgery

Piezomed puts all the advantages of innovative ultrasound technology at your fingertips: High-frequency microvibrations allow cutting with incredible precision. In addition, the so-called cavitation effect assists an almost blood-free surgical site.

Oral Surgery & Implant Surgery

Oral Surgery & Implant Surgery

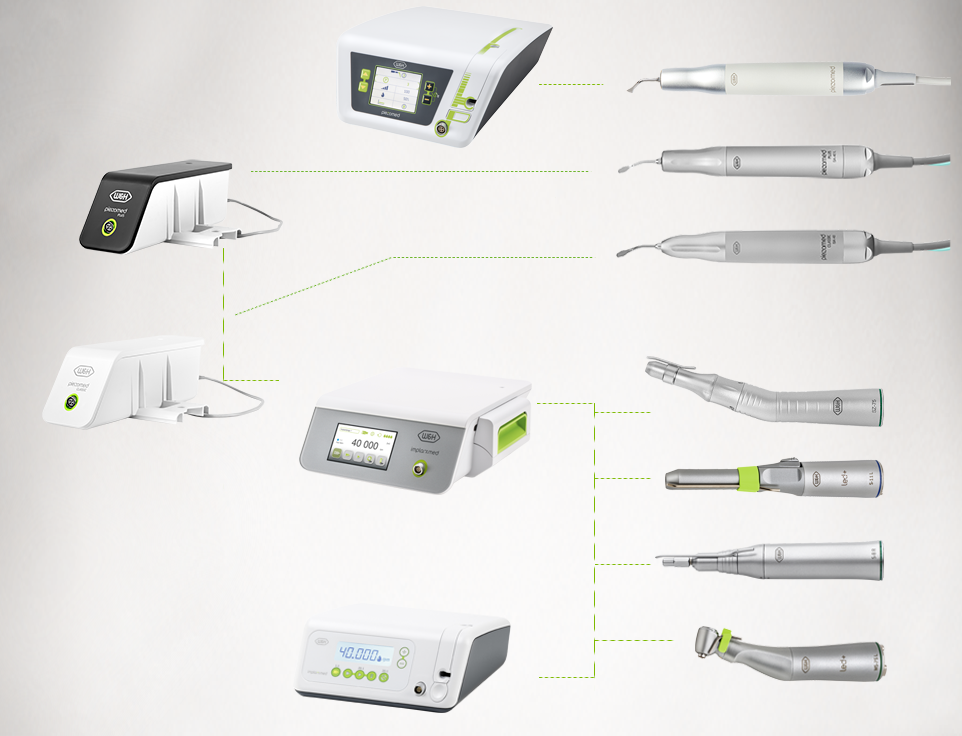

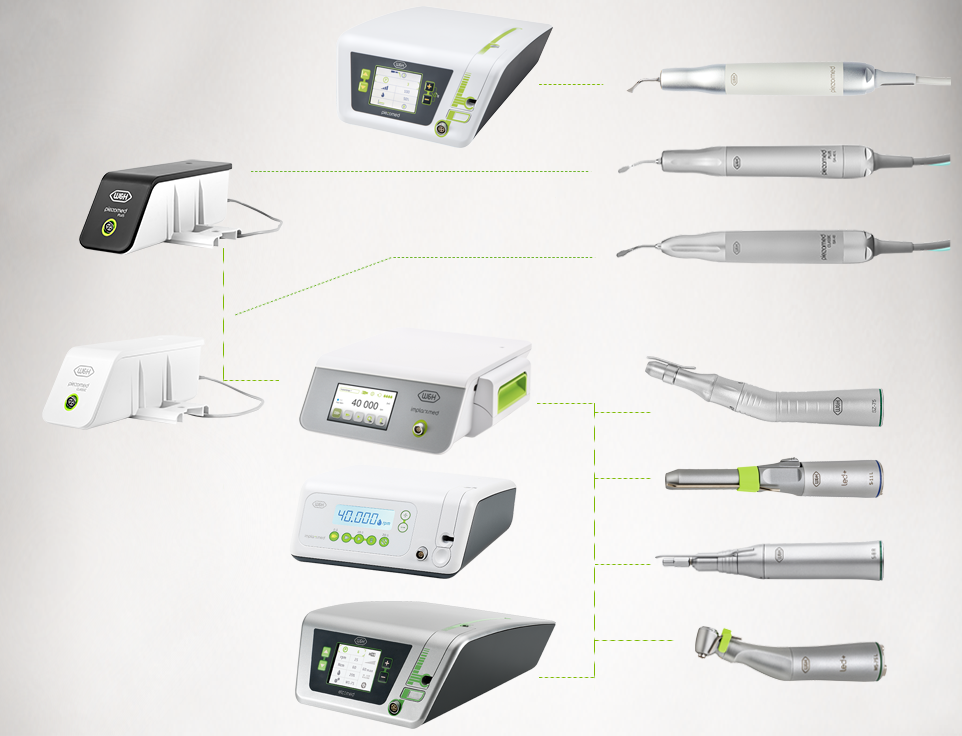

System Overview

Piezomed

The new force in bone surgery

  • Piezomed

    Piezo Technology:
    Great Variety

    Piezomed facilitates the surgeon’s and implantologist's work: thanks to innovative ultrasound technology, only bone substance is resected. The surrounding soft tissue is protected. A noticeable relief for the patient: less pain, quicker healing!

    Your advantages at a glance

    • Automatic instrument detection
    • Three individual operating modes
    • Temporary 20 % power increase thanks to boost function
    • Ideal illumination of the operating field
      thanks to LED ring illumination
    • Efficient cooling thanks to spray opening
      close to the instrument’s working area
    • Handpiece with LED socket and cable,
      thermo washer disinfectable and sterilizable
    World first!
    Automatic instrument detection

    Automatic instrument detection in oral surgery

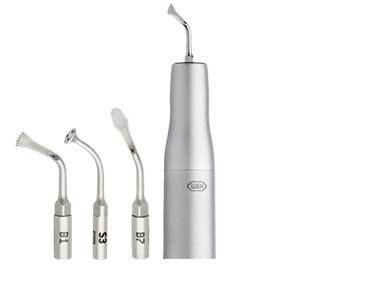

    First worldwide: As soon as an instrument is inserted, Piezomed automatically detects the tip and sets the ideal power level!
    Innovative LED ring

    Innovative LED ring

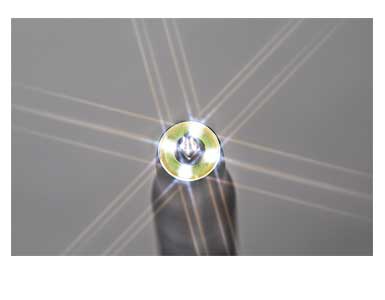

    The shadow-free light ensures ideal illumination of the operating site.

    The handpiece with LED socket and cable can be thermo washer disinfected and sterilized.
    Efficient cooling

    Cooling right where it is needed

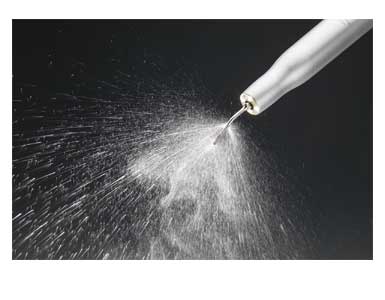

    The atomized coolant exits near the instrument’s area of activity for constant irrigation and cooling.
    Individual performance setting

    Individual performance setting

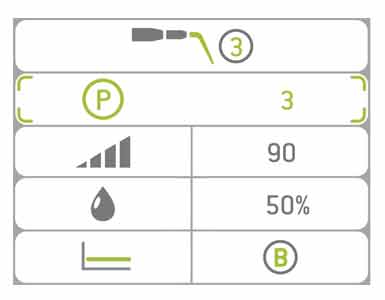

    Piezomed detects the tip during installation and sets the correct power level automatically. If needed, within the detected power range, the power level can be manually overwritten to the desired level.
    Special boost function and Individual operating modes

    Piezomed adapts to your style of working

    Piezomed adapts to your personal way of working and saves your last selected settings. The boost function can be used to increase the set power level by 20 % for a short period of time.

    "Power" operating mode: The handpiece’s power is increased by increasing pressure on the instrument. (Boost function possible)

    "Basic" operating mode:The handpiece power remains the same irrespective of the load on the instrument. (Boost function possible)

    "Smooth" operating mode: The handpiece‘s power is reduced by increasing pressure on the instrument.


    Piezomed Instruments

    Flexibility and individuality in working for oral surgeons



    With its range of 33 innovative tips, W&H offers you the right instrument for bone surgery, periodontology and extraction, retrograde endodontics as well as for lateral sinus lift.

    I n c r e d i b l e – cuts through bone like butter.

    Dr. Ulrich Fürst,
    Specialist in oral surgery

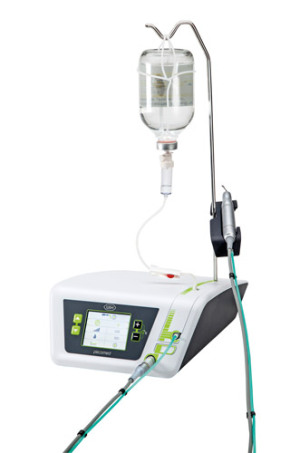

    Piezomed

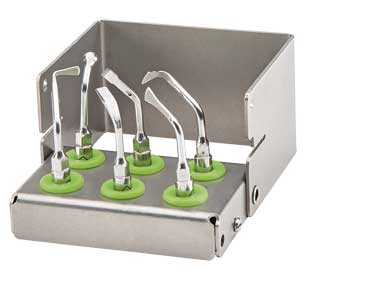

    consists of: control unit, foot control S-N1, handpiece with 1.8 m cable and clips, irrigation tubing set, mains cable, motor support, stand, storage cassette,instrument changer, instrument kit "Bone"

    SA-320
    REF 30078000

    Handpiece with 1.8 m cable

    Buy

    Piezomed module*

    Piezomed

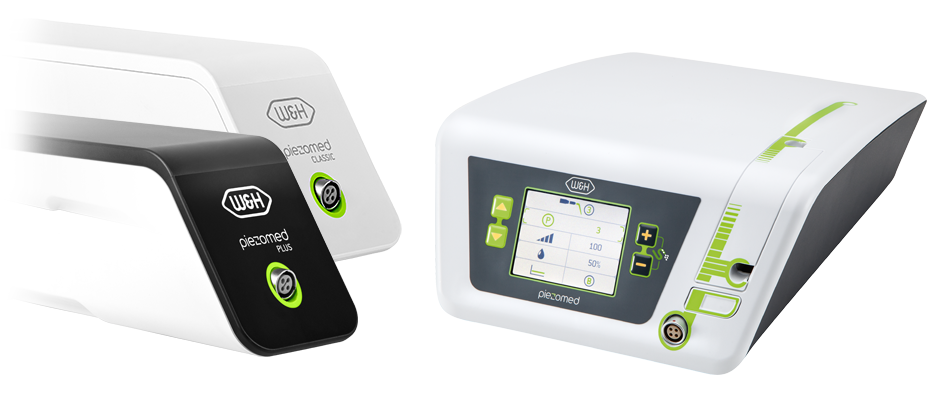

    The game changer in piezosurgery

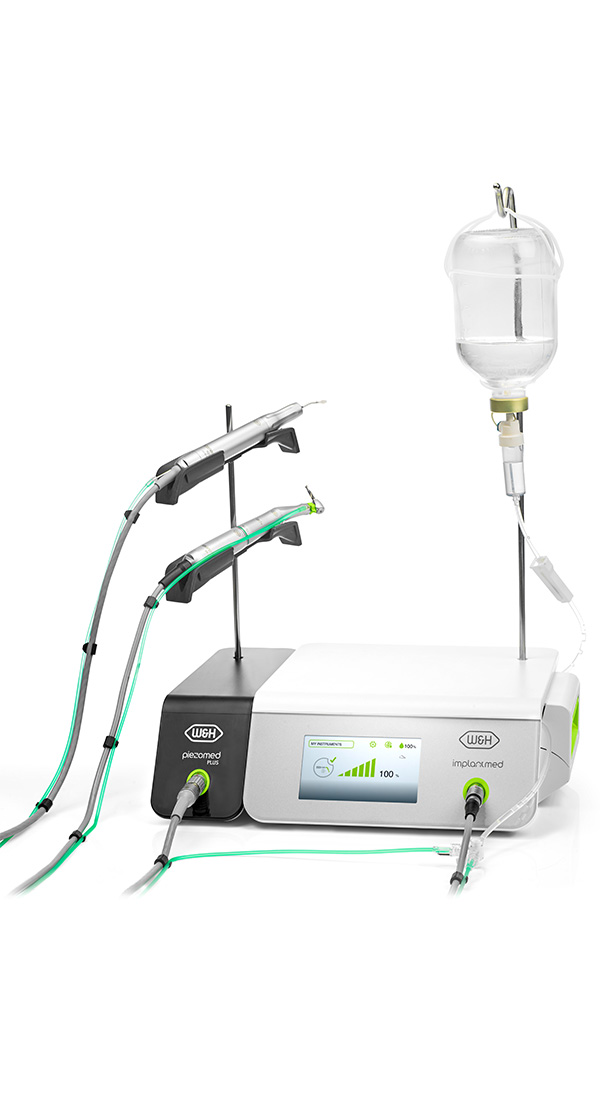

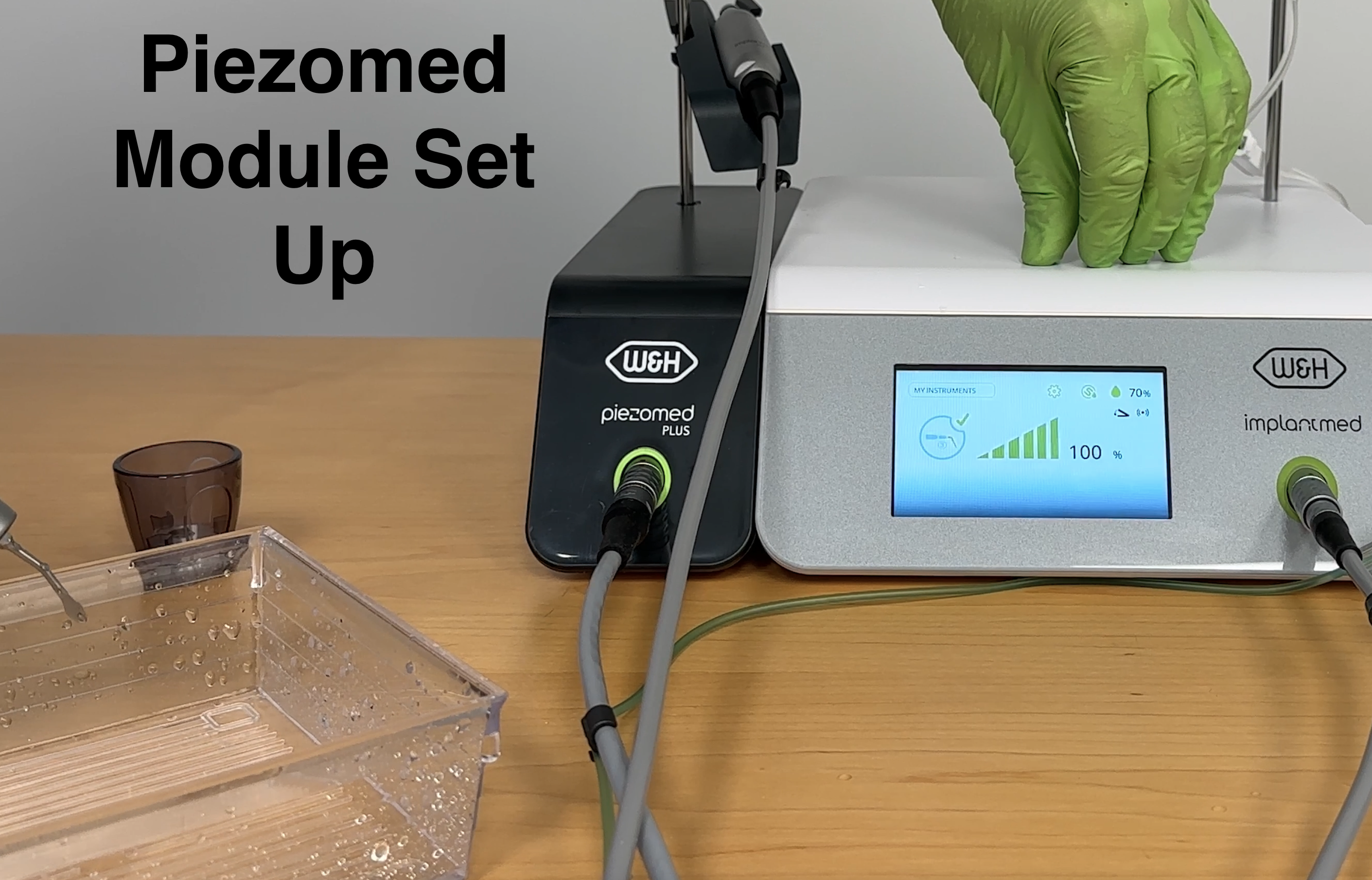

    Piezomed module

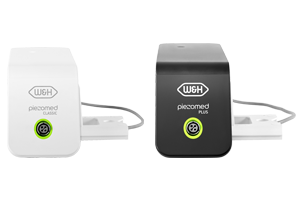

    The Piezomed module combines an
    implantology motor and piezosurgery in
    one device. This means Implantmed can
    be combined with the Piezomed module
    and can be used to cover several surgical
    applications.

    *only in connection with Implantmed Plus

    Your advantages at a glance

    • Modularity
    • Automatic instrument detection
    • Efficient cooling thanks to spray opening close to the instrument’s working area
    • Instrument library
    • The wireless foot control allows you to choose the optimal location in your working area.
    • No impairment of the sterile environment due to the emission of cooling air.

    Piezomed Plus module

    consists of: Module, Handpiece SA-40 L, Power supply and main cable, Support and stand, Instrument changer, 6 pcs. disposable irrigation tubes

    SA-435 M
    REF 90000350

    Handpiece with 1.8 m cable

    SA-435 M
    REF 90000351

    Handpiece with 3.5 m cable

    Buy

    Piezomed Classic module

    consists of: Module, Handpiece SA-40, Power supply and main cable, Support and stand, Instrument changer, 6 pcs. disposable irrigation tubes

    SA-430 M
    REF 90000349

    Handpiece with 1.8 m cable

    Buy

    Modularity for optimal flexibility

    Workflow driven solution

    The combination of Implantmed Plus and
    Piezomed module changes the way oral
    surgery and implantology work.

    Electric motor

    Particularly small and surprisingly light. It enables you to work with ease.

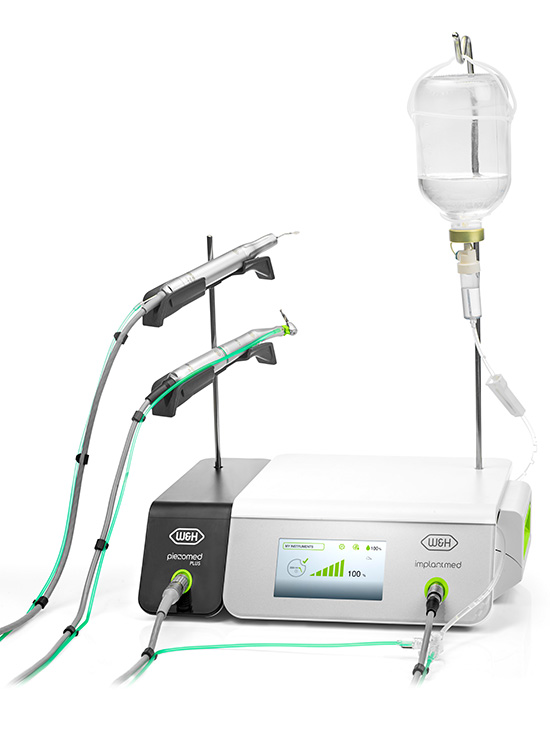

    Piezomed Plus and Classic module

    Combine piezo surgery and implantology in one device.

    Straight & Contra-angle Handpieces

    Provide optimal illumination of the treatment site and facilitate perfect, accurate treatment results.
    More Info!

    Documentation function

    The documentation function conveniently saves all values of the implant insertion on a USB stick (.pdf and .xls).

    Wireless or wired foot control

    Control the Implantmed Plus and Piezomed module with just one foot control.

    Osstell Beacon

    Bluetooth connection to the Osstell Beacon
    for easy measurement and representation of implant stability.
    More Info!

    Features at a glance

    Features
    Piezomed Piezomed Plus module Piezomed Classic module
    Automatic Instrument detection
    Instrument library
    Modularity
    Wireless foot control
    Control unit cooling without case fan
    Osstell Beacon connection
    Implantmed and Piezomed functions can
    be controlled with just one foot control
    ioDent® system
    Software update via USB
    Implantmed and Piezomed in one device
    Handpiece with (LED socket) and cable,
    thermodisinfectable and sterilisable
    Pacemaker reports
    Boost function
    LED light
    24 watts
    20 watts
    18 watts

    * 24 W with boost function

    Download Area

    Video Tutorials

    For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

    Accept
  • Piezomed & Piezomed module

    Type:

    Piezomed
    SA-320

    Piezomed Plus module
    SA-435 M

    Piezomed Classic module
    SA-430 M

    Supply voltage:

    100–130 V/220–240 V

    100–240 V

    Frequency:

    50–60 Hz

    Permitted voltage fluctuation:

    ±10%

    Nominal current:

    0.1–1.0 A/0.1–0.5 A

    1.6 A

    Mains frequency:

    50–60 Hz

    Maximum output US:

    20 W*

    24 W

    18 W

    Operating frequency:

    22–35 kHz

    Coolant flow rate at 100%:

    at least 60 ml/min

    at least 90 ml/min

    Length of handpiece cable:

    1.8 m/3.5 m

    1.8 m/3.5 m

    1.8 m without light

    Dimensions in mm (height × width × depth):

    256 × 305 × 109

    90 × 140 × 285

    Weight:

    7 kg

    0.7 kg

    0.6 kg

    Foot control:

    S-N1/S-NW with SPI dongle

    S-N2/S-NW

    * 24 W with boost function

    Open Source Software

    The software running this product was developed by utilization of the library QT of Digia. As kernel Linux is applied, the initial starting sequence is carried out by using the bootloader U-Boot. For CANopen communication CanFestival is applied.
    These and all other software components are copyrighted by W&H Dentalwerk Bürmooos GmbH or third parties.
    The source code of the used software components (Linux, Qt, U-Boot and CanFestival) will be provided on request, charging all arising expenses. Please contact: opensource@wh.com
    There is no warranty transferring this software, neither implied warranty nor express warranty.
    You will find further information concerning the applied license versions and the complete license text under www.wh.com/en_global/gnu. Alternatively, you can obtain it directly from the manufacturer.
