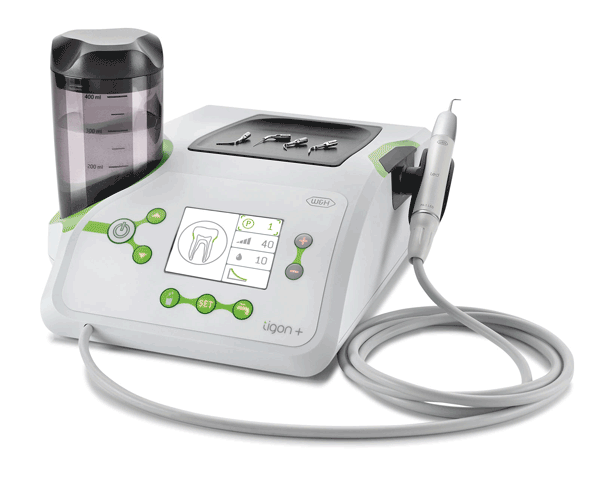

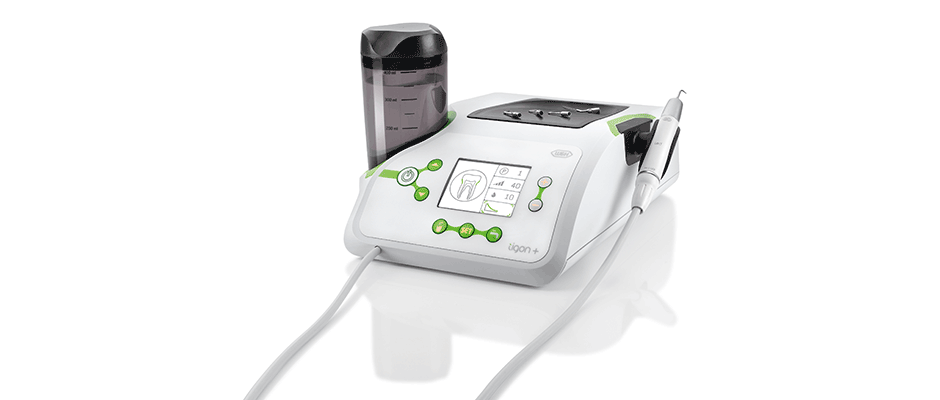

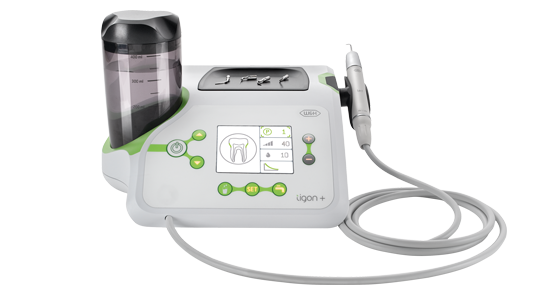

Piezo Scaler Tigon+

Scaling has never been so comfortable and easy

With Tigon+, W&H has developed a piezo scaler unlike any other. Its unique features (three modes, large, easy-to-read display, range of tips, etc.) will greatly simplify your daily work.

Your patients will experience the most relaxing and soothing treatment available.

  • Piezo Scaler Tigon+

    The ultimate piezo scaler technology

    Can be used in prophylaxis, periodontology, endodontics and restoration.

    The ultrasonic piezo scaler Tigon+ uses
    pleasantly warm fluid and prevents irritation, even in patients with sensitive teeth. Five preset programs save you valuable time. Three modes ensure gentle but powerful cleaning.

    Your advantages at a glance

    • Temperature-controlled fluid & low level display
    • Five different treatment programs
    • Piezo scaler handpiece with LED-ring
    • Three modes for reliable treatment
    • Perfectly coordinated range of tips
    • Thermodisinfectable & sterilizable
    Comfortable patients thanks to temperature-controlled fluid

    Ulrasonic piezo scaler Tigon+
    Comfortable patients thanks to temperature-controlled fluid

    The piezo scaler Tigon+ treats your patients with pleasantly warm fluid, – thereby preventing irritation even of sensitive teeth and gums. The heater can be set to three levels or turned off at the easy-to-operate display.
    Perfectly coordinated
    range of tips

    Ulrasonic piezo scaler Tigon+
    Perfectly coordinated range of tips

    The extensive W&H range of tips was developed in close collaboration with dentists and professors. The high-quality tips, which can be easily inserted and removed using the W&H tip changer, cover the areas of prophylaxis, periodontology, endodontics, implantology and restoration. The Piezo scaler Tigon+ comes with two tip sets.
    Each tip comes with a tip changer. The tip changer is thermo washer disinfectable and sterilizable.
    Piezo scaler handpiece
    with ring of 5 LEDs

    Tigon+
    Piezo scaler handpiece with ring of 5 LEDs

    The ring of 5 LEDs ensures consistently optimal illumination of the treatment site and provides you with improved viewing conditions, revealing the exact tooth colour as well as contrasts as seen in natural daylight.

    Tigon+

    For removing supragingival plaque and subgingival concretions, as well as for endodontic applications and for preparing dental enamel.

    PA-123
    REF 13931000

    Piezo scaler Tigon+ 220 – 240 V

    PA-115
    REF 13931001

    Piezo scaler Tigon+ 110 – 130 V


  • Tigon+

    Type: PA-123 PA-115
    Mains voltage: 220 – 240 V 110 – 130 V
    Nominal current: 0.1 – 1.6 A 0.1 – 2.5 A
    Permissible voltage fluctuation: +/- 10%
    Frequency: 27 – 32 KHz
    Max. power output to the handpiece
    with load (ultrasound):
    10 W
    Length of handpiece cable: 1.8 m
    Dimensions in mm (w x d x h): 276.5 x 300 x 178
    Suitable for foot control: C-NF / S-N1
    Weight: 3.9 kg
