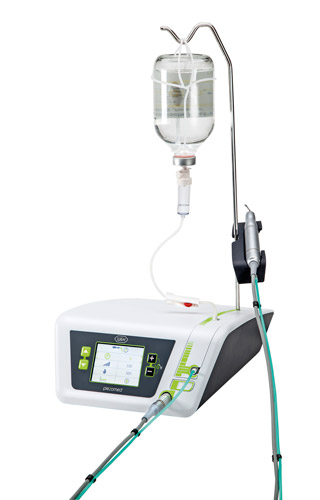

Piezomed facilitates the surgeon’s work: thanks to innovative ultrasound technology, only bone substance is resected with high precision. The surrounding soft tissue remains uninjured. A noticeable relief for the patient: less pain, quicker healing!
Your advantages at a glance
- Automatic instrument detection
- Three individual operating modes
- Temporary 20 % power increase thanks to boost function
Ideal illumination of the operating field
thanks to LED ring illumination
Efficient cooling thanks to spray opening
close to the instrument’s working area

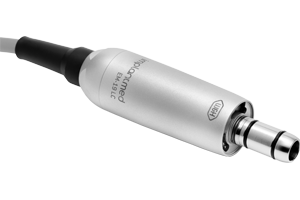

Handpiece with LED socket and cable,
thermo washer disinfectable and sterilizable

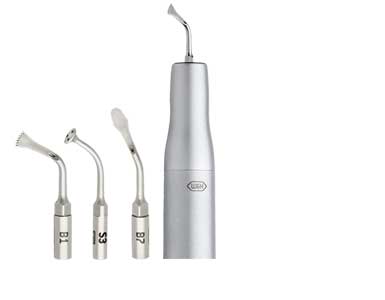

Automatic instrument detection
Automatic instrument detectionAs soon as an instrument is inserted, Piezomed automatically detects the instrument and assigns it to the correct power class. This not only facilitates operation but also increases safety. In addition, the risk of overloading the instruments is reduced and the service life of your instruments considerably extended!Innovative LED ring

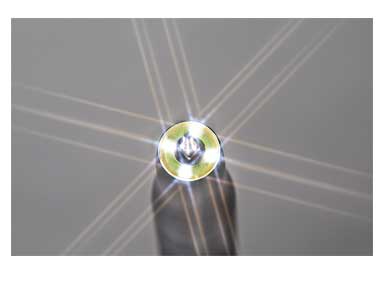

Innovative LED ringThe shadow-free light ensures ideal illumination of the operating site. The handpiece with LED socket and cable can be thermo washer disinfected and sterilized.Efficient cooling

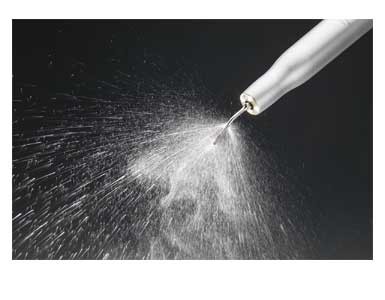

Cooling right where it is neededThe supply of coolant through the instrument to near the operating point guarantees optimal cooling of the instrument and the hard tissue. The spray exits near the instrument’s area of activity and cools the operating site extremely efficiently.Individual performance setting

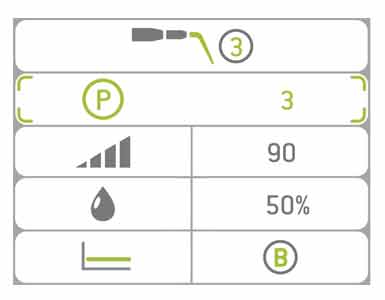

Individual performance settingPiezomed detects the instrument during insertion and sets the correct power class automatically. The power can be changed manually within the detected power class.Individual operating modes
Piezomed adapts to your style of workingPiezomed adapts to your personal way of working and saves your last selected settings. The boost function can be used to increase the set basic power by 20 % for a short period of time.
"Power" operating mode: The handpiece’s power is increased by increasing pressure on the instrument. (Boost function possible)
"Basic" operating mode:The handpiece power remains the same irrespective of the load on the instrument. (Boost function possible)
"Smooth" operating mode: The handpiece‘s power is reduced by increasing pressure on the instrument.

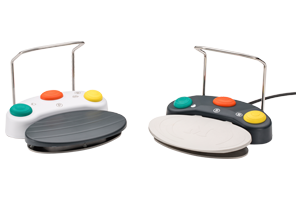

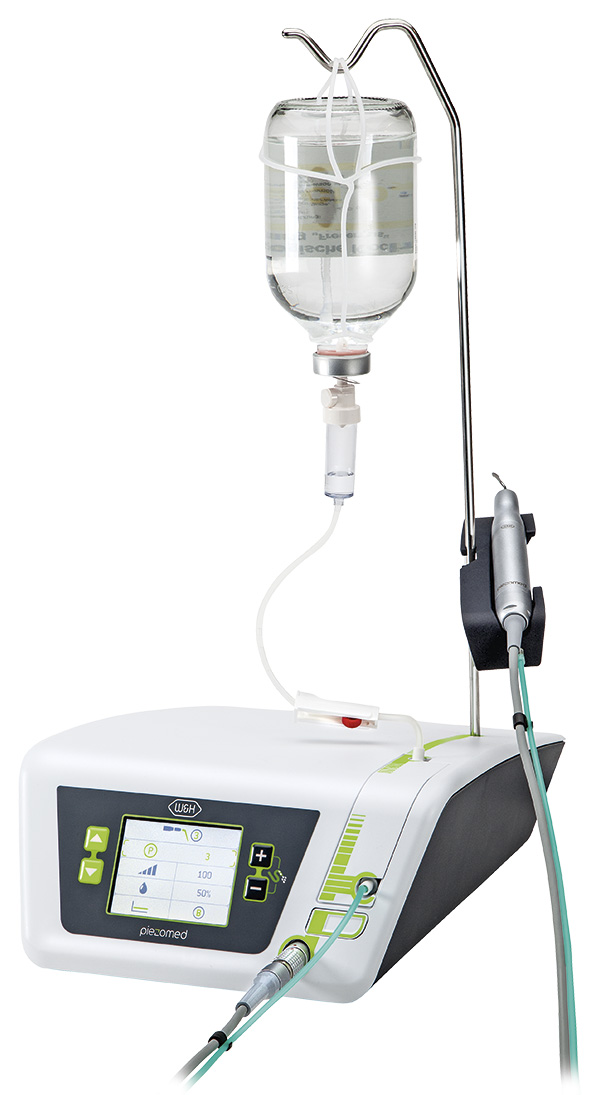

consists of: control unit, foot control S-N1,
handpiece with 1.8 or 3.5 m cable and clips,
irrigation tubing set, mains cable, motor support,

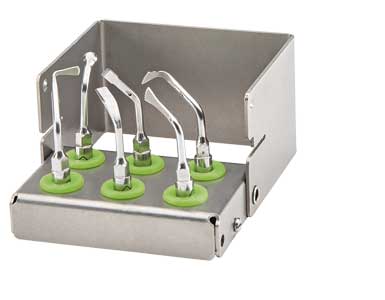

stand, instrument changer, sterilization cassette, instrument kit "Bone"
Handpiece with 1.8 m cable
Handpiece with 3.5 m cable
Type: SA-320 Mains voltage: 100 – 130 V or 220 –240 V Frequency: 50 – 60 Hz Max. power consumption: 90 VA Max. output power: 24 W Coolant flow rate at 100 %: min. 50 ml/min Length of handpiece cable: 1.8 m or 3.5 m Foot control: yes Height / width / depth: 109 x 256 x 305 mm
Open Source Software
The software running this product was developed by utilization of the library QT of Digia. As kernel Linux is applied, the initial starting sequence is carried out by using the bootloader U-Boot. For CANopen communication CanFestival is applied.
These and all other software components are copyrighted by W&H Dentalwerk Bürmooos GmbH or third parties.
The source code of the used software components (Linux, Qt, U-Boot and CanFestival) will be provided on request, charging all arising expenses. Please contact: firstname.lastname@example.org
There is no warranty transferring this software, neither implied warranty nor express warranty.
You will find further information concerning the applied license versions and the complete license text under www.wh.com/en_global/gnu. Alternatively, you can obtain it directly from the manufacturer.
