Piezo Scaler with light

The Piezo Scaler with five sterilizable light emitting diodes in the handpiece allows exact working in daylight quality light and in a much larger field of light than is possible with conventional light sources.

  • Piezo Scaler Pyon 2

    For four areas of application

    The LED Piezo Scaler for use in the areas of scaling, periodontology, endodontics, and micro-preparation. Thanks to the W&H Piezo Scaler, you can be sure to achieve the best results in all applications.

    The ergonomic design of the handpiece and the light weight make it possible for you to work for longer without becoming tired. The handpiece itself can be thermo washer disinfected and sterilized.

    Your advantages at a glance

    • Allows you to work in daylight quality light
    • Reflects the patient’s tooth colour exactly
    • Allows you to see contrasts much better
    • LED ring with 5 light emiting diodes
    • Ergonomic design
    • Comprehensive range of tips
    • Inclusive water filter
    • Handpiece is thermo washer disinfectable
      and sterilizable up to 135 °C
    • Handpiece either with LED or without Light

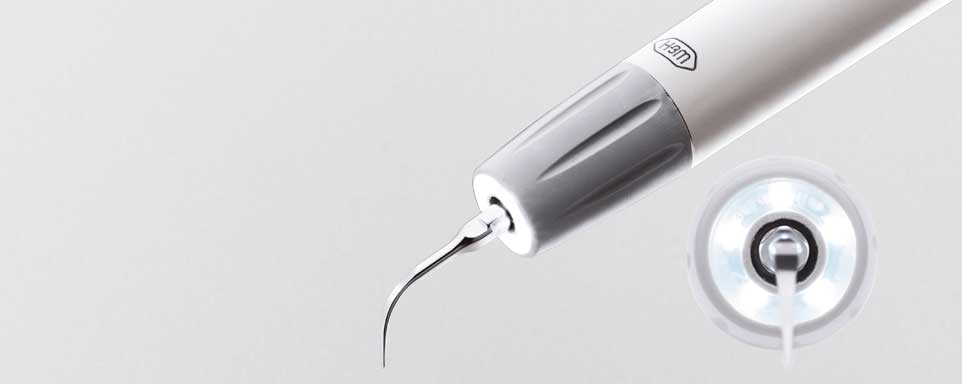

    Precise work with LED

    Precise work with LED

    Light-emitting diodes are based on semiconductor connections that convert electricity directly into light. The results are:

    - robust, sterilizable light sources,
    - that barely heat up,
    - are shock-resistant and
    - do not emit any harmful IR and UVA rays.

    Furthermore, LED´s last much longer than traditional light sources and therefore help you to cut down costs and work more economically.
    Tip changer and tip card

    Tip changer and tip card

    Thanks to the W&H tip changer, tips can easily be attached and removed. When attaching the tip changer, the torque is reached when a distinct click is heard. At the same time, the tip changer also serves as an ideal depository when sterilizing the tip.
    So as to prevent signs of age, all universal tips as well as the Perio tip are provided with a tip card as well, which can be used to measure the level of wear of the individual tips The wear must not amount to more than 2 mm.

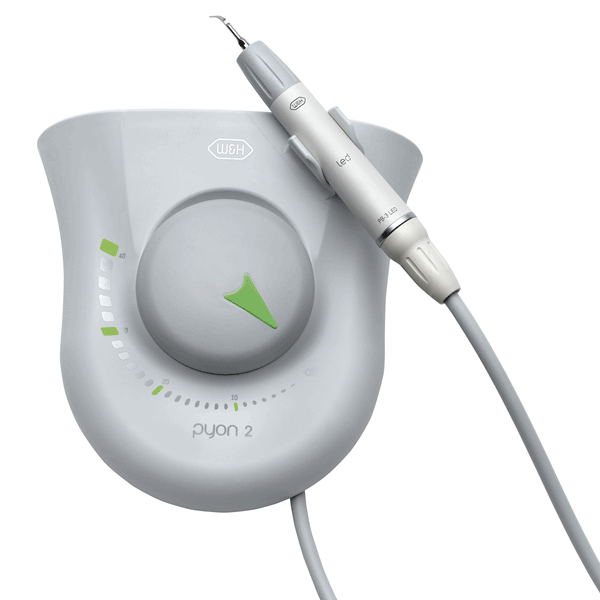

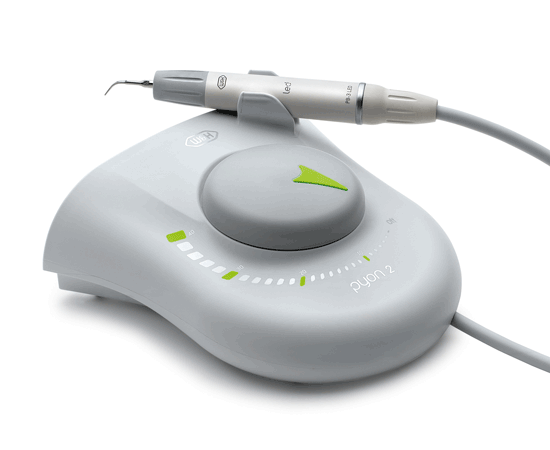

    Pyon 2

    To remove supragingival plaque and subgingival concretions, as well as for endodontic applications and for preparing dental enamel.

    PB-200 LED
    REF 30086000

    Pyon 2 (100 – 230 V)

    PB-200
    REF 30087000

    Pyon 2 (100 – 230 V)


    • Built-in Solution

      Simple and convenient operation via your dental unit's control panel

    • Piezo technology for your dental unit

      Simply to integrate

    • Piezo scaler handpieces

      > PB-3 Handpiece without light
      > PB-3 LED handpiece with 5x ring LED

      • Built-in
        Solution

        Fully integrated drive solution

        Simple and convenient operation via your dental unit’s control panel

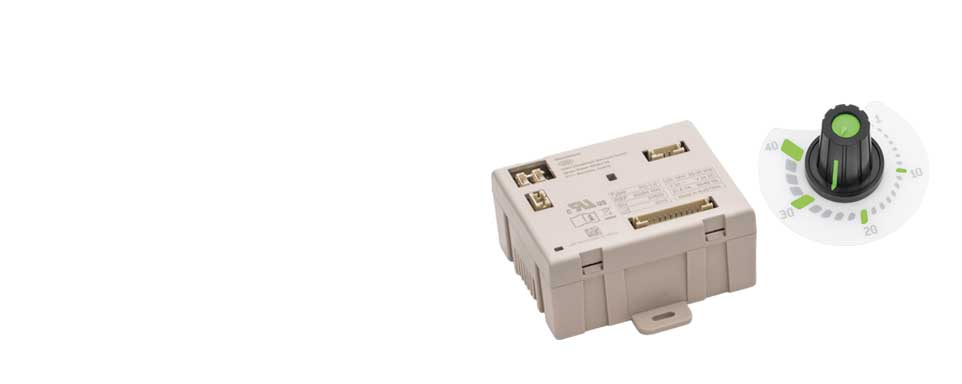

      • Piezo scaler
        Built-in Set

        Easy installation solution

        Operate the piezo scaler with the unit’s foot control, activate it using the instrument holder or control it via the control knob

      • Tailor the
        optimal power

        Control knob

        Tailor the power optimally to the intended use with the control knob

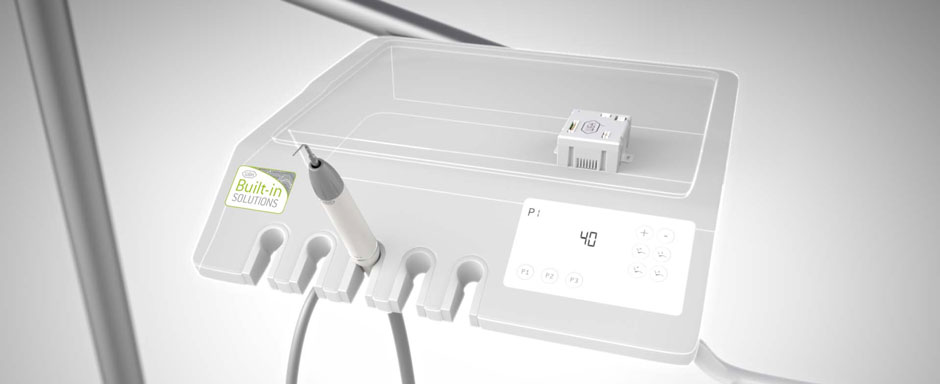

      Piezo Scaler Built-in Solution

      You have the choice

      The W&H piezo scaler can be optimally integrated into your personalized workflow.
      Choose a simple stand-alone solution or utilize the advantages of a Built-in Solution.

      Selected unit manufacturers offer the W&H piezo scaler as an integrated drive solution. It can be controlled simply and conveniently via your dental unit’s control panel.

      Your advantages at a glance

      • Easy integration into your
        existing dental unit
      • Convenient operation via your dental
        unit’s control panel or with the control
        knob to tailor the optimal power
      • Perfectly matched W&H tip system
      • Fast removal of calculus thanks to
        state-of-the-art piezo technology

      Maximum efficiency

      The piezo scaler handpiece is powerful and gentle at the same time for a minimally invasive application and painless treatment.

      State-of-the-art piezo technology improves efficiency and tactile feedback in all clinical indications.

      • Piezo scaler Built-in Set

        Get your treatment unit ready for the future

        With the W&H Built-in Solutions, such as the PB-3 Built-in Set analogue. The new-generation piezo scaler Built-in Solution.

        Ask W&H or your unit manufacturer about the W&H piezo scaler as a Built-in Solution.

      • Easy to use

        Optimal power adjustment

        Thanks to infinitely variable power regulation the W&H piezo scaler can be effortlessly adjusted to the particular application and tip.

        The W&H tip system is perfectly matched to the requirements of the respective application areas.

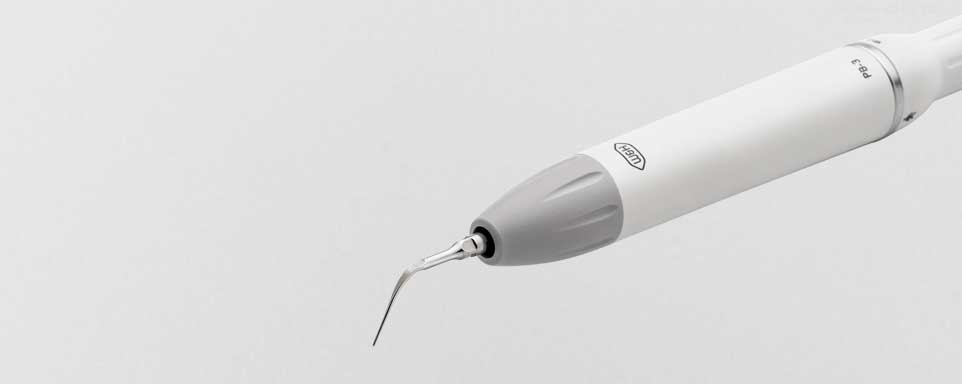

      • Piezo scaler handpieces

        Easy to clean

        The piezo scaler handpieces can be easily dismantled for simple and improved cleaning.

        Both piezo scaler handpieces are thermo washer disinfectable and sterilizable.

        • Comfortable

          High-performance
          and gentle


          The W&H ultrasonic scaler stands out for its fast removal of calculus and gentle, minimally invasive application.

          The shape of the handpiece and its light weight ensure maximum comfort.

        • Gentle application

          Effective cooling


          The integrated spray ensures constant and effective cooling of the treatment site.

          For a minimally invasive application and painless treatment.

        • Diverse range of applications

          Flexible

          From prophylaxis and periodontology to endodontics or the micro-preparation of restorations right up to implant preservation, the W&H piezo scaler boasts a diverse range of uses.

          The tip system, developed with end users, is perfectly matched to the individual treatment steps.

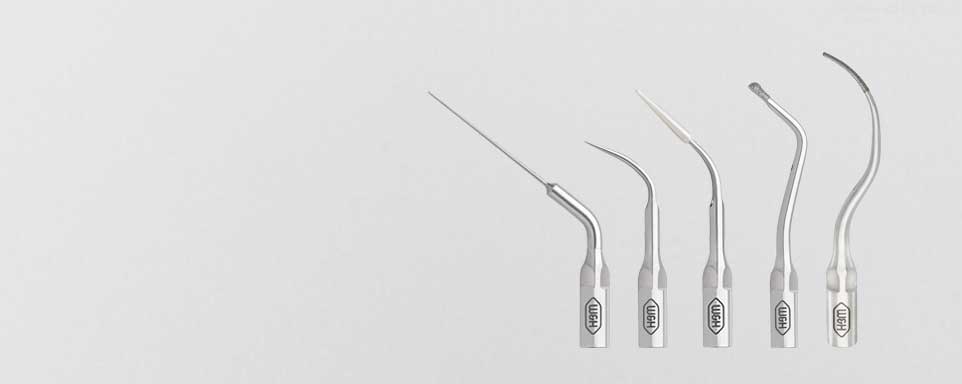

          W&H Piezo scaler tips

          Compact, organized, safe and effective.

          The tip system, developed with end users, is perfectly matched to the requirements of the respective application areas and the individual treatment steps.

          The W&H piezo scaler tip range
          includes different tips for prophylaxis, periodontology, endodontics, implantology and restoration.

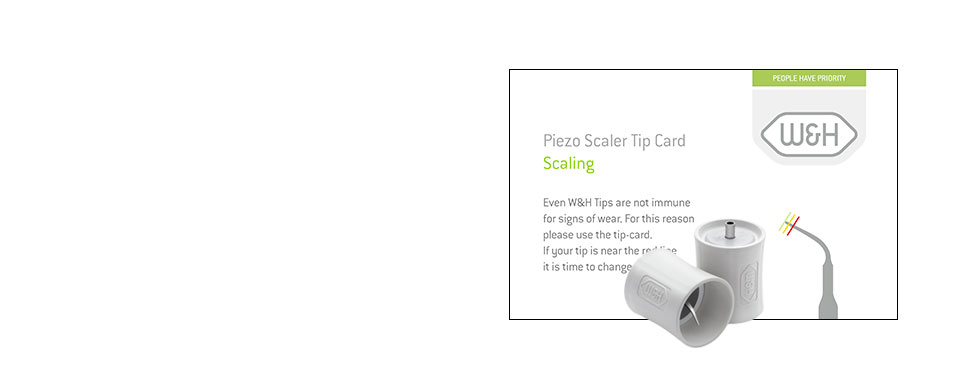

          W&H Tip changer and tip card

          Thanks to the W&H tip changer, tips can easily be attached and removed. At the same time, the tip changer also serves as an ideal depository when sterilizing the tip.

          With the tip card you can measure the level of wear of the tip. The wear of the tip must not amount to more than 2 mm.

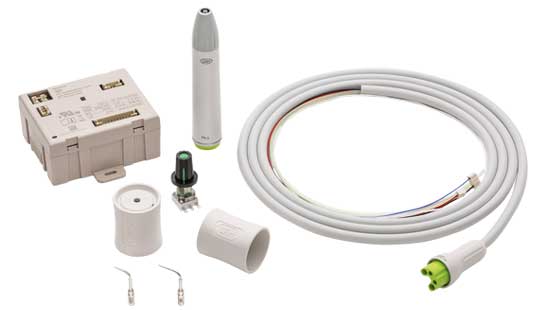

          Piezo scaler PB-3 Built-in Set

          PB-3 Built-in Set
          REF 90000149

          consists of:
          > PC-1.0 Piezo Controller analogue
          > Supply hose
          > Handpiece PB-3
          > Electrical connection set
          > Control knob
          > Tip changer with tip 1U
          > Tip changer with tip 1P

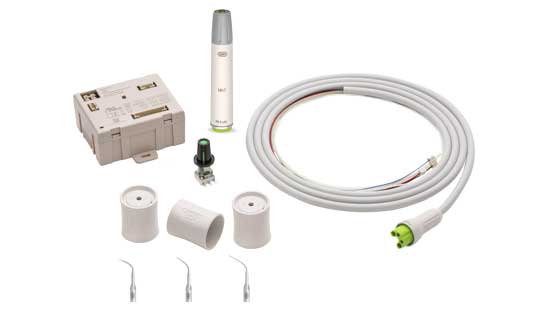

          Piezo scaler PB-2 E LED Built-in Set

          PB-2 E LED Built-in Set
          REF 05852100

          consists of:
          > PB-2 E LED Piezo Controller analogue
          > Supply hose
          > Handpiece PB-3 LED with 5x ring LED
          > Electrical connection set
          > Control knob
          > Tip changer with tip 1U
          > Tip changer with tip 3U
          > Tip changer with tip 1P

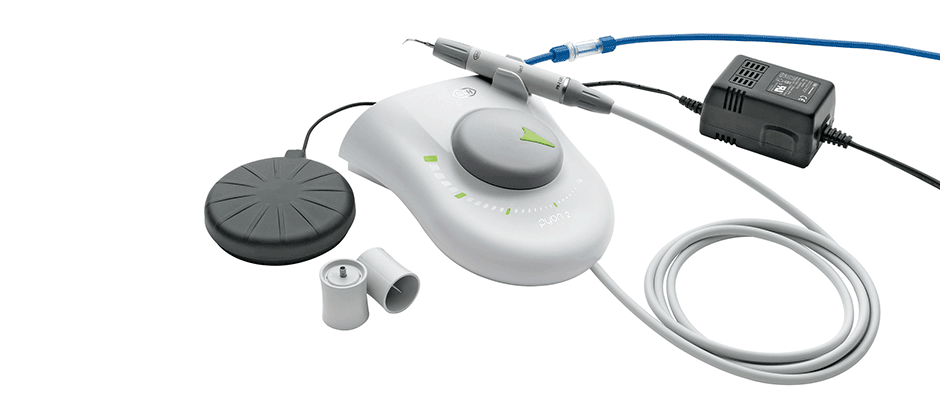

        • Pyon 2

          Control unit PB-200 / PB-200 LED
          Voltage (direct current) 24 – 27 V
          Maximum rated current 1,200 mA
          Maximum power output to the handpiece with load (ultrasonic) 10 W
          Frequency (ultrasonic) 27 – 32 kHz
          Dimensions in mm (width x depth x height) 164 x 170 x 77
          Weight 460 g
          Foot control C-NF

          Switch-mode power supply PB-200 / PB-200 LED
          Input 100 –240 V
          47 – 63 Hz
          0.9 – 0.34 A
          Output 24 – 27 V (direct current)
          1.25 – 1.11 A


          Piezo scaler handpieces

          Piezo scaler handpiece PB-3 PB-3 LED
          Lighting system without light 5x ring LED
          Supply hose with coupling 1.8 m
          Weight 52.5 g
          Length without tip 104.3 mm
          Diameter 20.2 mm
          Coolant flow volume at least 20 ml/min
          maximum 50 ml/min
          Water pressure 1 – 6 bar
