Perfecta 900

Wow! Much more powerful than an air turbine. Ideal for machining ceramics.
Carl S. from North America, 37 years old, manager of a dental laboratory

Control unit for the dental laboratory

The laboratory drive unit Perfecta 900 with the water-cooled high-speed handpiece for efficient and gentle processing of ceramic materials – particularly zirconium – is perfect for the dental laboratory.

Dental Laboratory

Dental Laboratory

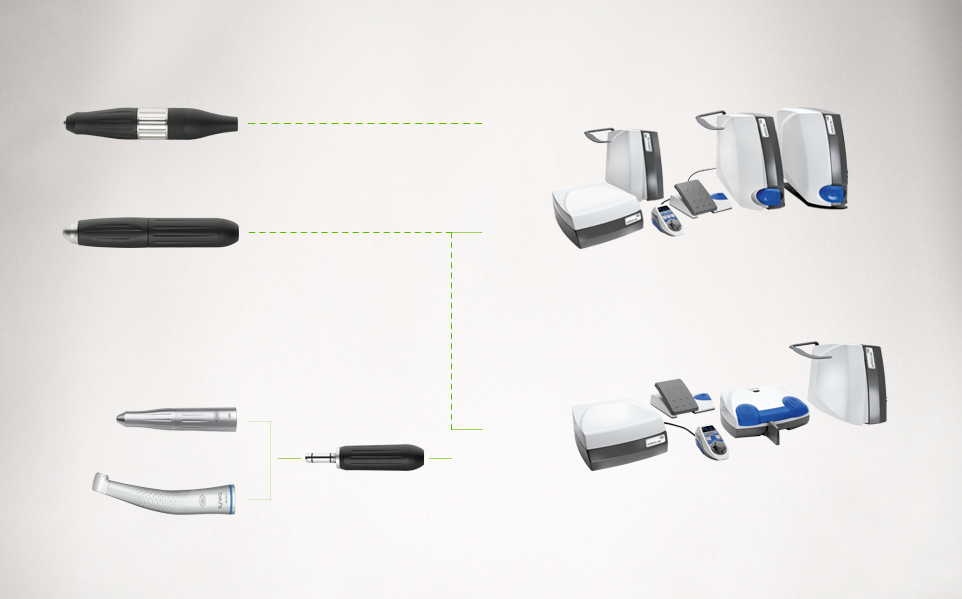

System Overview

  • Perfecta 900

    One unit for all materials

    Alternatively, it is possible for you to connect the dedicated motor handpiece to expand your Perfecta 900 into an all-in-one laboratory unit instrument for the optimal processing of all materials.

    Based on decades of experience W&H has developed with the Perfecta 900 a dental laboratory motor which is available as a table control or knee control unit. In the Perfecta 900 laboratory handpieces the air-jet function is actually integrated, this is a world first for your dental laboratory.

    The main features at a glance

    • Time saving due to integrated air-jet function
    • Gentle, efficient, low vibrations in operation high-speed handpiece with 100,000 rpm
    • Efficient motor handpiece with 7 Ncm
    • Optimal cooling by attachable triple-spray
    • Ergonomic operation by means of the operating controls
    • Free and relaxed work through automatíc programs
    • 24 months warranty

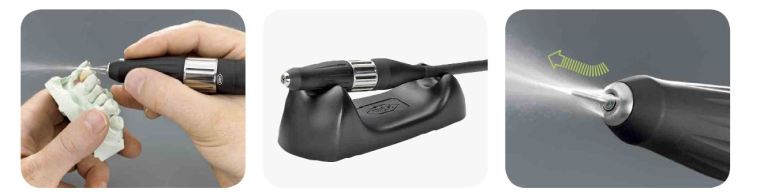

    A world first: handpieces with
    integrated air-jet function

    Handpieces with integrated world first



    Both handpieces have an integrated air-jet function. You no longer have to keep reaching for the air gun, saving you a lot of time.
    You also work with the powerful electric motor with a constant Speed and very low noise.
    The ergonomic shape of the handpieces ensures convenient handling.

    High-speed handpiece

    The motor speed is easily controlled and ideal for accurate machining of all ceramic materials. You can also easily connect the triple spray. It provides protection from microcracking and guarantees optimum cooling.


    ISO-Motor

    The »E-type« motor with ISO connection (5.5 Ncm 1,000 – 40,000 rpm) is an optional accessory for the Perfecta 300 only.
    All straight and contra-angle handpieces with ISO connection, can be used.
    Simple operation:
    space-saving, safe
    and convenient

    Space-saving, safe and convenient



    Simple controls – all functions and operating conditions clearly in view.

    With the very easy controls you can control all functions and with the Perfecta 900 Set switch between the two handpieces.

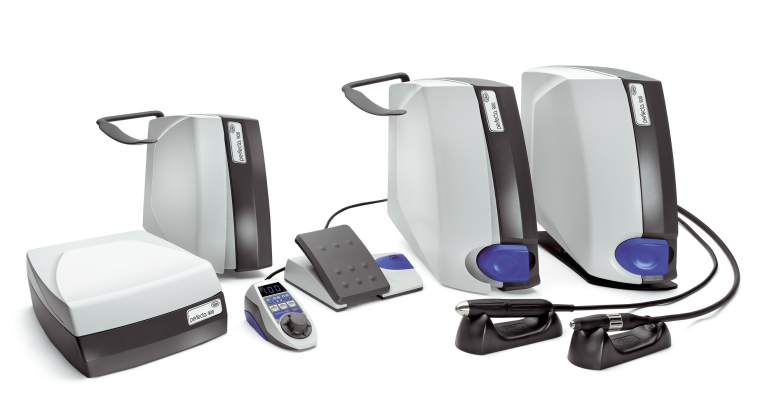

    Model of your choice: table or knee control unit

    Perfect control – Perfecta 900 in the model of your choice

    Perfecta as a table control
    The unit comprises separate operating controls, the control unit which is freely placeable, the foot pedal with an additional button for the air-jet function, the high-speed handpiece and the motor handpiece at the Perfecta 900 Set.
    Perfecta as a knee control
    The unit comprises separate operating controls, the control unit which is mounted beneath the table and has a pedal for the air-jet function, the high-speed handpiece and the motor handpiece at the Perfecta 900 Set. The knee control is optionally retrofitable with a foot pedal.

    Control unit for dental laboratory Perfecta 900

    - High-speed handpiece 0.7 Ncm
    5,000 – 100,000 rpm
    - Tool Ø 1.6 mm
    - Optional: motor handpiece 7.8 Ncm
    1,000 – 50,000 rpm
    - Tool Ø 2.35 mm
    - Optional: 3 mm
    - Brushless motor
    - Air-jet function
    - Automatic: Bistable/speed
    control operation
    - Forward/reverse drive

    Perfecta 900 table control
    REF 14939300

    operating controls, freely placeable control unit, foot pedal with an additional button for the air-jet function, high-speed handpiece, optional: motor handpiece

    Perfecta 900 knee control
    REF 14939400

    operating controls, control unit with pedal for the air-jet function, high-speed handpiece
    optional: motor handpiece, foot pedal

    Control unit for dental laboratory Perfecta 900 Set*

    - High-speed handpiece 0.7 Ncm
    5,000 – 100,000 rpm
    - Tool Ø 1.6 mm
    - Optional: motor handpiece 7.8 Ncm
    1,000 – 50,000 rpm
    - Tool Ø 2.35 mm
    - Optional: 3 mm
    - Brushless motor
    - Air-jet function
    - Automatic: Bistable/speed
    control operation
    - Forward/reverse drive

    Perfecta 900 Set*
    table control

    operating controls, freely placeable control unit, foot pedal with an additional button for the air-jet function, high-speed handpiece, motor handpiece

    Perfecta 900 Set*
    knee control

    operating controls, control unit with pedal for the air-jet function, high-speed handpiece, motor handpiece
    optional: foot pedal



    * The Perfecta 900 Set with two handpieces is not a standard article. You will also need to order the motor handpiece and the applicable cable.

  • Technical data

    Types Perfecta 900 Perfecta 900 Set*
    Handpieces
    Motor handpiece with 5.5 Ncm, 1,000 – 40,000 rpm - -
    Motor handpiece with 7.8 Ncm, 1,000 – 50,000 rpm o +
    High-speed handpiece with 0.7 Ncm, 5,000 – 100,000 rpm + +
    Brushless motor + +
    Can be used for burs diameters 1.6 / 2.35 / 3.0 mm +/o/o +/+/o
    Special functions
    Integrated air-jet function + +
    Automatic programs: Bistable / Speed control operation +/+ +/+
    Clockwise and anti-clockwise operation + +
    Model types
    Table control unit with foot-operated starter / knee control unit / foot control unit +/+/- +/+/-
    External operating controls + +
    »E-type« motor with ISO coupling, 5.5 Ncm, 1,000 – 40,000 rpm - -
    Warranty
    24 months + +
    Accessories
    Wall bracket for operating controls o o
    Milling device adaptor o o
    Technical handpiece 945 for ISO motor - -

    + Standard equipment o optional - not available
