Piezomed & Piezomed module

Still the force in bone surgery

Piezomed puts all the advantages of innovative ultrasound technology at your fingertips: High-frequency microvibrations allow cutting with incredible precision. In addition, with the so-called cavitation effect you can also ensure an almost blood-free surgical site.

Oral Surgery & Implantology

Oral Surgery & Implantology

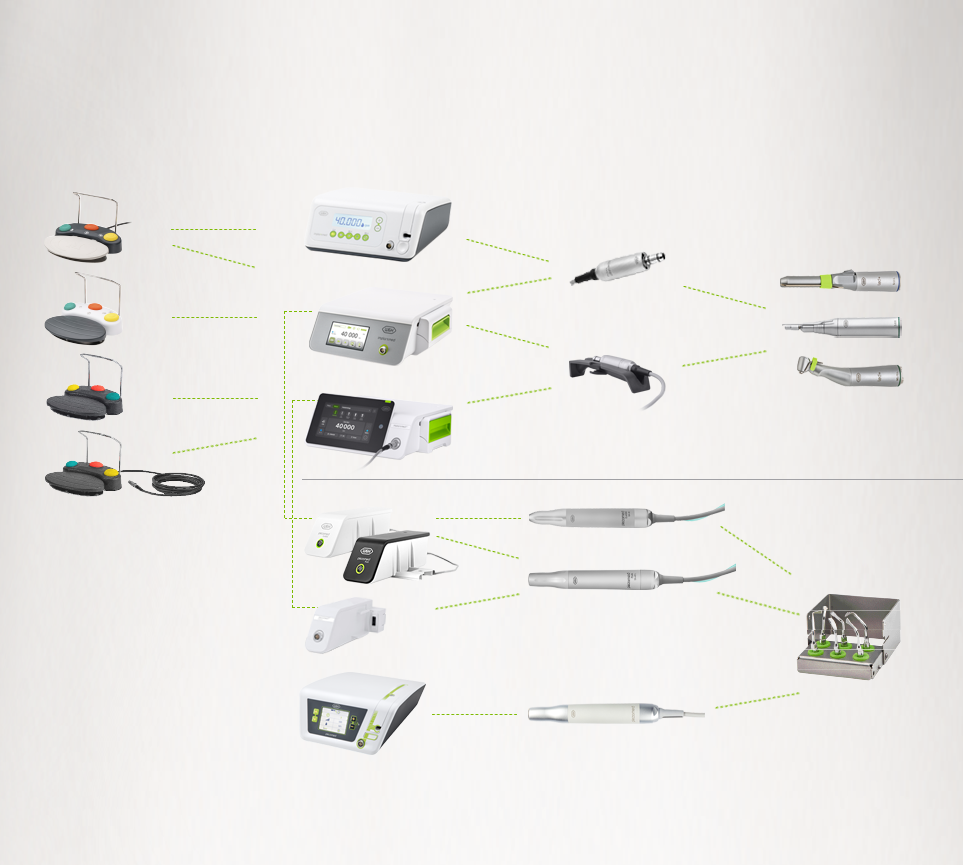

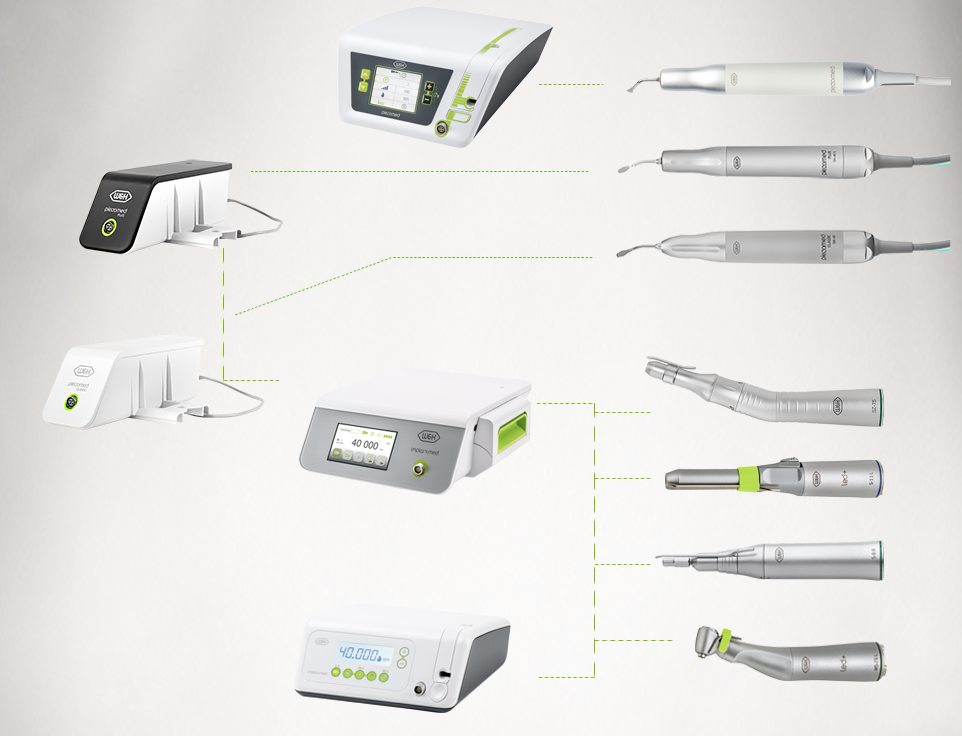

System Overview

Piezomed

Still the force in bone surgery

  • Piezomed

    Minimally invasive, maximally effective -
    Ultrasound technology in oral surgery

    Piezomed facilitates the surgeon’s and implantologist's work: thanks to innovative ultrasound technology, only bone substance is resected with high precision. The surrounding soft tissue remains uninjured. A noticeable relief for the patient: less pain, quicker healing!

    Your advantages at a glance

    • Automatic instrument detection
    • Three individual operating modes
    • Temporary 20 % power increase with boost function
    • Ideal illumination of the operating field via an LED ring
    • Efficient cooling due to the spray opening positioned close to the instrument’s working area
    • LED handpiece and cable is thermo washer disinfectable and sterilizable
    World first!
    Automatic instrument detection

    Automatic instrument detection in oral surgery

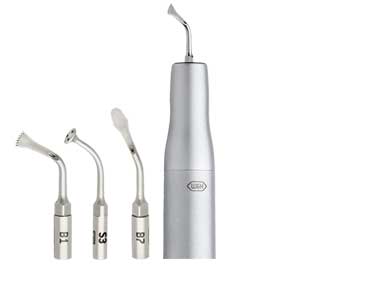

    As soon as an instrument is inserted, Piezomed automatically detects the instrument and assigns it to the correct power class.

    This not only facilitates operation but also increases safety in oral surgery. In addition, the risk of overloading the instruments is reduced and the service life of your surgical instruments considerably extended!
    Innovative LED ring

    Innovative LED ring

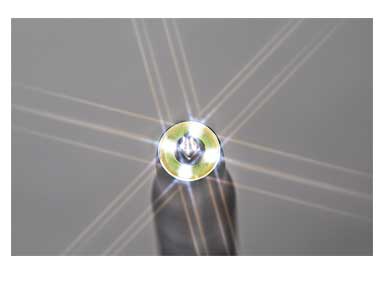

    The shadow-free light ensures ideal illumination of the operating site.

    The handpiece with LED socket and cable can be thermo washer disinfected and sterilized.
    Efficient cooling

    Cooling right where it is needed

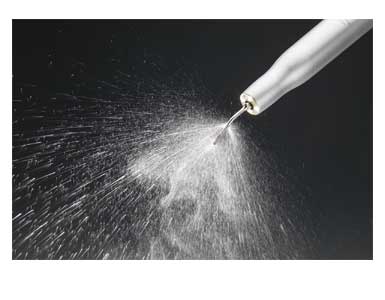

    The supply of coolant through the instrument to near the operating point guarantees optimal cooling of the instrument and the hard tissue.

    The spray exits near the instrument’s area of activity and cools the operating site extremely efficiently during maxillofacial applications.
    Individual performance setting

    Individual performance setting for oral surgery

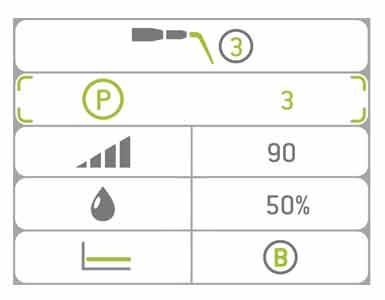

    Piezomed detects the instrument during insertion and sets the correct power class automatically.

    The power can be changed manually within the detected power class.
    Individual operating modes

    Piezomed adapts to your style of working

    Piezomed adapts to your personal way of working and saves your last selected settings. The boost function can be used to increase the set basic power by 20 % for a short period of time.

    "Power" operating mode: The handpiece’s power is increased by increasing pressure on the instrument. (Boost function possible)

    "Basic" operating mode:The handpiece power remains the same irrespective of the load on the instrument. (Boost function possible)

    "Smooth" operating mode: The handpiece‘s power is reduced by increasing pressure on the instrument.
    Piezomed Instruments

    Flexibility and individuality in workingfor oral surgeons

    With its range of 33 innovative instruments, W&H offers you the right instrument for bone surgery, periodontology and extraction, retrograde endodontics as well as for lateral sinus lift.
    I n c r e d i b l e – cuts through bone like butter.

    Dr. Ulrich Fürst,
    Specialist in oral surgery

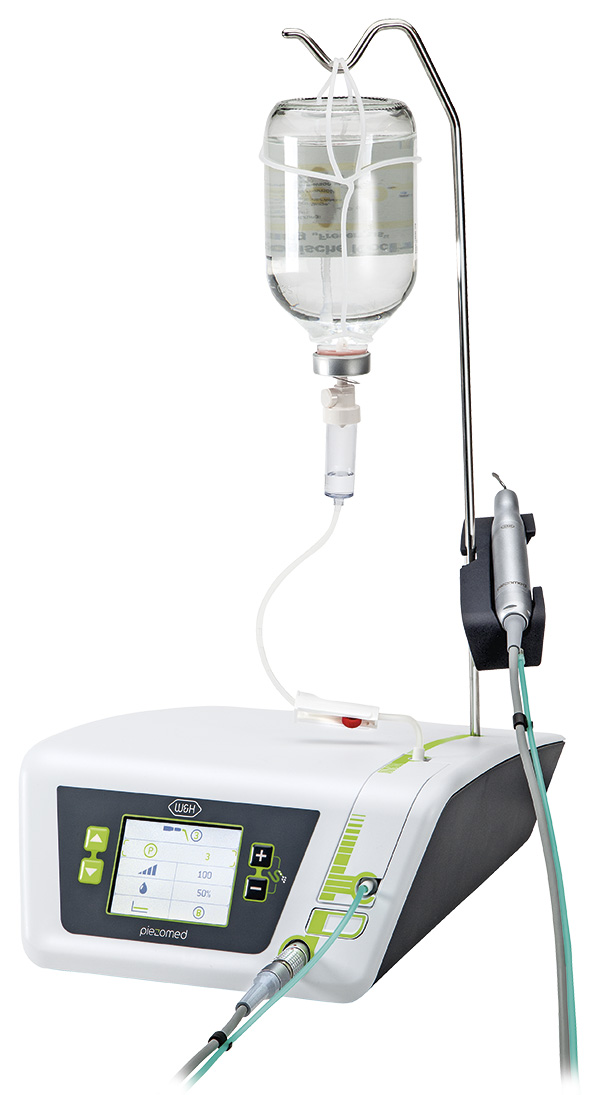

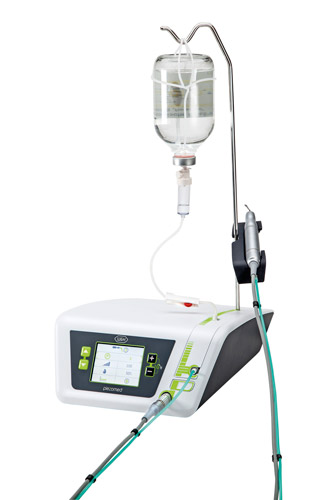

    Piezomed

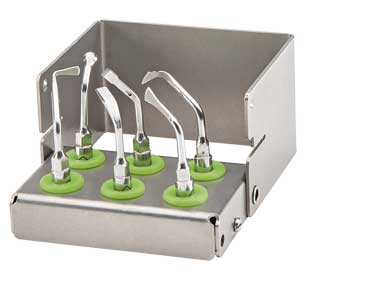

    consists of: control unit, foot control S-N1, handpiece with 1.8 m cable and clips, irrigation tubing set, mains cable, motor support, stand, instrument changer, sterilization cassette, instrument kit "Bone"

    SA-320
    REF 30078000

    Set including handpiece with 1.8 m cable

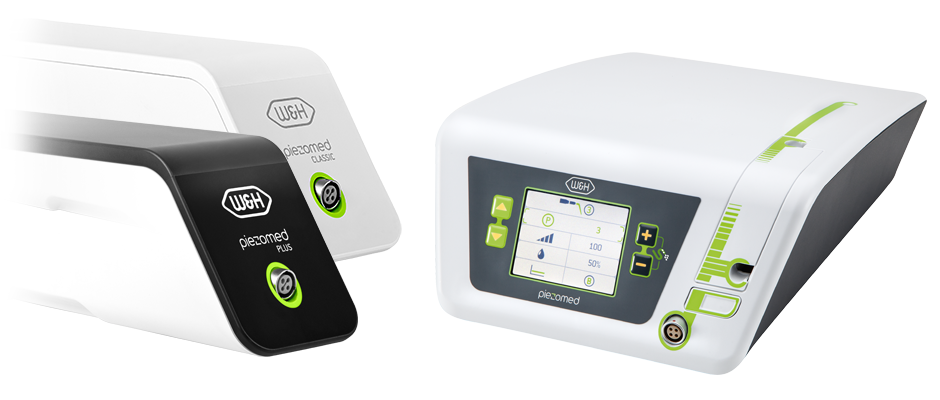

    Piezomed module*

    Piezomed

    The game changer in piezosurgery

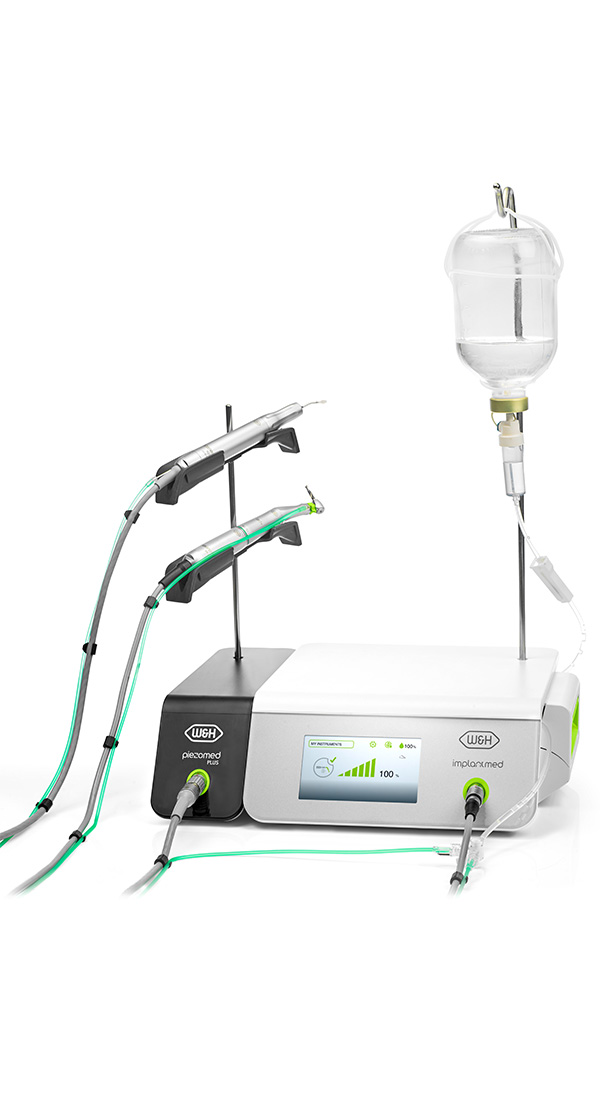

    Piezomed module

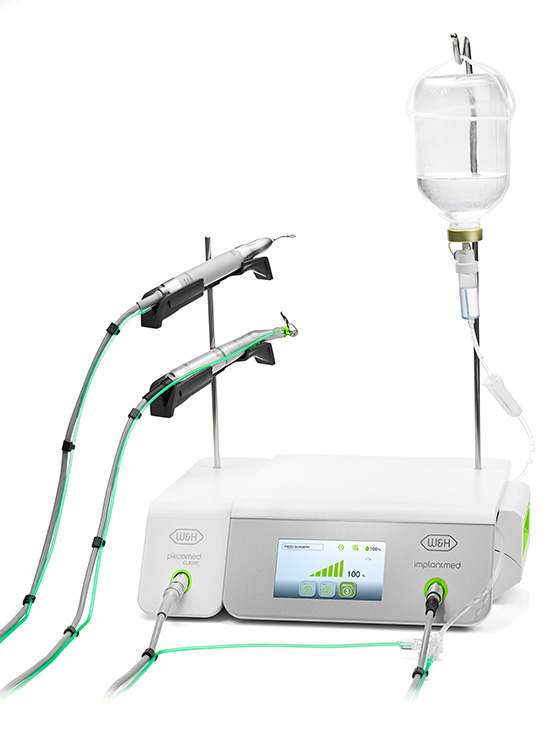

    The Piezomed module combines an
    implantology motor and piezosurgery in
    one device. This means Implantmed can
    be combined with the Piezomed module
    and can be used to cover several surgical
    applications.

    *only in connection with Implantmed Plus

    Your advantages at a glance

    • Modularity
    • Automatic instrument detection
    • Efficient cooling thanks to spray opening close to the instrument’s working area
    • Instrument library
    • The wireless foot control allows you to choose the optimal location in your working area.
    • No impairment of the sterile environment due to the emission of cooling air.

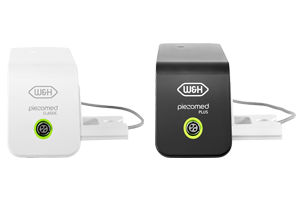

    Piezomed Plus module

    consists of: Module, Handpiece SA-40 L, Power supply and main cable, Support and stand, Instrument changer, 6 pcs. disposable irrigation tubes

    SA-435 M
    REF 90000350

    Handpiece with 1.8 m cable

    SA-435 M
    REF 90000351

    Handpiece with 3.5 m cable

    Piezomed Classic module

    consists of: Module, Handpiece SA-40, Power supply and main cable, Support and stand, Instrument changer, 6 pcs. disposable irrigation tubes

    SA-430 M
    REF 90000349

    Handpiece with 1.8 m cable

    Modularity for optimal flexibility

    Workflow driven solution

    The combination of Implantmed Plus and
    Piezomed module changes the way oral
    surgery and implantology work.

    Electric motor

    Particularly small and surprisingly light. It enables you to work with ease.

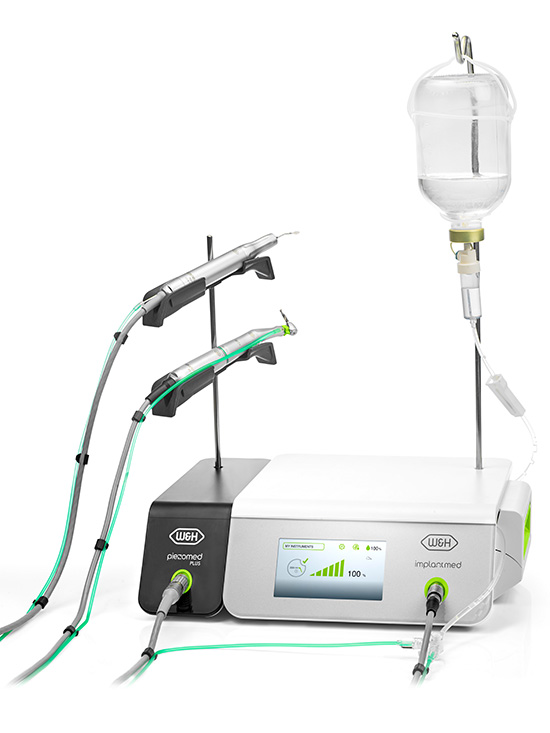

    Piezomed Plus and Classic module

    Combine piezo surgery and implantology in one device.

    Straight & Contra-angle Handpieces

    Provide optimal illumination of the treatment site and facilitate perfect, accurate treatment results.
    More Info!

    Documentation of osseointegration

    The documentation function conveniently saves all values of the implant insertion on a USB stick (.pdf and .xls).

    Wireless or wired foot control

    Control the Implantmed Plus and Piezomed module with just one foot control.

    Osstell Beacon

    Bluetooth connection to the Osstell Beacon
    for easy measurement of implant stability.
    More Info!

    Features at a glance

    Features
    Piezomed Piezomed Plus module Piezomed Classic module
    Automatic Instrument detection
    Instrument library
    Modularity
    Wireless foot control
    Control unit cooling without case fan
    Osstell Beacon connection
    Implantmed and Piezomed functions can
    be controlled with just one foot control
    ioDent® system
    Software update via USB
    Implantmed and Piezomed in one device
    Handpiece with (LED socket) and cable,
    thermodisinfectable and sterilisable
    Pacemaker reports
    Boost function
    LED light
    24 watts
    20 watts
    18 watts

    * 24 W with boost function

    Download Area

    Video Tutorials

    For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

    Accept
  • Piezomed & Piezomed module

    Type:

    Piezomed
    SA-320

    Piezomed Plus module
    SA-435 M

    Piezomed Classic module
    SA-430 M

    Supply voltage:

    100–130 V/220–240 V

    100–240 V

    Frequency:

    50–60 Hz

    Permitted voltage fluctuation:

    ±10%

    Nominal current:

    0.1–1.0 A/0.1–0.5 A

    1.6 A

    Mains frequency:

    50–60 Hz

    Maximum output US:

    20 W*

    24 W

    18 W

    Operating frequency:

    22–35 kHz

    Coolant flow rate at 100%:

    at least 60 ml/min

    at least 90 ml/min

    Length of handpiece cable:

    1.8 m/3.5 m

    1.8 m/3.5 m

    1.8 m without light

    Dimensions in mm (height × width × depth):

    256 × 305 × 109

    90 × 140 × 285

    Weight:

    7 kg

    0.7 kg

    0.6 kg

    Foot control:

    S-N1/S-NW with SPI dongle

    S-N2/S-NW

    * 24 W with boost function
