Proxeo Ultra

The new Piezo Scalers from W&H

The new Proxeo Ultra Piezo Scalers from W&H were developed in collaboration with prophylaxis professionals and really live up to their name. Exclusive user advantages such as »Q-Link«, the only quick connection system of its kind in the world, and the verified compatibility with pacemakers allow ultraefficient treatment.

Prophylaxis & Periodontology

Prophylaxis & Periodontology

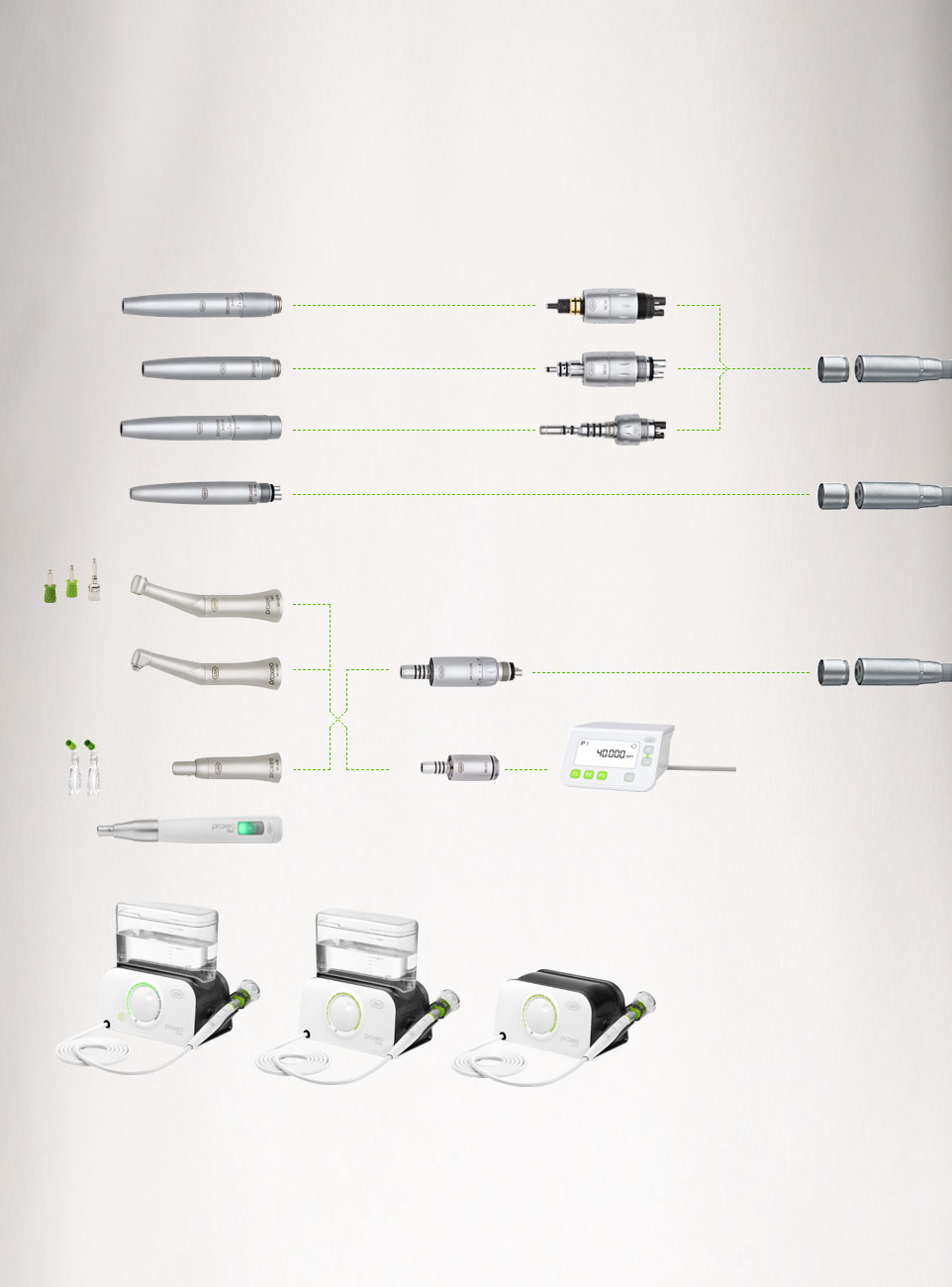

System Overview

* Multiflex® is a trademark of a third party not affiliated with W&H Dentalwerk Bürmoos GmbH

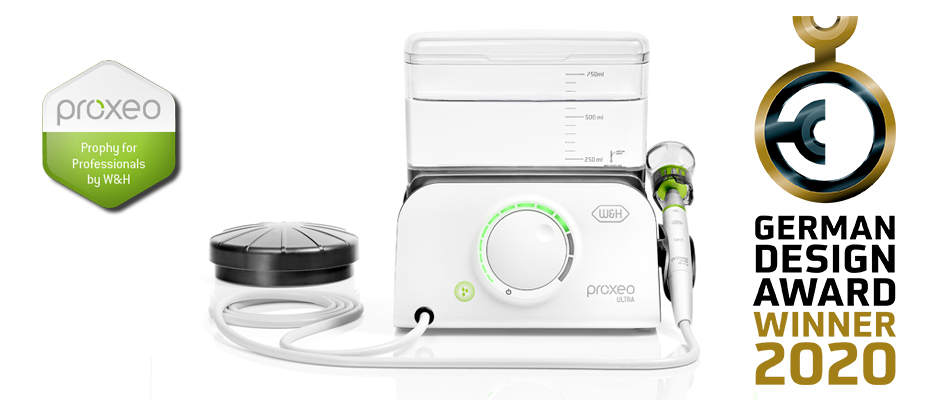

Proxeo Ultra

The new Piezo Scalers from W&H

  • Ultra large tank

    The Proxeo Ultra tank has a capacity of 750 ml, making it one of the largest on the market. It fits perfectly into the overall design and can be filled conveniently and cleaned easily thanks to its special shape and wide opening.

  • Ultra smooth surfaces

    The edge-free design and smooth surfaces allow you to wipe disinfect the Proxeo Ultra with ease.

  • Ultra ergonomic handpiece

    Slender design and ultra flexible hose for simple adaptation, perfect balance and even greater user comfort.

  • Ultra smooth power setting

    The rotary dial makes setting the basic mode particularly comfortable. In addition, the Proxeo Ultra PB-530 also offers a smooth mode for particularly gentle supportive periodontitis treatment.

  • 1 Ultra large tank

    Ultra large tank

    The Proxeo Ultra tank has a capacity of 750 ml, making it one of the largest on the market. It fits perfectly into the overall design and can be filled conveniently and cleaned easily thanks to its special shape and wide opening.

  • 2 Ultra smooth surfaces

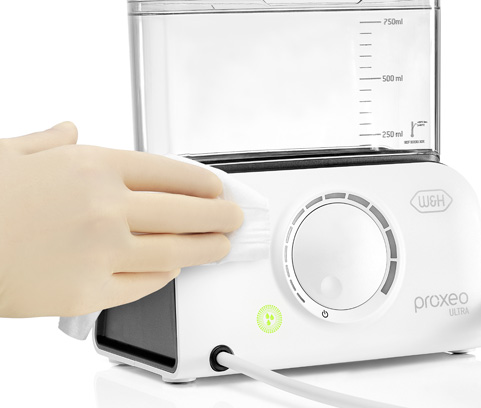

    Ultra smooth surfaces

    The edge-free design and smooth surfaces allow you to wipe disinfect the Proxeo Ultra with ease.

  • 3 Ultra ergonomic handpiece

    Ultra ergonomic handpiece

    Slender design and ultra flexible hose for simple adaptation, perfect balance and even greater user comfort.

  • 4 Ultra smooth power setting

    Ultra smooth power setting

    The rotary dial makes setting the basic mode particularly comfortable. In addition, the Proxeo Ultra PB-530 also offers a smooth mode for particularly gentle supportive periodontitis treatment.

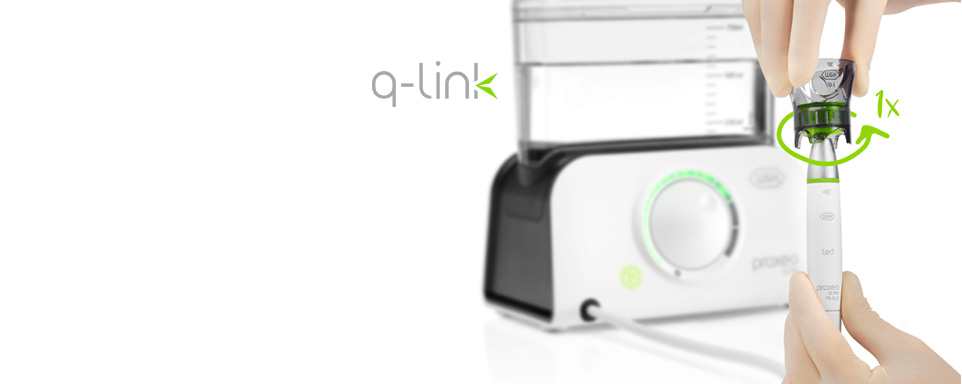

    • Ultra rapid
      changing of tips

      The new handpiece of the Proxeo Ultra Piezo
      Scalers comes with its own proprietary and
      patented quick connection system.


      The tip is screwed on and off with
      just one turn, making changing the tips
      not only quicker, but also much easier.

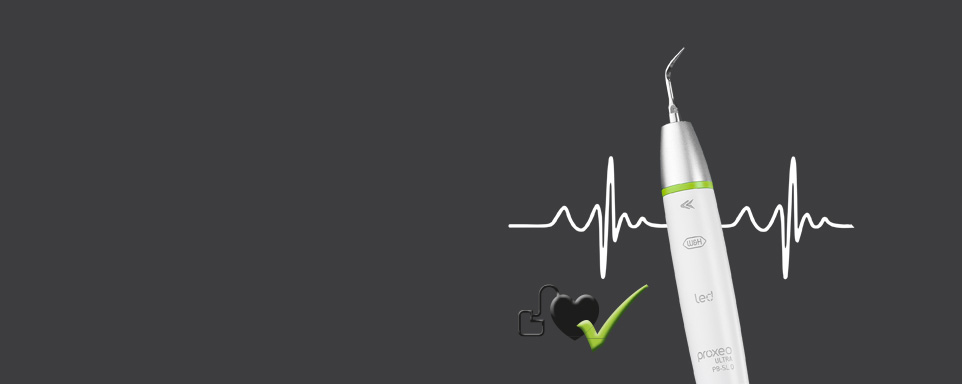

    • Ultra safe feeling

      Increased safety for every patient

      W&H is the first manufacturer to confirm that Piezo
      Scalers can be used on patients with pacemakers
      without any concerns.

      With an independent expert opinion from Graz
      University of Technology, users can now rest assured
      that prophylaxis treatment of patients with
      pacemakers is safe.


      Prophy for Professionals

      Ultra as in ultra brilliant

      Scaling can be so easy:
      in combination with the wireless foot
      control, the ergonomic, light handpieces
      ensure perfect handling and the ultimate
      flexibility in every treatment.

      Main advantages at a glance

      • Q-Link quick connection system
      • Compatibility with pacemakers tested by Graz University of Technology
      • Handpiece with LED ring
      • Thin, flexible hose
      • Wireless foot control
      • Automatic fill level detection
      • Infinitely adjustable power setting
      • Perfectly coordinated tip range
      • Large tank (750 ml)
      • Special cleaning program for reprocessing hose systems
      • Ultra flexible

        Ultra flexible freedom of movement

        Changing position is easier than ever before. Position the wireless foot control for the PB-530 wherever it suits you best – no more annoying cords!

      • Ultra large

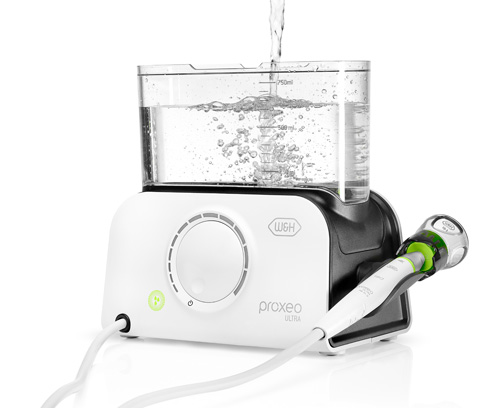

        Ultra large tank

        The Proxeo Ultra tank (PB-520 & PB-530) has a capacity of 750 ml, making it one of the largest on the market. It fits perfectly into the overall design and can be filled conveniently and cleaned easily thanks to its special shape and wide opening.

      • Ultra smooth

        Ultra smooth surfaces

        The edge-free design and smooth surfaces allow you to wipe disinfect the Proxeo Ultra with ease.

      • Ultra practical

        Ultra practical fill level detection

        The Proxeo Ultra PB-530 warns you in good time when the water is running low. This allows you to integrate the refilling into your workflow conveniently.

      • Ultra bright

        Ultra bright illumination

        The LED ring lights up the treatment site with daylight-quality illumination.

      • Ultra ergonomic

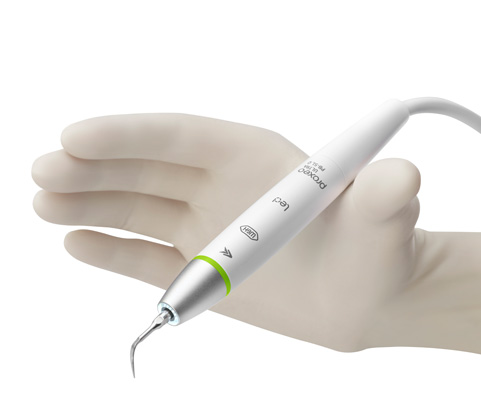

        Ultra ergonomic handpiece

        Slender design and ultra flexible hose for simple adaptation, perfect balance and even greater user comfort.

      • Ultra smooth

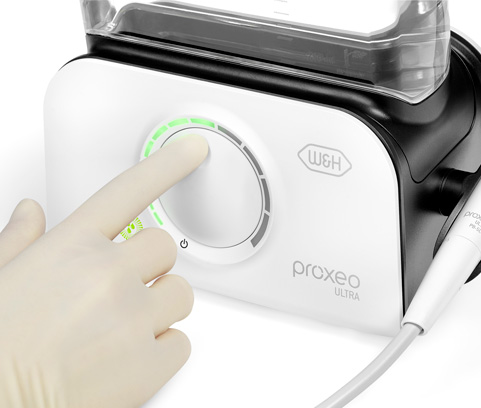

        Ultra smooth power setting

        The rotary dial makes setting the basic mode particularly easy.


        The dentists and hygienists played a key role in this product. From the requirements to the design to the simplicity of use, the product clearly satisfies the users’ needs.

        Bernhard Eder
        Product portfolio manager W&H, Bürmoos

        The Proxeo Ultra Piezo Scaler really lives up to its name. It allows ultra rapid changing of the tips, has an ultra ergonomic handpiece and is ultra flexible in its use, ultra simple to handle and ultra versatile in treatment. In addition, it also looks ultra great!

        Fanny Bretschneider
        Dental hygienist, Salzburg

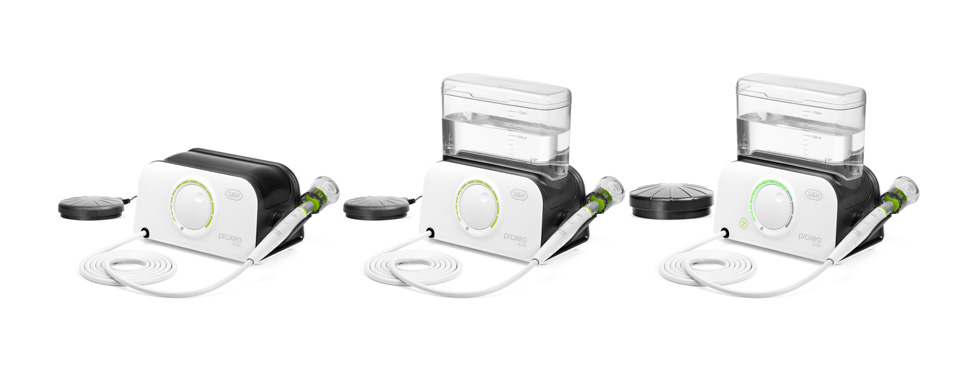

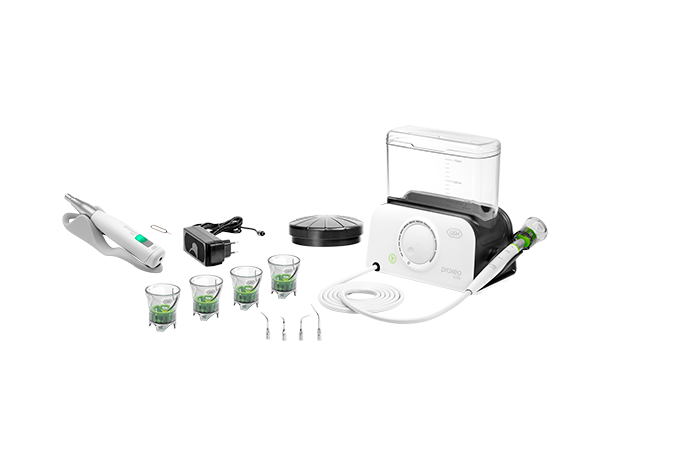

        Proxeo Ultra Systems

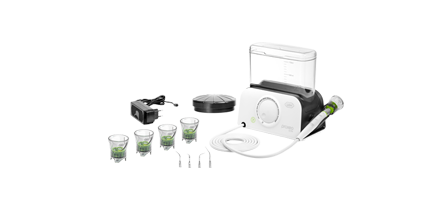

        PB-530

        › Q-Link quick connection system
        › Compatibility with pacemakers
        tested by Graz University of
        Technology
        › Handpiece with LED ring
        › Thin, flexible hose
        › Wireless foot control
        › Automatic fill level detection
        › Infinitely adjustable power setting
        › Perfectly coordinated tip range
        › Large tank (750 ml)
        › Special cleaning program for
        reprocessing hose systems

        PB-530
        REF 90000258

        PB-5 L Q handpiece

        PB-530
        REF 90000257

        PB-5 L handpiece

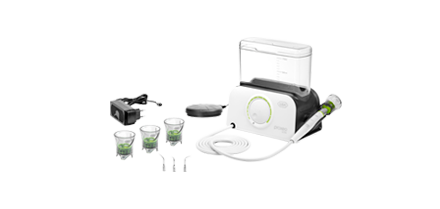

        PB-520

        › Q-Link quick connection system
        › Compatibility with pacemakers
        tested by Graz University of
        Technology
        › Handpiece with LED ring
        › Thin, flexible hose
        › Infinitely adjustable power setting
        › Perfectly coordinated tip range
        › Large tank (750 ml)

        PB-520
        REF 90000256

        PB-5 L Q handpiece

        PB-520
        REF 90000255

        PB-5 L handpiece

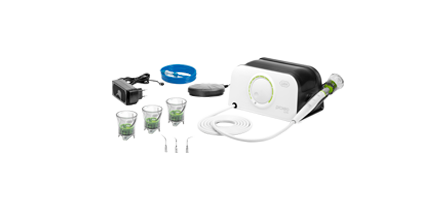

        PB-510

        › Q-Link quick connection system
        › Compatibility with pacemakers
        tested by Graz University of
        Technology
        › Handpiece with LED ring
        › Thin, flexible hose
        › Infinitely adjustable power setting
        › Perfectly coordinated tip range

        PB-510
        REF 90000254

        PB-5 L Q handpiece

        PB-510
        REF 90000253

        PB-5 L handpiece


        Built-In Piezo Scaler

        Selected unit manufacturers
        offer W&H Piezo Scalers as an
        integrated drive solution as part of
        the complete system. They can be
        controlled simply and conveniently
        via your dental unit’s control panel.
        Ask W&H or your unit manufacturer
        about W&H Piezo Scalers as a Built-in Solution.

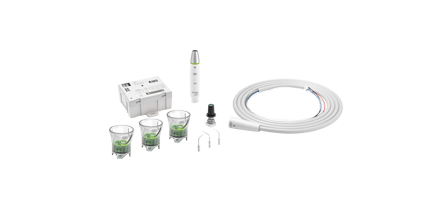

        Built-In Piezo Scaler
        REF 90000252

        PB-5 L Q handpiece

        Built-In Piezo Scaler
        REF 90000251

        PB-5 L handpiece

        Built-In Piezo Scaler
        REF 90000149

        PB-3 handpiece

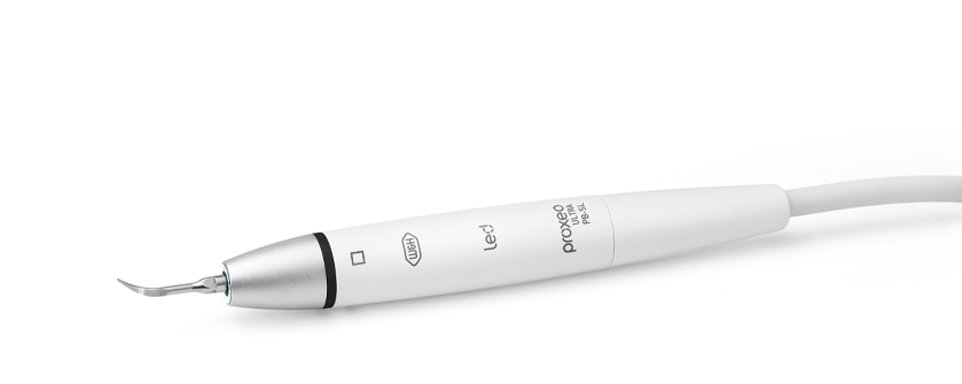

        Proxeo Ultra Handpieces

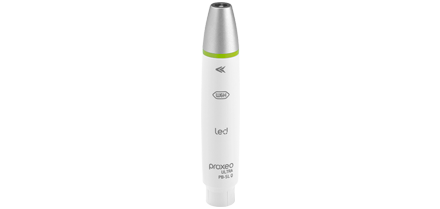

        PB-5 L Q

        Handpieces with Q-Link quick connection system.

        PB-5 L Q
        REF 30327000

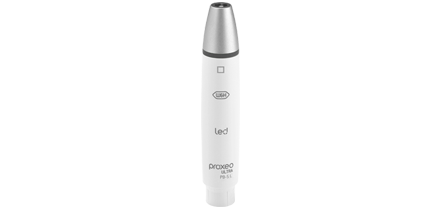

        PB-5 L

        Handpiece for W&H thread.

        PB-5 L
        REF 30326000

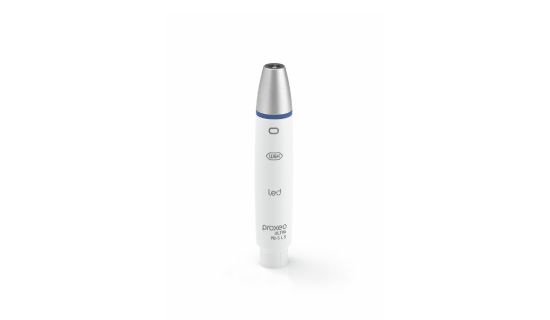

        PB-5 L S

        Handpiece for W&H Satelec thread.

        PB-5 L S
        REF 30328000


        • Built-in Solution

          Simple and convenient
          operation via your
          dental unit’s control
          panel

        • Piezo technology
          for your dental unit

          Simply to integrate

        • Piezo scaler handpieces

          > PB-5 L Q handpiece
          > PB-5 L handpiece
          > PB-3 handpiece

          • Built-in
            Solution

            Fully integrated drive solution

            Simple and convenient operation <br>via your dental unit’s control panel

          • Piezo Scaler
            Built-in Set

            Easy installation solution

            Operate the piezo scaler with the unit’s foot control, activate it using the instrument holder or control it via the control knob

          • Tailor the
            optimal power

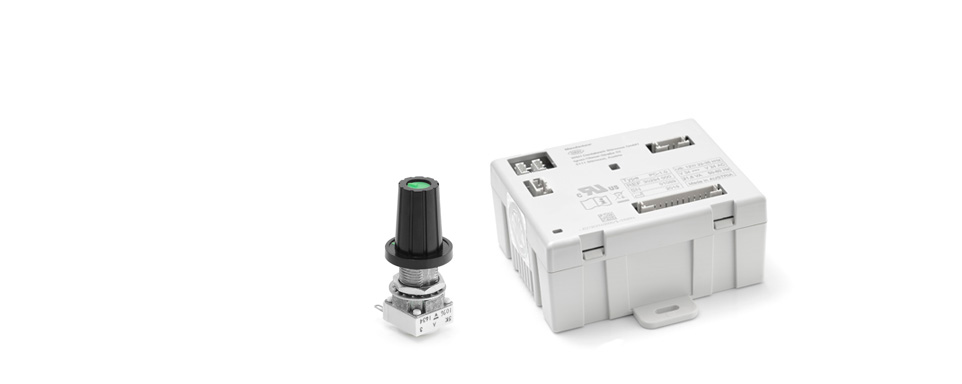

            Control knob

            Tailor the power optimally to the intended use with the control knob

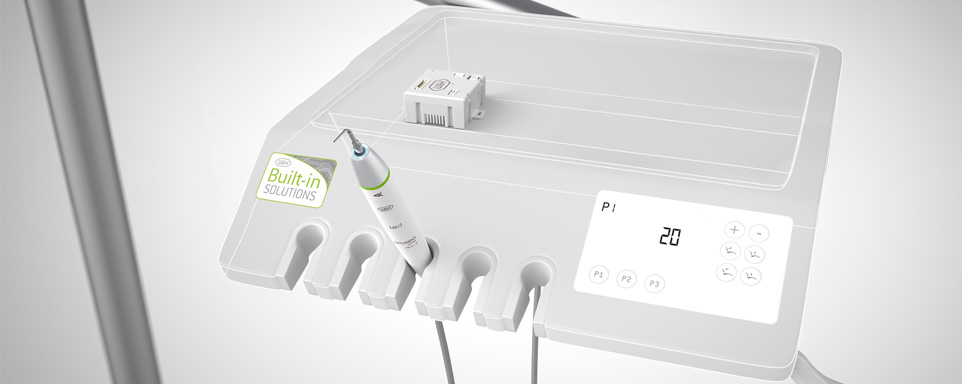

          Piezo Scaler Built-in Solution

          You have the choice

          The W&H piezo scaler can be optimally
          integrated into your personalized workflow.
          Choose a simple stand-alone solution or
          utilize the advantages of a Built-in Solution.

          Selected unit manufacturers offer the
          W&H piezo scaler as an integrated drive
          solution. It can be controlled simply and conveniently via your dental unit’s control panel.

          Your advantages at a glance

          • Easy integration into your existing dental unit
          • Convenient operation via your dental unit’s control panel or with the control knob to tailor the optimal power
          • Perfectly matched W&H tip system
          • Fast removal of calculus thanks to state-of-the-art piezo technology

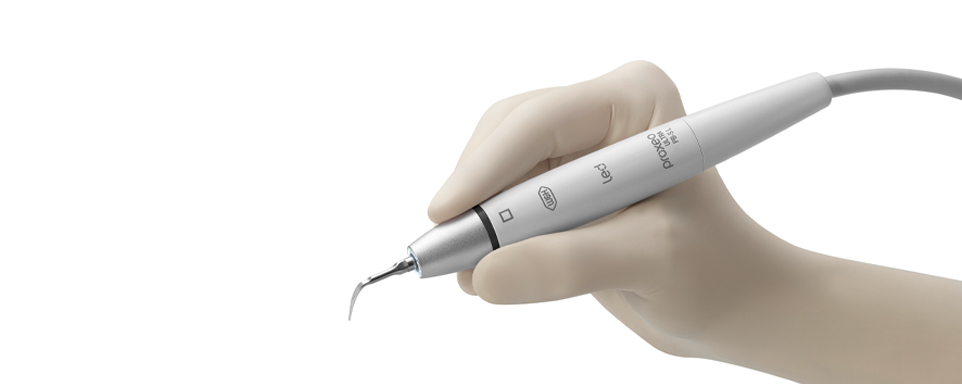

          Maximum efficiency

          The piezo scaler handpiece is powerful and gentle at the same time for a minimally invasive application and painless treatment.
          State-of-the-art piezo technology improves efficiency and tactile feedback in all clinical indications.

          • Piezo Scaler Built-in Set

            Get your treatment unit ready for the future


            With the W&H Built-in Solutions, such as the PB-5 L Built-in Set analogue. The new-generation piezo scaler Built-in Solution.

            Ask W&H or your unit manufacturer about the W&H piezo scaler as a Built-in Solution.

          • Easy to use

            Optimal power adjustment


            Thanks to infinitely variable power regulation the W&H piezo scaler can be effortlessly adjusted to the particular application and tip.

            The W&H tip system is perfectly matched to the requirements of the respective application areas.

          • Piezo scaler handpieces

            Easy to clean


            The piezo scaler handpieces can be easily dismantled
            for simple and improved cleaning.

            Both piezo scaler handpieces are thermo washer
            disinfectable and sterilizable.

            • Comfortable

              High-performance
              and gentle


              The W&H ultrasonic scaler stands out for its fast removal of calculus and gentle, minimally invasive application.

              The shape of the handpiece and its light weight ensure maximum comfort.

            • Gentle application

              Effective cooling


              The integrated spray ensures constant and effective cooling of the treatment site.

              For a minimally invasive application and painless treatment.

            • Diverse range of applications

              Flexible

              From prophylaxis and periodontology to endodontics or the micro-preparation of restorations right up to implant preservation, the W&H piezo scaler boasts a diverse range of uses.

              The tip system, developed with end users, is perfectly matched to the individual treatment steps.

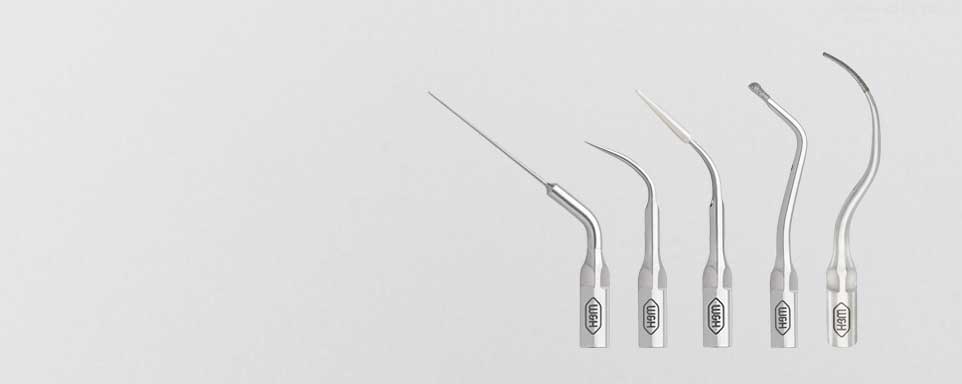

              W&H Piezo scaler tips

              Compact, organized, safe and effective.

              The tip system, developed with end users, is perfectly matched to the requirements of the respective application areas and the individual treatment steps.

              The W&H piezo scaler tip range
              includes different tips for prophylaxis, periodontology, endodontics, implantology and restoration.

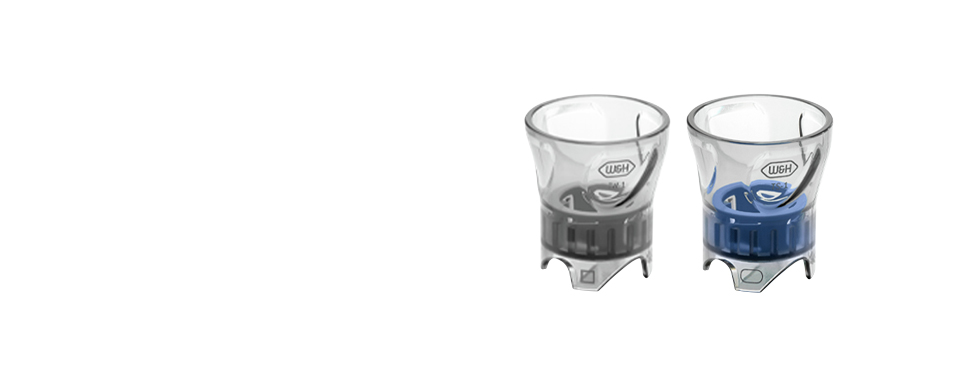

              W&H Tip changer

              Thanks to the W&H tip changer, tips can easily be attached and removed. At the same time, the tip changer also serves as an ideal depository when sterilizing the tip.

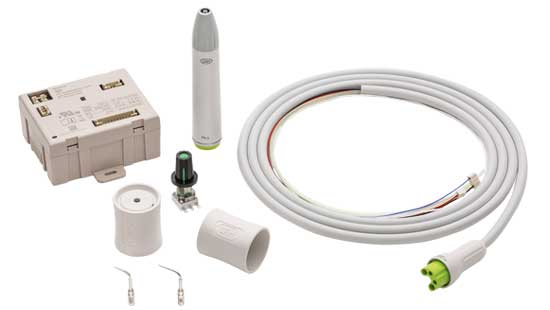

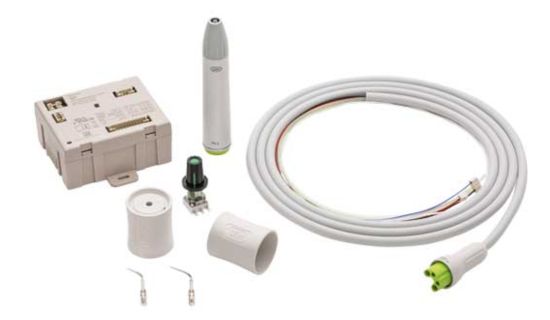

              Piezo Scaler PB-5 L Q (Built-in Set)

              PB-5 L Q Built-in Set
              REF 90000252

              consists of
              > PC-1.0 Piezo Controller analogue
              > VP-5 Supply hose
              > Handpiece PB-5 L Q
              > Electrical connection set
              > Control knob
              > Tips 1UQ, 2UQ, 1PQ
              > Tip changer


              Piezo Scaler PB-5 L (Built-in Set)

              PB-5 L Built-in Set
              REF 90000251

              consists of
              > PC-1.0 Piezo Controller analogue
              > VP-5 Supply hose
              > Handpiece PB-5 L
              > Electrical connection set
              > Control knob
              > Tips 1UQ, 2UQ, 1PQ
              > Tip changer


              Piezo Scaler PB-3 (Built-in Set)

              PB-3 Built-in Set
              REF 90000149

              consists of
              > PC-1.0 Piezo Controller analogue
              > Supply hose
              > Handpiece PB-3
              > Electrical connection set
              > Control knob
              > Tip changer with tip 1U
              > Tip changer with tip 1P

            • Proxeo Ultra

              Surgical unit

              PB-530

              PB-520

              PB-510

              Mains Voltage:

              100-230 V

              Maximum output power to handpiece under load (ultrasonic):

              12 W

              Frequency (ultrasonic):

              22-35 kHz

              Operating mode:

              S3 (14 s/6 s)

              Length of handpiece cable:

              1,8 m

              Dimensions in mm (W×D×H):

              120×185×205

              120×185×110

              Weight:

              1.106 g

              1.064 g

              807 g

              Can be used with foot control:

              C-NW

              C-NF

              Foot control

              Foot control

              C-NW

              C-NF

              Weight:

              190 g

              114 g

              Dimensions in mm (W×D×H):

              117×117×38

              100×110×26,5

              Battery type:

              Li-Ion

              -

              Running time when fully charged:

              approx. 2 months

              -

              Standby:

              automatically if not actuated

              -

              Charging time:

              approx. 3 hours

              -

              Piezo Scaler handpiece

              Piezo Scaler handpiece

              PB-5 L Q

              PB-5 L

              PB-5 L S

              Light:

              LED-Ring

              Weight:

              55 g

              Length without tip:

              135 mm (with coupling)

              Diameter:

              18,5 mm

              Built-In

              Built-In Set analog

              PB-3

              PB-5 L Q/PB-5 L

              Piezo Controller:

              PC-1.0

              Electrical connection set:

              Control knob:

              Supply hose:

              VP-3 (1,8 m)

              VP-5 (1,8 m)

              Handpiece:

              PB-3

              PB-5 L Q/PB-5 L

              Tip changer with tip inserted:

              TW-1: 1U, 1P

              TQ-1: 1UQ, 2UQ, 1PQ/TW-1: 1U, 2U, 1P

              Compatibility of tips with W&H handpieces

              Q-Link*

              W&H/EMS/Mectron

              W&H/NSK/Satelec**

              PB-5 L Q

              PB-5 L

              PA-1 LED

              PB-3

              PB-5 L S

              PB-3 LED S

              PB-3 S

              Tigon+

              X

              X

              Proxeo Ultra

              X

              X

              X

              Pyon 2

              X

              Built-In

              X

              X

              X

              X

              X

              * Q-Link tips (e.g., 1UQ, 2UQ) are compatible with the PB-5 L Q.
              ** W&H tips with Satelec thread (e.g., 1US, 2US) are compatible with the W&H handpieces PB-5 L S, PB-3 LED S and PB-3 S.
              Note: EMS®, Mectron®, NSK® and Satelec® are trademarks of third parties not affiliated with W&H Dentalwerk Bürmoos GmbH. When using tips from other manufacturers, the user is responsible for ensuring the W&H piezo device´s performance parameters are set correctly.
