Do I need to carry out periodic testing on my W&H Sterilizer?

All W&H sterilizers features test cycles (B&D/Helix test, Vacuum test). Compulsory and frequency of testing are regulated by local/national guidelines.

Validation is a series of tests carried out with the use of independent specialist test equipment, as is necessary to demonstrate that the physical conditions required for sterilization, thermal disinfection and/or cleaning (i.e. temperature, pressure, time) are achieved.

Do I need to document the results of all periodic tests?

Yes, all tests performed by the operator or user should be recorded in a logbook with the date and signature of the individual how carried out the test. Every Sterilizer and every thermo washer disinfector should have a logbook (file) in which test details pertaining to the lifecycle of the equipment (from purchase - disposal) are recorded. A logbook is provided as standard with the Premium Careplus Service Contract from W&H, or as an optional extra with the Premium Care Service Contract.

How long should I Keep periodic test records?

Under current national decontamination guildance, all audit documents should be stored for at least two years and they should not be removed from the premises or destroyed.

Does my Lisa/Lina need to be commissioned from new?

Yes, validation is needed for new equipment at installation and annually thereafter. It will also be necessary to validate equipment after any major repairs have been carried out.

Who should I use to carry out validation and maintenance on my Lisa/Lina?

All validation and maintenance should be undertaken by the Competent Person (Decontamination) or Competent Person (maintenance).

How do I change consumable components on my sterilizer?

Consumable replacement instructions are provided in the Instructions for Use, chapter “Maintenance”. In addition, a video description is available: • in the sterilizer, in the maintenance section of the menu; • in the Consumables & Accessories and Video Tutorial section of this website.

How do I clean the water tanks and what products should I use?

Water tank cleaning instructions are provided in the Instructions for Use, chapter “Maintenance”. In addition, a video description is available: • in the sterilizer, in the maintenance section of the menu; • in the Consumables & Accessories and Video Tutorial section of this website.

How often should I de-scale my Thermoklenz?

Water hardness can differ depending of the region in which the unit is located. Carrying out a water hardness test will enable you to gauge how hard the incoming water is. The frequency of de-scaling cycles will depend on the water hardness and the number of cycles run per week. W&H recommends that at least one de-scaling cycle be run each week. More frequent de-scaling cycles should be run if the washer disinfector has a heavier workload or if the water is hard. Additional information relating to these tests and how to carry out these tests can be found on the Video Tutorial section of this web site.

What water quality should I use with my Lisa/Lina?

The water quality for sterilizers is internationally specified by standards and directives. The reasons for this are that your sterilizer can be seriously damaged by it or the sterilization can be jeopardised. Consequently, only water with conductivity of less than 10 µS/cm in North America and 15 µS/cm for the rest of the world should be used for your W&H sterilizer. The Water treatment devices Multidem and Osmo are especially designed to prepare suitable water (see chapter “Water quality” in the Instructions for Use).

Should I pre-wrap and how long can I store my instruments after sterilization?

Under current UK decontamination guidance, with a type B vacuum cycle, instruments should be pre-wrapped and once sterilized can be stored for up to 12 months. Wrapping should take place shortly after washing and disinfection. Under current UK decontamination guidance, with a type N cycle, instruments should not be pre-wrapped. Once sterilized, instruments can be immediately aseptically wrapped and stored for up to 12 months. Instruments should always be dry before they are placed in the purpose-designed packaging.

Lisa 17/22 The sterilizer remains switched OFF.

POSSIBLE CAUSE The main switch or network circuit breaker is OFF SOLUTION Activate the main switch or network circuit breaker (ON). POSSIBLE CAUSE No voltage at the socket SOLUTION Check the electric circuit. POSSIBLE CAUSE The power cord is not connected properly SOLUTION Check and connect the power cord properly.

Lisa 17/22 Water is leaking at the front of the sterilizer

POSSIBLE CAUSE Leaks through the chamber door seal SOLUTION Clean or replace the door seal. Clean the chamber face side. POSSIBLE CAUSE Internal leak. SOLUTIONS Call technical service.

Lisa 17/22 When starting a cycle, the chamber door locks but re-opens immediately. The “Open the door” message appears.

POSSIBLE CAUSE Door seal not properly placed; seal sticking out SOLUTION Ensure that the door seal is correctly inserted around the whole circumference. POSSIBLE CAUSE Door jammed by external objects or by the load itself SOLUTION Remove any objects interfering with the chamber door. Check that the door does not push against the load or the chamber furniture.

Lisa 17/22 The sterilizer enters into “Sleep mode” immediately after opening the chamber door.

POSSIBLE CAUSE The chamber door has not been opened after the previous cycle had finished and the “Sleep mode delay” has expired SOLUTION Press the SLEEP MODE button to exit”.

Lisa 17/22 No cycles are stored in the cycle history menu

POSSIBLE CAUSE An electronic board was replaced by service. SOLUTION None. The memory of the old board cannot be restored. Save periodically the history on the USB pen drive.

Lisa 17/22 Corrosion or spots on instruments

POSSIBLE CAUSE Tap water on instruments when placed in the sterilizer SOLUTION Ensure that instruments are dry before they are placed in the sterilizer. POSSIBLE CAUSE Use of water of poor quality or water containing chemical substances SOLUTION Drain both water tanks. Use water of good quality (see ANNEX 7). POSSIBLE CAUSE Organic or chemical residues on the instruments SOLUTION Clean, rinse and dry instruments before placing them in the sterilizer (see ANNEX 2). POSSIBLE CAUSE Chamber, trays, tray rack dirty SOLUTION Clean the chamber and wash the chamber furniture POSSIBLE CAUSE Contact between instruments of different materials SOLUTION Ensure that instruments of different materials do not touch (aluminum, carbon or stainless steel, etc.); place them on different trays or cassettes or pouch them (refer to ANNEX 2). POSSIBLE CAUSE Scale deposits on the chamber SOLUTION Clean the chamber and use water of good quality (refer to ANNEX 7).

Lisa 17/22 At the end of the cycle, there is residual water in the chamber

POSSIBLE CAUSE Sterilizer not properly levelled SOLUTION Properly level the surface the sterilizer is placed on. POSSIBLE CAUSE Overloaded chamber SOLUTION Comply with the maximum load weight limits for each type of load. Always use the chamber rack for trays and cassettes. POSSIBLE CAUSE Chamber filter clogged SOLUTION Remove and clean the chamber filter. POSSIBLE CAUSE Chamber filter cap mispositioned SOLUTION Mount the chamber filter cap properly (see chapter MAINTENANCE) POSSIBLE CAUSE Load incorrectly placed SOLUTION Follow the recommendations as listed in ANNEX 2.

Warning about saving to the USB (HTML and SCL files).

The USB drive is disconnected or full. SOLUTION Check presence and condition of the USB drive. If the problem persists, contact an authorised W&H service partner.

Lisa 17/22 When the sterilizer is connected to an automated water supply system: there is no clean water in the tank, but the automatic water filling does not fill the water.

POSSIBLE CAUSE Water fill system not connected SOLUTION Connect the water fill system to the sterilizer (see ANNEX 7 for water quality requirements). POSSIBLE CAUSE When the water fill system attempted to fill the tank, water was temporarily unavailable SOLUTION Since water tank filling is attempted only once in-between cycle execution, this event inhibits water feeding. Switch the sterilizer OFF and then ON again. Check the external water supply system. Check for water leaks from the sterilizer. POSSIBLE CAUSE Faulty MIN water level sensor in the clean water tank SOLUTION Call service.

Lisa 17/22 The cycle report printer does not work.

POSSIBLE CAUSE Printer not properly connected or not powered SOLUTION Check the data and the power connection to the printer.

Lisa 17/22 Warning about programmed maintenance.

POSSIBLE CAUSE A component shall be replaced for the programmed maintenance of the sterilizer. SOLUTION Call service to order the requested component (door seal, dust filter, bacteriological filter...). See “Maintenance” chapter..

LINA PRO13-003 What is the maximum noise level of the sterilizer?

The maximum noise level of 66.5 dB(A) guarantees a quiet working environment.

What should I do if I get a Warning about consumable replacement?

Order the requested consumable (door seal and HEPA/bacteriological filter) and replace it. See the chapter “Maintenance” in the Instructions for Use.

This product is not available anymore.

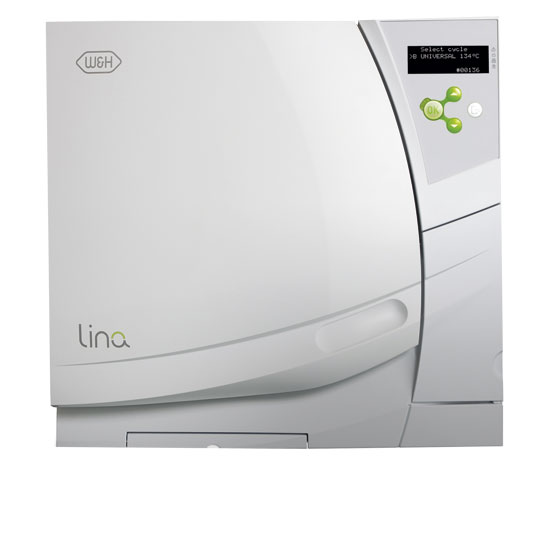

Lina Sterilizer

Name: Lina
Brand: W&H

The power of efficiency

Lina sterilizers are a reliable partner which has been adapted to your practice requirements. Usability outside. Technology inside.

B type sterilizer for best performance.
To prevent the transmission of infections, steam sterilization plays a significant role in the reprocessing of dental instruments. Thereby, efficiency and simplicity are crucial. The new generation of Lina sterilizers meet all these requirements and more: simple operation, ergonomic and functional design, appropriate sterilization cycles and upgradeable functions guarantee high efficiency leading to maximum results.

System overview

Lina Sterilizer
Technical data

Exclusively type B cycles

Lina autoclaves offers exclusively
type B cycles that are suitable for the
sterilization of all types of dental products.

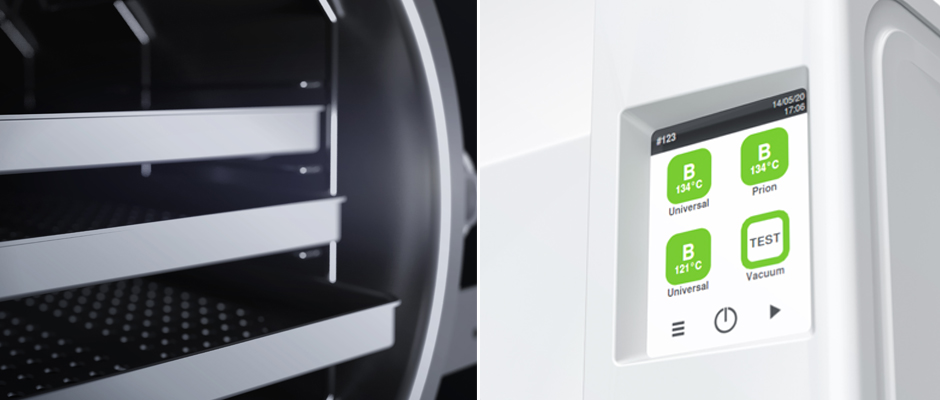

With its ease-of-use and practical keypad
all the sterilization options can be navigated easily.
The main features at a glance
- Lina's cycle times are reduced by up to half with the short ECO B cycle
- Silent operation due to the patented
 Water Separation System
- You can easily navigate all the sterilization options with Lina’s user-friendly keypad
- The built-in frame dust filter ensures constant performance levels, reduced maintenance costs and longer service intervals
- Delayed and programmable cycle start saves cost and time
- Integrated automatic water filling valve (optional)
- Automatic digital cycle recording on USB stick (optional)
- Lina is available with chamber size 17 l or 22 l
- Lina offers you a great price performance ratio

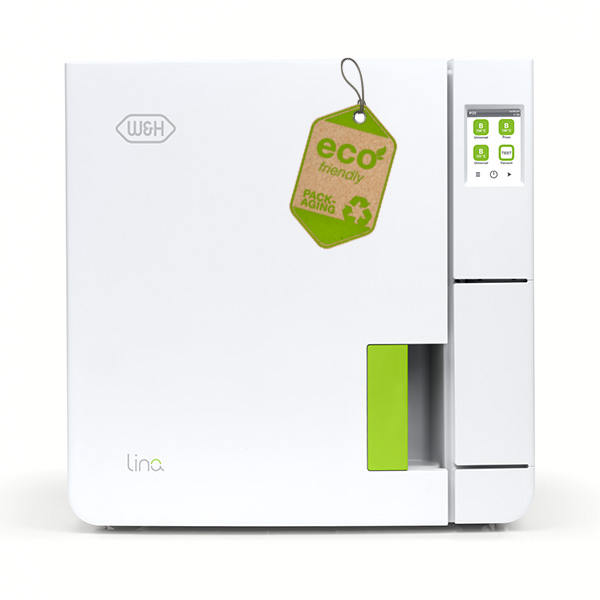

- New environmentally friendly packaging
 The new environmentally friendly packaging is completely reusable and recyclable. Plastic components were reduced to a minimum. For 99% of its weight, the new package is made of cardboard and other fully biodegradable substances.
Automatic water filling function – making life easier

Lina autoclave
Exclusively type B cycles for maximum safety

Safe sterilization begins by demonstrating that the cycle is compatible
with all dental products (hollow loads, textile, implantology cassettes etc.).

This is always the case with the Lina autoclaves that only provides
hospital grade type B cycles so that you can be sure the load is fully
sterilized and dry at the end.

ECO B – Type B cycle
in less than 30 minutes

Lina autoclaves
The fast type B cycle for small loads

Lina's ECO B sterilization program is a fast type true B cycle (including drying)
for small loads of all types including bagged hollow instruments
such as dental handpieces.

Automatic digital cycle recording on USB stick

Lina autoclaves
Expandable system with the Multiport option

The Lina autoclaves were designed to adapt to your practice requirements.
When required, you can add the optional Multiport which allows the saving of sterilization cycle reports on a USB flash drive and the printing of barcode labels
via the LisaSafe printer.

Lina

supplied with reversible rack,
3 aluminium trays, funnel,
drain tube and tray holder

Lina autoclave MB17
REF 19941102

Chamber size 17 l

Lina autoclave MB22
REF 19942102

Chamber size 22 l
Download Area
FAQs
- Do I need to carry out periodic testing on my W&H Sterilizer?
 All W&H sterilizers features test cycles (B&D/Helix test, Vacuum test). Compulsory and frequency of testing are regulated by local/national guidelines. more
- What is validation?
 Validation is a series of tests carried out with the use of independent specialist test equipment, as is necessary to demonstrate that the physical conditions required for sterilization, thermal disinfection and/or cleaning (i.e. temperature, pressure, time) are achieved. more
- Do I need to document the results of all periodic tests?
 Yes, all tests performed by the operator or user should be recorded in a logbook with the date and signature of the individual how carried out the test. Every Sterilizer and every thermo washer disinfector should have a logbook (file) in which test details pertaining to the lifecycle of the equipment (from purchase - disposal) are recorded. A logbook is provided as standard with the Premium Careplus Service Contract from W&H, or as an optional extra with the Premium Care Service Contract. more
- How long should I Keep periodic test records?
 Under current national decontamination guildance, all audit documents should be stored for at least two years and they should not be removed from the premises or destroyed. more
- Does my Lisa/Lina need to be commissioned from new?
 Yes, validation is needed for new equipment at installation and annually thereafter. It will also be necessary to validate equipment after any major repairs have been carried out. more
- Who should I use to carry out validation and maintenance on my Lisa/Lina?
 All validation and maintenance should be undertaken by the Competent Person (Decontamination) or Competent Person (maintenance). more
- How do I change consumable components on my sterilizer?
 Consumable replacement instructions are provided in the Instructions for Use, chapter “Maintenance”. In addition, a video description is available: • in the sterilizer, in the maintenance section of the menu; • in the Consumables & Accessories and Video Tutorial section of this website. more
- How do I clean the water tanks and what products should I use?
 Water tank cleaning instructions are provided in the Instructions for Use, chapter “Maintenance”. In addition, a video description is available: • in the sterilizer, in the maintenance section of the menu; • in the Consumables & Accessories and Video Tutorial section of this website. more
- How often should I de-scale my Thermoklenz?
 Water hardness can differ depending of the region in which the unit is located. Carrying out a water hardness test will enable you to gauge how hard the incoming water is. The frequency of de-scaling cycles will depend on the water hardness and the number of cycles run per week. W&H recommends that at least one de-scaling cycle be run each week. More frequent de-scaling cycles should be run if the washer disinfector has a heavier workload or if the water is hard. Additional information relating to these tests and how to carry out these tests can be found on the Video Tutorial section of this web site. more
- What water quality should I use with my Lisa/Lina?
 The water quality for sterilizers is internationally specified by standards and directives. The reasons for this are that your sterilizer can be seriously damaged by it or the sterilization can be jeopardised. Consequently, only water with conductivity of less than 10 µS/cm in North America and 15 µS/cm for the rest of the world should be used for your W&H sterilizer. The Water treatment devices Multidem and Osmo are especially designed to prepare suitable water (see chapter “Water quality” in the Instructions for Use). more
- Should I pre-wrap and how long can I store my instruments after sterilization?
 Under current UK decontamination guidance, with a type B vacuum cycle, instruments should be pre-wrapped and once sterilized can be stored for up to 12 months. Wrapping should take place shortly after washing and disinfection. Under current UK decontamination guidance, with a type N cycle, instruments should not be pre-wrapped. Once sterilized, instruments can be immediately aseptically wrapped and stored for up to 12 months. Instruments should always be dry before they are placed in the purpose-designed packaging. more
- Lisa 17/22 The sterilizer remains switched OFF.
 POSSIBLE CAUSE
 The main switch or network circuit breaker is OFF
 SOLUTION
 Activate the main switch or network circuit breaker (ON).

 POSSIBLE CAUSE
 No voltage at the socket
 SOLUTION
 Check the electric circuit.

 POSSIBLE CAUSE
 The power cord is not connected properly
 SOLUTION
 Check and connect the power cord properly. more
- Lisa 17/22 Water is leaking at the front of the sterilizer
 POSSIBLE CAUSE
 Leaks through the chamber door seal
 SOLUTION
 Clean or replace the door seal. Clean the chamber face side.

 POSSIBLE CAUSE
 Internal leak.
 SOLUTIONS
 Call technical service. more
- Lisa 17/22 When starting a cycle, the chamber door locks but re-opens immediately. The “Open the door” message appears.
 POSSIBLE CAUSE
 Door seal not properly placed; seal sticking out
 SOLUTION
 Ensure that the door seal is correctly inserted around the whole circumference.

 POSSIBLE CAUSE
 Door jammed by external objects or by the load itself
 SOLUTION
 Remove any objects interfering with the chamber door. Check that the door does not push against the load or the chamber furniture. more
- Lisa 17/22 The sterilizer enters into “Sleep mode” immediately after opening the chamber door.
 POSSIBLE CAUSE
 The chamber door has not been opened after the previous cycle had finished and the “Sleep mode delay” has expired
 SOLUTION
 Press the SLEEP MODE button to exit”. more
- Lisa 17/22 No cycles are stored in the cycle history menu
 POSSIBLE CAUSE
 An electronic board was replaced by service.
 SOLUTION
 None. The memory of the old board cannot be restored. Save periodically the history on the USB pen drive. more
- Lisa 17/22 Corrosion or spots on instruments
 POSSIBLE CAUSE
 Tap water on instruments when placed in the sterilizer
 SOLUTION
 Ensure that instruments are dry before they are placed in the sterilizer.

 POSSIBLE CAUSE
 Use of water of poor quality or water containing chemical substances
 SOLUTION
 Drain both water tanks. Use water of good quality (see ANNEX 7).

 POSSIBLE CAUSE
 Organic or chemical residues on the instruments
 SOLUTION
 Clean, rinse and dry instruments before placing them in the sterilizer (see ANNEX 2).

 POSSIBLE CAUSE
 Chamber, trays, tray rack dirty
 SOLUTION
 Clean the chamber and wash the chamber furniture

 POSSIBLE CAUSE
 Contact between instruments of different materials
 SOLUTION
 Ensure that instruments of different materials do not touch (aluminum, carbon or stainless steel, etc.); place them on different trays or cassettes or pouch them (refer to ANNEX 2).

 POSSIBLE CAUSE
 Scale deposits on the chamber
 SOLUTION
 Clean the chamber and use water of good quality (refer to ANNEX 7). more
- Lisa 17/22 At the end of the cycle, there is residual water in the chamber
 POSSIBLE CAUSE
 Sterilizer not properly levelled
 SOLUTION
 Properly level the surface the sterilizer is placed on.

 POSSIBLE CAUSE
 Overloaded chamber
 SOLUTION
 Comply with the maximum load weight limits for each type of load. Always use the chamber rack for trays and cassettes.

 POSSIBLE CAUSE
 Chamber filter clogged
 SOLUTION
 Remove and clean the chamber filter.

 POSSIBLE CAUSE
 Chamber filter cap mispositioned
 SOLUTION
 Mount the chamber filter cap properly (see chapter MAINTENANCE)

 POSSIBLE CAUSE
 Load incorrectly placed
 SOLUTION
 Follow the recommendations as listed in ANNEX 2. more
- Warning about saving to the USB (HTML and SCL files).
 The USB drive is disconnected or full. SOLUTION Check presence and condition of the USB drive. If the problem persists, contact an authorised W&H service partner. more
- Lisa 17/22 When the sterilizer is connected to an automated water supply system: there is no clean water in the tank, but the automatic water filling does not fill the water.
 POSSIBLE CAUSE
 Water fill system not connected
 SOLUTION
 Connect the water fill system to the sterilizer (see ANNEX 7 for water quality requirements).

 POSSIBLE CAUSE
 When the water fill system attempted to fill the tank, water was temporarily unavailable
 SOLUTION
 Since water tank filling is attempted only once in-between cycle execution, this event inhibits water feeding. Switch the sterilizer OFF and then ON again.
 Check the external water supply system.
 Check for water leaks from the sterilizer.

 POSSIBLE CAUSE
 Faulty MIN water level sensor in the clean water tank
 SOLUTION
 Call service. more
- Lisa 17/22 The cycle report printer does not work.
 POSSIBLE CAUSE
 Printer not properly connected or not powered
 SOLUTION
 Check the data and the power connection to the printer. more
- Lisa 17/22 Warning about programmed maintenance.
 POSSIBLE CAUSE
 A component shall be replaced for the programmed maintenance of the sterilizer.
 SOLUTION
 Call service to order the requested component (door seal, dust filter, bacteriological filter...). See “Maintenance” chapter.. more
- LINA PRO13-003 What is the maximum noise level of the sterilizer?
 The maximum noise level of 66.5 dB(A) guarantees a quiet working environment. more
- What should I do if I get a Warning about consumable replacement?
 Order the requested consumable (door seal and HEPA/bacteriological filter) and replace it. See the chapter “Maintenance” in the Instructions for Use. more
more
Instructions for use

Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

Downloads

Brochure

Environmental labelling of packaging

Video Tutorials

For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

Accept
Service
Service

Service Station Locator

Hygiene & Maintenance

Disposal Guidelines

Troubleshooting

Lina sterilizers were designed, certified and validated with the most stringent Directives and Standards:
93/42/EEC	Medical Device Directive	IEC 61326-1	Electromagnetic compatibility
2014/68/EU	Pressure Equipment Directive	IEC 61010-1	Safety requirements
EN 13060	Small steam sterilizer	IEC 61010-2-040	Specific requirements for steam sterilizer

	Lina 17	Lina 22
Type:	PRO13-003-17	PRO13-003-22
Chamber size:	17 l	22 l
Power supply:	200 – 240 Vac 50 / 60 Hz; 10 A
Power consumption	2 kW
Dimensions overall (W x H x D):	450 x 435 x 599 mm
Weight:	39 kg	40 kg
Main/Used water tanks:	4 / 3.5 litres
Working range:	5 to 10 cycles
Usable space in chamber (W x H x D):	195 x 195 x 297 mm	195 x 195 x 390 mm
Connection type:	1 serial port, 1 USB + 1 serial (optional), integrated automatic water filling valve (optional)

Power supply:	200 / 240 V AC 50 - 60 Hz / 8.75 A
Power consumption:	1700 W
Dimensions overall:	Width: 450 mm - Height: 435 mm - Depth: 599 mm
Weight:	Lina MB17: 38 kg Lina MB22: 40.5 kg
Mean sound levels (LWA):	63 dB
Mains / Used water tanks:	4 / 3.5 litre
Working range:	4 to 7 cycles
Usable space in chamber:	17 litre - W: 195 mm x H: 195 mm x D: 297 mm 22 litre - W: 195 mm x H: 195 mm x D: 390 mm
Connection types:	serial

**Lina autoclaves were designed, certified and validated with the most stringent Directives and Standards:**
93/42/CEE	Medical Device Directive (MDD)
2014/68/EU	Pressure equipment Directive (PED)
2002/96/CEE	Waste Electrical and Electronic Equipment (WEEE)
EN 13060	Small steam sterilizer
IEC 61010-1	Safety requirements for electrical equipment for measurement, control and laboratory use, general requirements
IEC 61010-2-040	Safety requirements for electrical equipment for measurement, control and laboratory use; particular requirements for autoclaves using steam for the treatment of medical materials and for laboratory processes
EN 61326	Electrical equipment for measurement, control and laboratory use: EMC requirements
