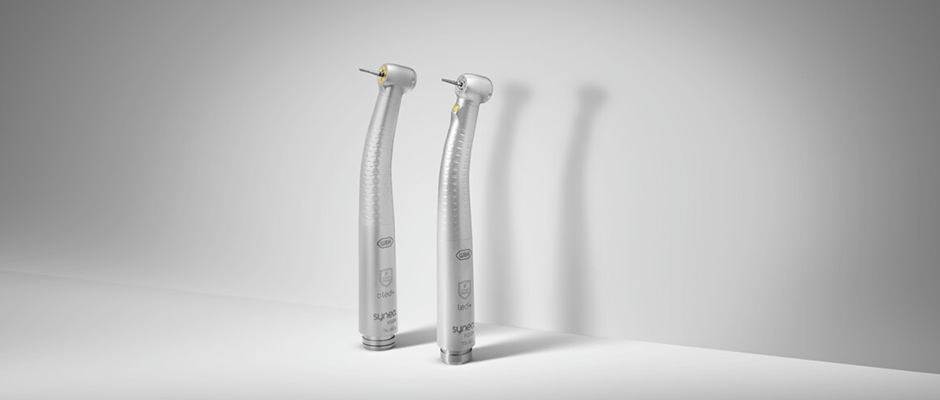

Synea Turbines

High-end technology for excellent preparation results: Both of the Synea dental turbine ranges are characterised by high performance, quality, optimal ergonomics and outstanding value for money. Synea Vision symbolises innovation with its sterilizable 5 x Ring LED+ and Synea Fusion promises top quality combined with unbeatable cost-efficiency.

Restoration & Prosthetics

Restoration & Prosthetics

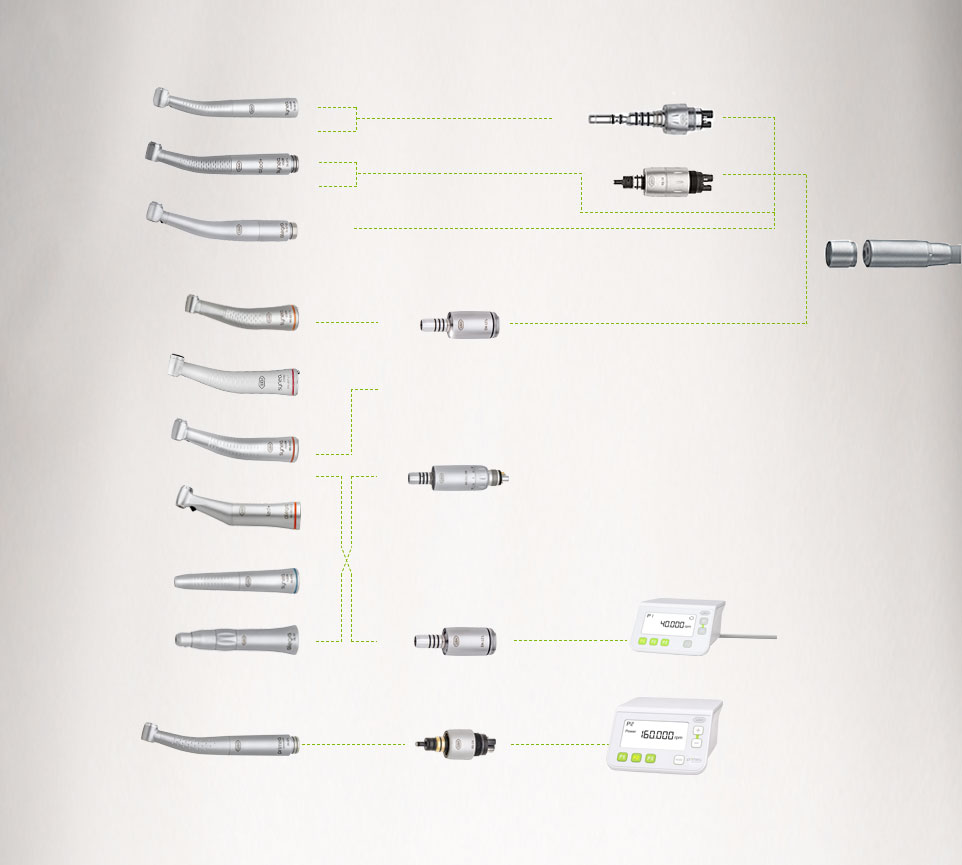

System Overview

* Multiflex® is a registered trade mark of Kaltenbach & Voigt GmbH, Germany
** also with other coupling versions available
*** Contra-angle handpieces of the Synea Vision Short Edition can be used on micromotors with an ISO coupling length of 23 mm or less

  • Synea Vision turbine

    The new range of Synea Vision turbine handpieces

    Discover the Synea Vision – the turbine range for all treatment scenarios!


    Your advantages at a glance

    • 100% shadow-free illumination of the treatment site with the 5-outlet LED+ optic ring (models for Roto Quick connection only)
    • Optimum cooling of the treatment site with 5-hole spray
    • Four head sizes for every application case
    • Hygienic head system
    • Scratch-resistant surface improves aesthetics even more – and extends their life
    • Fatigue-free work
    • Optimum service life and unexpected quietness during operation with ceramic ball bearings
    • Thermo washer disinfectable and sterilizable
    • 24 months warranty

    Power Blade rotor

    The right instrument for every treatment


    • 4 head size choices
    • TK-94 microturbine: for minimally invasive applications specially for patients with a small or restricted mouth size
    • TK-100: the power turbine specially for removing crowns and bridges
    • TK-97 and TK-98: increased power with reduced sound level

    Patented hygienic
    head system

    Patented hygienic head system

    Optimum cooling

    Optimum cooling

    Microturbine

    Small but impressive

    LED+ in the microturbine:
    small space, plenty of light.

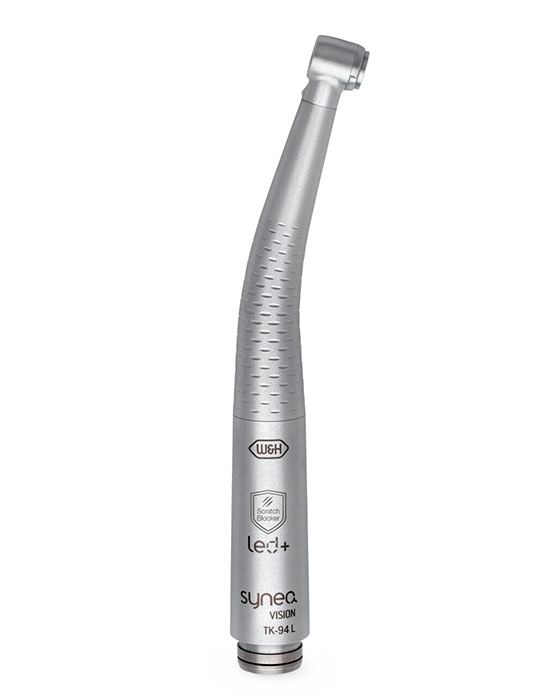

    The new TK-94 microturbine for
    areas that are difficult to access.

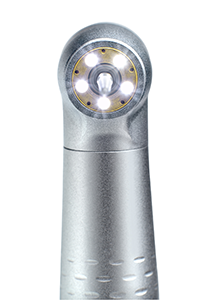

    Ring LED+

    5-outlet Ring LED+

    Ring LED+: the only sterilizable 5-outlet ring in the world guarantees shadow-free illumination at the treatment site, for the first time ever!
    Compare illumination
    in dental turbines!

    Light comparison

    • 100 % shadow free
      illumination thanks
      to the 5x Ring LED+

      W&H turbine TK-97L
    • Glass rod supplied by
      LED in coupling

      Competitor S turbine*
    • Glass rod supplied by
      LED in coupling

      Competitor K turbine*
    • Glass rod supplied by
      LED in coupling

      Competitor N turbine*
    • Glass rod supplied by
      LED in coupling

      Competitor B turbine*
      *Operation acc. to manufacturer's instructions
      Hygiene without compromise

      Hygiene without compromise

      Minimal escape of air at the head maximum capacity for added efficiency and unbeatable hygiene.

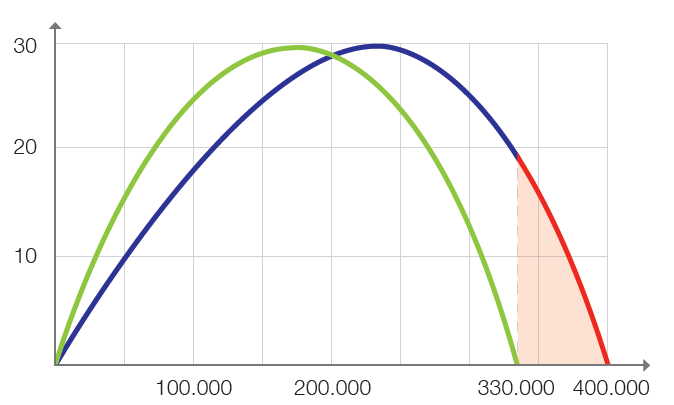

      red: popular turbines with high wattage
      green: Synea Vision TK-100 L

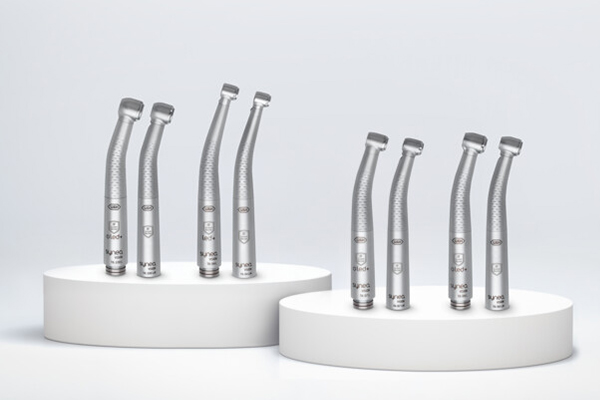

      Synea Vision Turbines

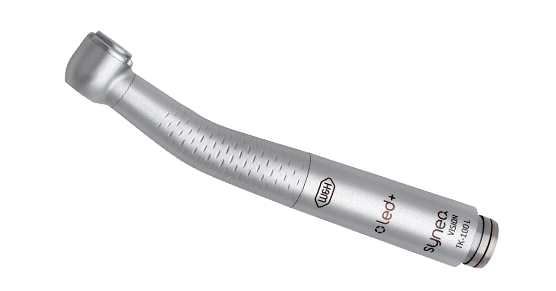

      TK-100

      Ring LED+,
      5-hole spray,
      Head size Ø 13 mm,
      26 W, 330,000 rpm,
      FG burs Ø 1.6 mm for bur lengths up to 25mm

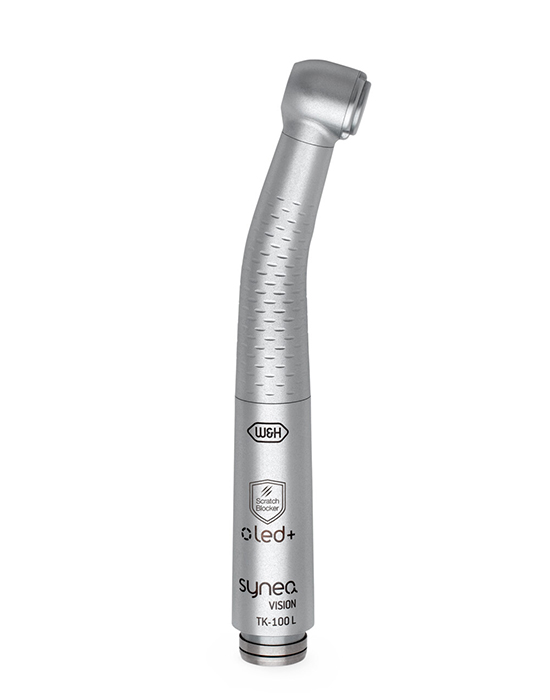

      TK-100 L
      REF 30021000

      Ring LED+, ceramic ball bearings,
      coupling system Roto Quick

      TK-100 LM
      REF 30022000

      Compact glass rod, ceramic ball bearings,
      coupling system Multiflex®*

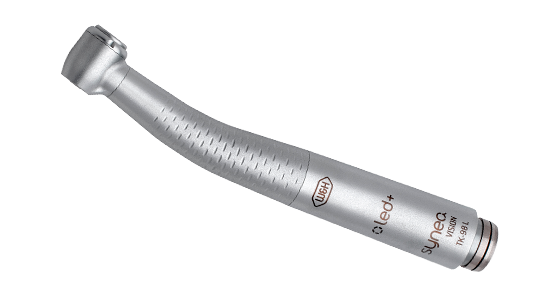

      TK-98

      Ring LED+,
      5-hole spray,
      Head size Ø 11,5 mm,
      24 W, 360,000 rpm,
      FG burs Ø 1.6 mm for bur lengths up to 25mm

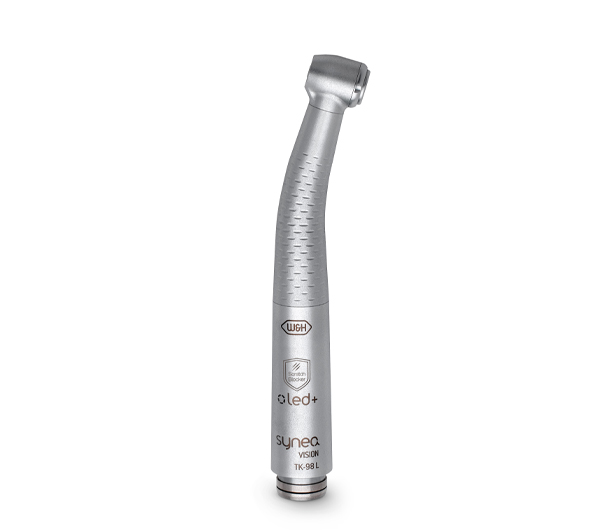

      TK-98 L
      REF 30019000

      Ring LED+, ceramic ball bearings,
      coupling system Roto Quick

      TK-98 LM
      REF 30020000

      Compact glass rod, ceramic ball bearings,
      coupling system Multiflex®*

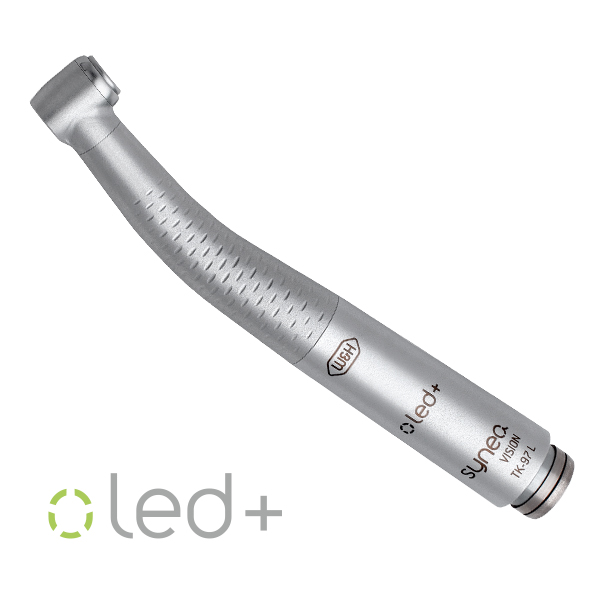

      TK-97

      Ring LED+,
      5-hole spray,
      Head size Ø 10 mm,
      21 W, 400,000 rpm,
      FG burs Ø 1.6 mm for bur lengths up to 21mm

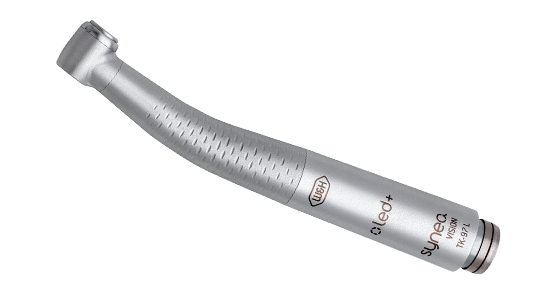

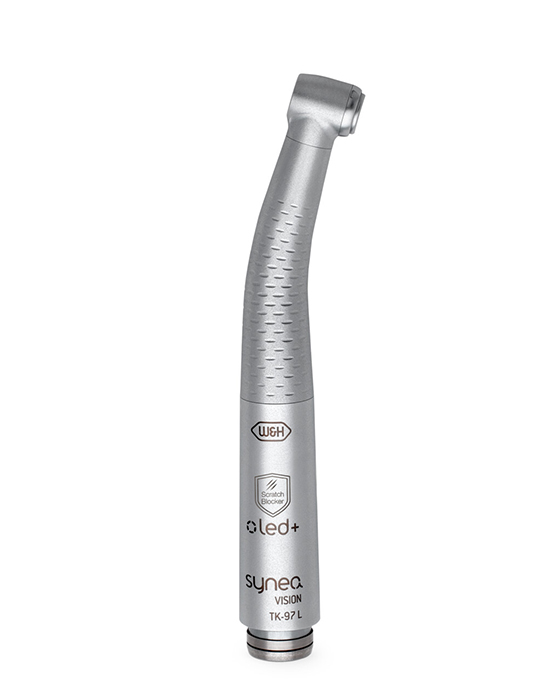

      TK-97 L
      REF 30017000

      Ring LED+, ceramic ball bearings,
      coupling system Roto Quick

      TK-97 LM
      REF 30018000

      Compact glass rod, ceramic ball bearings,
      coupling system Multiflex®*

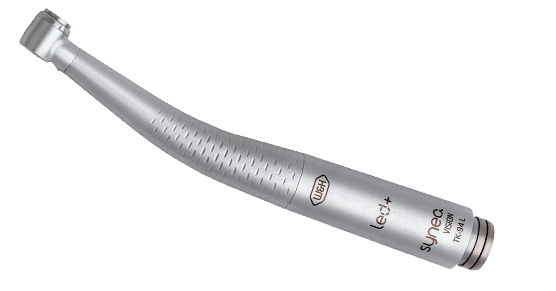

      TK-94

      LED+,
      5-hole spray,
      Head size Ø 9 mm,
      14 W, 430,000 rpm,
      FG burs Ø 1.6 mm for bur lengths up to 16mm

      TK-94 L
      REF 30016000

      LED+, ceramic ball bearings,
      coupling system Roto Quick

      TK-94 LM
      REF 30031000

      Compact glass rod, ceramic ball bearings,
      coupling system Multiflex®*


      *Multiflex®is a registered trade mark of Kaltenbach & Voigt GmbH, Germany

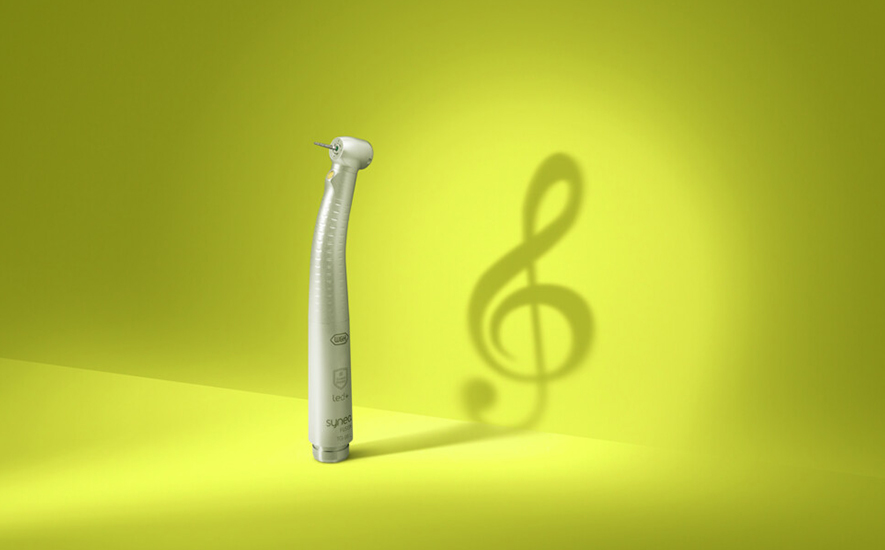

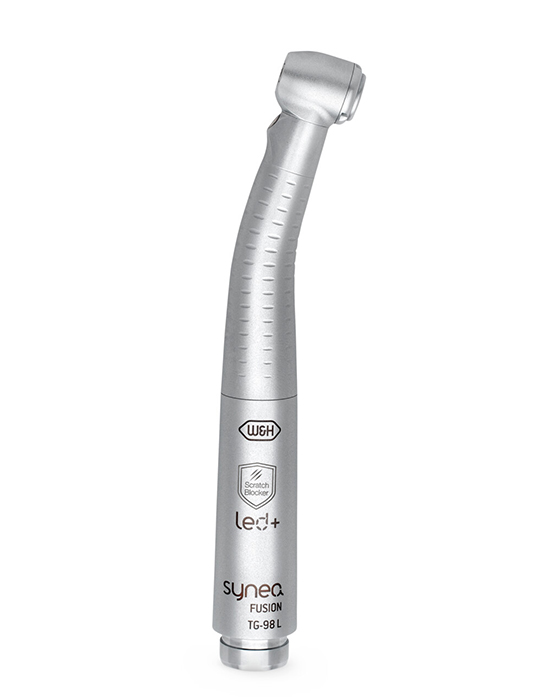

    • Synea Fusion turbine

      Outstanding price-performance
      ratio experience

      Uncompromising user comfort with optimal
      LED-illumination, 4 port spray and quiet,
      vibration-free operation.

      Your advantages at a glance

      • Largest illumination field with LED+
      • Optimum access, best view and high power with perfect head size to performance ratio
      • Safe cooling with 4 port spray
      • Hygiene head system
      • Ceramic ball bearings for quiet,
        vibration-free operation
      • Optimised design for secure grip
        and optimum hygiene
      • Secure grip and easy bur changes with the push-button chuck system
      • Thermo washer disinfectable sterilizable
      • 24 months warranty***

      *** United Kingdom and Ireland only


      Optimum cooling

      Optimum cooling of four sides

      Continuous cooling with
      Quattro Spray.
      Best ergonomics

      Best ergonomics

      Synea turbines are comfortable in
      the hand and have a non-slip coating.

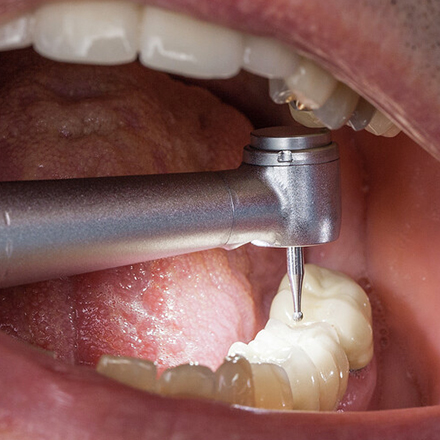

      Experience LED+

      Experience LED+

      Optimum illumination, natural
      colour reproduction and LED
      positioned directly beneath
      the instrument head.

      Power Blade Rotor

      Full steam ahead with the Power Blade rotor

      The optimized blade geometry
      allows higher rotor efficiency.
      For maximum torque and optimal
      power throughout preparation.
      Patented hygienic
      head system

      Patented hygienic head system

      The circulating air in the turbine head ensures no aerosol particles are sucked into the turbine as the rotor slows down.

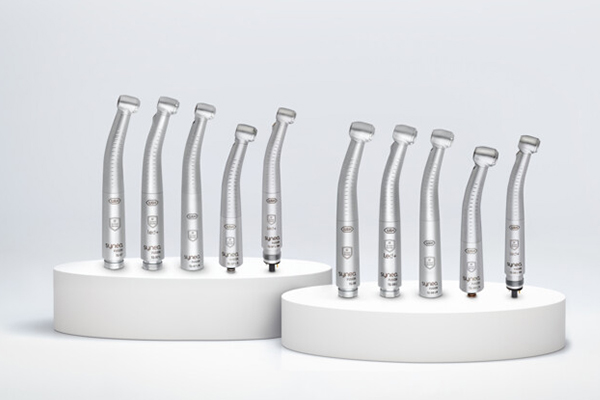

      Synea Fusion Turbines

      TG-97

      4 port spray
      Head size Ø 10mm,
      16 W, 390,000 rpm,
      FG burs Ø 1.6mm for bur lengths up to 21mm

      TG-97
      REF 30005000

      Without light, ceramic ball bearings,
      coupling system Roto Quick

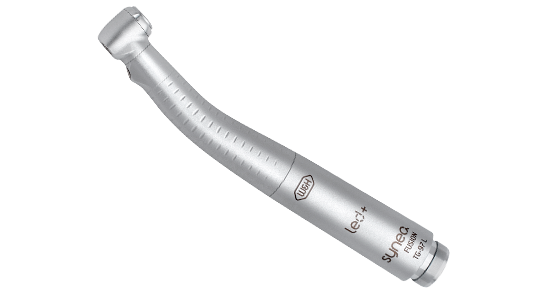

      TG-97 L
      REF 30004000

      LED+, ceramic ball bearings,
      coupling system Roto Quick

      TG-97 LM
      REF 30006000

      Compact glass rod, ceramic ball bearings,
      coupling system Multiflex®*

      TG-97 L N
      REF 30199000

      Compact glass rod, ceramic ball bearings,
      coupling system NSK Mach®**

      TG-97 L RM
      REF 30197000

      LED+, ceramic ball bearings,
      standard 6-hole connection


      TG-98

      4 port spray
      Head size Ø 11,5mm,
      19 W, 360,000 rpm,
      FG burs Ø 1.6mm for bur lengths up to 25mm

      TG-98
      REF 30002000

      Without light, ceramic ball bearings,
      coupling system Roto Quick

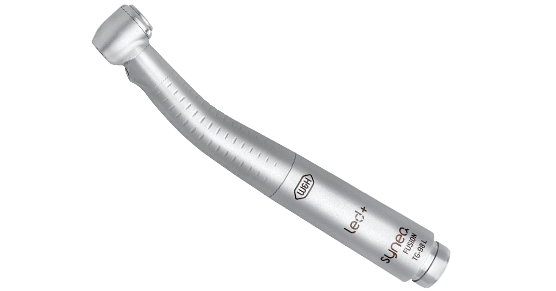

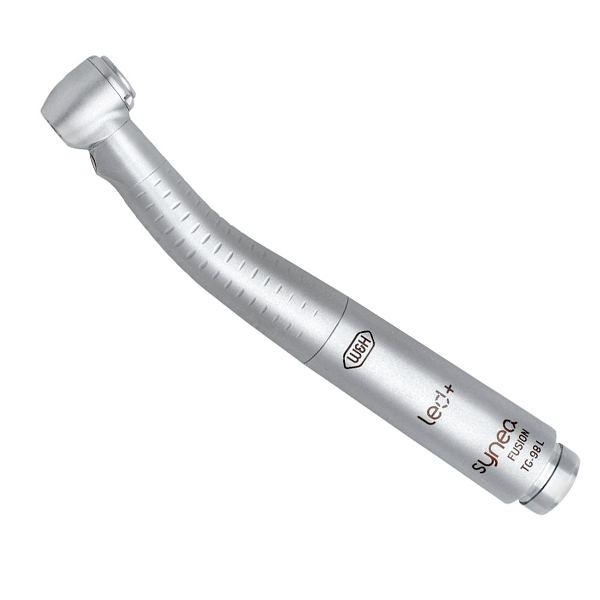

      TG-98 L
      REF 30001000

      LED+, ceramic ball bearings,
      coupling system Roto Quick

      TG-98 LM
      REF 30003000

      Compact glass rod, ceramic ball bearings,
      coupling system Multiflex®*

      TG-98 L N
      REF 30200000

      Compact glass rod, ceramic ball bearings,
      coupling system NSK Mach®**

      TG-98 L RM
      REF 30198000

      LED+, ceramic ball bearings,
      standard 6-hole connection


      *Multiflex® is a registered trade mark of Kaltenbach & Voigt GmbH, Germany
      ** NSK Mach® is a registered trade mark of NSK NAKANISHI INC., Japan

    • Synea Vision

      Types: TK-94 L / TK-94 LM  TK-97 L / TK-97 LM TK-98 L / TK-98 LM TK-100 L / TK-100 LM
      Light:

      LED+ /
      compact glass rod

      Ring LED + /
      compact glass rod
      Ring LED + /
      compact glass rod
      Ring LED + /
      compact glass rod
      Coupling: W&H Roto Quick /
      Multiflex®*
      W&H Roto Quick /
      Multiflex®*
      W&H Roto Quick /
      Multiflex®*
      W&H Roto Quick /
      Multiflex®*
      Head size: Ø 9 mm Ø 10 mm Ø 11.5 mm Ø 13 mm
      Head height: 17.2 mm
      (with bur 16 mm)
      21.1
      (with bur 19 mm)
      21.4
      (with bur 19 mm)
      21.4
      (with bur 19 mm)
      Power: 14 W 21 W 24 W 26 W
      Speed: 410,000 rpm 400,000 rpm 360,000 rpm 330,000 rpm
      FG bur Ø 1.6
      Max. operating part diameter:
      Max. length:

      1.5 mm
      16 mm

      2 mm
      21 mm

      2 mm
      25 mm

      2.5 mm
      25 mm
      Operating pressure Roto Quick-connection:
      Operating pressure Multiflex®*-connection:
      3 ± 0.3 bar
      2.5 – 4 bar
      3 ± 0.3 bar
      2.5 – 4 bar
      3 ± 0.3 bar
      2.5 – 4 bar
      3 ± 0.3 bar
      2.5 – 4 bar
      Spray: 5-hole 5-hole 5-hole 5-hole

      Synea Fusion

      Types: TG-98 L / TG-98 / TG-98 L RM TG-97 L / TG-97 / TG-97 L RM TG-98 LM / TG-98 LN TG-97 LM / TG-97 LN
      Light: LED+ / no / LED+ LED+ / no / LED+ compact glass rod compact glass rod
      Coupling: Roto Quick /
      RM
      Roto Quick /
      RM

      Multiflex®* /
      NSK Mach®***

      Multiflex®* /
      NSK Mach®***
      Head size: Ø 11.5 mm Ø 10 mm Ø 11.5 mm Ø 10.5 mm
      Head height: 21.4 mm
      (with bur 19 mm)
      21.1 mm
      (with bur 19 mm)
      21.4 mm
      (with bur 19 mm)
      21.1 mm
      (with bur 19 mm)
      Power: 19 W 16 W 19 W 16 W
      Speed: 360,000 rpm 390,000 rpm 360,000 rpm 360,000 rpm
      FG bur Ø 1.6
      Max. operating part diameter:
      Max. length:
      2 mm
      25 mm
      2 mm
      21 mm
      2 mm
      25 mm
      2 mm
      21 mm

      Operating pressure

      3 ± 0.3 bar

      3 ± 0.3 bar

      2.5 – 4 bar (Multiflex®*)

      3 ± 0.3 bar (NSK Mach®***)

      2.5 – 4 bar (Multiflex®*)

      3 ± 0.3 bar (NSK Mach®***)

      Spray:

      4-hole

      4-hole

      4-hole 4-hole

      Power and speed data of air driven motors are largely dependent on the quality of the turbine hoses used
      and may therefore differ from the specified values.


      * Multiflex® is a registered trade mark of Kaltenbach & Voigt GmbH, Germany
      ** Values apply for use of RM-34 LED with DC power supply
      *** NSK Mach® is a registered trade mark of NSK NAKANISHI INC., Japan
