Can all instruments that I was able to use with the old Roto Quick coupling models (924 etc) also be attached to the current Roto Quick models (RQ-24 etc)?

Yes. All existing and new instruments can be used with couplings from both the old and the new generations.

How does the new W&H Click & Pull system work? How do I remove a turbine?

Use your thumb and index finger to retract the coupling's retention sleeve. The turbine can now be removed from the coupling without any problems. Pulling forcefully on the dental turbine can cause damage. If excessive force is required to remove the turbine, verify that the retention sleeve on the coupling can be moved without any problems.

Why do I need a 6-hole connection to operate a standard LED turbine?

A 6-hole connection is necessary to supply the turbine with electricity. Other connections do not provide a power supply. The only turbines that do not require a 6-hole connection are the self-generating Alegra LED G turbines which can also be used on non-optic connections.

Can the W&H coupling be thermo washer disinfected and sterilized?

Thermo washer disinfection of the coupling is not permitted; however, current models of W&H coupling can be sterilized in steam sterilizers using a temperature of 135°C. Hot air sterilization and/or cold sterilization (placing in liquids) are not approved techniques.

Are there other couplings than the Roto Quick available?

Yes. W&H also offers the "RM-34 LED" for MULTIflex® connection.

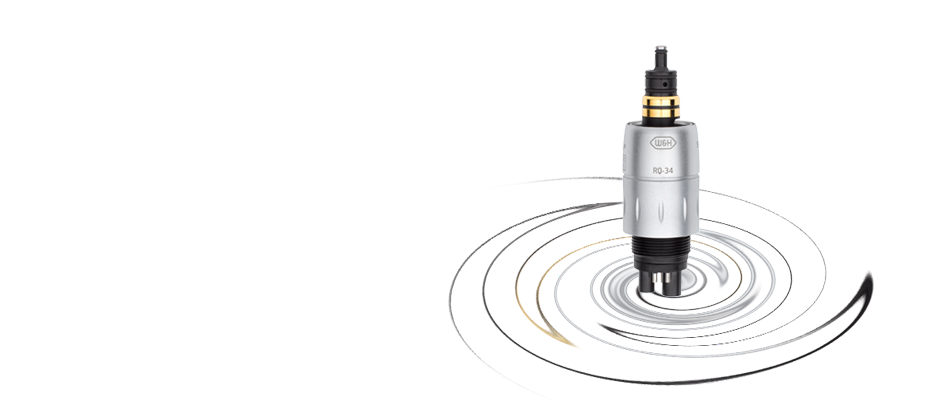

Roto Quick couplings

Name: Roto Quick
Brand: W&H

Versatile system interfaces

Flexible – for use with all standardised turbine tubing. Full compatibility – compatible with all turbines, air motors and scalers with Roto Quick and Multiflex connections. 360° instrument rotation – for easy handling and to prevent the tube from twisting. Continuous regulation of the spray water supply – quick, customised adjustment by the user even during treatment. Non-retraction valve avoids back-flow of contaminated spray water, minimising the risk of infection.

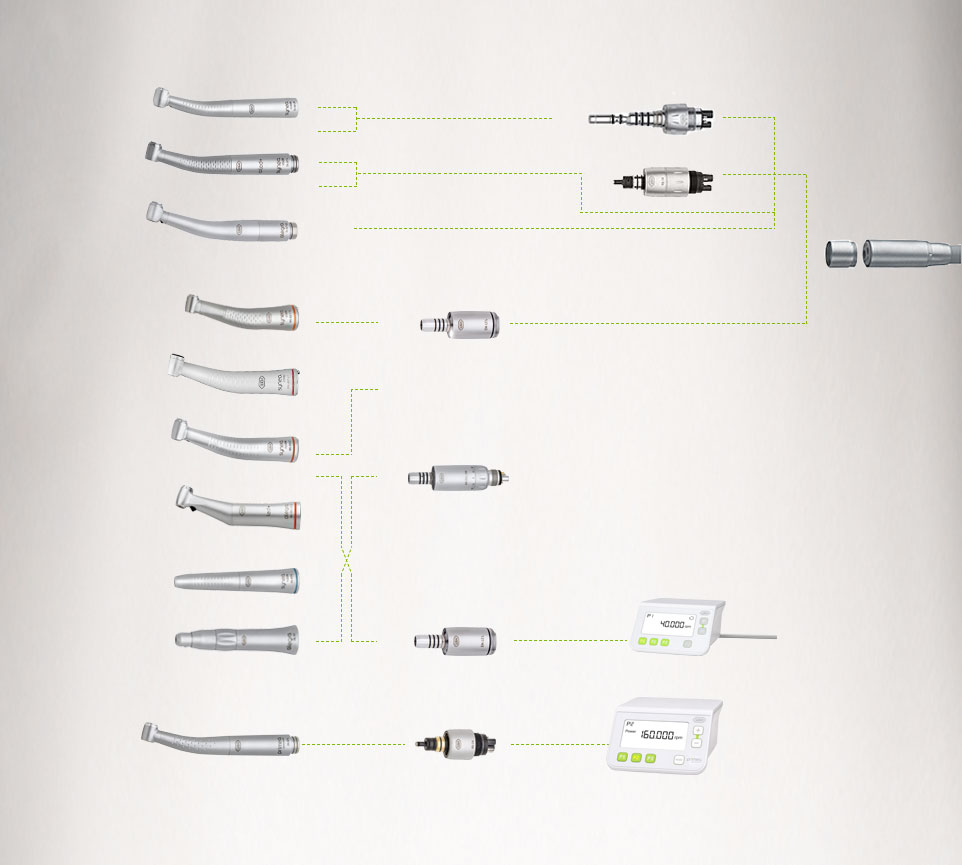

System overview

Roto Quick couplings
Technical data

Versatile to use

The W&H Roto Quick coupling is a connection piece for the transmission of media (air, water, electricity and light) between the supply hose of the dental unit and the air drives.

W&H Roto Quick couplings are versatile to use and are suitable both for instruments with LED+, LED as well as halogen light.
Your advantages at a glance
- Light
- Flexible
- Sterilizable
- Free 360° instrument rotation
- Continuous regulation of the spray water supply
- Roto Quick non-retraction valve
- 24 months warranty
Roto Quick couplings
with light

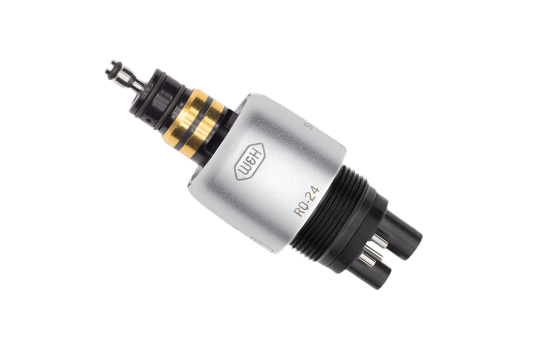

RQ-24
REF 10402400

6-hole connection

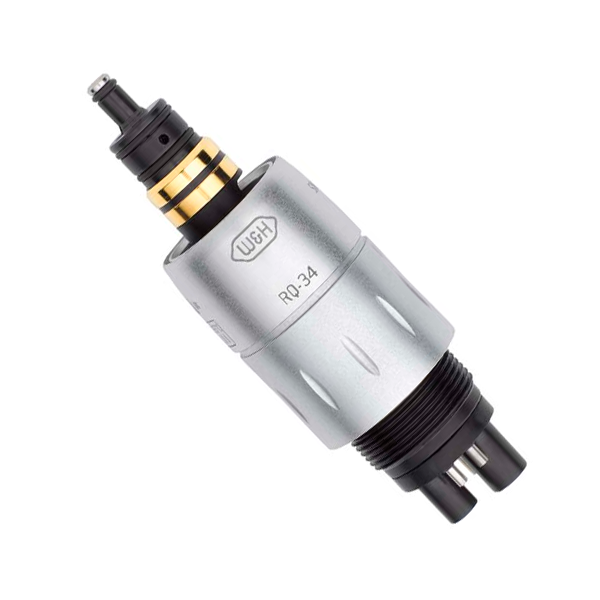

RQ-34
REF 10403400

spray regulation
6-hole connection

Request Price

Roto Quick couplings
without light

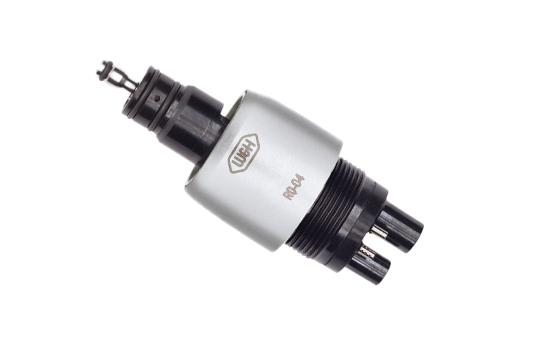

RQ-04
REF 10400400

standard 4-hole connection

RQ-14
REF 10401400

spray regulation
standard 4-hole connection

RQ-03
REF 10400300

with 2(3)-hole connection

Request Price
Download Area
FAQs
- Can all instruments that I was able to use with the old Roto Quick coupling models (924 etc) also be attached to the current Roto Quick models (RQ-24 etc)?
  Yes. All existing and new instruments can be used with couplings from both the old and the new generations. more
- How does the new W&H Click & Pull system work? How do I remove a turbine?
  Use your thumb and index finger to retract the coupling's retention sleeve. The turbine can now be removed from the coupling without any problems. Pulling forcefully on the dental turbine can cause damage. If excessive force is required to remove the turbine, verify that the retention sleeve on the coupling can be moved without any problems. more
- Why do I need a 6-hole connection to operate a standard LED turbine?
  A 6-hole connection is necessary to supply the turbine with electricity. Other connections do not provide a power supply. The only turbines that do not require a 6-hole connection are the self-generating Alegra LED G turbines which can also be used on non-optic connections. more
- Can the W&H coupling be thermo washer disinfected and sterilized?
  Thermo washer disinfection of the coupling is not permitted; however, current models of W&H coupling can be sterilized in steam sterilizers using a temperature of 135°C. Hot air sterilization and/or cold sterilization (placing in liquids) are not approved techniques. more
- Are there other couplings than the Roto Quick available?
  Yes. W&H also offers the "RM-34 LED" for MULTIflex® connection. more
more
Instructions for use

Roto Quick couplings

Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

Video Tutorials

For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

Accept

Downloads

Brochure

Roto Quick couplings:	RQ-24	RQ-34	RQ-14	RQ-03	RQ-04
Light:	yes	yes	–	–	–
Spray control:	–	yes	yes	–	–
Connection:	6-hole	6-hole	Standard 4-hole	2 (3)-hole	Standard 4-hole
