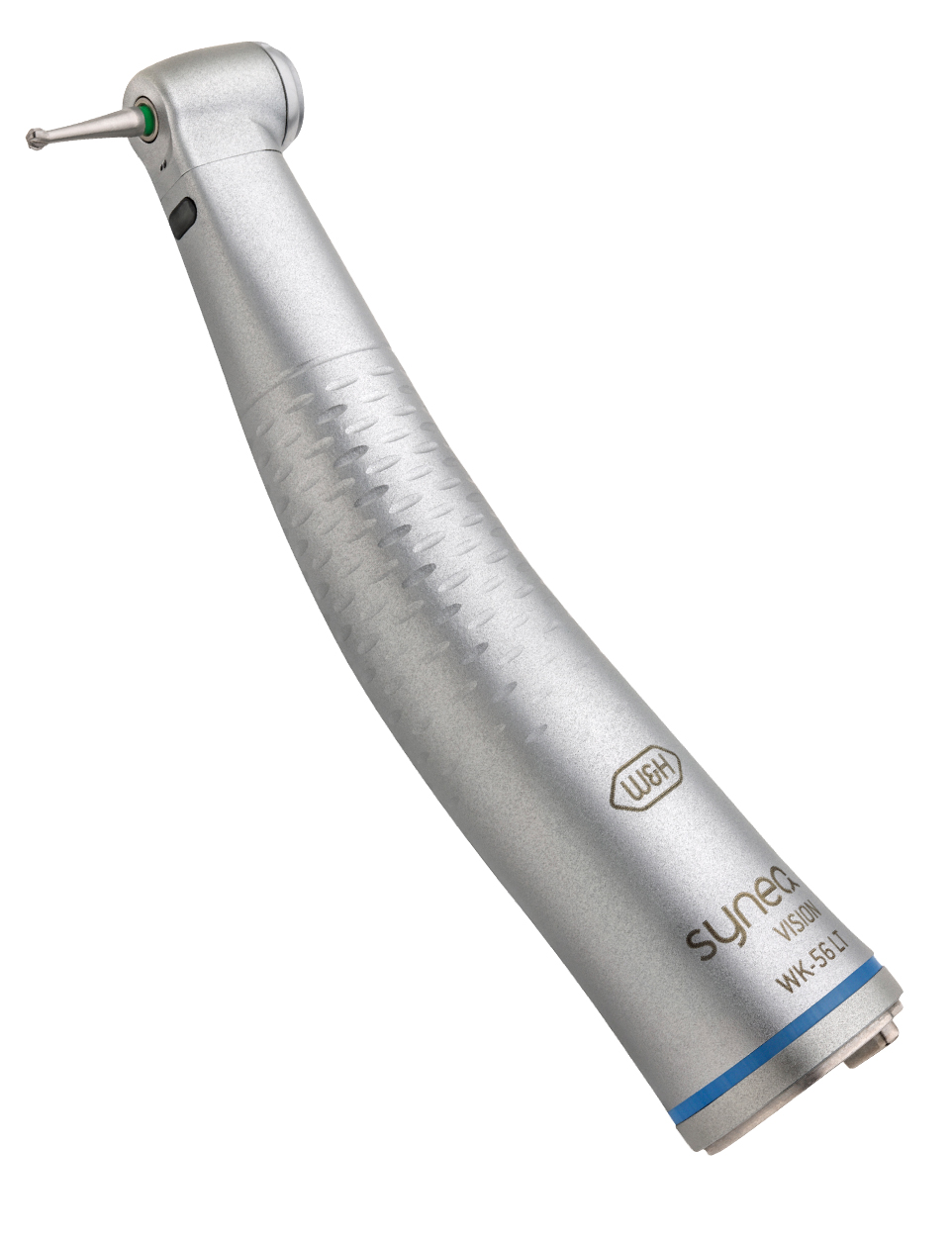

*** Contra-angle handpieces of the Synea Vision Short Edition can be used on micromotors with an ISO coupling length of 23 mm or less
-
Perfect balance of performance and ergonomics
It is particularly small and surprisingly light, is comfortable to hold and in addition to the consistent high power, also scores extra points with its features such as LED technology, long service life and quiet operation.
Your advantages at a glance
- Particularly small
- Optimally balanced
- 25% lighter, 15% shorter

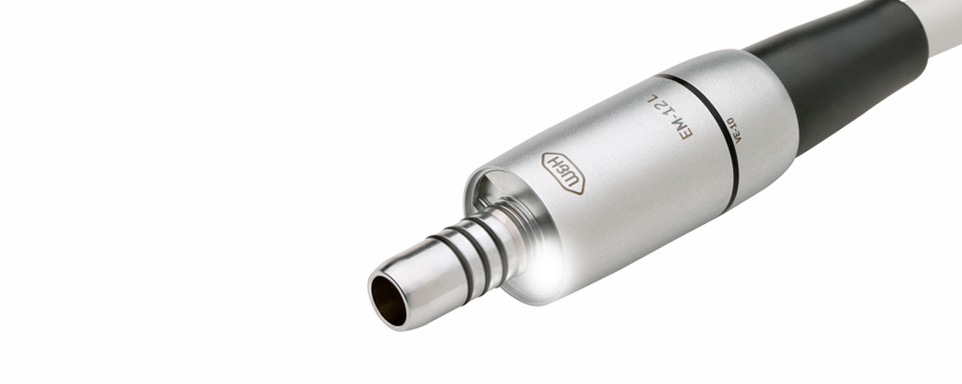

- LED technology

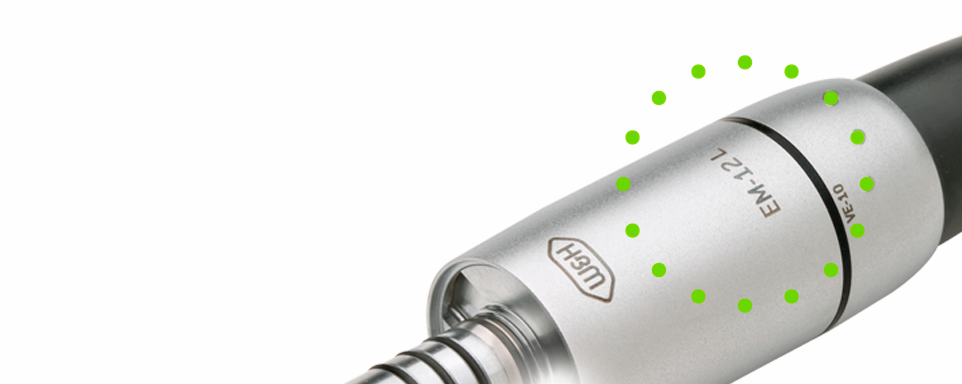

- Constantly high power

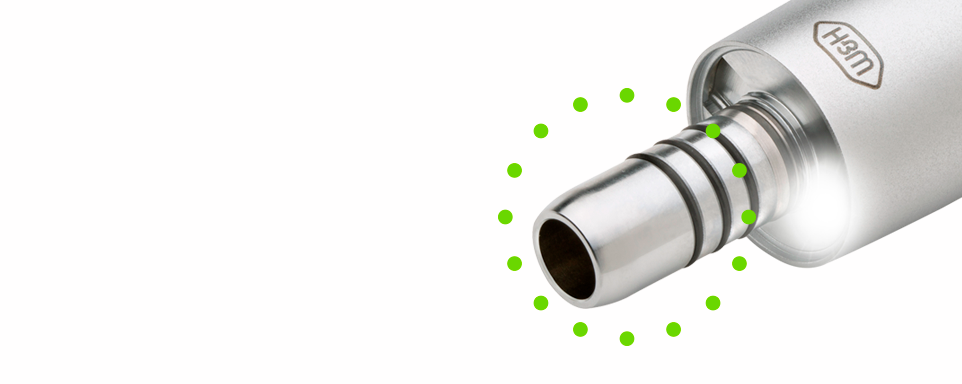

- ISO Short coupling
- Low maintenance and preserved value
- Quiet and low vibration
Low maintenanceLow maintenance and preserved value
The long-lasting brushless drive means
reduced service and maintenance costs
combined with increased service life.
Quiet
Sensor-controlled drive technology
makes it particularly quiet and
largely free from vibration.

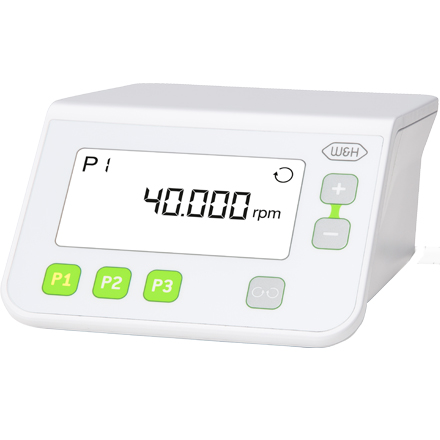

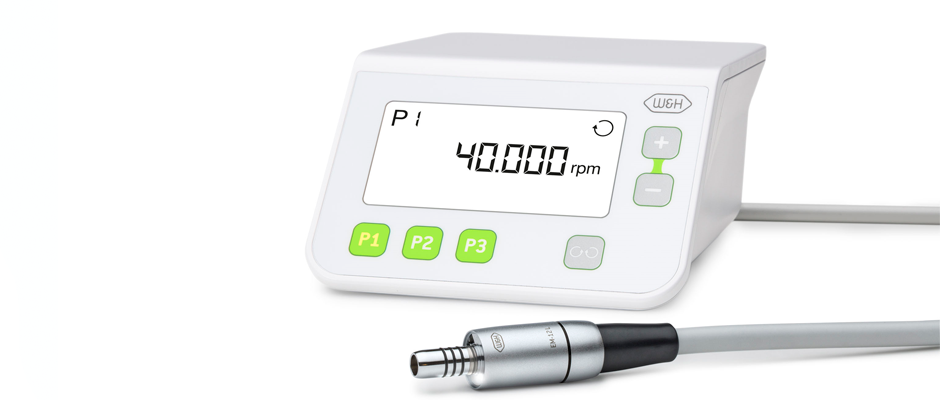

![Electric motor MF-100]( "Electric motor MF-100")
Electric motor MF-100
> Add-on
> Power supply unit
MF-100
REF 30241000Control unit for 100 – 240 V

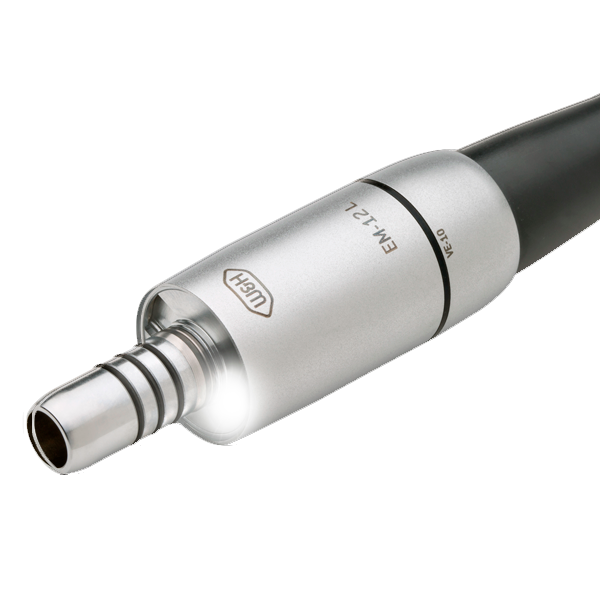

![EM-12 L]( "EM-12 L")
EM-12 L
Electric motor
EM-12 L
REF 30178000Electric motor
Download Area
FAQs
-
Does the electric motor need to be lubricated with oil?
No, the motor bearings require no maintenance. Any additional oil lubrication would reduce the service life of the bearings. more
-
Should I always call my W&H service partner in advance before sending devices/instruments in for repair?
If you are not completely sure of the cause of the problem, it is better to contact your W&H service partner first and speak to a technician. It is sometimes possible to resolve the problem over the phone otherwise the product will need to be sent in for repair. more
-
What is a brushless electric motor and what benefits does it offer me as a user?
The brushless electric motor is considerably less susceptible to wear than a brush motor, which in turn translates to minimised service and maintenance work. This also means less downtime for the user when servicing proves necessary. more
-

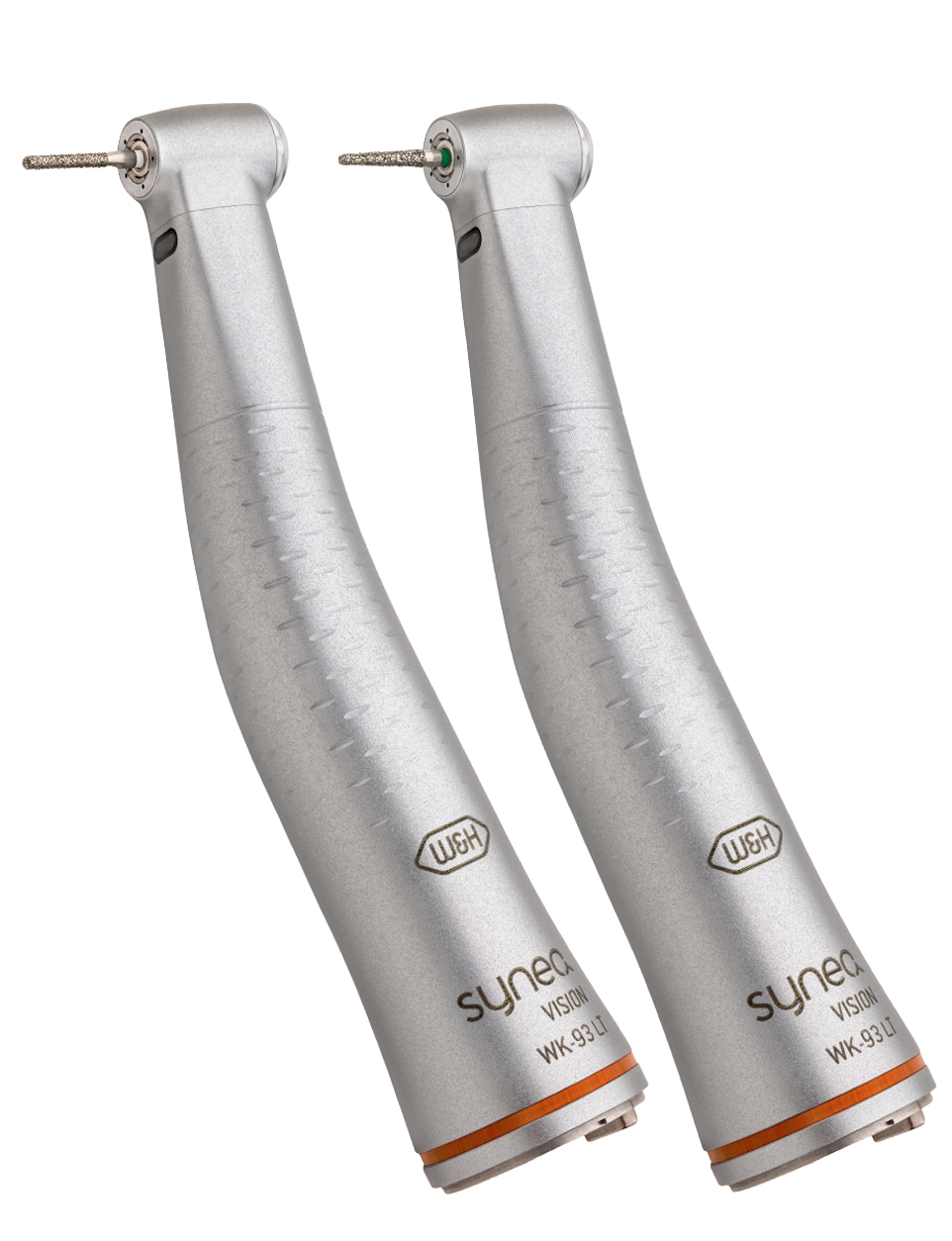

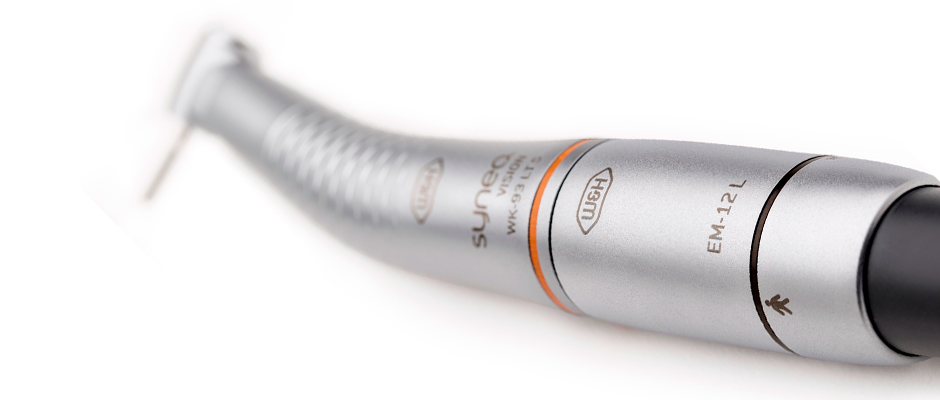

Which contra-angle handpiece series is recommended for the electric motor?
The W&H Synea series – the glass rod elements are optimally suited for use together with the motor and its integrated LED+. more
-
How can I integrate the electric motor into my unit as a built-in version?
The electric motor can be integrated into a dental unit by selected dental unit manufacturers or their service technicians. more
-
How do I connect the electric motor to my unit as an Add-on?
To connect the electric motor to your dental unit as an Add-on you require a free turbine hose on your dental unit and the possibility of connecting the control to the mains via the included power supply unit. You can control the electric motor using the foot control of your dental unit. more
-
Can I sterilize my electric motor in a sterilizer?
Yes, if your electric motor features the symbol “Sterilizable up to the stated temperature”.
more
-
Can my electric motor be reprocessed in a thermo washer disinfector?
No. more
-
Does the Built-in version of the electric motor require maintenance?
The Built-in electronic component does not require separate maintenance. However, regular servicing together with the rest of the dental unit should be performed at the intervals prescribed by the pertinent legislation. This makes it possible to guarantee proper function and safety. More detailed information on this topic can be found in the “Service” section of the respective instructions for use. more
-
Does the Add-on version of the electric motor require maintenance?
The electric motor as an Add-on version including accessories requires a regular check once every three years unless shorter intervals are prescribed by law. The regular service must only be performed by an authorised W&H service partner. More detailed information on this topic can be found in the “Service” section of the instructions for use. more
-
-
Perfect balance of
performance and ergonomicsIt is particularly small and surprisingly light,
is comfortable to hold and in addition to the consistent high power, also scores extra points with its features such as LED technology, long service life and quiet operation.Your advantages at a glance
- Particularly small
- Optimally balanced
- 25% lighter, 15% shorter
- LED technology
- Constantly high power
- ISO Short coupling
- Low maintenance and preserved value
- Quiet and low vibration

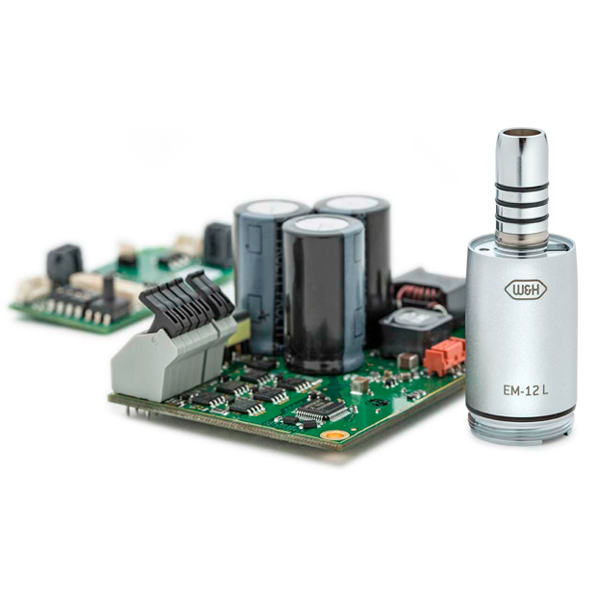

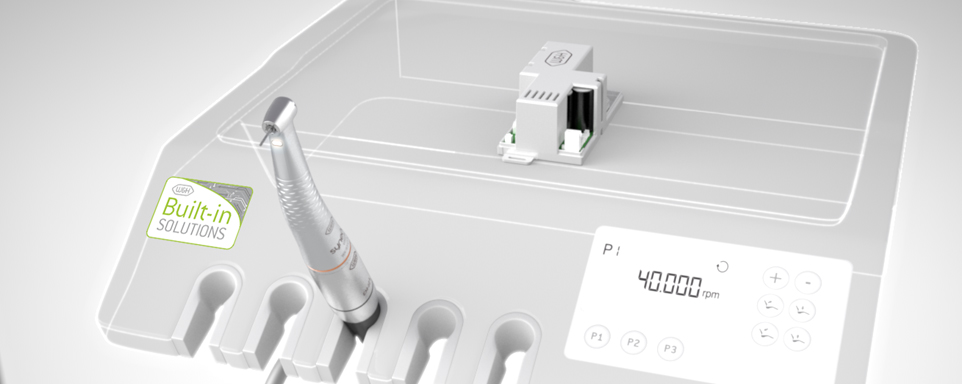

An ingenious systemBuilt-in Solution
Selected unit manufacturers offer the W&H EM-12 L electric motor as a fully integrated drive solution within the
scope of a complete system. It can be controlled simply and conveniently via your dental unit’s control panel.
Ask W&H or your unit manufacturer about the EM-12 L as a Built-in Solution.
Low maintenanceLow maintenance and preserved value
The long-lasting brushless drive means
reduced service and maintenance costs
combined with increased service life.
Quiet
Sensor-controlled drive technology
makes it particularly quiet and
largely free from vibration.
Restoration & Prosthetics

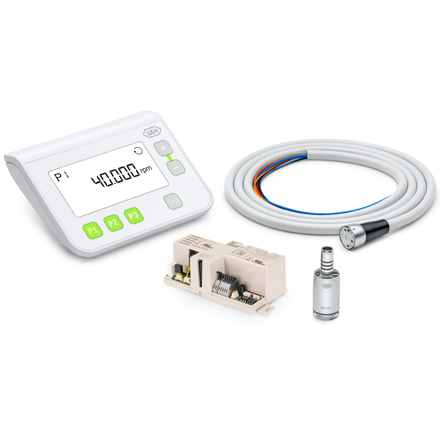

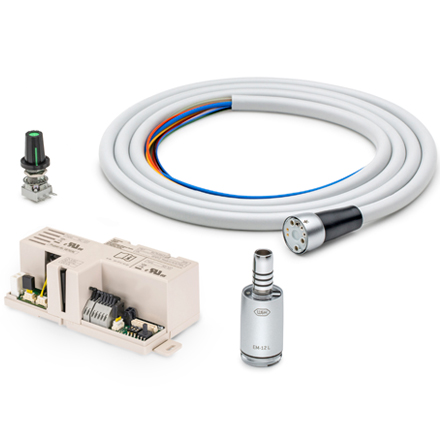

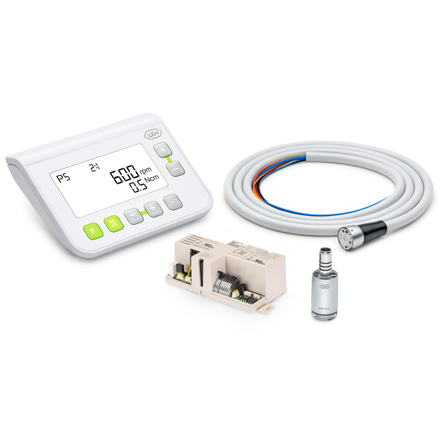

![Electric motor EM-12 L Built-in kit analog]( "Electric motor EM-12 L Built-in kit analog")
Electric motor EM-12 L Built-in kit analog
> MC-1.0 Motorcontroller analog
> VE-10 hose
> EM-12 L Electric motor
> 2 Connection sets (pneumatic and electric)Electric motor EM-12 L
REF 90000138analog control knob
![Electric motor EM-12 L Built-in kit analog]( "Electric motor EM-12 L Built-in kit analog")
Electric motor EM-12 L Built-in kit analog
> MC-1.0 Motorcontroller analog
> VE-10 hose
> EM-12 L Electric motor
> 2 Connection sets (pneumatic and electric)
Electric motor EM-12 L
REF 90000245
analog Display Basic

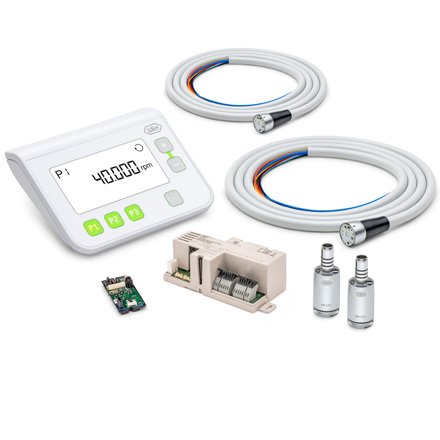

![Electric motor EM-12 L Built-in kit analog]( "Electric motor EM-12 L Built-in kit analog")
Electric motor EM-12 L Built-in kit analog
> MC-2.0 Motorcontroller analog
> 2x VE-10 hose
> 2x EM-12 L Electric motor
> AD-1.0 Analog-Digitall Converter
> 2 Connection sets (pneumatic and electric)2x Electric motor EM-12 L
REF 90000224analog Display Basic
Restoration & Prosthetics, Endodontics
![Electric motor EM-12 L Built-in kit analog]( "Electric motor EM-12 L Built-in kit analog")
Electric motor EM-12 L Built-in kit analog
> MC-1.0 E Motorcontroller analog
> VE-10 hose
> EM-12 L Electric motor
> 2 Connection sets (pneumatic and electric)Electric motor EM-12 L
REF 90000139analog display basic
Download Area
FAQs
-
Does the electric motor need to be lubricated with oil?
No, the motor bearings require no maintenance. Any additional oil lubrication would reduce the service life of the bearings. more
-
Should I always call my W&H service partner in advance before sending devices/instruments in for repair?
If you are not completely sure of the cause of the problem, it is better to contact your W&H service partner first and speak to a technician. It is sometimes possible to resolve the problem over the phone otherwise the product will need to be sent in for repair. more
-
What is a brushless electric motor and what benefits does it offer me as a user?
The brushless electric motor is considerably less susceptible to wear than a brush motor, which in turn translates to minimised service and maintenance work. This also means less downtime for the user when servicing proves necessary. more
-
Which contra-angle handpiece series is recommended for the electric motor?
The W&H Synea series – the glass rod elements are optimally suited for use together with the motor and its integrated LED+. more
-
How can I integrate the electric motor into my unit as a built-in version?
The electric motor can be integrated into a dental unit by selected dental unit manufacturers or their service technicians. more
-
How do I connect the electric motor to my unit as an Add-on?
To connect the electric motor to your dental unit as an Add-on you require a free turbine hose on your dental unit and the possibility of connecting the control to the mains via the included power supply unit. You can control the electric motor using the foot control of your dental unit. more
-
Can I sterilize my electric motor in a sterilizer?
Yes, if your electric motor features the symbol “Sterilizable up to the stated temperature”.
more
-
Can my electric motor be reprocessed in a thermo washer disinfector?
No. more
-
Does the Built-in version of the electric motor require maintenance?
The Built-in electronic component does not require separate maintenance. However, regular servicing together with the rest of the dental unit should be performed at the intervals prescribed by the pertinent legislation. This makes it possible to guarantee proper function and safety. More detailed information on this topic can be found in the “Service” section of the respective instructions for use. more
-
Does the Add-on version of the electric motor require maintenance?
The electric motor as an Add-on version including accessories requires a regular check once every three years unless shorter intervals are prescribed by law. The regular service must only be performed by an authorised W&H service partner. More detailed information on this topic can be found in the “Service” section of the instructions for use. more
-
-

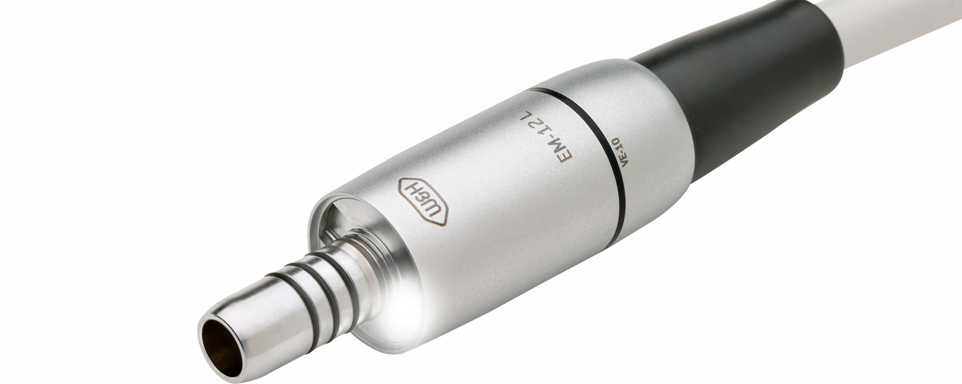

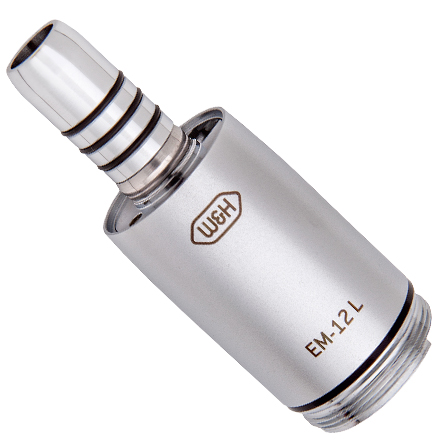

Electric motor EM-12 L
Type: EM-12 L Speed range*: 100 – 40,000 rpm Maximum power: 59 W Length (effective, without ISO connection): 31.55 mm Weight: 57 g Noise level: 43 dB (A) Light: LED Spray: internal Cooling air: 6 – 8 Nl/min Direction of rotation: Forward/reverse operation Instrument coupling: ISO 3964 (short) compatible Warranty: 24 months *Speed range depends on motor/system version Add-on control MF-100 for EM-12 L
Type: MF-100 Speed range: 2,000 – 40,000 rpm Mains voltage: 100 – 240 V, 47 – 63 Hz Dimensions (height x width x depth): 92 x 156 x 211 mm Weight: 1.06 kg Warranty: 24 months
