Why is there no rotational lubrication option in the Assistina TWIN?

The oil is atomized in the Assistina TWIN before it enters the instrument. This ensures full coverage of the gear parts but eliminates the need for technically complex and time-consuming rotational lubrication. There is no negative impact on the quality of maintenance with the high level results corresponding to those achieved using the Assistina 301 Plus.

What instrument adaptors are available for the Assistina TWIN?

All adaptors that are suitable for the Assistina 3x2/3x3 can also be used in the Assistina TWIN. There is only one exception: the RM/ISO adaptor for the Assistina 3x2/3x3 is not compatible with the Assistina TWIN. Quick Connect adaptors ISO and RM can be used for the Assistina TWIN instead. An overview of all adaptors is available on the product website.

What does HEPA mean, and what is filtered out of the air?

HEPA is short for 'High Efficiency Particular Air', and the filter is classified as HEPA class E11. This means that the filter retains all particles larger than 1 µm, which includes, among other things, a wide range of bacteria and viruses, suspended particles such as dust and respirable aerosols.

Why does the Assistina TWIN have a HEPA filter?

During the Assistina TWIN's handpiece maintenance process the rotating parts are lubricated with oil and the spray channels rinsed with cleaning solution. These liquids are introduced to the handpieces using compressed air, which produces aerosols that may contain potentially contaminated body fluids (e.g. blood and saliva). In order to ensure that the apparatus poses no risk to the user, the patient or third parties, aerosols must be prevented from leaking out of the apparatus. We make sure of this by using active suction and the HEPA filter. This HEPA filter needs to be changed regularly, which is why the lifespan of the filter is matched exactly to the capacity of the two cartridges. The HEPA filter therefore needs changing every time that the refill cartridge set is replaced.

How does the user know when the TWIN Care Set needs to be replaced?

The intelligent process monitoring system documents the number of maintenance cycles that have been performed, thereby automatically calculating the number of instruments that can be serviced with the remaining quantity of fluid. The user receives an alert 300 cycles before the cartridge needs replacing (the oil and cleaner LEDs on the top of the unit turn yellow in colour).

How often does the TWIN Care Set need to be replaced?

The consumption volumes for each instrument are 0.07 ml of oil and 0.07 ml of cleaning solution. This gives a maximum capacity of 2857 cycles. In reality, the value is around 2800 to 2850 cycles, as initial filling is also required and the fill quantity of the cartridges is subject to certain tolerances that are regulated by the applicable standards.

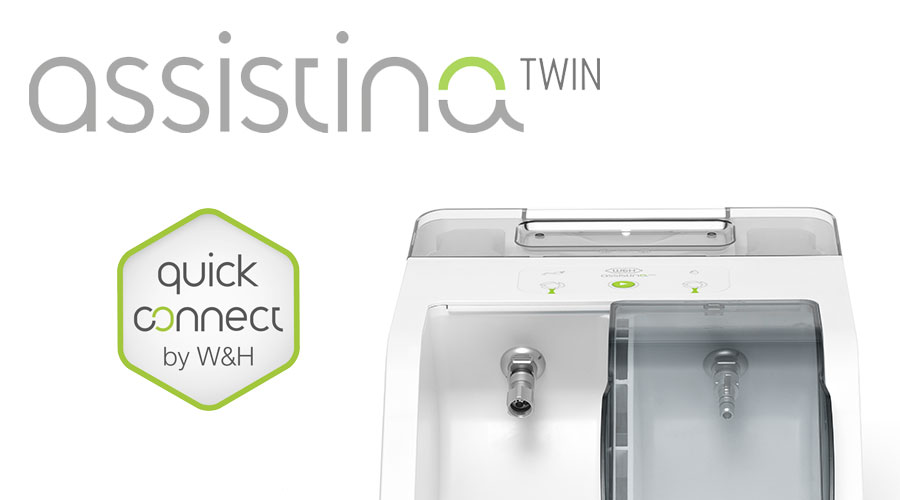

Assistina Twin with Quick Connect by W&H

Name: Assistina TWIN
Brand: W&H

Unique among maintenance devices

The Assistina Twin from W&H is unique among maintenance devices: with its innovative dual-chamber system, record time lubrication, Quick Connect and Blow-through function, it impresses all along the line.

AR/3-D

Discover Product

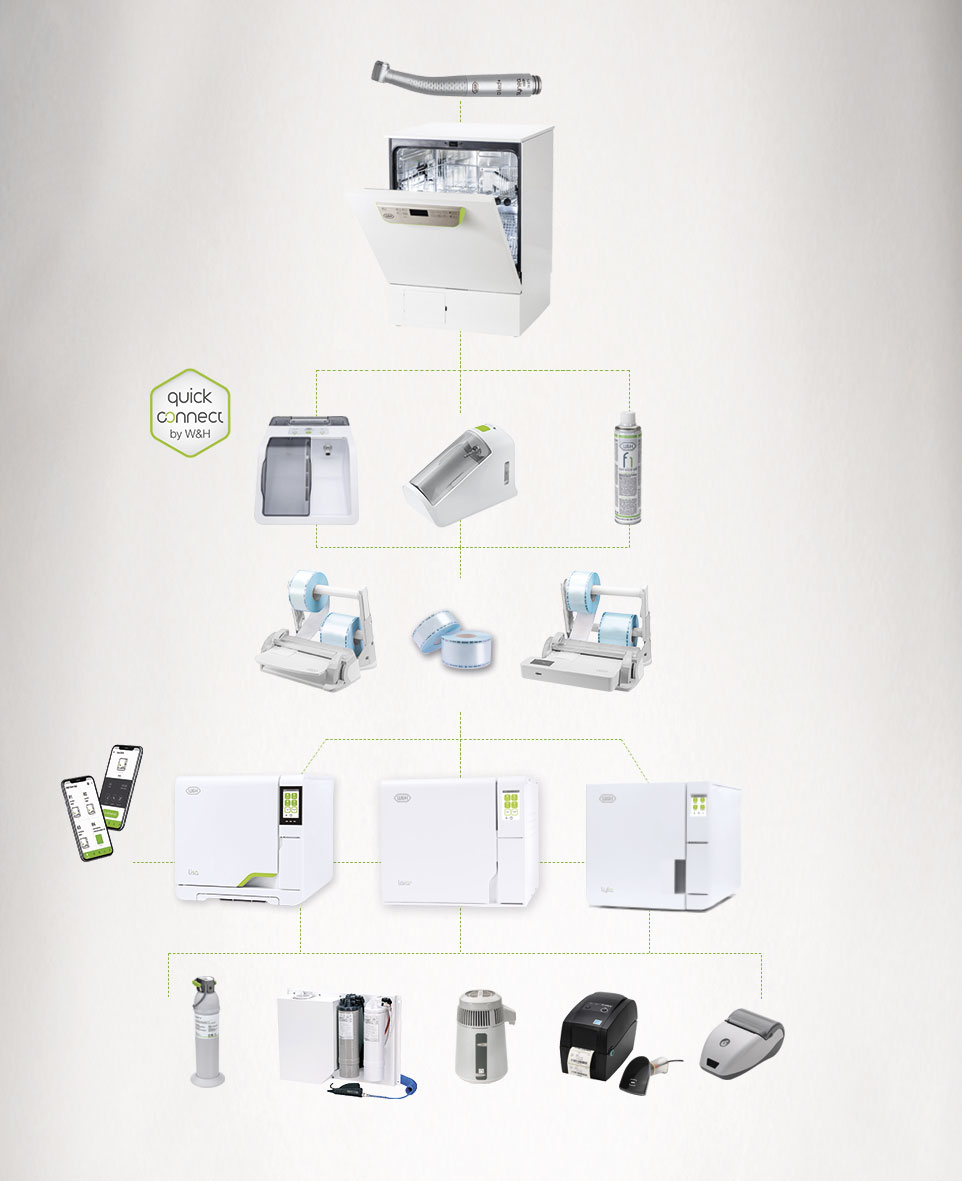

System overview

Assistina Twin
Adaptor overview
Technical data

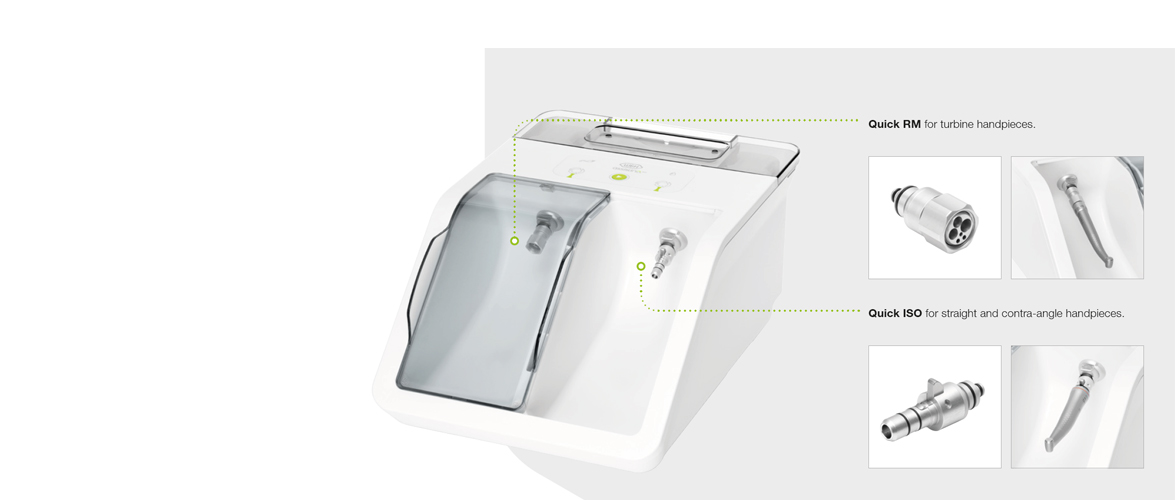

Tailored to your needs

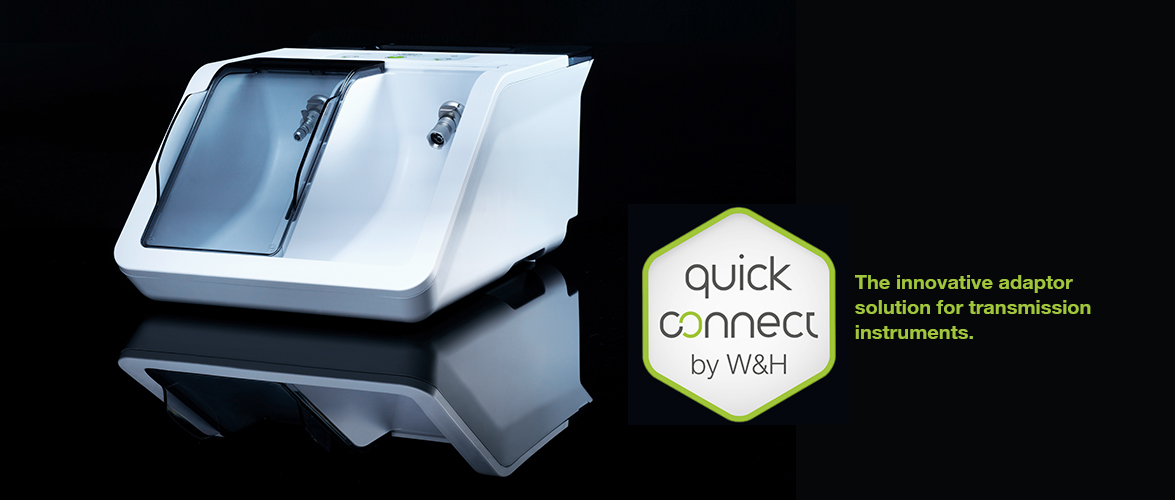

Thanks to the integrated Quick Connect by W&H, the Assistina Twin fits into your processes more smoothly and makes them even more efficient. Why? Because you can equip the maintenance device with exactly the adaptors you need for your transmission instruments.

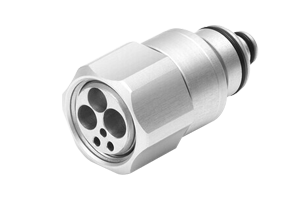

Quick RM for turbine handpieces

Quick and simple adaptor changes optimize your processes and increase efficiency in practice.
You decide which adaptors you actually need. Equip your Assistina Twin according to your needs and only use the right adaptors suitable for you in the two chambers.

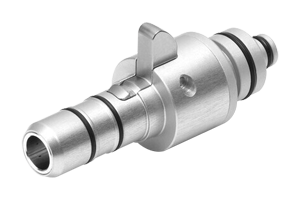

Quick ISO for straight and contra-angle handpieces

Quick and simple adaptor changes optimize your processes and increase efficiency in practice.
You decide which adaptors you actually need. Equip your Assistina Twin according to your needs and only use the right adaptors suitable for you in the two chambers.
- Easy to use

  Easy to use

  Owing to the quicker and simpler assembly and removal of transmission instruments using the release button.
- Quicker adaptor change

  Quicker adaptor change

  Thanks to optimal preparation, the different adaptors can be prepared outside the device before and during the maintenance process.
- More flexibility

  More flexibility

  By preparing the adaptors that you actually need.
- Improved processes

  Improved processes

  Thanks to simple actuation and quick connection via Quick ISO or Quick RM adaptor.

  Click here to see other adapters and a full system overview.
- Blow-through function

  With the Blow-through function, Assistina Twin offers an optimal solution for drying the internal components of handpieces after the manual and automatic cleaning process.

  Easy to dry: The Blow-through function uses compressed air to effectively minimise liquids from the handpieces.
"Wow. It’s so quick! Thanks to the dual-chamber system, I only need a fraction of the time to maintain the instruments. It is extremely quiet and looks great."

Sandra Schnäp
Dental assistant

“Now I can be certain that my instruments can be prepared between treatments without my patients and I having to wait. A real bonus for my dental practice"

Dr Christian Müller
Dentist with own dental practice

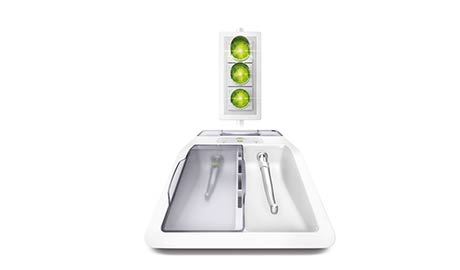

Oil service without waiting time

Green light for better sustainability: with the Assistina Twin, waiting times during lubrication are a thing of the past. It is the first processing device equipped with two alternately usable process chambers, thus enabling non-stop loading. Prepare your transmission instruments easily and more efficient than ever!

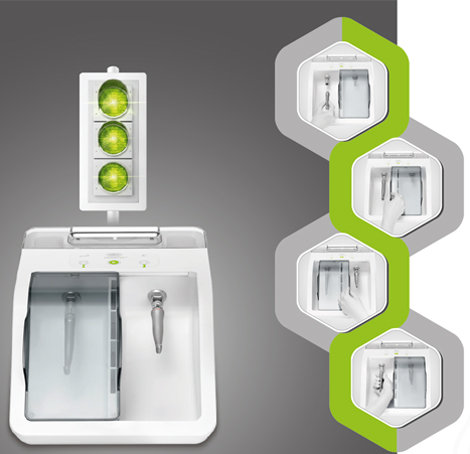

Runs like a charm

1 Assemble the instrument in chamber 1.
2 Close chamber 1 and start the process.
3 Assemble the second instrument and close chamber 2 as soon as the process in chamber 1 is complete.
4 Remove the instrument from chamber 1 and repeat steps 1 and 2.

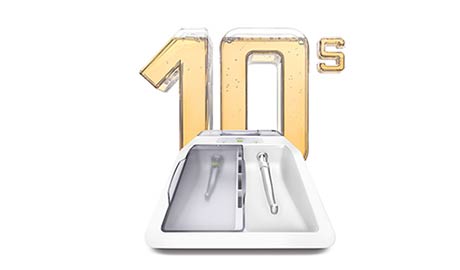

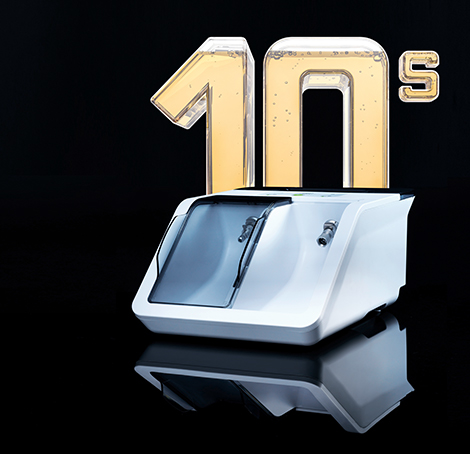

Oil service in record time

With the Assistina Twin, you can maintain your instruments more quickly than ever before. Thanks to the innovative oil nebulization technology, W&H has succeeded in decreasing the maintenance process to a record time of just 10 seconds – for a speedy and incomparably thorough maintenance result.

An innovative system

The oil is nebulized before being blasted through the instrument at high pressure. This removes soiling from the inside of the instrument even more effectively. Thanks to the fine mist, every single part of the gear is wetted without having to set the gear parts into motion. All aerosols are removed from the process chambers through active suction and an integrated HEPA filter.

Practical for every practice

The Assistina Twin can be tailored to meet the individual needs of your dental practice. It can process up to 360 instruments per hour not just due to the innovative procedure with a short processing time, but also thanks to its ergonomic design and wide range of adaptors.

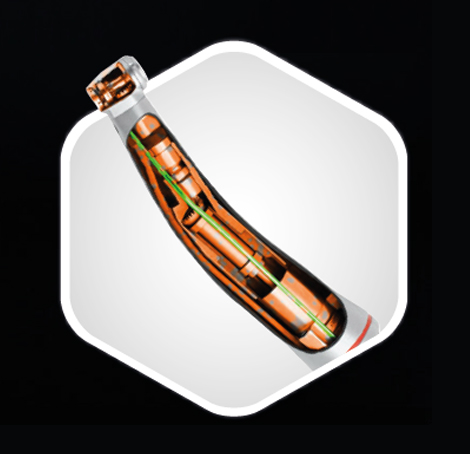

Groundbreaking technology

Thorough and comprehensive lubrication of the gear parts (orange) and cleaning of the spray channels (green) owing to the innovative oil nebulization technology.

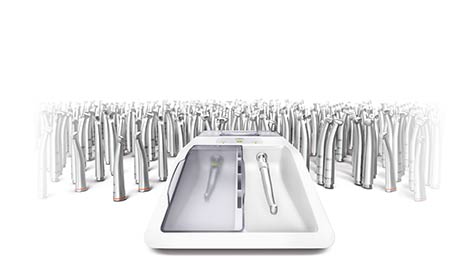

- Minimum consumption

  Maximum lubrication with minimum consumption

  Thanks to the smart process monitoring, the Assistina Twin always achieves thorough maintenance with minimum consumption. The Assistina Twin Care Set only needs to be changed after around 2,800 instruments. Your instrument maintenance is thus not just quick and reliable, but also more cost-efficient than ever.
- Assistina Twin Care Set

  Twin Care Set

  Each set comprises one cartridge of cleaning solution, one cartridge of Service Oil F1 and one HEPA filter. All consumables are extremely easy to replace without a tool.

  Assistina Twin Care Set yields as much as 20 oil spray cans (400 ml per oil spray can)

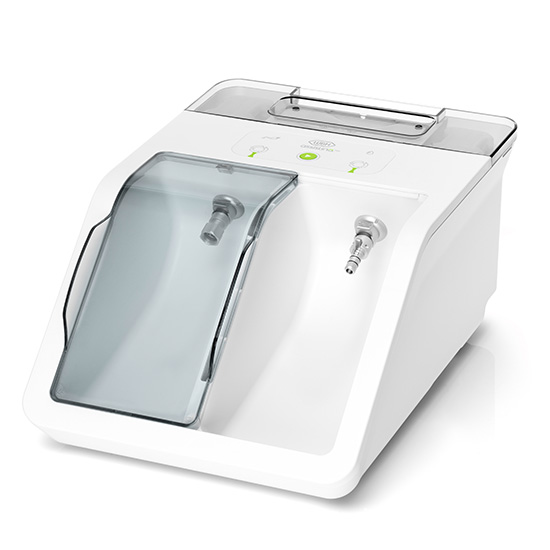

Assistina Twin with Quick Connect

Assistina Twin MB-302
REF 30310000

Contains:
› Air hose (2 m)
› Power supply unit
› Twin Care Set

Request Price

Assistina Twin with Quick Connect

(including two connectors)

Assistina Twin MB302 + 2 Quick connectors ISO
REF 30310001

Contains:
› Air hose (2 m)
› Power supply unit
› Twin Care Set
› 2 Quick connectors ISO

Assistina Twin MB302 + 2 Quick connectors RM
REF 30310002

Contains:
› Air hose (2 m)
› Power supply unit
› Twin Care Set
› 2 Quick connectors RM

Assistina Twin MB302 + 1 Quick connector ISO + 1 Quick connector RM
REF 30310003

Contains:
› Air hose (2 m)
› Power supply unit
› Twin Care Set
› 1 Quick connector ISO
› 1 Quick connector RM

Request Price

Awarded!

Assistina Twin was awarded the German Design Award and the Good Design Award in 2019 as one of the product innovations in 2020. The high-quality product and communication design was assessed. The Assistina Twin is therefore considered one of the defining products in the international product and design landscape.
Download Area
FAQs
- Why is there no rotational lubrication option in the Assistina TWIN?
  The oil is atomized in the Assistina TWIN before it enters the instrument. This ensures full coverage of the gear parts but eliminates the need for technically complex and time-consuming rotational lubrication. There is no negative impact on the quality of maintenance with the high level results corresponding to those achieved using the Assistina 301 Plus. more
- What instrument adaptors are available for the Assistina TWIN?
  All adaptors that are suitable for the Assistina 3x2/3x3 can also be used in the Assistina TWIN. There is only one exception: the RM/ISO adaptor for the Assistina 3x2/3x3 is not compatible with the Assistina TWIN. Quick Connect adaptors ISO and RM can be used for the Assistina TWIN instead. An overview of all adaptors is available on the product website. more
- What does HEPA mean, and what is filtered out of the air?
  HEPA is short for 'High Efficiency Particular Air', and the filter is classified as HEPA class E11. This means that the filter retains all particles larger than 1 µm, which includes, among other things, a wide range of bacteria and viruses, suspended particles such as dust and respirable aerosols. more
- Why does the Assistina TWIN have a HEPA filter?
  During the Assistina TWIN's handpiece maintenance process the rotating parts are lubricated with oil and the spray channels rinsed with cleaning solution. These liquids are introduced to the handpieces using compressed air, which produces aerosols that may contain potentially contaminated body fluids (e.g. blood and saliva). In order to ensure that the apparatus poses no risk to the user, the patient or third parties, aerosols must be prevented from leaking out of the apparatus. We make sure of this by using active suction and the HEPA filter. This HEPA filter needs to be changed regularly, which is why the lifespan of the filter is matched exactly to the capacity of the two cartridges. The HEPA filter therefore needs changing every time that the refill cartridge set is replaced. more
- How does the user know when the TWIN Care Set needs to be replaced?
  The intelligent process monitoring system documents the number of maintenance cycles that have been performed, thereby automatically calculating the number of instruments that can be serviced with the remaining quantity of fluid. The user receives an alert 300 cycles before the cartridge needs replacing (the oil and cleaner LEDs on the top of the unit turn yellow in colour). more
- How often does the TWIN Care Set need to be replaced?
  The consumption volumes for each instrument are 0.07 ml of oil and 0.07 ml of cleaning solution. This gives a maximum capacity of 2857 cycles. In reality, the value is around 2800 to 2850 cycles, as initial filling is also required and the fill quantity of the cartridges is subject to certain tolerances that are regulated by the applicable standards. more
more
Downloads

Brochure

Assistina Twin Quick Connect Adaptor system guide

Quick Connect Adaptor system guide

Brochure Hygiene Advice

RIC Collection Brochure Hygiene

show more minimise

Instructions for use

Instructions for use

Quick Start Manual for Assistina Twin

Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

Video Tutorials

For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

Accept
Service
Service

Service Station Locator

Hygiene & Maintenance

Disposal Guidelines

Troubleshooting
System overview adaptor

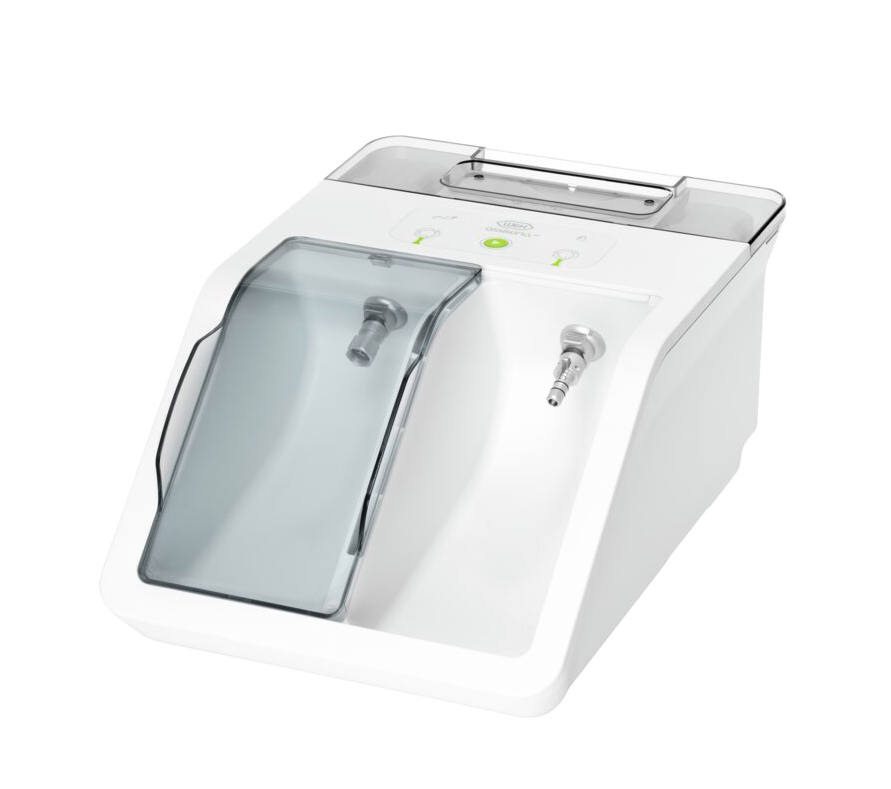

Assistina Twin (MB-302) with Quick Connect

Step 1: Select the handpiece type
- Straight and contra-angle handpieces: require Quick ISO adaptor
- Turbine handpieces: require Quick RM adaptor
Step 2: For brand specific connections
- For brand specific connections, like Roto Quick, select the right adaptor suitable for you.
Straight and contra-angle handpieces

Turbine handpieces

Adaptor Quick ISO

REF 06422600

All straight and contra-angle handpieces with ISO connection

for contra-angles with removable heads

REF 02679000

for T1 CLASSIC from Sirona Dental Systems

REF 02691000

for FG chuck system (W&H, Sirona Dental Systems)

REF 02693000

for W&H handpiece and contra-angle head

REF 05204600

Adaptor Quick RM

REF 06395100

for turbines or adaptors with standard 4-hole connection (with or without light)

W&H turbines, air scaler and air motors with Roto Quick system

REF 02690400

for T1, T2, T3 from Sirona Dental Systems

REF 02692000

for turbines with Multiflex connection (Kaltenbach & Voigt)

REF 04713200

for turbines with Borden 2(3)-hole connection

REF 02083500

Downloads

Quick Connect adaptor system guide

Brochure Assistina Twin

Technical Data

Type	Assistina Twin MB-302
Process:	Cleaning the spray channels, lubrication
Suitable for:	Straight and contra-angle handpieces, turbine handpieces, air scalers, air motors
Supply voltage:	100 – 240 V AC
Maximum power consumption:	18 VA
Air consumption:	Approx. 40 Nl/min.
Operating pressure:	5 – 10 bar (controlled via an integrated, automatic pressure controller)
Dimensions (W x D x H):	297 x 435 x 190 mm
Weight:	3,5 kg
Capacity:	200 ml W&H Activefluid cleaning solution 200 ml W&H Service Oil F1
