* Multiflex® is a registered trade mark of Kaltenbach & Voigt GmbH, Germany
** also with other coupling versions available
*** Contra-angle handpieces of the Synea Vision Short Edition can be used on micromotors with an ISO coupling length of 23 mm or less.
Synea Vision turbines
Discover the Synea Vision turbines for yourself!
-
„Turbines with maximum efficiency“
„Synea Fusion turbines set new standards in everyday clinical practice: they combine premium quality with clever cost-effectiveness, making top performance accessible for every practice. With up to 29 watt, they offer maximum torque and optimal power. Their robust design makes them renowned for their durability. And now, thanks to ScratchBlocker coating and an extended warranty period, they are even more durable and reliable. Like this, premium quality becomes an economical solution and creates real added value in everyday use.“
メリット一覧
- LED+による最大の照射範囲
-
理想的なヘッドサイズ対パフォーマンス比で、
最高のアクセス、最良の視界、
そして高い出力を実現 - Quattro Spray（4 点スプレー）による安全な冷却
- ハイジーンヘッドシステム
-
静かで軸ブレの少ない操作を可能にする、
セラミックボールベアリング -
最適設計による安全なグリップと
最高の衛生管理 - 安全なバー保持力とバー交換を容易にするプッシュボタンチャックシステム
- 洗浄消毒器及びオートクレーブ対応
- 24カ月保証
![]()

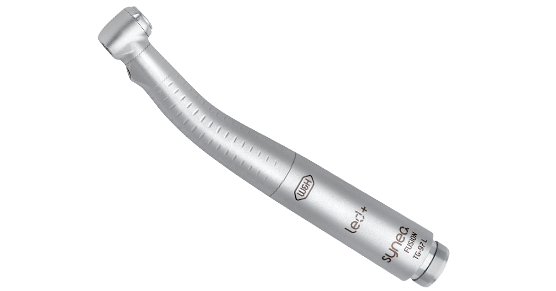

Synea Fusion:
The most harmonious turbines in the worldEfficiency in accord
Synea Fusion turbines combine premium quality with maximum costeffectiveness to create a harmonious interplay of precision and efficiency. Tailored to the needs of your practice, they perform reliably at the right pace and demonstrate with every use that cost-effectiveness is not an extra, but part of the composition – a symphony of performance, durability, and cost awareness.Wide variety
Two head sizes with different connections to suit your coupling system are available: for the best LED+ light quality, comfortable 360° rotation, and unparalleled lightness, combine your Synea turbines with the W&H Roto Quick coupling.
![]()
Optimum coolingPulp protection with 4- or 5-fold spray
Multiple spray reliably prevents temperature increases, as cooling is provided from different directions. Even if individual jets are covered or sucked away, the preparation field remains constantly cooled and rinsed – protecting the pulp from thermal damage, providing a debris-free, clear view, and ensuring optimum cutting performance.
Powerful performance without compromisePowerful performance without compromise
red: Popular turbines with high wattage
green: Synea turbines
Compared to other turbines with similar wattage, the air outlet at the head of Synea turbines is minimal even at maximum power – for added efficiency, hygiene, and comfort.

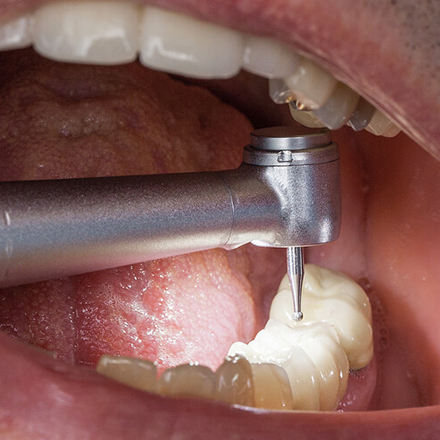

Better view with LED+Better view with LED+
Powerful illumination, excellent contrast with natural colour rendering, and optimal LED positioning for the best view of the treatment site.
Power Blade rotorHigh removal rate with the Power Blade rotor
The optimised blade geometry achieves greater efficiency at the rotor blade and thus excellent torque: for maximum cutting capacity and outstanding removal rate throughout the entire preparation process.
Hygienic head system with integrated suction stopHygienic head system with integrated suction stop
The patented hygienic head system supports the highest standards in patient and practice safety: circulating air in the turbine head effectively prevents the suction of aerosol particles when the rotor slows down, thus minimising the risk of contamination and infection.

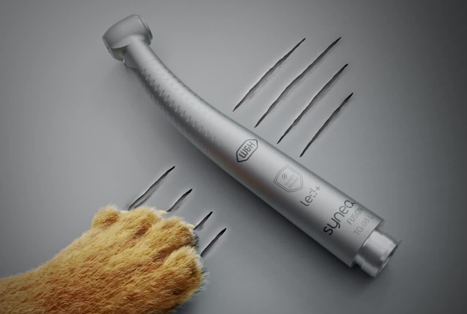

ScratchBlocker coatingScratch-resistant and robust
W&H ScratchBlocker technology, a special silicon oxide coating, provides reliable protection against signs of wear for many years and preserves the flawless appearance for an aesthetic, professional look. This allows you to benefit from the long-term value retention of your turbines, meet the highest clinical standards, and strengthen the trust of your patients.
Highly hygienic and easy to clean
Scratch-free surfaces prevent germs and microorganisms from adhering, making thorough cleaning easier. This speeds up the reprocessing process – for highly efficient infection control.The new Synea Fusion - Now even more economical

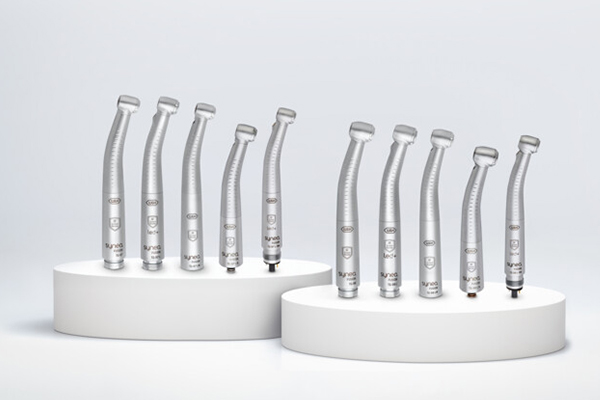

Synea Fusionタービン

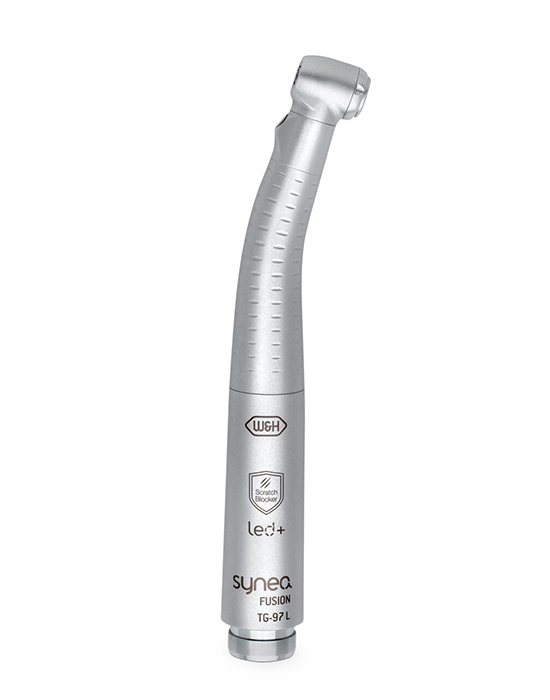

![TG-97]( "TG-97")
TG-97
Quattro Spray
ヘッドサイズ Ø 10 mm、
24 W* / 28 W* / 29 W* / 24 W* / 26 W*、390,000 rpm、
FGバー Ø 1.6 がバー長21 mmまで対応
TG-97
REF 30005000ライト無し、セラミックボールベアリング、
ロトクイックカップリングシステムTG-97 L
REF 30004000LED+、セラミックボールベアリング、
ロトクイックカップリングシステムTG-97 LM
REF 30006000コンパクトなガラスロッド、セラミックボールベアリング、
Multiflex®** カップリングシステムTG-97 L N
REF 30199000コンパクトなガラスロッド、セラミックボールベアリング、
NSK Mach®** カップリングシステムTG-97 L RM
REF 30197000LED+、セラミックボールベアリング、
標準6穴接続

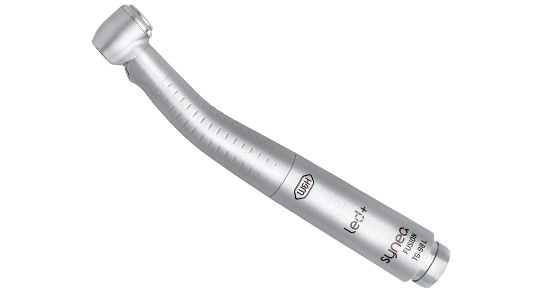

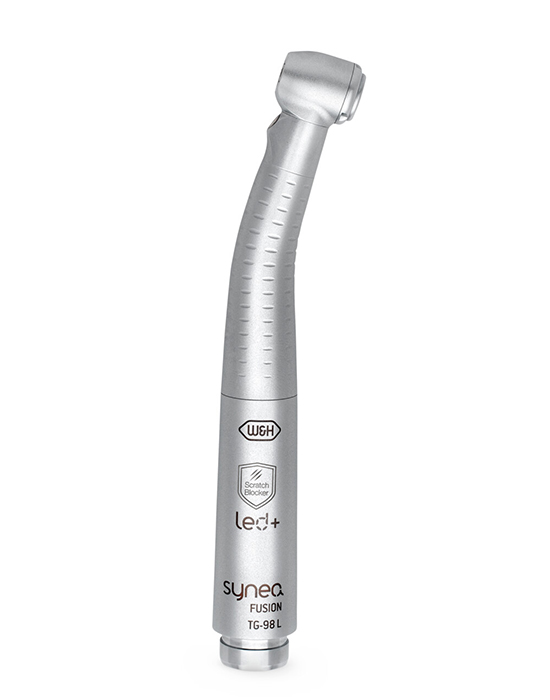

![TG-98]( "TG-98")
TG-98
Quattro Spray、
ヘッドサイズ Ø 11,5 mm、
24 W* / 28 W* / 29 W* / 24 W* / 26 W*、360,000 rpm、
FGバー Ø 1.6 mm がバー長25 mmまで対応

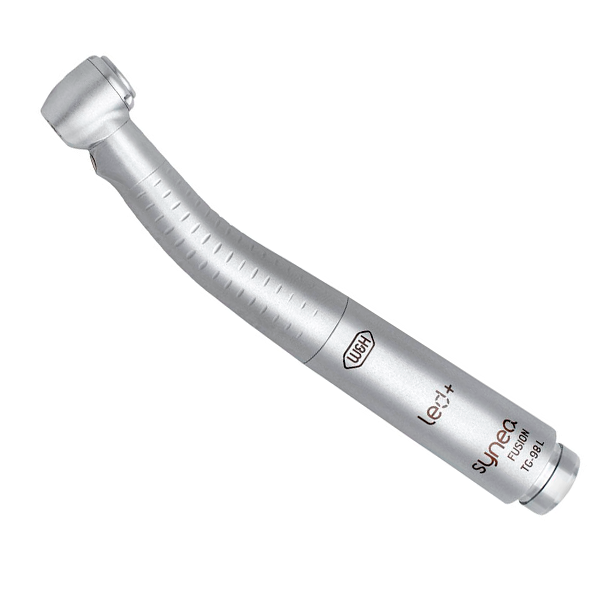

TG-98
REF 30002000ライト無し、セラミックボールベアリング、
ロトクイックカップリングシステムTG-98 L
REF 30001000LED+、セラミックボールベアリング、
ロトクイックカップリングシステムTG-98 LM
REF 30003000コンパクトなガラスロッド、セラミックボールベアリング、
Multiflex®** カップリングシステムTG-98 L N
REF 30200000コンパクトなガラスロッド、セラミックボールベアリング、
NSK Mach®** カップリングシステムTG-98 L RM
REF 30198000LED+、セラミックボールベアリング、
標準6穴接続* 性能値は定格圧力3 bar、排気圧力0.2 bar以下の場合
** Multiflex® 及びNSK Mach® は、W&H Dentalwerk Bürmoos GmbH と提携していない第三者の商標です。
Download Area
FAQ
- What is the maximum length of the rotary instruments?
- Is the new LED turbine from the Synea series e.g. compatible with the existing 924 couplings?
- At the moment I have a W&H turbine without light. How can I have light in my dental turbine?
- I've just bought a new W&H turbine? Should I call a serviceman for my unit to install it?
- Can my W&H turbine be processed via thermal disinfector?
- Can my W&H turbine be processed via sterilizer?
- My dental turbine doesn't have enough power/speed?
- Why is a 6-hole connection required for the use of an LED turbine?
- How does the new W&H Click & Pull system work? How do I remove a dental turbine?
- Which burs can be used with W&H turbines?
取扱説明書
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Videos & Tutorials
-
Synea Vision タービン
製品ラインナップThe world՚s first sterilizable turbines with 5-fold Ring LED+ stand for maximum precision and reliability. With optimised light and visibility conditions, they assist in the treatment of cavities – for reliable diagnosis and excellent preparation results – day after day.
メリット一覧
- Ring LED+による治療部位の 100%無影照明 （Roto Quickシステムのみ）
- 最適なパワー
- 5点スプレーによる治療部位の最適な冷却
- あらゆる治療事例に対応する4つのヘッドサイズ
- ハイジーンヘッドシステム
- 傷つきにくいコーティングは衛生的な印象を与え、製品が長持ちします。
- 疲れにくい作業
- セラミックボールベアリングで耐久性が向上し、静かな動作
- 洗浄消毒器及びオートクレーブ対応
- 24カ月保証
![]()
Synea Vision:
The most fabulous turbines of the worldWith the word's first 5-fold Ring LED+, you benefit from completely shadow-free illumination of the preparation site. The fantastic light quality ensures a fabulous view of the entire preparation field and supports both diagnosis and therapy. Together with the Synea qualities – high performance, ergonomic design, and long service life – the turbines of the Synea Vision line are absolute world-class premium products: so precise, so powerful, and so unique that even their shadow becomes legendary.
Turbines for every situation
The power turbine and the microturbineWith its special turbines, the Synea Vision series offers solutions for specific clinical requirements. The TK-100 L power turbine delivers extra power for processing or removing high-strength prosthetic restorations more easily – without the typical disadvantages of high wattage, such as increased wear. The TK-94 L microturbine sets new standards in dental microsurgery with its exceptionally small head – for better access, a clear view, and greater comfort. Synea Vision thus combines performance and precision in modern restorative and prosthetic treatments.
![]()
MicroturbineTK-94 L microturbine: Small head, big benefits
With its extra-small head, the Synea Vision microturbine offers exceptional visibility and enables precise work even in hard-to-reach areas. This is particularly beneficial for patients with limited mouth opening, such as children or elderly people.

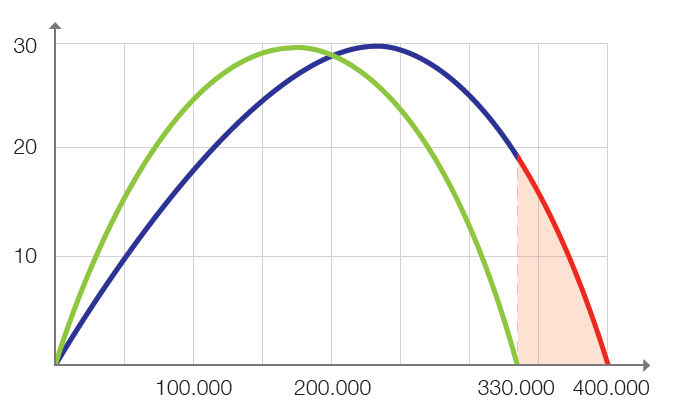

Power turbineTK-100 L power turbine: Uncompromising service life
⇡ Power in watt
⇢ Bur speed in rpm
blue: Popular turbines with high wattage
red: Popular turbines with high wattage in the critical speed range
green: Synea Vision TK-100 L functions in a safe speed range
Impressive performance due to optimal use of the torque without exhausting the maximum speed. This ensures high power for efficient removal performance and is gentle on the rotor's sensitive ball bearings, protecting them in the long term – for a completely new working experience, without any negative consequences for wear, noise, smooth running, and air leakage at the head.

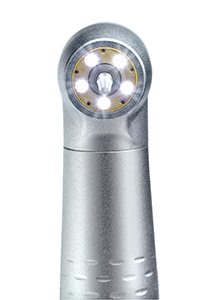

Ring LED+Ring LED+: Illumination right into the cavity
Synea Vision turbines are the only ones in the world that feature light in the axis of the rotary instrument. This means that the preparation site is illuminated not only from the mesial side, but simultaneously from the buccal, distal, and lingual/palatal sides – for a clear view, even of hard-to-reach areas such as the posterior molars.
Optimum cooling5-fold protection with
5-fold spray5 spray ports revolutionise cooling performance and optimise visibility of the treatment site. The tip of the rotary instrument is cooled and cleaned evenly in every position – for gentler treatment and a smoother workflow.
Hygiene with no compromisePowerful performance without compromise
red: Popular turbines with high wattage
green: Synea turbines
Compared to other turbines with similar wattage, the air outlet at the head of Synea turbines is minimal even at maximum power – for added efficiency, hygiene, and comfort.
Compare illumination in dental turbines!Light comparison
Power Blade rotorHigh removal rate with the Power Blade rotor
The optimised blade geometry achieves greater efficiency at the rotor blade and thus excellent torque: for maximum cutting capacity and outstanding removal rate throughout the entire preparation process.
Patented hygienic head systemHygienic head system with integrated suction stop
The patented hygienic head system supports the highest standards in patient and practice safety: circulating air in the turbine head effectively prevents the suction of aerosol particles when the rotor slows down, thus minimising the risk of contamination and infection.
ScratchBlocker coatingScratch-resistant and robust
W&H ScratchBlocker technology, a special silicon oxide coating, provides reliable protection against signs of wear for many years and preserves the flawless appearance for an aesthetic, professional look. This allows you to benefit from the long-term value retention of your turbines, meet the highest clinical standards, and strengthen the trust of your patients.
Highly hygienic and easy to clean
Scratch-free surfaces prevent germs and microorganisms from adhering, making thorough cleaning easier. This speeds up the reprocessing process – for highly efficient infection control.-
“The innovative lighting concept of the W&H turbine with 5× Ring LED+ ensures full light intensity at the treatment point even under difficult conditions.”
Dr med. dent. Martin Schiffl
Salzburg, Austria -
“The Synea Vision turbine is perhaps one of the best handpieces I have ever used. This is attributed to its lightweight, excellent torque and superb Ring LED+ light source, especially in very difficult to see areas in the posterior part of the mouth.”
Dr Sunil Hirani
BSc (Hons), BDS, MSc, FDSRCS (Eng), MOrthRCS (Eng), FDS (Orth)SmileLux, Milton Keynes, United Kingdom

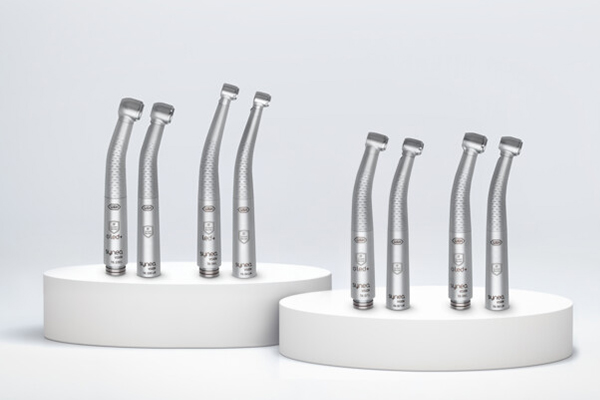

Synea Visionタービン

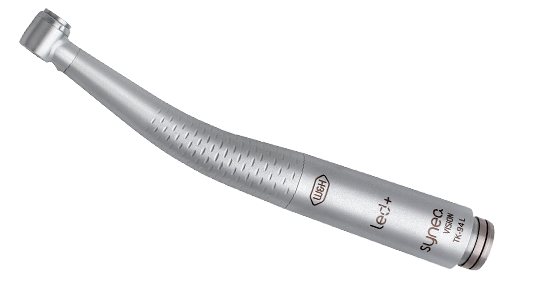

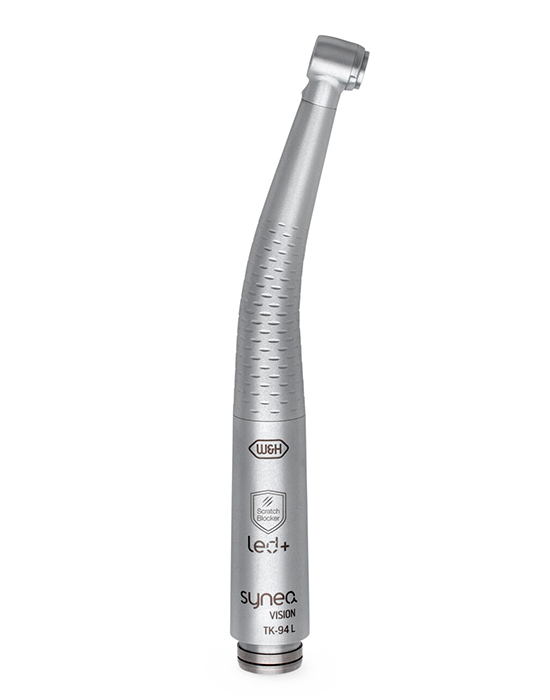

![TK-94]( "TK-94")
TK-94
LED+、
5点スプレー、
ヘッドサイズ Ø 9 mm、
18 W* / 21 W*、410,000 rpm、
FG バー Ø 1.6 mm がバー長 16 mm まで対応
TK-94 L
REF 30016000LED+、セラミックボールベアリング、
ロトクイックカップリングシステムTK-94 LM
REF 30031000コンパクトなガラスロッド、セラミックボールベアリング、
Multiflex®** カップリングシステム

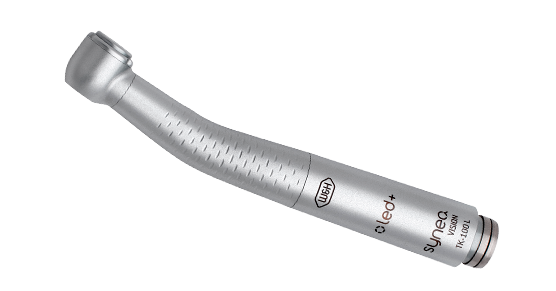

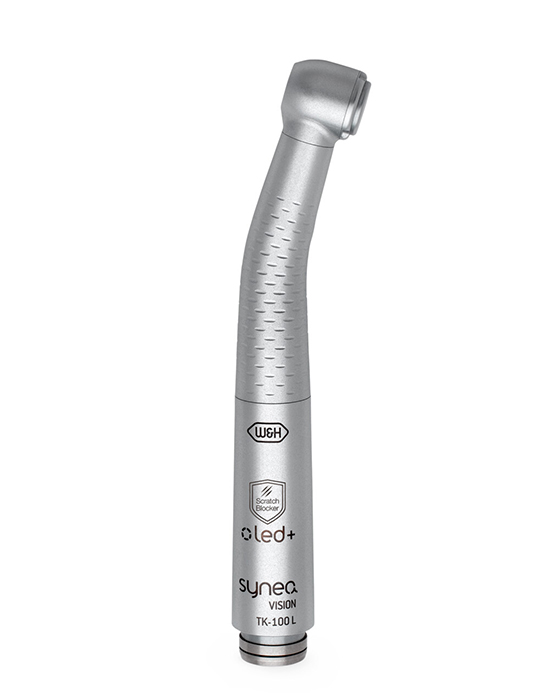

![TK-100]( "TK-100")
TK-100
Ring LED+、
5点スプレー、
ヘッドサイズ Ø 13 mm、
30 W* / 36 W*、330,000 rpm、
FG バー Ø 1.6 がバー長 25 mm まで対応
TK-100 L
REF 30021000Ring LED+、セラミックボールベアリング、
ロトクイックカップリングシステムTK-100 LM
REF 30022000コンパクトなガラスロッド、セラミックボールベアリング、
Multiflex®** カップリングシステム
![TK-98]( "TK-98")

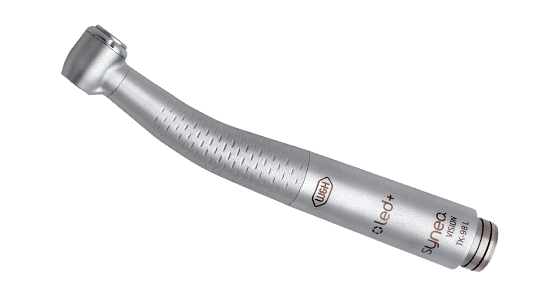

TK-98
Ring LED+、
5点スプレー、
ヘッドサイズ Ø 11,5 mm、
28 W* / 33 W*、360,000 rpm、
FG バー Ø 1.6 mm がバー長 25 mm まで対応

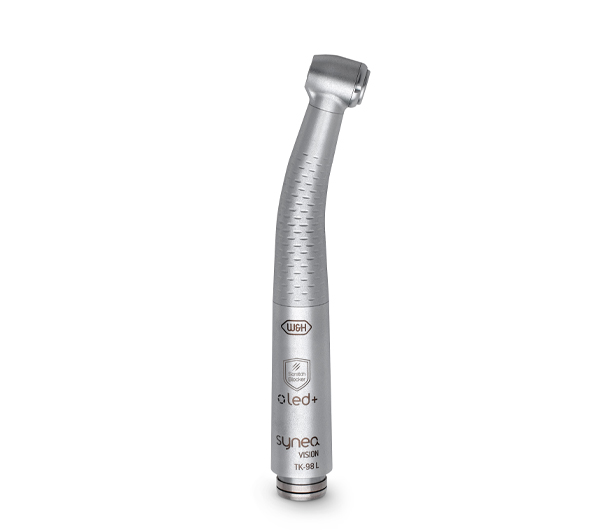

TK-98 L
REF 30019000Ring LED+、セラミックボールベアリング、
ロトクイックカップリングシステムTK-98 LM
REF 30020000コンパクトなガラスロッド、セラミックボールベアリング、
Multiflex®** カップリングシステム

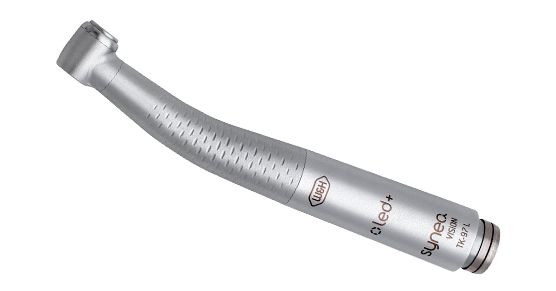

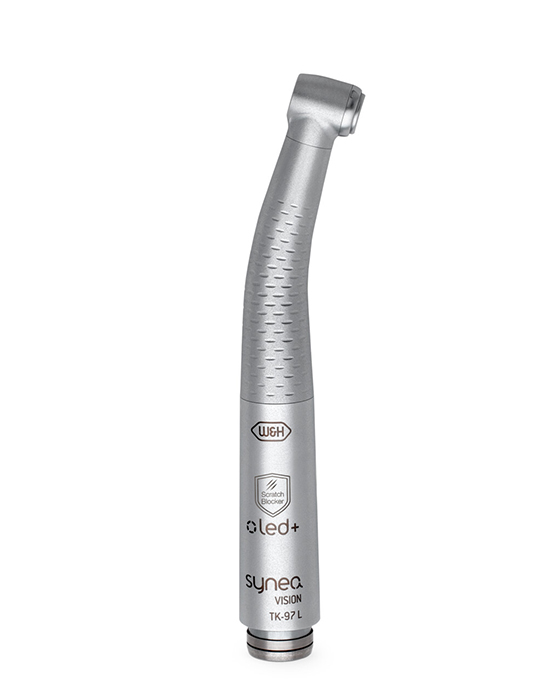

![TK-97]( "TK-97")

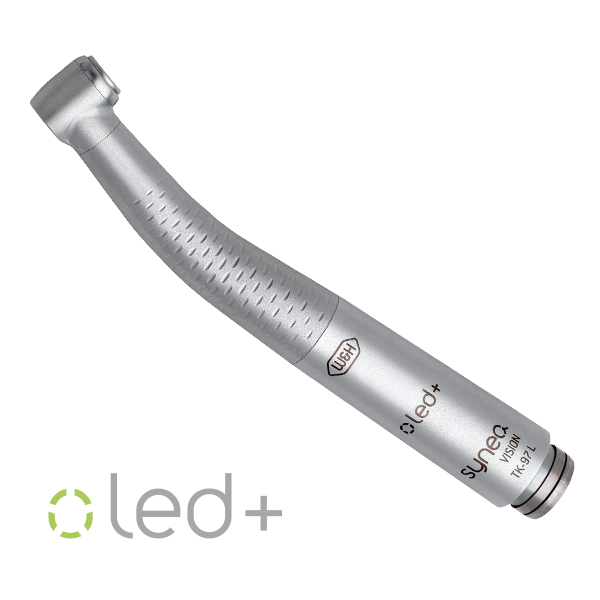

TK-97
Ring LED+、
5点スプレー、
ヘッドサイズ Ø 10 mm、
24 W* / 31 W*、400,000 rpm、
FG バー Ø 1.6 mm がバー長 21 mm まで対応
TK-97 L
REF 30017000Ring LED+、セラミックボールベアリング、
ロトクイックカップリングシステムTK-97 LM
REF 30018000コンパクトなガラスロッド、セラミックボールベアリング、
Multiflex®** カップリングシステム* 性能値は定格圧力3 bar、排気圧力0.2 bar以下の場合
** Multiflex® は、W&H Dentalwerk Bürmoos GmbHと提携していない第三者の商標です。
Download Area
FAQ
- What is the maximum length of the rotary instruments?
- Is the new LED turbine from the Synea series e.g. compatible with the existing 924 couplings?
- At the moment I have a W&H turbine without light. How can I have light in my dental turbine?
- I've just bought a new W&H turbine? Should I call a serviceman for my unit to install it?
- Can my W&H turbine be processed via thermal disinfector?
- Can my W&H turbine be processed via sterilizer?
- My dental turbine doesn't have enough power/speed?
- Why is a 6-hole connection required for the use of an LED turbine?
- How does the new W&H Click & Pull system work? How do I remove a dental turbine?
- Which burs can be used with W&H turbines?
取扱説明書
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Videos & Tutorials
Downloads
-
Wide range of applications for modern dentistry
Whether for cavity or crown preparation, filling removal, or finishing, both Synea lines support precise, professional, and patient-oriented treatment – for consistently high-quality clinical results.

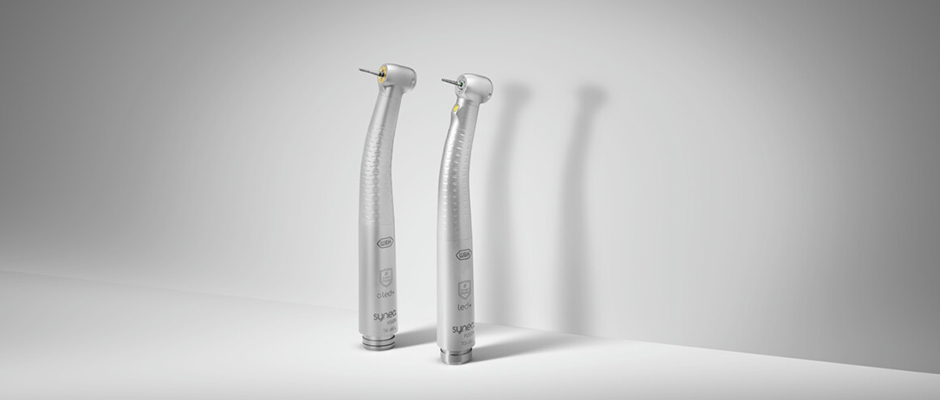

Synea turbines
in comparison Synea Vision Synea Fusion Efficient removal rate: optimal torque with the Power Blade rotor for maximum cutting capacity – for efficient and precise treatment of tooth structure. up to 36 W up to 29 W Robust & durable: reliable performance thanks to the use of high-quality materials and solid construction. ✓ ✓ Flawless appearance with ScratchBlocker coating: reliably protects against signs of wear for many years and maintains an aesthetic professional look for a long time – ensuring long-term value retention and even greater patient confidence. ✓ ✓ Optimal Illumination: innovative LED+ technology with high light intensity and high-contrast display – for better visibility of the treatment site and greater comfort during preparation. 5-fold Ring LED+ LED+ Constant cooling and irrigation: reduces thermal stress and flushes debris from the preparation site – for a clear view and maximum cutting performance. 5-fold spray 4-fold spray Most lightweight turbine system in the world: in combination with Roto Quick coupling – low weight, ergonomic design, and optimum balance for relaxed, fatigue-free working. ✓ ✓ Smooth & quiet: smooth running and quiet operation thanks to modern ceramic ball bearings – for maximum precision and comfort. ✓ ✓ Hygienically designed: thermally disinfectable and sterilizable, with integrated water filter, patented hygiene head system and smooth surfaces that prevent dirt from adhering and facilitate cleaning – for superior infection control and optimised reprocessing workflows. ✓ ✓ 24-month warranty: reduces the risk of unexpected costs and supports planning in everyday practice. ✓ ✓ -
Synea Vision
Types with integral
ceramic ball bearings:TK-94 L / TK-94 LM TK-97 L / TK-97 LM TK-98 L / TK-98 LM TK-100 L / TK-100 LM Light: LED+ / compact glass rod Ring LED+ / compact glass rod Ring LED+ / compact glass rod Ring LED+ / compact glass rod Coupling: W&H Roto Quick /
Multiflex®**W&H Roto Quick /
Multiflex®**W&H Roto Quick /
Multiflex®**W&H Roto Quick /
Multiflex®**Head size: Ø 9 mm Ø 10 mm Ø 11,5 mm Ø 13 mm Head height:
17,2 mm
(with bur 16 mm)21,1
(with bur 19 mm)
21,4
(with bur 19 mm)21,4
(with bur 19 mm)Power up to*: 18 W /
21 W24 W /
31 W28 W /
33 W30 W /
36 Wrpm (± 30,000 min -1 ): 410.000 min -1 400.000 min -1 360.000 min -1 330.000 min -1 FG bur, with Ø 1,6 mm, according to ISO 1797-1
Max. operating part diameter:
Max. length:
1,5 mm
16 mm
2 mm
21 mm
2 mm
25 mm
2,5 mm
25 mmRoto Quick connection operating pressure:
Multiflex®** connection operating pressure:3 ± 0,3 bar
2,5 – 4 bar3 ± 0,3 bar
2,5 – 4 bar3 ± 0,3 bar
2,5 – 4 bar3 ± 0,3 bar
2,5 – 4 barSpray: 5-fold 5-fold 5-fold 5-fold Hygiene head system: Yes Yes Yes Yes ScratchBlocker-Beschichtung: Yes Yes Yes Yes Power Blade rotor: Yes Yes Yes Yes Warranty: 24 month 24 month 24 month 24 month * according to ISO 14457.
** Multiflex® is a trademark of a third party not affiliated with W&H Dentalwerk Bürmoos GmbH.Synea Fusion
Types: TG-97 L TG-97 L RM TG-97 LM TG-97 L N TG-97 TG-98 L TG-98 L RM TG-98 LM TG-98 L N TG-98 Light: LED+ compact glass rod – LED+ compact glass rod – Coupling: Roto Quick: TG-97, TG-97 L
RM connection: TG-97 L RM
Multiflex®**: TG-97 LM
NSK Mach®**: TG-97 L NRoto Quick: TG-98, TG-98 L
RM connection: TG-98 L RM
Multiflex®**: TG-98 LM
NSK Mach®**: TG-98 L NHead size: Ø 10 mm Ø 11,5 mm Head height: 21,1 mm
(with bur 19 mm)21,4 mm
(with bur 19 mm)Power up to*: 23 W 22 W 24 W 20 W 21 W 28 W 26 W 29 W 24 W 24 W rpm (min-1): 390.000 ± 30.000 360.000 ± 30.000 FG bur, with Ø 1,6 mm, according to ISO 1797
Max. operating part diameter:
Max. length:2 mm
21mm2 mm
25 mmWeight: 40 g 43 g 68 g 50 g 40 g 40 g 44 g 70 g 52 g 42 g Roto Quick connection operating pressure:
Multiflex®** connection operating pressure:3 ± 0,3 bar
2,5 to 4 barSpray: 4-fold Hygiene head system: Yes ScratchBlocker-Beschichtung: Yes Power Blade Rotor: Yes Warranty: 24 month * according to ISO 14457.
** Multiflex® and NSK Mach® are trademarks of a third party not affiliated with W&H Dentalwerk Bürmoos GmbH.
