Smart assistance for advanced implantology
Implantmed Plus II is becoming an indispensable assistant in the operating theatre. The aim is to support the user‘s efficiency in the best possible way, whether during implant insertion or wisdom tooth extraction.

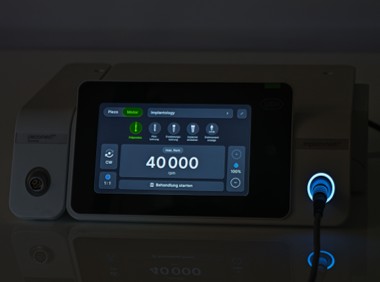

Intelligent Light-Guide
Orientation at a glance
The intelligent Light-Guide ensures immediate orientation even in stressful situations by indicating the respective application.
![]()

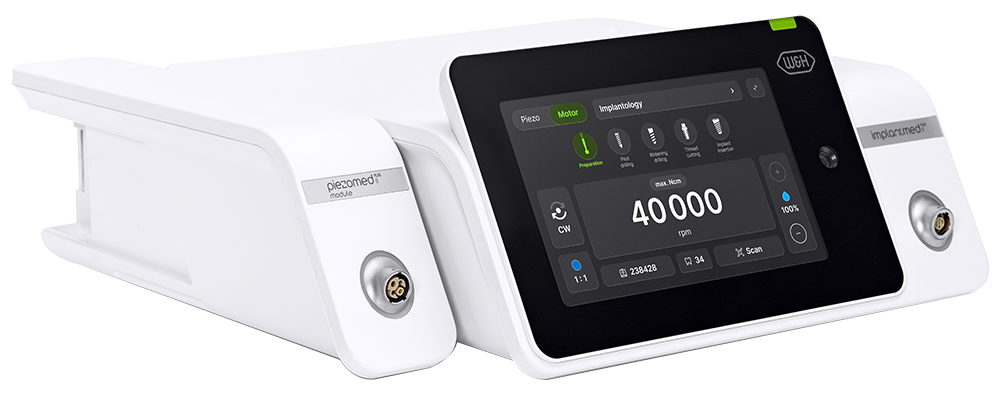

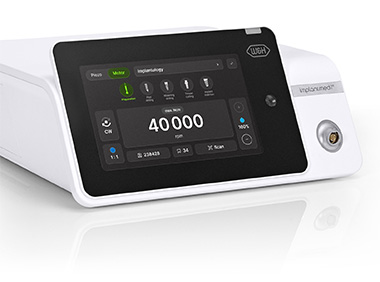

7“ display and intuitive user interface
More clarity, more control
A significantly larger 7" display, which is even more powerful and comes with an optimised user interface, enables simple and intuitive operation.
![]()

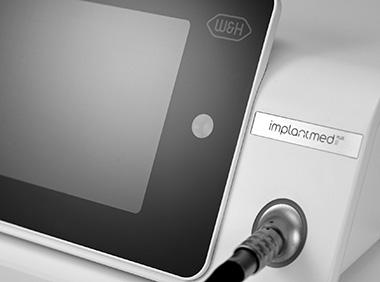

Integrated scan function
Fast, secure documentation and traceability.
With the integrated scan function and the connection to ioDent®, time-consuming manual documentation of used materials, like implants and biomaterials, belongs to the past.
![]()

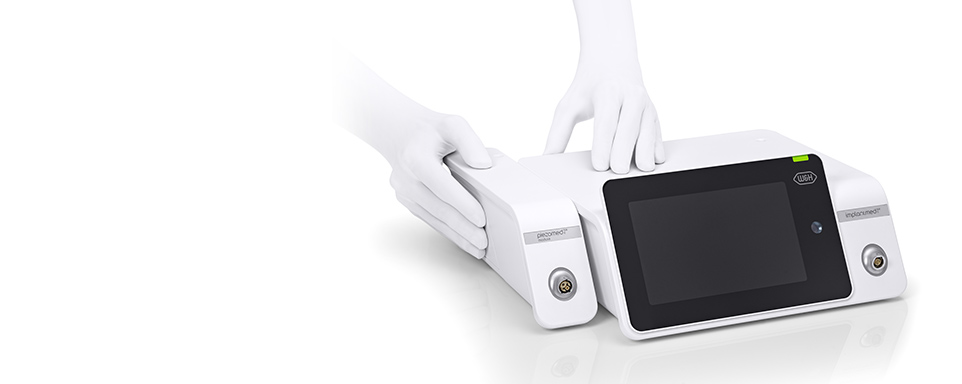

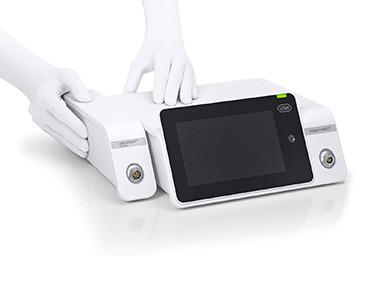

Two in one
Maximum modularity, high flexibility, minimum setup.
The Piezomed module Plus II is simply connected to the device via a sliding mechanism – no cables, no additional power supply.
![]()
ioDent® Smart connection
Intelligent dental solutions. Extended service support.
The ioDent® system offers intelligent dental solutions and enables extended service support. With built-in Wi-Fi, connecting the Implantmed Plus II to the W&H ioDent® platform is easier than ever.
For a seamless and efficient treatment workflow
The connection to planning software enables the device to be automatically preconfigured with all relevant parameters before treatment.
Stay in control and never lose track
With a one-time registration of the device, the foundation is laid for a digital device log book throughout its entire lifecycle.
Always up to date
Thanks to remote update capabilities, the device always stays up to date with the latest software. New features can be unlocked directly by the end user via the ioDent® platform.
Easy and efficient data management
By simply connecting the device, all treatment data, including ISQ values via Osstell Beacon integration, is automatically documented for each patient.
Find out more about ioDent® from W&H at iodent.com
-
Implantmed Plus II Features at a glance
Features: SI-2102
(Scan-Edition)SI-2101
(wireless)SI-2100
(wired)Scan function:
n.a. n.a. ioDent® connection:
ioDent®
FeaturesDevice logbook &
Service interface:
Remote software update:
Presetting:
Digital documentation
(Implant passport):
Modularity:
Light-Guide:
Wireless foot control:
n.a. Wired foot control: n.a. n.a.
Osstell Beacon connection:
Warranty: 12 months 12 months 12 months

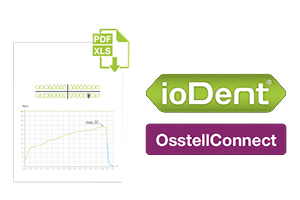

Your compass for tomorrow‘sdental surgery
The W&H Oral Surgery Compass serves as a practical guide through the individual treatment steps in oral surgery and implantology – from diagnosis and treatment to final documentation.
W&H Oral Surgery Compass
2. TREATMENT PLANNING

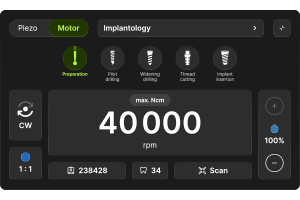

3. PROTOCOL PRESETTING

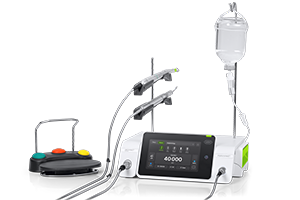

4. TREATMENT

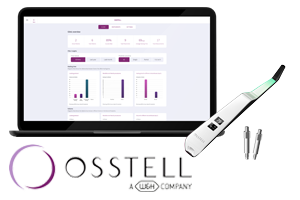

5. MONITORING & DECISION SUPPORT Original Osstell technology

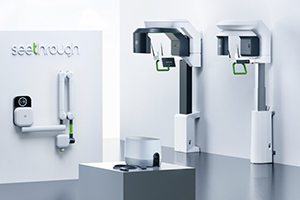

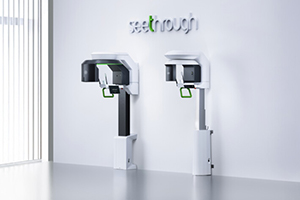

1. IMAGE ACQUISITION
6. DOCUMENTATION
Digital technologies are revolutionising dental treatment. With the optimal integration of devices, software and digital processes, W&H supports users in making every step of treatment efficient, safe and patient-oriented. W&H products work hand in hand, are interconnected and complement each other.
Implantmed Plus II keeps evolving
Software updates available via ioDent®
With the free software updates for the Implantmed Plus II platform, you can benefit from new features, optimised workflows and expanded digital capabilities. The updates are conveniently delivered remotely via the integrated ioDent® connection, giving you quick and easy access to the latest innovations and improvements.
The software updates at a glance:
![]()

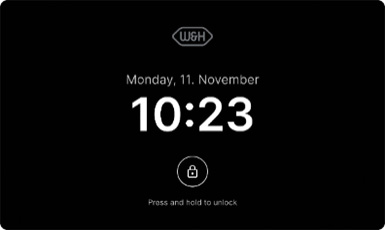

Quick screen lock for hygiene workflowsQuick screen lock for hygiene workflows
A screen lock is now directly accessible on the main screen, allowing for quick and easy activation for manual wipe disinfection.

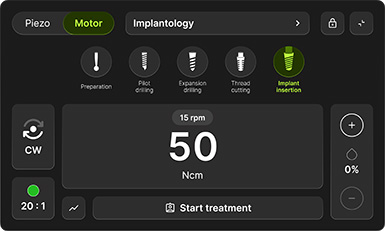

Improved implant insertion settingsImproved implant insertion settings
The last torque curve can now be reviewed even without starting documentation. If documentation is required, the last curve can also be saved retrospectively.

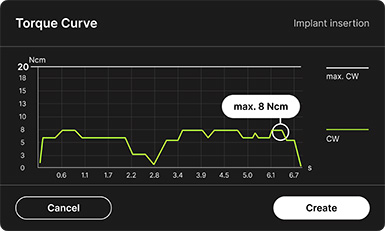

Review of last torque curveReview of last torque curve
The last torque curve can now be reviewed even without starting documentation. If documentation is required, the last curve can also be saved retrospectively.

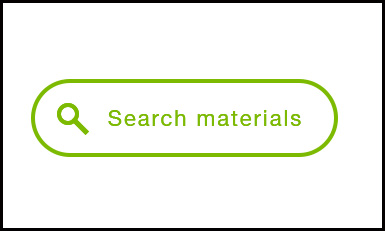

Fast and efficient material searchFast and efficient material search
New features available on ioDent®
The search functionality on ioDent® makes it easy to find and track used materials. Especially helpful in cases such as implant or biomaterial recalls. Thanks to the scan function of the Implantmed Plus II SI-2102, materials can be digitally recorded and easily searched within ioDent® whenever needed.
Customisable implant passportCustomisable implant passport
New features available on ioDent®
ioDent® offers a digital implant passport that can be personalised with the practice logo. It can be saved digitally, sent directly to patients, or printed if needed.

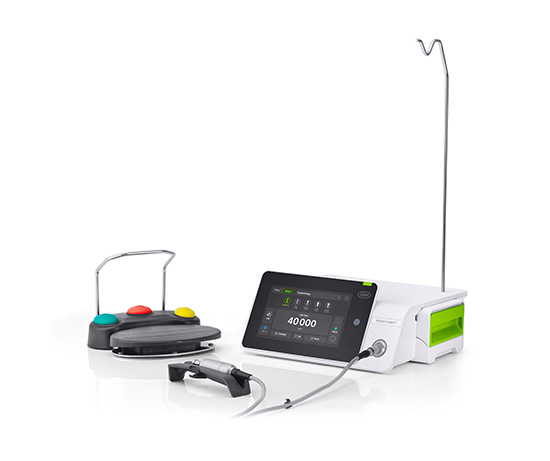

![Implantmed Plus II Scan-Edition]( "Implantmed Plus II Scan-Edition")
Sales packImplantmed Plus II Scan-Edition
Implantmed Plus II Scan-Edition
Consisting of:
• Control unit SI-2102 with scan function
• Motor EM-19 LC with light and 1.8 m cable including 5 clips
• Wireless foot control S-NW3
• Stand
• Universal support
• Mains cable
• Disposable irrigation tubings (6 pcs.)
![Implantmed Plus II “wireless”]( "Implantmed Plus II “wireless”")
Sales packImplantmed Plus II “wireless”
Implantmed Plus II “wireless”
Consisting of:
• Control unit SI-2101
• Motor EM-19 LC with light and 1.8 m cable including 5 clips
• Wireless foot control S-NW3
• Stand
• Universal support
• Mains cable
• Disposable irrigation tubings (6 pcs.)

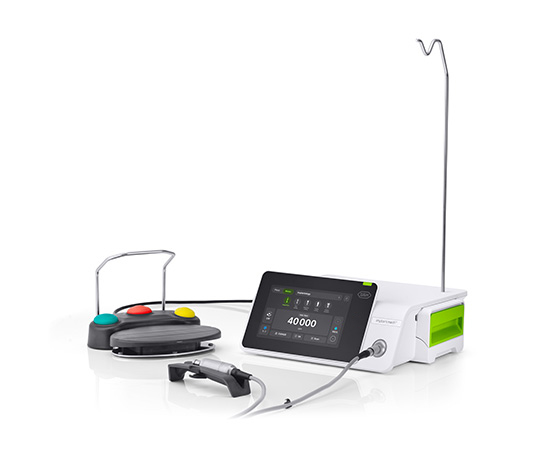

![Implantmed Plus II “wired”]( "Implantmed Plus II “wired”")
Sales packImplantmed Plus II “wired”
Implantmed Plus II “wired”
Consisting of:
• Control unit SI-2100
• Motor EM-19 LC with light and 1.8 m cable including 5 clips
• Wired foot control S-N3
• Stand
• Universal support
• Mains cable
• Disposable irrigation tubings (6 pcs.)Download Area
FAQ
-
Do I need a protection cap for the Implantmed/Elcomed motor?
No protection cap is needed. more
-
What types of tubing can I use on with my device?
For motors with a length of 1.8 m you can use single-use tubings (04363600) or sterilizable ones (0417XXX). For the combination of Implantmed and Piezomed module, we offer a tubing with a Y-valve (08072750). You also can find the appropriate tubings in the instructions for use of the device. more
-
Can other brands of tubing be used?
No, only W&H-approved irrigation tubings are permitted. This is due to specifications (material, dimensions, coolant flow), which could cause problems like leakage, insufficient cooling, or even damage to the device. more
-
Is it possible to adjust the motor speed with the implant insertion program?
Yes, the torque as well as the speed can be set for implant insertion. more
-
Is every Implantmed compatible with the W&H Osstell ISQ module?
Implantmed Plus control units SI-1023, SI-1015 and SI-1010 can be upgraded with the W&H Osstell ISQ module. For the new generation of Implantmed Plus II the Osstell Beacon can be connected. more
-
Can our customers disassemble the contra-angles
Yes. At W&H the letter "S" always communicates, that the surgical contra-angle is disassemble. The letter "I" communicates, that the surgical contra-angle cannot be disassembled (e.g. WS-75 L vs. WI-75) more
-
Can Implantmed devices be retrofitted with the wireless foot control?
Implantmed Plus devices can be retrofitted. Simply plug the supplied dongle into the device and operate it using the wireless foot control. For Implantmed Plus II devices, you must decide whether you want a wireless or wired device version when purchasing. Retrofitting is not possible. more
-
Are old cable foot controls compatible with the new unit or vice versa?
See overview table.
moreFoot control Implantmed Classic SI-9xx /Implantmed Plus SI-10xx Implantmed Plus II SI-2102 Implantmed Plus II SI-2101 Implantmed Plus II SI-2100 S-NW3 wireless foot control no yes yes no Wired foot control S-N3 no no no yes Foot controls S-N2 / S-NW yes no no no -
Which motors are compatible with which Implantmed devices?
See overview table.
moreMotor Implantmed ClassicSI-9xx Implantmed PlusSI-10xx Implantmed Plus IISI-21xx EM-19 yes yes no EM-19 LC no yes yes Older motor versions no no no -
What does the LC in EM-19 LC stand for, is there a LED in the motor?
The LC stands for light contacts. This means that we have integrated an electrical connection into our new motors. The light contacts supply our contra-angle handpieces with the “L” suffix (e.g. WS-75 L) with power, thus providing optimal light at any speed. more
-
Can current contra-angles be attached to motors?
Yes. All W&H surgical contra-angles and handpieces can be attached to the motor EM-19. more
-
Can the contra-angles be attached to old motors?
No. In order to ensure optimal balance, we have shortened the inner coupling length. Therefore, contra-angle handpieces with only the “L” suffix cannot be attached to older motors, but only to EM-19 and EM-19 LC. more
-
Is it possible to use the Implantmed Classic in combination with the wireless foot control?
No, the Implatmed Classic can only be operated via a wired foot control. more
-
Piezomed module: can devices be retrofitted on the market?
Yes, devices can be retrofitted by users. The following combinations are possible: Implantmed Plus with Piezomed Plus module or Piezomed Classic module. Implantmed Plus II with Piezomed Module Plus II. more
-
Piezomed module: are the handpieces of the modules SA-40 and SA-40 L compatible with the Piezomed device SA-320?
No, they are not compatible. more
-
Can I connect the Implantmed Plus II to my practice Wi-Fi?
Yes, the device supports any encrypted 2.4GHz Wi-Fi network. more
-
Can I connect the Osstell Beacon to the Implantmed Plus II?
Yes, the Osstell Beacon can be connected via a USB-A/USB-C adaptor. more
-
Can I update my Implantmed Plus II software later?
Yes, simply create an ioDent® account and connect your device to it. You will then be shown available software updates for your device. more
-
Will the implants I use be detected during scanning?
All medical devices with a valid code are displayed on the screen after scanning. When connected to ioDent®, the materials are displayed in plain text (name, serial number, etc.) in the patient documentation. more
-
Do I need a connection to ioDent® to use Implantmed Plus II?
No, not for basic use of the device. However, connecting to ioDent® offers additional features. For example, users can then perform software updates themselves. more
-
Which codes can be scanned?
DataMatrix codes. They contain structured product information in accordance with the MDR and are standard for medical devices. more
-
Can QR codes and barcodes be scanned?
No. QR codes and barcodes cannot be scanned. more
-
Can I use my Galileos implant software (a proprietary software package of SICAT implant) for integration with ioDent®?
Yes, but an update is required. more
-
Can I see in SICAT portal when ioDent® is connected?
Yes, in the SICAT portal under: Profile > Account Settings > External Connections more
-
Where can I download SICAT Implant/SICAT Suite?
You can download the product here https://www.sicat.com/wh, using the voucher code included with every Implantmed. more
-
Which Implant manufacturers protocols are supported in ioDent® protocol library?
Currently the following protocolls are supported:
BIOHORIZONS IMPLANT SYSTEMS, INC bredent medical GmbH & Co. KG CAMLOG Biotechnologies GmbH Dentsply Implants Manufacturing GmbH Implacil De Bortoli Material Odontológico S.A Nobel Biocare AB Patent Medical AG S.I.N. Implant System Institut Straumann AG Thommen Medical AG TRI Dental Implants Int. AG more -
What happens if I define an implant that can be planned in SICAT Implant, but there is no corresponding protocol in ioDent®?
In ioDent® you will be informed that the protocol is not available and that the standard Implantmed protocol is also set for the treatment. more
-
What are the main advantages of SICAT Implant software?
For questions regarding SICAT itself, please contact SICAT colleagues who will answer specific questions. Detailed how-to videos are provided in the ecademy.sicat.com. In general, SICAT enlarges the advantages of planning and treatment with rapid digital guidance. more
-
Can I integrate my existing SICAT Implant installation into ioDent®?
Yes, integration with SICAT Implant 2.0 is generally possible. Only the licence key needs to be verified. more
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Videos & Tutorials
-
-
Implantmed Plus II
Type: SI-2102
(Scan-Edition)
SI-2101
(wireless)SI-2100
(wired)Mains voltage: 100–240 V Frequency: 50–60 Hz Maximum power consumption: 220 VA Maximum power output: 80 W Maximum torque at motor: 6.2 Ncm Speed range on the motor: 200–40,000 rpm Coolant flow rate at 100%: at least 90 ml/min Dimensions in mm (height × width × depth): 130 × 293 × 283 mm Weight: 2,6 kg
