Piezomed module Plus II

eBook Clinical and Application Booklet – Piezomed

The breakthrough in oral surgery

With the Piezomed module Plus II the device combines a surgical motor and piezo surgery in one device. This covers a wide range of surgical applications. Once again, it stands out with powerful performance, automatic instrument detection and integrated light.

Discover Product

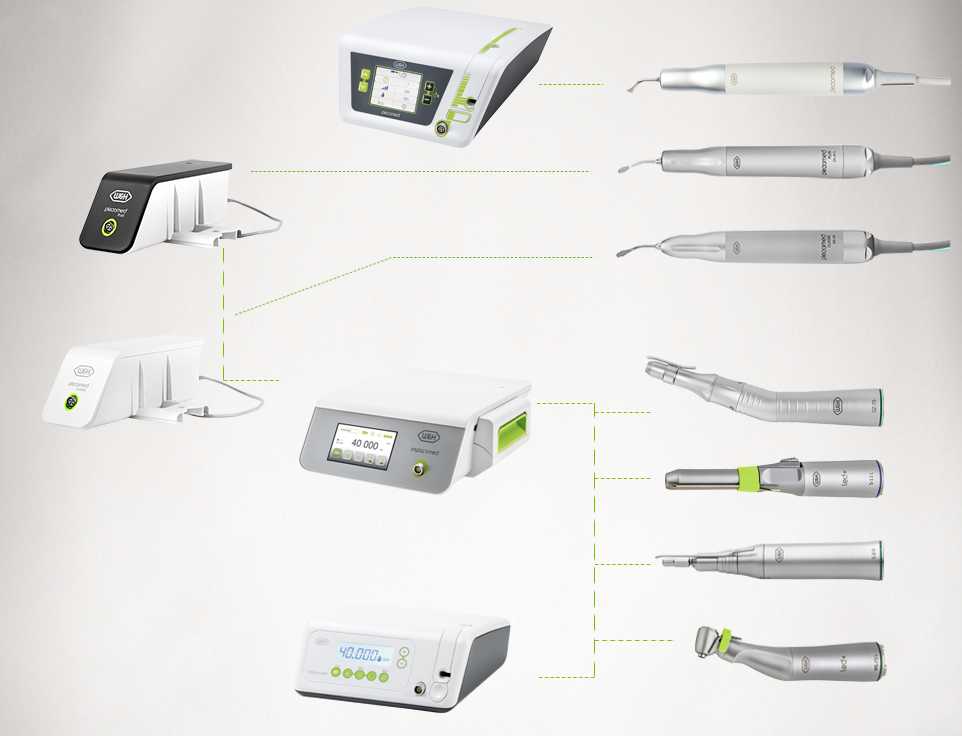

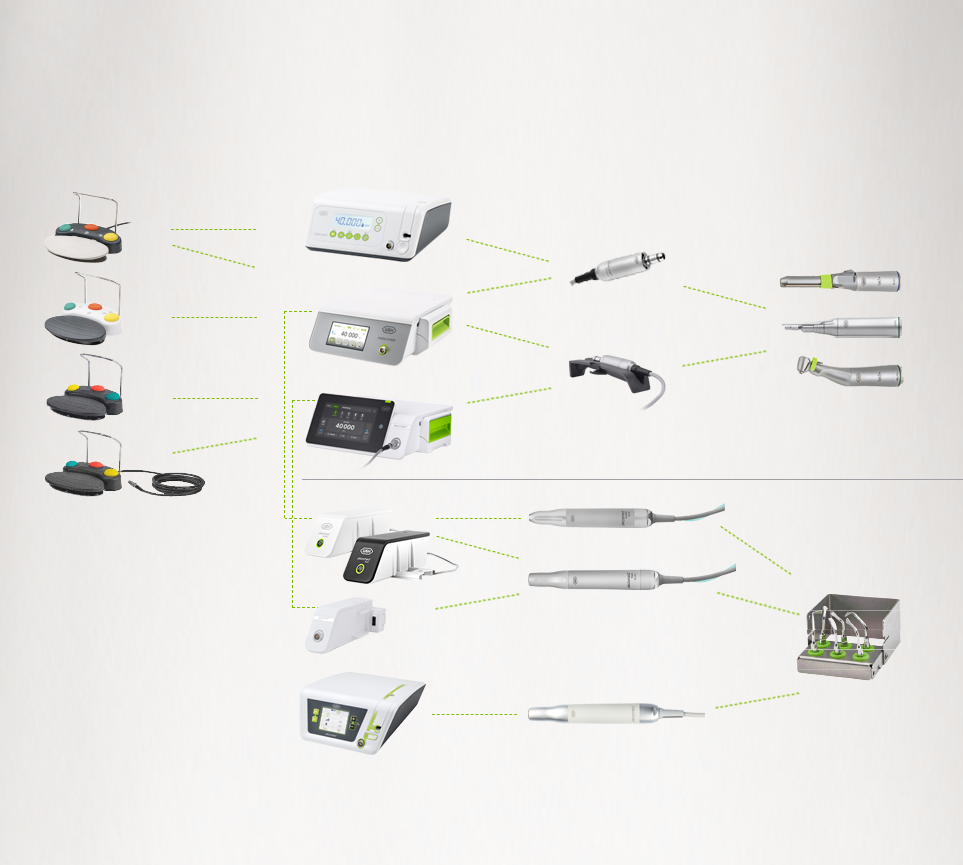

System Overview

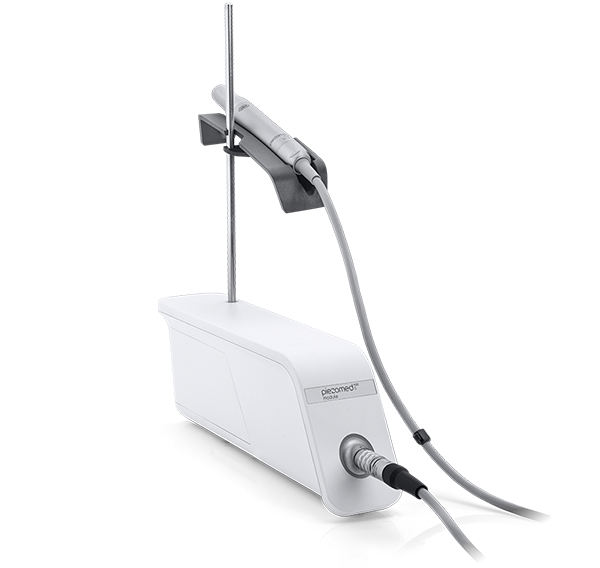

Piezomed module Plus II
Technical data

High flexibility, minimum setup.

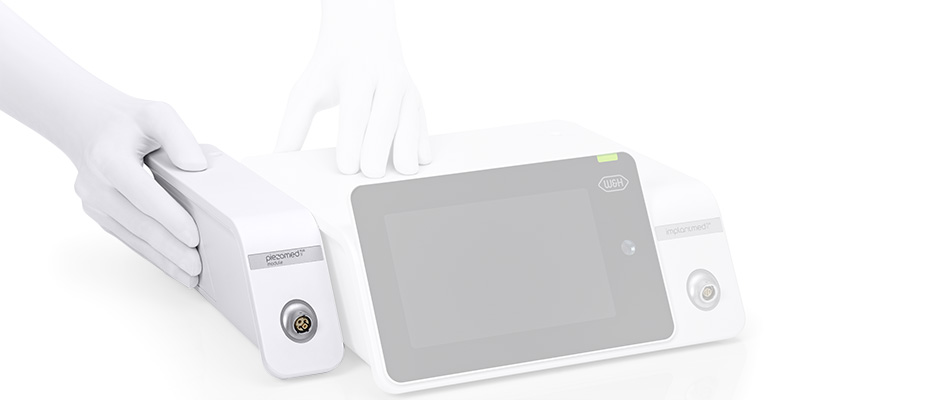

The new Piezomed module Plus II* is simply connected to the device via a sliding mechanism – no cables, no additional power supply.
Control remains intuitive via the foot control or the touchscreen, now enhanced with a prominent integration into the main screen for faster access and greater clarity in everyday use.

*only in connection with Implantmed Plus II

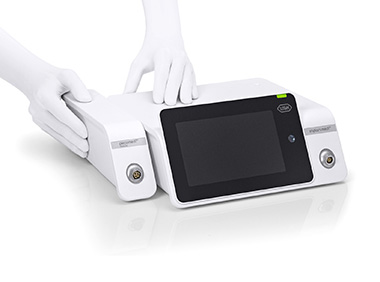

Modularity

Maximum modularity, high flexibility, minimum setup.

The Piezomed module Plus II is simply connected to the device via a sliding mechanism – no cables, no additional power supply.

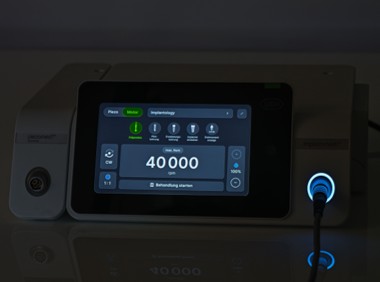

Intelligent Light-Guide

Orientation at a glance

The intelligent Light-Guide ensures immediate orientation even in stressful situations by indicating the respective application.

Connectivity

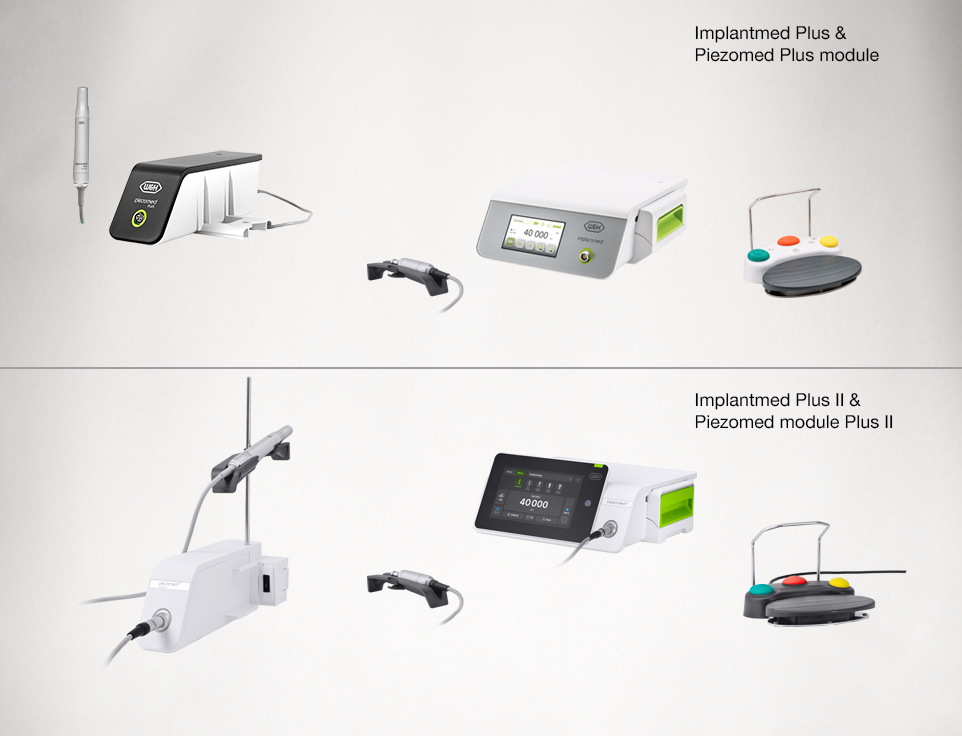

Connectivity to Implantmed Plus II

W&H products work hand in hand, are connected and complement each other.

Piezomed module Plus II Features at a glance

Features	SP-210 M
Automatic instrument detection
Instrument library
24 watts
Light (with handpiece SA-40 L)
Modular Interface
Warranty	12 months

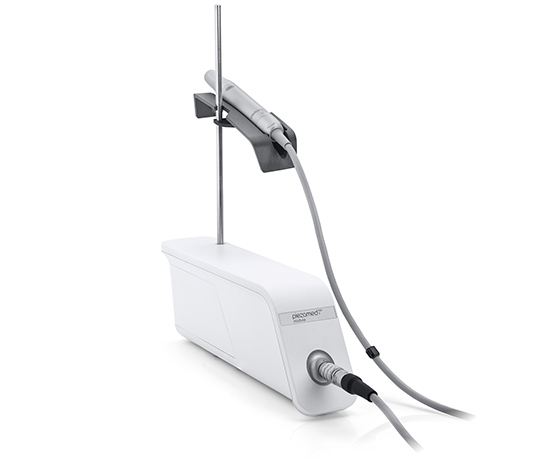

Set Piezomed module Plus II

Set Piezomed module Plus II
REF 90000421

• Piezomed module Plus II
• Handpiece with light SA-40 L
• Irrigation tubes with Y-valve
• Accessories

Request price

Download Area

FAQ

Instructions for use

Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

Downloads

Videos & Tutorials

For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

Service

Piezomed module Plus II

Type	SP-210 M
Maximum power output (ultrasonic):	24 W
Operating frequency:	22–35 kHz
Coolant flow rate at 100%:	at least 90 ml/min
Operating mode:	S3 (80 s ON / 330 s OFF) maximum 4 repeats
Dimensions in mm (height × width × depth):	99 × 93 × 283
Weight:	755 g
